RENAULT TALISMAN 2016 1.G Owner's Manual

RENAULT TALISMAN 2016 1.G Owner's Manual https://www.carmanualsonline.info/img/7/1625/w960_1625-0.png RENAULT TALISMAN 2016 1.G Owner's Manual

Page 21 of 328

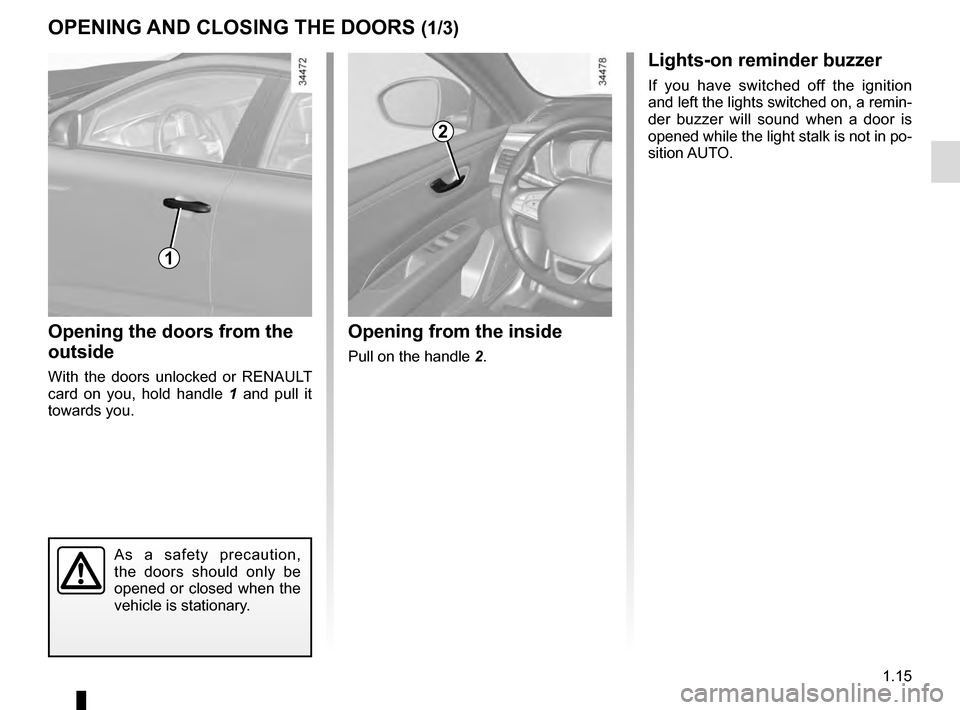

RENAULT TALISMAN 2016 1.G Owners Manual 1.15
OPENING AND CLOSING THE DOORS (1/3)
Opening the doors from the
outside
With the doors unlocked or RENAULT
card on you, hold handle 1 and pull it
towards you.
Opening from the inside
Pull on th

Page 22 of 328

RENAULT TALISMAN 2016 1.G Owners Manual 1.16
OPENING AND CLOSING THE DOORS (2/3)
4
Door/tailgate open buzzer
At a standstill, warning light 3 lights
up on the instrument panel alongside
warning light  4, indicating the opening
element(s)

Page 23 of 328

RENAULT TALISMAN 2016 1.G Owners Manual 1.17
OPENING AND CLOSING THE DOORS (3/3)
Child safety
Move lever 5 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
Driver’s r

Page 24 of 328

RENAULT TALISMAN 2016 1.G Owners Manual 1.18
AUTOMATIC LOCKING WHEN DRIVING
Operating principleAfter the vehicle is started, the system
automatically locks the doors when you
are driving at approximately 6 mph
(10 km/h) and over.
The doo

Page 25 of 328

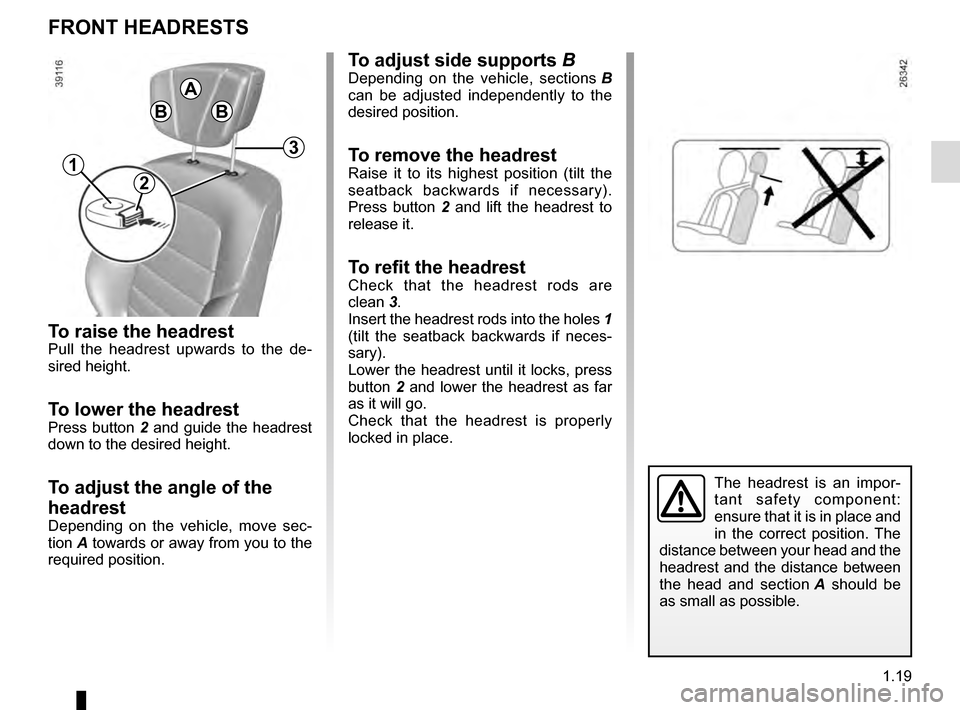

RENAULT TALISMAN 2016 1.G Owners Manual 1.19
To raise the headrestPull the headrest upwards to the de-
sired height.
To lower the headrestPress button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headres

Page 26 of 328

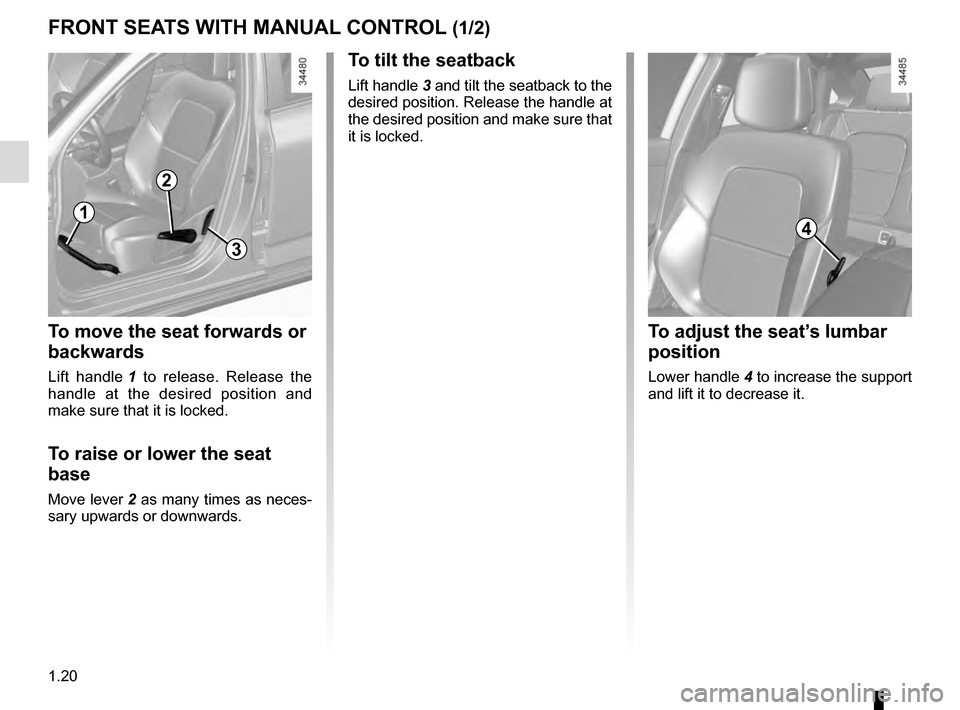

RENAULT TALISMAN 2016 1.G Owners Manual 1.20
FRONT SEATS WITH MANUAL CONTROL (1/2)
To move the seat forwards or
backwards
Lift handle  1 to release. Release the
handle at the desired position and
make sure that it is locked.
To raise or

Page 27 of 328

RENAULT TALISMAN 2016 1.G Owners Manual 1.21
Heated seats
With the ignition on:
–  pressing the switch 5 on the required
seat for the first time activates the
heating system at maximum power.
Both integrated switch warning lights
come

Page 28 of 328

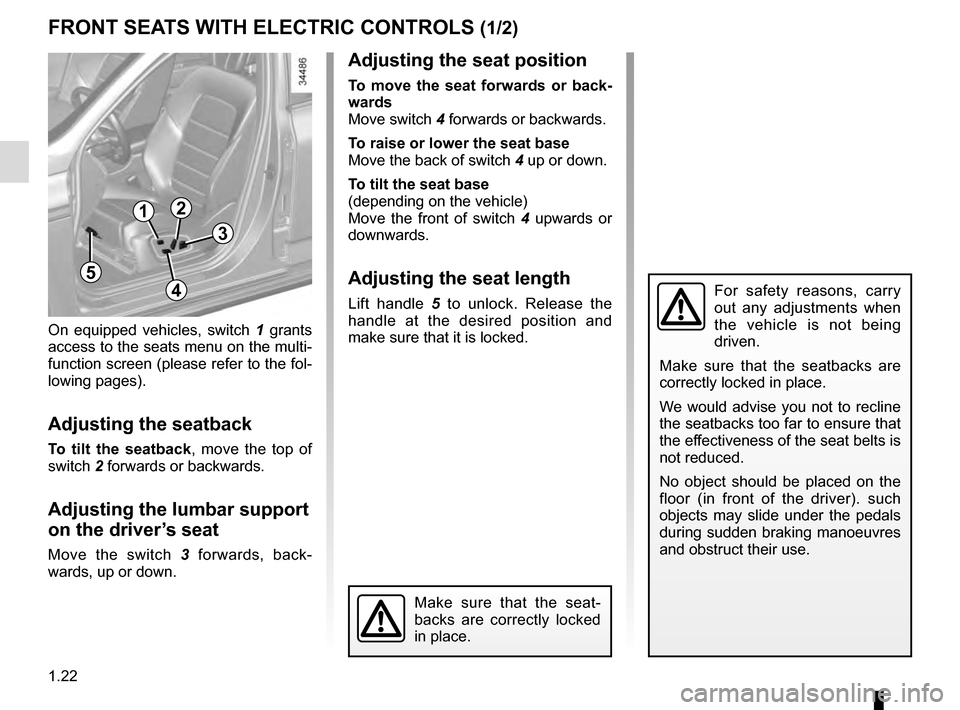

RENAULT TALISMAN 2016 1.G Owners Manual 1.22
FRONT SEATS WITH ELECTRIC CONTROLS (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Make sure that the seatbacks are
correctly locked in place.
We wou

Page 29 of 328

RENAULT TALISMAN 2016 1.G Owners Manual 1.23
FRONT SEATS WITH ELECTRIC CONTROLS (2/2)
6
Heated seats
With the ignition on:
–  pressing the switch 6 on the required
seat for the first time activates the
heating system at maximum power.

Page 30 of 328

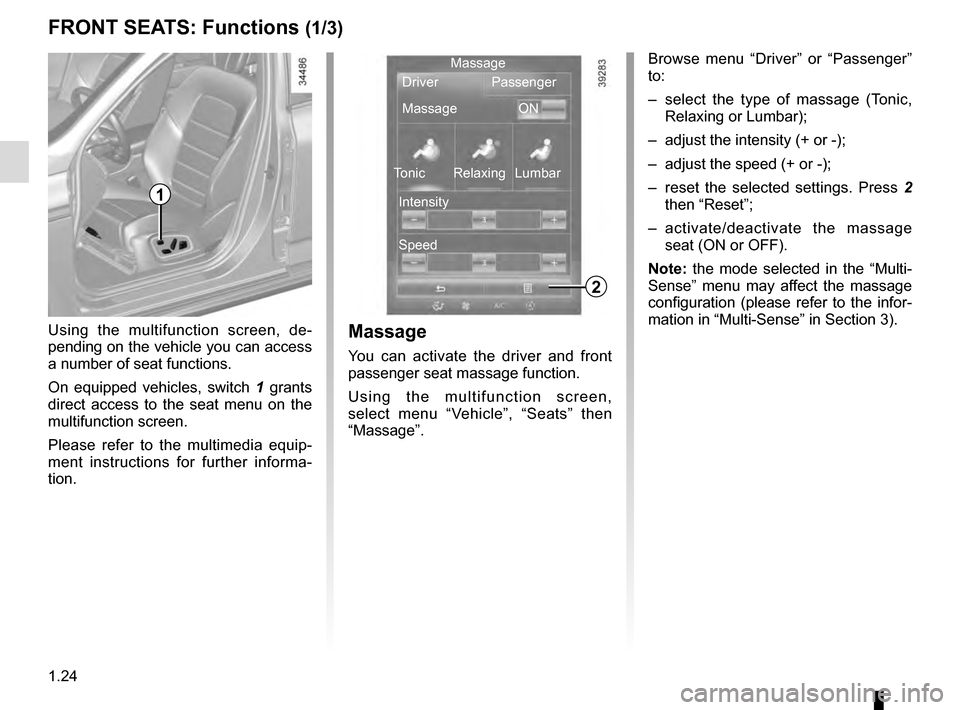

RENAULT TALISMAN 2016 1.G Owners Manual 1.24
FRONT SEATS: Functions (1/3)Massage
You can activate the driver and front
passenger seat massage function.
Using the multifunction screen,
select menu “Vehicle”, “Seats” then
“Massag
