Page 21 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.15
FRONT DOORS (2/2)
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Card reminder buzzer(dep

Page 22 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.16
SLIDING SIDE DOOR (1/2)
Opening the doors from the
outside
With the vehicle unlocked, pull handle 1
towards you and slide the door towards
the rear.
Opening from the inside
Pull lever 2 toward

Page 23 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.17
Recommendations concer-
ning the sliding side door.
Care must be taken when
opening or closing the sli-
ding door, as is the case for any of
the opening elements on the vehi-
cle:
–  Check th

Page 24 of 292

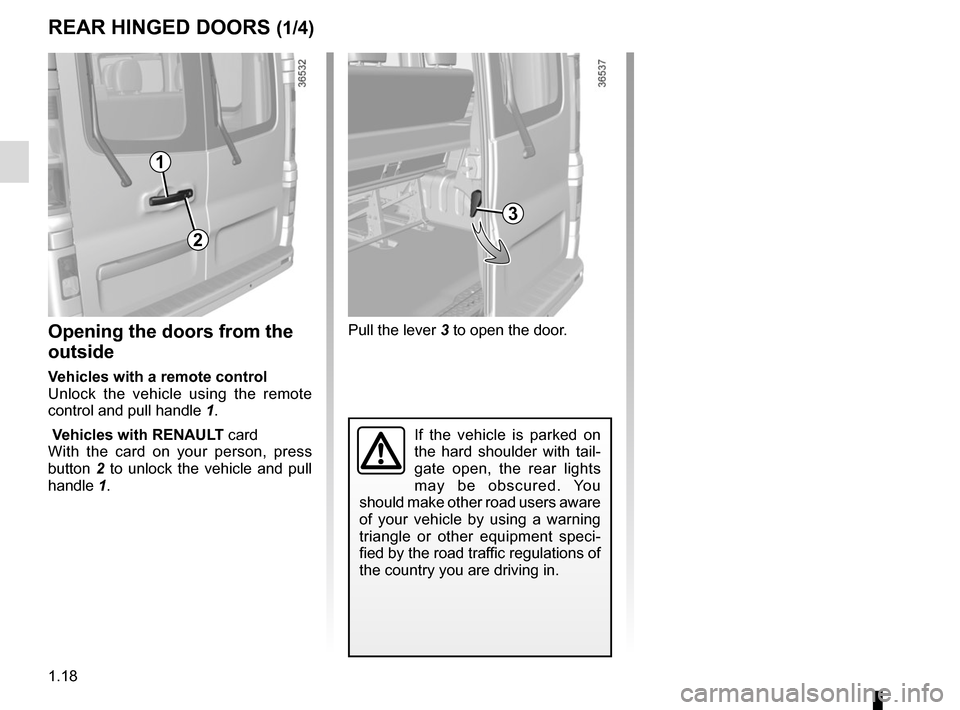

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.18
Pull the lever 3 to open the door.
If the vehicle is parked on
the hard shoulder with tail-
gate open, the rear lights
may be obscured. You
should make other road users aware
of your vehicle

Page 25 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.19
REAR HINGED DOORS (2/4)
4
5
Driving with the right-hand
door open
With the right-hand door open, close
the left-hand door.
On equipped vehicles, lock the left-
hand door by turning the lock 5 t

Page 26 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.20
REAR HINGED DOORS (3/4)
Opening the doors to the
maximum position
For each door, pull handle 6 to release
the door check strap  7. Open the door
as far as possible.
Closing from the outside
Pa

Page 27 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.21
Closing from the inside
Partially close door B, then slam it shut.
Then repeat this with door  A.
REAR HINGED DOORS (4/4)
Opening from the inside
Pull the handle  8 and push the door  A.
Pull the

Page 28 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.22
TAILGATE
To open
With the tailgate unlocked, press the
button 1 and lift the tailgate.
To close
Lower the tailgate, initially using the in-
terior handle 2 to assist you.
When the tailgate has b

Page 29 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.23

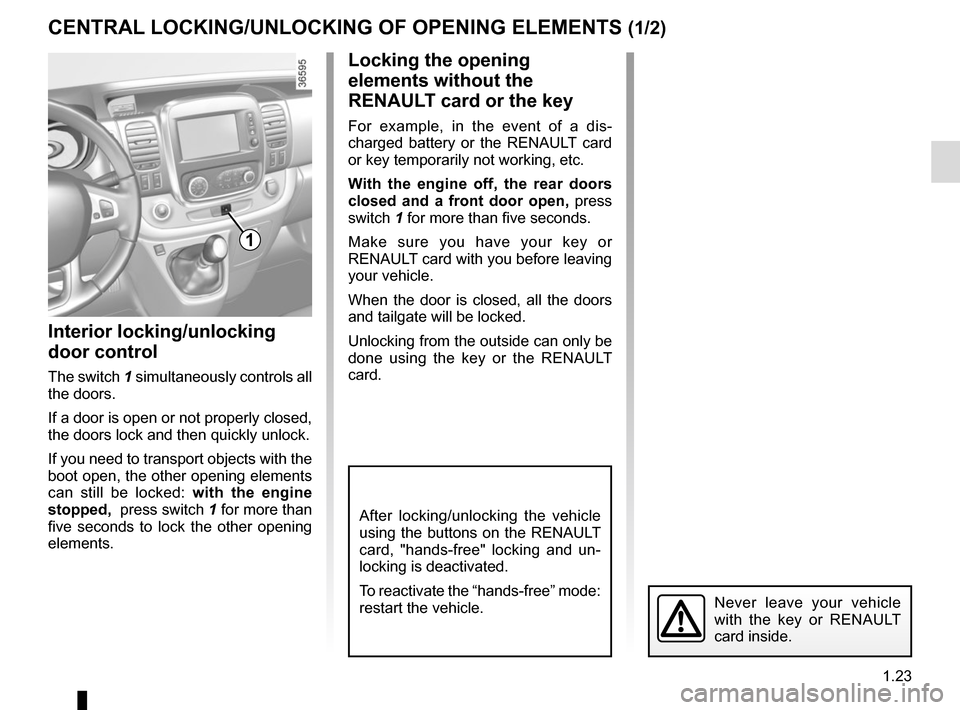

CENTRAL LOCKING/UNLOCKING OF OPENING ELEMENTS (1/2)
Interior locking/unlocking
door control
The switch 1 simultaneously controls all
the doors.
If a door is open or not properly closed,
the do

Page 30 of 292

RENAULT TRAFIC 2015 X82 / 3.G Owners Manual 1.24
CENTRAL LOCKING/UNLOCKING OF OPENING ELEMENTS (2/2)
Locking the doors with the
tailgate open
To lock the vehicle with the boot open
(e.g. when transporting something in
the boot which prevents
