RENAULT TRAFIC 2015 X82 / 3.G Repair Manual

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual https://www.carmanualsonline.info/img/7/1606/w960_1606-0.png RENAULT TRAFIC 2015 X82 / 3.G Repair Manual

Page 61 of 292

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.55
CHILD SEATS: attachment by seat belt (5/14)
X =  Seat not suitable for fitting child seats of this type.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using

Page 62 of 292

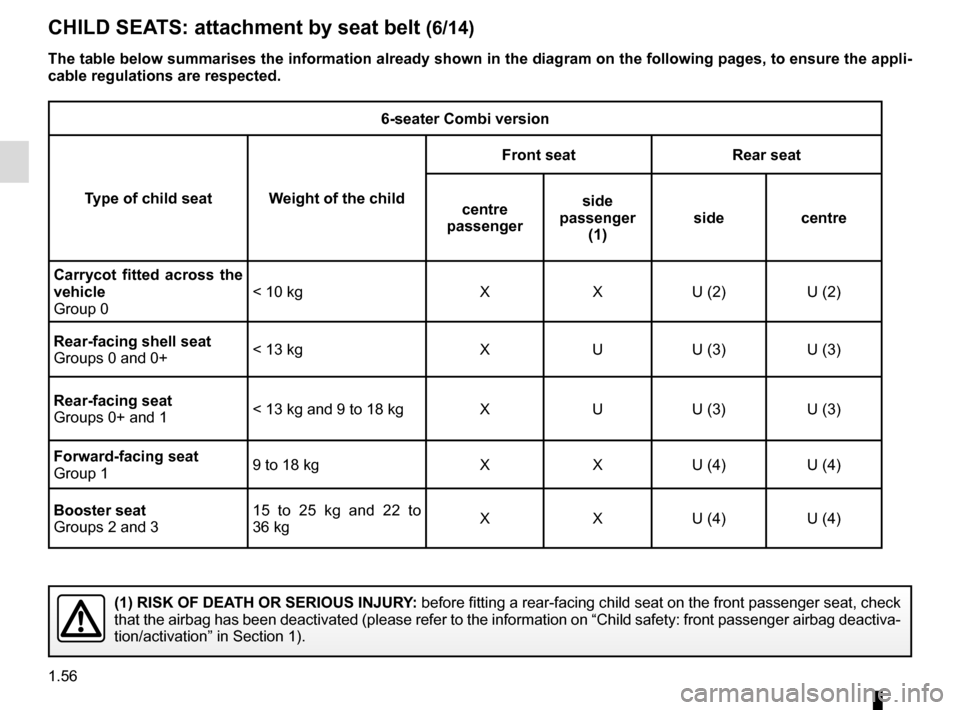

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.56
6-seater Combi version
Type of child seat Weight of the child Front seat Rear seat
centre
passenger side
passenger  (1) side centre
Carrycot fitted across the
vehicle
Group 0 < 10 kg X X U (2)

Page 63 of 292

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.57
CHILD SEATS: attachment by seat belt (7/14)
X =  Seat not suitable for fitting child seats of this type.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using

Page 64 of 292

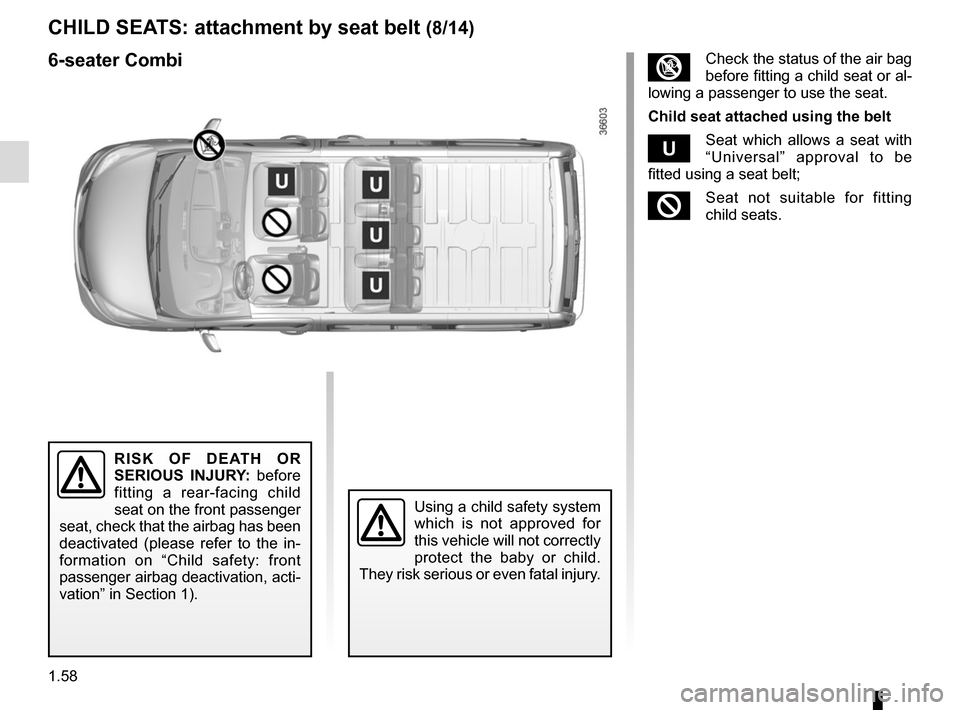

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.58
CHILD SEATS: attachment by seat belt (8/14)
³Check the status of the air bag
before fitting a child seat or al-
lowing a passenger to use the seat.
Child seat attached using the belt
¬Seat whi

Page 65 of 292

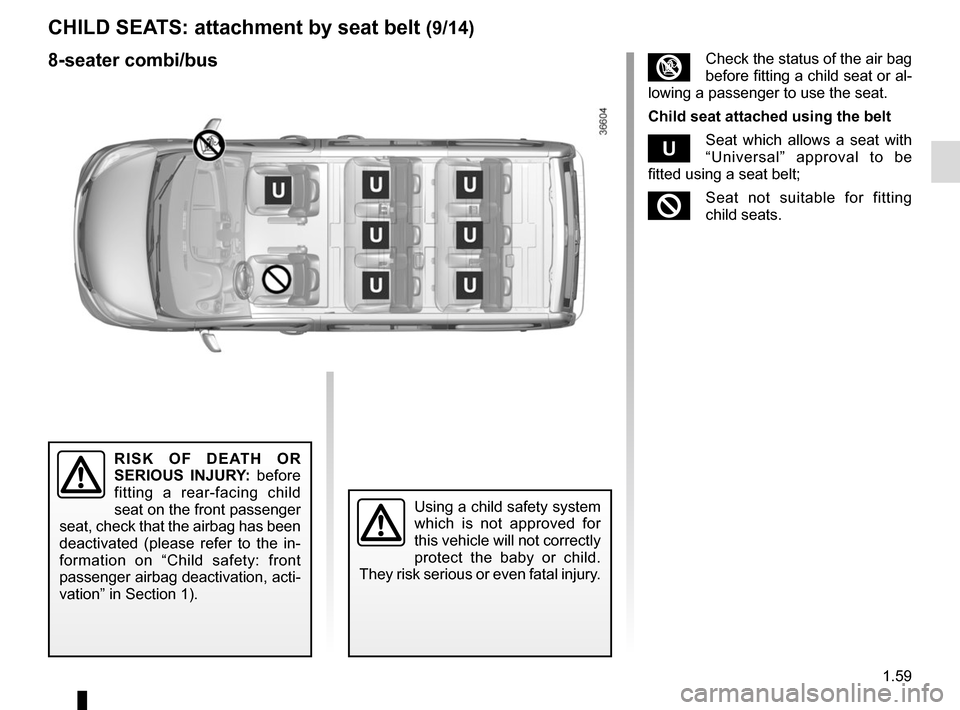

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.59
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat on the front passenger
seat, check that the airbag has been
deactivated (please refer to the in-
formation on “Chil

Page 66 of 292

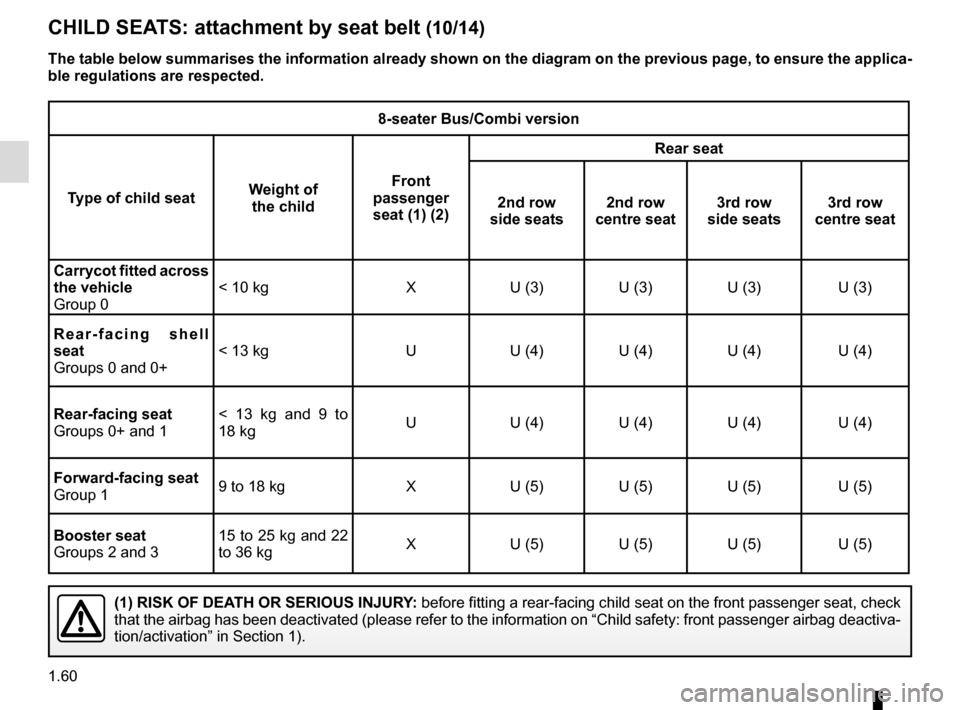

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.60
CHILD SEATS: attachment by seat belt (10/14)
8-seater Bus/Combi version
Type of child seat Weight of
the child Front
passenger  seat (1) (2) Rear seat
2nd row
side seats 2nd row
centre seat 3

Page 67 of 292

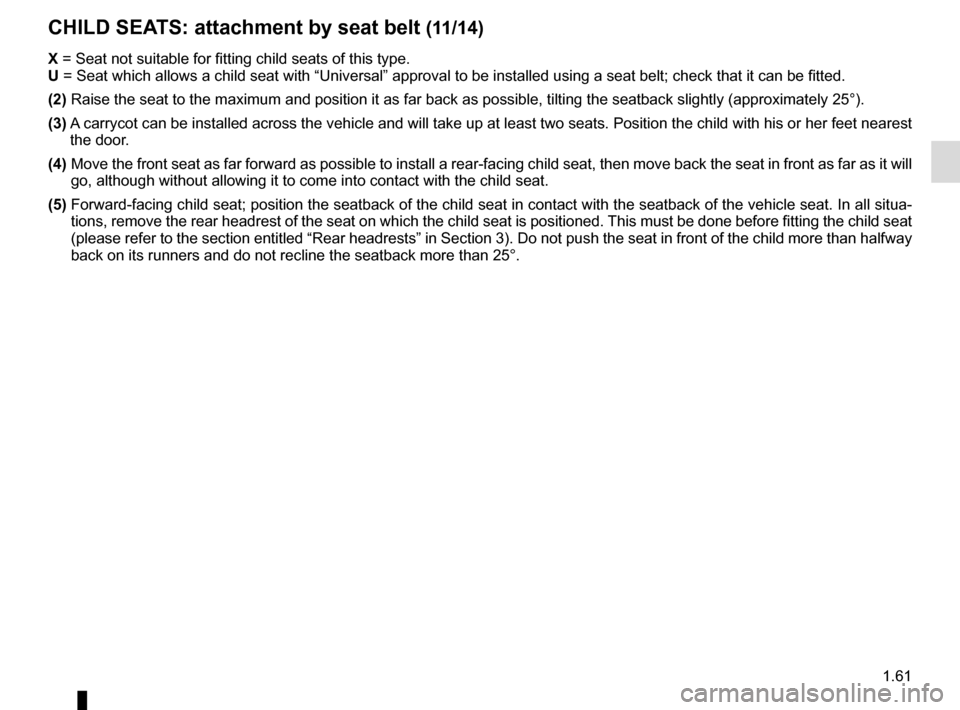

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.61
CHILD SEATS: attachment by seat belt (11/14)
X =  Seat not suitable for fitting child seats of this type.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using

Page 68 of 292

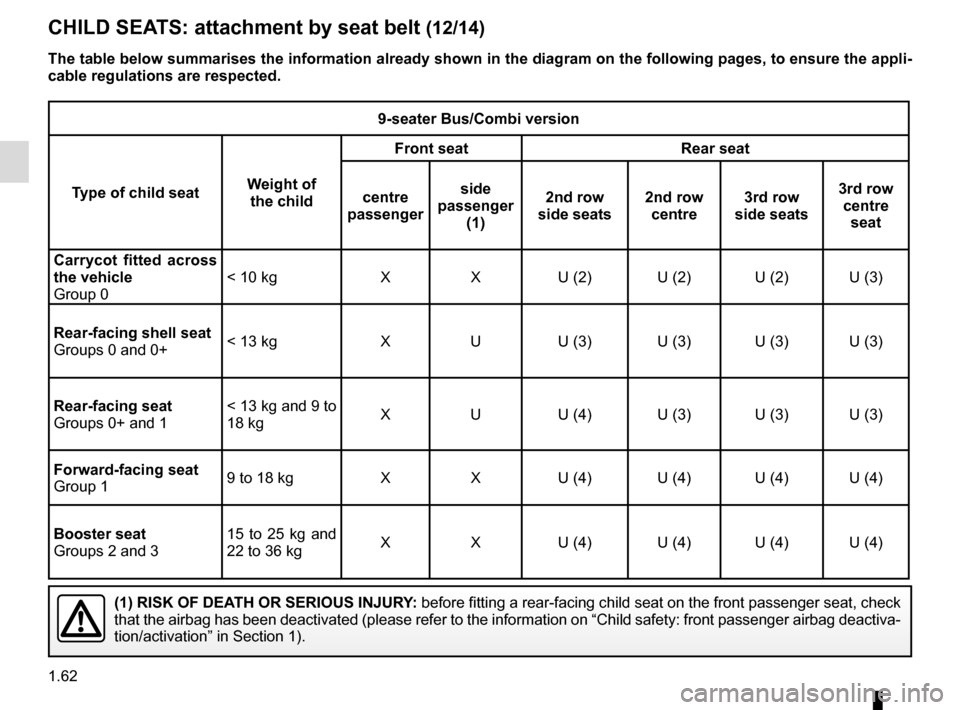

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.62
CHILD SEATS: attachment by seat belt (12/14)
9-seater Bus/Combi version
Type of child seat Weight of
the child Front seat Rear seat
centre
passenger side
passenger  (1) 2nd row
side seats 2nd

Page 69 of 292

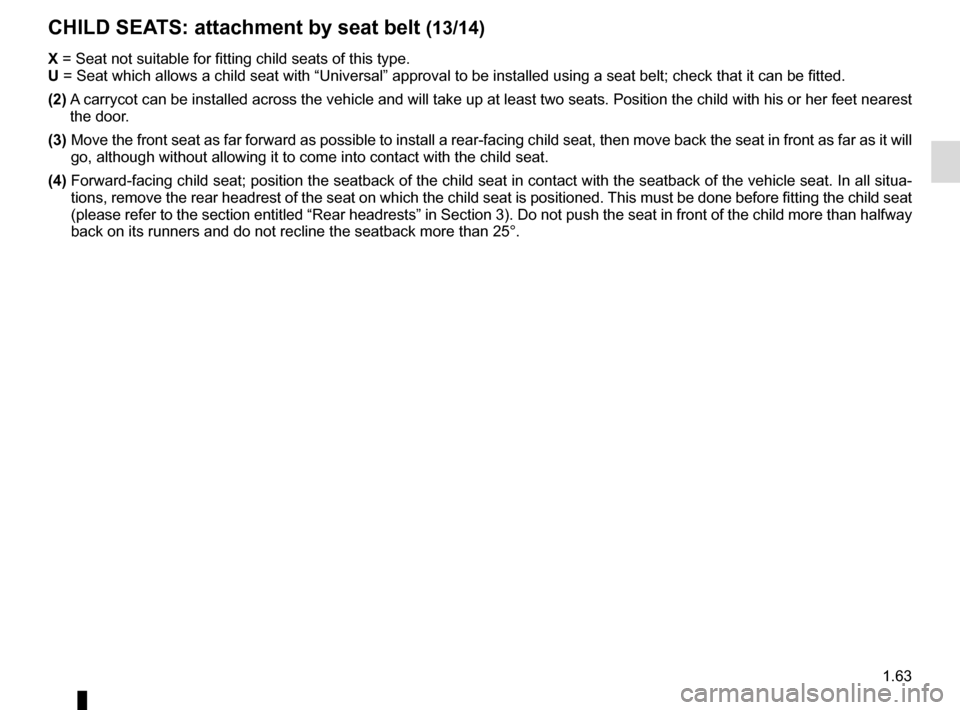

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.63
CHILD SEATS: attachment by seat belt (13/14)
X =  Seat not suitable for fitting child seats of this type.
U =  Seat which allows a child seat with “Universal” approval to be ins\
talled using

Page 70 of 292

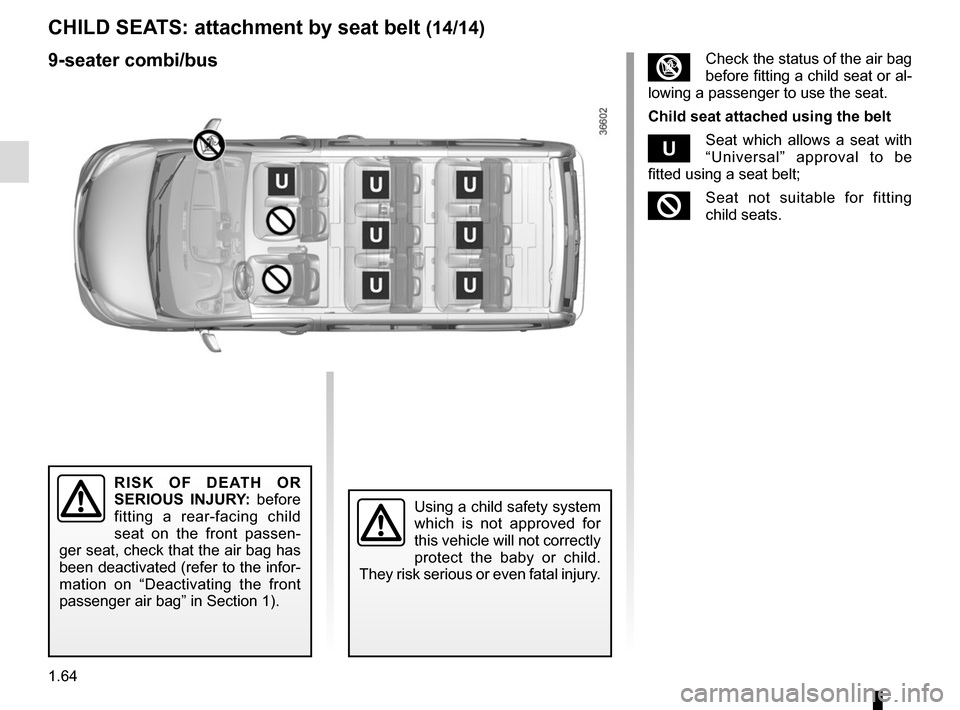

RENAULT TRAFIC 2015 X82 / 3.G Repair Manual 1.64
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat on the front passen-
ger seat, check that the air bag has
been deactivated (refer to the infor-
mation on “Deactivat
