Page 181 of 292

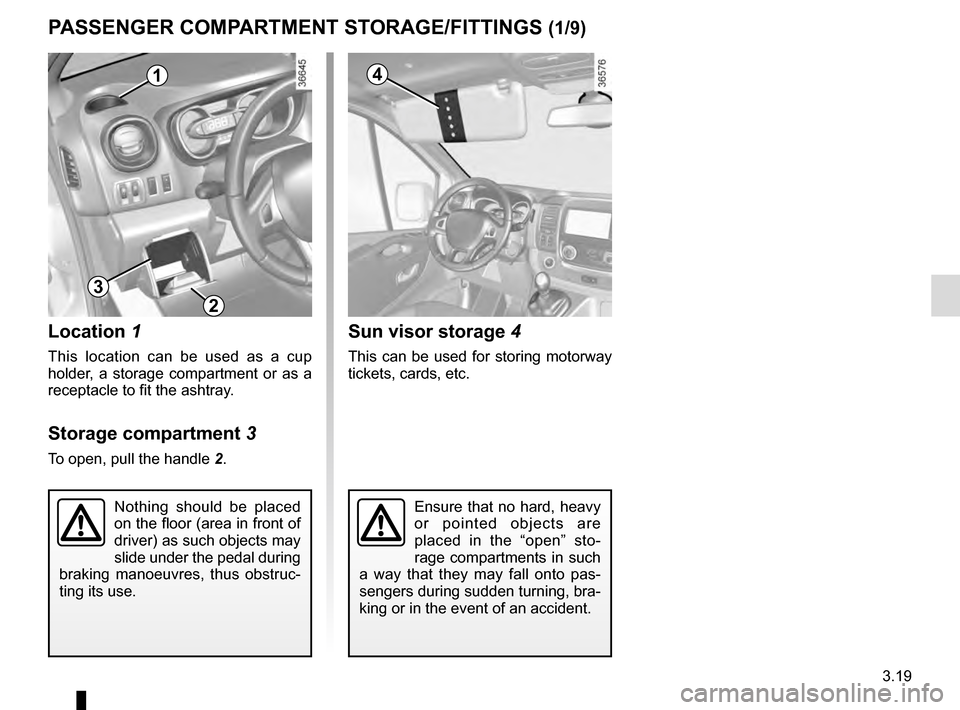

3.19
PASSENGER COMPARTMENT STORAGE/FITTINGS (1/9)
Location 1
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Storage compartment 3
To open, pull the handle 2.
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
2
1
Sun visor storage 4
This can be used for storing motorway
tickets, cards, etc.
4
Page 182 of 292

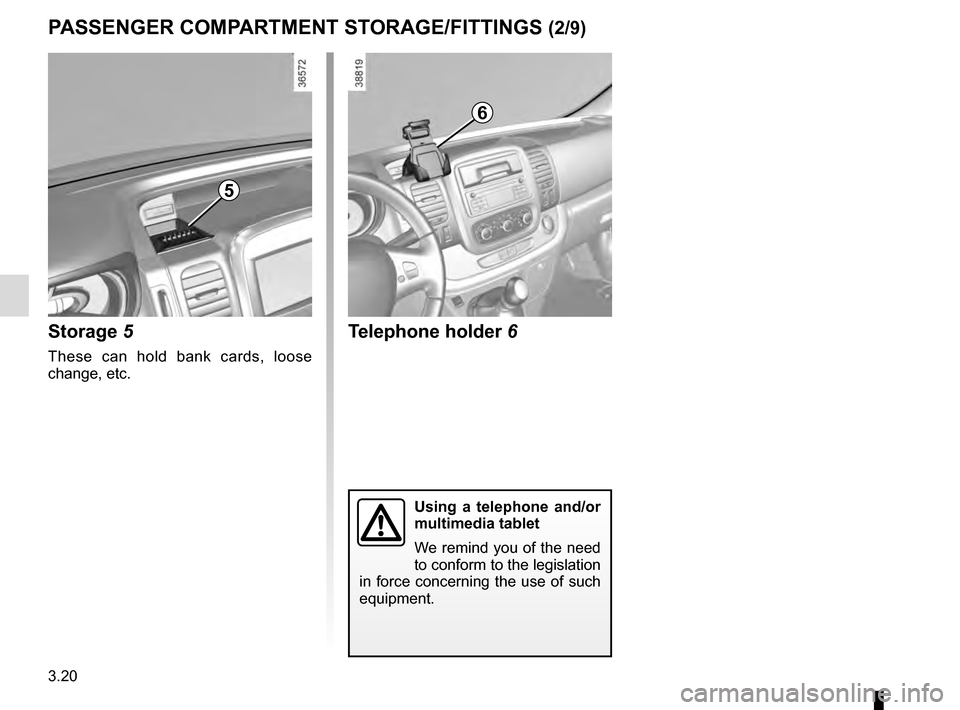

3.20
PASSENGER COMPARTMENT STORAGE/FITTINGS (2/9)
5
Storage 5
These can hold bank cards, loose
change, etc.
Telephone holder 6
Using a telephone and/or
multimedia tablet
We remind you of the need
to conform to the legislation
in force concerning the use of such
equipment.
6
Page 183 of 292

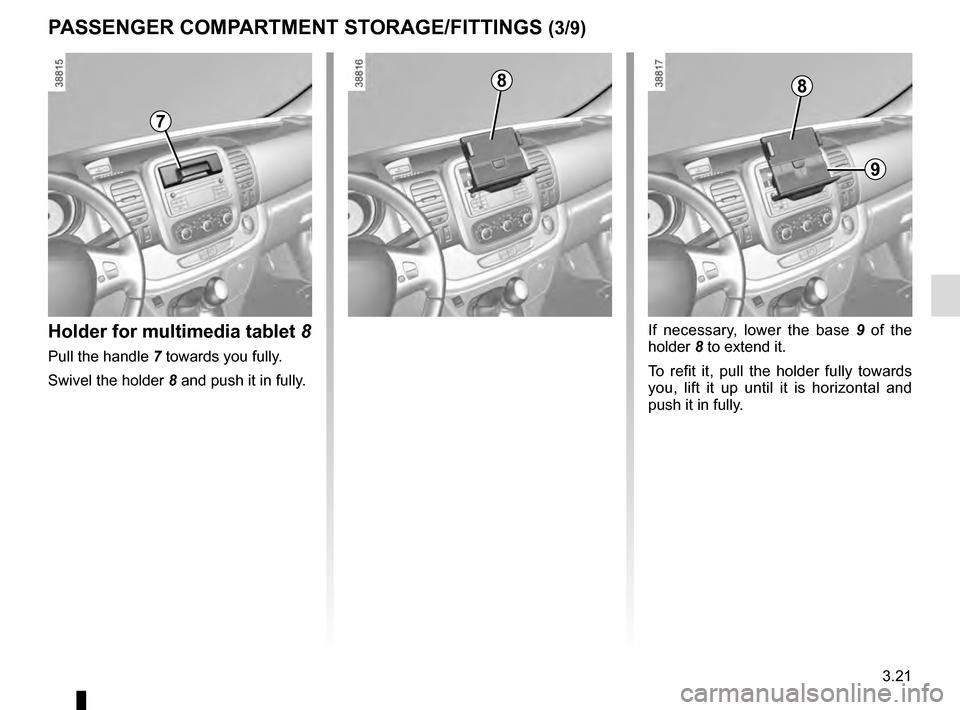

3.21
PASSENGER COMPARTMENT STORAGE/FITTINGS (3/9)
Holder for multimedia tablet 8
Pull the handle 7 towards you fully.
Swivel the holder 8 and push it in fully.
If necessary, lower the base 9 of the
holder 8 to extend it.
To refit it, pull the holder fully towards
you, lift it up until it is horizontal and
push it in fully.
7
88
9
Page 184 of 292

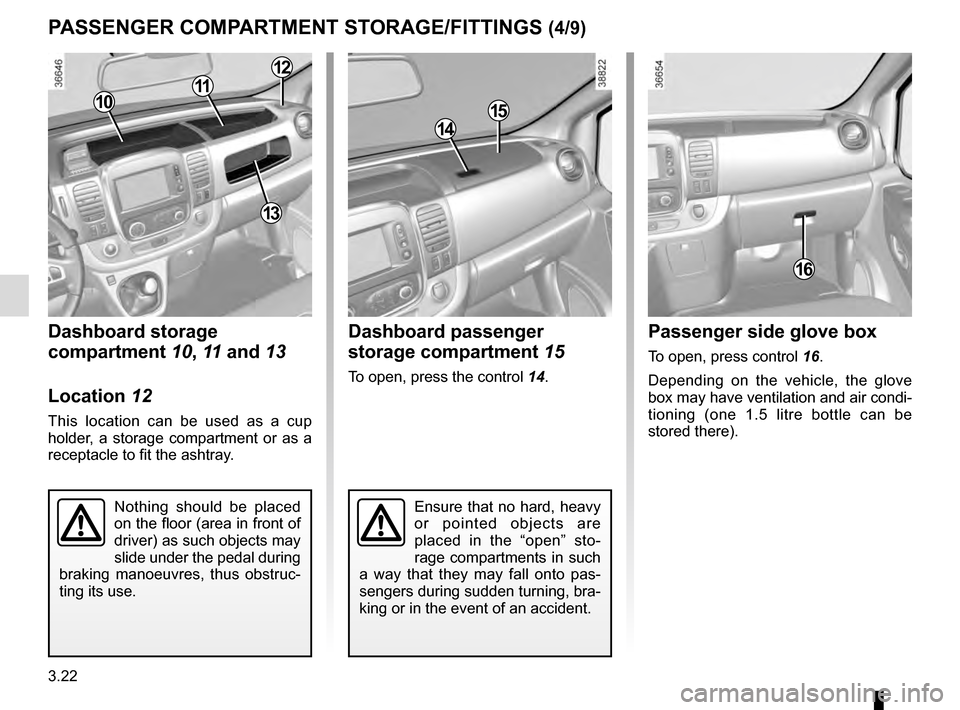

3.22
Dashboard passenger
storage compartment 15
To open, press the control 14.
PASSENGER COMPARTMENT STORAGE/FITTINGS (4/9)
Dashboard storage
compartment 10, 11 and 13
Location 12
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Passenger side glove box
To open, press control 16.
Depending on the vehicle, the glove
box may have ventilation and air condi-
tioning (one 1.5 litre bottle can be
stored there).
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
16
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
1011
12
13
15
14
Page 185 of 292

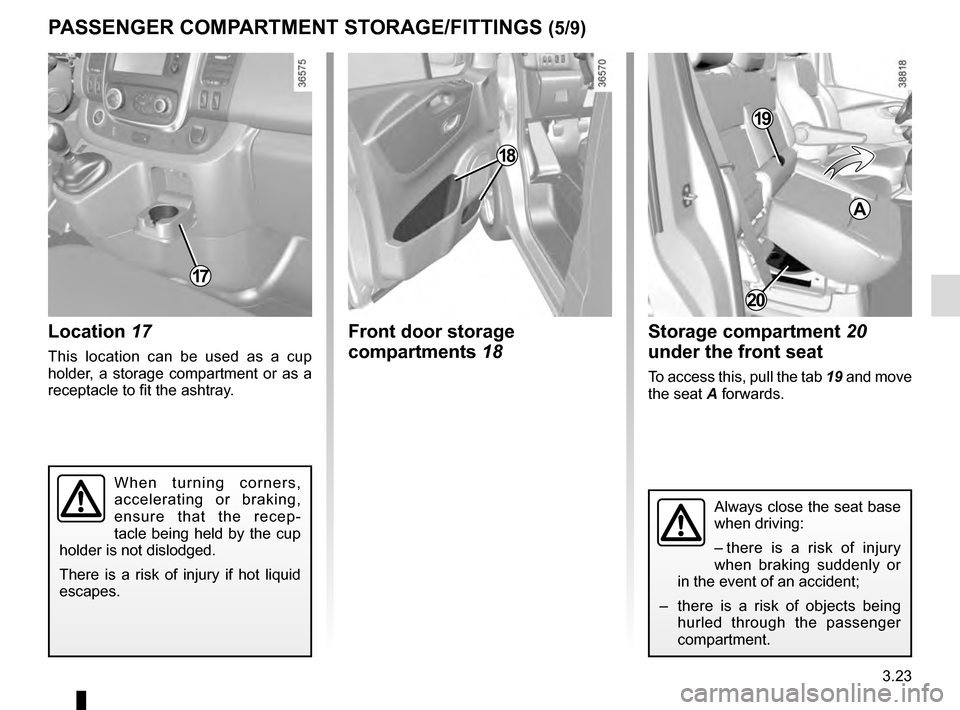

3.23
PASSENGER COMPARTMENT STORAGE/FITTINGS (5/9)
Location 17
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Front door storage
compartments 18
When turning corners,
accelerating or braking,
ensure that the recep-
tacle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Storage compartment 20
under the front seat
To access this, pull the tab 19 and move
the seat A forwards.
Always close the seat base
when driving:
– there is a risk of injury
when braking suddenly or
in the event of an accident;
– there is a risk of objects being hurled through the passenger
compartment.
20
17
18
A
19

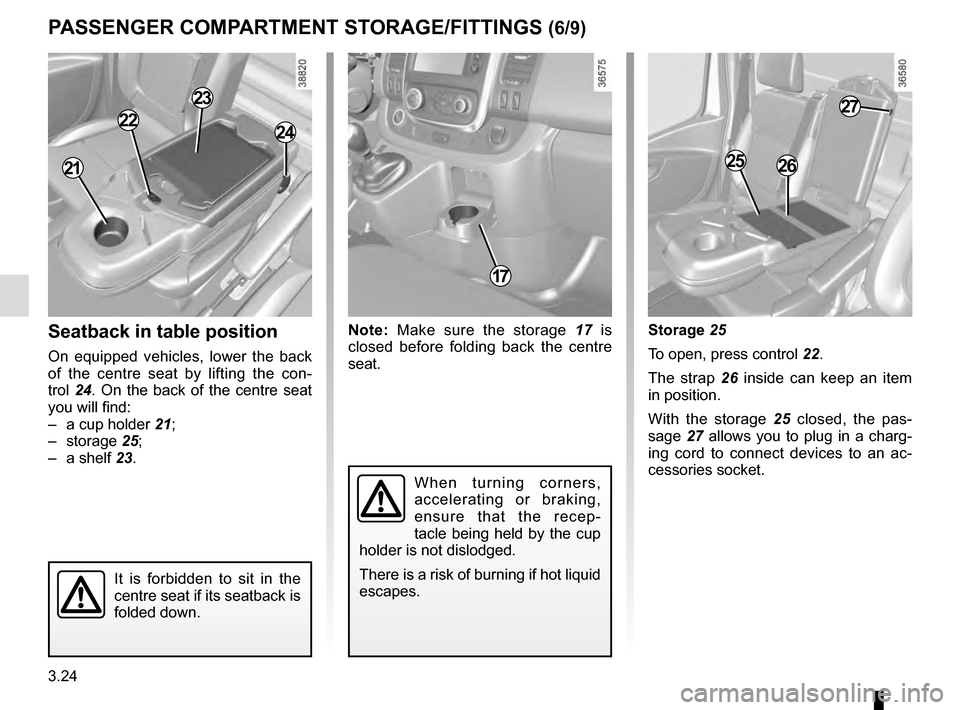

Page 186 of 292
3.24
Storage 25
To open, press control 22.
The strap 26 inside can keep an item
in position.
With the storage 25 closed, the pas-
sage 27 allows you to plug in a charg-
ing cord to connect devices to an ac-
cessories socket.Seatback in table position
On equipped vehicles, lower the back
of the centre seat by lifting the con-
trol 24. On the back of the centre seat
you will find:
– a cup holder 21;
– storage 25;
– a shelf 23.
When turning corners,
accelerating or braking,
ensure that the recep-
tacle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
It is forbidden to sit in the
centre seat if its seatback is
folded down.
24
PASSENGER COMPARTMENT STORAGE/FITTINGS (6/9)
23
2526
Note: Make sure the storage 17 is
closed before folding back the centre
seat.
17
21
2227

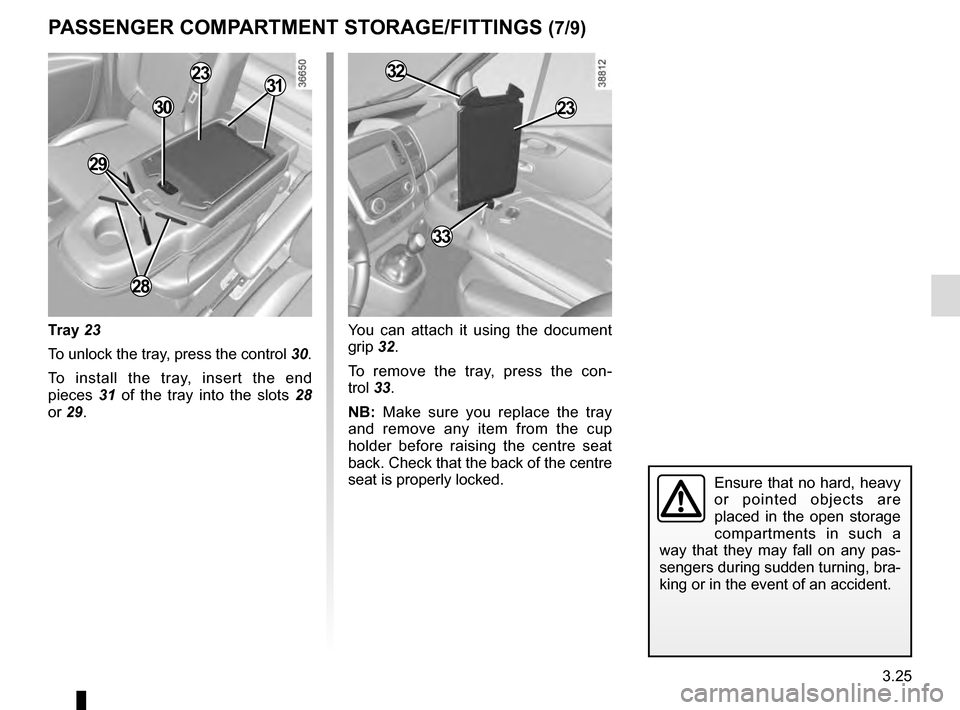

Page 187 of 292
3.25
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning, bra-
king or in the event of an accident.
You can attach it using the document
grip 32.
To remove the tray, press the con-
trol 33.
NB: Make sure you replace the tray
and remove any item from the cup
holder before raising the centre seat
back. Check that the back of the centre
seat is properly locked.Tray 23
To unlock the tray, press the control 30.
To install the tray, insert the end
pieces 31 of the tray into the slots 28
or 29.
23
28
29
31
PASSENGER COMPARTMENT STORAGE/FITTINGS (7/9)
2330
33
32
Page 188 of 292

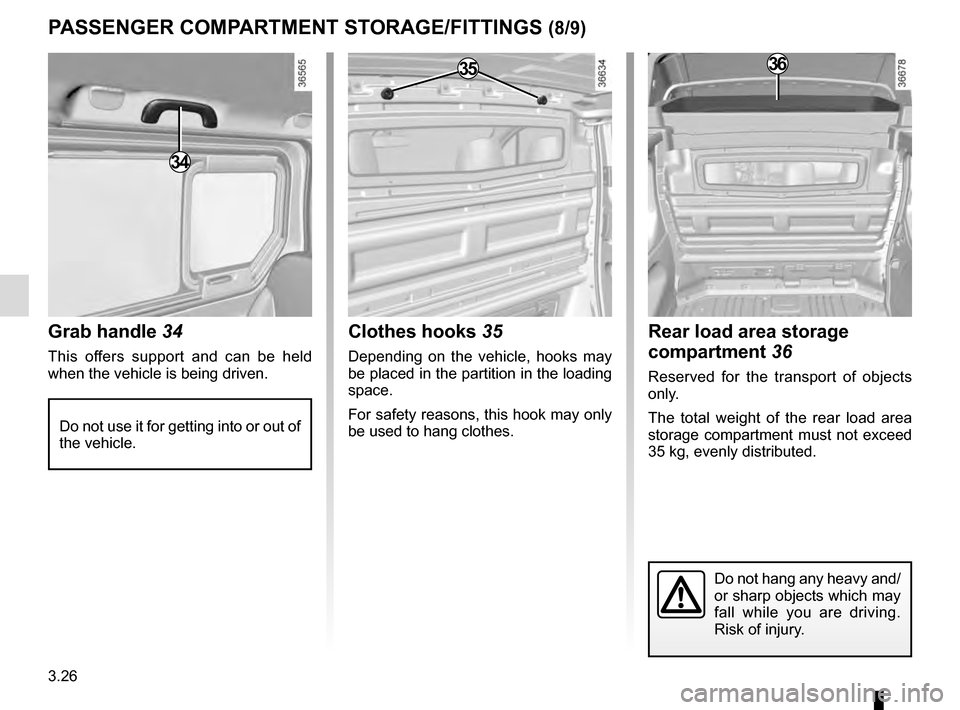

3.26
Grab handle 34
This offers support and can be held
when the vehicle is being driven.
PASSENGER COMPARTMENT STORAGE/FITTINGS (8/9)
Do not use it for getting into or out of
the vehicle.
34
Clothes hooks 35
Depending on the vehicle, hooks may
be placed in the partition in the loading
space.
For safety reasons, this hook may only
be used to hang clothes.
3536
Rear load area storage
compartment 36
Reserved for the transport of objects
only.
The total weight of the rear load area
storage compartment must not exceed
35 kg, evenly distributed.
Do not hang any heavy and/
or sharp objects which may
fall while you are driving.
Risk of injury.
Page 189 of 292

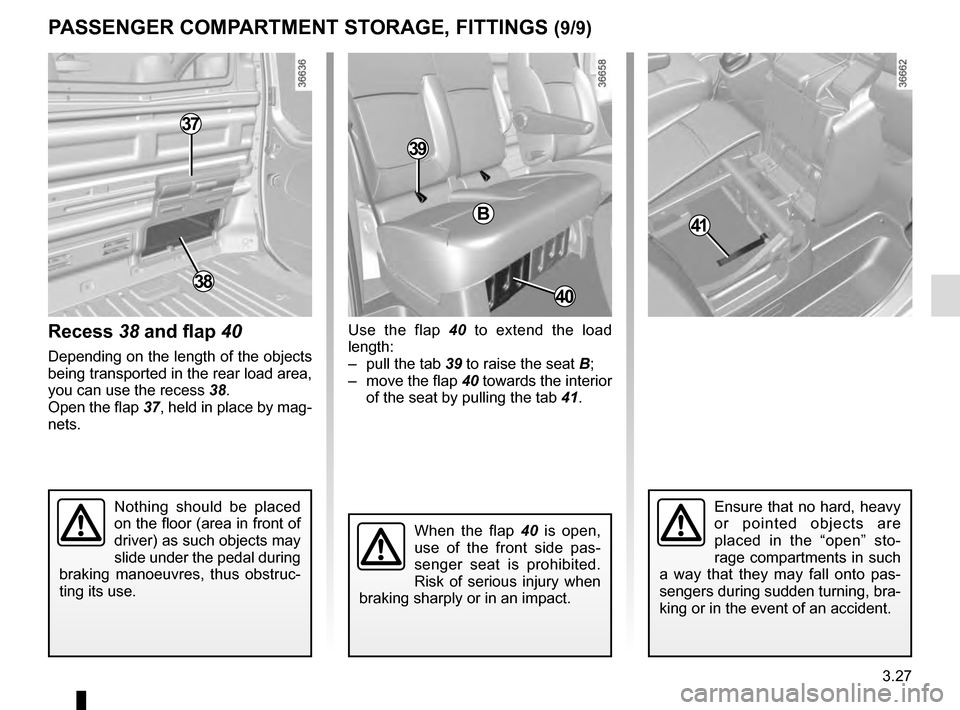

3.27
Use the flap 40 to extend the load
length:
– pull the tab 39 to raise the seat B;
– move the flap 40 towards the interior of the seat by pulling the tab 41.
PASSENGER COMPARTMENT STORAGE, FITTINGS (9/9)
37
Recess 38 and flap 40
Depending on the length of the objects
being transported in the rear load area,
you can use the recess 38.
Open the flap 37, held in place by mag-
nets.
40
B41
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
38
39
When the flap 40 is open,
use of the front side pas-
senger seat is prohibited.
Risk of serious injury when
braking sharply or in an impact.
Page 190 of 292

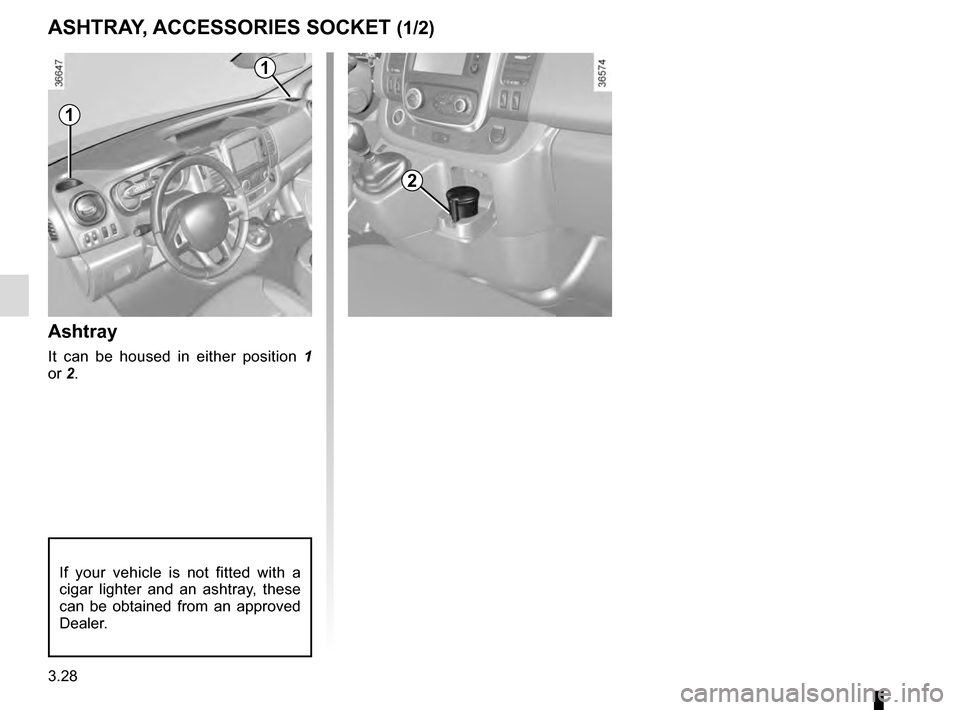

3.28
ASHTRAY, ACCESSORIES SOCKET (1/2)
Ashtray
It can be housed in either position 1
or 2.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
1
1
2
