RENAULT TRAFIC 2018 Owners Manual

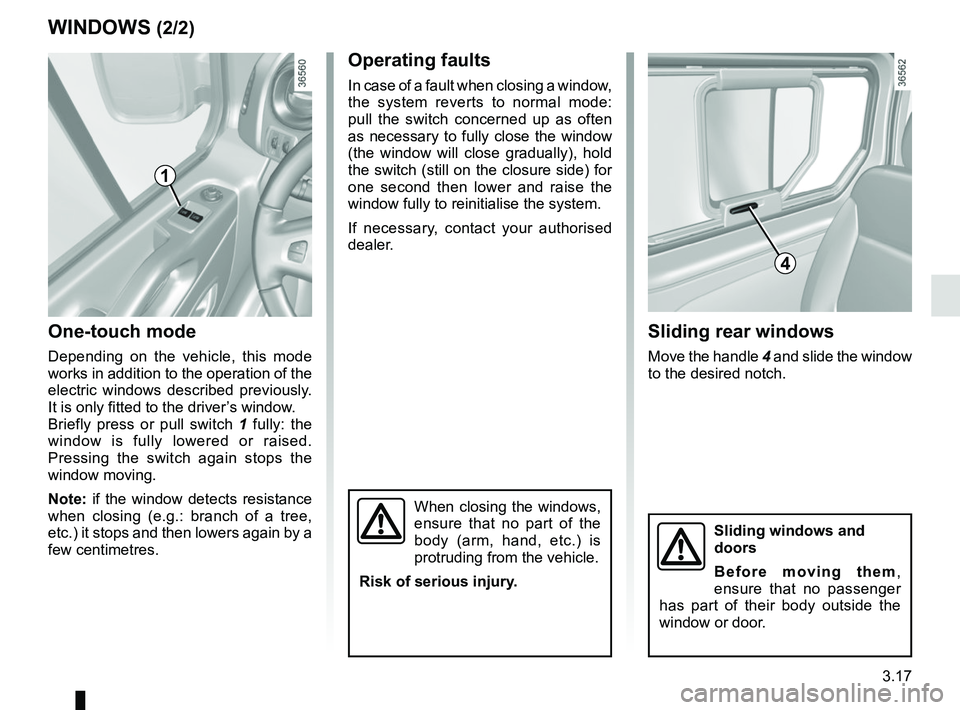

3.17
One-touch mode
Depending on the vehicle, this mode
works in addition to the operation of the
electric windows described previously.
It is only fitted to the driver’s window.
Briefly press or pull switch 1 fully: the
window is fully lowered or raised.
Pressing the switch again stops the
window moving.
Note: if the window detects resistance
when closing (e.g.: branch of a tree,
etc.) it stops and then lowers again by a
few centimetres.
WINDOWS (2/2)
When closing the windows,
ensure that no part of the
body (arm, hand, etc.) is
protruding from the vehicle.
Risk of serious injury.
Operating faults
In case of a fault when closing a window,
the system reverts to normal mode:
pull the switch concerned up as often
as necessary to fully close the window
(the window will close gradually), hold
the switch (still on the closure side) for
one second then lower and raise the
window fully to reinitialise the system.
If necessary, contact your authorised
dealer.
1
Sliding rear windows
Move the handle 4 and slide the window
to the desired notch.
4
Sliding windows and
doors
Before moving them,
ensure that no passenger
has part of their body outside the
window or door.

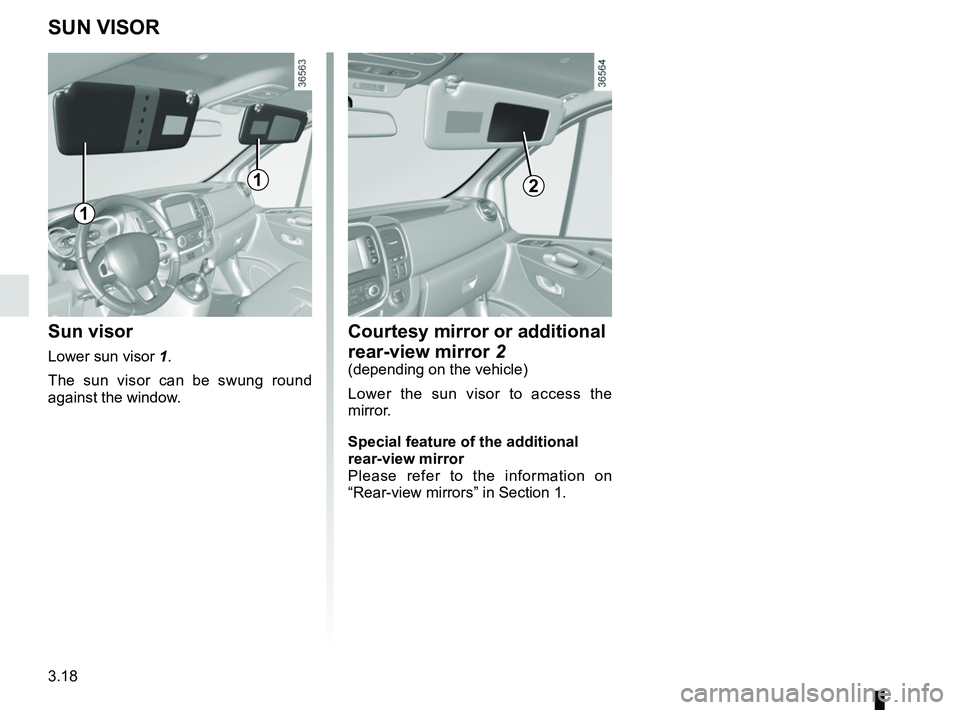

3.18
SUN VISOR
Sun visor
Lower sun visor 1.
The sun visor can be swung round
against the window.
1
1
Courtesy mirror or additional
rear-view mirror 2
(depending on the vehicle)
Lower the sun visor to access the
mirror.
Special feature of the additional
rear-view mirror
Please refer to the information on
“Rear-view mirrors” in Section 1.
2

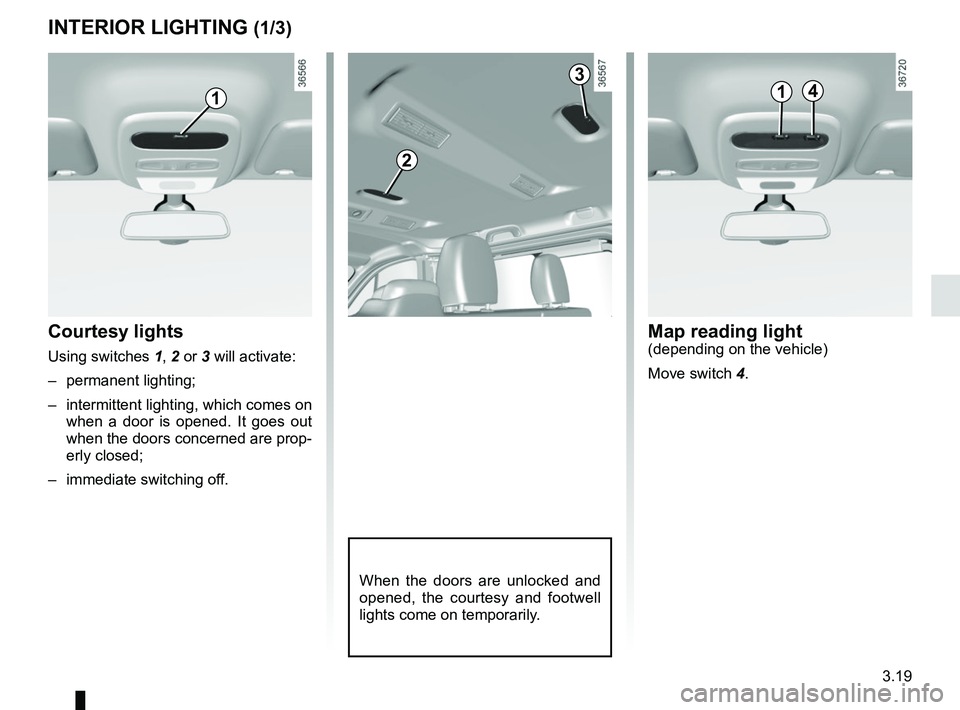

3.19
Courtesy lights
Using switches 1, 2 or 3 will activate:
– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
When the doors are unlocked and
opened, the courtesy and footwell
lights come on temporarily.
INTERIOR LIGHTING (1/3)
1
2
3
Map reading light(depending on the vehicle)
Move switch 4.
14

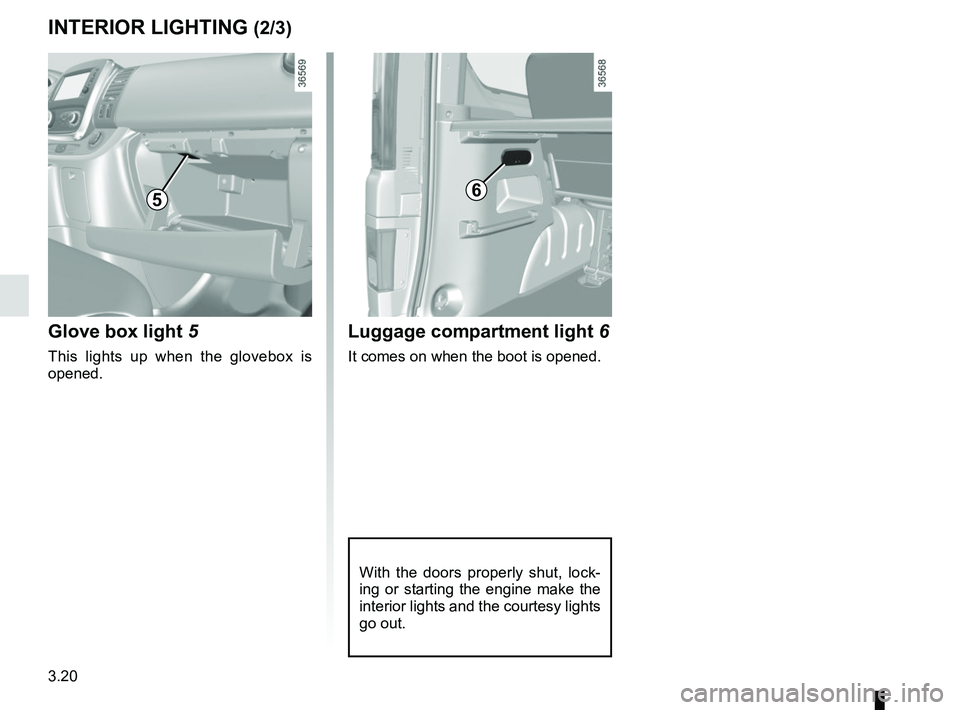

3.20
6
Luggage compartment light 6
It comes on when the boot is opened.
With the doors properly shut, lock-
ing or starting the engine make the
interior lights and the courtesy lights
go out.
INTERIOR LIGHTING (2/3)
Glove box light 5
This lights up when the glovebox is
opened.
5

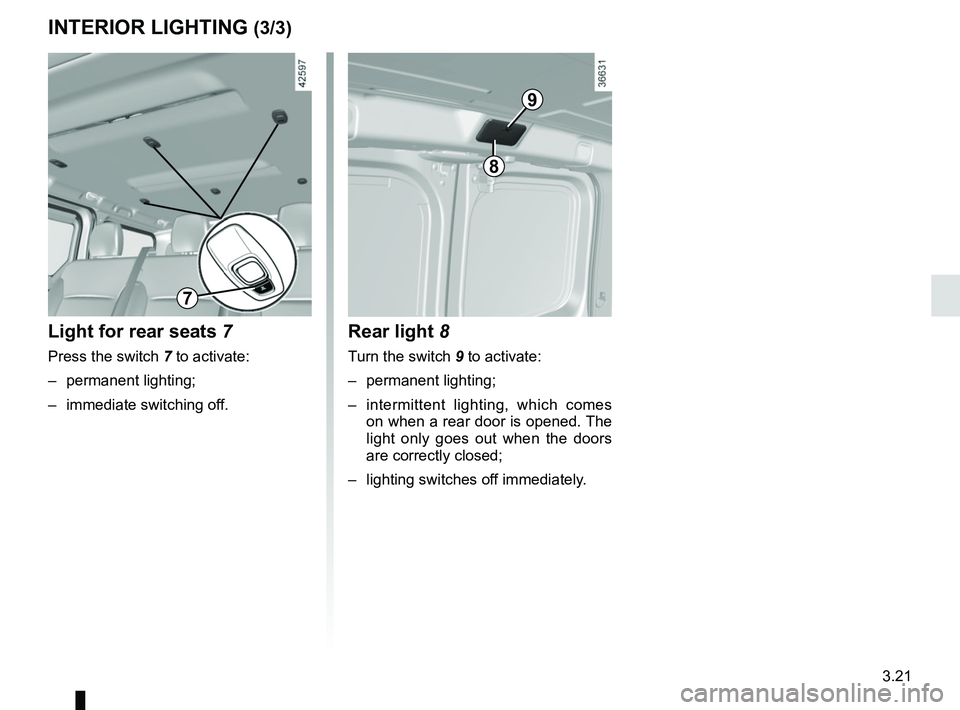

3.21
Rear light 8
Turn the switch 9 to activate:
– permanent lighting;
– intermittent lighting, which comes on when a rear door is opened. The
light only goes out when the doors
are correctly closed;
– lighting switches off immediately.
9
8
INTERIOR LIGHTING (3/3)
Light for rear seats 7
Press the switch 7 to activate:
– permanent lighting;
– immediate switching off.
7

3.22
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/9)
Location 1
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Storage compartment 3
To open, pull the handle 2.
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
2
1
Sun visor storage 4
This can be used for storing motorway
tickets, cards, etc.
4

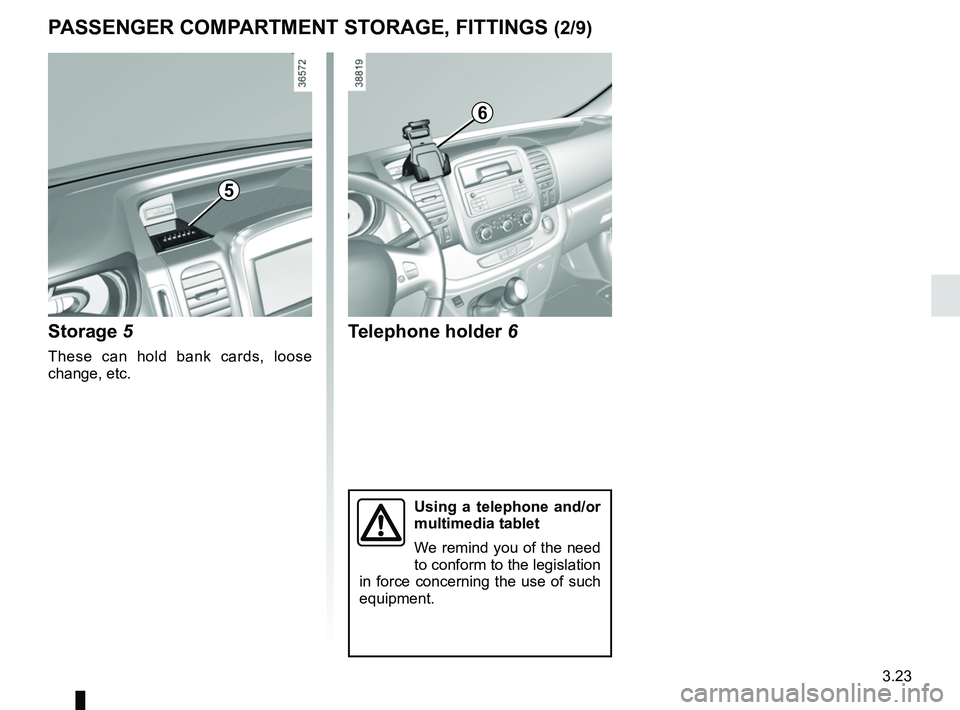

3.23
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/9)
5
Storage 5
These can hold bank cards, loose
change, etc.
Telephone holder 6
Using a telephone and/or
multimedia tablet
We remind you of the need
to conform to the legislation
in force concerning the use of such
equipment.
6

3.24

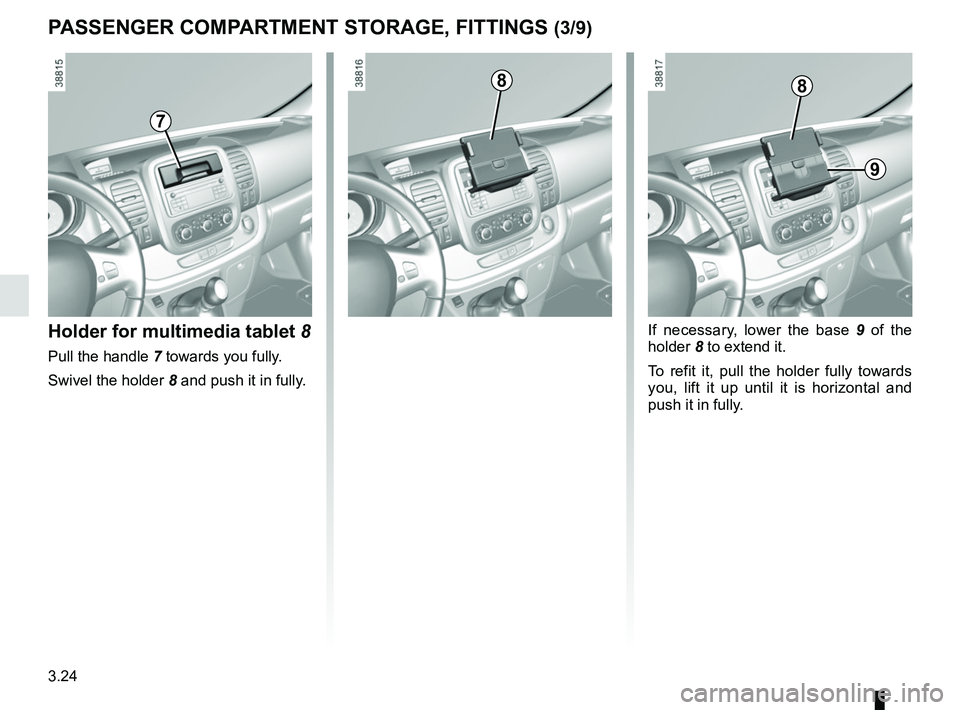

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/9)
Holder for multimedia tablet 8
Pull the handle 7 towards you fully.
Swivel the holder 8 and push it in fully.
If necessary, lower the base 9 of the
holder 8 to extend it.
To refit it, pull the holder fully towards
you, lift it up until it is horizontal and
push it in fully.
7
88
9

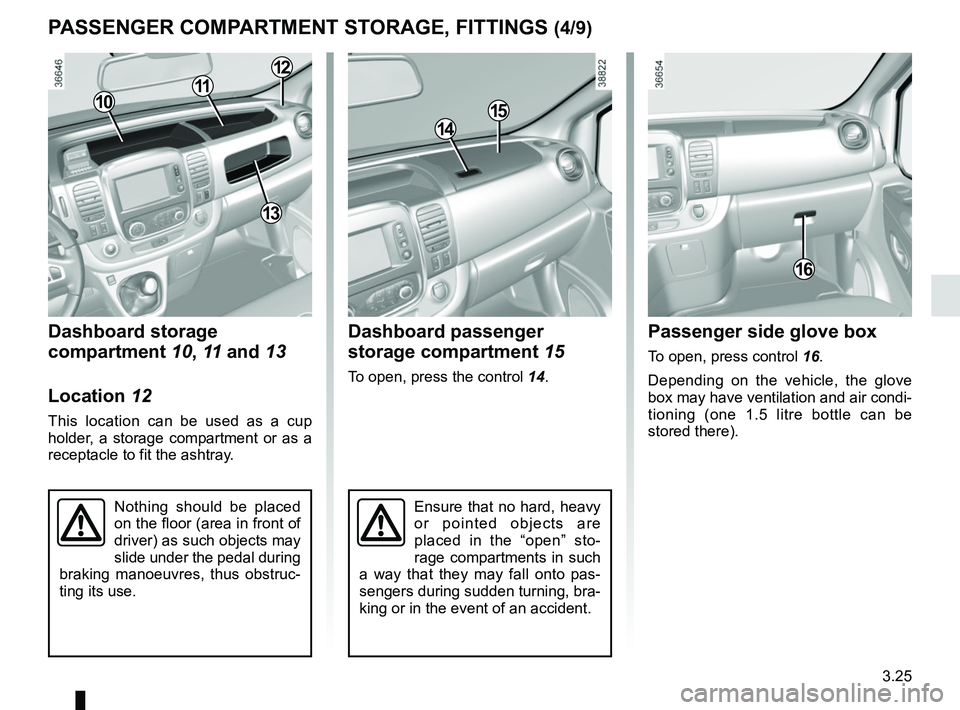

3.25
Dashboard passenger
storage compartment 15
To open, press the control 14.
PASSENGER COMPARTMENT STORAGE, FITTINGS (4/9)
Dashboard storage
compartment 10, 11 and 13
Location 12
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Passenger side glove box
To open, press control 16.
Depending on the vehicle, the glove
box may have ventilation and air condi-
tioning (one 1.5 litre bottle can be
stored there).
Nothing should be placed
on the floor (area in front of
driver) as such objects may
slide under the pedal during
braking manoeuvres, thus obstruc-
ting its use.
16
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
1011
12
13
15
14

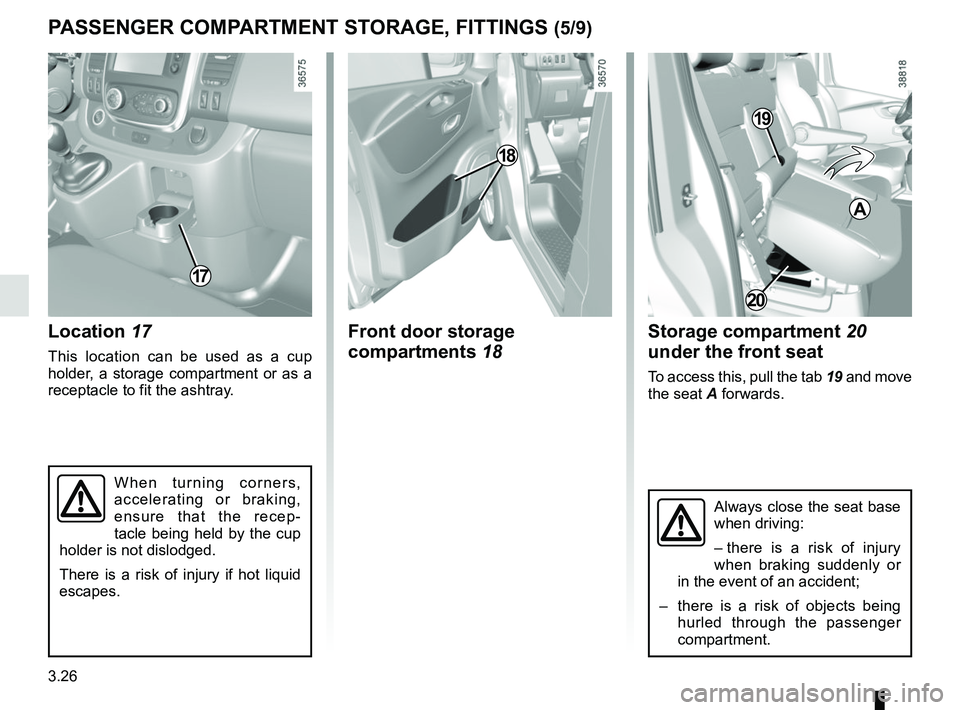

3.26
PASSENGER COMPARTMENT STORAGE, FITTINGS (5/9)
Location 17
This location can be used as a cup
holder, a storage compartment or as a
receptacle to fit the ashtray.
Front door storage
compartments 18
When turning corners,
accelerating or braking,
ensure that the recep-
tacle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Storage compartment 20 under the front seat
To access this, pull the tab 19 and move
the seat A forwards.
Always close the seat base
when driving:
– there is a risk of injury
when braking suddenly or
in the event of an accident;
– there is a risk of objects being hurled through the passenger
compartment.
20
17
18
A
19
