RENAULT TWINGO 2009 2.G Air Conditioning Repair Manual

61A-58
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
LEFT-HAND DRIVE
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of compo-
nents)(MR 413, 88C, Airbags and seat belt preten-
sioners).
aDisconnect the battery (see ) (MR 411, 80A, Bat-
tery).
aUnclip the upper storage compartment (1) on the
driver's side using the (Car. 1363).
aRemove:
-the passenger's front airbag (see Passenger's
frontal airbag: Removal - Refitting) (MR 411,
88C, Airbags and pretensioners),
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (MR 411, 83A, Instrument pan-
el).aUnclip the "trim - air vent" assembly (2) .
aDisconnect the hazard warning lights switch connec-
tor.
aUnclip:
-the fuse access flap (3) ,
-the dashboard lower trim. Special tooling required
Car. 1363Set of tr im removal levers.
Equipment required
Diagnostic tool
AIR CONDITIONING or STANDARD HEATING
119502
119518
119506

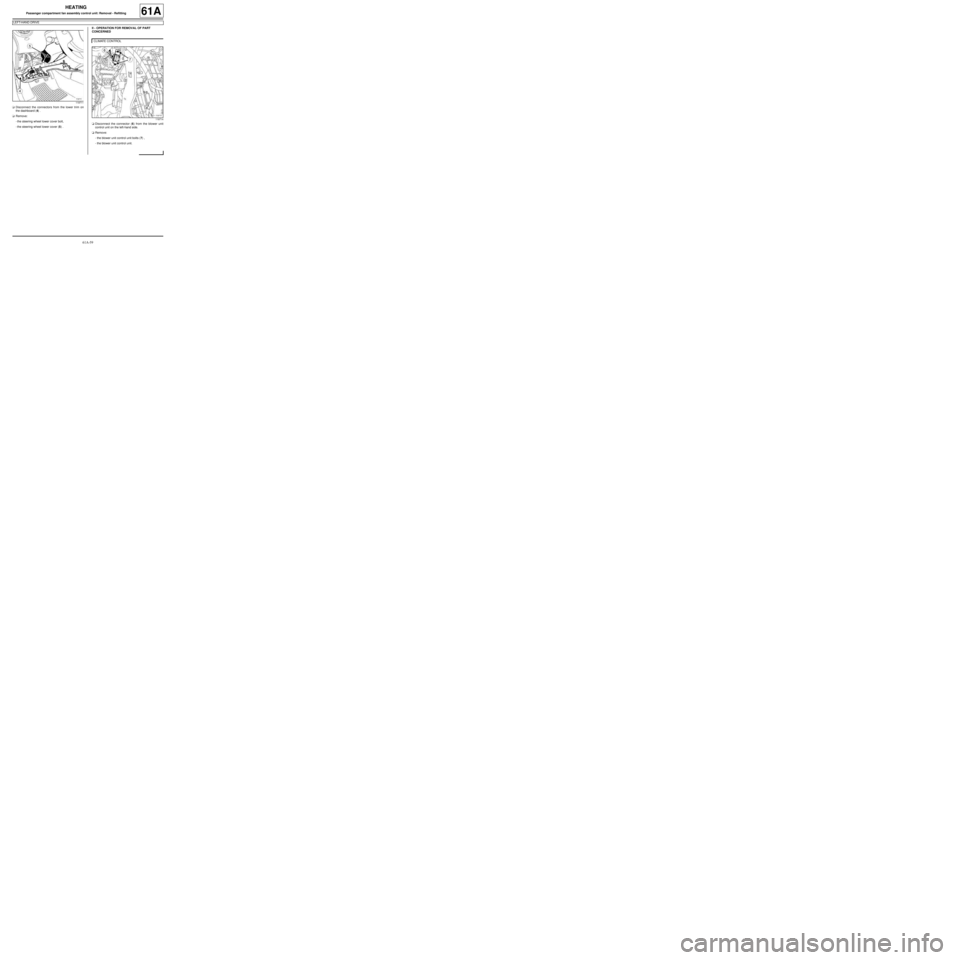

61A-59
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
LEFT-HAND DRIVE
61A
aDisconnect the connectors from the lower trim on
the dashboard (4) .
aRemove:
-the steering wheel lower cover bolt,
-the steering wheel lower cover (5) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the connector (6) from the blower unit
control unit on the left-hand side.
aRemove:
-the blower unit control unit bolts (7) ,
-the blower unit control unit.
119711
CLIMATE CONTROL
119714

61A-60
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
LEFT-HAND DRIVE
61A
aDisconnect the connector (8) from the blower unit
control unit on the right-hand side.
aMove aside the blower unit control unit wiring har-
ness (9) .aRemove:
-the blower unit control unit bolts (10) ,
-the blower unit control unit (11) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the blower unit control unit,
-the bolts to the blower unit control unit.
aFit the wiring harness on the blower unit control unit.
aConnect the blower unit control unit connector.
aRefit:
-the blower unit control unit,
-the bolts to the blower unit control unit. AIR CONDITIONING or STANDARD HEATING
121170
121169
119714
AIR CONDITIONING or STANDARD HEATING
CLIMATE CONTROL

61A-61
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
LEFT-HAND DRIVE
61A
aConnect the blower unit control unit connector.
II - FINAL OPERATION.
aRefit:
-the steering wheel lower cover,
-the steering wheel lower cover bolt.
aConnect the connectors to the lower trim on the
dashboard.
aClip on:
-the dashboard lower trim,
-the fuse access flap.
aConnect the hazard warning lights switch connector.
aClip on the "trim - air vent" assembly.
aRefit:
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (MR 411, 83A, Instrument pan-
el),
-the passenger's front airbag (see Passenger's
frontal airbag: Removal - Refitting) (MR 411,
88C, Airbags and pretensioners).
aClip on the upper storage compartment on the driv-
er’s side.
aConnect the battery (see ) (MR 411, 80A, Battery).
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents)(MR 413, 88C, Airbags and seat belt preten-
sioners). AIR CONDITIONING or STANDARD HEATING

61A-62
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
RIGHT-HAND DRIVE
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(MR 413, 88C, Airbags and pretensioners).
aDisconnect the battery (see ) (MR 411, 80A, Bat-
tery).
aUnclip the upper storage compartment (1) on the
driver's side using the (Car. 1363).
aRemove the passenger's front airbag (see Passen-
ger's frontal airbag: Removal - Refitting) (MR
411, 88C, Airbags and seat belt pretensioners).aRemove the instrument panel (see Instrument pan-
el: Removal - Refitting) (MR 411, 83A, Instrument
panel).
aUnclip the "trim - air vent" assembly.
aDisconnect the hazard warning lights switch connec-
tor. Special tooling required
Car. 1363Set of tr im removal levers.
Equipment required
Diagnostic tool
AIR CONDITIONING or STANDARD HEATING
124106
AIR CONDITIONING or STANDARD HEATING
124105

61A-63
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
RIGHT-HAND DRIVE
61A
II - REMOVAL OPERATION FOR PART
CONCERNED
aDisconnect the connector (3) from the blower unit
control unit on the left-hand side.
aRemove:
-the blower unit control unit bolts (4) ,
-the blower unit control unit.aDisconnect the connector (5) from the blower unit
control unit on the right-hand side.
aMove the electrical wiring (6) away from the fan as-
sembly control unit. CLIMATE CONTROL
124100
AIR CONDITIONING or STANDARD HEATING
124101
121169

61A-64
HEATING
Passenger compartment fan assembly control unit: Removal - Refitting
RIGHT-HAND DRIVE
61A
aRemove:
-the blower unit control unit bolts (7) ,
-the blower unit control unit (8) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the blower unit control unit,
-the bolts to the blower unit control unit.
aFit the fan assembly control unit electrical wiring.
aConnect the blower unit control unit connector.
aRefit:
-the blower unit control unit,
-the bolts to the blower unit control unit.aConnect the blower unit control unit connector.
II - FINAL OPERATION.
aConnect the hazard warning lights switch connector.
aClip on the "trim - air vent" assembly.
aRefit the instrument panel (see Instrument panel:
Removal - Refitting) (MR 411, 83A, Instrument
panel).
aRefit the passenger's front airbag (see Passenger's
frontal airbag: Removal - Refitting) (MR 411, 88C,
Airbags and seat belt pretensioners).
aClip on the upper storage compartment on the driv-
er’s side.
aConnect the battery (see ) (MR 411, 80A, Battery).
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (MR 413, 88C, Airbags and pretensioners).
124100
AIR CONDITIONING or STANDARD HEATING
CLIMATE CONTROL
AIR CONDITIONING or STANDARD HEATING
AIR CONDITIONING or STANDARD HEATING

61A-65
HEATING
Control panel: Removal - Refitting
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(MR 413, 88C, Airbags and seat belt pretensioners).
aDisconnect the battery (see ) (MR 411, 80A, Bat-
tery).
aUnclip the upper storage compartment (1) on the
driver's side using the (Car. 1363).
aRemove:
-the passenger's front airbag (see Passenger's
frontal airbag: Removal - Refitting) (MR 411,
88C, Airbags and pretensioners),
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (MR 411, 83A, Instrument pan-
el).aUnclip the « trim - air vent » assembly (2) .
aDisconnect the hazard warning lights switch connec-
tor. Special tooling required
Car. 1363Set of tr im removal levers.
Equipment required
Diagnostic tool
119502
119518

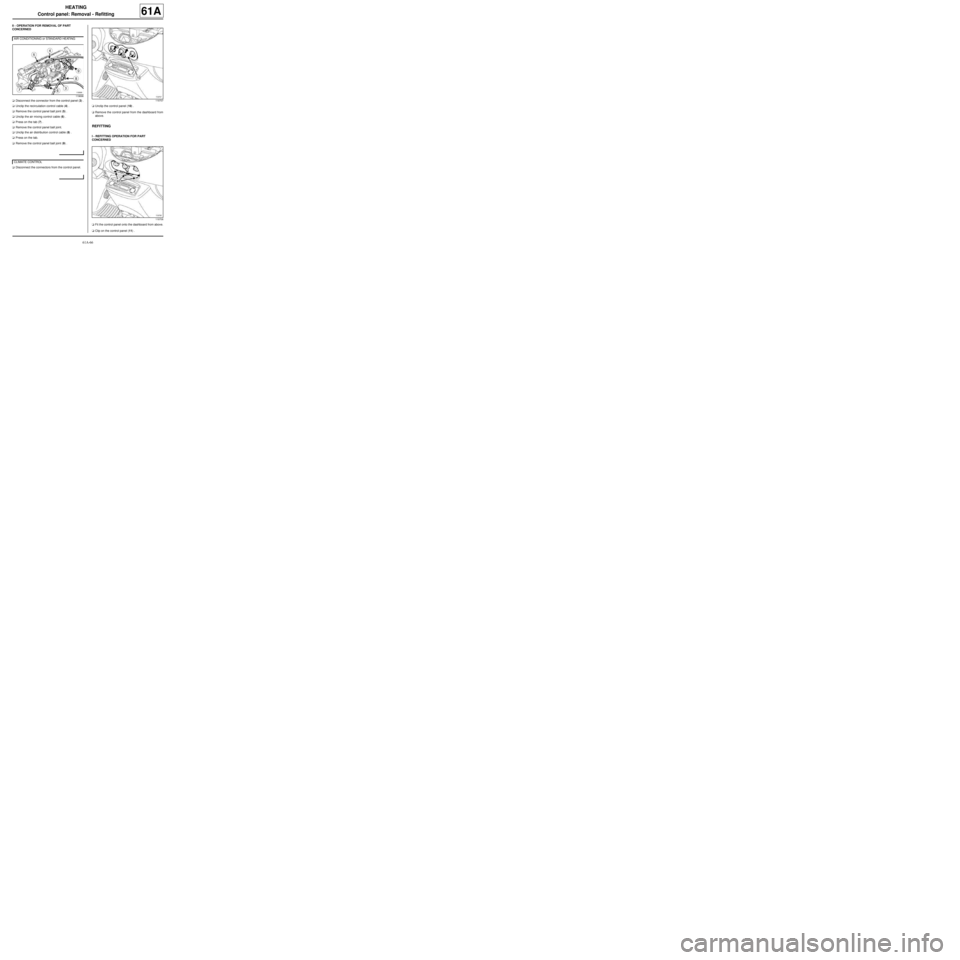

61A-66
HEATING
Control panel: Removal - Refitting
61A
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the connector from the control panel (3) .
aUnclip the recirculation control cable (4) .
aRemove the control panel ball joint (5) .
aUnclip the air mixing control cable (6) .
aPress on the tab (7) .
aRemove the control panel ball joint.
aUnclip the air distribution control cable (8) .
aPress on the tab.
aRemove the control panel ball joint (9) .
aDisconnect the connectors from the control panel.aUnclip the control panel (10) .
aRemove the control panel from the dashboard from
above.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aFit the control panel onto the dashboard from above.
aClip on the control panel (11) . AIR CONDITIONING or STANDARD HEATING
119696
CLIMATE CONTROL
119707
119706

61A-67
HEATING
Control panel: Removal - Refitting
61A
aConnect the control panel connectors.
aPress on the tab.
aFit the control panel ball joint.
aClip on the air distribution control cable.
aPress on the tab.
aFit the control panel ball joint.
aClip on the air mixing control cable.
aFit the control panel ball joint.
aClip on the recirculation control cable.
aConnect the control panel connector.
II - FINAL OPERATION.
aConnect the hazard warning lights switch connector.
aClip on the « trim - air vent » assembly.
aRefit:
-the instrument panel (see Instrument panel: Re-
moval - Refitting) (MR 411, 83A, Instrument pan-
el),
-the passenger's front airbag (see Passenger's
frontal airbag: Removal - Refitting) (MR 411,
88C, Airbags and pretensioners).
aClip on the upper storage compartment on the driv-
er's side.
aConnect the battery (see ) (MR 411, 80A, Battery).
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (MR 413, 88C, Airbags and seat belt preten-
sioners). CLIMATE CONTROL
AIR CONDITIONING or STANDARD HEATING
