wiring RENAULT TWINGO 2009 2.G Electrical Equipment - Radio R2-08 Owner's Guide

86A-86
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 5
CONTINUED 1
Check the condition and connection of the
satellite control connector, component code 325
(New Twingo) or 1519 (Clio III).
If the connector is faulty and there is a repair
method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for
repair), repair the connector, otherwise replace
the wiring.
Check the continuity, insulation and absence of
interference resistance on the following
connections:
•34AT, between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AR, between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AS, between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AQ, between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AU, between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AP between components 653 or 1714
and 325 (New Twingo) or 1519 (Clio III),
•34AO between components 653 or 1714
and 1519 (Clio III only).If the connection or connections are faulty and
there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the
wiring, otherwise replace it.
Are the checks correct?
If the fault is still present, contact Techline.
A
NO
NO
YES
B

86A-88
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 6 Radio reception fault.
NOTESSee Clio III or New Twingo wiring diagrams.
For the aerial, use component code 1874 for a vehicle equipped with a navigation
system, and 1208 for a vehicle without this option.
Check the presence and condition of the radio
aerial.Replace the radio aerial, component code
1208 or 1874 (see MR 392, 86A, Radio, Radio
aerial: Removal - Refitting) for New Twingo
or (see MR 411, 86A, Radio, Radio aerial:
Removal - Refitting) for Clio III. Is the radio aerial correct?
Check the condition of the connections of the
radio aerial coaxial cable at the radio aerial,
component code 1208 or 1874 and of the radio,
component code 261.
Are the connections correct?If the connectors are faulty and if there is a
repair procedure (see Technical Note 6015A,
Repairing electrical wiring, Wiring:
Precautions for repair) repair the
connector(s); otherwise, replace the wiring.
NO
YES
NO
YES
A
R208_V64_ALP6

86A-91
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 8Backlighting does not change when the vehicle lights
are switched on
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
NOTE: Switch on the side lights and position the lighting rheostat wheel in the centre
position.
The display, component code 653, is only available when the vehicle does not have the
navigation function.
The multimedia connection unit, component code 1714, is only available when the
vehicle has the navigation function.
Check the backlighting of the following components:
radio, display and instrument panel.
Are all of the components backlit?
Attempt to backlight these components
once again, and if no conclusion can be
made, contact the Techline.
Does the instrument panel light up?Perform fault finding on the instrument
panel (see 83A, Instrument panel).
YES
NO
NO
YES
A
R208_V64_ALP8

86A-93
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 9 The radio does not play the CD in order or skips songs
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Is the CD player set to random play?Deselect random play mode.
Try the CD player using another original,
good-quality CD
Did the CD play correctly?Replace the radio, component code 261
(see MR 392 (Clio III) or MR 411
(New Twingo) Mechanical, 86A, Radio,
Radio: Removal - Refitting).
The fault is linked to the customer's CD.
YES
NO
NO
YES
R208_V64_ALP9

86A-94
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 10 Sound fault for a speaker or tweeter (regardless of source).
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Run a command for each speaker using AC004 Front
right-hand speaker line test, AC005 Front left-hand
speaker line test, AC006 Rear right-hand speaker line
test, AC007 Rear left-hand speaker line test.
Did the tests successfully identify which speaker(s)
is the source of the problem? Repeat the procedure, and if the fault
still does not appear, contact the
Techline.
Check the speaker or tweeter which is the source of the
problem (visual appearance and mechanical: presence
of foreign bodies, mounting and condition of the
membrane).If possible, repair the incorrect
component(s), otherwise replace the
faulty speaker(s), component codes
1597, 1598, 189 and 190 (see MR 392
(Clio III) or MR 411 (New Twingo),
86A, Radio, Front speakers:
Removal - Refitting or (see MR 392
(Clio III) or MR 411 (New Twingo),
86A, Radio, Rear speakers:
Removal - Refitting) and/or the faulty
tweeter(s), component codes 365, 366
(see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Tweeter:
Removal - Refitting). Are the checks correct?
NO
YES
NO
YES
A
R208_V64_ALP10

86A-95
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 10
CONTINUED
Check the continuity, insulation and absence of
interference resistance of the connections or
component(s) in question:
•34A between components 261 and 190,
•34B between components 261 and 190,
•34C between components 261 and 189,
•34D between components 261 and 189,
•34E between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34F between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34G between components 261, 366 and 1598
(right-hand drive) or 1597 (left-hand drive),
•34H between components 261, 366 and 1598
(right-hand drive) or 1597 (left-hand drive).
Are the checks correct?Replace the faulty speaker(s),
component codes 1597, 1598, 189 and
190 (see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio,
Front speakers: Removal - Refitting
or see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Rear
speakers: Removal - Refitting) and /
or the faulty tweeter(s), component
codes 365, 366 (see MR 392 (Clio III)
or MR 411 (New Twingo), 86A, Radio,
Tweeter: Removal - Refitting). If the connection or connections are faulty and there is
a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
Contact the Techline.
A
YES
YES
NO

86A-97
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 12 The CD does not eject.
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Is a second CD jammed in the player?Remove the CD that is jammed in
the CD player.
Activate AC013 CD ejection
Replace the radio, component code
261 (see MR 392 (Clio III) or
MR 411 (New Twingo)
Mechanical, 86A, Radio, Radio:
Removal - Refitting). Was the CD ejected?
Check the ET009 CD eject button.
Is the status of the CD eject button consistent?Perform the test several times.
If the fault is still present,
contact Techline.
Replace the radio, component code 261 (see MR 392
(Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
YES
NO
NO
YES
YES
NO
R208_V64_ALP12

86A-98
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 13 A radio button(s) no longer operates or functions poorly.
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check button operation. Perform a status reading for
the buttons (see Conformity check).
Are the statuses consistent with button
activation?Contact the Techline.
Replace the radio, component code 261 (see MR 392
(Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
YES
NO
R208_V64_ALP13

86A-99
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 14 Poor sound (regardless of the source).
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Run a command for each speaker using AC004 Front
right-hand speaker line test, AC005 Front left-hand
speaker line test, AC006 Rear right-hand speaker
line test, AC007 Rear left-hand speaker line test.
See ALP 10 Sound fault for
a speaker or tweeter.
Do the speakers and tweeter all emit sound?
Run command SC002 Computer configuration.
Is the sound still poor?The problem disappears.
Check the speakers and tweeters (visual and mechanical
appearance: presence of foreign bodies, mounting and
diaphragm condition).If possible, repair the incorrect
component(s), otherwise replace the
faulty speaker(s), component codes
1597, 1598, 189 and 190 (see MR 392
(Clio III) or MR 411 (New Twingo),
86A, Radio, Front speakers:
Removal - Refitting or see MR 392
(Clio III) or MR 411 (New Twingo),
86A, Radio, Rear speakers: Removal
- Refitting) and/or replace the faulty
tweeter(s), component codes 365, 366
(see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Tweeter:
Removal - Refitting). Are the checks correct?
NO
YES
NO
YES
NO
YES
A
R208_V64_ALP14

86A-100
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86A150$190.mif
RADIO
Fault finding – Fault Finding Chart86A
R01-08
Vdiag No.: 64
ALP 14
CONTINUED
Check the insulation and the absence of interference
resistance on the following connections:
•34A between components 261 and 190,
•34B between components 261 and 190,
•34C between components 261 and 189,
•34D between components 261 and 189,
•34E between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34F between components 261, 365 and 1598
(left-hand drive) or 1597 (right-hand drive),
•34G between components 261, 366 and 1598
(right-hand drive) or 1597 (left-hand drive),
•34H between components 261, 366 and 1598

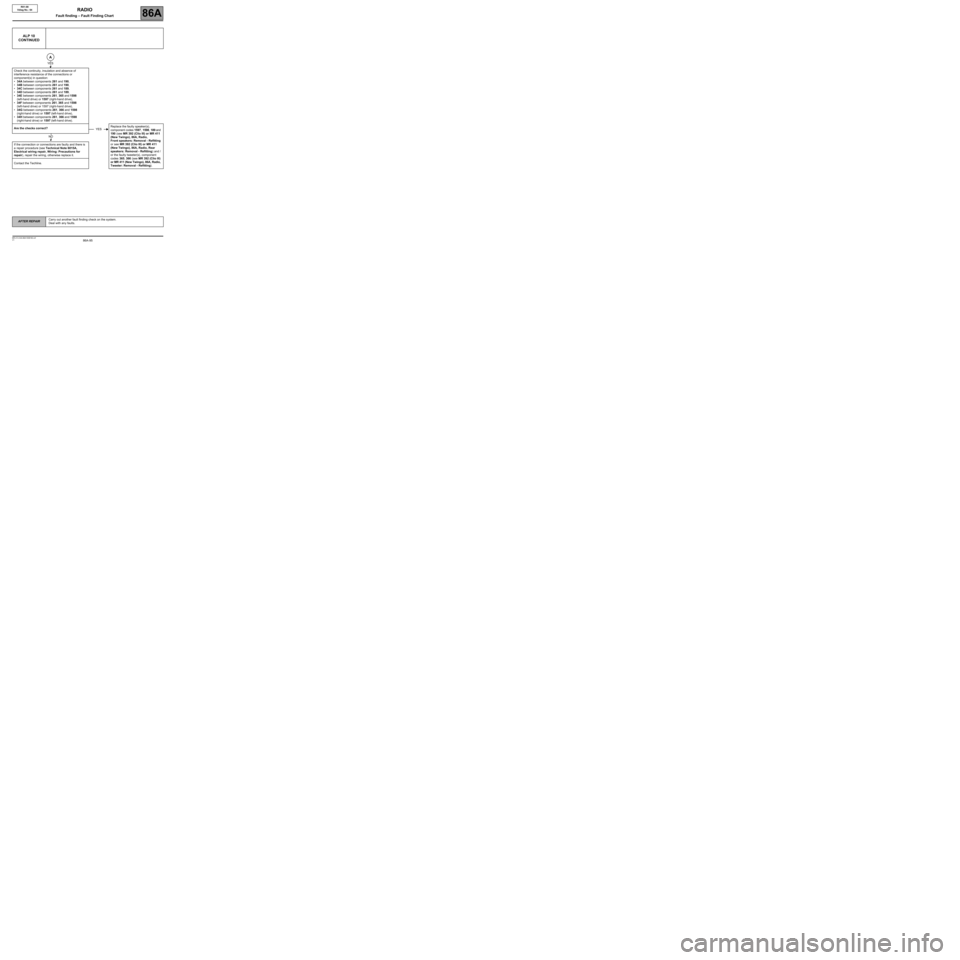

(right-hand drive) or 1597 (left-hand drive).If the connection or connections are
faulty and there is a repair procedure
(see Technical Note 6015A,
Electrical wiring repair, Wiring:
Precautions for repair), repair the
wiring, otherwise replace it.
Are the checks correct?
Is the fault located on a component (speaker,
tweeter)?Replace the faulty speaker,
component codes 1597, 1598, 189
and 190 (see MR 392 (Clio III) or
MR 411 (New Twingo), 86A, Radio,
Front speakers: Removal - Refitting
or see MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Rear
speakers: Removal - Refitting) and/
or replace the faulty tweeter(s),
component codes 365, 366 (see
MR 392 (Clio III) or MR 411
(New Twingo), 86A, Radio, Tweeter:
Removal - Refitting). Contact the Techline.
A
YES
NO
YES
YES
NO
