Page 77 of 220
special features of diesel versions........(up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.5
ENG_UD18926_2
Particularités versions diesel (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Special features of diesel versions
SPecIAl FeAtUReS oF DIeSel veRSIoNS
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
If the message “ Check antipollution
system” is displayed on the instrument
panel accompanied by the
Ä and
© warning lights; consult an ap -
proved dealer straight away.
v ehicle with particle filter
When driving, depending on the fuel
grade used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Running out of fuel
If the tank has been completely
drained, the system must be reprimed
after the tank is refilled: see information
on the “fuel tank” in Section 1 before re-
starting the engine.
Precautions to be taken in
winter
To avoid faults in icy weather:
– Ensure that the battery is always
fully charged;
– always keep the diesel tank rela -
tively full to avoid water vapour con-
densing in it and accumulating at the
bottom of the tank.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
Page 79 of 220
handbrake............................................. (up to the end of the DU)
2.7
ENG_UD24714_4
Frein à main (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Handbrake
hANDBRAKe
t o release:
Pull the lever up slightly, press button 1
and then lower the lever to the floor.
The red warning light on the instrument
panel will come on if you are driving
with an incorrectly released handbrake.
to apply:
Pull upwards, check that the vehicle is
properly immobilised.
1
Depending on the slope
and/or vehicle load, it may
be necessary to apply the
brake by an additional two
notches and to engage a gear (1st
or reverse) for manual vehicles.
Make sure that the hand -
brake is properly released
when driving (red indicator
light off), otherwise over -
heating, or even damage, may
occur.
Page 80 of 220
fueladvice on fuel economy .................. (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
fuel economy ........................................ (up to the end of the DU)
filter air filter ............................................................. (current page)
filter diesel filter ........................................................ (current page)
driving ................................................... (up to the end of the DU)
maintenance .......................................................... (current page)
antipollution advice ............................................. (up to the end of the DU)
2.8
ENG_UD27029_5
Conseils antipollution, économies de carburant, conduite (X44 - E33 - Renault)
ENG_NU_952-4_X44_Renault_2
Jaune NoirNoir texte
Advice on emission control and fuel economy
ADvIce: antipollution, fuel economy and driving (1/3)
By virtue of its design, moderate fuel
consumption and initial settings, your
vehicle conforms to current antipol-
lution regulations. The manufacturer
is actively striving to reduce pollutant
exhaust gas emissions and to save
energy. But the fuel consumption of
your vehicle and the level of pollutant
exhaust gas emissions are also your
responsibility. Ensure that it is main -
tained and used correctly.
Aiding fuel economy
Depending on the vehicle, to obtain op-
timum consumption levels, a warning
light on the rev counter lets you know
the best time to move up or down a
gear:
\ shift up a gear;
[ move down a gear.
Maintenance
It is important to remember that failure to
respect antipollution regulations could
lead to legal action being taken against
the vehicle owner. In addition, replacing
engine, fuel supply system and exhaust
components with parts other than those
originally recommended by the manu -
facturer may alter your vehicle so that
it no longer complies with antipollution
regulations.
Have your vehicle adjusted and
checked by an approved Dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
engine adjustments
– ignition: this does not require ad -
justment.
– spark plugs: for optimum fuel econ-
omy, efficiency and performance
the specifications laid down by our
Design Department must be strictly
applied.
If the spark plugs have to be
changed, use the make, type and
gap specified for your vehicle’s
engine. Contact an approved dealer
for this.
– idle: this does not require adjust -
ment.
– air filter, diesel filter: a clogged ele-
ment reduces performance. It must
be replaced.
Page 81 of 220
JauneNoirNoir texte
2.9
ENG_UD27029_5
Conseils antipollution, économies de carburant, conduite (X44 - E33 - Renault)
ENG_NU_952-4_X44_Renault_2
ADvIce: antipollution, fuel economy and driving (2/3)
Driving
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub -
stances may be released into the at -
mosphere or damage may occur.
ÄThis warning light on the in -
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult
your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible. –
Sporty driving uses a lot of fuel: drive
with a light right foot.
– Brake as little as possible. If you an-
ticipate an obstacle or bend in ad -
vance, you may then simply release
the accelerator pedal.
– Avoid sudden acceleration.
– Do not overrev the engine in the in-
termediate gears.
Always use the highest gear possi -
ble without labouring the engine.
On versions with an automatic gear-
box, it is preferable to keep the gear
lever in position D.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary
in modern vehicles.
– Bad weather, flooded roads:
Do not drive through floods
if the depth of water is
above the lower edge of the
wheel rims.
Driving problems
On the driver’s side, only use mats adapted to the vehicle that attach to
the pre-installed parts, and regularly check their mounting. Do not place
several mats on top of each other.
Risk of pedals jamming .
Page 85 of 220
JauneNoirNoir texte
2.13
ENG_UD25058_2
Dispositifs de correction de conduite (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
DRIvING coRRectIoN DevIce (continued)
electronic stability program
(eSP) with understeer control
and traction control (ASR)
Warning light on the instrument
panel flashes when the function starts
operating. electronic Stability Program (eSP)
This system helps you to keep control
of the vehicle in critical driving condi
-
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares the direction se-
lected by the driver and the actual di -
rection of the vehicle and corrects this
as necessary by applying the brakes
selectively and/or acting on the engine
power.
Understeer control
This system optimises the action of the
ESP in the case of pronounced unders-
teering (loss of front axle road holding). t
raction control (ASR)
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au -
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.
Page 86 of 220
2.14
ENG_UD25058_2
Dispositifs de correction de conduite (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
emergency brake assist
This is an additional system to ABS
which helps reduce vehicle stopping
distances.
operating principle
The system detects an emergency
braking situation. In this case, the brak-
ing assistance immediately develops
maximum power and may trigger ABS
regulation.
ABS braking is maintained as long as
the brake pedal is not released.
hazard warning lights switching on
Depending on the vehicle, these may
light up in the event of sudden decel -
eration.
DRIvING coRRectIoN DevIce (continued)
Special note on vehicles with a
Quickshift gearbox
When driving on some roads with low
surface grip (grass, snow, mud, etc.),
the system may reduce the engine
output to limit wheelspin. If this is not
required, it is recommended to switch
to manual mode on the Quickshift gear-
box (using the gear lever).
operating faults
When the system detects an operat -
ing fault the warning lights
and
© appear on the instrument panel.
In this situation, ESP and ASR are de-
activated.
Consult an approved dealer.
Page 87 of 220
speed limiter ......................................... (up to the end of the DU)
cruise control-speed limiter................... (up to the end of the DU)
cruise control ........................................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.15
ENG_UD24753_4
régulateur limiteur fonction limiteur (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Cruise control, Speed limiter: speed limiter
cRUISe coNtRol - SPeeD lIMIteR: limiter function (1/3)
The speed limiter function helps you
stay within the driving speed limit that
you choose, known as the limit speed.controls
1 Main “On/Off” switch.
2 Limit speed activation, storage and
increase switch (+).
3 Limit speed activation, storage and
decrease switch (-).
4 Switch the function to standby, with
limit speed stored (O).
5 Stored limit speed activation, stor -
age and recall (R).
Switching on
Press switch 1 on the side showing .
Warning light 6 comes on and dashes
appear on the instrument panel to in -
dicate that the speed limiter function
is operating and waiting to store a limit
speed.
To store the current speed, press
switch 2 (+) or 3 (-): the limit speed
will replace the dashes. The minimum
stored speed is 20 mph (30 km/h).
The stored speed information appears
on instrument panel display .
6
1
3452
Page 91 of 220
JauneNoirNoir texte
2.19
ENG_UD24754_4
Régulateur-limiteur de vitesses : fonction régulateur (X44 - Renault)
ENG_NU_952-4_X44_Renault_2

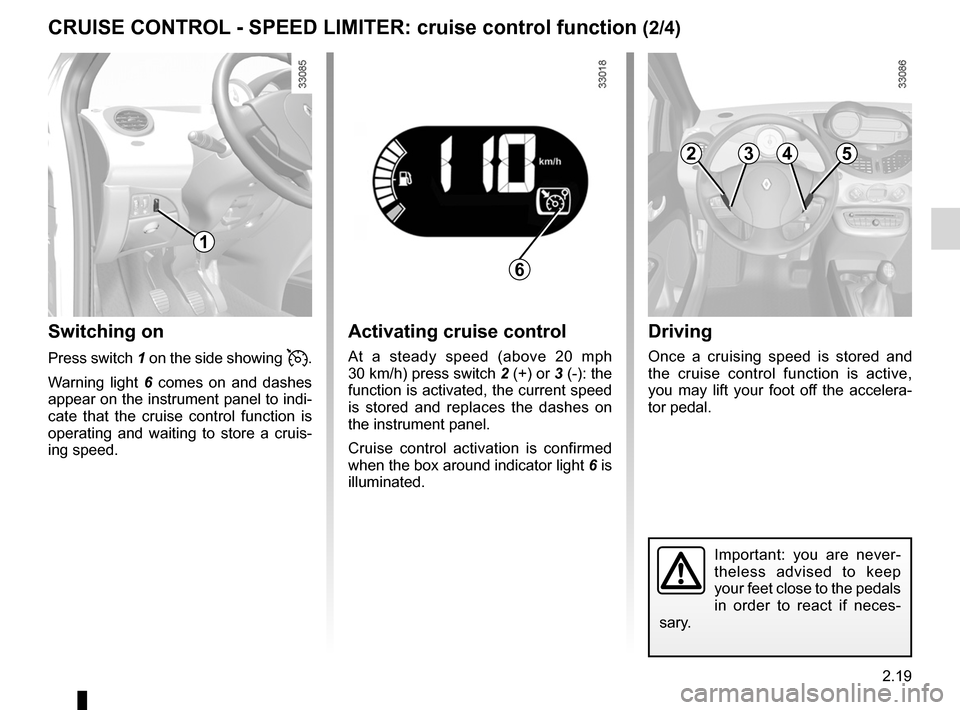

cRUISe coNtRol - SPeeD lIMIteR: cruise control function (2/4)
Switching on
Press switch 1 on the side showing .
Warning light 6 comes on and dashes
appear on the instrument panel to indi -
cate that the cruise control function is
operating and waiting to store a cruis -
ing speed.
Activating cruise control
At a steady speed (above 20 mph
30 km/h) press switch 2 (+) or 3 (-): the
function is activated, the current speed
is stored and replaces the dashes on
the instrument panel.
Cruise control activation is confirmed
when the box around indicator light 6 is
illuminated.
Driving
Once a cruising speed is stored and
the cruise control function is active,
you may lift your foot off the accelera -
tor pedal.
Important: you are never -
theless advised to keep
your feet close to the pedals
in order to react if neces -
sary.
6
1
2345
Page 95 of 220
automatic gearbox (use) ........................................ (current page)
JauneNoirNoir texte
2.23
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Starting
The display shows N (neutral) and A
(automatic mode).
Forwards gear
– With the brake pedal depressed,
push the selector lever forwards and
release it (the number 1 will appear
on the display);
– release the brake pedal and acceler-
ate gently to move forwards.
Reverse
– With your foot on the brake pedal,
push the selector lever towards the
right and backwards, and then re -
lease it.
Reverse gear is engaged (letter R
appears on the display).
– release the brake pedal then accel -
erate gently to move backwards. The
engine’s idle speed is sufficient for
parking manoeuvres.
When the vehicle is stationary, push
the selector lever towards the front to
engage a forwards gear.
operation
Switch on the ignition.
The display on the instrument panel
switches on. If neutral (N) is displayed,
start the engine but do not depress the
accelerator.
If a gear other than neutral ( N) is dis -
played, it will flash; starting is possi-
ble if you depress the brake pedal
(indicator light 4 will come on if you
forget) when holding the key in the
starting position.
The gear will automatically change to
neutral (N) and the engine will start.
You may also select neutral after
switching on the ignition by pushing the
lever to the right whilst depressing the
brake pedal.
When the engine is running, automatic
mode will be selected by default.
Note: if the display does not light up
when the ignition is switched on (dis -
charged battery), do not attempt to start
the engine by pushing the vehicle. Shifting to neutral
With the brake pedal depressed, push
the lever to the right.
Note:
when the vehicle is stationary,
you must depress the brake pedal to
engage or disengage a gear. Otherwise,
warning light 4 will light up.
QUIcKShIFt GeARBoX (2/5)
4
The oil level in the automatic gearbox system reservoir is variable depending on use. Adding oil is strictly forbidden
(except by qualified approved network personnel).
Page 96 of 220
horn ....................................................................... (current page)
2.24
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Jaune NoirNoir texte
changing mode
You can change mode at any time
by pushing the lever to the left. This
switches mode without changing gear.
Driving in manual mode
Using the selector lever
Pushing the lever repeatedly allows
you to change gears manually:
– To change up a gear: push the lever
forwards;
– to change down a gear: push the
lever backwards;
– to change to neutral: with the brake
pedal depressed (indicator light 4
will come on if you forget), push the
lever towards the right.
Note: when the vehicle is stationary
(braking, red light, etc.), the system au-
tomatically switches to first gear.
By pushing the lever forwards twice
you can move up two gears at a time
(unless this causes low engine speeds).
By pushing the lever backwards twice
you can move down two gears at a time
(unless this causes overrevving).
Note: neutral may only be selected
when the vehicle is being driven or is
stationary when the brake pedal is
depressed (if you forget, warning
light 4 will light up).
Accelerating and overtaking
To obtain maximum vehicle perform -
ance, in automatic or manual mode,
quickly depress the accelerator pedal
beyond the kickdown point.
This will activate the kickdown func -
tion allowing you to change down to the
most suitable gear.
QUIcKShIFt GeARBoX (3/5)
Driving in automatic mode
Each time the ignition is switched on,
automatic mode is selected by default
(letter A on the display).
The vehicle is controlled using the ac -
celerator and the brake.
Gears will change automatically at
the correct moment and at a suitable
engine speed because automatic mode
takes into consideration the road sur -
face and the chosen driving style.
You may change the gear selection
made by the automatic system (unless
this risks the engine being overrevved
or underrevved):
– by pushing the lever forwards or
backwards.
You can stop the vehicle at red lights,
with the gear engaged, by pressing the
brake pedal; there is no need to change
to neutral.
If the engine is being overrevved or underevved, the system will select the opti-
mal gear.
