86A-41
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF040
DF043
PRESENT
OR
STOREDNO AUDIO CD CHANGER SIGNALS
1.DEF: No communication with the CD changer
NOTESUse the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check for a CD changer in the vehicle.
Check the consistency between the configuration of the radio and the vehicle equipment by reading configuration
LC005 External components and correct if necessary, using SC002 Computer configuration.
Look for any signs of damage to the wiring harness, check the condition and connection of the connectors and
connections of components 261 and the CD changer.
If the connectors or connections are faulty and if there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the connector or the wiring, otherwise replace
the wiring.
If the vehicle is equipped with a CD changer, it was fitted as an accessory. Please refer to the handbook delivered
with the product.
If the checks are correct, replace the CD changer.
If the fault persists, contact your Techline.
R108_VA4_DF040/R108_VA4_DF043
Page 42 of 91

86A-42
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF046
PRESENT
OR
STOREDUNIT LOCKED
1.DEF: System locked
NOTESThis fault is detected when the radio computer receives a radio programming key
(supplied from the VIN) that is invalid for the instrument panel via the multiplex network.
Use the diagnostic tool to check that the V.I.N. of the radio is identical to that of the instrument panel.
Configure the multimedia connection unit (see 86D, Multimedia connection unit, Configuration).
Enter the radio code (see Anti-theft code).
If the fault persists, contact your Techline.
R108_VA4_DF046
Page 43 of 91

86A-43
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF055
PRESENT
OR
STOREDBUTTON JAMMED
1.DEF: Radio front panel button jammed.
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–The + after ignition feed is activated,
–The multimedia system is switched on using the on/off button.
The button concerned is pressed for at least 2 minutes,
Check the conformity of the radio buttons by consulting the following statuses:
–ET005 Source button,
–ET007 Info traffic button,
–ET008 Radio on/off button,
–ET009 CD eject button,
–ET010 Radio preset button 1,
–ET011 Radio preset button 2,
–ET012 Radio preset button 3,
–ET013 Radio preset button 4,
–ET014 Radio preset button 5,
–ET015 Radio preset button 6,
–ET063 MEM button,
–ET068 Volume - button,
–ET069 Volume + button,
–ET070 OK button,
–ET071 Up button,
–ET072 Down button,
–ET073 Left-hand button,
–ET074 Right-hand button,
If the one of the statuses is Pressed, press on the corresponding button so that the status becomes Released.
If the fault is still present, replace the radio (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
R108_VA4_DF055

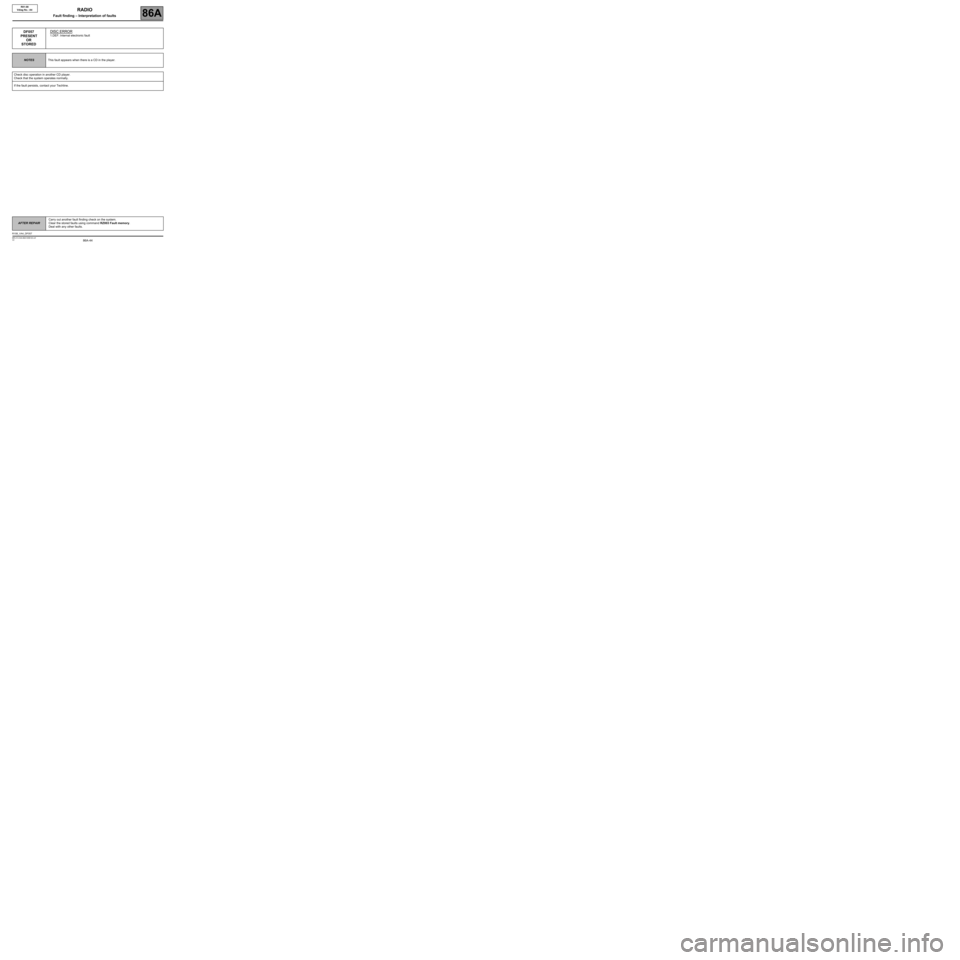

Page 44 of 91

86A-44
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF057
PRESENT
OR
STOREDDISC ERROR
1.DEF: Internal electronic fault
NOTESThis fault appears when there is a CD in the player.
Check disc operation in another CD player.
Check that the system operates normally.
If the fault persists, contact your Techline.
R108_VA4_DF057
Page 45 of 91

86A-45
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF058
PRESENT
OR
STOREDCD CHANGER OVERHEATING
1.DEF: Operating temperature too high
NOTESNone.
Switch off the system in order to lower the temperature.
Wait for the system to cool, then check that the system operates normally.
Explain the fault to the customer.
If the fault persists, contact your Techline.
R108_VA4_DF058
Page 46 of 91

86A-46
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory, after pressing the ON/
OFF button.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF064
PRESENT
OR
STOREDACTIVATION SIGNAL
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
For a vehicle equipped with a navigation system, use the multimedia connection unit
computer, component code 1714, for fault finding.
For a vehicle without a navigation system, use the display computer, component code
653, for fault finding.
Check the condition of the connector on the radio, component code 261, and, depending on the equipment level,
on the display, component code 653, or on the multimedia connection unit, component code 1714.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and absence of interference resistance on the following connections:
•34HY between,components 261 and 653 or 1714,
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the connection is correct, replace the radio (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
If the fault persists, contact your Techline.
R108_VA4_DF064
Page 47 of 91

86A-47
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF080
PRESENT
OR
STOREDEXCESSIVE TEMPERATURE
1.DEF: Operating temperature too high
NOTESNone.
When the internal temperature of the system is too high, the system will take actions to decrease this temperature:
lowering the volume, deactivating CD insertion, etc.
Explain the fault to the customer.
If the fault persists, contact your Techline.
R108_VA4_DF080
Page 48 of 91

86A-48
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory.
Deal with any other faults.
V2 MR-413-X44-86A100$120.mif
RADIO
Fault finding – Interpretation of faults86A
R01-08
Vdiag No.: A4
DF081
PRESENT
OR
STOREDCD CHANGER BUTTON JAMMED
1. DEF: CD changer button jammed
NOTESNone.
Check the operation and condition of the CD changer button, using status ET009 CD eject button (see
Conformity check).
R108_VA4_DF081
Page 49 of 91

86A-49V2 MR-413-X44-86A100$130.mif
86A
R01-08
Vdiag No.: A4
MAIN SCREEN
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Engine stopped, ignition on, and the radio switched on.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
SupplyPR011:Battery
voltage12 V < X < 15 VIn the event of an
inconsistency, consult the
interpretation of fault DF039
Battery voltage.
R108_VA4_CCONF
RADIO
Fault finding – Conformity check
Page 50 of 91

86A-50V2 MR-413-X44-86A100$130.mif
RADIO
Fault finding – Conformity check86A
R01-08
Vdiag No.: A4
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Engine stopped, ignition on, and the radio switched on.
FunctionParameter or status checked
or actionDisplay and notes Fault finding
Front panel buttonET010:Radio preset
button 1PRESSED RELEASEDIn the event of an
inconsistency, consult the
interpretation of fault DF055
Button jammed.
ET011:Radio preset
button 2PRESSED RELEASED
ET012:Radio preset
button 3PRESSED RELEASED
ET013:Radio preset
button 4PRESSED RELEASED
ET014:Radio preset
button 5PRESSED RELEASED
ET015:Radio preset
button 6PRESSED RELEASED
ET008:Radio on/off
buttonPRESSED RELEASED
ET009:CD eject buttonPRESSED RELEASED
