SAAB 9-2X 2006 Owners Manual

Audio
5-9
5
– CONTINUED –

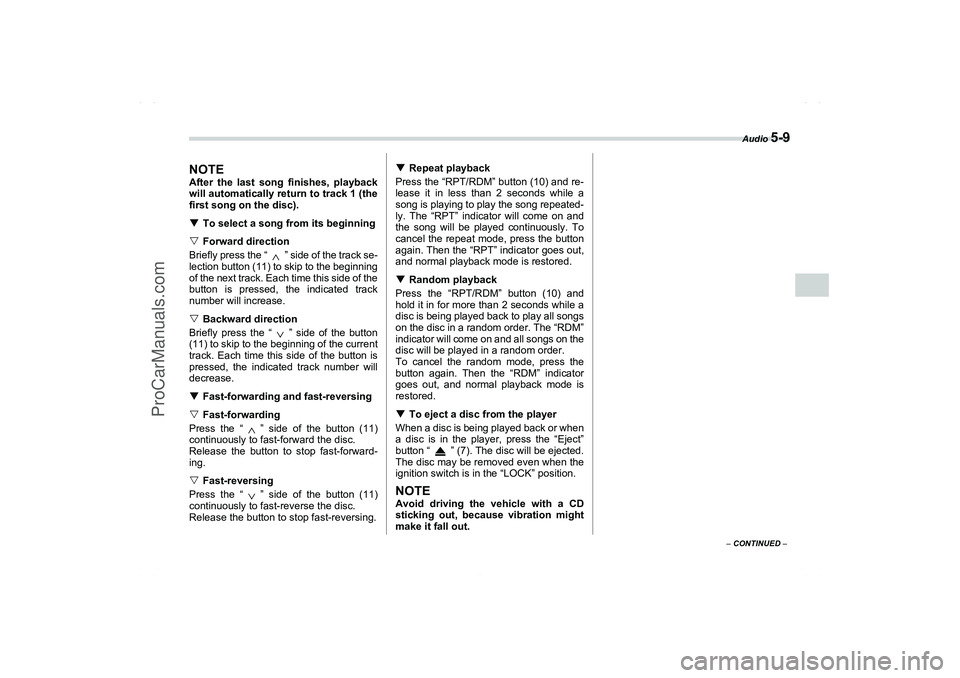

NOTEAfter the last song finishes, playback
will automatically return to track 1 (the
first song on the disc).

To select a song from its beginning
Forward direction
Briefly press the “ ” side of the track se-
lection button (11) to skip to the beginning
of the next track. Each time this side of the
button is pressed, the indicated track
number will increase.
Backward direction
Briefly press the “ ” side of the button
(11) to skip to the beginning of the current
track. Each time this side of the button is
pressed, the indicated track number will
decrease.

Fast-forwarding and fast-reversing
Fast-forwarding
Press the “ ” side of the button (11)
continuously to fast-forward the disc.
Release the button to stop fast-forward-
ing.
Fast-reversing
Press the “
” side of the button (11)
continuously to fast-reverse the disc.
Release the button to stop fast-reversing.
Repeat playback
Press the “RPT/RDM” button (10) and re-
lease it in less than 2 seconds while a
song is playing to play the song repeated-
ly. The “RPT” indicator will come on and
the song will be played continuously. To
cancel the repeat mode, press the button
again. Then the “RPT” indicator goes out,
and normal playback mode is restored.

Random playback
Press the “RPT/RDM” button (10) and
hold it in for more than 2 seconds while a
disc is being played back to play all songs
on the disc in a random order. The “RDM”
indicator will come on and all songs on the
disc will be played in a random order.
To cancel the random mode, press the
button again. Then the “RDM” indicator
goes out, and normal playback mode is
restored.

To eject a disc from the player
When a disc is being played back or when
a disc is in the player, press the “Eject”
button “
” (7). The disc will be ejected.
The disc may be removed even when the
ignition switch is in the “LOCK” position.
NOTEAvoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out.
A1910BE-A-GSAAB.book Page 9 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

5-10
Audio

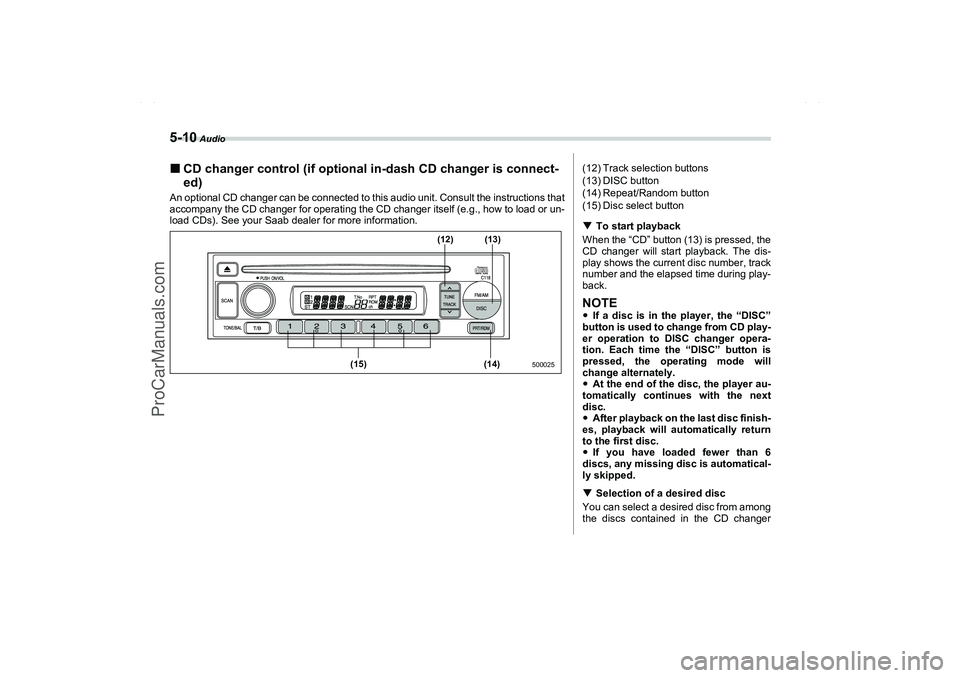

CD changer control (if optional in-dash CD changer is connect-
ed)An optional CD changer can be connected to this audio unit. Consult the instructions that
accompany the CD changer for operating the CD changer itself (e.g., how to load or un-
load CDs). See your Saab dealer for more information.
500025
(14) (15)(13) (12)
(12) Track selection buttons
(13) DISC button
(14) Repeat/Random button
(15) Disc select button

To start playback
When the “CD” button (13) is pressed, the
CD changer will start playback. The dis-
play shows the current disc number, track
number and the elapsed time during play-
back.NOTE
If a disc is in the player, the “DISC”
button is used to change from CD play-
er operation to DISC changer opera-
tion. Each time the “DISC” button is
pressed, the operating mode will
change alternately.

At the end of the disc, the player au-
tomatically continues with the next
disc.

After playback on the last disc finish-
es, playback will automatically return
to the first disc.

If you have loaded fewer than 6
discs, any missing disc is automatical-
ly skipped.

Selection of a desired disc
You can select a desired disc from among
the discs contained in the CD changer
A1910BE-A-GSAAB.book Page 10 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Audio
5-11
5

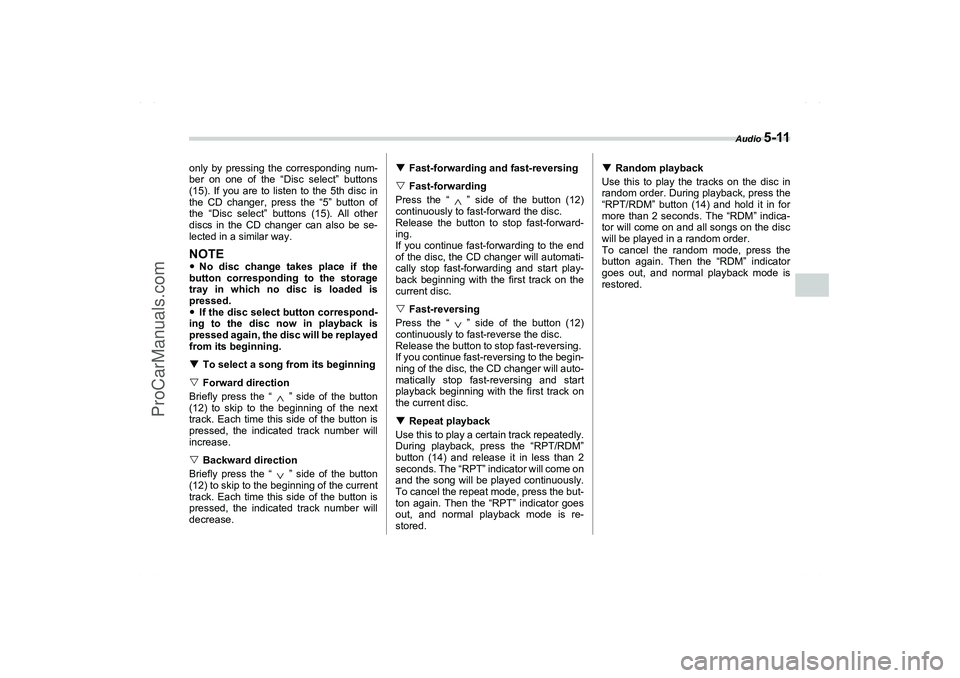

only by pressing the corresponding num-
ber on one of the “Disc select” buttons
(15). If you are to listen to the 5th disc in
the CD changer, press the “5” button of
the “Disc select” buttons (15). All other
discs in the CD changer can also be se-
lected in a similar way.NOTE
No disc change takes place if the
button corresponding to the storage
tray in which no disc is loaded is
pressed.

If the disc select button correspond-
ing to the disc now in playback is
pressed again, the disc will be replayed
from its beginning.

To select a song from its beginning
Forward direction
Briefly press the “ ” side of the button
(12) to skip to the beginning of the next
track. Each time this side of the button is
pressed, the indicated track number will
increase.
Backward direction
Briefly press the “ ” side of the button
(12) to skip to the beginning of the current
track. Each time this side of the button is
pressed, the indicated track number will
decrease.
Fast-forwarding and fast-reversing
Fast-forwarding
Press the “ ” side of the button (12)
continuously to fast-forward the disc.
Release the button to stop fast-forward-
ing.
If you continue fast-forwarding to the end
of the disc, the CD changer will automati-
cally stop fast-forwarding and start play-
back beginning with the first track on the
current disc.
Fast-reversing
Press the “ ” side of the button (12)
continuously to fast-reverse the disc.
Release the button to stop fast-reversing.
If you continue fast-reversing to the begin-
ning of the disc, the CD changer will auto-
matically stop fast-reversing and start
playback beginning with the first track on
the current disc.

Repeat playback
Use this to play a certain track repeatedly.
During playback, press the “RPT/RDM”
button (14) and release it in less than 2
seconds. The “RPT” indicator will come on
and the song will be played continuously.
To cancel the repeat mode, press the but-
ton again. Then the “RPT” indicator goes
out, and normal playback mode is re-
stored.
Random playback
Use this to play the tracks on the disc in
random order. During playback, press the
“RPT/RDM” button (14) and hold it in for
more than 2 seconds. The “RDM” indica-
tor will come on and all songs on the disc
will be played in a random order.
To cancel the random mode, press the
button again. Then the “RDM” indicator
goes out, and normal playback mode is
restored.
A1910BE-A-GSAAB.book Page 11 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

5-12
Audio

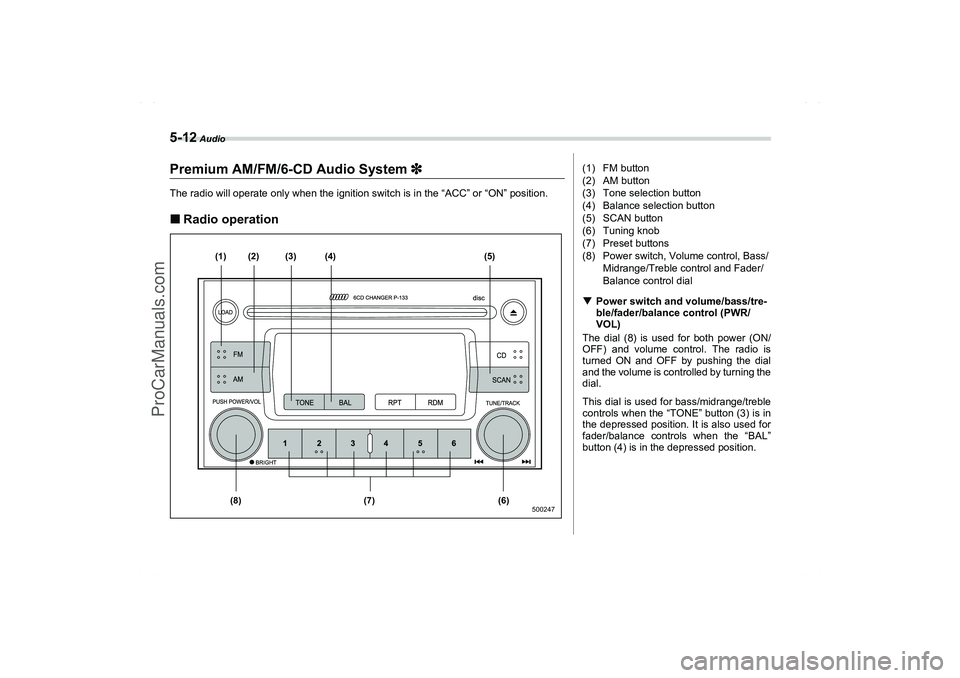

Premium AM/FM/6-CD Audio System 3
33 3The radio will operate only when the ignition switch is in the “ACC” or “ON” position.
Radio operation
(1)
(8) (7) (6)(2) (3) (4) (5)
500247
(1) FM button
(2) AM button
(3) Tone selection button
(4) Balance selection button
(5) SCAN button
(6) Tuning knob
(7) Preset buttons
(8) Power switch, Volume control, Bass/
Midrange/Treble control and Fader/
Balance control dial

Power switch and volume/bass/tre-
ble/fader/balance control (PWR/
VOL)
The dial (8) is used for both power (ON/
OFF) and volume control. The radio is
turned ON and OFF by pushing the dial
and the volume is controlled by turning the
dial.
This dial is used for bass/midrange/treble
controls when the “TONE” button (3) is in
the depressed position. It is also used for
fader/balance controls when the “BAL”
button (4) is in the depressed position.
A1910BE-A-GSAAB.book Page 12 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Audio
5-13
– CONTINUED –
5

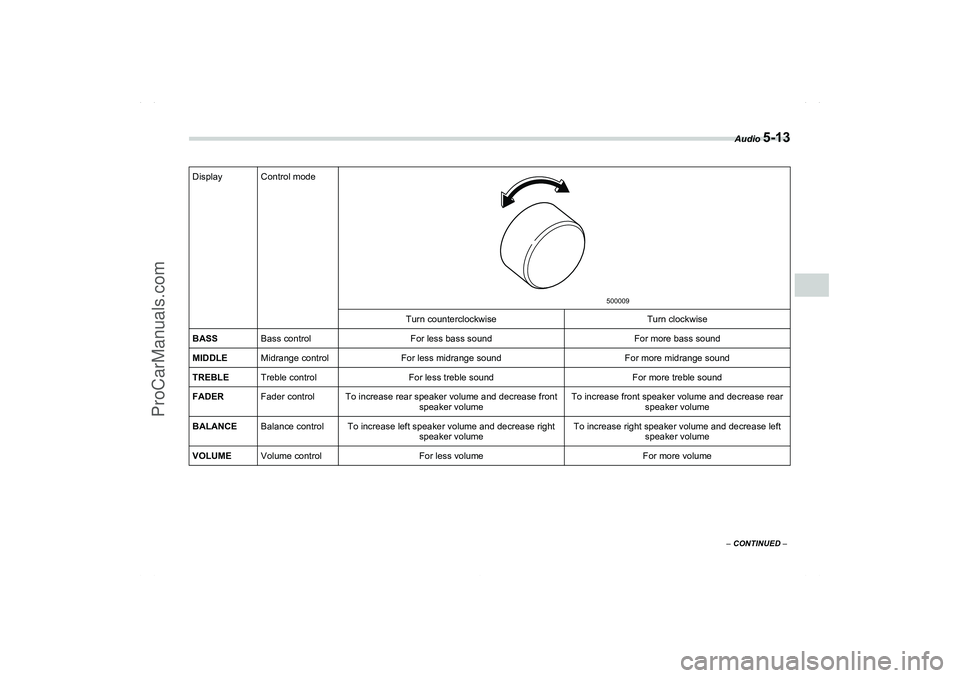

Display
Control mode
Turn counterclockwise
Turn clockwise
BASS
Bass control
For less bass sound
For more bass sound
MIDDLE
Midrange control
For less midrange sound
For more midrange sound
TREBLE
Treble control
For less treble sound
For more treble sound
FADER
Fader control
To increase rear speaker volume and decrease front
speaker volume
To increase front speaker volume and decrease rear
speaker volume
BALANCE
Balance control
To increase left speaker volume and decrease right
speaker volume
To increase right speaker volume and decrease left
speaker volume
VOLUME
Volume control
For less volume
For more volume
500009
A1910BE-A-GSAAB.book Page 13 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

5-14
Audio
Tone control
The volume control dial (8) normally func-
tion as volume control. The dial becomes
a control for Bass, Midrange or Treble
when you select the appropriate tone con-
trol mode.
Choose desired level for each mode by
turning the volume control dial. The con-
trol function returns to volume control
mode after approximately 5 seconds.
To change control modes: Each brief
press of the “TONE” button (3) changes
control modes in the following sequence
starting from bass control mode. (When
the radio is first turned on, the control
mode is in the volume control.)
Fader and balance control
The volume control dial (8) normally func-
tion as volume control. The dial become
the controls for Fader or Balance when
you select the appropriate fader and bal-
ance control mode.
Choose desired setting for each mode by
turning the volume control dial. The con-
trol function returns to volume control
mode after approximately 5 seconds.To change control modes: Each brief
press of the “BAL” button (4) changes
control modes in the following sequence
starting from fader control mode. (When
the radio is turned on, the control mode is
in the volume control.)
Display illumination dimness can-
cellation (BRIGHT)
The brightness of the radio display dims
when the light switch is in the “
” or
“
” positions. If this makes the display
difficult to read, press the volume dial for
more than 1.5 seconds to return the dis-
play to original brightness.
Subsequently pressing the volume dial
again for more than 1.5 seconds or if you
can safely do so, turning the light switch to
the OFF position and back to the “
”
or “
” position makes the radio display
dim again.

FM/AM selection button
Push the “FM” (1) or “AM” (2) button when
the radio is off to turn on the radio.
Push the “FM” or “AM” button when the ra-
dio is on to select FM1, FM2 or AM recep-
tion.
Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received.

Manual tuning (TUNE)
: Tuning to a higher frequency: Tuning to a lower frequency: Seeking the next higher station: Seeking the next lower station
Manual tuning
Turn the tuning knob (6) clockwise and re-
lease it immediately to increase the tuning
frequency and turn the tuning knob coun-
terclockwise and release it immediately to
decrease the tuning frequency.
Each time the knob is turned, the frequen-
cy changes 10 kHz in the AM waveband
and 0.2 MHz in the FM waveband.
VOLUME BASS TREBLEMIDDLE
FADER BALANCE VOLUME
500248
A1910BE-A-GSAAB.book Page 14 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Audio
5-15
5
– CONTINUED –

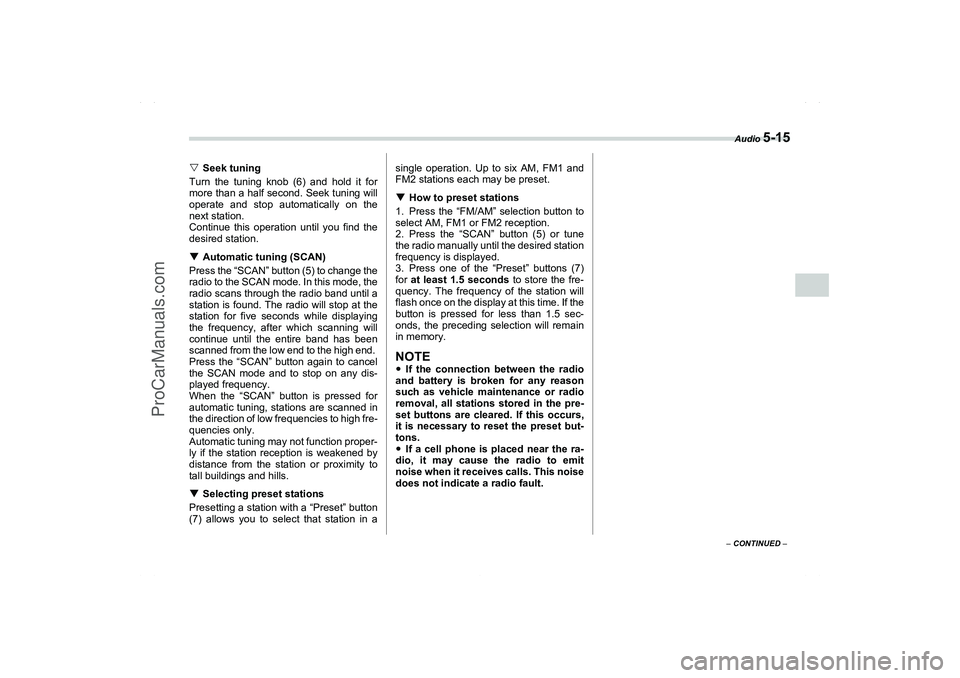

Seek tuning
Turn the tuning knob (6) and hold it for
more than a half second. Seek tuning will
operate and stop automatically on the
next station.
Continue this operation until you find the
desired station.

Automatic tuning (SCAN)
Press the “SCAN” button (5) to change the
radio to the SCAN mode. In this mode, the
radio scans through the radio band until a
station is found. The radio will stop at the
station for five seconds while displaying
the frequency, after which scanning will
continue until the entire band has been
scanned from the low end to the high end.
Press the “SCAN” button again to cancel
the SCAN mode and to stop on any dis-
played frequency.
When the “SCAN” button is pressed for
automatic tuning, stations are scanned in
the direction of low frequencies to high fre-
quencies only.
Automatic tuning may not function proper-
ly if the station reception is weakened by
distance from the station or proximity to
tall buildings and hills.

Selecting preset stations
Presetting a station with a “Preset” button
(7) allows you to select that station in asingle operation. Up to six AM, FM1 and
FM2 stations each may be preset.

How to preset stations
1. Press the “FM/AM” selection button to
select AM, FM1 or FM2 reception.
2. Press the “SCAN” button (5) or tune
the radio manually until the desired station
frequency is displayed.
3. Press one of the “Preset” buttons (7)
for at least 1.5 seconds to store the fre-
quency. The frequency of the station will
flash once on the display at this time. If the
button is pressed for less than 1.5 sec-
onds, the preceding selection will remain
in memory.
NOTE
If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleared. If this occurs,
it is necessary to reset the preset but-
tons.

If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault.
A1910BE-A-GSAAB.book Page 15 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

5-16
Audio

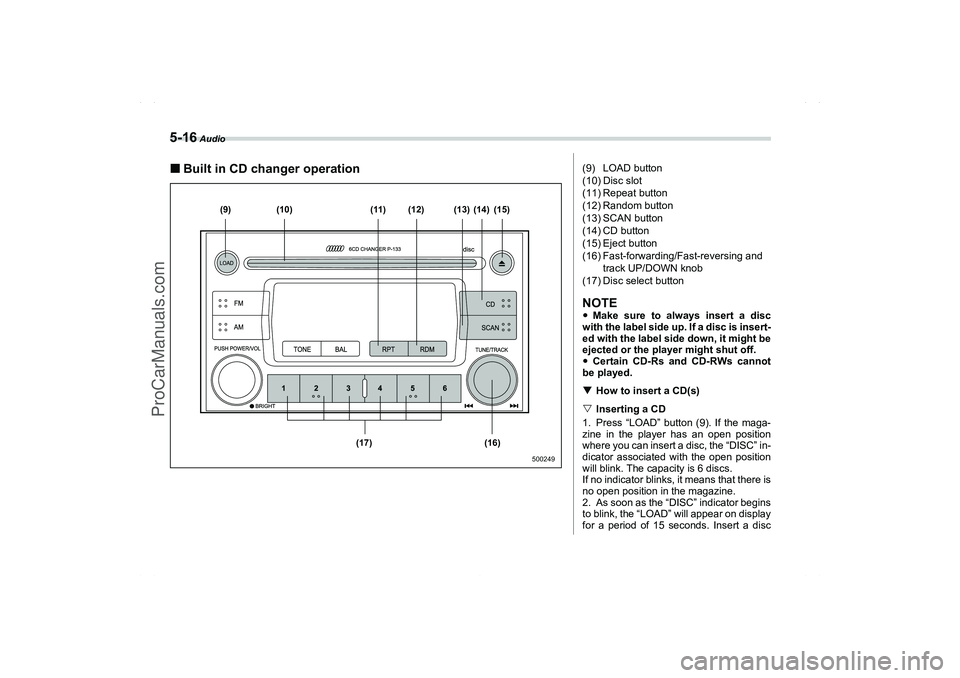

Built in CD changer operation
(9)
(17) (16)(12) (11) (10) (13) (14) (15)
500249
(9) LOAD button
(10) Disc slot
(11) Repeat button
(12) Random button
(13) SCAN button
(14) CD button
(15) Eject button
(16) Fast-forwarding/Fast-reversing and
track UP/DOWN knob
(17) Disc select buttonNOTE
Make sure to always insert a disc
with the label side up. If a disc is insert-
ed with the label side down, it might be
ejected or the player might shut off.

Certain CD-Rs and CD-RWs cannot
be played.

How to insert a CD(s)
Inserting a CD
1. Press “LOAD” button (9). If the maga-
zine in the player has an open position
where you can insert a disc, the “DISC” in-
dicator associated with the open position
will blink. The capacity is 6 discs.
If no indicator blinks, it means that there is
no open position in the magazine.
2. As soon as the “DISC” indicator begins
to blink, the “LOAD” will appear on display
for a period of 15 seconds. Insert a disc
A1910BE-A-GSAAB.book Page 16 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Audio
5-17
5
– CONTINUED –

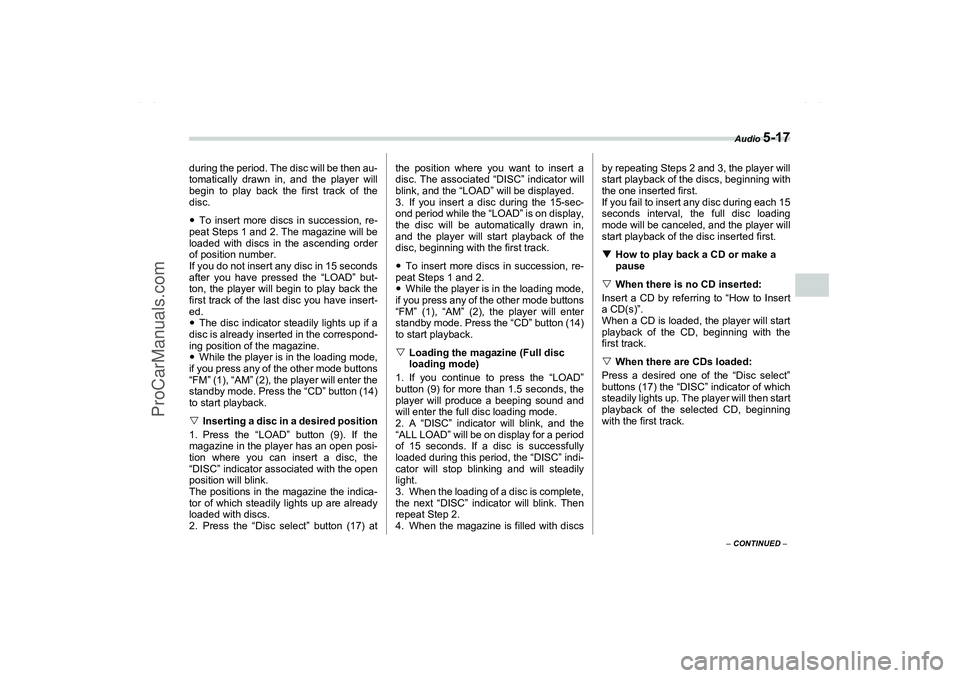

during the period. The disc will be then au-
tomatically drawn in, and the player will
begin to play back the first track of the
disc.

To insert more discs in succession, re-
peat Steps 1 and 2. The magazine will be
loaded with discs in the ascending order
of position number.
If you do not insert any disc in 15 seconds
after you have pressed the “LOAD” but-
ton, the player will begin to play back the
first track of the last disc you have insert-
ed.

The disc indicator steadily lights up if a
disc is already inserted in the correspond-
ing position of the magazine.

While the player is in the loading mode,
if you press any of the other mode buttons
“FM” (1), “AM” (2), the player will enter the
standby mode. Press the “CD” button (14)
to start playback.
Inserting a disc in a desired position
1. Press the “LOAD” button (9). If the
magazine in the player has an open posi-
tion where you can insert a disc, the
“DISC” indicator associated with the open
position will blink.
The positions in the magazine the indica-
tor of which steadily lights up are already
loaded with discs.
2. Press the “Disc select” button (17) atthe position where you want to insert a
disc. The associated “DISC” indicator will
blink, and the “LOAD” will be displayed.
3. If you insert a disc during the 15-sec-
ond period while the “LOAD” is on display,
the disc will be automatically drawn in,
and the player will start playback of the
disc, beginning with the first track.

To insert more discs in succession, re-
peat Steps 1 and 2.

While the player is in the loading mode,
if you press any of the other mode buttons
“FM” (1), “AM” (2), the player will enter
standby mode. Press the “CD” button (14)
to start playback.
Loading the magazine (Full disc
loading mode)
1. If you continue to press the “LOAD”
button (9) for more than 1.5 seconds, the
player will produce a beeping sound and
will enter the full disc loading mode.
2. A “DISC” indicator will blink, and the
“ALL LOAD” will be on display for a period
of 15 seconds. If a disc is successfully
loaded during this period, the “DISC” indi-
cator will stop blinking and will steadily
light.
3. When the loading of a disc is complete,
the next “DISC” indicator will blink. Then
repeat Step 2.
4. When the magazine is filled with discsby repeating Steps 2 and 3, the player will
start playback of the discs, beginning with
the one inserted first.
If you fail to insert any disc during each 15
seconds interval, the full disc loading
mode will be canceled, and the player will
start playback of the disc inserted first.

How to play back a CD or make a
pause
When there is no CD inserted:
Insert a CD by referring to “How to Insert
a CD(s)”.
When a CD is loaded, the player will start
playback of the CD, beginning with the
first track.
When there are CDs loaded:
Press a desired one of the “Disc select”
buttons (17) the “DISC” indicator of which
steadily lights up. The player will then start
playback of the selected CD, beginning
with the first track.
A1910BE-A-GSAAB.book Page 17 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

5-18
Audio

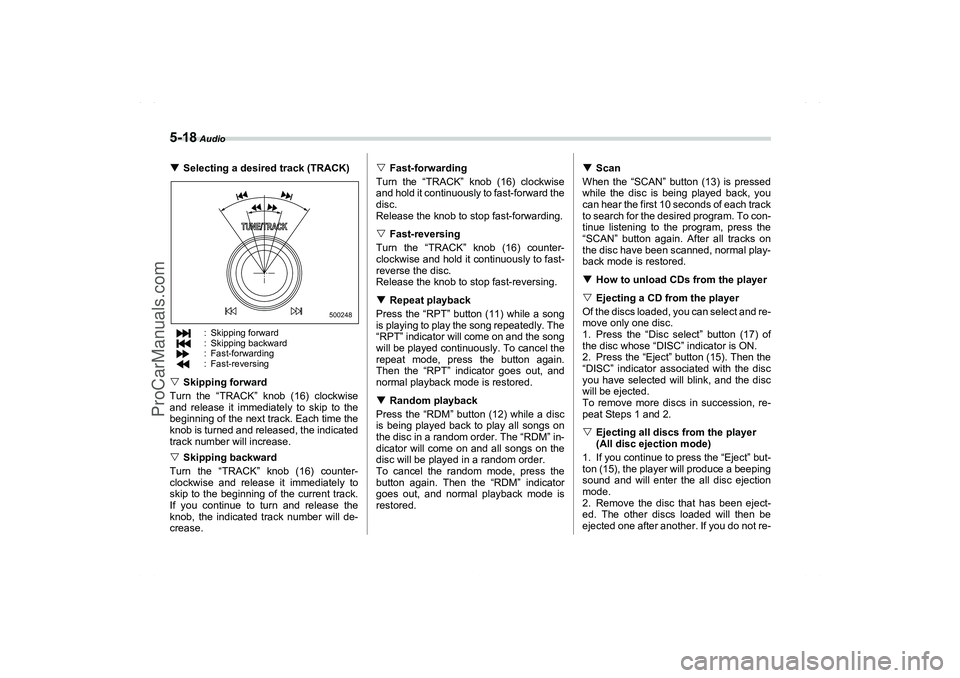

Selecting a desired track (TRACK)
: Skipping forward: Skipping backward: Fast-forwarding: Fast-reversing
Skipping forward
Turn the “TRACK” knob (16) clockwise
and release it immediately to skip to the
beginning of the next track. Each time the
knob is turned and released, the indicated
track number will increase.
Skipping backward
Turn the “TRACK” knob (16) counter-
clockwise and release it immediately to
skip to the beginning of the current track.
If you continue to turn and release the
knob, the indicated track number will de-
crease.Fast-forwarding
Turn the “TRACK” knob (16) clockwise
and hold it continuously to fast-forward the
disc.
Release the knob to stop fast-forwarding.
Fast-reversing
Turn the “TRACK” knob (16) counter-
clockwise and hold it continuously to fast-
reverse the disc.
Release the knob to stop fast-reversing.

Repeat playback
Press the “RPT” button (11) while a song
is playing to play the song repeatedly. The
“RPT” indicator will come on and the song
will be played continuously. To cancel the
repeat mode, press the button again.
Then the “RPT” indicator goes out, and
normal playback mode is restored.

Random playback
Press the “RDM” button (12) while a disc
is being played back to play all songs on
the disc in a random order. The “RDM” in-
dicator will come on and all songs on the
disc will be played in a random order.
To cancel the random mode, press the
button again. Then the “RDM” indicator
goes out, and normal playback mode is
restored.
Scan
When the “SCAN” button (13) is pressed
while the disc is being played back, you
can hear the first 10 seconds of each track
to search for the desired program. To con-
tinue listening to the program, press the
“SCAN” button again. After all tracks on
the disc have been scanned, normal play-
back mode is restored.

How to unload CDs from the player
Ejecting a CD from the player
Of the discs loaded, you can select and re-
move only one disc.
1. Press the “Disc select” button (17) of
the disc whose “DISC” indicator is ON.
2. Press the “Eject” button (15). Then the
“DISC” indicator associated with the disc
you have selected will blink, and the disc
will be ejected.
To remove more discs in succession, re-
peat Steps 1 and 2.
Ejecting all discs from the player
(All disc ejection mode)
1. If you continue to press the “Eject” but-
ton (15), the player will produce a beeping
sound and will enter the all disc ejection
mode.
2. Remove the disc that has been eject-
ed. The other discs loaded will then be
ejected one after another. If you do not re-
500248
A1910BE-A-GSAAB.book Page 18 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
