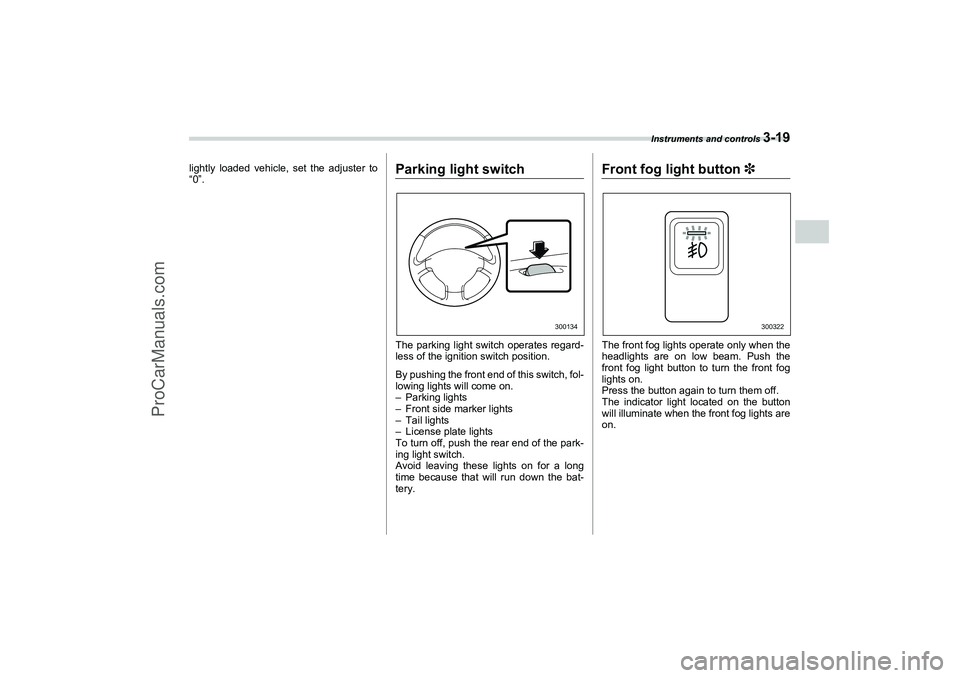

SAAB 9-2X 2006 Owners Manual

Instruments and controls
3-19
3
lightly loaded vehicle, set the adjuster to
“0”.
Parking light switchThe parking light switch operates regard-
less of the ignition switch position.
By pushing the front end of this switch, fol-
lowing lights will come on.
– Parking lights
– Front side marker lights
– Tail lights
– License plate lights
To turn off, push the rear end of the park-
ing light switch.
Avoid leaving these lights on for a long
time because that will run down the bat-
tery.
Front fog light button 3The front fog lights operate only when the
headlights are on low beam. Push the
front fog light button to turn the front fog
lights on.
Press the button again to turn them off.
The indicator light located on the button
will illuminate when the front fog lights are
on.
300134
300322
A1910BE-A-G03SAAB.fm Page 19 Tuesday, September 6, 2005 8:53 AM
ProCarManuals.com

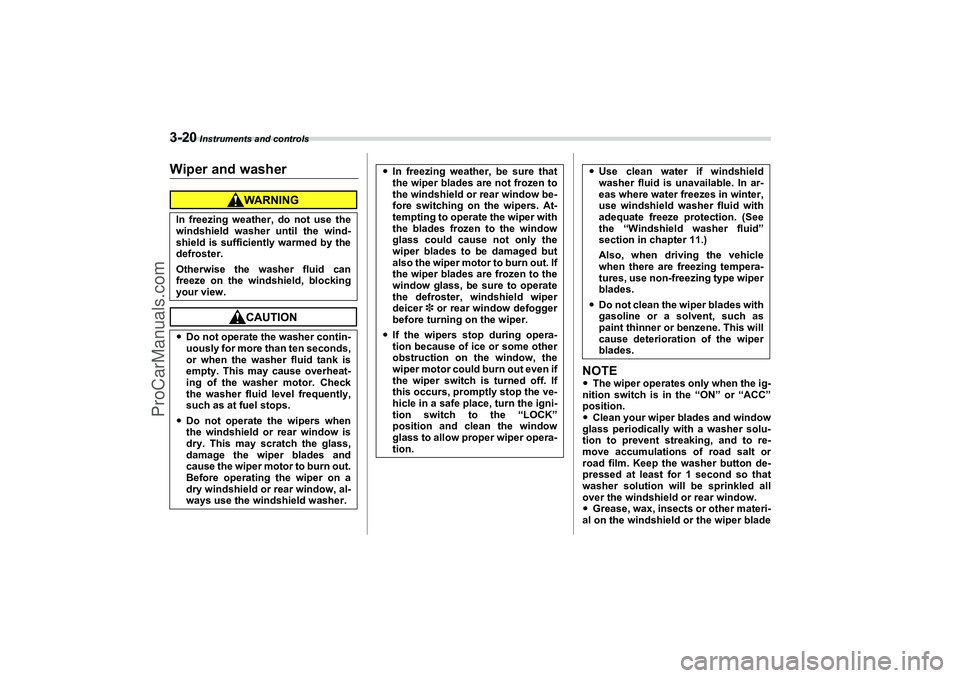

3-20
Instruments and controls
Wiper and washer
NOTE
The wiper operates only when the ig-
nition switch is in the “ON” or “ACC”
position.

Clean your wiper blades and window
glass periodically with a washer solu-
tion to prevent streaking, and to re-
move accumulations of road salt or
road film. Keep the washer button de-
pressed at least for 1 second so that
washer solution will be sprinkled all
over the windshield or rear window.

Grease, wax, insects or other materi-
al on the windshield or the wiper blade In freezing weather, do not use the
windshield washer until the wind-
shield is sufficiently warmed by the
defroster.
Otherwise the washer fluid can
freeze on the windshield, blocking
your view.

Do not operate the washer contin-
uously for more than ten seconds,
or when the washer fluid tank is
empty. This may cause overheat-
ing of the washer motor. Check
the washer fluid level frequently,
such as at fuel stops.

Do not operate the wipers when
the windshield or rear window is
dry. This may scratch the glass,
damage the wiper blades and
cause the wiper motor to burn out.
Before operating the wiper on a
dry windshield or rear window, al-
ways use the windshield washer.

In freezing weather, be sure that
the wiper blades are not frozen to
the windshield or rear window be-
fore switching on the wipers. At-
tempting to operate the wiper with
the blades frozen to the window
glass could cause not only the
wiper blades to be damaged but
also the wiper motor to burn out. If
the wiper blades are frozen to the
window glass, be sure to operate
the defroster, windshield wiper
deicer 3 or rear window defogger
before turning on the wiper.

If the wipers stop during opera-
tion because of ice or some other
obstruction on the window, the
wiper motor could burn out even if
the wiper switch is turned off. If
this occurs, promptly stop the ve-
hicle in a safe place, turn the igni-
tion switch to the “LOCK”
position and clean the window
glass to allow proper wiper opera-
tion.

Use clean water if windshield
washer fluid is unavailable. In ar-
eas where water freezes in winter,
use windshield washer fluid with
adequate freeze protection. (See
the “Windshield washer fluid”
section in chapter 11.)
Also, when driving the vehicle
when there are freezing tempera-
tures, use non-freezing type wiper
blades.

Do not clean the wiper blades with
gasoline or a solvent, such as
paint thinner or benzene. This will
cause deterioration of the wiper
blades.
A1910BE-A-GSAAB.book Page 20 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

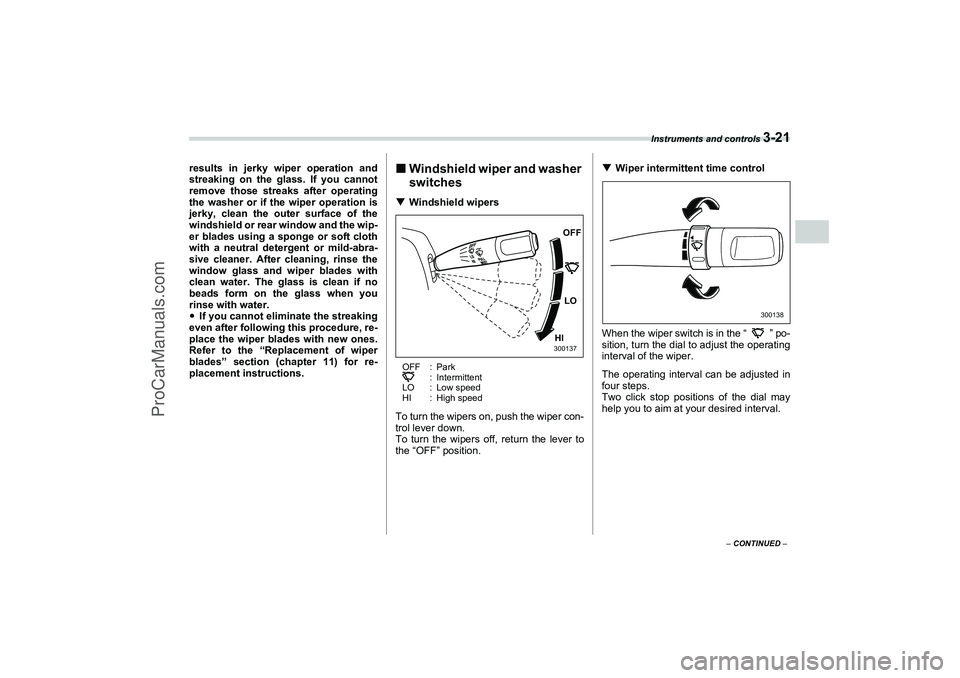

Instruments and controls
3-21
3
– CONTINUED –
results in jerky wiper operation and
streaking on the glass. If you cannot
remove those streaks after operating
the washer or if the wiper operation is
jerky, clean the outer surface of the
windshield or rear window and the wip-
er blades using a sponge or soft cloth
with a neutral detergent or mild-abra-
sive cleaner. After cleaning, rinse the
window glass and wiper blades with
clean water. The glass is clean if no
beads form on the glass when you
rinse with water.

If you cannot eliminate the streaking
even after following this procedure, re-
place the wiper blades with new ones.
Refer to the “Replacement of wiper
blades” section (chapter 11) for re-
placement instructions.

Windshield wiper and washer
switches
Windshield wipersOFF : Park
: Intermittent
LO : Low speed
HI : High speedTo turn the wipers on, push the wiper con-
trol lever down.
To turn the wipers off, return the lever to
the “OFF” position.
Wiper intermittent time control
When the wiper switch is in the “ ” po-
sition, turn the dial to adjust the operating
interval of the wiper.
The operating interval can be adjusted in
four steps.
Two click stop positions of the dial may
help you to aim at your desired interval.
OFF
LO
HI300137
300138
A1910BE-A-GSAAB.book Page 21 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

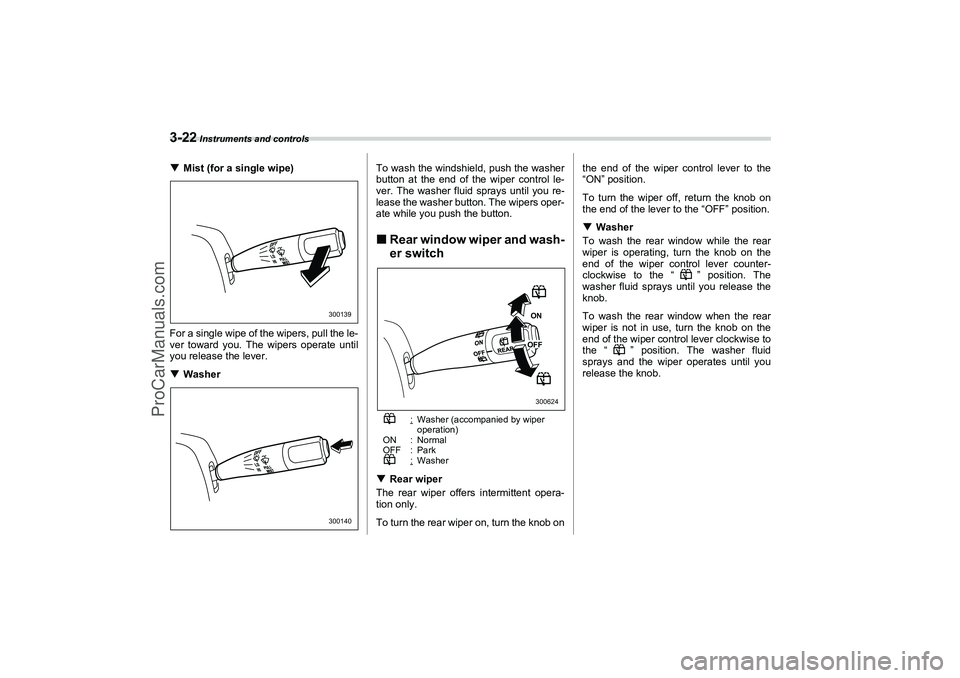

3-22
Instruments and controls

Mist (for a single wipe)
For a single wipe of the wipers, pull the le-
ver toward you. The wipers operate until
you release the lever.

WasherTo wash the windshield, push the washer
button at the end of the wiper control le-
ver. The washer fluid sprays until you re-
lease the washer button. The wipers oper-
ate while you push the button.

Rear window wiper and wash-
er switch
:Washer (accompanied by wiper
operation)
ON : Normal
OFF : Park:Washer

Rear wiper
The rear wiper offers intermittent opera-
tion only.
To turn the rear wiper on, turn the knob onthe end of the wiper control lever to the
“ON” position.
To turn the wiper off, return the knob on
the end of the lever to the “OFF” position.

Washer
To wash the rear window while the rear
wiper is operating, turn the knob on the
end of the wiper control lever counter-
clockwise to the “ ” position. The
washer fluid sprays until you release the
knob.
To wash the rear window when the rear
wiper is not in use, turn the knob on the
end of the wiper control lever clockwise to
the “ ” position. The washer fluid
sprays and the wiper operates until you
release the knob.
300139300140
ON
OFF300624
A1910BE-A-GSAAB.book Page 22 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

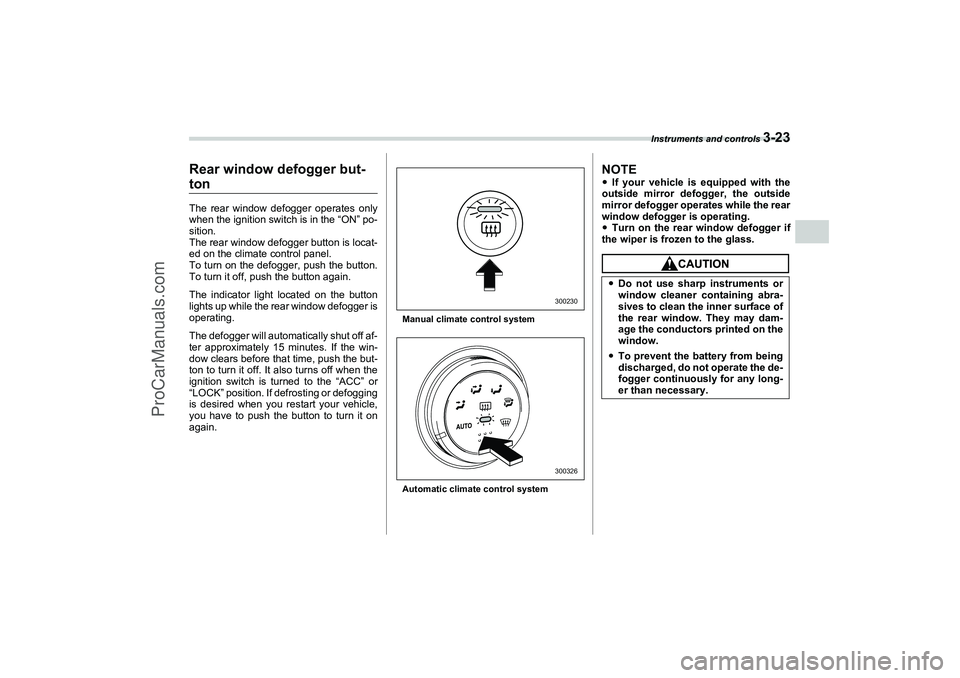

Instruments and controls
3-23
3
Rear window defogger but-tonThe rear window defogger operates only
when the ignition switch is in the “ON” po-
sition.
The rear window defogger button is locat-
ed on the climate control panel.
To turn on the defogger, push the button.
To turn it off, push the button again.
The indicator light located on the button
lights up while the rear window defogger is
operating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the win-
dow clears before that time, push the but-
ton to turn it off. It also turns off when the
ignition switch is turned to the “ACC” or
“LOCK” position. If defrosting or defogging
is desired when you restart your vehicle,
you have to push the button to turn it on
again.
Manual climate control system
Automatic climate control system
NOTE
If your vehicle is equipped with the
outside mirror defogger, the outside
mirror defogger operates while the rear
window defogger is operating.

Turn on the rear window defogger if
the wiper is frozen to the glass.
300230300326

Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may dam-
age the conductors printed on the
window.

To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any long-
er than necessary.
A1910BE-A-GSAAB.book Page 23 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

3-24
Instruments and controls
Windshield wiper deicer 3The windshield wiper deicer operates only
when the ignition switch is in the “ON” po-
sition.
Before turning on the windshield wiper de-
icer, remove any snow from the wind-
shield. To turn on the windshield wiper de-
icer, push the button. The indicator light
located on the button lights up while the
windshield wiper deicer is operating.
The windshield wiper deicer will automati-
cally shut off after approximately 15 min-
utes. If the windshield wiper blades have
been deiced completely before that time,
push the button to turn it off. It also turns
off when the ignition switch is turned to the
“ACC” or “LOCK” position. If deicing is notcomplete when you restart your vehicle,
you have to push the button to turn the de-
icer on again.
NOTEIf your vehicle is equipped with the out-
side mirror defogger, the outside mir-
ror defogger operates while the rear
window defogger is operating.
MirrorsAlways check that the inside and outside
mirrors are properly adjusted before you
start driving.
Inside mirrorThe inside mirror has a day and night po-
sition. Pull the tab at the bottom of the mir-
ror toward you for the night position. Push
it away for the day position. The night po-
sition reduces glare from headlights.
300143
To prevent the battery from being
discharged, do not operate the
windshield wiper deicer continuous-
ly for any longer than necessary.
300145
A1910BE-A-GSAAB.book Page 24 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Instruments and controls
3-25
3
– CONTINUED –

Outside mirrors
Convex mirror (passenger side)

Remote control mirror switch1) Selection switch
2) Direction control switchThe remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Press either end of the selection
switch, “L” for the left, “R” for the right.
2. Move the direction control switch in the
direction you want to move the mirror.
3. Return the selection switch to the neu-
tral position to prevent unintentional oper-
ation.
The mirrors can also be adjusted manual-
ly.
Outside mirror defogger 3
Manual climate control system
Automatic climate control system
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the dis-
tance of vehicles behind you when
changing lanes. Use the inside mir-
ror (or glance backwards) to deter-
mine the actual size and distance of
objects that you view in convex mir-
ror.
300146
1
2
300625
300230300326
A1910BE-A-GSAAB.book Page 25 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

3-26
Instruments and controls
The outside mirror defogger shares the
button with rear window defogger.
The outside mirror defogger operates only
when the ignition switch is in the “ON” po-
sition.
To turn on the outside mirror defogger,
push the button. To turn it off, push the
button again. The indicator light located
on the button lights up while the outside
mirror defogger is operating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the mirror
clears before that time, push the button to
turn it off. It also turns off when the ignition
switch is turned to the “ACC” or “LOCK”
position. If defrosting or defogging is de-
sired when you restart your vehicle, you
have to push the button to turn it on again.NOTEWhile the outside mirror defogger is
operating, the rear window defogger
also operates.
Tilt steering wheel1. Adjust the seat position. Refer to the
“Front seats” section (chapter 1).
2. Push the tilt lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down.
HornTo sound the horn, push the horn pad.
To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any longer
than necessary.
Do not adjust the steering wheel tilt
position while driving. This may
cause loss of vehicle control and re-
sult in personal injury.
300149
300150
A1910BE-A-GSAAB.book Page 26 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

14

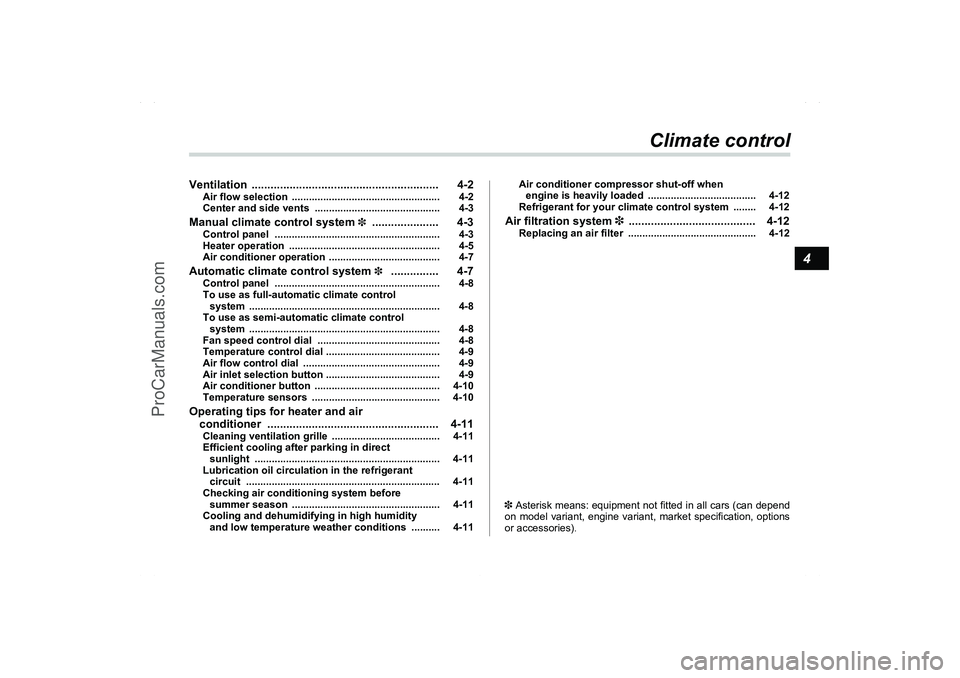

Climate control
Ventilation ........................................................... 4-2
Air flow selection .................................................... 4-2
Center and side vents ............................................ 4-3
Manual climate control system
3 ..................... 4-3
Control panel .......................................................... 4-3
Heater operation ..................................................... 4-5
Air conditioner operation ....................................... 4-7
Automatic climate control system
3 ............... 4-7
Control panel .......................................................... 4-8
To use as full-automatic climate control
system ................................................................... 4-8
To use as semi-automatic climate control
system ................................................................... 4-8
Fan speed control dial ........................................... 4-8
Temperature control dial ........................................ 4-9
Air flow control dial ................................................ 4-9
Air inlet selection button ........................................ 4-9
Air conditioner button ............................................ 4-10
Temperature sensors ............................................. 4-10
Operating tips for heater and air
conditioner ...................................................... 4-11
Cleaning ventilation grille ...................................... 4-11
Efficient cooling after parking in direct
sunlight ................................................................. 4-11
Lubrication oil circulation in the refrigerant
circuit .................................................................... 4-11
Checking air conditioning system before
summer season .................................................... 4-11
Cooling and dehumidifying in high humidity
and low temperature weather conditions .......... 4-11Air conditioner compressor shut-off when
engine is heavily loaded ...................................... 4-12
Refrigerant for your climate control system ........ 4-12
Air filtration system
3 ........................................ 4-12
Replacing an air filter ............................................. 4-12
3 Asterisk means: equipment not fitted in all cars (can depend
on model variant, engine variant, market specification, options
or accessories)
.
A1910BE-A-GSAAB.book Page 1 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

4-2
Climate control
Climate control

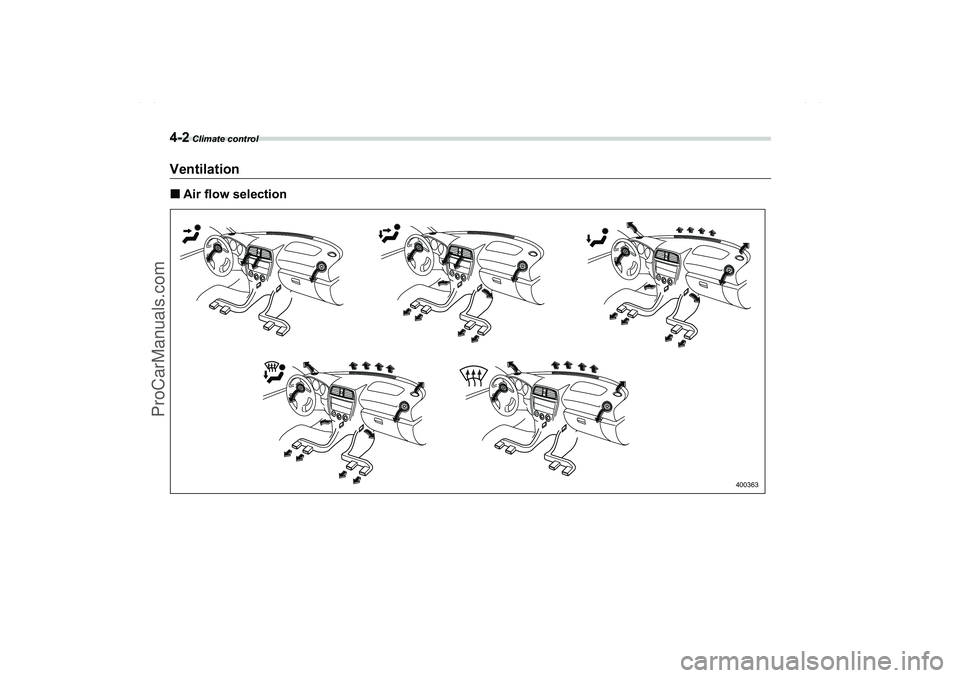

Ventilation
Air flow selection
400363
A1910BE-A-GSAAB.book Page 2 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
