SAAB 9-2X 2006 Owners Manual
Manufacturer: SAAB, Model Year: 2006, Model line: 9-2X, Model: SAAB 9-2X 2006Pages: 322, PDF Size: 11.42 MB
Page 111 of 322
Instruments and controls
3-9
3
– CONTINUED –

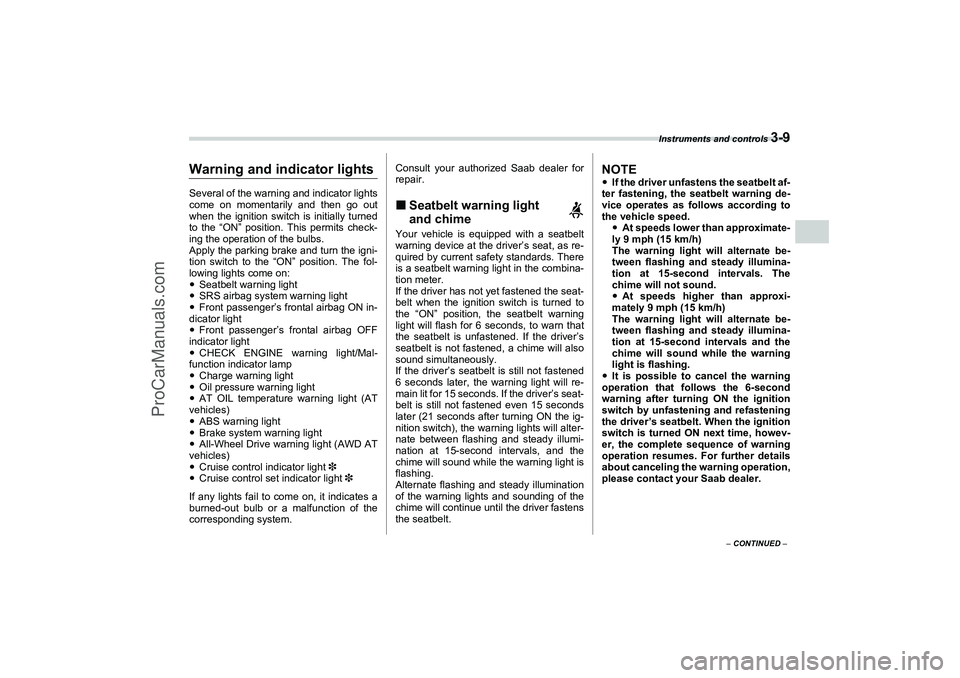

Warning and indicator lightsSeveral of the warning and indicator lights
come on momentarily and then go out
when the ignition switch is initially turned
to the “ON” position. This permits check-
ing the operation of the bulbs.
Apply the parking brake and turn the igni-
tion switch to the “ON” position. The fol-
lowing lights come on:
Seatbelt warning light
SRS airbag system warning light
Front passenger’s frontal airbag ON in-
dicator light
Front passenger’s frontal airbag OFF
indicator light
CHECK ENGINE warning light/Mal-
function indicator lamp
Charge warning light
Oil pressure warning light
AT OIL temperature warning light (AT
vehicles)
ABS warning light

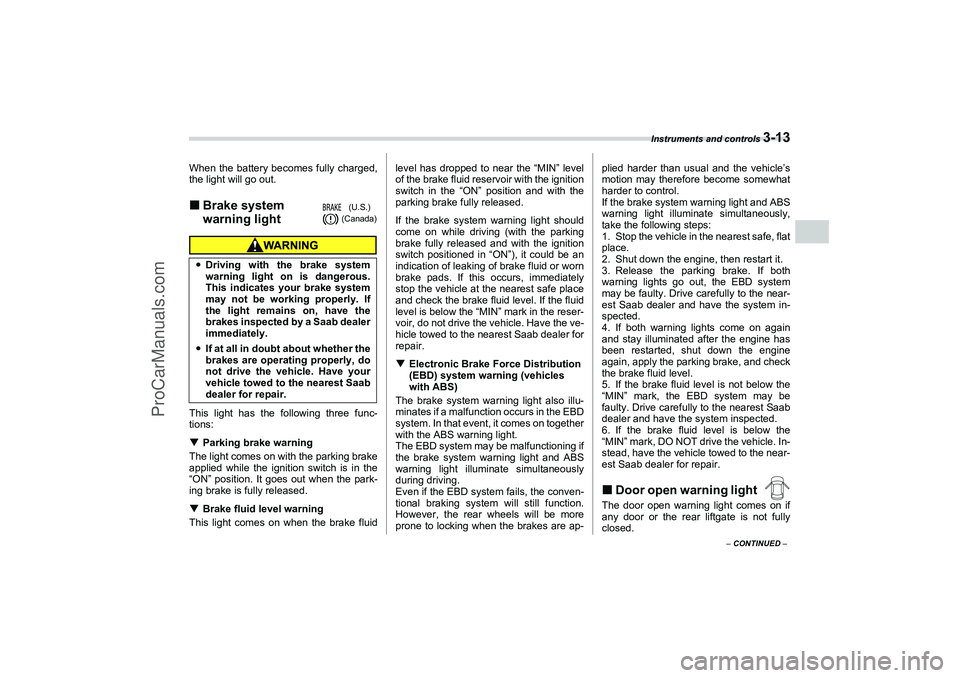

Brake system warning light

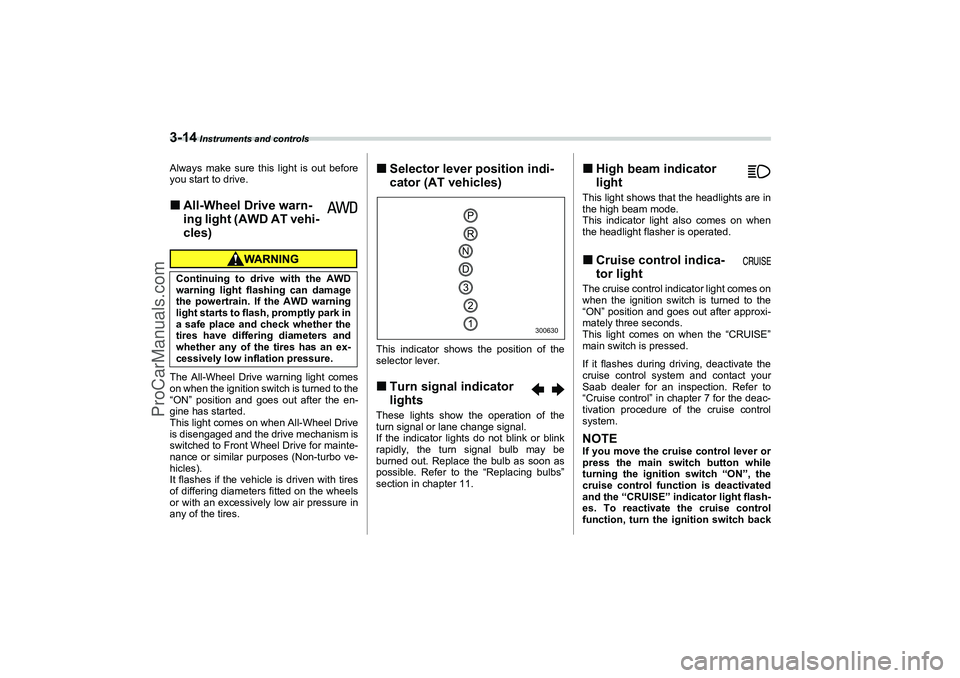

All-Wheel Drive warning light (AWD AT
vehicles)
Cruise control indicator light 3
Cruise control set indicator light 3
If any lights fail to come on, it indicates a
burned-out bulb or a malfunction of the
corresponding system.Consult your authorized Saab dealer for
repair.
Seatbelt warning light
and chimeYour vehicle is equipped with a seatbelt
warning device at the driver’s seat, as re-
quired by current safety standards. There
is a seatbelt warning light in the combina-
tion meter.
If the driver has not yet fastened the seat-
belt when the ignition switch is turned to
the “ON” position, the seatbelt warning
light will flash for 6 seconds, to warn that
the seatbelt is unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.
If the driver’s seatbelt is still not fastened
6 seconds later, the warning light will re-
main lit for 15 seconds. If the driver’s seat-
belt is still not fastened even 15 seconds
later (21 seconds after turning ON the ig-
nition switch), the warning lights will alter-
nate between flashing and steady illumi-
nation at 15-second intervals, and the
chime will sound while the warning light is
flashing.
Alternate flashing and steady illumination
of the warning lights and sounding of the
chime will continue until the driver fastens
the seatbelt.
NOTEIf the driver unfastens the seatbelt af-
ter fastening, the seatbelt warning de-
vice operates as follows according to
the vehicle speed.
At speeds lower than approximate-
ly 9 mph (15 km/h)
The warning light will alternate be-
tween flashing and steady illumina-
tion at 15-second intervals. The
chime will not sound.
At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light will alternate be-
tween flashing and steady illumina-
tion at 15-second intervals and the
chime will sound while the warning
light is flashing.
It is possible to cancel the warning
operation that follows the 6-second
warning after turning ON the ignition
switch by unfastening and refastening
the driver’s seatbelt. When the ignition
switch is turned ON next time, howev-
er, the complete sequence of warning
operation resumes. For further details
about canceling the warning operation,
please contact your Saab dealer.
A1910BE-A-GSAAB.book Page 9 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 112 of 322
3-10
Instruments and controls

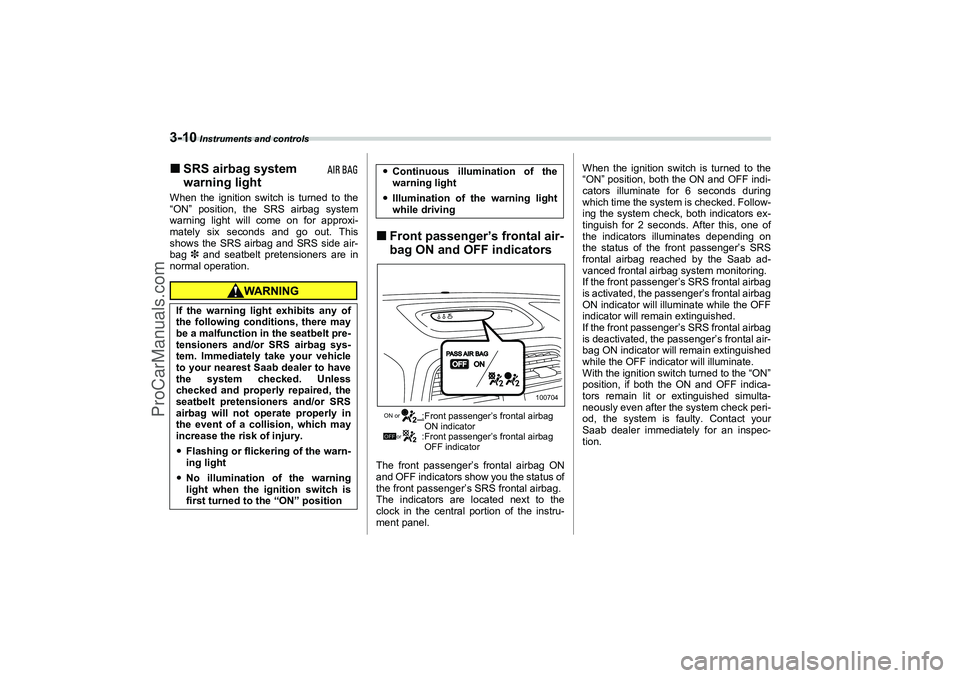

SRS airbag system
warning lightWhen the ignition switch is turned to the
“ON” position, the SRS airbag system
warning light will come on for approxi-
mately six seconds and go out. This
shows the SRS airbag and SRS side air-
bag 3 and seatbelt pretensioners are in
normal operation.
Front passenger’s frontal air-
bag ON and OFF indicators
:Front passenger’s frontal airbag
ON indicator
:Front passenger’s frontal airbag
OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.
The indicators are located next to the
clock in the central portion of the instru-
ment panel.When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After this, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag reached by the Saab ad-
vanced frontal airbag system monitoring.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indica-
tors remain lit or extinguished simulta-
neously even after the system check peri-
od, the system is faulty. Contact your
Saab dealer immediately for an inspec-
tion. If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt pre-
tensioners and/or SRS airbag sys-
tem. Immediately take your vehicle
to your nearest Saab dealer to have
the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.
Flashing or flickering of the warn-
ing light
No illumination of the warning
light when the ignition switch is
first turned to the “ON” positionContinuous illumination of the
warning light
Illumination of the warning light
while driving
PASS AIR BAGOFFOFF
ONON
100704
ON orOFF or
A1910BE-A-GSAAB.book Page 10 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 113 of 322
Instruments and controls
3-11
3
– CONTINUED –

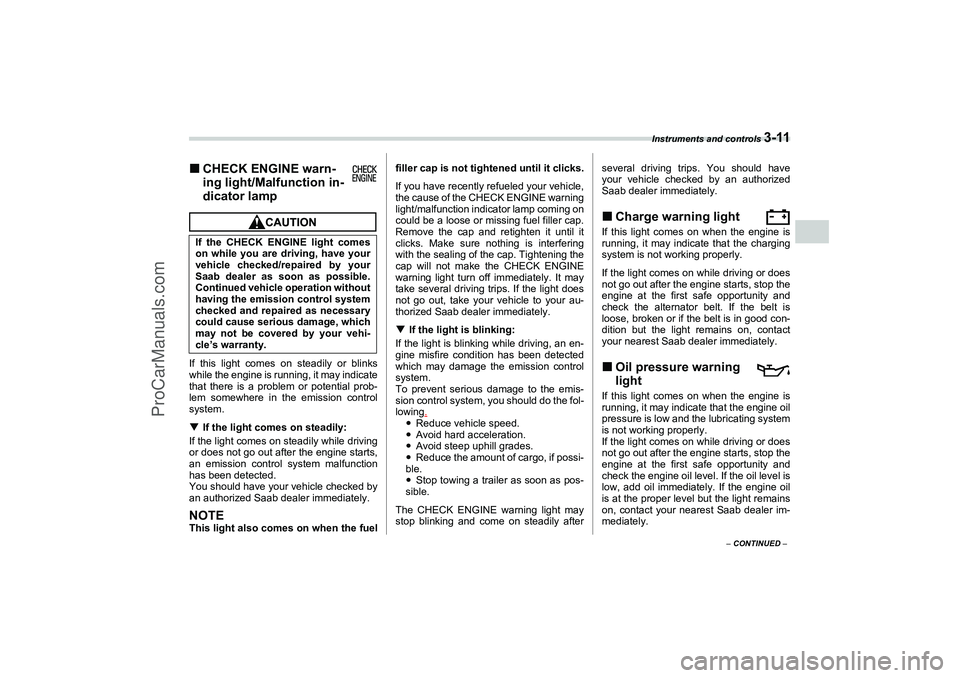

CHECK ENGINE warn-
ing light/Malfunction in-
dicator lampIf this light comes on steadily or blinks
while the engine is running, it may indicate
that there is a problem or potential prob-
lem somewhere in the emission control
system.
If the light comes on steadily:
If the light comes on steadily while driving
or does not go out after the engine starts,
an emission control system malfunction
has been detected.
You should have your vehicle checked by
an authorized Saab dealer immediately.NOTEThis light also comes on when the fuelfiller cap is not tightened until it clicks.
If you have recently refueled your vehicle,
the cause of the CHECK ENGINE warning
light/malfunction indicator lamp coming on
could be a loose or missing fuel filler cap.
Remove the cap and retighten it until it
clicks. Make sure nothing is interfering
with the sealing of the cap. Tightening the
cap will not make the CHECK ENGINE
warning light turn off immediately. It may
take several driving trips. If the light does
not go out, take your vehicle to your au-
thorized Saab dealer immediately.
If the light is blinking:
If the light is blinking while driving, an en-
gine misfire condition has been detected
which may damage the emission control
system.
To prevent serious damage to the emis-
sion control system, you should do the fol-
lowing.
Reduce vehicle speed.
Avoid hard acceleration.
Avoid steep uphill grades.
Reduce the amount of cargo, if possi-
ble.
Stop towing a trailer as soon as pos-
sible.
The CHECK ENGINE warning light may
stop blinking and come on steadily afterseveral driving trips. You should have
your vehicle checked by an authorized
Saab dealer immediately.
Charge warning light If this light comes on when the engine is
running, it may indicate that the charging
system is not working properly.
If the light comes on while driving or does
not go out after the engine starts, stop the
engine at the first safe opportunity and
check the alternator belt. If the belt is
loose, broken or if the belt is in good con-
dition but the light remains on, contact
your nearest Saab dealer immediately.Oil pressure warning
lightIf this light comes on when the engine is
running, it may indicate that the engine oil
pressure is low and the lubricating system
is not working properly.
If the light comes on while driving or does
not go out after the engine starts, stop the
engine at the first safe opportunity and
check the engine oil level. If the oil level is
low, add oil immediately. If the engine oil
is at the proper level but the light remains
on, contact your nearest Saab dealer im-
mediately. If the CHECK ENGINE light comes
on while you are driving, have your
vehicle checked/repaired by your
Saab dealer as soon as possible.
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could cause serious damage, which
may not be covered by your vehi-
cle’s warranty.
A1910BE-A-GSAAB.book Page 11 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 114 of 322
3-12
Instruments and controls

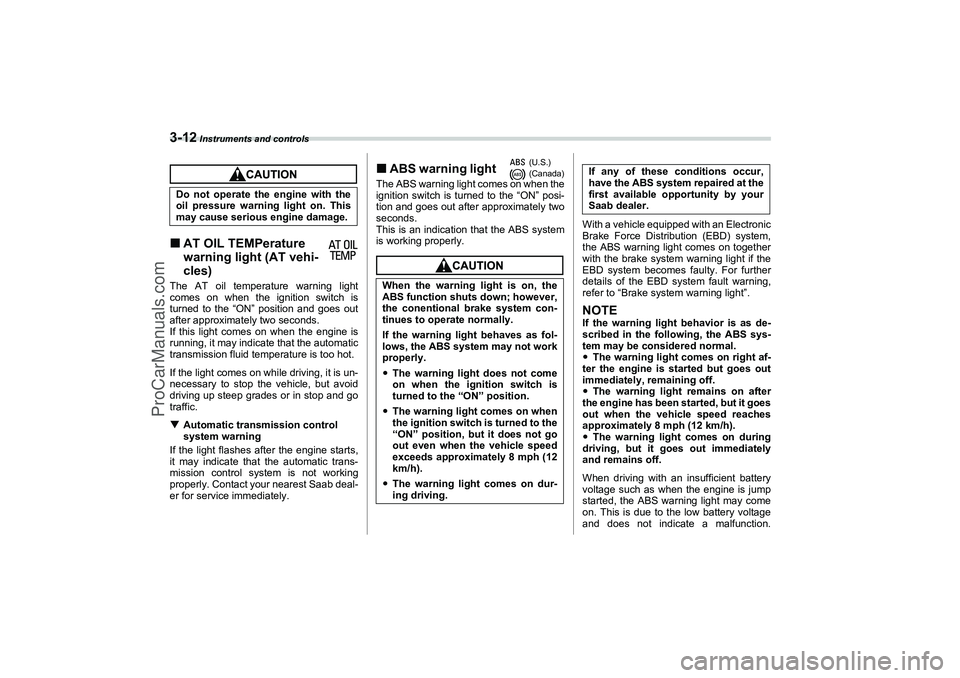

AT OIL TEMPerature
warning light (AT vehi-
cles)The AT oil temperature warning light
comes on when the ignition switch is
turned to the “ON” position and goes out
after approximately two seconds.
If this light comes on when the engine is
running, it may indicate that the automatic
transmission fluid temperature is too hot.
If the light comes on while driving, it is un-
necessary to stop the vehicle, but avoid
driving up steep grades or in stop and go
traffic.
Automatic transmission control
system warning
If the light flashes after the engine starts,
it may indicate that the automatic trans-
mission control system is not working
properly. Contact your nearest Saab deal-
er for service immediately.
ABS warning light The ABS warning light comes on when the
ignition switch is turned to the “ON” posi-
tion and goes out after approximately two
seconds.
This is an indication that the ABS system
is working properly.
With a vehicle equipped with an Electronic
Brake Force Distribution (EBD) system,
the ABS warning light comes on together
with the brake system warning light if the
EBD system becomes faulty. For further
details of the EBD system fault warning,
refer to “Brake system warning light”.NOTEIf the warning light behavior is as de-
scribed in the following, the ABS sys-
tem may be considered normal.
The warning light comes on right af-
ter the engine is started but goes out
immediately, remaining off.
The warning light remains on after
the engine has been started, but it goes
out when the vehicle speed reaches
approximately 8 mph (12 km/h).
The warning light comes on during
driving, but it goes out immediately
and remains off.
When driving with an insufficient battery
voltage such as when the engine is jump
started, the ABS warning light may come
on. This is due to the low battery voltage
and does not indicate a malfunction. Do not operate the engine with the
oil pressure warning light on. This
may cause serious engine damage.
When the warning light is on, the
ABS function shuts down; however,
the conentional brake system con-
tinues to operate normally.
If the warning light behaves as fol-
lows, the ABS system may not work
properly.
The warning light does not come
on when the ignition switch is
turned to the “ON” position.
The warning light comes on when
the ignition switch is turned to the
“ON” position, but it does not go
out even when the vehicle speed
exceeds approximately 8 mph (12
km/h).
The warning light comes on dur-
ing driving.
(U.S.)
(Canada)
If any of these conditions occur,
have the ABS system repaired at the
first available opportunity by your
Saab dealer.
A1910BE-A-GSAAB.book Page 12 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 115 of 322
Instruments and controls
3-13
3
– CONTINUED –
When the battery becomes fully charged,
the light will go out.Brake system
warning lightThis light has the following three func-
tions:
Parking brake warning
The light comes on with the parking brake
applied while the ignition switch is in the
“ON” position. It goes out when the park-
ing brake is fully released.
Brake fluid level warning
This light comes on when the brake fluidlevel has dropped to near the “MIN” level
of the brake fluid reservoir with the ignition
switch in the “ON” position and with the
parking brake fully released.
If the brake system warning light should
come on while driving (with the parking
brake fully released and with the ignition
switch positioned in “ON”), it could be an
indication of leaking of brake fluid or worn
brake pads. If this occurs, immediately
stop the vehicle at the nearest safe place
and check the brake fluid level. If the fluid
level is below the “MIN” mark in the reser-
voir, do not drive the vehicle. Have the ve-
hicle towed to the nearest Saab dealer for
repair.
Electronic Brake Force Distribution
(EBD) system warning (vehicles
with ABS)
The brake system warning light also illu-
minates if a malfunction occurs in the EBD
system. In that event, it comes on together
with the ABS warning light.
The EBD system may be malfunctioning if
the brake system warning light and ABS
warning light illuminate simultaneously
during driving.
Even if the EBD system fails, the conven-
tional braking system will still function.
However, the rear wheels will be more
prone to locking when the brakes are ap-plied harder than usual and the vehicle’s
motion may therefore become somewhat
harder to control.
If the brake system warning light and ABS
warning light illuminate simultaneously,
take the following steps:
1. Stop the vehicle in the nearest safe, flat
place.
2. Shut down the engine, then restart it.
3. Release the parking brake. If both
warning lights go out, the EBD system
may be faulty. Drive carefully to the near-
est Saab dealer and have the system in-
spected.
4. If both warning lights come on again
and stay illuminated after the engine has
been restarted, shut down the engine
again, apply the parking brake, and check
the brake fluid level.
5. If the brake fluid level is not below the
“MIN” mark, the EBD system may be
faulty. Drive carefully to the nearest Saab
dealer and have the system inspected.
6. If the brake fluid level is below the
“MIN” mark, DO NOT drive the vehicle. In-
stead, have the vehicle towed to the near-
est Saab dealer for repair.
Door open warning light The door open warning light comes on if
any door or the rear liftgate is not fully
closed. Driving with the brake system
warning light on is dangerous.
This indicates your brake system
may not be working properly. If
the light remains on, have the
brakes inspected by a Saab dealer
immediately.
If at all in doubt about whether the
brakes are operating properly, do
not drive the vehicle. Have your
vehicle towed to the nearest Saab
dealer for repair.
(U.S.)
(Canada)
A1910BE-A-GSAAB.book Page 13 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 116 of 322
3-14
Instruments and controls
Always make sure this light is out before
you start to drive.All-Wheel Drive warn-
ing light (AWD AT vehi-
cles)The All-Wheel Drive warning light comes
on when the ignition switch is turned to the
“ON” position and goes out after the en-
gine has started.
This light comes on when All-Wheel Drive
is disengaged and the drive mechanism is
switched to Front Wheel Drive for mainte-
nance or similar purposes (Non-turbo ve-
hicles).
It flashes if the vehicle is driven with tires
of differing diameters fitted on the wheels
or with an excessively low air pressure in
any of the tires.
Selector lever position indi-
cator (AT vehicles)This indicator shows the position of the
selector lever.Turn signal indicator
lightsThese lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Replace the bulb as soon as
possible. Refer to the “Replacing bulbs”
section in chapter 11.
High beam indicator
lightThis light shows that the headlights are in
the high beam mode.
This indicator light also comes on when
the headlight flasher is operated.Cruise control indica-
tor lightThe cruise control indicator light comes on
when the ignition switch is turned to the
“ON” position and goes out after approxi-
mately three seconds.
This light comes on when the “CRUISE”
main switch is pressed.
If it flashes during driving, deactivate the
cruise control system and contact your
Saab dealer for an inspection. Refer to
“Cruise control” in chapter 7 for the deac-
tivation procedure of the cruise control
system.NOTEIf you move the cruise control lever or
press the main switch button while
turning the ignition switch “ON”, the
cruise control function is deactivated
and the “CRUISE” indicator light flash-
es. To reactivate the cruise control
function, turn the ignition switch back Continuing to drive with the AWD
warning light flashing can damage
the powertrain. If the AWD warning
light starts to flash, promptly park in
a safe place and check whether the
tires have differing diameters and
whether any of the tires has an ex-
cessively low inflation pressure.
P
R
2
1 D N
3
300630
A1910BE-A-GSAAB.book Page 14 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 117 of 322
Instruments and controls
3-15
3
– CONTINUED –

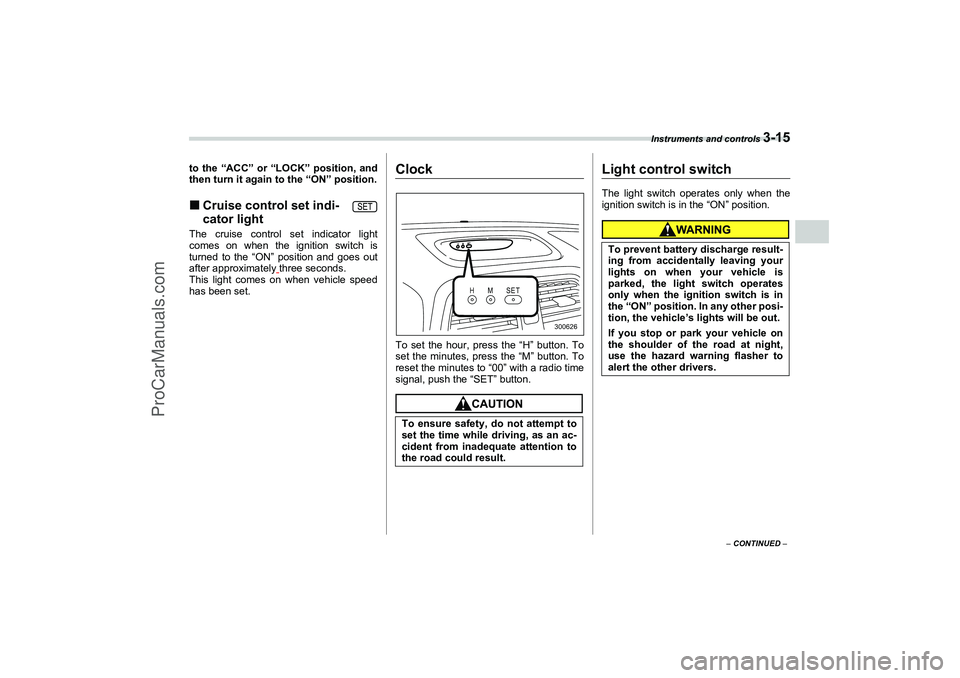

to the “ACC” or “LOCK” position, and
then turn it again to the “ON” position.Cruise control set indi-
cator lightThe cruise control set indicator light
comes on when the ignition switch is
turned to the “ON” position and goes out
after approximately
three seconds.
This light comes on when vehicle speed
has been set.
ClockTo set the hour, press the “H” button. To
set the minutes, press the “M” button. To
reset the minutes to “00” with a radio time
signal, push the “SET” button.
Light control switchThe light switch operates only when the
ignition switch is in the “ON” position.
To ensure safety, do not attempt to
set the time while driving, as an ac-
cident from inadequate attention to
the road could result.
H M SET
300626
To prevent battery discharge result-
ing from accidentally leaving your
lights on when your vehicle is
parked, the light switch operates
only when the ignition switch is in
the “ON” position. In any other posi-
tion, the vehicle’s lights will be out.
If you stop or park your vehicle on
the shoulder of the road at night,
use the hazard warning flasher to
alert the other drivers.
A1910BE-A-GSAAB.book Page 15 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 118 of 322
3-16
Instruments and controls

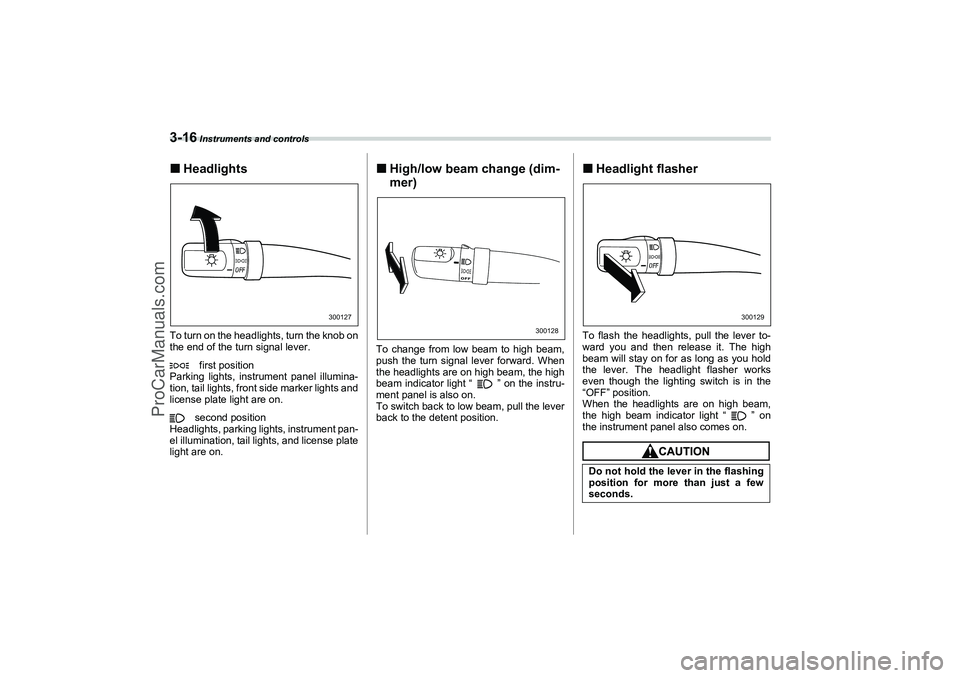

HeadlightsTo turn on the headlights, turn the knob on
the end of the turn signal lever.
first position
Parking lights, instrument panel illumina-
tion, tail lights, front side marker lights and
license plate light are on.
second position
Headlights, parking lights, instrument pan-
el illumination, tail lights, and license plate
light are on.
High/low beam change (dim-
mer)To change from low beam to high beam,
push the turn signal lever forward. When
the headlights are on high beam, the high
beam indicator light “
” on the instru-
ment panel is also on.
To switch back to low beam, pull the lever
back to the detent position.
Headlight flasherTo flash the headlights, pull the lever to-
ward you and then release it. The high
beam will stay on for as long as you hold
the lever. The headlight flasher works
even though the lighting switch is in the
“OFF” position.
When the headlights are on high beam,
the high beam indicator light “ ” on
the instrument panel also comes on.
300127
300128
Do not hold the lever in the flashing
position for more than just a few
seconds.
300129
A1910BE-A-GSAAB.book Page 16 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 119 of 322
Instruments and controls
3-17
3
– CONTINUED –

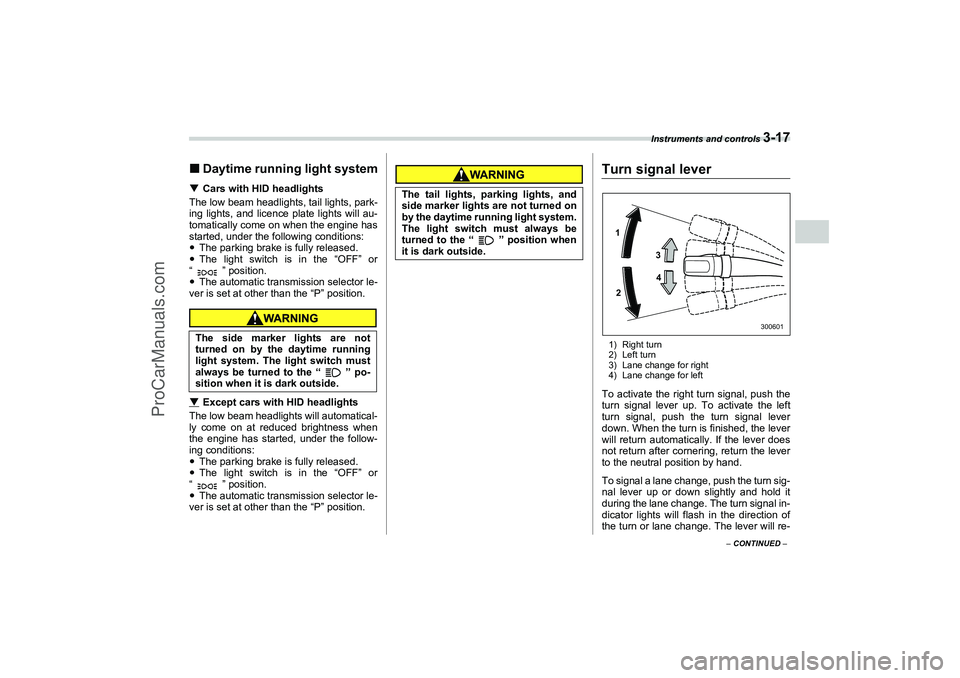

Daytime running light systemCars with HID headlights
The low beam headlights, tail lights, park-
ing lights, and licence plate lights will au-
tomatically come on when the engine has
started, under the following conditions:
The parking brake is fully released.
The light switch is in the “OFF” or
“ ” position.
The automatic transmission selector le-
ver is set at other than the “P” position.
Except cars with HID headlights
The low beam headlights will automatical-
ly come on at reduced brightness when
the engine has started, under the follow-
ing conditions:
The parking brake is fully released.
The light switch is in the “OFF” or
“ ” position.
The automatic transmission selector le-
ver is set at other than the “P” position.
Turn signal lever1) Right turn
2) Left turn
3) Lane change for right
4) Lane change for leftTo activate the right turn signal, push the
turn signal lever up. To activate the left
turn signal, push the turn signal lever
down. When the turn is finished, the lever
will return automatically. If the lever does
not return after cornering, return the lever
to the neutral position by hand.
To signal a lane change, push the turn sig-
nal lever up or down slightly and hold it
during the lane change. The turn signal in-
dicator lights will flash in the direction of
the turn or lane change. The lever will re- The side marker lights are not
turned on by the daytime running
light system. The light switch must
always be turned to the “ ” po-
sition when it is dark outside.
The tail lights, parking lights, and
side marker lights are not turned on
by the daytime running light system.
The light switch must always be
turned to the “ ” position when
it is dark outside.
1
23
4
300601
A1910BE-A-GSAAB.book Page 17 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 120 of 322
3-18
Instruments and controls
turn automatically to the neutral position
when you release it.

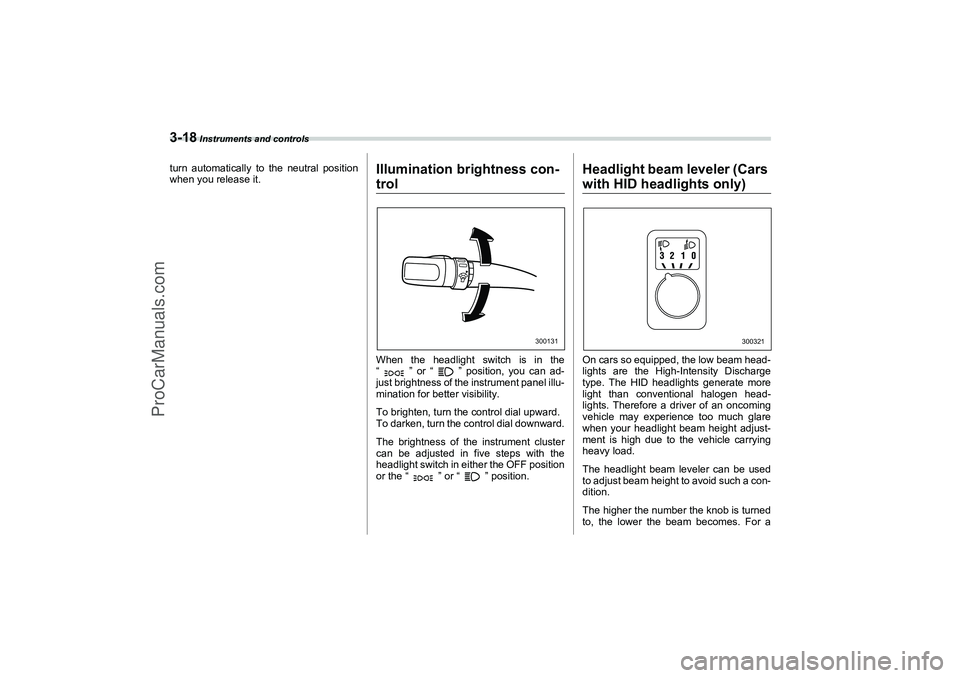

Illumination brightness con-trolWhen the headlight switch is in the
“ ” or “ ” position, you can ad-
just brightness of the instrument panel illu-
mination for better visibility.
To brighten, turn the control dial upward.
To darken, turn the control dial downward.
The brightness of the instrument cluster
can be adjusted in five steps with the
headlight switch in either the OFF position
or the “ ” or “ ” position.
Headlight beam leveler (Cars with HID headlights only)On cars so equipped, the low beam head-
lights are the High-Intensity Discharge
type. The HID headlights generate more
light than conventional halogen head-
lights. Therefore a driver of an oncoming
vehicle may experience too much glare
when your headlight beam height adjust-
ment is high due to the vehicle carrying
heavy load.
The headlight beam leveler can be used
to adjust beam height to avoid such a con-
dition.
The higher the number the knob is turned
to, the lower the beam becomes. For a
300131
300321
A1910BE-A-GSAAB.book Page 18 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
