SAAB 9-2X 2006 Owners Manual

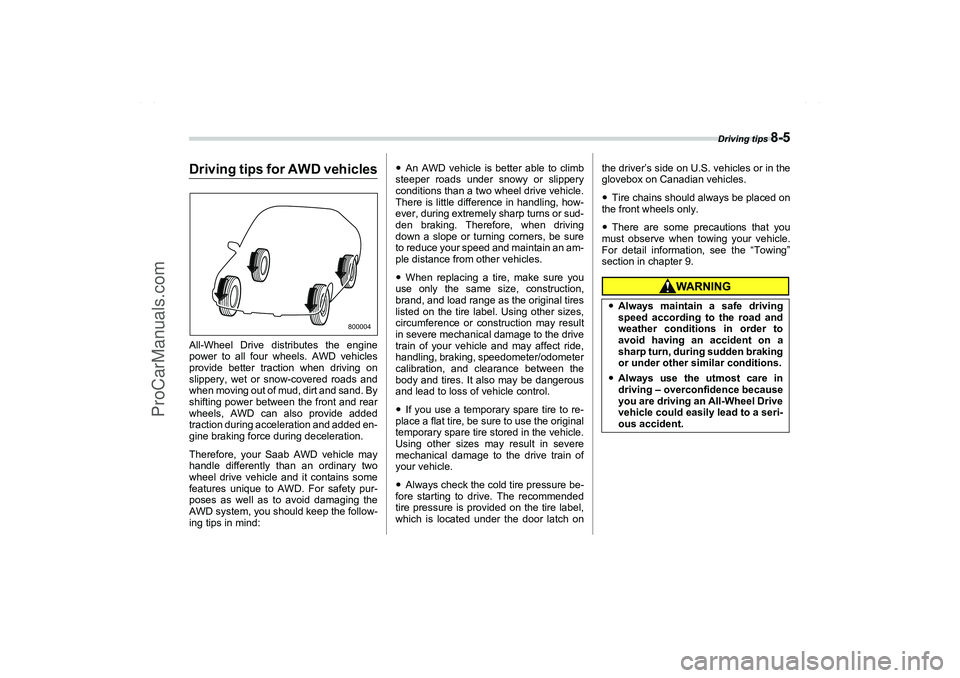

Driving tips
8-5
Driving tips for AWD vehiclesAll-Wheel Drive distributes the engine
power to all four wheels. AWD vehicles
provide better traction when driving on
slippery, wet or snow-covered roads and
when moving out of mud, dirt and sand. By
shifting power between the front and rear
wheels, AWD can also provide added
traction during acceleration and added en-
gine braking force during deceleration.
Therefore, your Saab AWD vehicle may
handle differently than an ordinary two
wheel drive vehicle and it contains some
features unique to AWD. For safety pur-
poses as well as to avoid damaging the
AWD system, you should keep the follow-
ing tips in mind:
An AWD vehicle is better able to climb
steeper roads under snowy or slippery
conditions than a two wheel drive vehicle.
There is little difference in handling, how-
ever, during extremely sharp turns or sud-
den braking. Therefore, when driving
down a slope or turning corners, be sure
to reduce your speed and maintain an am-
ple distance from other vehicles.

When replacing a tire, make sure you
use only the same size, construction,
brand, and load range as the original tires
listed on the tire label. Using other sizes,
circumference or construction may result
in severe mechanical damage to the drive
train of your vehicle and may affect ride,
handling, braking, speedometer/odometer
calibration, and clearance between the
body and tires. It also may be dangerous
and lead to loss of vehicle control.

If you use a temporary spare tire to re-
place a flat tire, be sure to use the original
temporary spare tire stored in the vehicle.
Using other sizes may result in severe
mechanical damage to the drive train of
your vehicle.

Always check the cold tire pressure be-
fore starting to drive. The recommended
tire pressure is provided on the tire label,
which is located under the door latch onthe driver’s side on U.S. vehicles or in the
glovebox on Canadian vehicles.

Tire chains should always be placed on
the front wheels only.

There are some precautions that you
must observe when towing your vehicle.
For detail information, see the “Towing”
section in chapter 9.
800004

Always maintain a safe driving
speed according to the road and
weather conditions in order to
avoid having an accident on a
sharp turn, during sudden braking
or under other similar conditions.

Always use the utmost care in
driving – overconfidence because
you are driving an All-Wheel Drive
vehicle could easily lead to a seri-
ous accident.
A1910BE-A-GSAAB.book Page 5 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

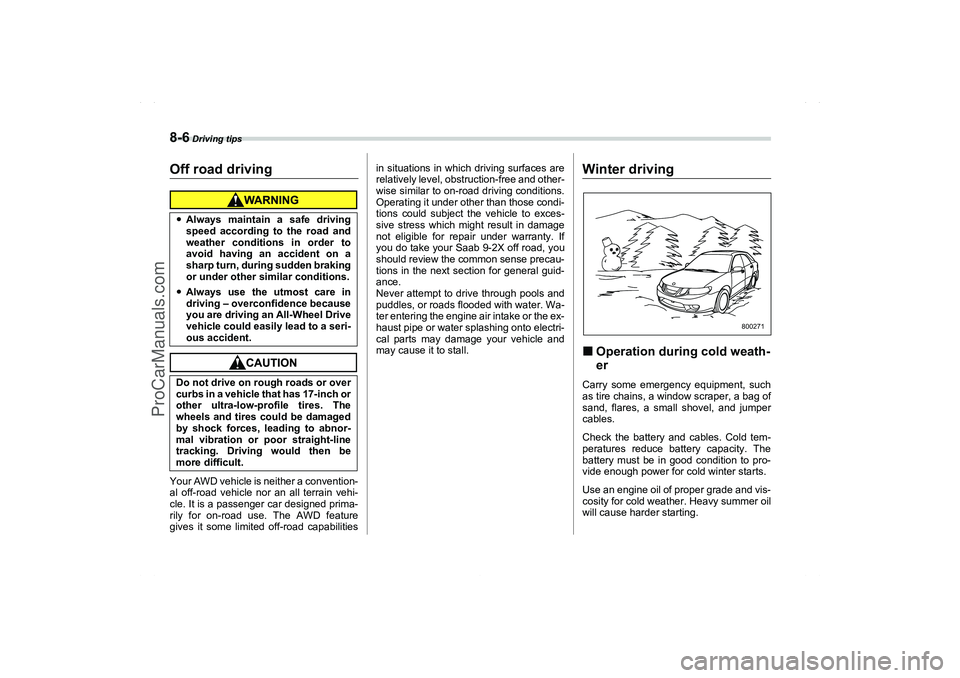

8-6
Driving tips
Off road drivingYour AWD vehicle is neither a convention-
al off-road vehicle nor an all terrain vehi-
cle. It is a passenger car designed prima-
rily for on-road use. The AWD feature
gives it some limited off-road capabilitiesin situations in which driving surfaces are
relatively level, obstruction-free and other-
wise similar to on-road driving conditions.
Operating it under other than those condi-
tions could subject the vehicle to exces-
sive stress which might result in damage
not eligible for repair under warranty. If
you do take your Saab 9-2X off road, you
should review the common sense precau-
tions in the next section for general guid-
ance.
Never attempt to drive through pools and
puddles, or roads flooded with water. Wa-
ter entering the engine air intake or the ex-
haust pipe or water splashing onto electri-
cal parts may damage your vehicle and
may cause it to stall.
Winter driving
Operation during cold weath-
erCarry some emergency equipment, such
as tire chains, a window scraper, a bag of
sand, flares, a small shovel, and jumper
cables.
Check the battery and cables. Cold tem-
peratures reduce battery capacity. The
battery must be in good condition to pro-
vide enough power for cold winter starts.
Use an engine oil of proper grade and vis-
cosity for cold weather. Heavy summer oil
will cause harder starting.
Always maintain a safe driving
speed according to the road and
weather conditions in order to
avoid having an accident on a
sharp turn, during sudden braking
or under other similar conditions.

Always use the utmost care in
driving – overconfidence because
you are driving an All-Wheel Drive
vehicle could easily lead to a seri-
ous accident.
Do not drive on rough roads or over
curbs in a vehicle that has 17-inch or
other ultra-low-profile tires. The
wheels and tires could be damaged
by shock forces, leading to abnor-
mal vibration or poor straight-line
tracking. Driving would then be
more difficult.
800271
A1910BE-A-GSAAB.book Page 6 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

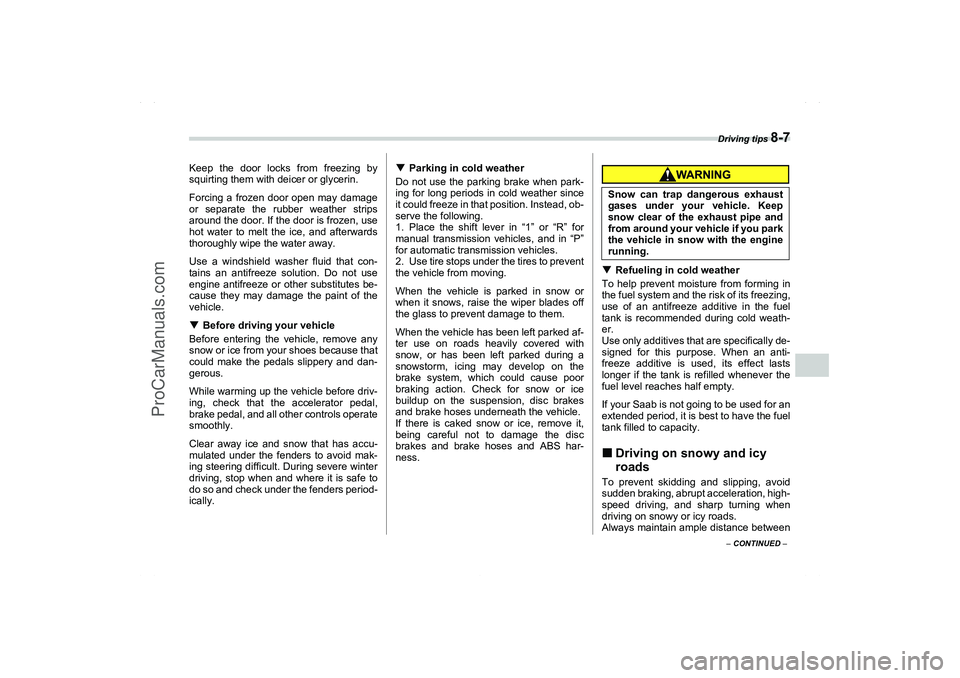

Driving tips
8-7
8
– CONTINUED –
Keep the door locks from freezing by
squirting them with deicer or glycerin.
Forcing a frozen door open may damage
or separate the rubber weather strips
around the door. If the door is frozen, use
hot water to melt the ice, and afterwards
thoroughly wipe the water away.
Use a windshield washer fluid that con-
tains an antifreeze solution. Do not use
engine antifreeze or other substitutes be-
cause they may damage the paint of the
vehicle.

Before driving your vehicle
Before entering the vehicle, remove any
snow or ice from your shoes because that
could make the pedals slippery and dan-
gerous.
While warming up the vehicle before driv-
ing, check that the accelerator pedal,
brake pedal, and all other controls operate
smoothly.
Clear away ice and snow that has accu-
mulated under the fenders to avoid mak-
ing steering difficult. During severe winter
driving, stop when and where it is safe to
do so and check under the fenders period-
ically.
Parking in cold weather
Do not use the parking brake when park-
ing for long periods in cold weather since
it could freeze in that position. Instead, ob-
serve the following.
1. Place the shift lever in “1” or “R” for
manual transmission vehicles, and in “P”
for automatic transmission vehicles.
2. Use tire stops under the tires to prevent
the vehicle from moving.
When the vehicle is parked in snow or
when it snows, raise the wiper blades off
the glass to prevent damage to them.
When the vehicle has been left parked af-
ter use on roads heavily covered with
snow, or has been left parked during a
snowstorm, icing may develop on the
brake system, which could cause poor
braking action. Check for snow or ice
buildup on the suspension, disc brakes
and brake hoses underneath the vehicle.
If there is caked snow or ice, remove it,
being careful not to damage the disc
brakes and brake hoses and ABS har-
ness.

Refueling in cold weather
To help prevent moisture from forming in
the fuel system and the risk of its freezing,
use of an antifreeze additive in the fuel
tank is recommended during cold weath-
er.
Use only additives that are specifically de-
signed for this purpose. When an anti-
freeze additive is used, its effect lasts
longer if the tank is refilled whenever the
fuel level reaches half empty.
If your Saab is not going to be used for an
extended period, it is best to have the fuel
tank filled to capacity.
Driving on snowy and icy
roadsTo prevent skidding and slipping, avoid
sudden braking, abrupt acceleration, high-
speed driving, and sharp turning when
driving on snowy or icy roads.
Always maintain ample distance betweenSnow can trap dangerous exhaust
gases under your vehicle. Keep
snow clear of the exhaust pipe and
from around your vehicle if you park
the vehicle in snow with the engine
running.
A1910BE-A-G08SAAB.fm Page 7 Tuesday, September 6, 2005 8:55 AM
ProCarManuals.com

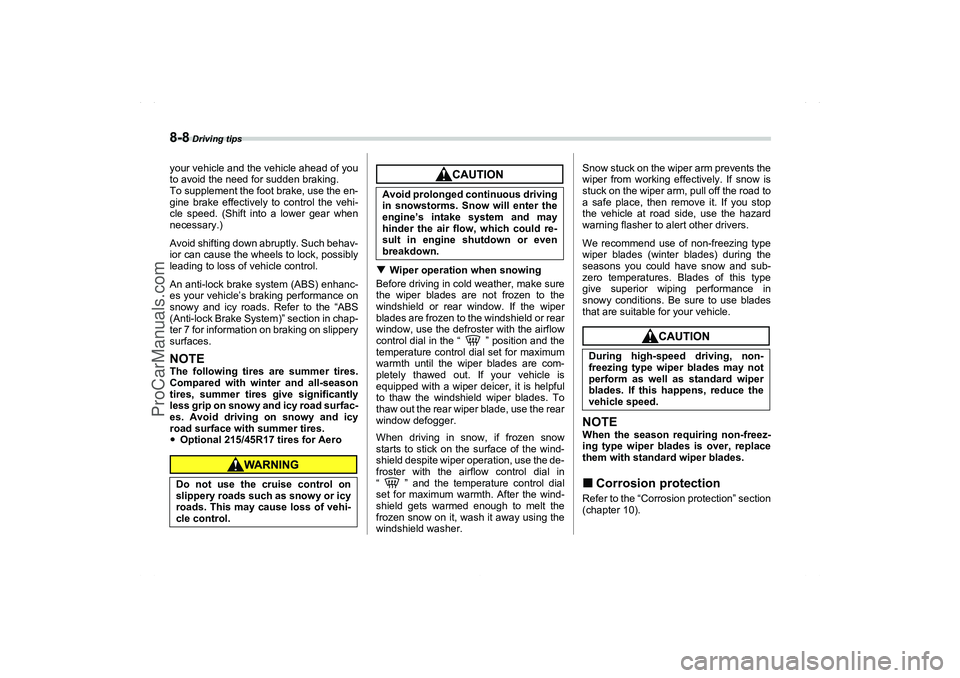

8-8
Driving tips
your vehicle and the vehicle ahead of you
to avoid the need for sudden braking.
To supplement the foot brake, use the en-
gine brake effectively to control the vehi-
cle speed. (Shift into a lower gear when
necessary.)
Avoid shifting down abruptly. Such behav-
ior can cause the wheels to lock, possibly
leading to loss of vehicle control.
An anti-lock brake system (ABS) enhanc-
es your vehicle’s braking performance on
snowy and icy roads. Refer to the “ABS
(Anti-lock Brake System)” section in chap-
ter 7 for information on braking on slippery
surfaces.NOTEThe following tires are summer tires.
Compared with winter and all-season
tires, summer tires give significantly
less grip on snowy and icy road surfac-
es. Avoid driving on snowy and icy
road surface with summer tires.

Optional 215/45R17 tires for Aero

Wiper operation when snowing
Before driving in cold weather, make sure
the wiper blades are not frozen to the
windshield or rear window. If the wiper
blades are frozen to the windshield or rear
window, use the defroster with the airflow
control dial in the “
” position and the
temperature control dial set for maximum
warmth until the wiper blades are com-
pletely thawed out. If your vehicle is
equipped with a wiper deicer, it is helpful
to thaw the windshield wiper blades. To
thaw out the rear wiper blade, use the rear
window defogger.
When driving in snow, if frozen snow
starts to stick on the surface of the wind-
shield despite wiper operation, use the de-
froster with the airflow control dial in
“
” and the temperature control dial
set for maximum warmth. After the wind-
shield gets warmed enough to melt the
frozen snow on it, wash it away using the
windshield washer.Snow stuck on the wiper arm prevents the
wiper from working effectively. If snow is
stuck on the wiper arm, pull off the road to
a safe place, then remove it. If you stop
the vehicle at road side, use the hazard
warning flasher to alert other drivers.
We recommend use of non-freezing type
wiper blades (winter blades) during the
seasons you could have snow and sub-
zero temperatures. Blades of this type
give superior wiping performance in
snowy conditions. Be sure to use blades
that are suitable for your vehicle.
NOTEWhen the season requiring non-freez-
ing type wiper blades is over, replace
them with standard wiper blades.
Corrosion protectionRefer to the “Corrosion protection” section
(chapter 10). Do not use the cruise control on
slippery roads such as snowy or icy
roads. This may cause loss of vehi-
cle control.
Avoid prolonged continuous driving
in snowstorms. Snow will enter the
engine’s intake system and may
hinder the air flow, which could re-
sult in engine shutdown or even
breakdown.
During high-speed driving, non-
freezing type wiper blades may not
perform as well as standard wiper
blades. If this happens, reduce the
vehicle speed.
A1910BE-A-GSAAB.book Page 8 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

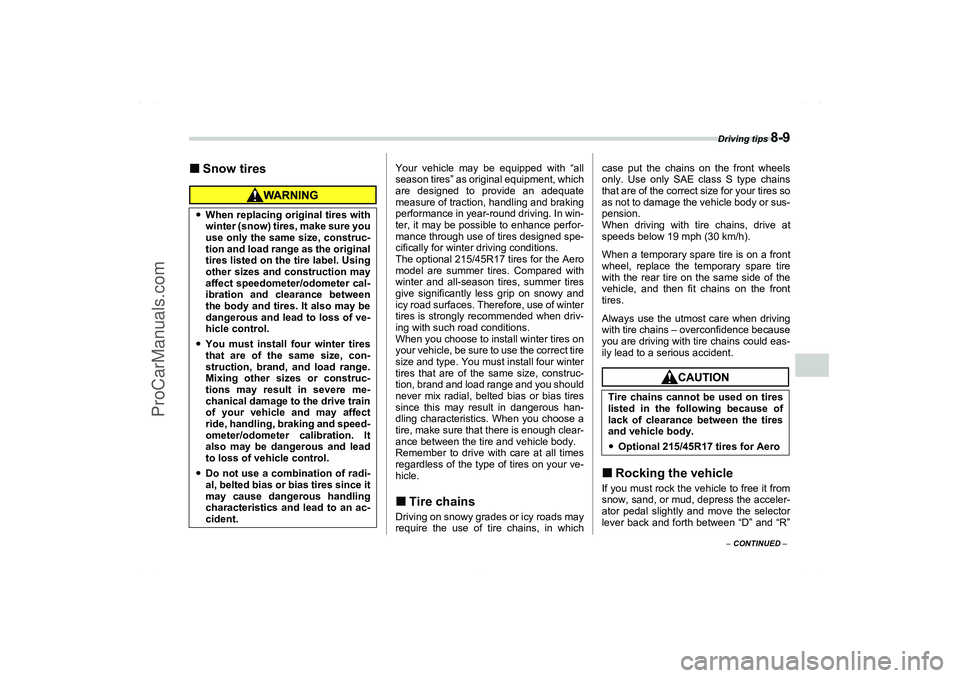

Driving tips
8-9
8
– CONTINUED –

Snow tires
Your vehicle may be equipped with “all
season tires” as original equipment, which
are designed to provide an adequate
measure of traction, handling and braking
performance in year-round driving. In win-
ter, it may be possible to enhance perfor-
mance through use of tires designed spe-
cifically for winter driving conditions.
The optional 215/45R17 tires for the Aero
model are summer tires. Compared with
winter and all-season tires, summer tires
give significantly less grip on snowy and
icy road surfaces. Therefore, use of winter
tires is strongly recommended when driv-
ing with such road conditions.
When you choose to install winter tires on
your vehicle, be sure to use the correct tire
size and type. You must install four winter
tires that are of the same size, construc-
tion, brand and load range and you should
never mix radial, belted bias or bias tires
since this may result in dangerous han-
dling characteristics. When you choose a
tire, make sure that there is enough clear-
ance between the tire and vehicle body.
Remember to drive with care at all times
regardless of the type of tires on your ve-
hicle.
Tire chainsDriving on snowy grades or icy roads may
require the use of tire chains, in whichcase put the chains on the front wheels
only. Use only SAE class S type chains
that are of the correct size for your tires so
as not to damage the vehicle body or sus-
pension.
When driving with tire chains, drive at
speeds below 19 mph (30 km/h).
When a temporary spare tire is on a front
wheel, replace the temporary spare tire
with the rear tire on the same side of the
vehicle, and then fit chains on the front
tires.
Always use the utmost care when driving
with tire chains – overconfidence because
you are driving with tire chains could eas-
ily lead to a serious accident.

Rocking the vehicleIf you must rock the vehicle to free it from
snow, sand, or mud, depress the acceler-
ator pedal slightly and move the selector
lever back and forth between “D” and “R”
When replacing original tires with
winter (snow) tires, make sure you
use only the same size, construc-
tion and load range as the original
tires listed on the tire label. Using
other sizes and construction may
affect speedometer/odometer cal-
ibration and clearance between
the body and tires. It also may be
dangerous and lead to loss of ve-
hicle control.

You must install four winter tires
that are of the same size, con-
struction, brand, and load range.
Mixing other sizes or construc-
tions may result in severe me-
chanical damage to the drive train
of your vehicle and may affect
ride, handling, braking and speed-
ometer/odometer calibration. It
also may be dangerous and lead
to loss of vehicle control.

Do not use a combination of radi-
al, belted bias or bias tires since it
may cause dangerous handling
characteristics and lead to an ac-
cident.Tire chains cannot be used on tires
listed in the following because of
lack of clearance between the tires
and vehicle body.

Optional 215/45R17 tires for Aero
A1910BE-A-GSAAB.book Page 9 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

8-10
Driving tips

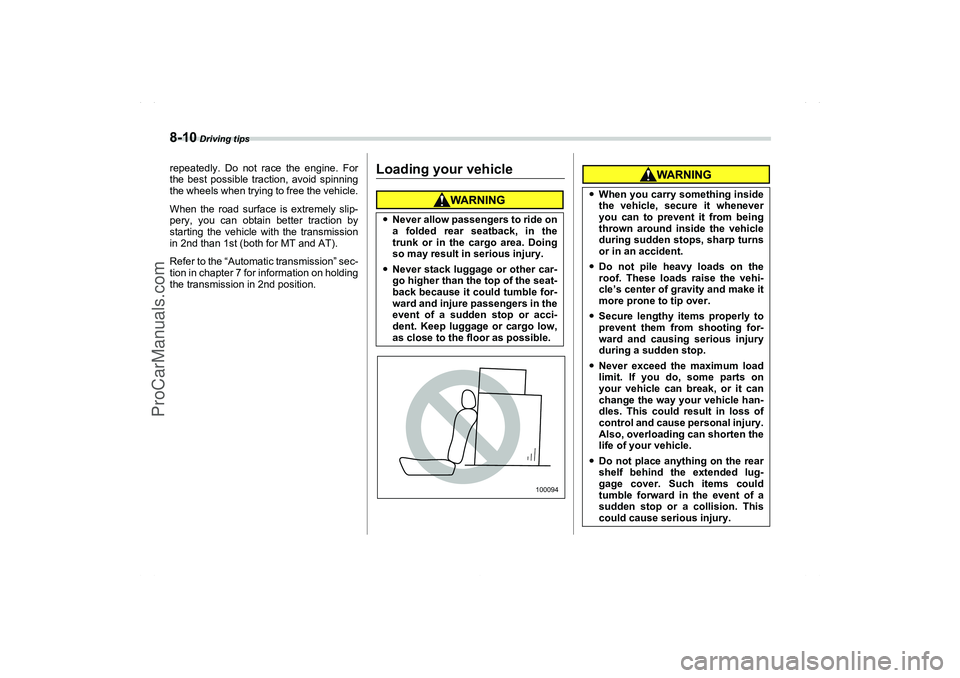

repeatedly. Do not race the engine. For
the best possible traction, avoid spinning
the wheels when trying to free the vehicle.
When the road surface is extremely slip-
pery, you can obtain better traction by
starting the vehicle with the transmission
in 2nd than 1st (both for MT and AT).
Refer to the “Automatic transmission” sec-
tion in chapter 7 for information on holding
the transmission in 2nd position.
Loading your vehicle
Never allow passengers to ride on
a folded rear seatback, in the
trunk or in the cargo area. Doing
so may result in serious injury.

Never stack luggage or other car-
go higher than the top of the seat-
back because it could tumble for-
ward and injure passengers in the
event of a sudden stop or acci-
dent. Keep luggage or cargo low,
as close to the floor as possible.
100094

When you carry something inside
the vehicle, secure it whenever
you can to prevent it from being
thrown around inside the vehicle
during sudden stops, sharp turns
or in an accident.

Do not pile heavy loads on the
roof. These loads raise the vehi-
cle’s center of gravity and make it
more prone to tip over.

Secure lengthy items properly to
prevent them from shooting for-
ward and causing serious injury
during a sudden stop.

Never exceed the maximum load
limit. If you do, some parts on
your vehicle can break, or it can
change the way your vehicle han-
dles. This could result in loss of
control and cause personal injury.
Also, overloading can shorten the
life of your vehicle.

Do not place anything on the rear
shelf behind the extended lug-
gage cover. Such items could
tumble forward in the event of a
sudden stop or a collision. This
could cause serious injury.
A1910BE-A-GSAAB.book Page 10 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Driving tips
8-11
8
– CONTINUED –

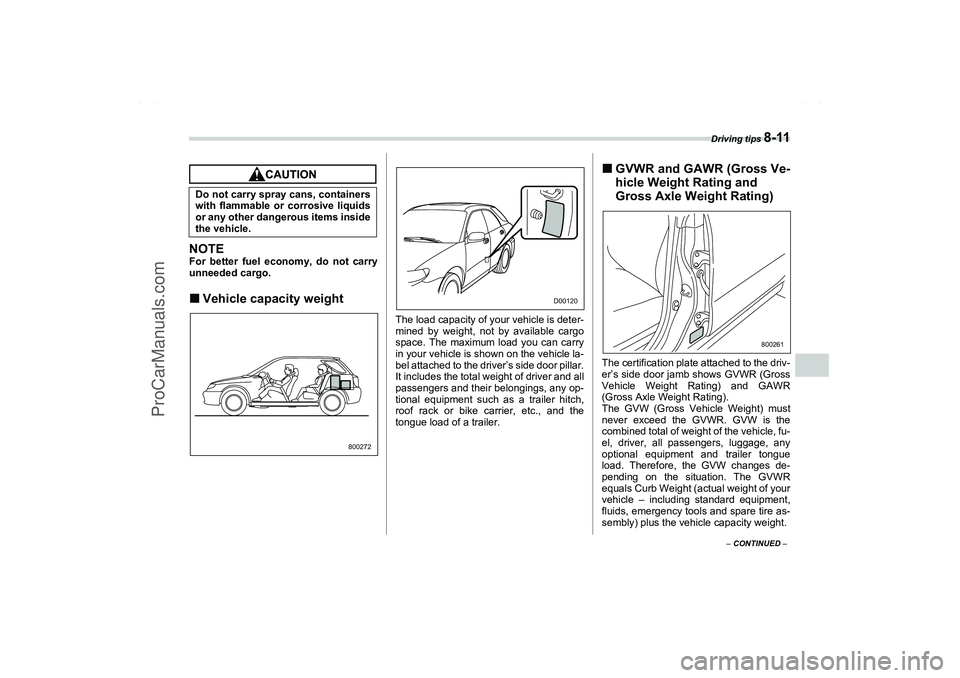

NOTEFor better fuel economy, do not carry
unneeded cargo.
Vehicle capacity weight
The load capacity of your vehicle is deter-
mined by weight, not by available cargo
space. The maximum load you can carry
in your vehicle is shown on the vehicle la-
bel attached to the driver’s side door pillar.
It includes the total weight of driver and all
passengers and their belongings, any op-
tional equipment such as a trailer hitch,
roof rack or bike carrier, etc., and the
tongue load of a trailer.

GVWR and GAWR (Gross Ve-
hicle Weight Rating and
Gross Axle Weight Rating)The certification plate attached to the driv-
er’s side door jamb shows GVWR (Gross
Vehicle Weight Rating) and GAWR
(Gross Axle Weight Rating).
The GVW (Gross Vehicle Weight) must
never exceed the GVWR. GVW is the
combined total of weight of the vehicle, fu-
el, driver, all passengers, luggage, any
optional equipment and trailer tongue
load. Therefore, the GVW changes de-
pending on the situation. The GVWR
equals Curb Weight (actual weight of your
vehicle – including standard equipment,
fluids, emergency tools and spare tire as-
sembly) plus the vehicle capacity weight. Do not carry spray cans, containers
with flammable or corrosive liquids
or any other dangerous items inside
the vehicle.
800272
D00120
800261
A1910BE-A-GSAAB.book Page 11 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

8-12
Driving tips

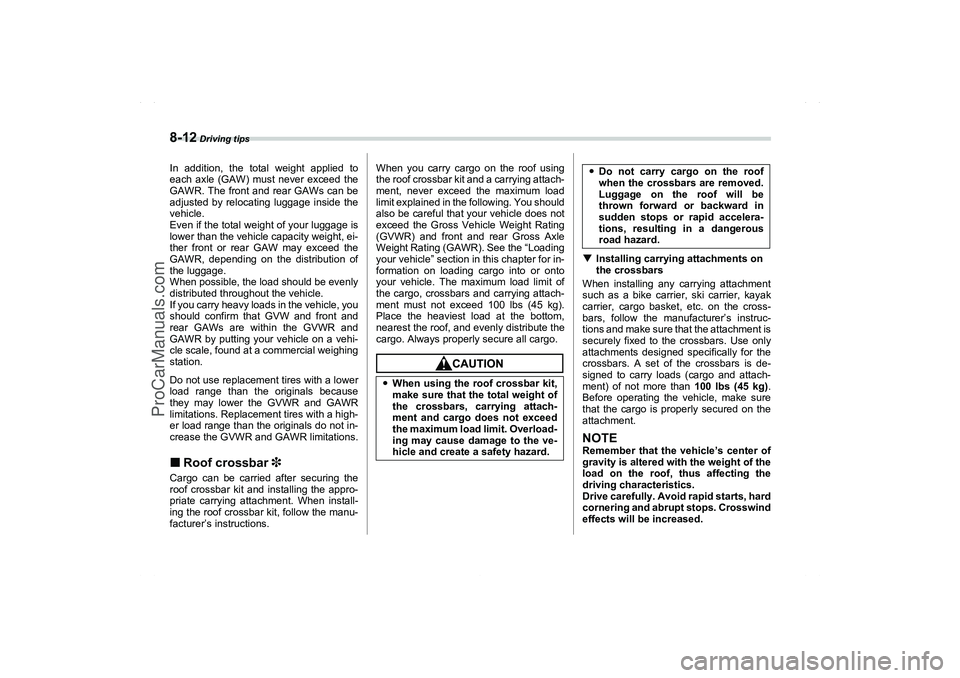

In addition, the total weight applied to
each axle (GAW) must never exceed the
GAWR. The front and rear GAWs can be
adjusted by relocating luggage inside the
vehicle.
Even if the total weight of your luggage is
lower than the vehicle capacity weight, ei-
ther front or rear GAW may exceed the
GAWR, depending on the distribution of
the luggage.
When possible, the load should be evenly
distributed throughout the vehicle.
If you carry heavy loads in the vehicle, you
should confirm that GVW and front and
rear GAWs are within the GVWR and
GAWR by putting your vehicle on a vehi-
cle scale, found at a commercial weighing
station.
Do not use replacement tires with a lower
load range than the originals because
they may lower the GVWR and GAWR
limitations. Replacement tires with a high-
er load range than the originals do not in-
crease the GVWR and GAWR limitations.
Roof crossbar
3
Cargo can be carried after securing the
roof crossbar kit and installing the appro-
priate carrying attachment. When install-
ing the roof crossbar kit, follow the manu-
facturer’s instructions.When you carry cargo on the roof using
the roof crossbar kit and a carrying attach-
ment, never exceed the maximum load
limit explained in the following. You should
also be careful that your vehicle does not
exceed the Gross Vehicle Weight Rating
(GVWR) and front and rear Gross Axle
Weight Rating (GAWR). See the “Loading
your vehicle” section in this chapter for in-
formation on loading cargo into or onto
your vehicle. The maximum load limit of
the cargo, crossbars and carrying attach-
ment must not exceed 100 lbs (45 kg).
Place the heaviest load at the bottom,
nearest the roof, and evenly distribute the
cargo. Always properly secure all cargo.

Installing carrying attachments on
the crossbars
When installing any carrying attachment
such as a bike carrier, ski carrier, kayak
carrier, cargo basket, etc. on the cross-
bars, follow the manufacturer’s instruc-
tions and make sure that the attachment is
securely fixed to the crossbars. Use only
attachments designed specifically for the
crossbars. A set of the crossbars is de-
signed to carry loads (cargo and attach-
ment) of not more than 100 lbs (45 kg).
Before operating the vehicle, make sure
that the cargo is properly secured on the
attachment.NOTERemember that the vehicle’s center of
gravity is altered with the weight of the
load on the roof, thus affecting the
driving characteristics.
Drive carefully. Avoid rapid starts, hard
cornering and abrupt stops. Crosswind
effects will be increased.
When using the roof crossbar kit,
make sure that the total weight of
the crossbars, carrying attach-
ment and cargo does not exceed
the maximum load limit. Overload-
ing may cause damage to the ve-
hicle and create a safety hazard.
Do not carry cargo on the roof
when the crossbars are removed.
Luggage on the roof will be
thrown forward or backward in
sudden stops or rapid accelera-
tions, resulting in a dangerous
road hazard.
A1910BE-A-GSAAB.book Page 12 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Driving tips
8-13
8
– CONTINUED –

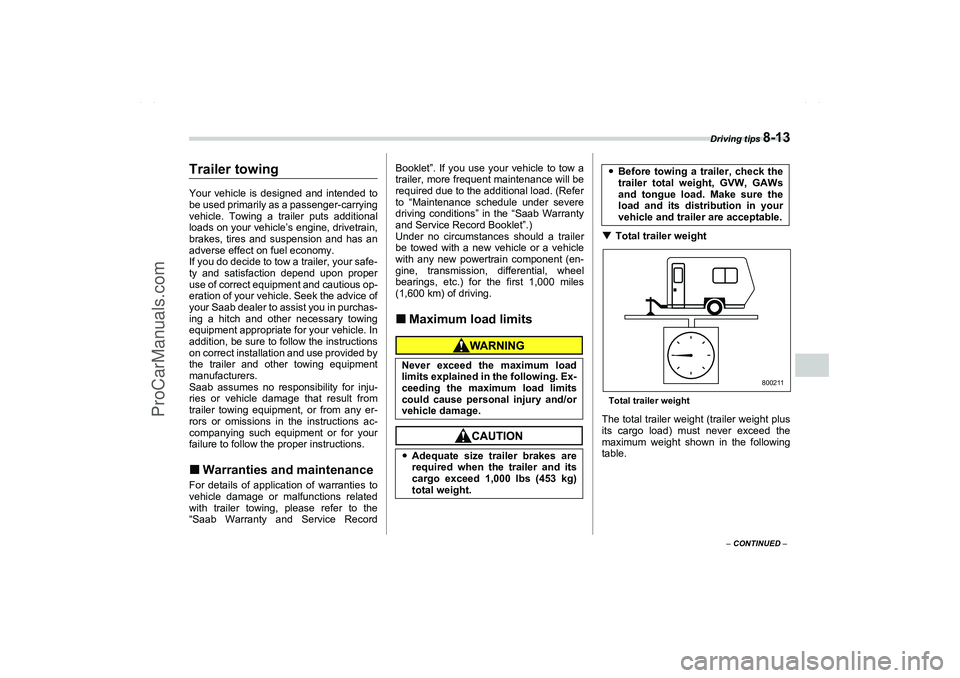

Trailer towingYour vehicle is designed and intended to
be used primarily as a passenger-carrying
vehicle. Towing a trailer puts additional
loads on your vehicle’s engine, drivetrain,
brakes, tires and suspension and has an
adverse effect on fuel economy.
If you do decide to tow a trailer, your safe-
ty and satisfaction depend upon proper
use of correct equipment and cautious op-
eration of your vehicle. Seek the advice of
your Saab dealer to assist you in purchas-
ing a hitch and other necessary towing
equipment appropriate for your vehicle. In
addition, be sure to follow the instructions
on correct installation and use provided by
the trailer and other towing equipment
manufacturers.
Saab assumes no responsibility for inju-
ries or vehicle damage that result from
trailer towing equipment, or from any er-
rors or omissions in the instructions ac-
companying such equipment or for your
failure to follow the proper instructions.
Warranties and maintenanceFor details of application of warranties to
vehicle damage or malfunctions related
with trailer towing, please refer to the
“Saab Warranty and Service RecordBooklet”. If you use your vehicle to tow a
trailer, more frequent maintenance will be
required due to the additional load. (Refer
to “Maintenance schedule under severe
driving conditions” in the “Saab Warranty
and Service Record Booklet”.)
Under no circumstances should a trailer
be towed with a new vehicle or a vehicle
with any new powertrain component (en-
gine, transmission, differential, wheel
bearings, etc.) for the first 1,000 miles
(1,600 km) of driving.

Maximum load limits

Total trailer weightTotal trailer weightThe total trailer weight (trailer weight plus
its cargo load) must never exceed the
maximum weight shown in the following
table. Never exceed the maximum load
limits explained in the following. Ex-
ceeding the maximum load limits
could cause personal injury and/or
vehicle damage.

Adequate size trailer brakes are
required when the trailer and its
cargo exceed 1,000 lbs (453 kg)
total weight.
Before towing a trailer, check the
trailer total weight, GVW, GAWs
and tongue load. Make sure the
load and its distribution in your
vehicle and trailer are acceptable.
800211
A1910BE-A-GSAAB.book Page 13 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

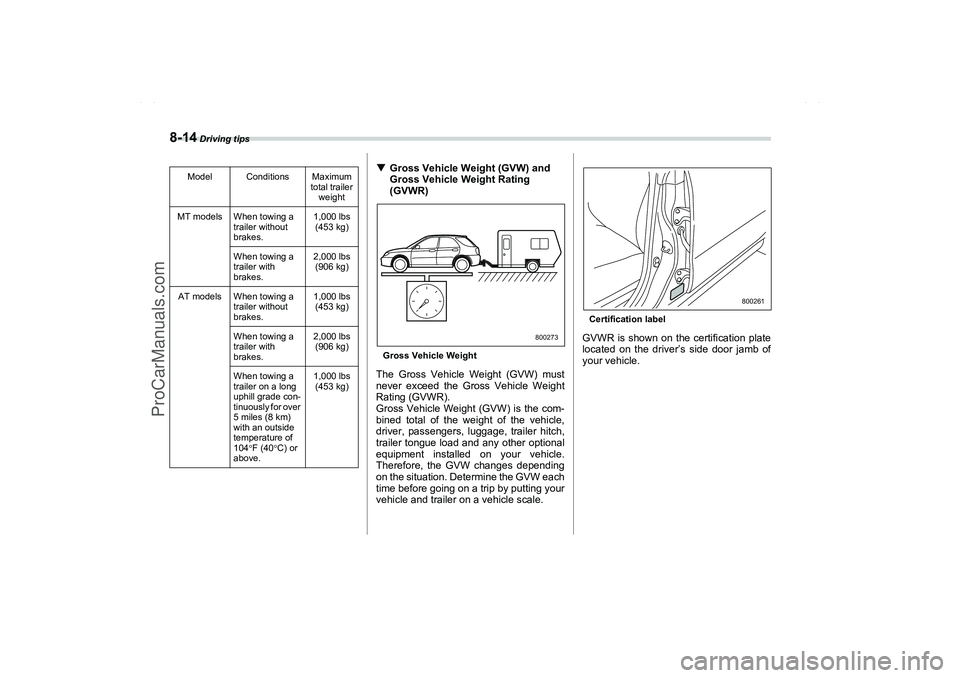

8-14
Driving tips

Gross Vehicle Weight (GVW) and
Gross Vehicle Weight Rating
(GVWR)Gross Vehicle WeightThe Gross Vehicle Weight (GVW) must
never exceed the Gross Vehicle Weight
Rating (GVWR).
Gross Vehicle Weight (GVW) is the com-
bined total of the weight of the vehicle,
driver, passengers, luggage, trailer hitch,
trailer tongue load and any other optional
equipment installed on your vehicle.
Therefore, the GVW changes depending
on the situation. Determine the GVW each
time before going on a trip by putting your
vehicle and trailer on a vehicle scale.
Certification labelGVWR is shown on the certification plate
located on the driver’s side door jamb of
your vehicle.
Model Conditions Maximum
total trailer
weight
MT models When towing a
trailer without
brakes.1,000 lbs
(453 kg)
When towing a
trailer with
brakes.2,000 lbs
(906 kg)
AT models When towing a
trailer without
brakes.1,000 lbs
(453 kg)
When towing a
trailer with
brakes.2,000 lbs
(906 kg)
When towing a
trailer on a long
uphill grade con-
tinuously for over
5 miles (8 km)
with an outside
temperature of
104
F (40
C) or
above.1,000 lbs
(453 kg)
800273
800261
A1910BE-A-GSAAB.book Page 14 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
