SAAB 9-3 2006 Owners Manual

301 Technical data
Drive belt Manual transmissionOutside length ______________________
Petrol engine, 4-cyl. ________________ 40.472'' (1028 mm)
Petrol engine, V6 __________________ 83.463'' (2120 mm)Drive belt, 4-cyl Drive belt, V6
Type __________________________ Fully synchronized
with final drive gear
and differential
Oil type (for topping up)____________ Saab MTF 0063
Oil capacity:
5-speed _________________________ 1.9 qts. (1.8 l), to
level plug
6-speed, 2.0 Turbo _________________ 3.15 qts. (3.0 l)
Speed, mph (km/h) at 1000 rpm in highest
gear (5th gear) _________________ 27–30 (43–48)
Speed, mph (km/h) at 1000 rpm in highest
gear (6th gear) _________________ 29–34 (46–55)
93U S M 06.book Page 301 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

302 Technical dataAutomatic transmission Suspension
SteeringType:
5-speed__________________________ Electronically con-
trolled, 5-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function in
selector positions 3,
4 and 5.
6-speed__________________________ Electronically-
controlled, 6-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function for
1st to 6th gear.
Selector lever positions _______________ P, R, N, D, M
Clutch type ________________________ Hydraulic plate
clutches, brake
bands and one-way
couplings
Speed (mph/km/h) at 1000 rpm in top gear:
5-speed__________________________ 46—49
6-speed__________________________ 63Spring type, front and rear ____________ Coil springs
Maximum deflection of springs:
Front ____________________________ 7.0'' (178 mm)
Rear ____________________________ 8.3'' (212 mm)
Dampers, front and rear ______________ Gas-filled dampers
Steering __________________________ Power-assisted
steering gear of
rack-pinion type and
telescopic jointed
steering column
Number of turns, lock to lock___________ 2.97
Oil type ___________________________ Power steering fluid
CHF 11S or
CHF 20293U S M 06.book Page 302 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

303 Technical data
Brake system
Hydraulic unit for soft top, ConvertibleFoot brake (ABS)____________________ Hydraulic disc
brakes with vacuum
servo unit. Diago-
nally split circuits;
ventilated discs on
front wheels (some
variants also have
ventilated rear
discs). EBD function
(see page 181).
Park brake _________________________ Acts on rear wheels
Brake fluid _________________________ To DOT 4.
Do not use DOT 5.Disc diameter:
Front ____________________________ 11.22 in.
(285 mm) **)
Fr o nt3 *) ________________________ 11.81 in.
(300 mm) **)
Rear ____________________________ 10.94 in. (278 mm)
Rear3 *) ________________________ 11.42 in.
(290 mm) **)
Total friction area of brake pads:
Front ____________________________ 9.30 in.² (60 cm²)
Fr o nt3__________________________ 9.61 in.² (62 cm²)
Rear ____________________________ 4.96 in.² (32 cm²)
*)15" wheels and 16" aluminium wheels
must not be fitted to these variants since
the diameter of the brake discs does not
allow this.
**) ventilated
Oil capacity _______________________ 0.6 qt. (0.6 l)
Oil type __________________________ CHF 11S93U S M 06.book Page 303 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

304 Technical dataWheels and tires All season tires
6.5 x 16" _________________________ 215/55 R16 97 H
RF/XL
7 x 17"___________________________ 225/45 R17 94 V
RF/XL
7.5 x 17" _________________________ 235/45 R17 94V
Summer tires
7.5 x 17" _________________________ 235/45 R17 94 W
We recommend that you contact a Saab dealer if you plan to fit
other wheels or tires than those fitted as standard.
Winter (snow) tires:
6.5 x 16" wheel ____________________ 215/55 R16 93 Q
M+S
7 x 17" wheel _____________________ 225/45 R17 94 Q
M+S RF/XL
7.5 x 17" _________________________ 235/45 R17 94 Q
M+S
Compact spare:
Wheel ___________________________ 4 x 16"
Tire _____________________________ 125/85 R16 99 M
Pressure _________________________ 420 kPa (60 psi)
Maximum life______________________ 2200 miles
(3500 km)
Maximum speed ___________________ 50 mph (80 km/h)
NOTICESnow chains:
Snow chains must not be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires
6.5 x 16"_______ 215/55 R16 M+S or
215/55 R16
Contact your Saab dealer regarding suitable snow chains.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Snow chains must not be fitted to wheels larger than 16".NOTICEWheels larger than 17" must not be fitted for reasons stated on
page 260.
Exercise care when driving on uneven roads or against the curb
if the car is heavily laden. This particularly applies to cars with
17" wheels.
Permitted wheel offset is 41 mm.
93U S M 06.book Page 304 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

305 Technical data
Recommended tire/engine combinationsRF/XL = Reinforced (or Extra Load) tire.
2.0t 2.0 Turbo 2.8 V6
All season tires
215/55 R16 97 H RF/XL x – –
225/45 R17 94 V RF/XL x x –
235/45 R17 94 V – – x
Summer tires
235/45 R17 94 W – – x
Winter (snow) tires
215/55 R16 93 Q x x x
225/45 R17 94 Q M+S RF/XL x x –
235/45 R17 94 Q – – x
Wheel sizes
6.5 x 16" x x –
7 x 17" x x –
7.5 x 17" – – x
93U S M 06.book Page 305 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

306 Technical dataRecommended lowest tire pressure, cold tires
Tire size Load/speed
mph (km/h)
*
Front
psi/kPaRear
psi/kPa
All season tires
215/55 R16 97 H
XL/RF1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28032/220
32/220
38/260
225/45 R17 94 V
RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
235/45 R17 94 V 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)xx
Summer tires
23525/45 R17 94 W 1–3 pers./0–120 (0–190)
4–5 pers./0–120 (0–190)
1–5 pers./120– (190–)35/240
35/240
41/28035/240
35/240
41/280
Winter tires
215/55 R16 93 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
225/45 R17 94 Q
M+S RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)36/250
42/29036/250
42/290
235/45 R17 94Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)xx
Compact spare
125/85 R16 99 M Max 50 (80) 60/420 60/420
* Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the sur-
rounding air temperature.
The values for tire pressure in table above are for tires at 68°F
(20°C).
The tire pressure will increase as the tires become warm (e.g. during
highway driving), and decrease as they cool.
When the temperature of the tires increases or decreases by 10
degrees the tire pressure will correspondingly increase or decrease
by 2 psi/10 kPa.
93U S M 06.book Page 306 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

307 Technical data
Plates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4USA: Label for color codes (trim and
body). Tire information label can be found
on the B-pillar. See also page 267.
Canada: Label for tire pressure and color
codes (trim and body)
5 Certification label
6 Chassis number (stamped on body).93U S M 06.book Page 307 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

308 Technical data1 Region ________Y = Nor thern Europe
2 Country _______S = Sweden
3 Manufacturer ___3 = Saab Automobile AB
4 Product line ____F = 9-3
5 Model series ___B = 9-3 Linear
D = 9-3 Arc
F = 9-3 Aero6 Body version ___4 = 4-door
7 = Convertible
5 = 5-door
7 Gearbox _______5 = 5-speed manual
6 = 6-speed manual
9 = 5-speed automatic
1 = 6-speed automatic
8 Engine variant __S = 2.0t
N = 2.0t (Convertible)
Y = 2.0 Turbo
M = 2.8 V6 (230)
U = 2.8 V6 (250)
9 Check digit_____0-9 or X
10 Model year ____6 = 2006
11 Factory _______1 = Trollhättan
6 = Graz
12 Serial number __000001-999999
Position: 1234567891011 12
||||||||| | | |
Vehicle identifi-
cation number:Y S 3 F D 4 9 Y X 6 1 016584
| |||||
1 2 3 4 5 6 = identification codes for certain chassis components
93U S M 06.book Page 308 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

309 Technical data
Several of the systems in your
Saab can be customized to better
suit your individual needs.
Contact your Saab dealerCentral locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
We recommend that you consult a Saab
dealer for further information.
Listed below are a number of examples of
programmable functions.
 Audible confirmation of arming/disarming
the car alarm.
 Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch.
 Trunk lid locked when car driven off or
30 s after being shut.Courtesy Headlamp Feature
 The length of time the lights are on.
 Whether the reversing light or tail lights
should come on as well as the dipped
beam.
Automatic Climate System (ACC)
 To prevent the smell of washer fluid from
entering the car, recirculation can be acti-
vated automatically while the windshield
is washed. The recirculation symbol will
however not light up. This function is
optional; contact a workshop. We recom-
mend that you contact a Saab dealer.
Convertible: A/C compressor not
switched off when the soft top is open.93U S M 06.book Page 309 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

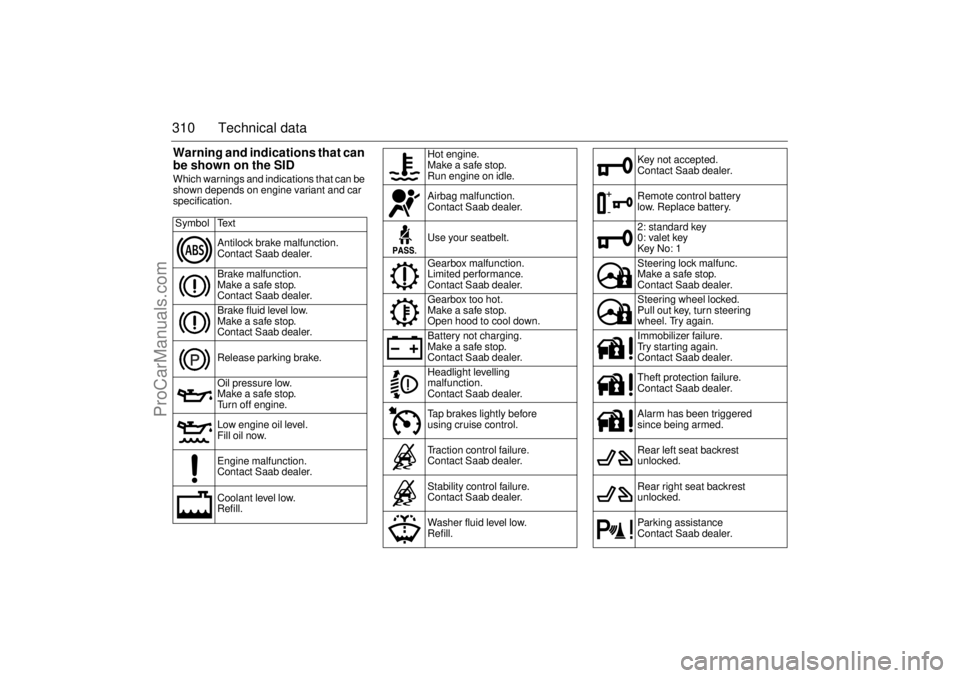

310 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
Symbol Text
Antilock brake malfunction.
Contact Saab dealer.
Brake malfunction.
Make a safe stop.
Contact Saab dealer.
Brake fluid level low.
Make a safe stop.
Contact Saab dealer.
Release parking brake.
Oil pressure low.
Make a safe stop.
Turn off engine.
Low engine oil level.
Fill oil now.
Engine malfunction.
Contact Saab dealer.
Coolant level low.
Refill.
Hot engine.
Make a safe stop.
Run engine on idle.
Airbag malfunction.
Contact Saab dealer.
Use your seatbelt.
Gearbox malfunction.
Limited performance.
Contact Saab dealer.
Gearbox too hot.
Make a safe stop.
Open hood to cool down.
Battery not charging.
Make a safe stop.
Contact Saab dealer.
Headlight levelling
malfunction.
Contact Saab dealer.
Tap brakes lightly before
using cruise control.
Traction control failure.
Contact Saab dealer.
Stability control failure.
Contact Saab dealer.
Washer fluid level low.
Refill.
Key not accepted.
Contact Saab dealer.
Remote control battery
low. Replace battery.
2: standard key
0: valet key
Key No: 1
Steering lock malfunc.
Make a safe stop.
Contact Saab dealer.
Steering wheel locked.
Pull out key, turn steering
wheel. Try again.
Immobilizer failure.
Try starting again.
Contact Saab dealer.
Theft protection failure.
Contact Saab dealer.
Alarm has been triggered
since being armed.
Rear left seat backrest
unlocked.
Rear right seat backrest
unlocked.
Parking assistance
Contact Saab dealer.
93U S M 06.book Page 310 Friday, February 18, 2005 1:15 PM
ProCarManuals.com
