SAAB 9-3 2008 Owners Manual

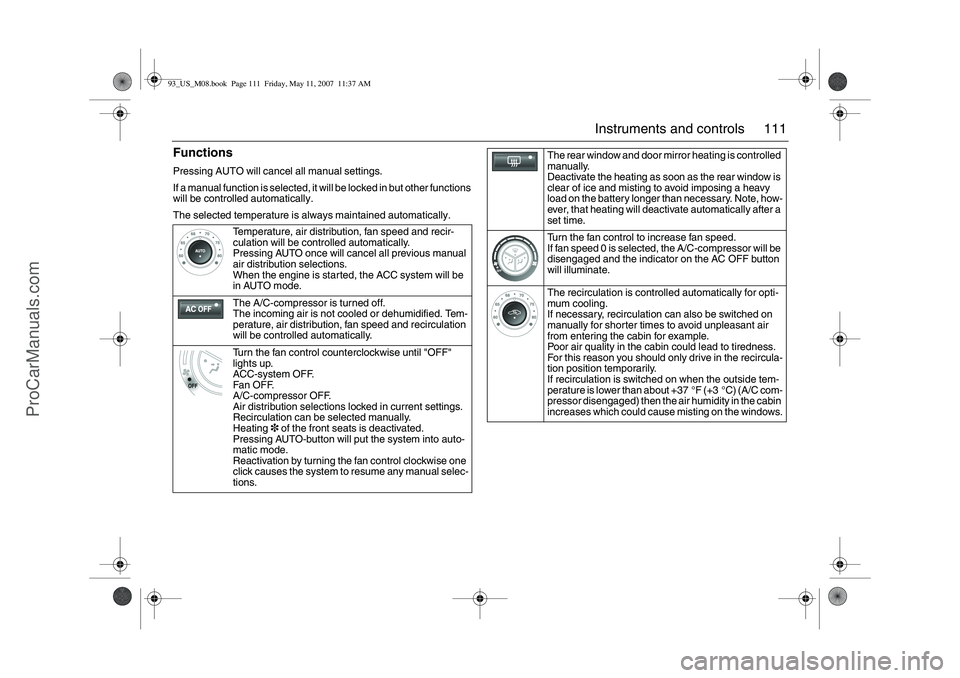

111 Instruments and controls
FunctionsPressing AUTO will cancel all manual settings.
If a manual function is selected, it will be locked in but other functions
will be controlled automatically.
The selected temperature is always maintained automatically.
Temperature, air distribution, fan speed and recir-
culation will be controlled automatically.
Pressing AUTO once will cancel all previous manual
air distribution selections.
When the engine is started, the ACC system will be
in AUTO mode.
The A/C-compressor is turned off.
The incoming air is not cooled or dehumidified. Tem-
perature, air distribution, fan speed and recirculation
will be controlled automatically.
Turn the fan control counterclockwise until "OFF"
lights up.
ACC-system OFF.
Fan OFF.
A/C-compressor OFF.
Air distribution selections locked in current settings.
Recirculation can be selected manually.
Heating3 of the front seats is deactivated.
Pressing AUTO-button will put the system into auto-
matic mode.
Reactivation by turning the fan control clockwise one
click causes the system to resume any manual selec-
tions.
The rear window and door mirror heating is controlled
manually.
Deactivate the heating as soon as the rear window is
clear of ice and misting to avoid imposing a heavy
load on the battery longer than necessary. Note, how-
ever, that heating will deactivate automatically after a
set time.
Turn the fan control to increase fan speed.
If fan speed 0 is selected, the A/C-compressor will be
disengaged and the indicator on the AC OFF button
will illuminate.
The recirculation is controlled automatically for opti-
mum cooling.
If necessary, recirculation can also be switched on
manually for shorter times to avoid unpleasant air
from entering the cabin for example.
Poor air quality in the cabin could lead to tiredness.
For this reason you should only drive in the recircula-
tion position temporarily.
If recirculation is switched on when the outside tem-
perature is lower than about +37°F (+3°C) (A/C com-
pressor disengaged) then the air humidity in the cabin
increases which could cause misting on the windows.
93_US_M08.book Page 111 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

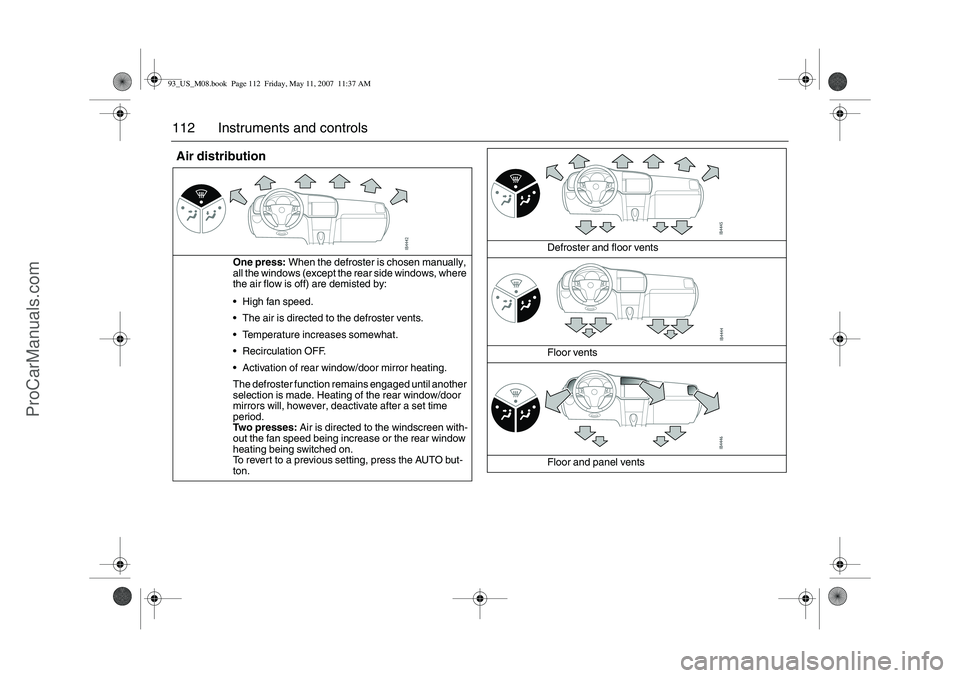

112 Instruments and controlsAir distribution
One press: When the defroster is chosen manually,
all the windows (except the rear side windows, where
the air flow is off) are demisted by:
High fan speed.
The air is directed to the defroster vents.
Temperature increases somewhat.
Recirculation OFF.
Activation of rear window/door mirror heating.
The defroster function remains engaged until another
selection is made. Heating of the rear window/door
mirrors will, however, deactivate after a set time
period.
Two presses: Air is directed to the windscreen with-
out the fan speed being increase or the rear window
heating being switched on.
To revert to a previous setting, press the AUTO but-
ton.
Defroster and floor vents
Floor vents
Floor and panel vents
93_US_M08.book Page 112 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

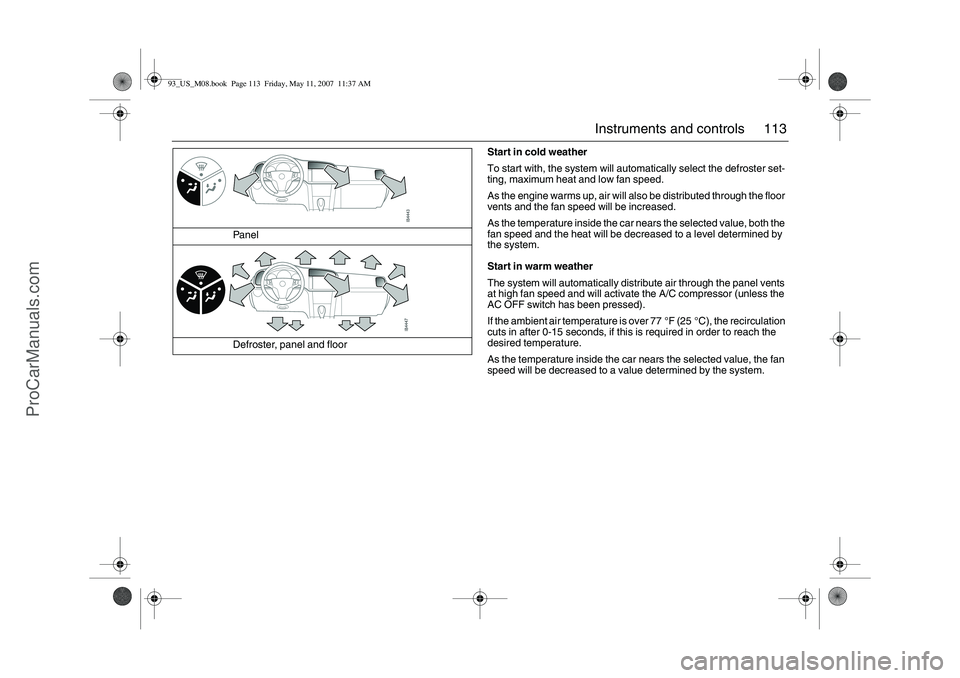

113 Instruments and controls
Start in cold weather
To start with, the system will automatically select the defroster set-
ting, maximum heat and low fan speed.
As the engine warms up, air will also be distributed through the floor
vents and the fan speed will be increased.
As the temperature inside the car nears the selected value, both the
fan speed and the heat will be decreased to a level determined by
the system.
Start in warm weather
The system will automatically distribute air through the panel vents
at high fan speed and will activate the A/C compressor (unless the
AC OFF switch has been pressed).
If the ambient air temperature is over 77°F (25°C), the recirculation
cuts in after 0-15 seconds, if this is required in order to reach the
desired temperature.
As the temperature inside the car nears the selected value, the fan
speed will be decreased to a value determined by the system. Panel
Defroster, panel and floor
93_US_M08.book Page 113 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

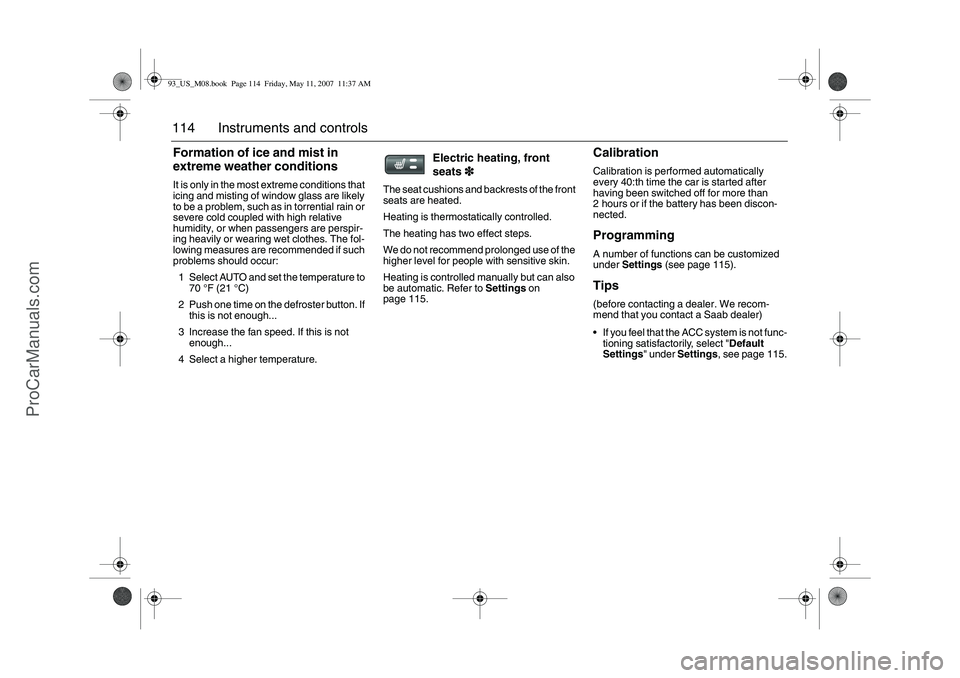

114 Instruments and controlsFormation of ice and mist in
extreme weather conditionsIt is only in the most extreme conditions that
icing and misting of window glass are likely
to be a problem, such as in torrential rain or
severe cold coupled with high relative
humidity, or when passengers are perspir-
ing heavily or wearing wet clothes. The fol-
lowing measures are recommended if such
problems should occur:
1 Select AUTO and set the temperature to
70°F (21°C)
2 Push one time on the defroster button. If
this is not enough...
3 Increase the fan speed. If this is not
enough...
4 Select a higher temperature.The seat cushions and backrests of the front
seats are heated.
Heating is thermostatically controlled.
The heating has two effect steps.
We do not recommend prolonged use of the
higher level for people with sensitive skin.
Heating is controlled manually but can also
be automatic. Refer to Settings on
page 115.
CalibrationCalibration is performed automatically
every 40:th time the car is started after
having been switched off for more than
2 hours or if the battery has been discon-
nected.ProgrammingA number of functions can be customized
under Settings (see page 115).Tips(before contacting a dealer. We recom-
mend that you contact a Saab dealer)
If you feel that the ACC system is not func-
tioning satisfactorily, select "Default
Settings" under Settings, see page 115.
Electric heating, front
seats3
33 3
93_US_M08.book Page 114 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

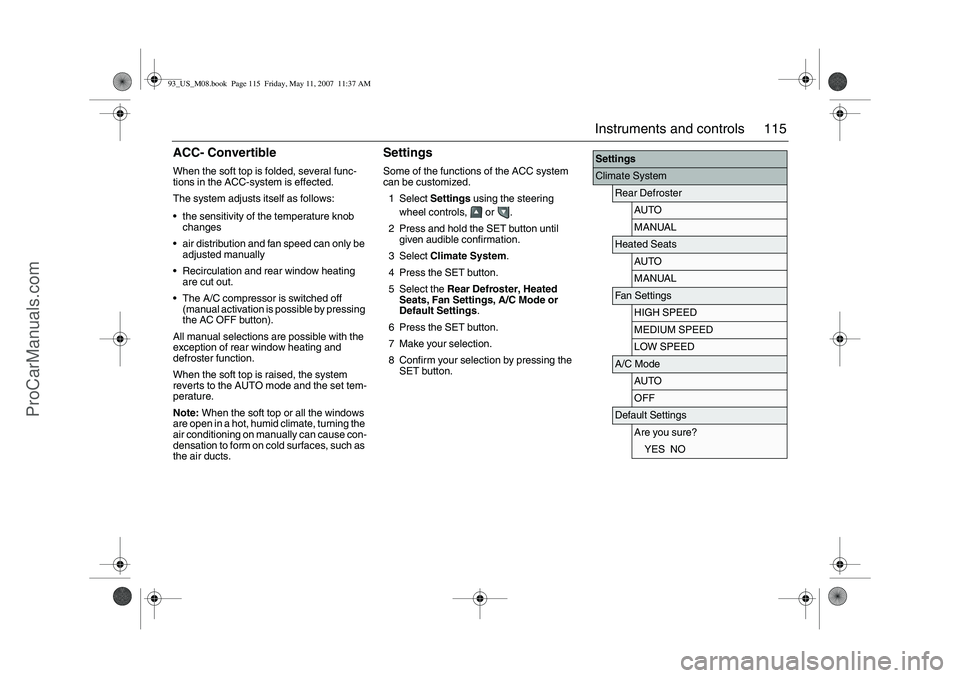

115 Instruments and controls
ACC- ConvertibleWhen the soft top is folded, several func-
tions in the ACC-system is effected.
The system adjusts itself as follows:
the sensitivity of the temperature knob
changes
air distribution and fan speed can only be
adjusted manually
Recirculation and rear window heating
are cut out.
The A/C compressor is switched off
(manual activation is possible by pressing
the AC OFF button).
All manual selections are possible with the
exception of rear window heating and
defroster function.
When the soft top is raised, the system
reverts to the AUTO mode and the set tem-
perature.
Note: When the soft top or all the windows
are open in a hot, humid climate, turning the
air conditioning on manually can cause con-
densation to form on cold surfaces, such as
the air ducts.
SettingsSome of the functions of the ACC system
can be customized.
1Select Settings using the steering
wheel controls, or .
2 Press and hold the SET button until
given audible confirmation.
3Select Climate System.
4 Press the SET button.
5 Select the Rear Defroster, Heated
Seats, Fan Settings, A/C Mode or
Default Settings.
6 Press the SET button.
7 Make your selection.
8 Confirm your selection by pressing the
SET button.
SettingsClimate System
Rear Defroster
AUTOMANUAL
Heated Seats
AUTOMANUAL
Fan Settings
HIGH SPEEDMEDIUM SPEEDLOW SPEED
A/C Mode
AUTOOFF
Default Settings
Are you sure?YES NO
93_US_M08.book Page 115 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

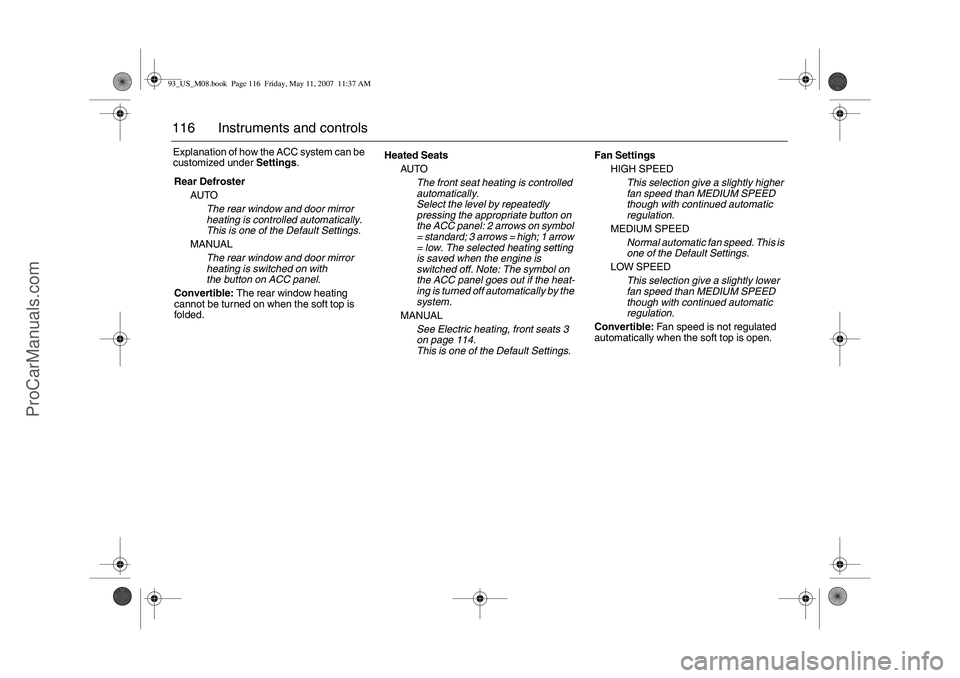

116 Instruments and controlsExplanation of how the ACC system can be
customized under Settings.
Rear Defroster
AUTO
The rear window and door mirror
heating is controlled automatically.
This is one of the Default Settings.
MANUAL
The rear window and door mirror
heating is switched on with
the button on ACC panel.
Convertible: The rear window heating
cannot be turned on when the soft top is
folded.Heated Seats
AUTO
The front seat heating is controlled
automatically.
Select the level by repeatedly
pressing the appropriate button on
the ACC panel: 2 arrows on symbol
= standard; 3 arrows = high; 1 arrow
= low. The selected heating setting
is saved when the engine is
switched off. Note: The symbol on
the ACC panel goes out if the heat-
ing is turned off automatically by the
system.
MANUAL
See Electric heating, front seats 3
on page 114.
This is one of the Default Settings.Fan Settings
HIGH SPEED
This selection give a slightly higher
fan speed than MEDIUM SPEED
though with continued automatic
regulation.
MEDIUM SPEED
Normal automatic fan speed. This is
one of the Default Settings.
LOW SPEED
This selection give a slightly lower
fan speed than MEDIUM SPEED
though with continued automatic
regulation.
Convertible: Fan speed is not regulated
automatically when the soft top is open.93_US_M08.book Page 116 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

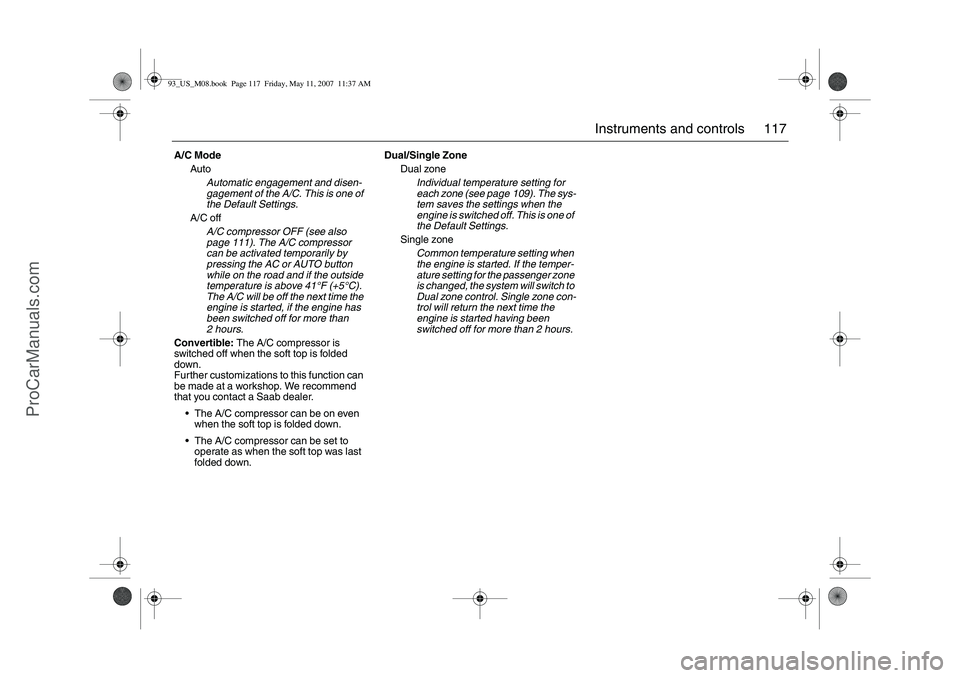

117 Instruments and controls
A/C Mode
Auto
Automatic engagement and disen-
gagement of the A/C. This is one of
the Default Settings.
A/C off
A/C compressor OFF (see also
page 111). The A/C compressor
can be activated temporarily by
pressing the AC or AUTO button
while on the road and if the outside
temperature is above 41°F (+5°C).
The A/C will be off the next time the
engine is started, if the engine has
been switched off for more than
2 hours.
Convertible: The A/C compressor is
switched off when the soft top is folded
down.
Further customizations to this function can
be made at a workshop. We recommend
that you contact a Saab dealer.
The A/C compressor can be on even
when the soft top is folded down.
The A/C compressor can be set to
operate as when the soft top was last
folded down.Dual/Single Zone
Dual zone
Individual temperature setting for
each zone (see page 109). The sys-
tem saves the settings when the
engine is switched off. This is one of
the Default Settings.
Single zone
Common temperature setting when
the engine is started. If the temper-
ature setting for the passenger zone
is changed, the system will switch to
Dual zone control. Single zone con-
trol will return the next time the
engine is started having been
switched off for more than 2 hours.93_US_M08.book Page 117 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

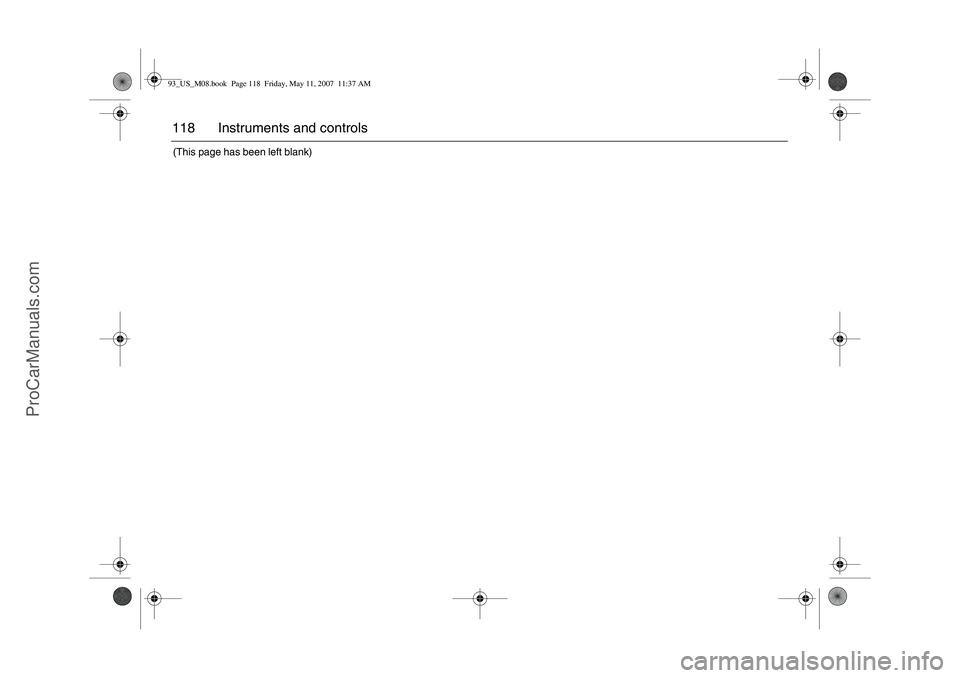

118 Instruments and controls(This page has been left blank)93_US_M08.book Page 118 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

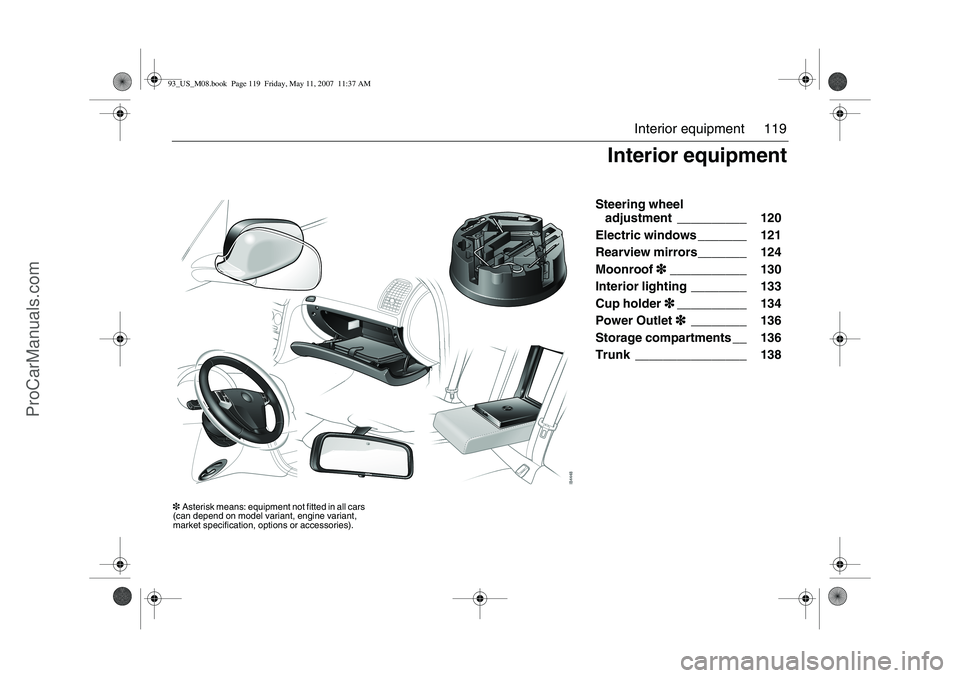

119 Interior equipment
Steering wheel
adjustment __________ 120
Electric windows _______ 121
Rearview mirrors_______ 124
Moonroof3
33 3___________ 130
Interior lighting ________ 133
Cup holder3
33 3__________ 134
Power Outlet3
33 3________ 136
Storage compartments __ 136
Trunk ________________ 138
Interior equipment
3Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).93_US_M08.book Page 119 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

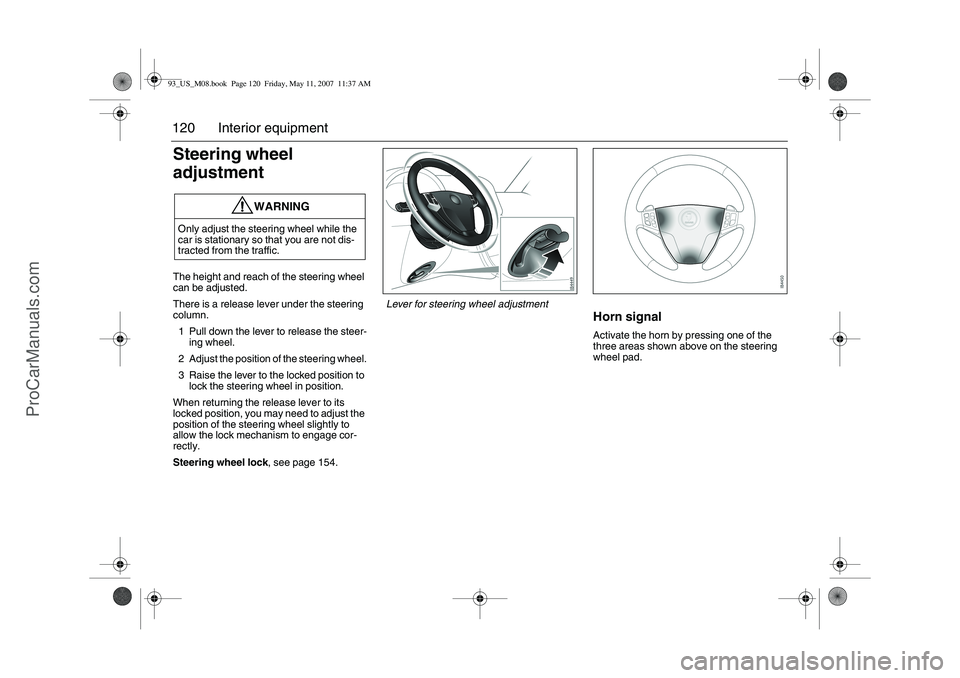

120 Interior equipmentSteering wheel
adjustmentThe height and reach of the steering wheel
can be adjusted.
There is a release lever under the steering
column.
1 Pull down the lever to release the steer-
ing wheel.
2 Adjust the position of the steering wheel.
3 Raise the lever to the locked position to
lock the steering wheel in position.
When returning the release lever to its
locked position, you may need to adjust the
position of the steering wheel slightly to
allow the lock mechanism to engage cor-
rectly.
Steering wheel lock, see page 154.
Horn signalActivate the horn by pressing one of the
three areas shown above on the steering
wheel pad.
WARNING
Only adjust the steering wheel while the
car is stationary so that you are not dis-
tracted from the traffic.
Lever for steering wheel adjustment
93_US_M08.book Page 120 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
