SAAB 9-3 2008 Owners Manual

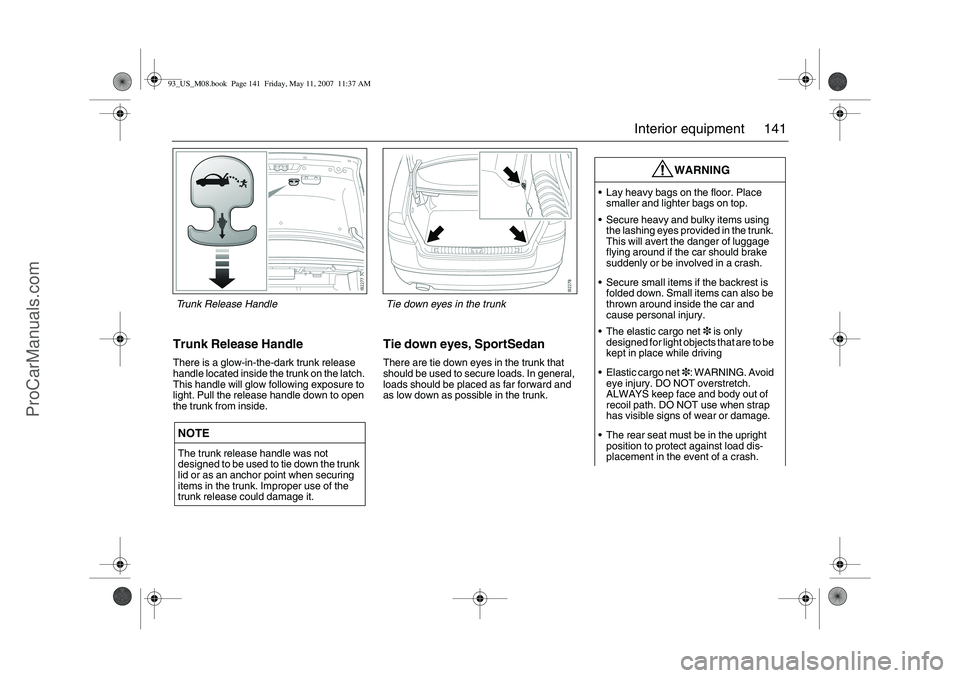

141 Interior equipment
Trunk Release HandleThere is a glow-in-the-dark trunk release
handle located inside the trunk on the latch.
This handle will glow following exposure to
light. Pull the release handle down to open
the trunk from inside.
Tie down eyes, SportSedanThere are tie down eyes in the trunk that
should be used to secure loads. In general,
loads should be placed as far forward and
as low down as possible in the trunk.
NOTEThe trunk release handle was not
designed to be used to tie down the trunk
lid or as an anchor point when securing
items in the trunk. Improper use of the
trunk release could damage it.
WARNING
Lay heavy bags on the floor. Place
smaller and lighter bags on top.
Secure heavy and bulky items using
the lashing eyes provided in the trunk.
This will avert the danger of luggage
flying around if the car should brake
suddenly or be involved in a crash.
Secure small items if the backrest is
folded down. Small items can also be
thrown around inside the car and
cause personal injury.
The elastic cargo net3 is only
designed for light objects that are to be
kept in place while driving
Elastic cargo net3: WARNING. Avoid
eye injury. DO NOT overstretch.
ALWAYS keep face and body out of
recoil path. DO NOT use when strap
has visible signs of wear or damage.
The rear seat must be in the upright
position to protect against load dis-
placement in the event of a crash.
Tie down eyes in the trunk
Trunk Release Handle93_US_M08.book Page 141 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

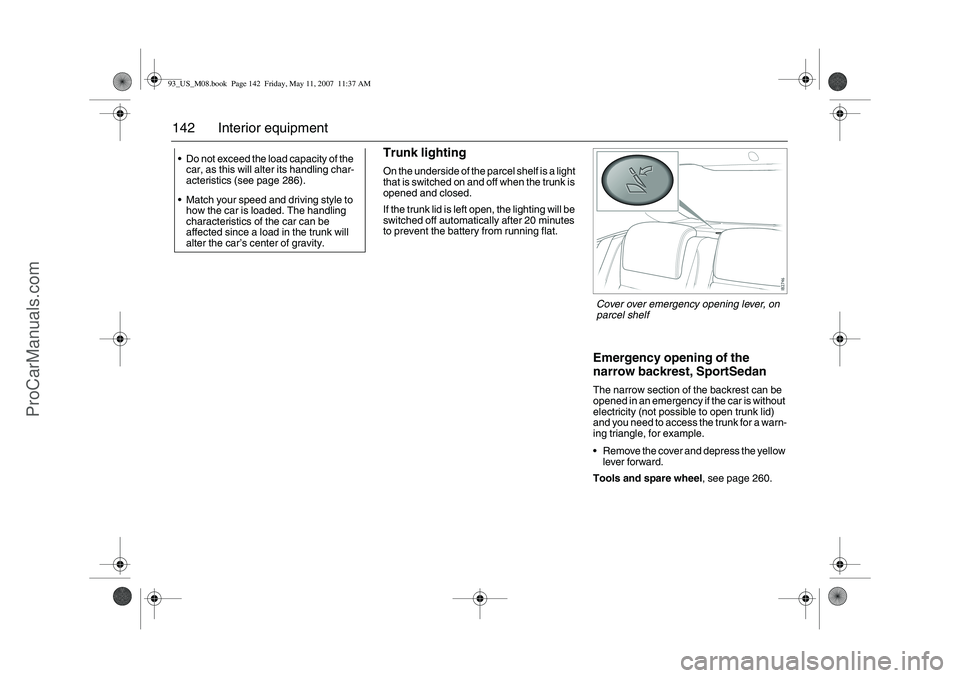

142 Interior equipment
Trunk lightingOn the underside of the parcel shelf is a light
that is switched on and off when the trunk is
opened and closed.
If the trunk lid is left open, the lighting will be
switched off automatically after 20 minutes
to prevent the battery from running flat.
Emergency opening of the
narrow backrest, SportSedanThe narrow section of the backrest can be
opened in an emergency if the car is without
electricity (not possible to open trunk lid)
and you need to access the trunk for a warn-
ing triangle, for example.
Remove the cover and depress the yellow
lever forward.
Tools and spare wheel, see page 260. Do not exceed the load capacity of the
car, as this will alter its handling char-
acteristics (see page 286).
Match your speed and driving style to
how the car is loaded. The handling
characteristics of the car can be
affected since a load in the trunk will
alter the car’s center of gravity.Cover over emergency opening lever, on
parcel shelf
93_US_M08.book Page 142 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

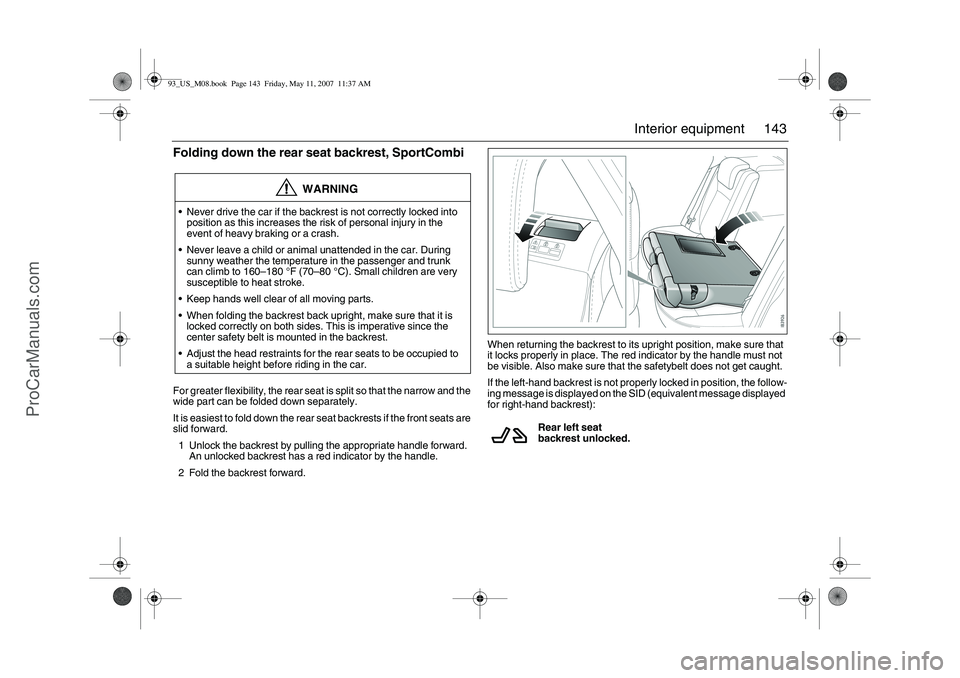

143 Interior equipment
Folding down the rear seat backrest, SportCombiFor greater flexibility, the rear seat is split so that the narrow and the
wide part can be folded down separately.
It is easiest to fold down the rear seat backrests if the front seats are
slid forward.
1 Unlock the backrest by pulling the appropriate handle forward.
An unlocked backrest has a red indicator by the handle.
2 Fold the backrest forward.When returning the backrest to its upright position, make sure that
it locks properly in place. The red indicator by the handle must not
be visible. Also make sure that the safetybelt does not get caught.
If the left-hand backrest is not properly locked in position, the follow-
ing message is displayed on the SID (equivalent message displayed
for right-hand backrest):
WARNING
Never drive the car if the backrest is not correctly locked into
position as this increases the risk of personal injury in the
event of heavy braking or a crash.
Never leave a child or animal unattended in the car. During
sunny weather the temperature in the passenger and trunk
can climb to 160–180°F (70–80°C). Small children are very
susceptible to heat stroke.
Keep hands well clear of all moving parts.
When folding the backrest back upright, make sure that it is
locked correctly on both sides. This is imperative since the
center safety belt is mounted in the backrest.
Adjust the head restraints for the rear seats to be occupied to
a suitable height before riding in the car.
Rear left seat
backrest unlocked.
93_US_M08.book Page 143 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

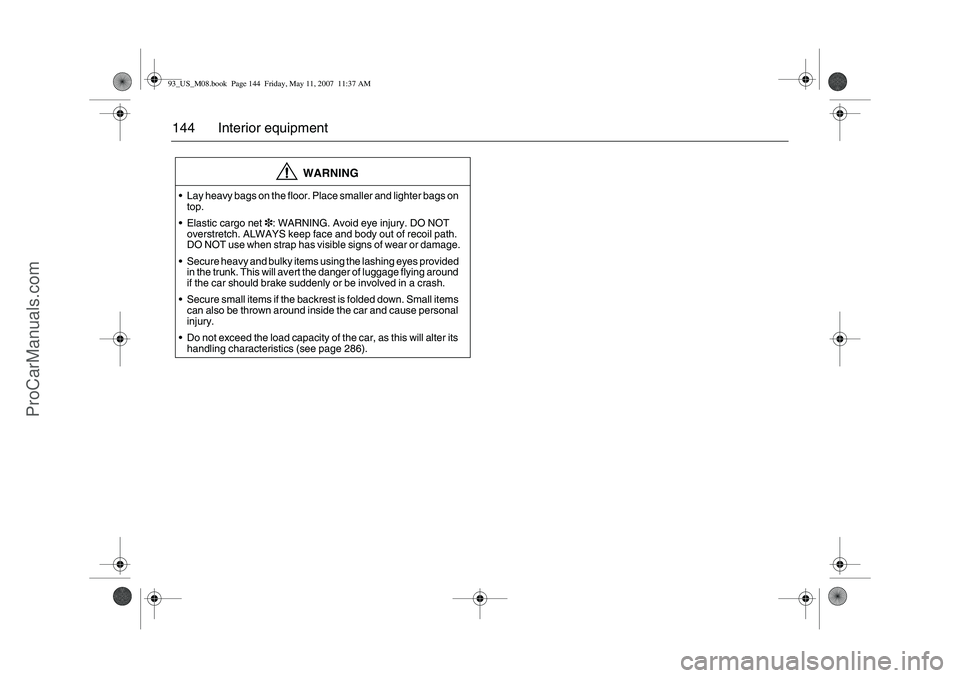

144 Interior equipment
WARNING
Lay heavy bags on the floor. Place smaller and lighter bags on
top.
Elastic cargo net3: WARNING. Avoid eye injury. DO NOT
overstretch. ALWAYS keep face and body out of recoil path.
DO NOT use when strap has visible signs of wear or damage.
Secure heavy and bulky items using the lashing eyes provided
in the trunk. This will avert the danger of luggage flying around
if the car should brake suddenly or be involved in a crash.
Secure small items if the backrest is folded down. Small items
can also be thrown around inside the car and cause personal
injury.
Do not exceed the load capacity of the car, as this will alter its
handling characteristics (see page 286).93_US_M08.book Page 144 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

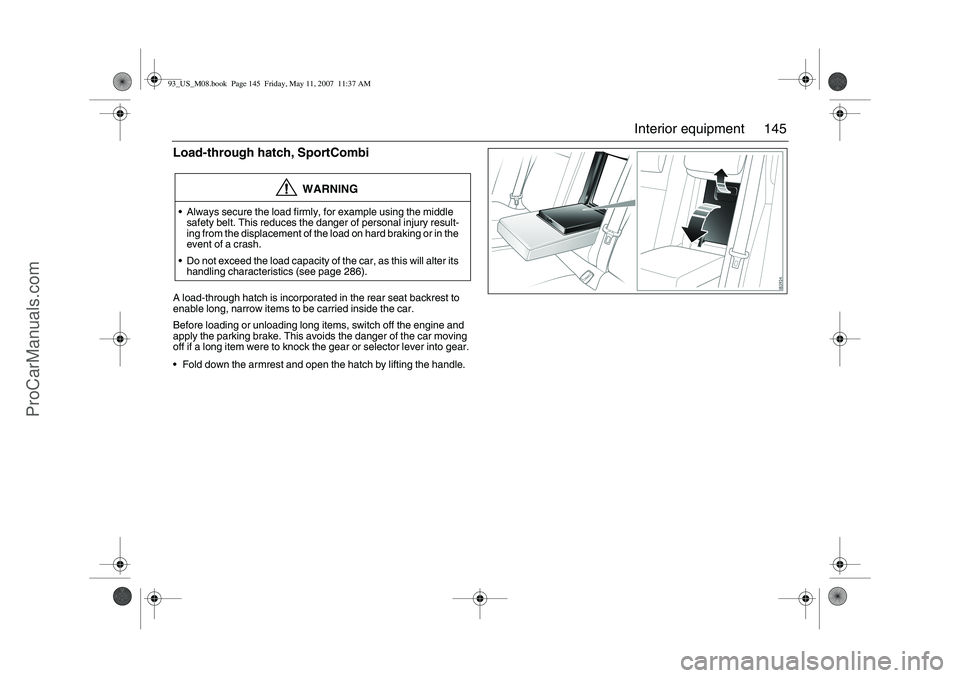

145 Interior equipment
Load-through hatch, SportCombiA load-through hatch is incorporated in the rear seat backrest to
enable long, narrow items to be carried inside the car.
Before loading or unloading long items, switch off the engine and
apply the parking brake. This avoids the danger of the car moving
off if a long item were to knock the gear or selector lever into gear.
Fold down the armrest and open the hatch by lifting the handle.
WARNING
Always secure the load firmly, for example using the middle
safety belt. This reduces the danger of personal injury result-
ing from the displacement of the load on hard braking or in the
event of a crash.
Do not exceed the load capacity of the car, as this will alter its
handling characteristics (see page 286).93_US_M08.book Page 145 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

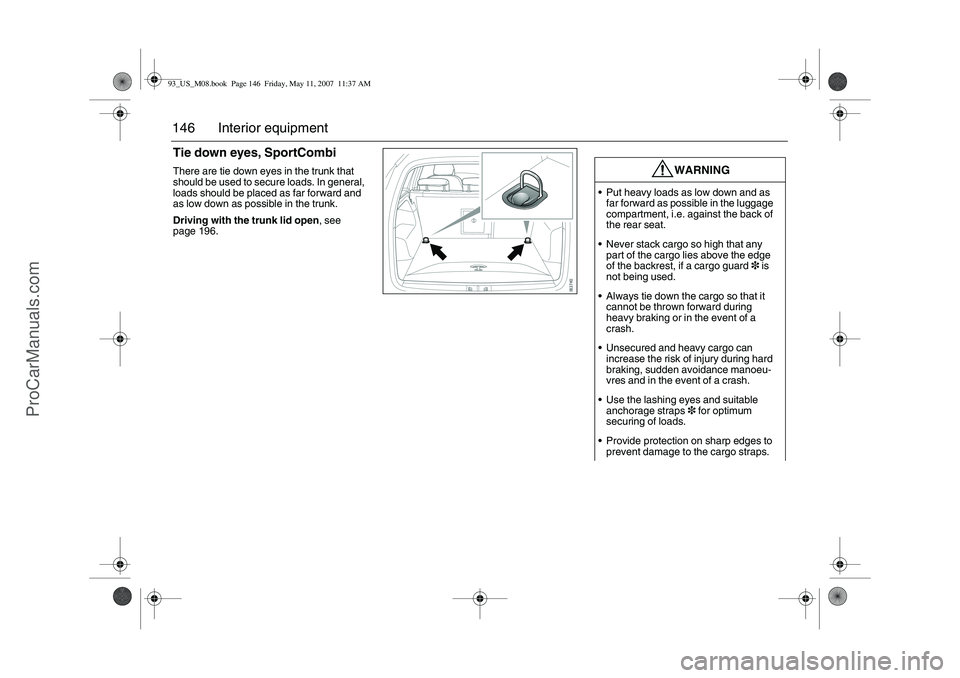

146 Interior equipmentTie down eyes, SportCombiThere are tie down eyes in the trunk that
should be used to secure loads. In general,
loads should be placed as far forward and
as low down as possible in the trunk.
Driving with the trunk lid open, see
page 196.
WARNING
Put heavy loads as low down and as
far forward as possible in the luggage
compartment, i.e. against the back of
the rear seat.
Never stack cargo so high that any
part of the cargo lies above the edge
of the backrest, if a cargo guard3 is
not being used.
Always tie down the cargo so that it
cannot be thrown forward during
heavy braking or in the event of a
crash.
Unsecured and heavy cargo can
increase the risk of injury during hard
braking, sudden avoidance manoeu-
vres and in the event of a crash.
Use the lashing eyes and suitable
anchorage straps3 for optimum
securing of loads.
Provide protection on sharp edges to
prevent damage to the cargo straps.
93_US_M08.book Page 146 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

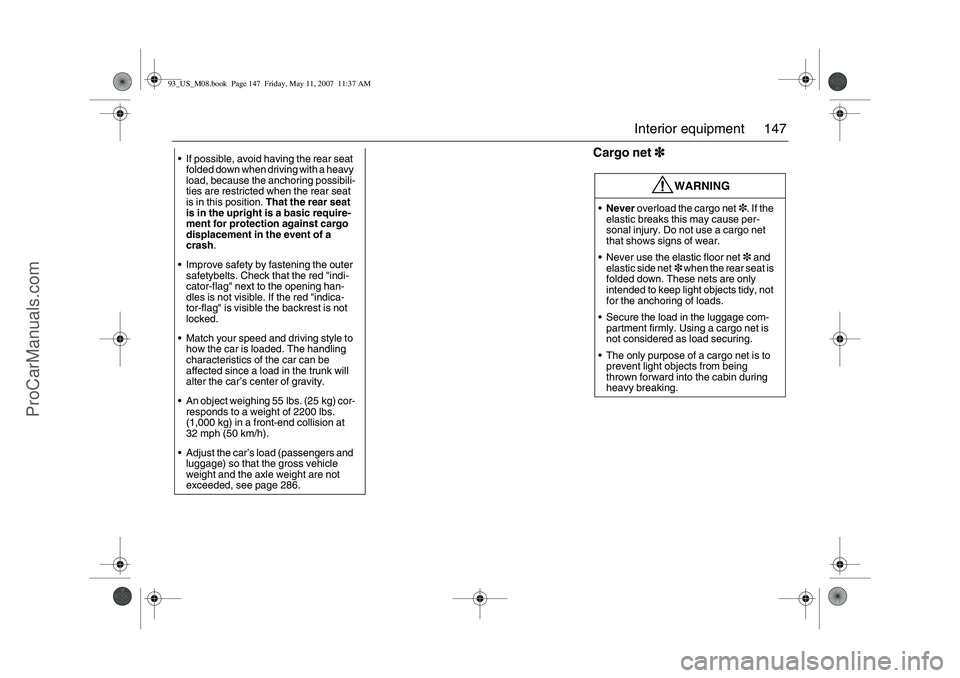

147 Interior equipment
Cargo net3
33 3
If possible, avoid having the rear seat
folded down when driving with a heavy
load, because the anchoring possibili-
ties are restricted when the rear seat
is in this position. That the rear seat
is in the upright is a basic require-
ment for protection against cargo
displacement in the event of a
crash.
Improve safety by fastening the outer
safetybelts. Check that the red "indi-
cator-flag" next to the opening han-
dles is not visible. If the red "indica-
tor-flag" is visible the backrest is not
locked.
Match your speed and driving style to
how the car is loaded. The handling
characteristics of the car can be
affected since a load in the trunk will
alter the car’s center of gravity.
An object weighing 55 lbs. (25 kg) cor-
responds to a weight of 2200 lbs.
(1,000 kg) in a front-end collision at
32 mph (50 km/h).
Adjust the car’s load (passengers and
luggage) so that the gross vehicle
weight and the axle weight are not
exceeded, see page 286.
WARNING
Never overload the cargo net3. If the
elastic breaks this may cause per-
sonal injury. Do not use a cargo net
that shows signs of wear.
Never use the elastic floor net3 and
elastic side net3 when the rear seat is
folded down. These nets are only
intended to keep light objects tidy, not
for the anchoring of loads.
Secure the load in the luggage com-
partment firmly. Using a cargo net is
not considered as load securing.
The only purpose of a cargo net is to
prevent light objects from being
thrown forward into the cabin during
heavy breaking.
93_US_M08.book Page 147 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

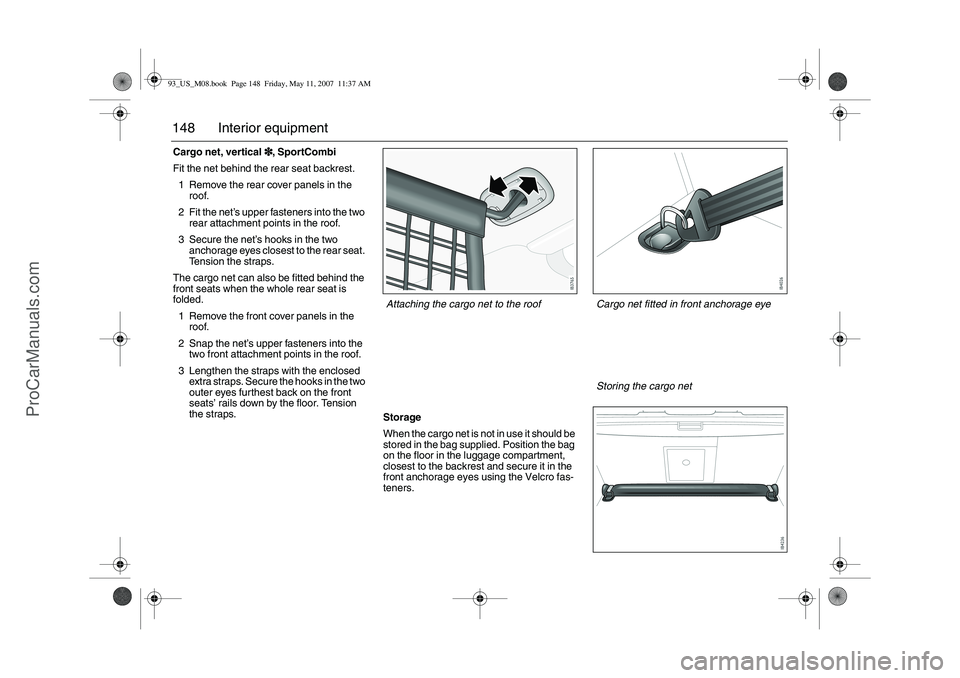

148 Interior equipmentCargo net, vertical3
33 3, SportCombi
Fit the net behind the rear seat backrest.
1 Remove the rear cover panels in the
roof.
2 Fit the net’s upper fasteners into the two
rear attachment points in the roof.
3 Secure the net’s hooks in the two
anchorage eyes closest to the rear seat.
Tension the straps.
The cargo net can also be fitted behind the
front seats when the whole rear seat is
folded.
1 Remove the front cover panels in the
roof.
2 Snap the net’s upper fasteners into the
two front attachment points in the roof.
3 Lengthen the straps with the enclosed
extra straps. Secure the hooks in the two
outer eyes furthest back on the front
seats’ rails down by the floor. Tension
the straps.
Storage
When the cargo net is not in use it should be
stored in the bag supplied. Position the bag
on the floor in the luggage compartment,
closest to the backrest and secure it in the
front anchorage eyes using the Velcro fas-
teners.
Attaching the cargo net to the roof
Cargo net fitted in front anchorage eyeStoring the cargo net
93_US_M08.book Page 148 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

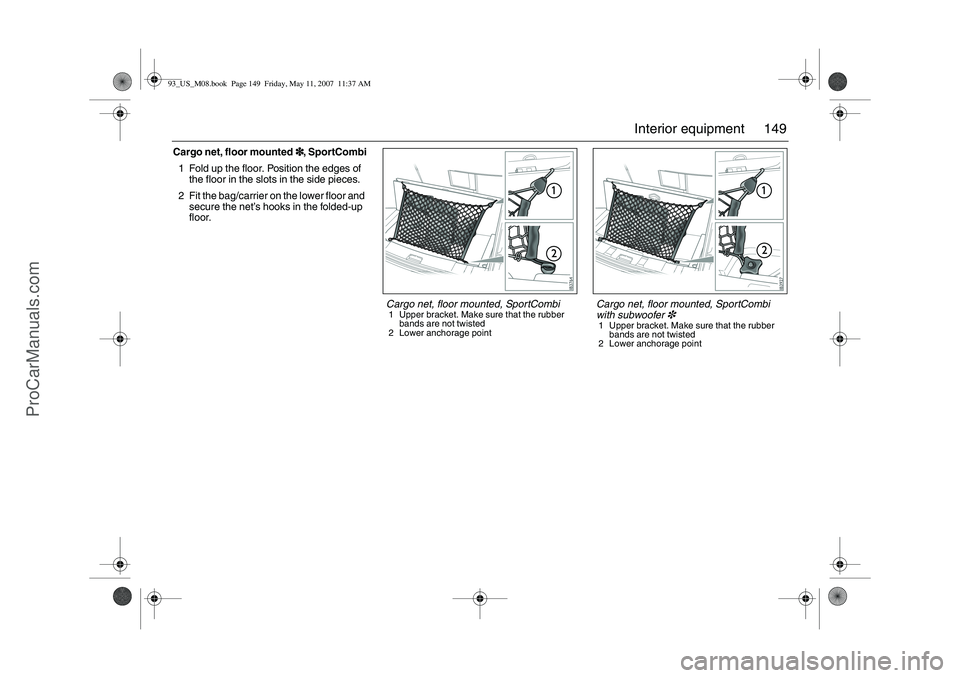

149 Interior equipment
Cargo net, floor mounted3
33 3, SportCombi
1 Fold up the floor. Position the edges of
the floor in the slots in the side pieces.
2 Fit the bag/carrier on the lower floor and
secure the net’s hooks in the folded-up
floor.
Cargo net, floor mounted, SportCombi1 Upper bracket. Make sure that the rubber
bands are not twisted
2 Lower anchorage point
Cargo net, floor mounted, SportCombi
with subwoofer
3
1 Upper bracket. Make sure that the rubber
bands are not twisted
2 Lower anchorage point
93_US_M08.book Page 149 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

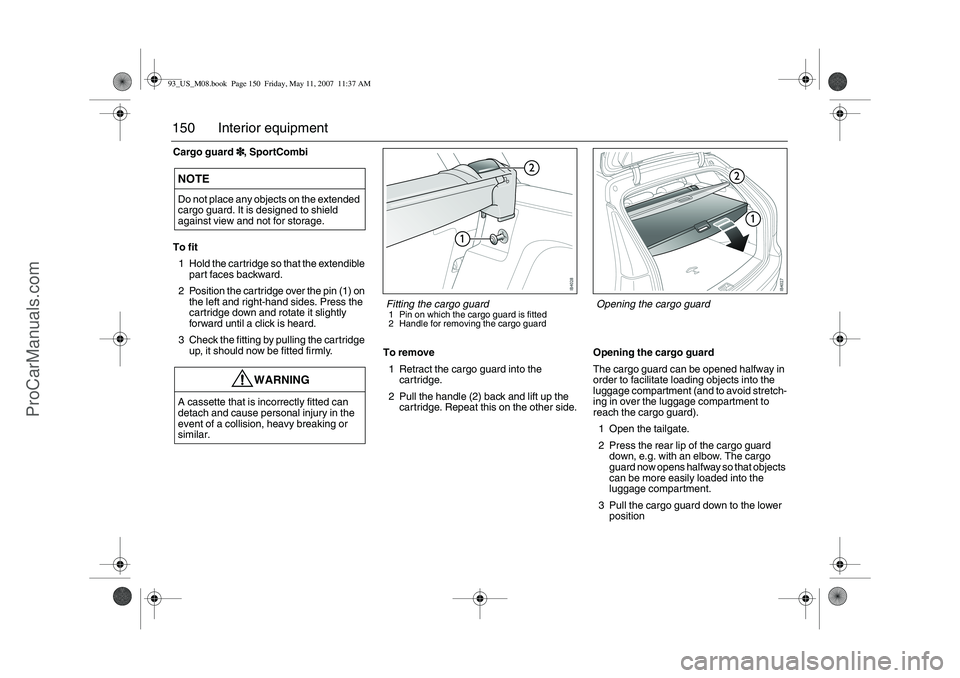

150 Interior equipmentCargo guard3
33 3, SportCombi
To fit
1 Hold the cartridge so that the extendible
part faces backward.
2 Position the cartridge over the pin (1) on
the left and right-hand sides. Press the
cartridge down and rotate it slightly
forward until a click is heard.
3 Check the fitting by pulling the cartridge
up, it should now be fitted firmly.
To remove
1 Retract the cargo guard into the
cartridge.
2 Pull the handle (2) back and lift up the
cartridge. Repeat this on the other side.Opening the cargo guard
The cargo guard can be opened halfway in
order to facilitate loading objects into the
luggage compartment (and to avoid stretch-
ing in over the luggage compartment to
reach the cargo guard).
1 Open the tailgate.
2 Press the rear lip of the cargo guard
down, e.g. with an elbow. The cargo
guard now opens halfway so that objects
can be more easily loaded into the
luggage compartment.
3 Pull the cargo guard down to the lower
positionNOTEDo not place any objects on the extended
cargo guard. It is designed to shield
against view and not for storage.
WARNING
A cassette that is incorrectly fitted can
detach and cause personal injury in the
event of a collision, heavy breaking or
similar.
Fitting the cargo guard1 Pin on which the cargo guard is fitted
2 Handle for removing the cargo guard
Opening the cargo guard
93_US_M08.book Page 150 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
