SAAB 9-3 2008 Owners Manual

131 Interior equipment
To closeManually controlled closing
Slide the control forward to its first position.
The moonroof will halt when you release the
control.
Automatic closing3
33 3
Slide the control forward to its second posi-
tion and release it. The moonroof will close
fully.
The moonroof pinch protection halts closing
and opens the moonroof slightly if some-
thing obstructs closing.
Moonroof without automatic closing3
33 3
Slide the control forward to position 3 (see
illustration). The moonroof will stop when
you release the control or once it is fully
closed.Ventilation position (rear edge of moon-
roof open)
To open – press in the control.
To close – slide the control forward to the
second position.
It is also possible to select the ventilation
position when the moonroof is open by
pressing in the control. The moonroof will
then close automatically. Press the control
once more to open the moonroof to its ven-
tilation position.
If you wish to open the moonroof fully from
the ventilation position, you must first close
it (slide the control forward). You can then
slide the control rearward to open the moon-
roof.
The moonroof incorporates an interior,
manual, sliding sun blind.
Moonroof without automatic closing3
33 3
To open – press the control up.
To c l o s e – slide the control forward to
position 3.
Comfort opening3
33 3Comfort opening is the remote opening of
windows and the moonroof.
Press and hold the unlocking button on the
remote control until the windows and
optional moonroof start to open (approx.
2 seconds).
During comfort opening of the windows,
moonroof (option) and soft top, the range is
reduced by approximately half.
If the moonroof is in the ventilation position,
it will not open.
Convertible: For the remote opening of the
soft top, refer to page 64.
WARNING
Exercise great care when closing the
moonroof to ensure that nothing gets
trapped.93_US_M08.book Page 131 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

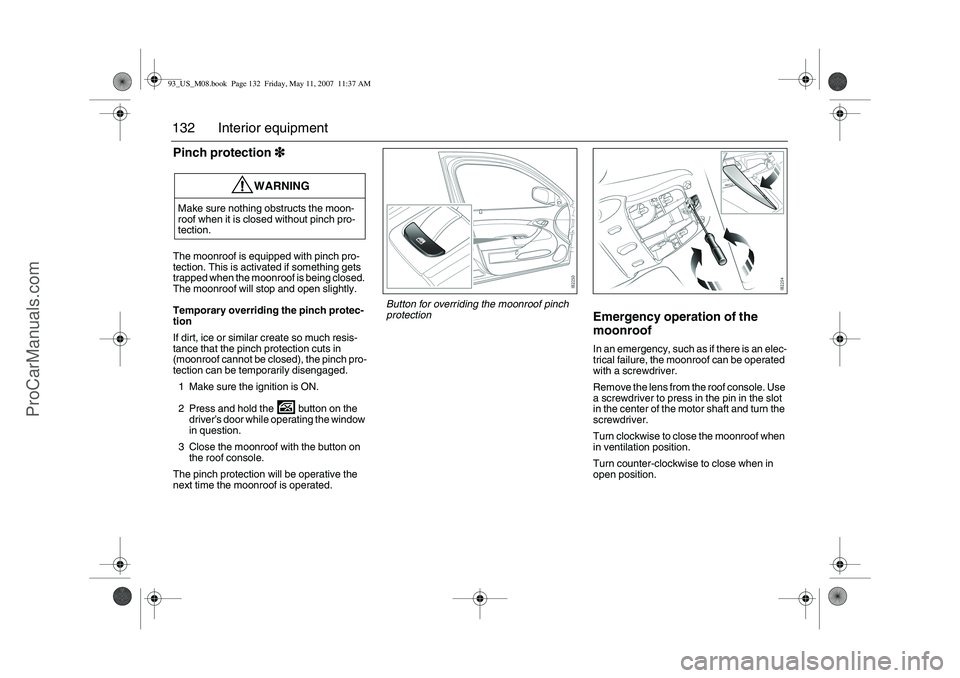

132 Interior equipmentPinch protection3
33 3The moonroof is equipped with pinch pro-
tection. This is activated if something gets
trapped when the moonroof is being closed.
The moonroof will stop and open slightly.
Temporary overriding the pinch protec-
tion
If dirt, ice or similar create so much resis-
tance that the pinch protection cuts in
(moonroof cannot be closed), the pinch pro-
tection can be temporarily disengaged.
1 Make sure the ignition is ON.
2 Press and hold the button on the
driver’s door while operating the window
in question.
3 Close the moonroof with the button on
the roof console.
The pinch protection will be operative the
next time the moonroof is operated.
Emergency operation of the
moonroofIn an emergency, such as if there is an elec-
trical failure, the moonroof can be operated
with a screwdriver.
Remove the lens from the roof console. Use
a screwdriver to press in the pin in the slot
in the center of the motor shaft and turn the
screwdriver.
Turn clockwise to close the moonroof when
in ventilation position.
Turn counter-clockwise to close when in
open position.
WARNING
Make sure nothing obstructs the moon-
roof when it is closed without pinch pro-
tection.
Button for overriding the moonroof pinch
protection
93_US_M08.book Page 132 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

133 Interior equipment
Interior lightingThe interior lighting consists of one front and
one rear roof light, floor lighting, and cour-
tesy lights in the doors (certain variants
only). The light switch for the interior lighting
is located on the roof console by the rear-
view mirror.When the switch is in the mid-position
(door-activated), the interior lighting will
come on:
When the car is unlocked.
When a door is opened and the ignition is
OFF.
When the remote control is removed from
the ignition switch.
The lighting goes out:
When the car is locked.
When the ignition is turned on.
Approx. 20 seconds after closing all
doors.
The lights are dimmed out gradually.If a door is left open and the light switch is in
position 2 or 3 and the ignition is OFF, the
interior lighting will be switched off automat-
ically after 20 minutes to save the battery.
The glove box lighting is switched on and off
automatically when the glove box is opened
and closed.1 Interior lighting always off
2 Interior lighting controlled by the doors
3 Interior lighting on continuously
Rear lighting1 Reading lights
2 Roof light
93_US_M08.book Page 133 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

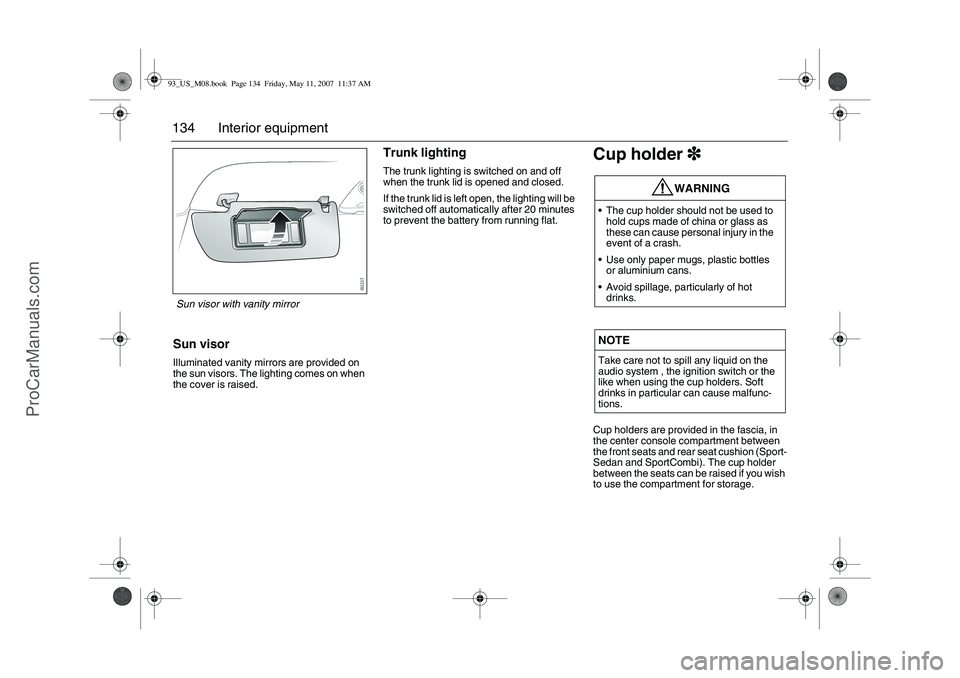

134 Interior equipmentSun visorIlluminated vanity mirrors are provided on
the sun visors. The lighting comes on when
the cover is raised.
Trunk lightingThe trunk lighting is switched on and off
when the trunk lid is opened and closed.
If the trunk lid is left open, the lighting will be
switched off automatically after 20 minutes
to prevent the battery from running flat.
Cup holder3
33 3Cup holders are provided in the fascia, in
the center console compartment between
the front seats and rear seat cushion (Sport-
Sedan and SportCombi). The cup holder
between the seats can be raised if you wish
to use the compartment for storage.
WARNING
The cup holder should not be used to
hold cups made of china or glass as
these can cause personal injury in the
event of a crash.
Use only paper mugs, plastic bottles
or aluminium cans.
Avoid spillage, particularly of hot
drinks.NOTETake care not to spill any liquid on the
audio system , the ignition switch or the
like when using the cup holders. Soft
drinks in particular can cause malfunc-
tions.
Sun visor with vanity mirror93_US_M08.book Page 134 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

135 Interior equipment
Cup holder in fascia
Cup holder in center console compart-
ment between front seats
3
Cup holder in rear seat cushion
3, Sport-
Sedan and SportCombi
93_US_M08.book Page 135 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

136 Interior equipmentPower Outlet3
33 3You can use the electrical socket in the stor-
age compartment under the armrest
between the front seats to charge a mobile
phone, for example. There is a recess on
each side of the compartment which will
accept a lead so that you can close the lid
without damaging the charger lead.
Storage compartmentsThere are additional storage compartments
below the front ashtray and in the doors.
WARNING
The maximum output of the cigarette
lighter socket is 240 W (20 A). The rating
of the socket in the compartment between
the seats is the same. Overloading can
result in melting or even fire.
WARNING
The glove box must be closed while trav-
elling. An open glove box door could
cause personal injury in the event of a
crash.
Open the glove box with the button on the
left of the moulding.
Convertible has lockable glove box. Use
the traditionally key, see page 54.
93_US_M08.book Page 136 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

137 Interior equipment
Sliding cover in glove box to admit cold air.
This allows the storage of chocolate dur-
ing hot weather for example.
Storage compartment between front seats
Storage pocket on front edge of seats
3
Storage pocket on back of seats
3
93_US_M08.book Page 137 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

138 Interior equipmentTrunkFolding down the rear seat, SportSedanConvertible: The rear seat cannot be folded.
WARNING
Never drive the car if the backrest is not correctly locked into
position as this increases the risk of personal injury in the
event of heavy braking or a crash.
Never leave a child or animal unattended in the car. During
sunny weather the temperature in the passenger and trunk
can climb to 160–180°F (70–80°C). Small children are very
susceptible to heat stroke.
Keep hands well clear of all moving parts.
Never place heavy objects on the parcel shelf. There is always
a danger of loose objects being thrown forward and causing
injury if the car should brake suddenly or be involved in a
crash. See also page 196.
When folding the backrest back upright, make sure that it is
locked correctly on both sides. This is imperative since the
center safety belt is mounted in the backrest.
When folding the backrest back upright, make sure that it is
locked correctly on both sides. This is imperative since other-
wise objects in the trunk could force their way into the cabin
during heavy breaking or a crash.
Adjust the head restraints for the rear seats to be occupied to
a suitable height before riding in the car.
93_US_M08.book Page 138 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

139 Interior equipment
For greater flexibility, the rear seat is split so that the narrow and
the wide part can be folded down separately.
Next to the hinges in the trunk are handles for unlocking the rear seat
backrests.
The operation is easier if the front seats are not too far back and
the rear seat head restraints are fully lowered.
1 Unlock the backrest by pulling the appropriate handle in the
trunk.
2 Fold the backrest forward.
Note: When returning the backrest to its upright position, make
sure that it locks properly in place and that the safety belt does
not get caught.
If the left-hand backrest is not properly locked in position, the follow-
ing message is displayed on the SID (equivalent message displayed
for right-hand backrest):
Trunk Release Handle, see page 141.
Emergency opening of the narrow backrest, SportSedan, see
page 142.Rear left seat
backrest unlocked.93_US_M08.book Page 139 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

140 Interior equipmentLoad-through hatch, SportSedanConvertible: There is no load-through hatch.
A load-through hatch is incorporated in the rear seat backrest to
enable long, narrow items to be carried inside the car.
Before loading or unloading long items, switch off the engine and
apply the parking brake. This avoids the danger of the car moving
off if a long item were to knock the gear or selector lever into gear.
Fold down the armrest and open the hatch by lifting the handle.
There is a lock on the rear side of the hatch. Use this to lock or unlock
the hatch.
To lock: Open the hatch and lock the lock. Close the hatch. The
hatch is now locked.
To unlock: Fold down the wide section of the backrest and unlock
the lock. Alternatively, you can unlock the hatch from the trunk.
WARNING
Always secure the load firmly, for example using the middle
safety belt. This reduces the danger of personal injury result-
ing from the displacement of the load on hard braking or in the
event of a crash.
Do not exceed the load capacity of the car, as this will alter its
handling characteristics (see page 286).93_US_M08.book Page 140 Friday, May 11, 2007 11:37 AM
