SAAB 9-3 2008 Owners Manual

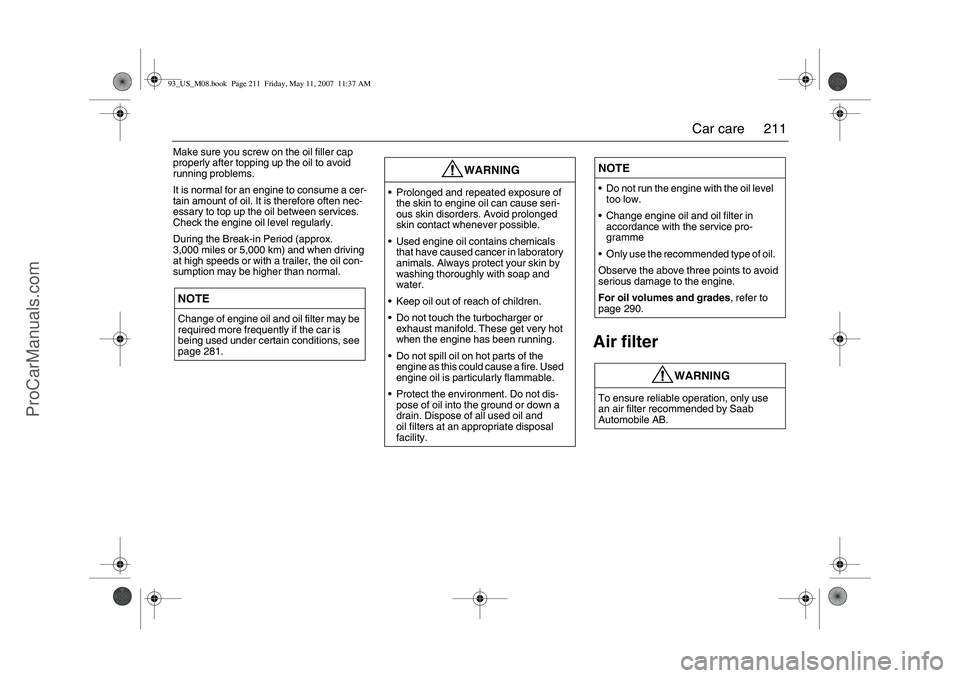

211 Car care
Make sure you screw on the oil filler cap
properly after topping up the oil to avoid
running problems.
It is normal for an engine to consume a cer-
tain amount of oil. It is therefore often nec-
essary to top up the oil between services.
Check the engine oil level regularly.
During the Break-in Period (approx.
3,000 miles or 5,000 km) and when driving
at high speeds or with a trailer, the oil con-
sumption may be higher than normal.
Air filter
NOTEChange of engine oil and oil filter may be
required more frequently if the car is
being used under certain conditions, see
page 281.
WARNING
Prolonged and repeated exposure of
the skin to engine oil can cause seri-
ous skin disorders. Avoid prolonged
skin contact whenever possible.
Used engine oil contains chemicals
that have caused cancer in laboratory
animals. Always protect your skin by
washing thoroughly with soap and
water.
Keep oil out of reach of children.
Do not touch the turbocharger or
exhaust manifold. These get very hot
when the engine has been running.
Do not spill oil on hot parts of the
engine as this could cause a fire. Used
engine oil is particularly flammable.
Protect the environment. Do not dis-
pose of oil into the ground or down a
drain. Dispose of all used oil and
oil filters at an appropriate disposal
facility.
NOTEDo not run the engine with the oil level
too low.
Change engine oil and oil filter in
accordance with the service pro-
gramme
Only use the recommended type of oil.
Observe the above three points to avoid
serious damage to the engine.
For oil volumes and grades, refer to
page 290.
WARNING
To ensure reliable operation, only use
an air filter recommended by Saab
Automobile AB.
93_US_M08.book Page 211 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

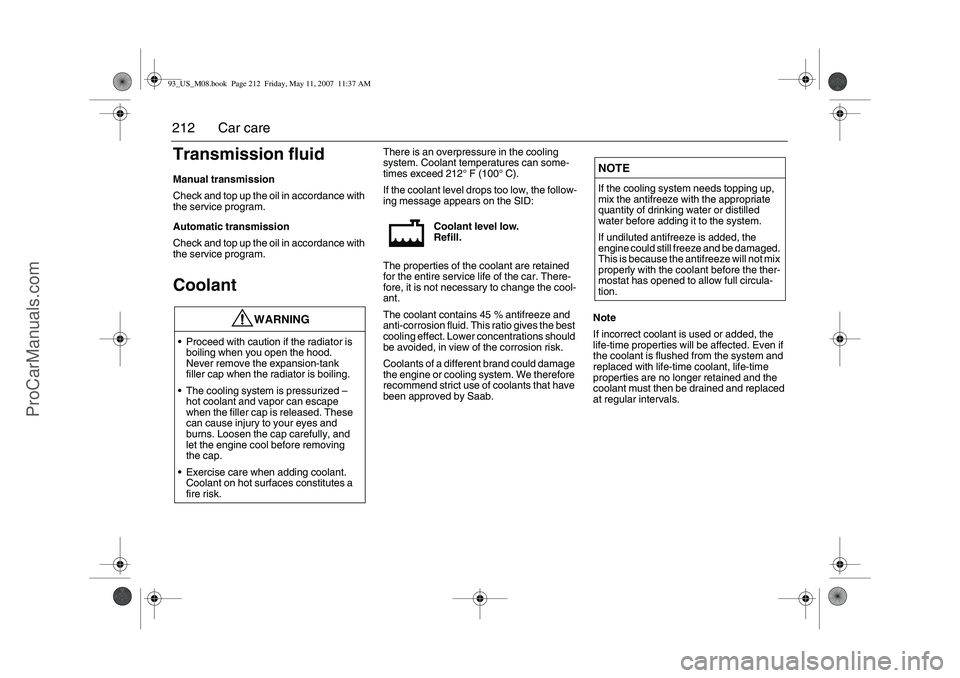

212 Car careTransmission fluidManual transmission
Check and top up the oil in accordance with
the service program.
Automatic transmission
Check and top up the oil in accordance with
the service program.Coolant
There is an overpressure in the cooling
system. Coolant temperatures can some-
times exceed 212° F (100° C).
If the coolant level drops too low, the follow-
ing message appears on the SID:
The properties of the coolant are retained
for the entire service life of the car. There-
fore, it is not necessary to change the cool-
ant.
The coolant contains 45 % antifreeze and
anti-corrosion fluid. This ratio gives the best
cooling effect. Lower concentrations should
be avoided, in view of the corrosion risk.
Coolants of a different brand could damage
the engine or cooling system. We therefore
recommend strict use of coolants that have
been approved by Saab.Note
If incorrect coolant is used or added, the
life-time properties will be affected. Even if
the coolant is flushed from the system and
replaced with life-time coolant, life-time
properties are no longer retained and the
coolant must then be drained and replaced
at regular intervals.
WARNING
Proceed with caution if the radiator is
boiling when you open the hood.
Never remove the expansion-tank
filler cap when the radiator is boiling.
The cooling system is pressurized –
hot coolant and vapor can escape
when the filler cap is released. These
can cause injury to your eyes and
burns. Loosen the cap carefully, and
let the engine cool before removing
the cap.
Exercise care when adding coolant.
Coolant on hot surfaces constitutes a
fire risk.
Coolant level low.
Refill.
NOTEIf the cooling system needs topping up,
mix the antifreeze with the appropriate
quantity of drinking water or distilled
water before adding it to the system.
If undiluted antifreeze is added, the
engine could still freeze and be damaged.
This is because the antifreeze will not mix
properly with the coolant before the ther-
mostat has opened to allow full circula-
tion.
93_US_M08.book Page 212 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

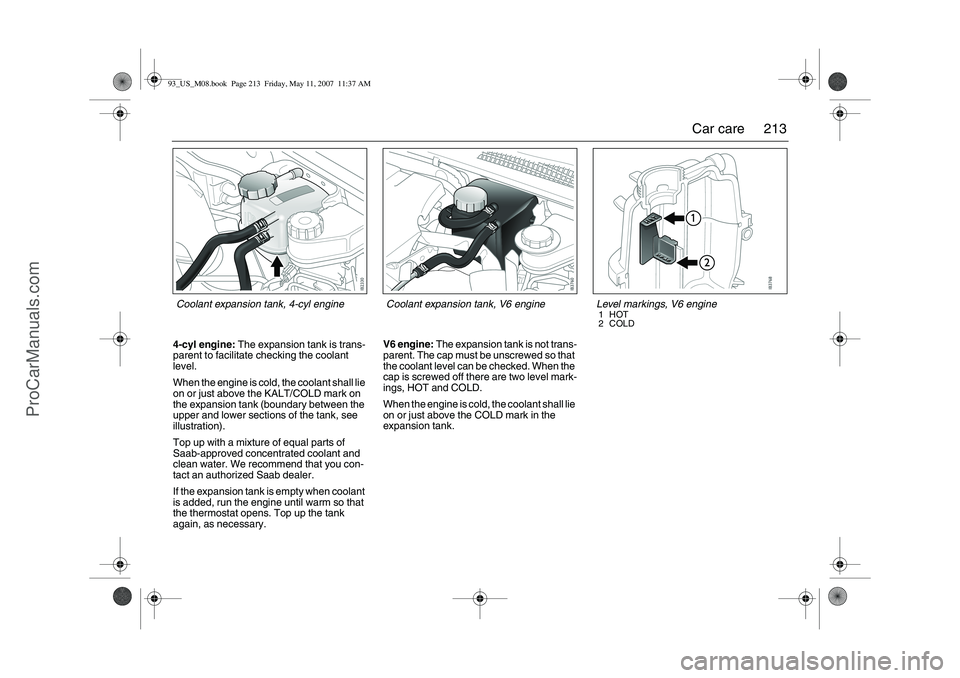

213 Car care
4-cyl engine: The expansion tank is trans-
parent to facilitate checking the coolant
level.
When the engine is cold, the coolant shall lie
on or just above the KALT/COLD mark on
the expansion tank (boundary between the
upper and lower sections of the tank, see
illustration).
Top up with a mixture of equal parts of
Saab-approved concentrated coolant and
clean water. We recommend that you con-
tact an authorized Saab dealer.
If the expansion tank is empty when coolant
is added, run the engine until warm so that
the thermostat opens. Top up the tank
again, as necessary.V6 engine: The expansion tank is not trans-
parent. The cap must be unscrewed so that
the coolant level can be checked. When the
cap is screwed off there are two level mark-
ings, HOT and COLD.
When the engine is cold, the coolant shall lie
on or just above the COLD mark in the
expansion tank.
Coolant expansion tank, V6 engine Level markings, V6 engine
1HOT
2COLD
Coolant expansion tank, 4-cyl engine93_US_M08.book Page 213 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

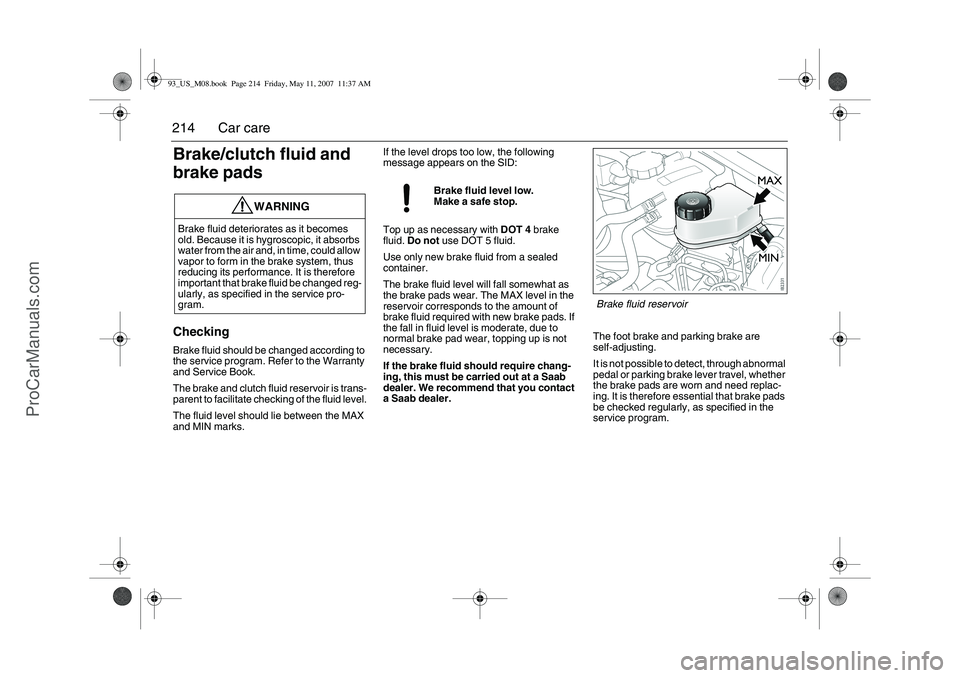

214 Car careBrake/clutch fluid and
brake padsCheckingBrake fluid should be changed according to
the service program. Refer to the Warranty
and Service Book.
The brake and clutch fluid reservoir is trans-
parent to facilitate checking of the fluid level.
The fluid level should lie between the MAX
and MIN marks.If the level drops too low, the following
message appears on the SID:
Top up as necessary with DOT 4 brake
fluid. Do not use DOT 5 fluid.
Use only new brake fluid from a sealed
container.
The brake fluid level will fall somewhat as
the brake pads wear. The MAX level in the
reservoir corresponds to the amount of
brake fluid required with new brake pads. If
the fall in fluid level is moderate, due to
normal brake pad wear, topping up is not
necessary.
If the brake fluid should require chang-
ing, this must be carried out at a Saab
dealer. We recommend that you contact
a Saab dealer.The foot brake and parking brake are
self-adjusting.
It is not possible to detect, through abnormal
pedal or parking brake lever travel, whether
the brake pads are worn and need replac-
ing. It is therefore essential that brake pads
be checked regularly, as specified in the
service program.
WARNING
Brake fluid deteriorates as it becomes
old. Because it is hygroscopic, it absorbs
water from the air and, in time, could allow
vapor to form in the brake system, thus
reducing its performance. It is therefore
important that brake fluid be changed reg-
ularly, as specified in the service pro-
gram.
Brake fluid level low.
Make a safe stop.
Brake fluid reservoir
93_US_M08.book Page 214 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

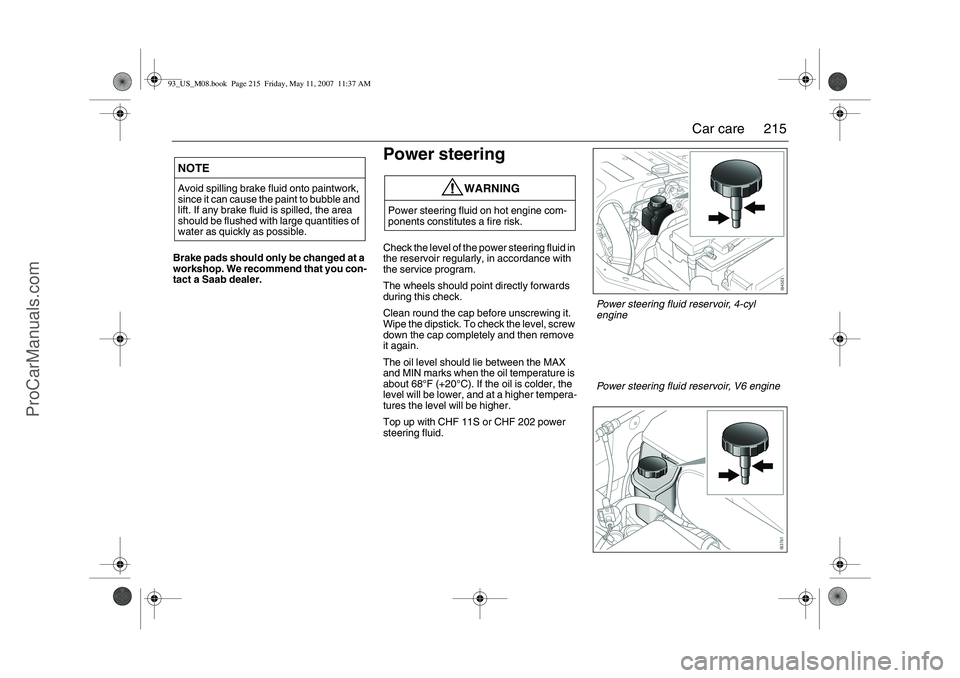

215 Car care
Brake pads should only be changed at a
workshop. We recommend that you con-
tact a Saab dealer.
Power steeringCheck the level of the power steering fluid in
the reservoir regularly, in accordance with
the service program.
The wheels should point directly forwards
during this check.
Clean round the cap before unscrewing it.
Wipe the dipstick. To check the level, screw
down the cap completely and then remove
it again.
The oil level should lie between the MAX
and MIN marks when the oil temperature is
about 68°F (+20°C). If the oil is colder, the
level will be lower, and at a higher tempera-
tures the level will be higher.
Top up with CHF 11S or CHF 202 power
steering fluid.
NOTEAvoid spilling brake fluid onto paintwork,
since it can cause the paint to bubble and
lift. If any brake fluid is spilled, the area
should be flushed with large quantities of
water as quickly as possible.
WARNING
Power steering fluid on hot engine com-
ponents constitutes a fire risk.
Power steering fluid reservoir, 4-cyl
enginePower steering fluid reservoir, V6 engine
93_US_M08.book Page 215 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

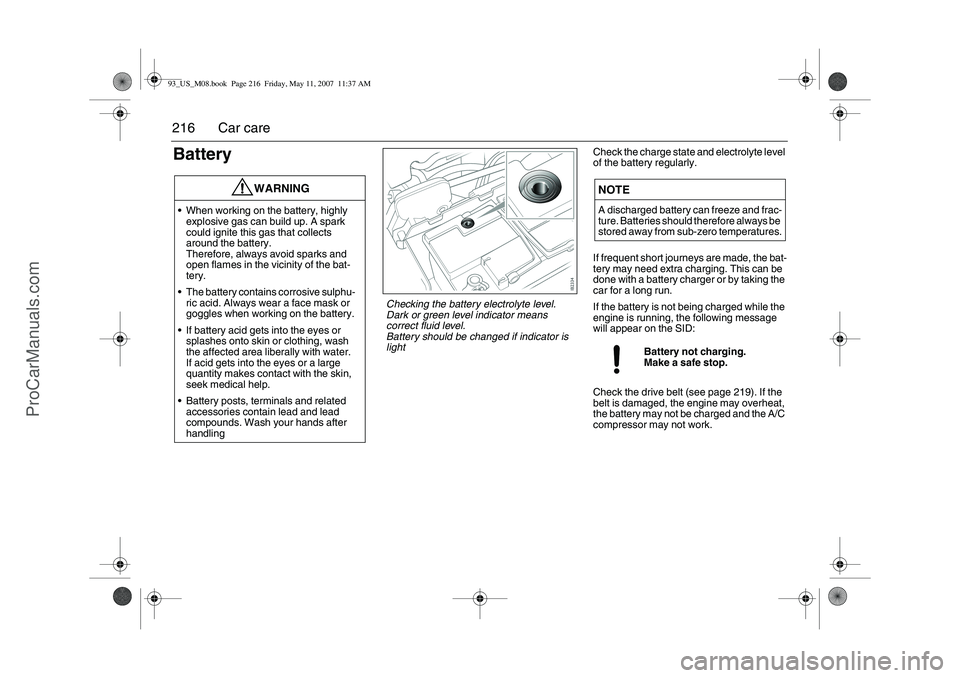

216 Car careBattery
Check the charge state and electrolyte level
of the battery regularly.
If frequent short journeys are made, the bat-
tery may need extra charging. This can be
done with a battery charger or by taking the
car for a long run.
If the battery is not being charged while the
engine is running, the following message
will appear on the SID:
Check the drive belt (see page 219). If the
belt is damaged, the engine may overheat,
the battery may not be charged and the A/C
compressor may not work.
WARNING
When working on the battery, highly
explosive gas can build up. A spark
could ignite this gas that collects
around the battery.
Therefore, always avoid sparks and
open flames in the vicinity of the bat-
tery.
The battery contains corrosive sulphu-
ric acid. Always wear a face mask or
goggles when working on the battery.
If battery acid gets into the eyes or
splashes onto skin or clothing, wash
the affected area liberally with water.
If acid gets into the eyes or a large
quantity makes contact with the skin,
seek medical help.
Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash your hands after
handling
NOTEA discharged battery can freeze and frac-
ture. Batteries should therefore always be
stored away from sub-zero temperatures.
Battery not charging.
Make a safe stop.
Checking the battery electrolyte level.
Dark or green level indicator means
correct fluid level.
Battery should be changed if indicator is
light
93_US_M08.book Page 216 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

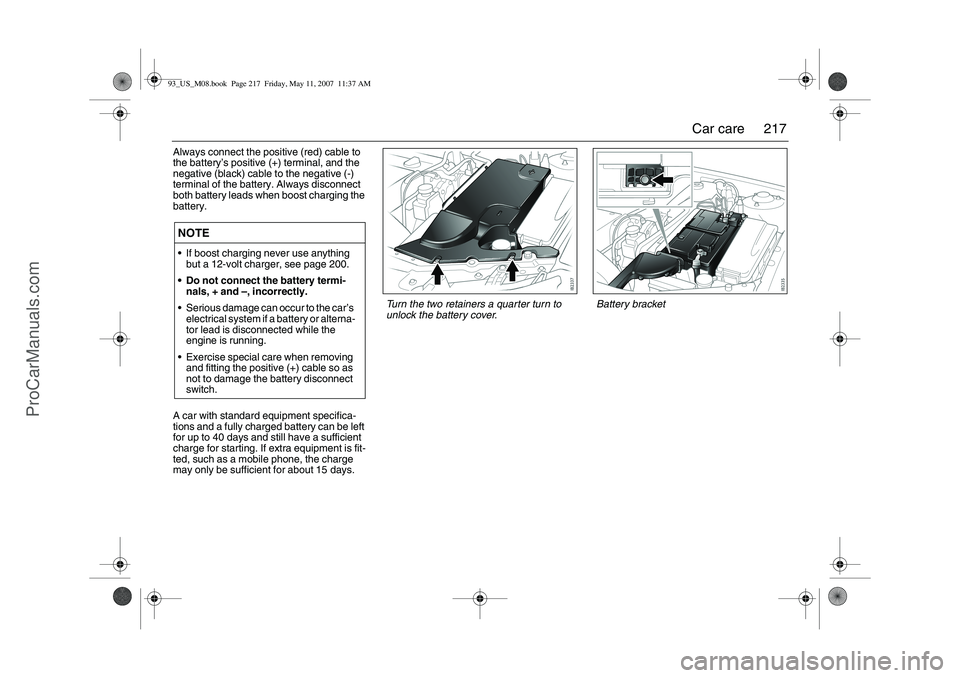

217 Car care
Always connect the positive (red) cable to
the battery’s positive (+) terminal, and the
negative (black) cable to the negative (-)
terminal of the battery. Always disconnect
both battery leads when boost charging the
battery.
A car with standard equipment specifica-
tions and a fully charged battery can be left
for up to 40 days and still have a sufficient
charge for starting. If extra equipment is fit-
ted, such as a mobile phone, the charge
may only be sufficient for about 15 days.NOTEIf boost charging never use anything
but a 12-volt charger, see page 200.
Do not connect the battery termi-
nals, + and –, incorrectly.
Serious damage can occur to the car’s
electrical system if a battery or alterna-
tor lead is disconnected while the
engine is running.
Exercise special care when removing
and fitting the positive (+) cable so as
not to damage the battery disconnect
switch.
Turn the two retainers a quarter turn to
unlock the battery cover.
Battery bracket
93_US_M08.book Page 217 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

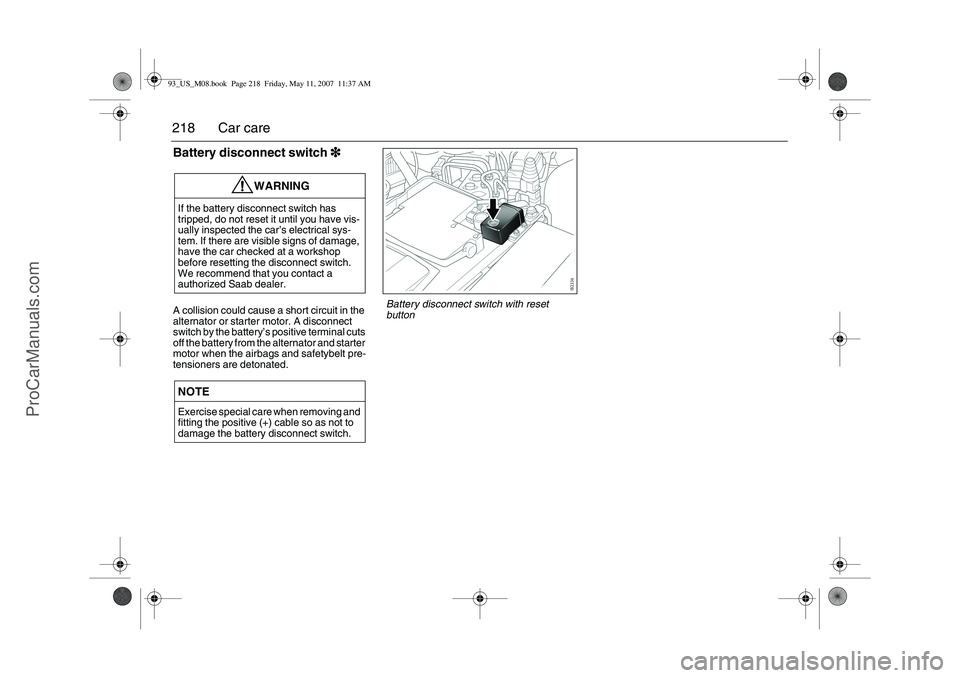

218 Car careBattery disconnect switch3
33 3A collision could cause a short circuit in the
alternator or starter motor. A disconnect
switch by the battery’s positive terminal cuts
off the battery from the alternator and starter
motor when the airbags and safetybelt pre-
tensioners are detonated.
WARNING
If the battery disconnect switch has
tripped, do not reset it until you have vis-
ually inspected the car’s electrical sys-
tem. If there are visible signs of damage,
have the car checked at a workshop
before resetting the disconnect switch.
We recommend that you contact a
authorized Saab dealer.NOTEExercise special care when removing and
fitting the positive (+) cable so as not to
damage the battery disconnect switch.
Battery disconnect switch with reset
button
93_US_M08.book Page 218 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

219 Car care

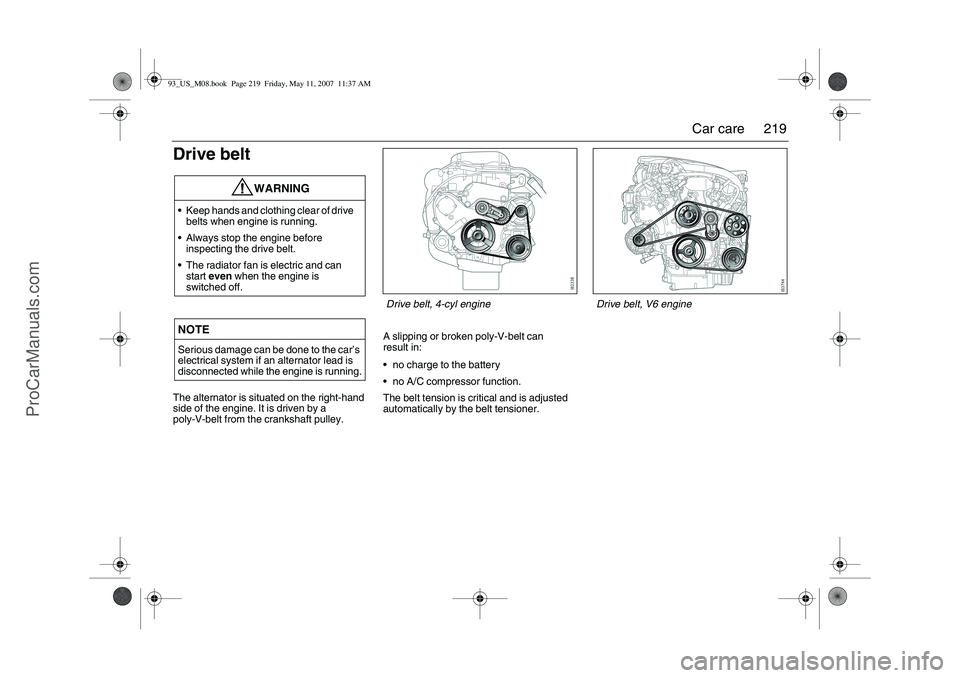

Drive beltThe alternator is situated on the right-hand
side of the engine. It is driven by a
poly-V-belt from the crankshaft pulley.A slipping or broken poly-V-belt can
result in:
no charge to the battery
no A/C compressor function.
The belt tension is critical and is adjusted
automatically by the belt tensioner.
WARNING
Keep hands and clothing clear of drive
belts when engine is running.
Always stop the engine before
inspecting the drive belt.
The radiator fan is electric and can
start even when the engine is
switched off.NOTESerious damage can be done to the car’s
electrical system if an alternator lead is
disconnected while the engine is running.
Drive belt, 4-cyl engine
Drive belt, V6 engine
93_US_M08.book Page 219 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

220 Car careWipers and washersWiper bladesCheck and clean all wiper blades regularly.
If poor wiper performance is experienced,
clean the windshield with washer fluid. This
is particularly important if the car has been
through an automatic car wash, as these
sometimes leave a wax coating on the wind-
shield.
If wiper performance is still unsatisfactory,
fit new blades.
Windshield1 Press in the catch (1).
2 Pull the complete wiper blade down-
wards so that it comes away from the
wiper arm. Slide the entire blade out
from the arm.
Fitting the wiper blade
1 Align the wiper arm’s guide lug in the
blade’s corresponding slot.
2 Move the blade in towards the wiper arm
until the two catches grip the blade.
Check that the blade is fitted firmly.
Change of wiper blades, windshield
93_US_M08.book Page 220 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
