291 Technical data
Fuel
EnginesElectrical systemFuel tank capacity 16.05 U.S. gal. (61 l)
For optimum performance Saab recom-
mends:Gasoline engines –
AON 90.
Gasoline with a lower octane rating can be used, although not
lower than AON 87. However, engine performance will fall slightly
and heavy loading and laboring should be avoided. For optimum
performance, use the recommended grade of fuel.
For further information on fuel, see page 161.
2.0T Ecopower
Rating, EEC at 5300 rpm ____________ 210 hp (155 kW)
Maximum torque, EEC at 2500-4000 rpm 221 ft.lb. (300 Nm)
Compression ratio__________________ 9.5:1
2.8 V6 Ecopower
Rating, EEC at 5500 rpm ____________ 255 hp (187 kW)
Maximum torque, EEC at 1800-4500 rpm 258 ft.lb. (350 Nm)
Compression ratio__________________ 10.0:1Voltage ___________________________ 12 V
Battery capacity ____________________ 60 Ah
Starter motor:
4-cyl engine ______________________ 1.8 kW
V6 engine ________________________ 1.4 kW
Alternator rating:
4-cyl engine with manual gearbox _____ 120 A/14 V
4-cyl engine with automatic gearbox ___ 140 A/14 V
V6 engine ________________________ 155 A/14 V
Firing order:
4-cyl engine ______________________ 1-3-4-2
V6 engine ________________________ 1-2-3-4-5-6
Spark plugs:
4-cyl engine
Type ____________________________ NGK PFR6T-10G
Electrode gap _____________________ 0.9–1.0 mm
Tightening torque __________________ 20 ft.lb. (28 Nm)
V6 engine
Type ____________________________ PLFR6C 10G
Electrode gap _____________________ 0.9–1.0 mm
Tightening torque __________________ 20 ft.lb. (28 Nm)93_US_M08.book Page 291 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

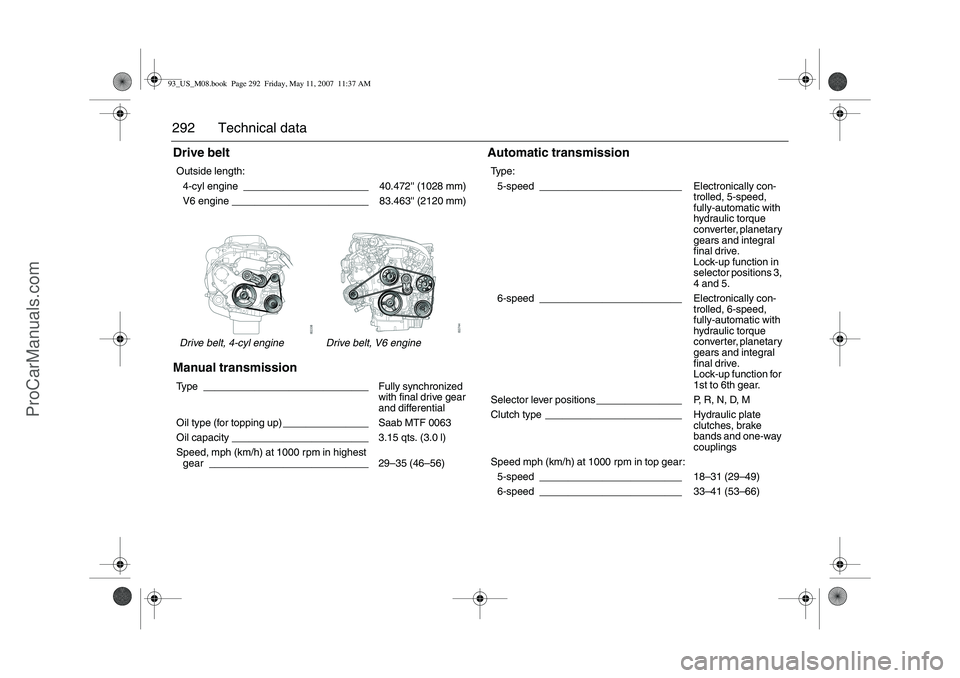

292 Technical dataDrive belt

Manual transmissionAutomatic transmissionOutside length:
4-cyl engine ______________________ 40.472'' (1028 mm)
V6 engine ________________________ 83.463'' (2120 mm)
Drive belt, 4-cyl engine Drive belt, V6 engine
Type _____________________________ Fully synchronized
with final drive gear
and differential
Oil type (for topping up) _______________ Saab MTF 0063
Oil capacity ________________________ 3.15 qts. (3.0 l)
Speed, mph (km/h) at 1000 rpm in highest
gear ____________________________ 29–35 (46–56)
Type:
5-speed _________________________ Electronically con-
trolled, 5-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function in
selector positions 3,
4 and 5.
6-speed _________________________ Electronically con-
trolled, 6-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function for
1st to 6th gear.
Selector lever positions _______________ P, R, N, D, M
Clutch type ________________________ Hydraulic plate
clutches, brake
bands and one-way
couplings
Speed mph (km/h) at 1000 rpm in top gear:
5-speed _________________________ 18–31 (29–49)
6-speed _________________________ 33–41 (53–66)
93_US_M08.book Page 292 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

293 Technical data

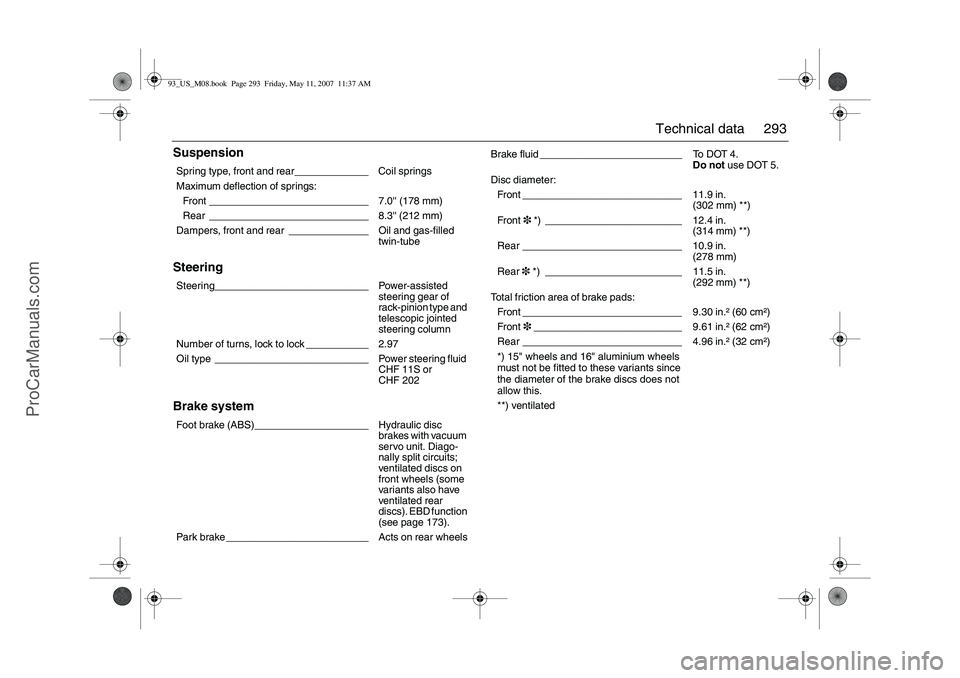

Suspension
Steering
Brake systemSpring type, front and rear_____________ Coil springs
Maximum deflection of springs:
Front ____________________________ 7.0'' (178 mm)
Rear ____________________________ 8.3'' (212 mm)
Dampers, front and rear ______________ Oil and gas-filled
twin-tube
Steering___________________________ Power-assisted
steering gear of
rack-pinion type and
telescopic jointed
steering column
Number of turns, lock to lock ___________ 2.97
Oil type ___________________________ Power steering fluid
CHF 11S or
CHF 202
Foot brake (ABS)____________________ Hydraulic disc
brakes with vacuum
servo unit. Diago-
nally split circuits;
ventilated discs on
front wheels (some
variants also have
ventilated rear
discs). EBD function
(see page 173).
Park brake _________________________ Acts on rear wheelsBrake fluid _________________________ To DOT 4.
Do not use DOT 5.
Disc diameter:
Front ____________________________ 11.9 in.
(302 mm) **)
Front3 *) ________________________ 12.4 in.
(314 mm) **)
Rear ____________________________ 10.9 in.
(278 mm)
Rear3 *) ________________________ 11.5 in.
(292 mm) **)
Total friction area of brake pads:
Front ____________________________ 9.30 in.² (60 cm²)
Front3__________________________ 9.61 in.² (62 cm²)
Rear ____________________________ 4.96 in.² (32 cm²)
*) 15" wheels and 16" aluminium wheels
must not be fitted to these variants since
the diameter of the brake discs does not
allow this.
**) ventilated93_US_M08.book Page 293 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

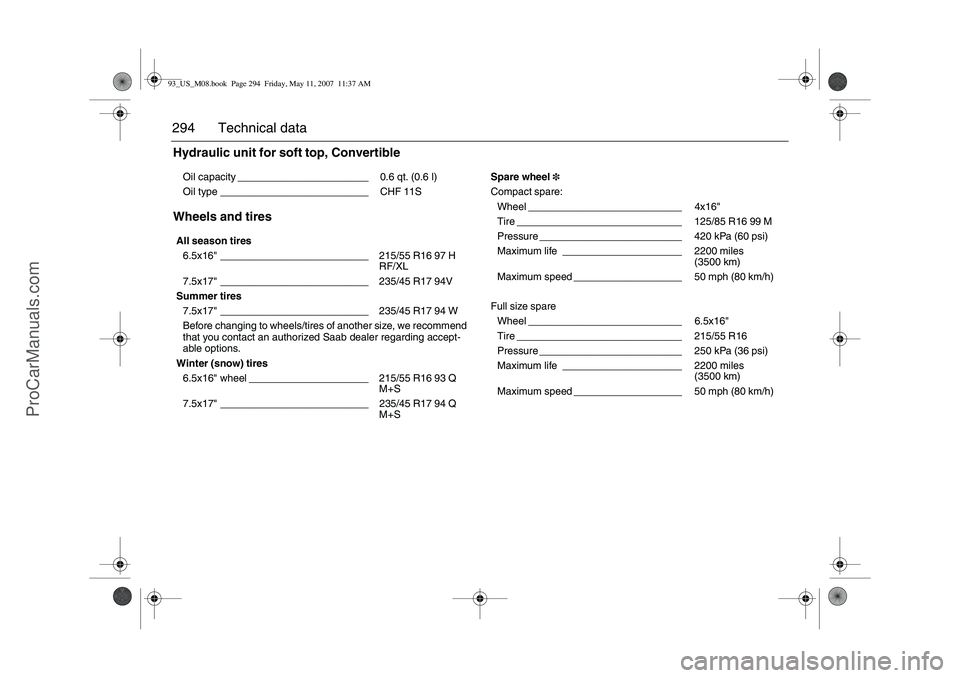

294 Technical dataHydraulic unit for soft top, Convertible
Wheels and tiresOil capacity _______________________ 0.6 qt. (0.6 l)
Oil type __________________________ CHF 11S
All season tires
6.5x16" __________________________ 215/55 R16 97 H
RF/XL
7.5x17" __________________________ 235/45 R17 94V
Summer tires
7.5x17" __________________________ 235/45 R17 94 W
Before changing to wheels/tires of another size, we recommend
that you contact an authorized Saab dealer regarding accept-
able options.
Winter (snow) tires
6.5x16" wheel _____________________ 215/55 R16 93 Q
M+S
7.5x17" __________________________ 235/45 R17 94 Q
M+SSpare wheel
3
Compact spare:
Wheel ___________________________ 4x16"
Tire _____________________________ 125/85 R16 99 M
Pressure _________________________ 420 kPa (60 psi)
Maximum life _____________________ 2200 miles
(3500 km)
Maximum speed ___________________ 50 mph (80 km/h)
Full size spare
Wheel ___________________________ 6.5x16"
Tire _____________________________ 215/55 R16
Pressure _________________________ 250 kPa (36 psi)
Maximum life _____________________ 2200 miles
(3500 km)
Maximum speed ___________________ 50 mph (80 km/h)
93_US_M08.book Page 294 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

295 Technical data

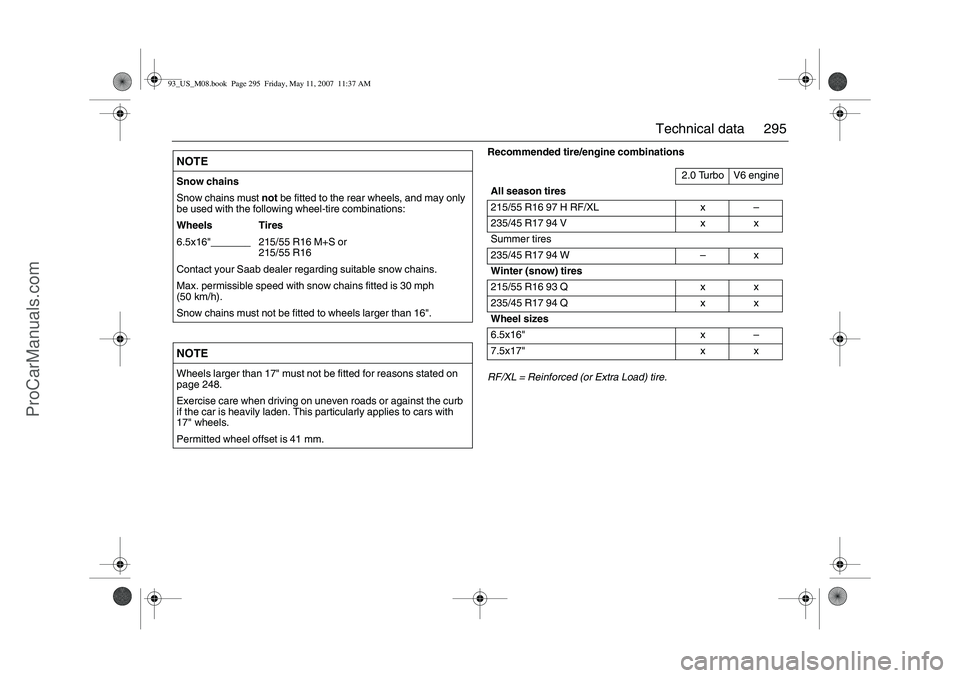

Recommended tire/engine combinations
RF/XL = Reinforced (or Extra Load) tire.
NOTESnow chains
Snow chains must not be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires
6.5x16"_______ 215/55 R16 M+S or
215/55 R16
Contact your Saab dealer regarding suitable snow chains.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Snow chains must not be fitted to wheels larger than 16".NOTEWheels larger than 17" must not be fitted for reasons stated on
page 248.
Exercise care when driving on uneven roads or against the curb
if the car is heavily laden. This particularly applies to cars with
17" wheels.
Permitted wheel offset is 41 mm.
2.0 Turbo V6 engine
All season tires
215/55 R16 97 H RF/XL x–
235/45 R17 94 V x x
Summer tires
235/45 R17 94 W–x
Winter (snow) tires
215/55 R16 93 Q x x
235/45 R17 94 Q x x
Wheel sizes
6.5x16" x–
7.5x17" x x
93_US_M08.book Page 295 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

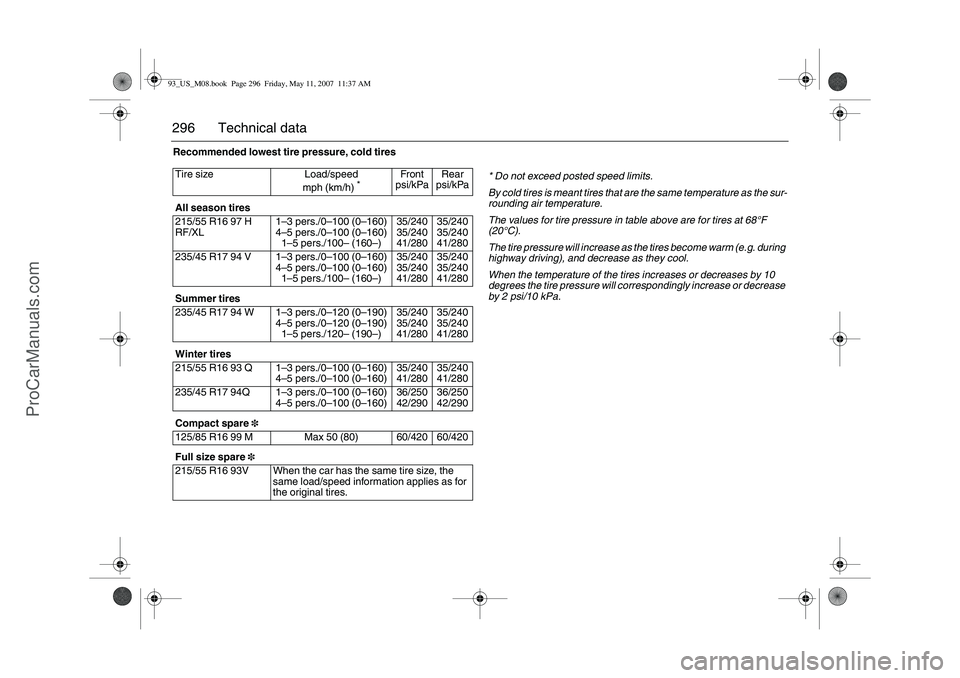

296 Technical dataRecommended lowest tire pressure, cold tires
Tire size Load/speed
mph (km/h)
*
Front
psi/kPaRear
psi/kPa
All season tires
215/55 R16 97 H
RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
235/45 R17 94 V 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
Summer tires
235/45 R17 94 W 1–3 pers./0–120 (0–190)
4–5 pers./0–120 (0–190)
1–5 pers./120– (190–)35/240
35/240
41/28035/240
35/240
41/280
Winter tires
215/55 R16 93 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
235/45 R17 94Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)36/250
42/29036/250
42/290
Compact spare
3
125/85 R16 99 M Max 50 (80) 60/420 60/420
Full size spare
3
215/55 R16 93V When the car has the same tire size, the
same load/speed information applies as for
the original tires.
* Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the sur-
rounding air temperature.
The values for tire pressure in table above are for tires at 68°F
(20°C).
The tire pressure will increase as the tires become warm (e.g. during
highway driving), and decrease as they cool.
When the temperature of the tires increases or decreases by 10
degrees the tire pressure will correspondingly increase or decrease
by 2psi/10kPa.
93_US_M08.book Page 296 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

297 Technical data
Plates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4USA: Tire information label can be found
on the B-pillar. See also page 254.
Canada: Label for tire pressure and color
codes (trim and body)
5 V.I.N. label and certification label.
USA: V.I.N. label also includes color
codes for trim and body
6 Chassis number (stamped on body).93_US_M08.book Page 297 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

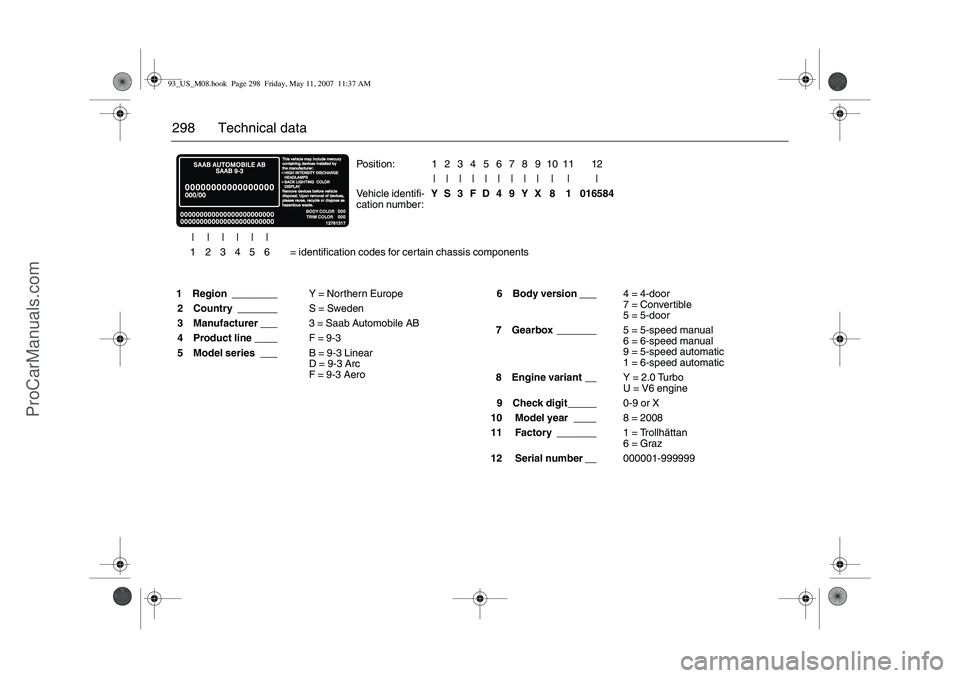

298 Technical data1 Region ________Y = Northern Europe
2 Country _______S = Sweden
3 Manufacturer ___3 = Saab Automobile AB
4 Product line ____F = 9-3
5 Model series ___B = 9-3 Linear
D = 9-3 Arc
F = 9-3 Aero6 Body version ___4 = 4-door
7 = Conver tible
5 = 5-door
7 Gearbox _______5 = 5-speed manual
6 = 6-speed manual
9 = 5-speed automatic
1 = 6-speed automatic
8Engine variant__Y = 2.0 Turbo
U = V6 engine
9 Check digit _____0-9 or X
10 Model year ____8 = 2008
11 Factory _______1 = Trollhättan
6 = Graz
12 Serial number __000001-999999 Position: 1234567891011 12
||||||||| | | |
Vehicle identifi-
cation number:Y S 3 F D 4 9 Y X 8 1 016584
| |||||
1 2 3 4 5 6 = identification codes for certain chassis components93_US_M08.book Page 298 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

299 Technical data

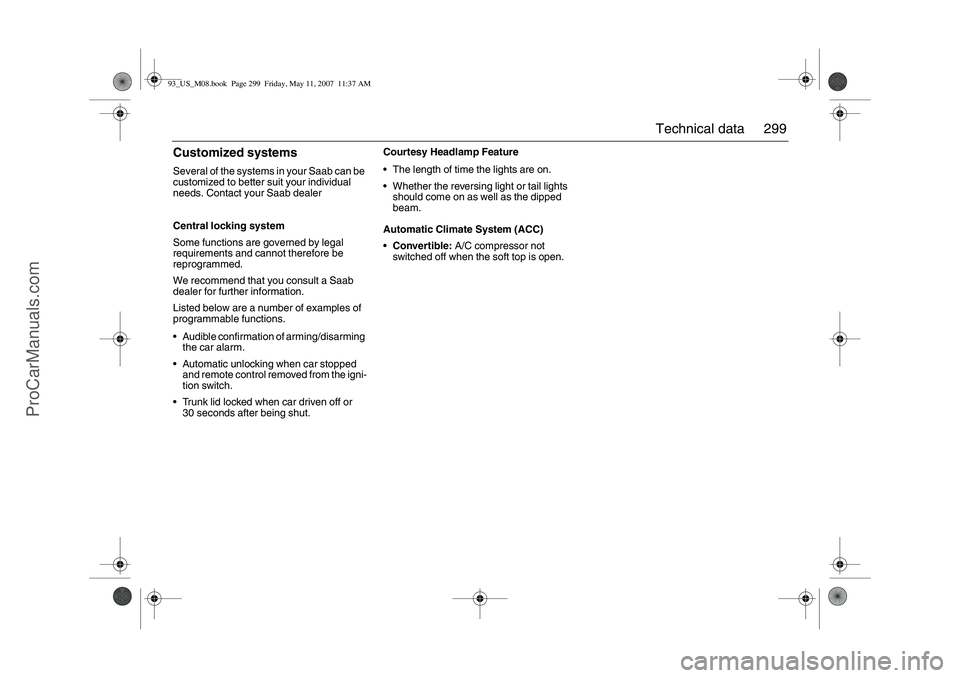

Customized systemsSeveral of the systems in your Saab can be
customized to better suit your individual
needs. Contact your Saab dealer
Central locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
We recommend that you consult a Saab
dealer for further information.
Listed below are a number of examples of
programmable functions.
Audible confirmation of arming/disarming
the car alarm.
Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch.
Trunk lid locked when car driven off or
30 seconds after being shut.Courtesy Headlamp Feature
The length of time the lights are on.
Whether the reversing light or tail lights
should come on as well as the dipped
beam.
Automatic Climate System (ACC)
Convertible: A/C compressor not
switched off when the soft top is open.93_US_M08.book Page 299 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

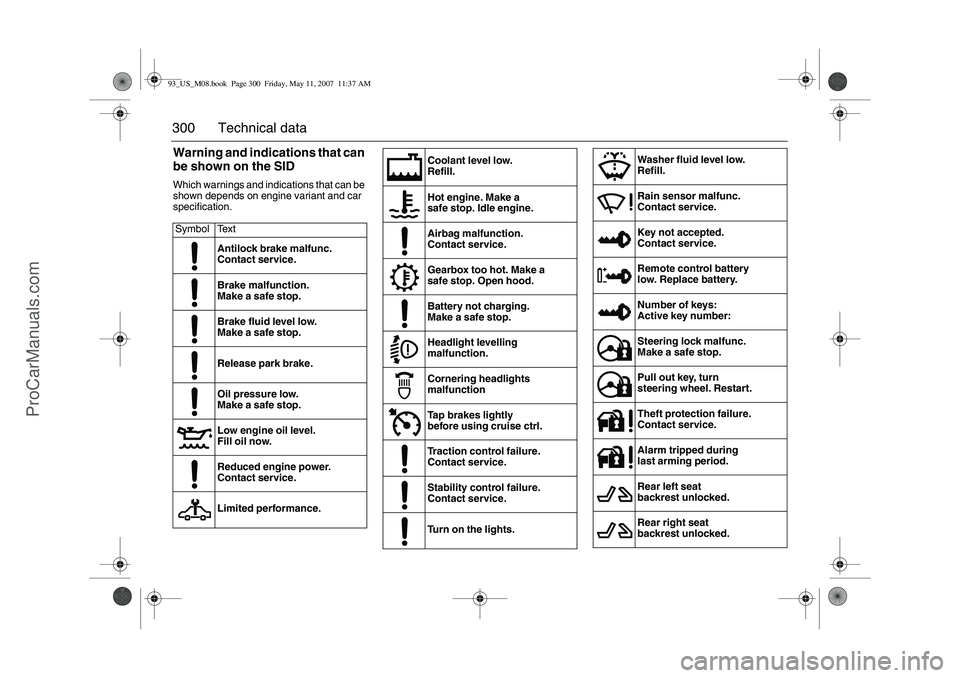

300 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
Symbol Text
Antilock brake malfunc.
Contact service.
Brake malfunction.
Make a safe stop.
Brake fluid level low.
Make a safe stop.
Release park brake.
Oil pressure low.
Make a safe stop.
Low engine oil level.
Fill oil now.
Reduced engine power.
Contact service.
Limited performance.
Coolant level low.
Refill.
Hot engine. Make a
safe stop. Idle engine.
Airbag malfunction.
Contact service.
Gearbox too hot. Make a
safe stop. Open hood.
Battery not charging.
Make a safe stop.
Headlight levelling
malfunction.
Cornering headlights
malfunction
Tap brakes lightly
before using cruise ctrl.
Traction control failure.
Contact service.
Stability control failure.
Contact service.
Turn on the lights.
Washer fluid level low.
Refill.
Rain sensor malfunc.
Contact service.
Key not accepted.
Contact service.
Remote control battery
low. Replace battery.
Number of keys:
Active key number:
Steering lock malfunc.
Make a safe stop.
Pull out key, turn
steering wheel. Restart.
Theft protection failure.
Contact service.
Alarm tripped during
last arming period.
Rear left seat
backrest unlocked.
Rear right seat
backrest unlocked.
93_US_M08.book Page 300 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
