fuse box SAAB 9-3 2009 User Guide

221
Car care

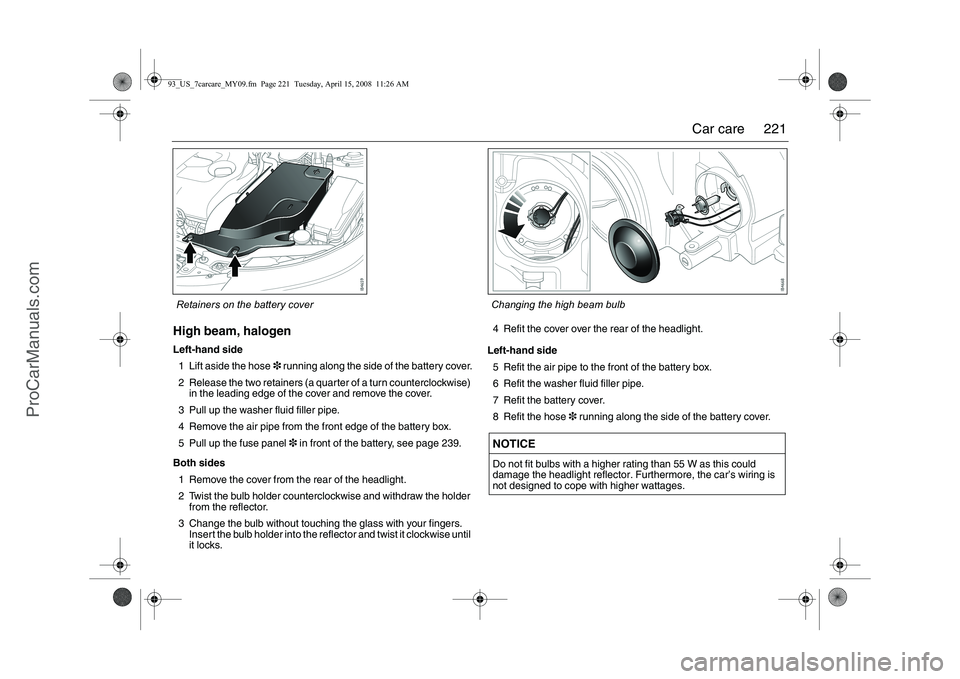

High beam, halogenLeft-hand side
1 Lift aside the hose 3 running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise) in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel 3 in front of the battery, see page 239.
Both sides 1 Remove the cover from t he rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder from the reflector.
3 Change the bulb without touching the glass with your fingers. Insert the bulb holder into the reflector and twist it clockwise until
it locks. 4 Refit the cover over th
e rear of the headlight.
Left-hand side 5 Refit the air pipe to th e front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
8 Refit the hose 3 running along the side of the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the high beam bulb93_US_7carcare_MY09.fm Page 221 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

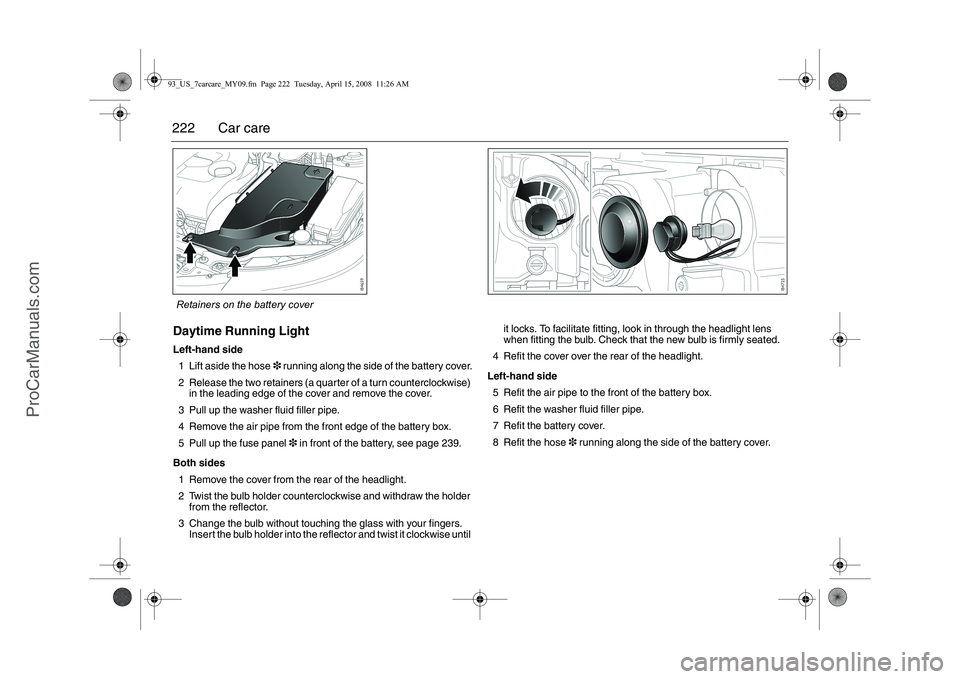

222 Car careDaytime Running LightLeft-hand side1 Lift aside the hose 3 running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise) in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel 3 in front of the battery, see page 239.
Both sides 1 Remove the cover from t he rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder from the reflector.
3 Change the bulb without touching the glass with your fingers. Insert the bulb holder into the reflector and twist it clockwise until it locks. To facilitate fitting, look in through the headlight lens
when fitting the bulb. Check that the new bulb is firmly seated.
4 Refit the cover over th e rear of the headlight.
Left-hand side 5 Refit the air pipe to th e front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
8 Refit the hose 3 running along the side of the battery cover.Retainers on the battery cover93_US_7carcare_MY09.fm Page 222 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

235
Car care
Fuse panel in end of fasciaNo. Amp. Function
1 15 Steering wheel lock
2 5 Steering column unit; ignition switch
3 10 Hands-free 3
4 10 Main instrument unit;
automatic climate control
(ACC) 3
5 7.5 Control module in front doors; Park Brake Shift Lock
(automatic transmission)
6 7.5 Brake light switch
7 20 Dash fuse panel; fuel filler door
8 30 Control module in passenger front door
9 10 Dash fuse panel
10 30 Trailer socket
3; electrical socket in storage compart-
ment between seats 3
11 10 Data link connection (diagnostics)
12 15 Interior lighting incl. glove box
13 10 Accessories
14 20 Amplifier 2, Sound System 3
15 30 Control module in driver’s door
16 5 Passenger Sensing System
17 - -
18 - -
19 - -
20 7.5 Headlight levelling switch 3
21 7.5 Hands-free 3; brake light switch; clutch pedal switch
22 30 Cigarette lighter 3
23 40 Cabin fan
24 7.5 Airbag control module
25 - -
26 5
Yaw sensor (cars with ESP
®)
27 - -
93_US_7carcare_MY09.fm Page 235 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

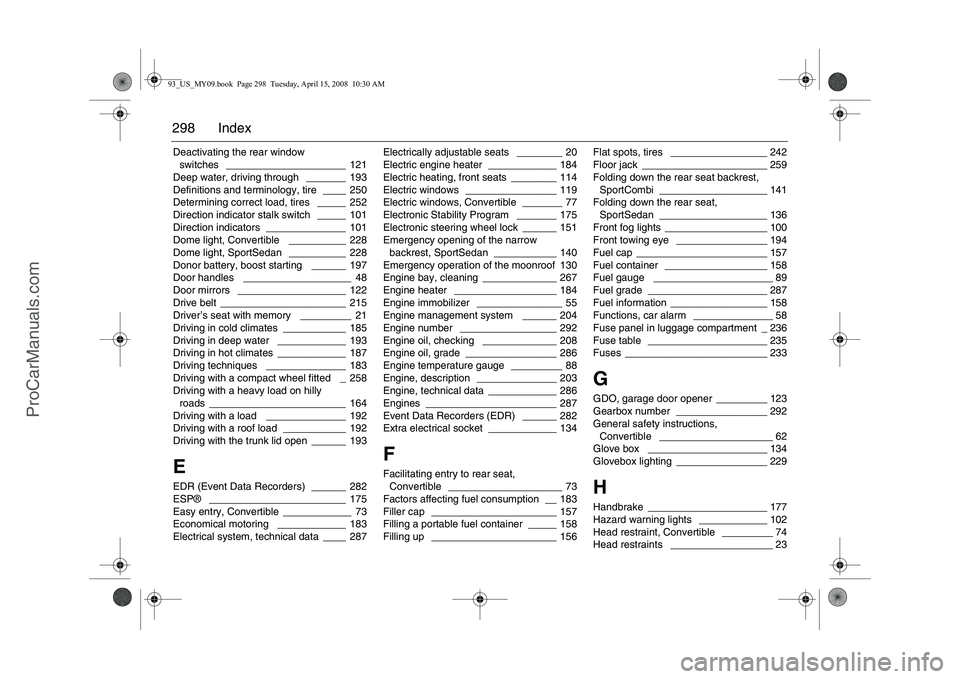

298 IndexDeactivating the rear window
switches
_____________________ 121
Deep water, driving through
_______ 193
Definitions and terminology, tire ____ 250
Determining correct load, tires
_____ 252
Direction indicator stalk switch _____ 101
Direction indicators
______________ 101
Dome light, Convertible
__________ 228
Dome light, SportSedan __________ 228
Donor battery, boost starting
______ 197
Door handles
___________________ 48
Door mirrors
___________________ 122
Drive belt
______________________ 215
Driver’s seat with memory
_________ 21
Driving in cold climates
___________ 185
Driving in deep water
____________ 193
Driving in hot climates ____________ 187
Driving techniques
______________ 183
Driving with a compact wheel fitted
_258
Driving with a heavy load on hilly
roads
________________________ 164
Driving with a load
______________ 192
Driving with a roof load ___________ 192
Driving with the trunk lid open
______ 193
EEDR (Event Data Recorders)
______ 282
ESP®
________________________ 175
Easy entry, Convertible
____________ 73
Economical motoring
____________ 183
Electrical system, technical data
____ 287Electrically adjustable seats
________ 20
Electric engine heater
____________ 184
Electric heating, front seats
________ 114
Electric windows
________________ 119
Electric windows, Convertible
_______ 77
Electronic Stability Program
_______ 175
Electronic steering wheel lock ______ 151
Emergency opening of the narrow
backrest, SportSedan
___________ 140
Emergency operation of the moonroof
130
Engine bay, cleaning
_____________ 267
Engine heater
__________________ 184
Engine immobilizer
_______________ 55
Engine management system
______ 204
Engine number
_________________ 292
Engine oil, checking
_____________ 208
Engine oil, grade
________________ 286
Engine temperature gauge
_________ 88
Engine, description
______________ 203
Engine, technical data ____________ 286
Engines
_______________________ 287
Event Data Recorders (EDR)
______ 282
Extra electrical socket
____________ 134
FFacilitating entry to rear seat,
Convertible
____________________ 73
Factors affecting fuel consumption
__ 183
Filler cap
______________________ 157
Filling a portable fuel container
_____ 158
Filling up
______________________ 156Flat spots, tires
_________________ 242
Floor jack
______________________ 259
Folding down the rear seat backrest,
SportCombi
___________________ 141
Folding down the rear seat,
SportSedan ___________________ 136
Front fog lights __________________ 100
Front towing eye ________________ 194
Fuel cap
_______________________ 157
Fuel container
__________________ 158
Fuel gauge
_____________________ 89
Fuel grade _____________________ 287
Fuel information
_________________ 158
Functions, car alarm
______________ 58
Fuse panel in luggage compartment
_236
Fuse table
_____________________ 235
Fuses
_________________________ 233
GGDO, garage door opener
_________ 123
Gearbox number
________________ 292
General safety instructions,
Convertible
____________________ 62
Glove box
_____________________ 134
Glovebox lighting
________________ 229
HHandbrake
_____________________ 177
Hazard warning lights
____________ 102
Head restraint, Convertible
_________ 74
Head restraints
__________________ 23
93_US_MY09.book Page 298 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

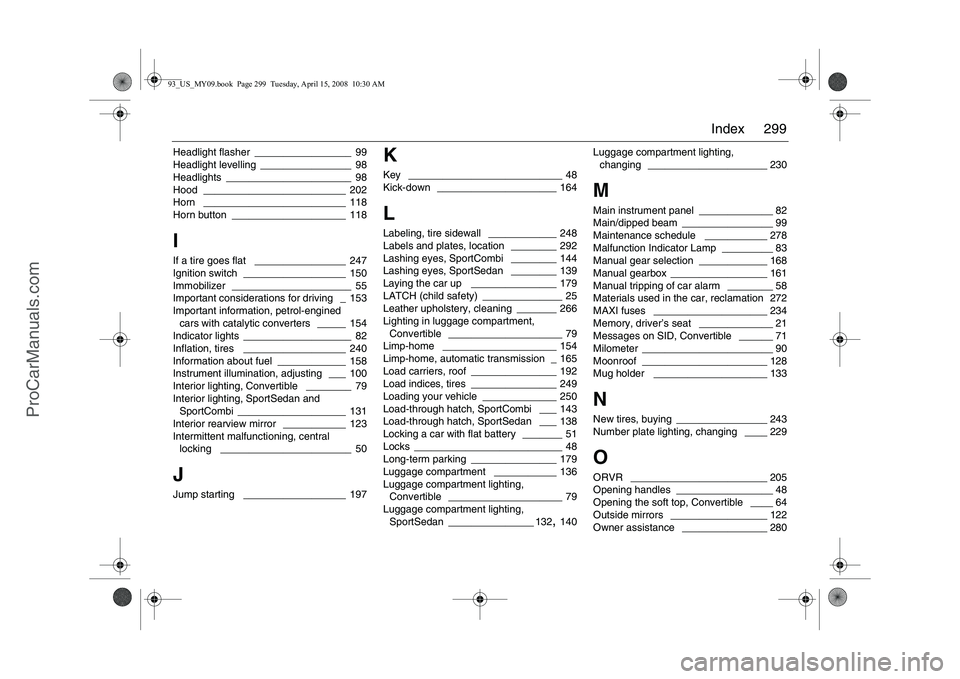

299 Index
Headlight flasher
_________________ 99
Headlight levelling ________________ 98
Headlights
______________________ 98
Hood
_________________________ 202
Horn _________________________ 118
Horn button
____________________ 118
IIf a tire goes flat
________________ 247
Ignition switch
__________________ 150
Immobilizer
_____________________ 55
Important considerations for driving
_153
Important information, petrol-engined
cars with catalytic converters
_____ 154
Indicator lights
___________________ 82
Inflation, tires __________________ 240
Information about fuel
____________ 158
Instrument illumination, adjusting
___ 100
Interior lighting, Convertible
________ 79
Interior lighting, SportSedan and
SportCombi
___________________ 131
Interior rearview mirror
___________ 123
Intermittent malfunctioning, central
locking
_______________________ 50
JJump starting
__________________ 197
KKey
___________________________ 48
Kick-down
_____________________ 164
LLabeling, tire sidewall
____________ 248
Labels and plates, location
________ 292
Lashing eyes, SportCombi ________ 144
Lashing eyes, SportSedan ________ 139
Laying the car up
_______________ 179
LATCH (child safety) ______________ 25
Leather upholstery, cleaning
_______ 266
Lighting in luggage compartment,
Convertible
____________________ 79
Limp-home
____________________ 154
Limp-home, automatic transmission
_165
Load carriers, roof
_______________ 192
Load indices, tires _______________ 249
Loading your vehicle _____________ 250
Load-through hatch, SportCombi
___ 143
Load-through hatch, SportSedan ___ 138
Locking a car with flat battery
_______ 51
Locks
__________________________ 48
Long-term parking
_______________ 179
Luggage compartment
___________ 136
Luggage compartment lighting,
Convertible
____________________ 79
Luggage compartment lighting,
SportSedan _______________ 132
, 140Luggage compartment lighting,
changing
_____________________ 230
MMain instrument panel
_____________ 82
Main/dipped beam
________________ 99
Maintenance schedule
___________ 278
Malfunction Indicator Lamp
_________ 83
Manual gear selection
____________ 168
Manual gearbox
_________________ 161
Manual tripping of car alarm
________ 58
Materials used in the car, reclamation
272
MAXI fuses
____________________ 234
Memory, driver’s seat
_____________ 21
Messages on SID, Convertible
______ 71
Milometer
_______________________ 90
Moonroof ______________________ 128
Mug holder ____________________ 133
NNew tires, buying
________________ 243
Number plate lighting, changing
____ 229
OORVR
________________________ 205
Opening handles
_________________ 48
Opening the soft top, Convertible
____ 64
Outside mirrors
_________________ 122
Owner assistance _______________ 280
93_US_MY09.book Page 299 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
