SAAB 9-3 2009 Owners Manual

221
Car care
High beam, halogenLeft-hand side
1 Lift aside the hose 3 running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise) in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel 3 in front of the battery, see page 239.
Both sides 1 Remove the cover from t he rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder from the reflector.
3 Change the bulb without touching the glass with your fingers. Insert the bulb holder into the reflector and twist it clockwise until
it locks. 4 Refit the cover over th
e rear of the headlight.
Left-hand side 5 Refit the air pipe to th e front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
8 Refit the hose 3 running along the side of the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the high beam bulb93_US_7carcare_MY09.fm Page 221 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

222 Car careDaytime Running LightLeft-hand side1 Lift aside the hose 3 running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise) in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel 3 in front of the battery, see page 239.
Both sides 1 Remove the cover from t he rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder from the reflector.
3 Change the bulb without touching the glass with your fingers. Insert the bulb holder into the reflector and twist it clockwise until it locks. To facilitate fitting, look in through the headlight lens
when fitting the bulb. Check that the new bulb is firmly seated.
4 Refit the cover over th e rear of the headlight.
Left-hand side 5 Refit the air pipe to th e front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
8 Refit the hose 3 running along the side of the battery cover.Retainers on the battery cover93_US_7carcare_MY09.fm Page 222 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

223
Car care

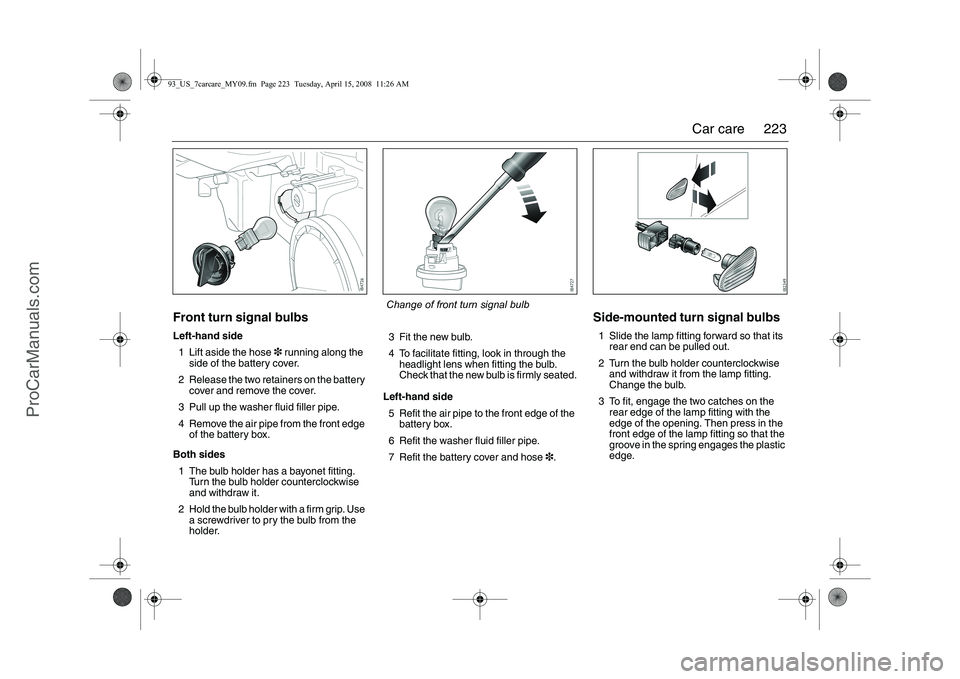

Front turn signal bulbsLeft-hand side
1 Lift aside the hose 3 running along the
side of the battery cover.
2 Release the two retainers on the battery cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
Both sides 1 The bulb holder has a bayonet fitting. Turn the bulb holder counterclockwise
and withdraw it.
2 Hold the bulb holder with a firm grip. Use a screwdriver to pry the bulb from the
holder. 3 Fit the new bulb.
4 To facilitate fitting, look in through the
headlight lens when fitting the bulb.
Check that the new bulb is firmly seated.
Left-hand side 5 Refit the air pipe to the front edge of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover and hose 3.
Side-mounted turn signal bulbs1 Slide the lamp fitting forward so that its
rear end can be pulled out.
2 Turn the bulb holder counterclockwise and withdraw it from the lamp fitting.
Change the bulb.
3 To fit, engage the two catches on the rear edge of the lamp fitting with the
edge of the opening. Then press in the
front edge of the lamp fitting so that the
groove in the spring engages the plastic
edge.
Change of front turn signal bulb
93_US_7carcare_MY09.fm Page 223 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

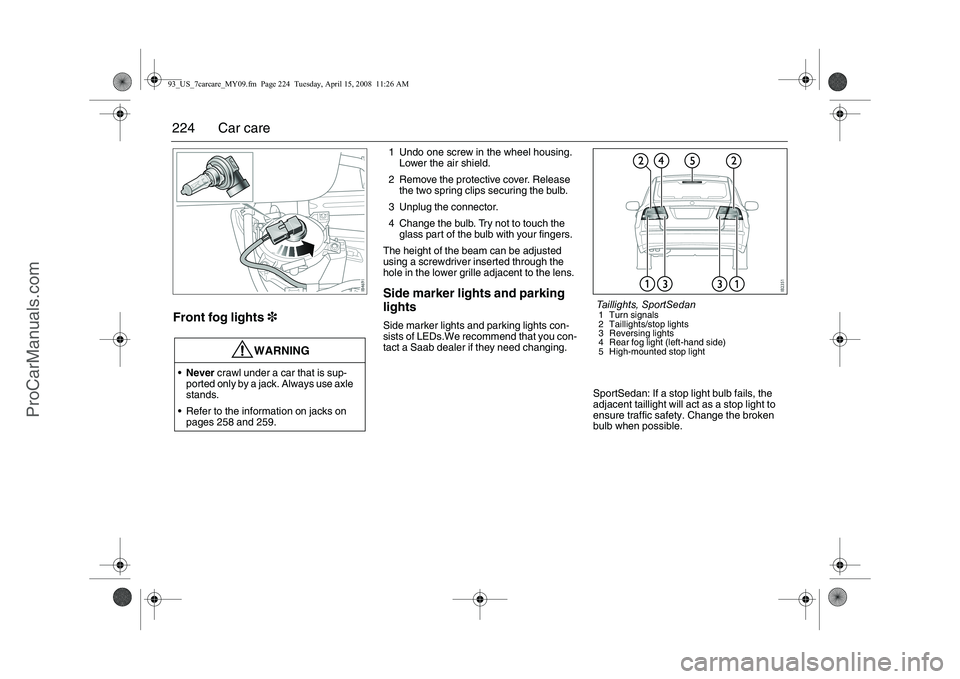

224 Car careFront fog lights3
1 Undo one screw in the wheel housing.
Lower the air shield.
2 Remove the protective cover. Release the two spring clips securing the bulb.
3 Unplug the connector.
4 Change the bulb. Try not to touch the glass part of the bulb with your fingers.
The height of the beam can be adjusted
using a screwdriver inserted through the
hole in the lower grille adjacent to the lens.Side marker lights and parking
lightsSide marker lights and parking lights con-
sists of LEDs.We recommend that you con-
tact a Saab dealer if they need changing.
SportSedan: If a stop light bulb fails, the
adjacent taillight will act as a stop light to
ensure traffic safety. Change the broken
bulb when possible.
WARNING
Never crawl under a car that is sup-
ported only by a jack. Always use axle
stands.
 Refer to the information on jacks on pages 258 and 259.
Taillights, SportSedan1 Turn signals
2 Taillights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
93_US_7carcare_MY09.fm Page 224 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

225
Car care

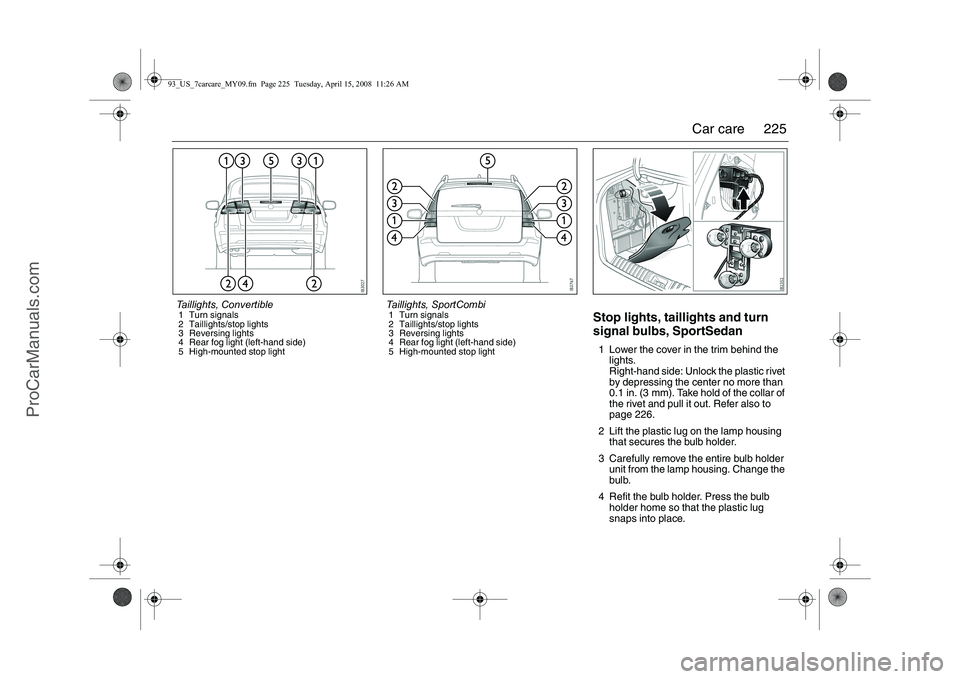

Stop lights, taillights and turn
signal bulbs, SportSedan1 Lower the cover in the trim behind the
lights.
Right-hand side: Unlock the plastic rivet
by depressing the center no more than
0.1 in. (3 mm). Take hold of the collar of
the rivet and pull it out. Refer also to
page 226.
2 Lift the plastic lug on the lamp housing that secures the bulb holder.
3 Carefully remove the entire bulb holder unit from the lamp housing. Change the
bulb.
4 Refit the bulb holder. Press the bulb holder home so that the plastic lug
snaps into place.
Taillights, Convertible1 Turn signals
2 Taillights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
Taillights, SportCombi1 Turn signals
2 Taillights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
93_US_7carcare_MY09.fm Page 225 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

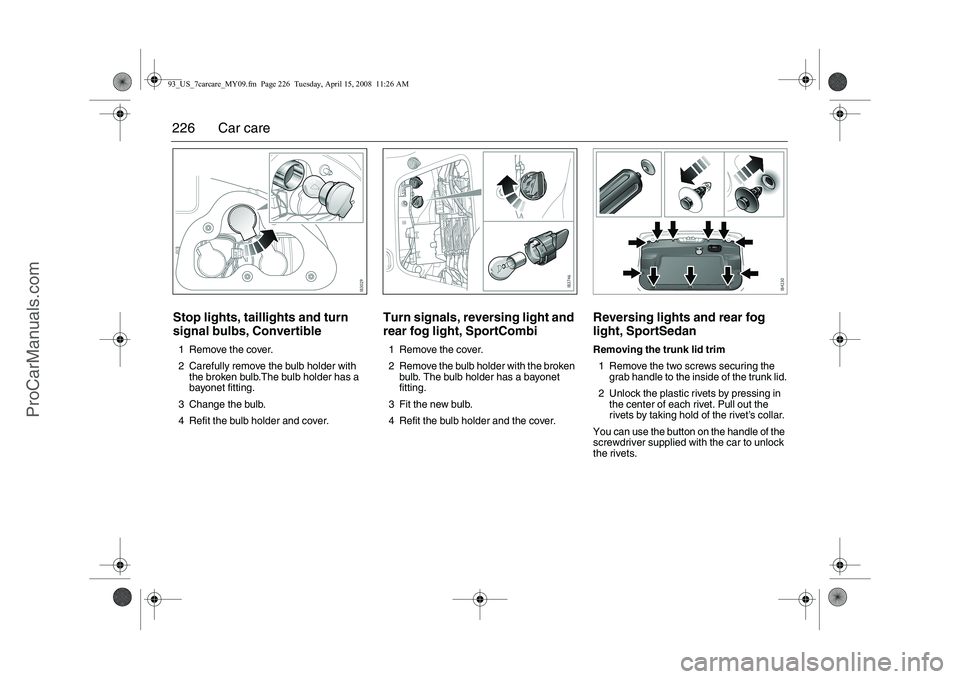

226 Car careStop lights, taillights and turn
signal bulbs, Convertible1 Remove the cover.
2 Carefully remove the bulb holder with the broken bulb.The bulb holder has a
bayonet fitting.
3 Change the bulb.
4 Refit the bulb holder and cover.
Turn signals, reversing light and
rear fog light, SportCombi1 Remove the cover.
2 Remove the bulb holder with the broken bulb. The bulb holder has a bayonet
fitting.
3 Fit the new bulb.
4 Refit the bulb holder and the cover.
Reversing lights and rear fog
light, SportSedanRemoving the trunk lid trim 1 Remove the two screws securing the grab handle to the inside of the trunk lid.
2 Unlock the plastic rivets by pressing in the center of each rivet. Pull out the
rivets by taking hold of the rivet’s collar.
You can use the button on the handle of the
screwdriver supplied with the car to unlock
the rivets.
93_US_7carcare_MY09.fm Page 226 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

227
Car care

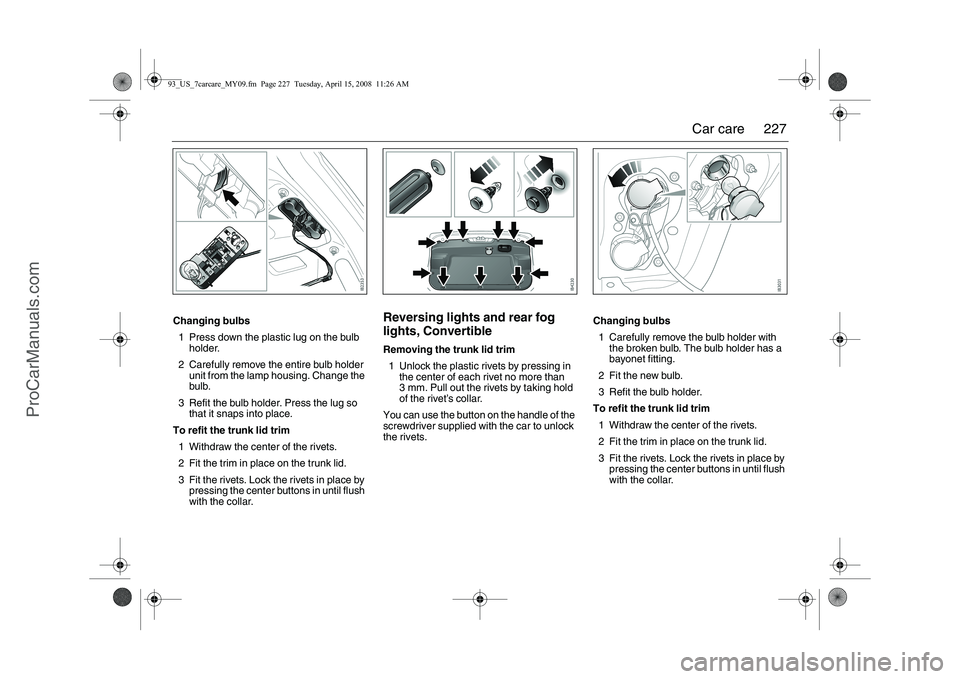

Changing bulbs
1 Press down the plastic lug on the bulb holder.
2 Carefully remove the entire bulb holder unit from the lamp housing. Change the
bulb.
3 Refit the bulb holder. Press the lug so that it snaps into place.
To refit the trunk lid trim 1 Withdraw the center of the rivets.
2 Fit the trim in place on the trunk lid.
3 Fit the rivets. Lock the rivets in place by pressing the center buttons in until flush
with the collar.
Reversing lights and rear fog
lights, ConvertibleRemoving the trunk lid trim
1 Unlock the plastic rivets by pressing in the center of each rivet no more than
3 mm. Pull out the rivets by taking hold
of the rivet’s collar.
You can use the button on the handle of the
screwdriver supplied with the car to unlock
the rivets. Changing bulbs
1 Carefully remove the bulb holder with the broken bulb. The bulb holder has a
bayonet fitting.
2 Fit the new bulb.
3 Refit the bulb holder.
To refit the trunk lid trim 1 Withdraw the center of the rivets.
2 Fit the trim in place on the trunk lid.
3 Fit the rivets. Lock the rivets in place by pressing the center buttons in until flush
with the collar.
93_US_7carcare_MY09.fm Page 227 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

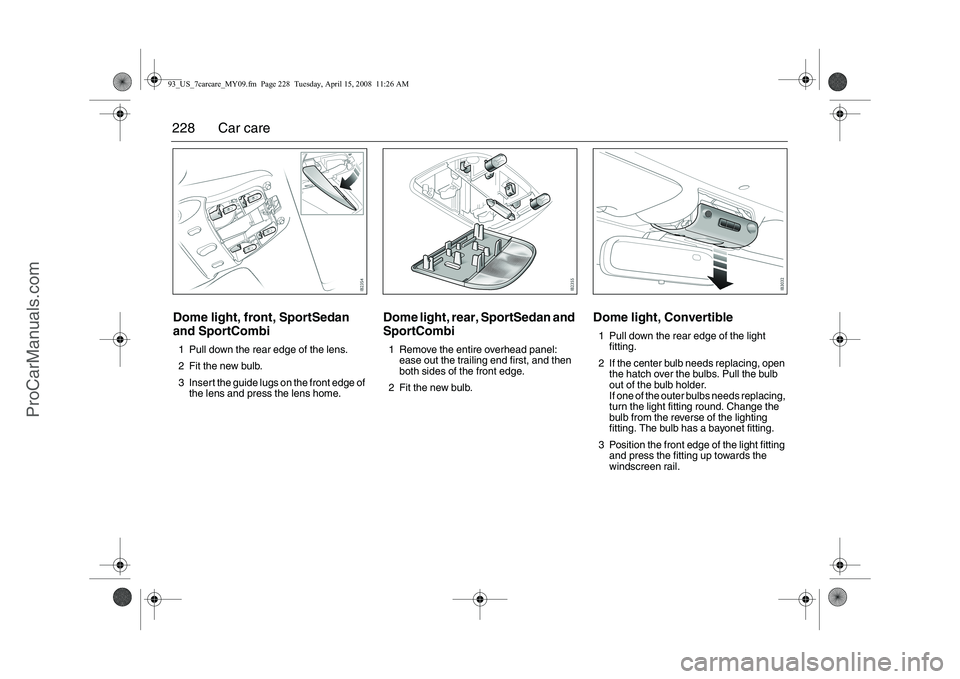

228 Car careDome light, front, SportSedan
and SportCombi1 Pull down the rear edge of the lens.
2 Fit the new bulb.
3 Insert the guide lugs on the front edge of the lens and press the lens home.
Dome light, rear, SportSedan and
SportCombi1 Remove the entire overhead panel: ease out the trailing end first, and then
both sides of the front edge.
2 Fit the new bulb.
Dome light, Convertible1 Pull down the rear edge of the light fitting.
2 If the center bulb needs replacing, open the hatch over the bulbs. Pull the bulb
out of the bulb holder.
If one of the outer bulbs needs replacing,
turn the light fitting round. Change the
bulb from the reverse of the lighting
fitting. The bulb has a bayonet fitting.
3 Position the front edge of the light fitting
and press the fitting up towards the
windscreen rail.
93_US_7carcare_MY09.fm Page 228 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

229
Car care

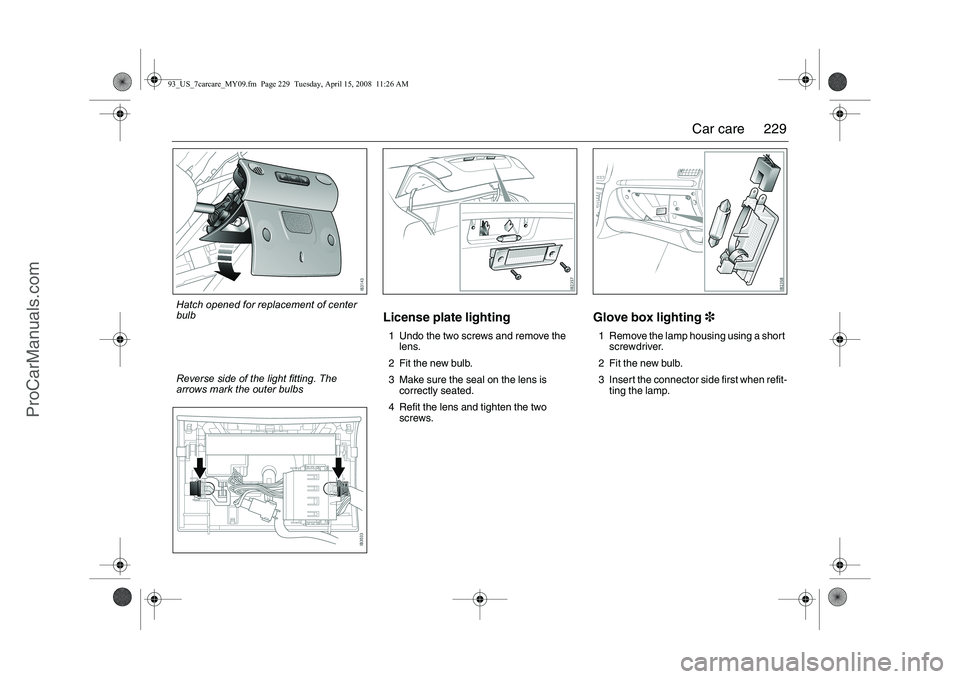

License plate lighting1 Undo the two screws and remove the
lens.
2 Fit the new bulb.
3 Make sure the seal on the lens is correctly seated.
4 Refit the lens and tighten the two screws.
Glove box lighting 31 Remove the lamp housing using a short
screwdriver.
2 Fit the new bulb.
3 Insert the connector side first when refit- ting the lamp.
Hatch opened for replacement of center
bulb
Reverse side of the light fitting. The
arrows mark the outer bulbs93_US_7carcare_MY09.fm Page 229 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

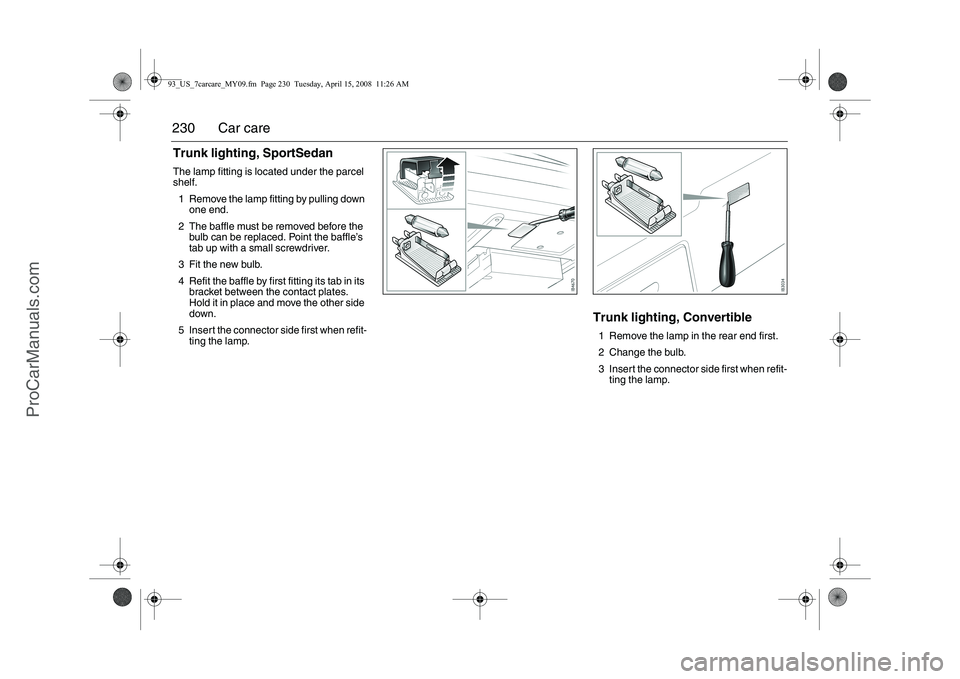

230 Car careTrunk lighting, SportSedanThe lamp fitting is located under the parcel
shelf.1 Remove the lamp fitting by pulling down one end.
2 The baffle must be removed before the bulb can be replaced. Point the baffle’s
tab up with a small screwdriver.
3 Fit the new bulb.
4 Refit the baffle by first fitting its tab in its bracket between the contact plates.
Hold it in place and move the other side
down.
5 Insert the connector side first when refit- ting the lamp.
Trunk lighting, Convertible1 Remove the lamp in the rear end first.
2 Change the bulb.
3 Insert the connector side first when refit-
ting the lamp.
93_US_7carcare_MY09.fm Page 230 Tuesday, April 15, 2008 11:26 AM
