SAAB 9-3 2009 Owners Manual

231
Car care

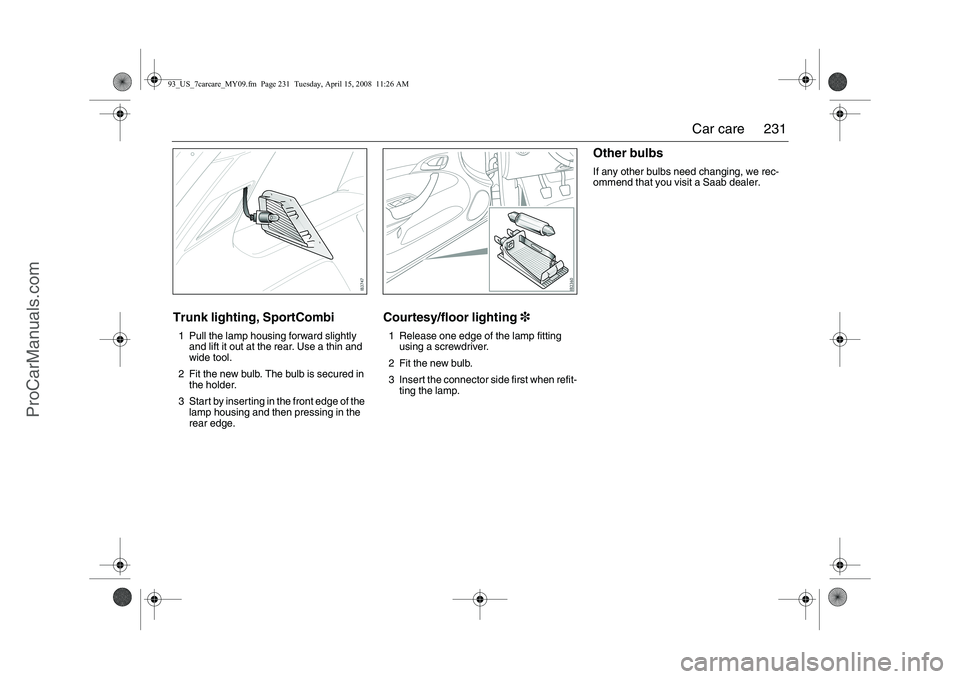

Trunk lighting, SportCombi1 Pull the lamp housing forward slightly
and lift it out at the rear. Use a thin and
wide tool.
2 Fit the new bulb. The bulb is secured in the holder.
3 Start by inserting in the front edge of the lamp housing and then pressing in the
rear edge.
Courtesy/floor lighting 31 Release one edge of the lamp fitting
using a screwdriver.
2 Fit the new bulb.
3 Insert the connector side first when refit- ting the lamp.
Other bulbsIf any other bulbs need changing, we rec-
ommend that you visit a Saab dealer.
93_US_7carcare_MY09.fm Page 231 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

232 Car care

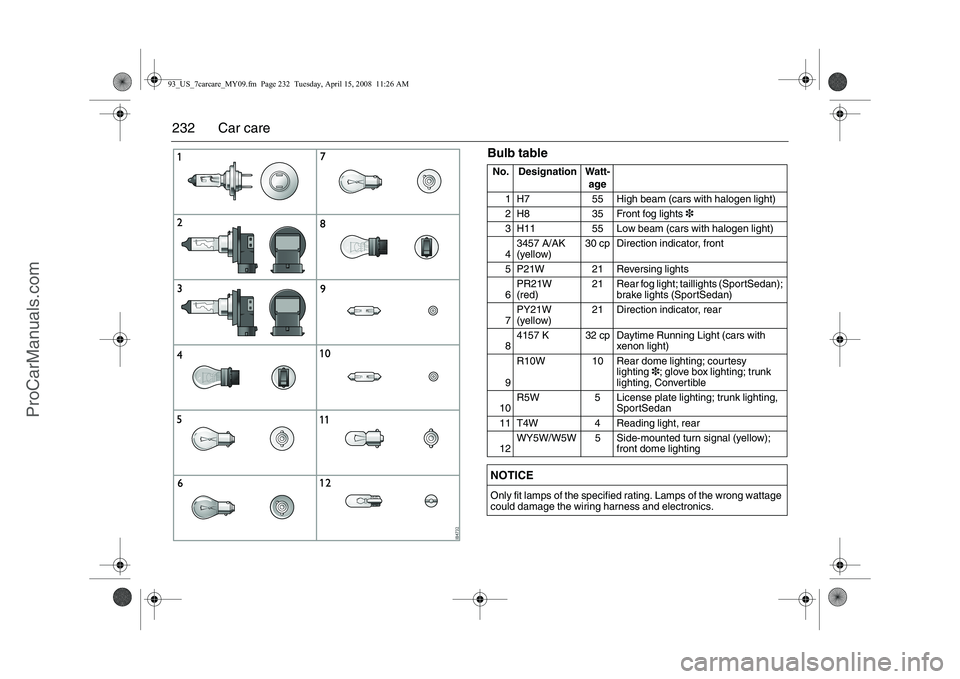

Bulb tableNo. Designation Watt-age
1 H7 55 High beam (cars with halogen light)
2 H8 35 Front fog lights 3
3 H11 55 Low beam (cars with halogen light)
4 3457 A/AK
(yellow) 30 cp Direction indicator, front
5 P21W 21 Reversing lights
6 PR21W
(red) 21 Rear fog light; taillights (SportSedan);
brake lights (SportSedan)
7 PY21W
(yellow) 21 Direction indicator, rear
8 4157 K 32 cp Daytime Running Light (cars with
xenon light)
9 R10W 10 Rear dome lighting; courtesy
lighting3; glove box lighting; trunk
lighting, Convertible
10 R5W 5 License plate lighting; trunk lighting,
SportSedan
11 T4W 4 Reading light, rear
12 WY5W/W5W 5 Side-mounted turn signal (yellow);
front dome lightingNOTICEOnly fit lamps of the specified rating. Lamps of the wrong wattage
could damage the wiring harness and electronics.
93_US_7carcare_MY09.fm Page 232 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

233
Car care

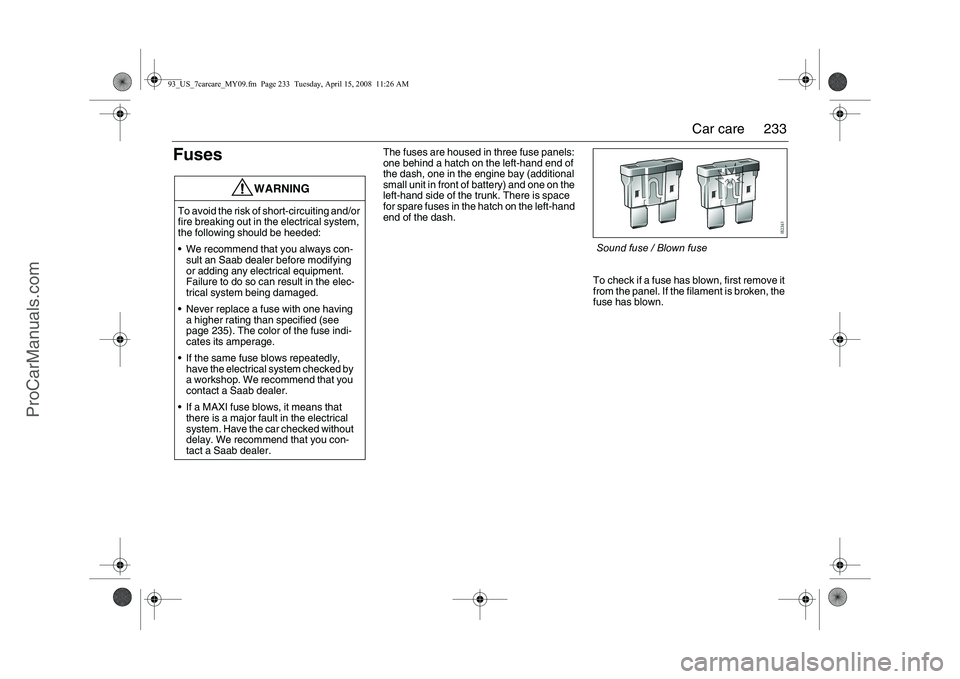

Fuses
The fuses are housed in three fuse panels:
one behind a hatch on the left-hand end of
the dash, one in the engine bay (additional
small unit in front of battery) and one on the
left-hand side of the tr unk. There is space
for spare fuses in the hatch on the left-hand
end of the dash.
To check if a fuse has blown, first remove it
from the panel. If the f ilament is broken, the
fuse has blown.
WARNING
To avoid the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following should be heeded:
 We recommend that you always con- sult an Saab dealer before modifying
or adding any electrical equipment.
Failure to do so can result in the elec-
trical system being damaged.
 Never replace a fuse with one having a higher rating than specified (see
page 235). The color of the fuse indi-
cates its amperage.
 If the same fuse blows repeatedly, have the electrical system checked by
a workshop. We recommend that you
contact a Saab dealer.
 If a MAXI fuse blows, it means that there is a major fault in the electrical
system. Have the car checked without
delay. We recommend that you con-
tact a Saab dealer.
Sound fuse / Blown fuse
93_US_7carcare_MY09.fm Page 233 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

234 Car careA special tool for removing fuses is provided
on the hatch on the left-hand end of the
dash. Simply push the tool onto the fuse,
squeeze and remove the fuse.Some fuses and relays may be fitted but not
connected to the car’
s electrical system.
MAXI fusesThe car also has a number of large fuses
known as MAXI fuses. These are designed
to protect the car’s electrical system from
being damaged. Each MAXI fuse protects a
number of electrical circuits and functions
and therefore has a higher rating (amper-
age) than the standard fuses. No spare
MAXI fuses are supplied with the car.NOTICEIf a MAXI fuse blows, there is a major fault
in the electrical system. Have the car
checked. We recommend that you con-
tact a Saab dealer.
Fuse panel in end of dash93_US_7carcare_MY09.fm Page 234 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

235
Car care
Fuse panel in end of fasciaNo. Amp. Function
1 15 Steering wheel lock
2 5 Steering column unit; ignition switch
3 10 Hands-free 3
4 10 Main instrument unit;
automatic climate control
(ACC) 3
5 7.5 Control module in front doors; Park Brake Shift Lock
(automatic transmission)
6 7.5 Brake light switch
7 20 Dash fuse panel; fuel filler door
8 30 Control module in passenger front door
9 10 Dash fuse panel
10 30 Trailer socket
3; electrical socket in storage compart-
ment between seats 3
11 10 Data link connection (diagnostics)
12 15 Interior lighting incl. glove box
13 10 Accessories
14 20 Amplifier 2, Sound System 3
15 30 Control module in driver’s door
16 5 Passenger Sensing System
17 - -
18 - -
19 - -
20 7.5 Headlight levelling switch 3
21 7.5 Hands-free 3; brake light switch; clutch pedal switch
22 30 Cigarette lighter 3
23 40 Cabin fan
24 7.5 Airbag control module
25 - -
26 5
Yaw sensor (cars with ESP
®)
27 - -
93_US_7carcare_MY09.fm Page 235 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

236 Car care
Trunk fuse panel, left-hand sideNo. Amp. Function1–5 MAXI -
6 30 Control module in left rear door
7 30 Control module in right rear door
820Trailer 3
9--
10 30 Left-hand brake light; rear right turn signal; right tail-
light; right reversing light; high-mounted brake light;
trailer lights
11 10 XWD
12 - -
13 - -
14 - -
15 15 Seat heating, left seat 3
16 15 Seat heating, right seat 3
17 7.5 Auto dimming rear view mirror 3; rain sensor 3
18 15 Moonroof 3
19 - -
20 7.5 XM-radio 3, TMC-tuner 3
21 7.5 Saab Parking Assistance (SPA)
3; control module in
rear doors; dome light (Convertible)
22 30 Radio 3; navigation 3
23 7,5 TPMS (automatic tire pressure monitoring system)
24 10 Movement sensor
3; tilt sensor 3; dome light (Con-
vertible)
25 30 Electrically adjustable driver’s seat with memory 3
Trunk fuse panel, SportSedan93_US_7carcare_MY09.fm Page 236 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

237
Car care
26 30 Right-hand stop light; rear left turn signal; left taillight;
rear fog light; left reversing light; license plate lighting;
trunk lighting; trailer lights
27 10
Convertible: Lumbar support, electrically adjustable
front seat 3
28 15 Telematics 3
29 - -

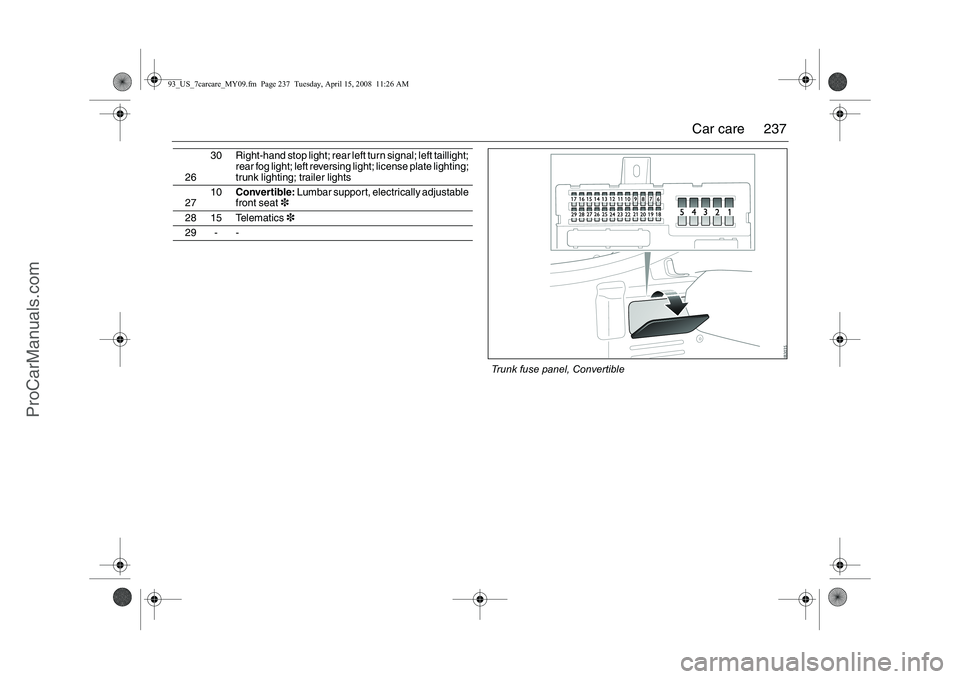

Trunk fuse panel, Convertible
93_US_7carcare_MY09.fm Page 237 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

238 Car careFuse panel in engine bayNo. Amp. Function1--
2 10 Engine control module; au
tomatic transmission con-
trol module 3
320Horn
4 10 Engine control module; ba ttery disconnect switch3
5--
6 10 Selector lever, automatic transmission
3; clutch pedal
switch
7 10 Xenon Cornering Headlights, left 3
8 5 Relay for vacuum pump (brake system) 3
9--
10 - -
11 - -
12 10 Washer fluid pump, rear window 3
13 - -
14 - -
15 30 Washer fluid pump, headlights3
16 30 Front right parking light; fr
ont right turn signal; left and
right side turn signal; right high beam; left low beam;
front left fog light 3
17 30 Windshield wiper motor, low speed
18 30 Windshield wiper motor, high speed
19 20 Parking heater; auxiliary heater 3
20 10 Headlight levelling
3 xenon cornering headlights,
right 3
21 - -
22 30 Washer fluid pump, windshield
23 - -
24 20 Flash-to-pass; high beam, right and left (cars with
Daytime Running Lights only)
25 20 Amplifier, sound system II 3
26 30 Front left turn signal; front left parking light; front right
fog light 3; right low beam; left high beam
27
–37 MAXI
93_US_7carcare_MY09.fm
Page 238 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

239
Car care
Fuse panel in front of battery 3
Relays
R 1 Washer fluid pump, windshield
R2 -
R3 -
R4 -
R 5 Flash-to-pass
R6 Horn
R7 -
R8 Starter motor
R 9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window 3
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 -
R14 Washer fluid pump, headlights 3
R15 -
R16 -
No. Amp. Function 1 - Air pump, secondary air 3
2 20 Fuel pump; preheated oxygen sensors (lambda
probe)
3 10 A/C compressor
430Main relay
Relays 1-
2 A/C-compressor
3 Preheated oxygen sensors (lambda probe)
4 Main relay, engine (ECM/EVAP/injectors)
93_US_7carcare_MY09.fm Page 239 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

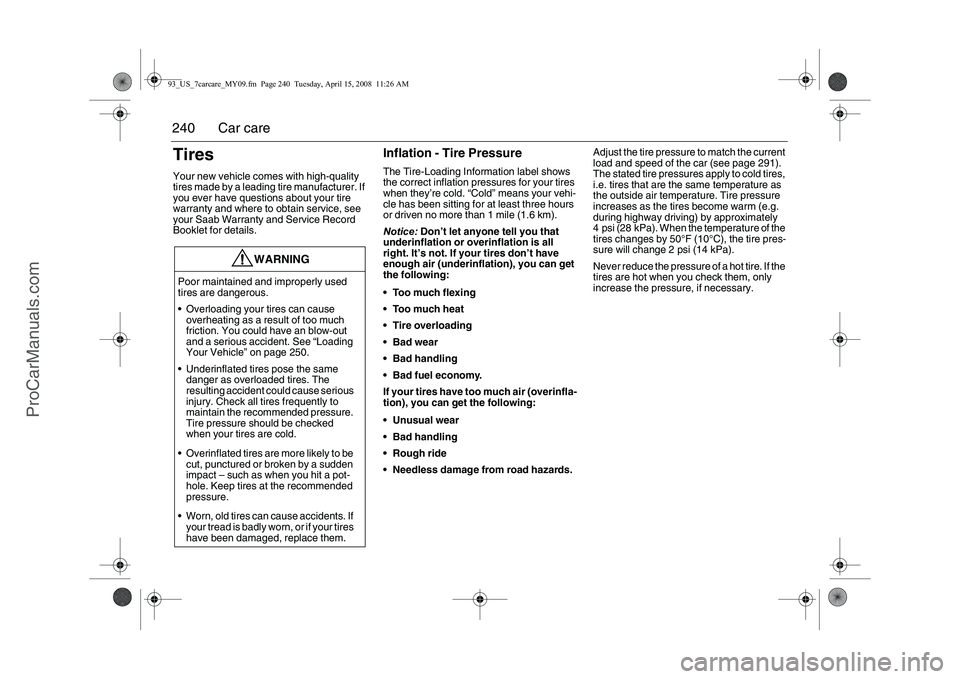

240 Car careTiresYour new vehicle comes with high-quality
tires made by a leading tire manufacturer. If
you ever have questions about your tire
warranty and where to obtain service, see
your Saab Warranty and Service Record
Booklet for details.
Inflation - Tire PressureThe Tire-Loading Information label shows
the correct inflation pressures for your tires
when they’re cold. “Cold” means your vehi-
cle has been sitting for at least three hours
or driven no more than 1 mile (1.6 km).
Notice: Don’t let anyone tell you that
underinflation or overinflation is all
right. It’s not. If your tires don’t have
enough air (underinflation), you can get
the following:
 Too much flexing
 Too much heat
 Tire overloading
 Bad wear
 Bad handling
 Bad fuel economy.
If your tires have too much air (overinfla-
tion), you can get the following:
 Unusual wear
 Bad handling
 Rough ride
 Needless damage from road hazards. Adjust the tire pressure
to match the current
load and speed of the car (see page 291).
The stated tire pressure s apply to cold tires,
i.e. tires that are t he same temperature as
the outside air temperature. Tire pressure
increases as the tires become warm (e.g.
during highway driving) by approximately
4 psi (28 kPa). When the temperature of the
tires changes by 50°F (10°C), the tire pres-
sure will change 2 psi (14 kPa).
Never reduce the pressure of a hot tire. If the
tires are hot when you check them, only
increase the pressure, if necessary.
WARNING
Poor maintained and improperly used
tires are dangerous.
 Overloading your tires can cause overheating as a result of too much
friction. You could have an blow-out
and a serious accident. See “Loading
Your Vehicle” on page 250.
 Underinflated tires pose the same danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked
when your tires are cold.
 Overinflated tires are more likely to be cut, punctured or broken by a sudden
impact – such as when you hit a pot-
hole. Keep tires at the recommended
pressure.
 Worn, old tires can cause accidents. If your tread is badly worn, or if your tires
have been damaged, replace them.93_US_7carcare_MY09.fm Page 240 Tuesday, April 15, 2008 11:26 AM
