[x] Cancel search | Manufacturer: SAAB, Model Year: 2009, Model line: 9-3, Model: SAAB 9-3 2009Pages: 304, PDF Size: 44.31 MB
Page 3 of 304
3

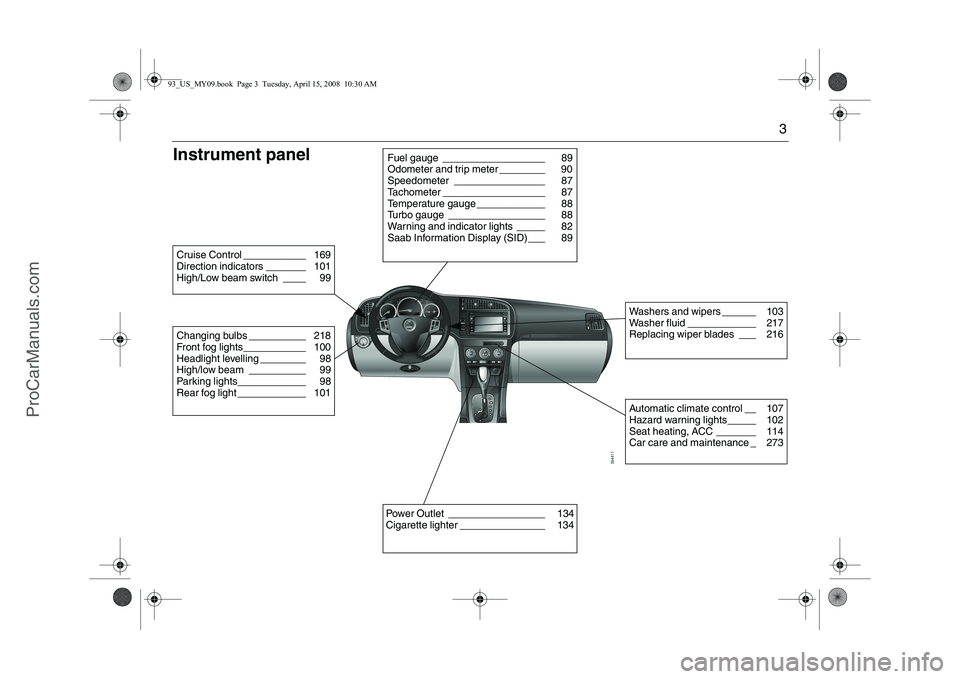

Instrument panelChanging bulbs __________ 218
Front fog lights___________ 100
Headlight levelling ________ 98
High/low beam __________ 99
Parking lights____________ 98
Rear fog light ____________ 101Cruise Control ___________ 169
Direction indicators _______ 101
High/Low beam switch ____ 99
Fuel gauge __________________ 89
Odometer and trip meter ________ 90
Speedometer ________________ 87
Tachometer __________________ 87
Temperature gauge ____________ 88
Turbo gauge _________________ 88
Warning and indicator lights _____ 82
Saab Information Display (SID) ___ 89Power Outlet _________________ 134
Cigarette lighter _______________ 134
Washers and wipers ______ 103
Washer fluid ____________ 217
Replacing wiper blades ___ 216Automatic climate control __ 107
Hazard warning lights_____ 102
Seat heating, ACC _______ 114
Car care and maintenance _ 273
93_US_MY09.book Page 3 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 6 of 304

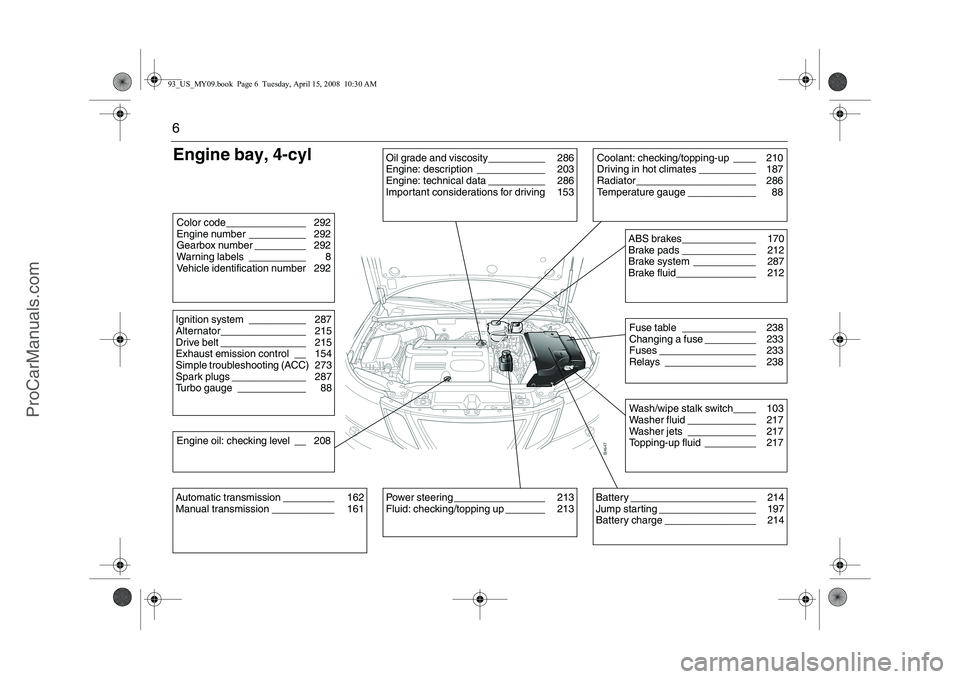

6Engine bay, 4-cylColor code______________ 292
Engine number __________ 292
Gearbox number _________ 292
Warning labels __________ 8
Vehicle identification number 292Ignition system __________ 287
Alternator_______________ 215
Drive belt _______________ 215
Exhaust emission control __ 154
Simple troubleshooting (ACC) 273
Spark plugs _____________ 287
Turbo gauge ____________ 88Engine oil: checking level __ 208Automatic transmission _________ 162
Manual transmission ___________ 161
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine: technical data __________ 286
Important considerations for driving 153
Wash/wipe stalk switch____ 103
Washer fluid ____________ 217
Washer jets ____________ 217
Topping-up fluid _________ 217
Power steering ________________ 213
Fluid: checking/topping up _______ 213
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Radiator _____________________ 286
Temperature gauge ____________ 88
Fuse table _____________ 238
Changing a fuse _________ 233
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 170
Brake pads _____________ 212
Brake system ___________ 287
Brake fluid______________ 212
93_US_MY09.book Page 6 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 7 of 304
7

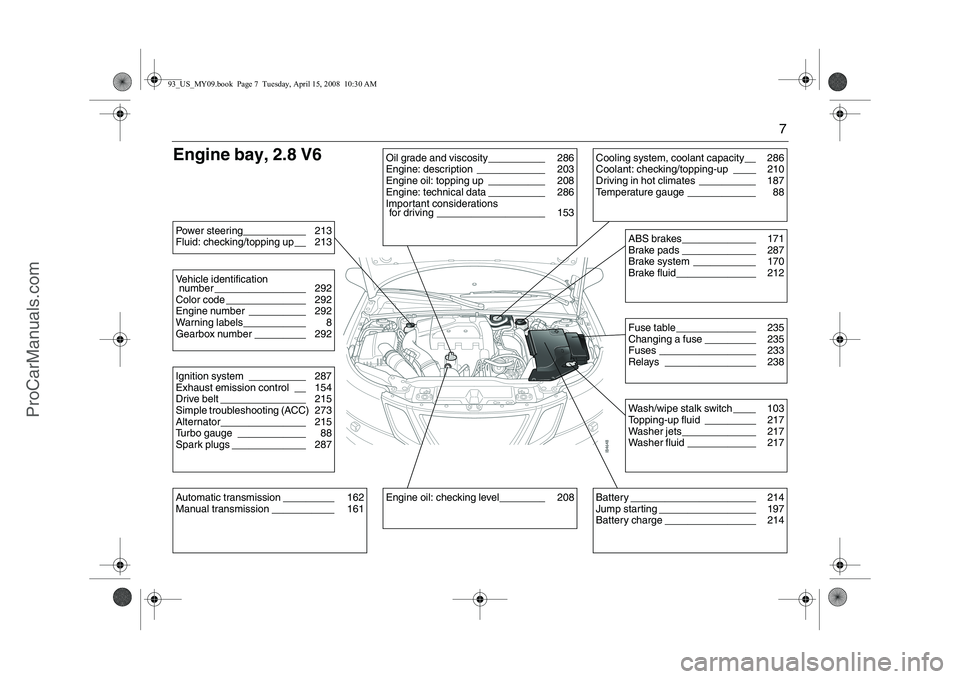

Engine bay, 2.8 V6Power steering___________ 213
Fluid: checking/topping up__ 213Vehicle identification
number ________________ 292
Color code ______________ 292
Engine number __________ 292
Warning labels___________ 8
Gearbox number _________ 292Ignition system __________ 287
Exhaust emission control __ 154
Drive belt _______________ 215
Simple troubleshooting (ACC) 273
Alternator_______________ 215
Turbo gauge ____________ 88
Spark plugs _____________ 287Automatic transmission _________ 162
Manual transmission ___________ 161
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine oil: topping up __________ 208
Engine: technical data __________ 286
Important considerations
for driving ___________________ 153Engine oil: checking level________ 208
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Wash/wipe stalk switch ____ 103
Topping-up fluid _________ 217
Washer jets_____________ 217
Washer fluid ____________ 217Fuse table ______________ 235
Changing a fuse _________ 235
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 171
Brake pads _____________ 287
Brake system ___________ 170
Brake fluid______________ 212
Cooling system, coolant capacity__ 286
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Temperature gauge ____________ 88
93_US_MY09.book Page 7 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 104 of 304
104 Instruments and controls

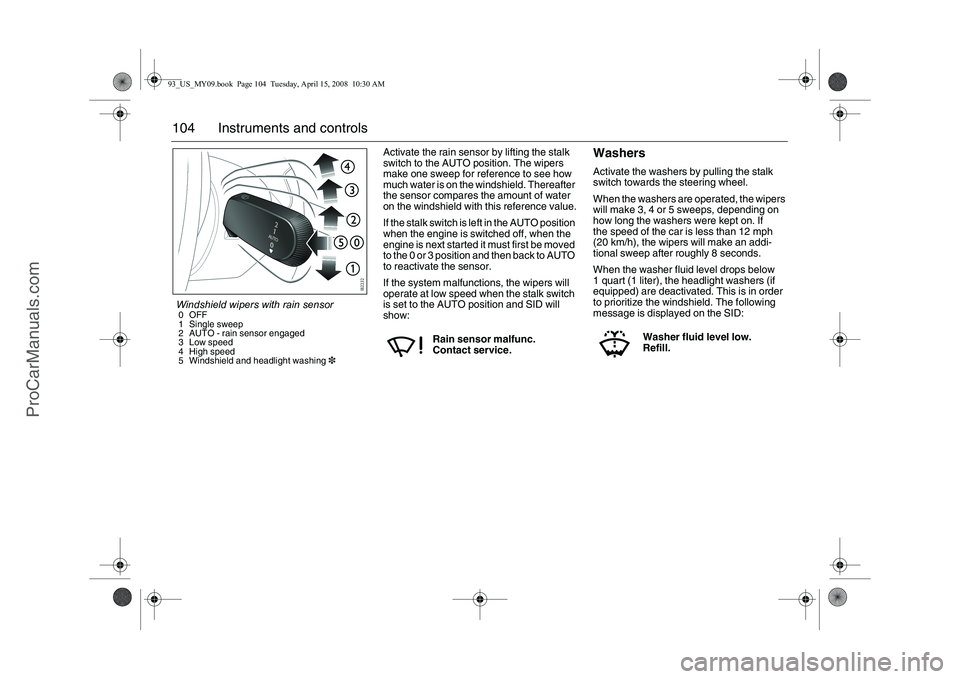

Activate the rain sensor by lifting the stalk
switch to the AUTO position. The wipers
make one sweep for reference to see how
much water is on the windshield. Thereafter
the sensor compares the amount of water
on the windshield with this reference value.
If the stalk switch is left in the AUTO position
when the engine is switched off, when the
engine is next started it must first be moved
to the 0 or 3 position and then back to AUTO
to reactivate the sensor.
If the system malfunctions, the wipers will
operate at low speed when the stalk switch
is set to the AUTO position and SID will
show:
WashersActivate the washers by pulling the stalk
switch towards the steering wheel.
When the washers are operated, the wipers
will make 3, 4 or 5 sweeps, depending on
how long the washers were kept on. If
the speed of the car is less than 12 mph
(20 km/h), the wipers will make an addi-
tional sweep after roughly 8 seconds.
When the washer fluid level drops below
1 quart (1 liter), the headlight washers (if
equipped) are deactivated. This is in order
to prioritize the windshield. The following
message is displayed on the SID:
Rain sensor malfunc.
Contact service.
Washer fluid level low.
Refill.
Windshield wipers with rain sensor0OFF
1 Single sweep
2 AUTO - rain sensor engaged
3 Low speed
4 High speed
5 Windshield and headlight washing393_US_MY09.book Page 104 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 106 of 304

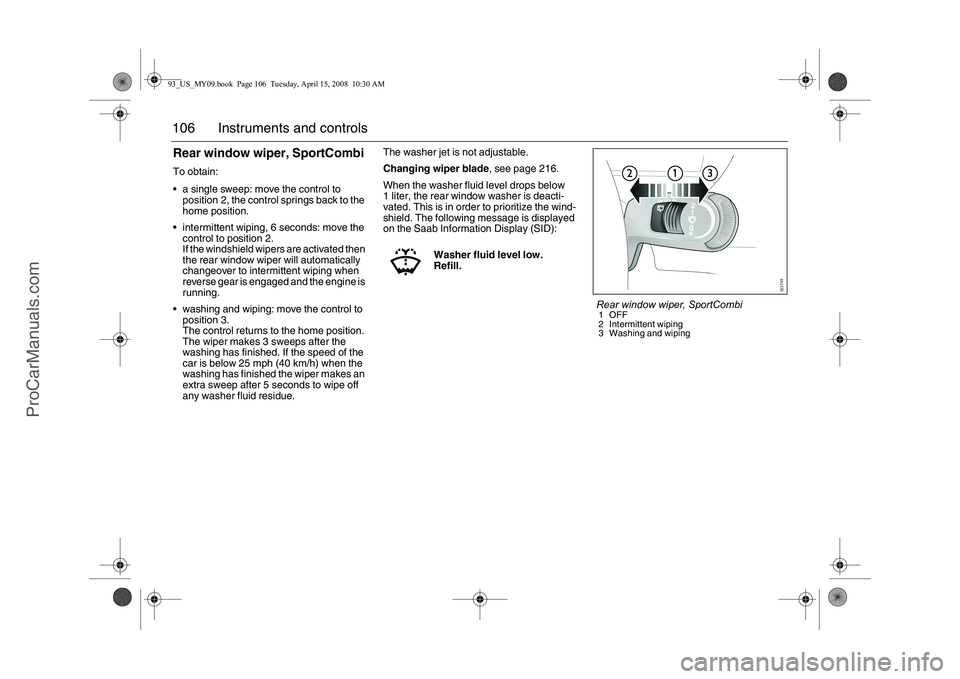

106 Instruments and controlsRear window wiper, SportCombiTo obtain:
a single sweep: move the control to
position 2, the control springs back to the
home position.
intermittent wiping, 6 seconds: move the
control to position 2.
If the windshield wipers are activated then
the rear window wiper will automatically
changeover to intermittent wiping when
reverse gear is engaged and the engine is
running.
washing and wiping: move the control to
position 3.
The control returns to the home position.
The wiper makes 3 sweeps after the
washing has finished. If the speed of the
car is below 25 mph (40 km/h) when the
washing has finished the wiper makes an
extra sweep after 5 seconds to wipe off
any washer fluid residue.The washer jet is not adjustable.
Changing wiper blade, see page 216.
When the washer fluid level drops below
1 liter, the rear window washer is deacti-
vated. This is in order to prioritize the wind-
shield. The following message is displayed
on the Saab Information Display (SID):
Washer fluid level low.
Refill.
Rear window wiper, SportCombi1OFF
2 Intermittent wiping
3 Washing and wiping
93_US_MY09.book Page 106 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 179 of 304

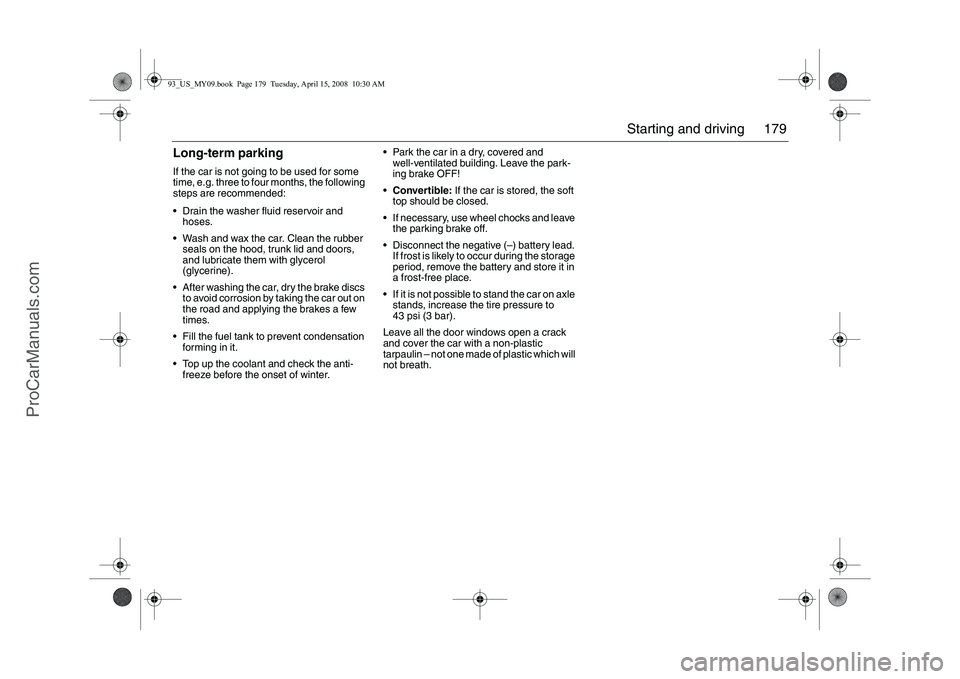

179 Starting and driving
Long-term parkingIf the car is not going to be used for some
time, e.g. three to four months, the following
steps are recommended:
Drain the washer fluid reservoir and
hoses.
Wash and wax the car. Clean the rubber
seals on the hood, trunk lid and doors,
and lubricate them with glycerol
(glycerine).
After washing the car, dry the brake discs
to avoid corrosion by taking the car out on
the road and applying the brakes a few
times.
Fill the fuel tank to prevent condensation
forming in it.
Top up the coolant and check the anti-
freeze before the onset of winter. Park the car in a dry, covered and
well-ventilated building. Leave the park-
ing brake OFF!
Convertible: If the car is stored, the soft
top should be closed.
If necessary, use wheel chocks and leave
the parking brake off.
Disconnect the negative (–) battery lead.
If frost is likely to occur during the storage
period, remove the battery and store it in
a frost-free place.
If it is not possible to stand the car on axle
stands, increase the tire pressure to
43 psi (3 bar).
Leave all the door windows open a crack
and cover the car with a non-plastic
tarpaulin – not one made of plastic which will
not breath.93_US_MY09.book Page 179 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 201 of 304
201

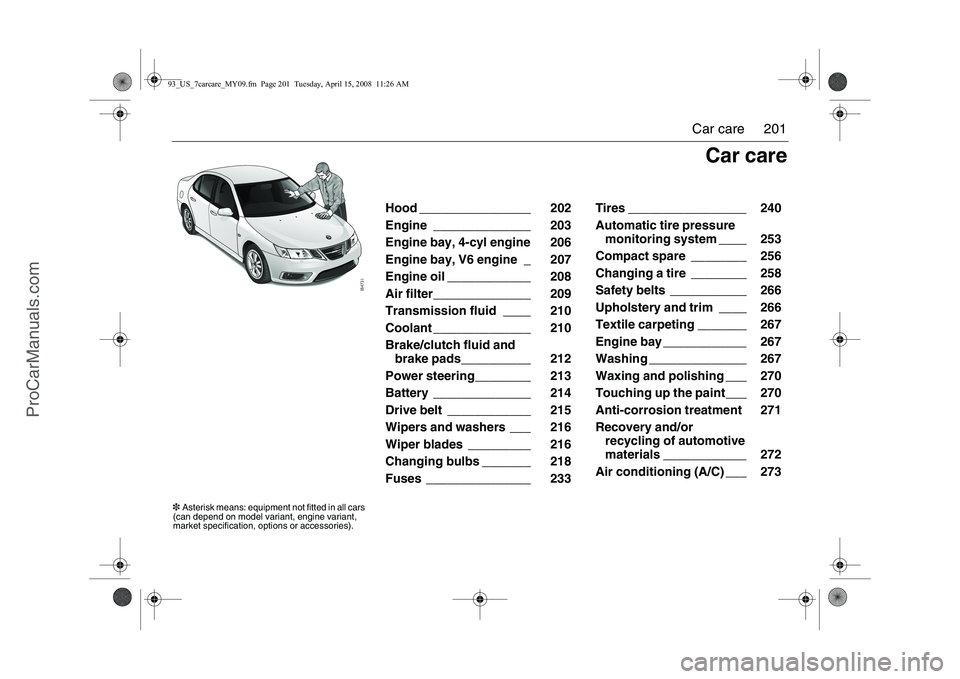

Car care
Hood ________________ 202
Engine ______________ 203
Engine bay, 4-cyl engine 206
Engine bay, V6 engine _ 207
Engine oil ____________ 208
Air filter______________ 209
Transmission fluid ____ 210
Coolant ______________ 210
Brake/clutch fluid and
brake pads__________ 212
Power steering________ 213
Battery ______________ 214
Drive belt ____________ 215
Wipers and washers ___ 216
Wiper blades _________ 216
Changing bulbs _______ 218
Fuses _______________ 233 Tires _________________ 240
Automatic tire pressure
monitoring system ____ 253
Compact spare ________ 256
Changing a tire ________ 258
Safety belts ___________ 266
Upholstery and trim ____ 266
Textile carpeting _______ 267
Engine bay ____________ 267
Washing ______________ 267
Waxing and polishing ___ 270
Touching up the paint___ 270
Anti-corrosion treatment 271
Recovery and/or recycling of automotive
materials ____________ 272
Air conditioning (A/C) ___ 273
Car care
3 Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).93_US_7carcare_MY09.fm Page 201 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com
Page 206 of 304
206 Car care
1 Oil filler cap
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Power-steering fluid reservoir
8 Engine-oil dipstick

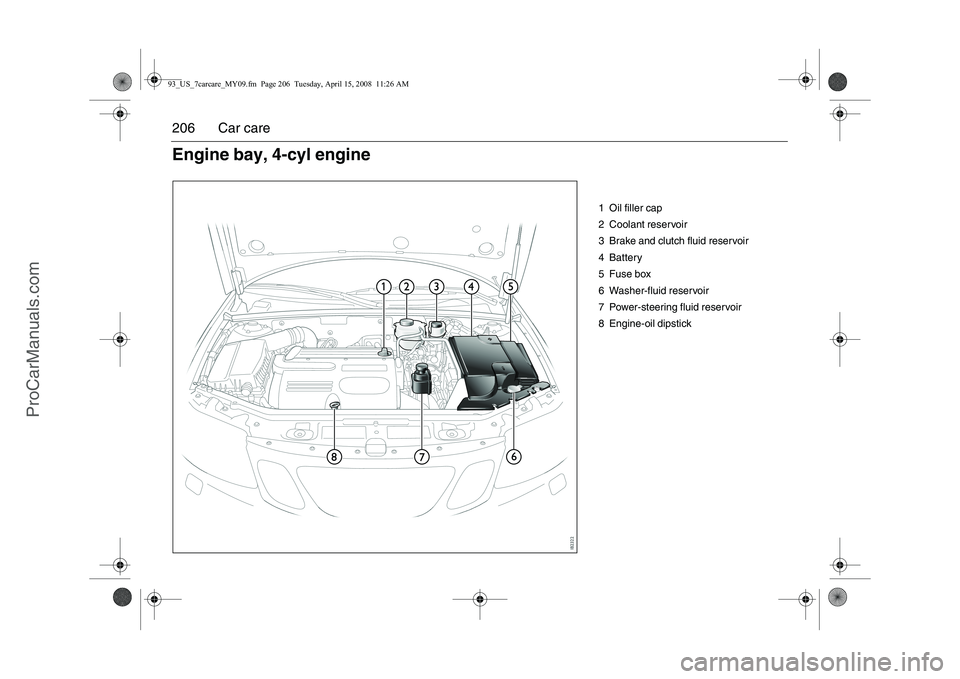

Engine bay, 4-cyl engine93_US_7carcare_MY09.fm Page 206 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com
Page 207 of 304
207
Car care
1 Power-steering fluid reservoir
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Oil filler cap
8 Engine-oil dipstick

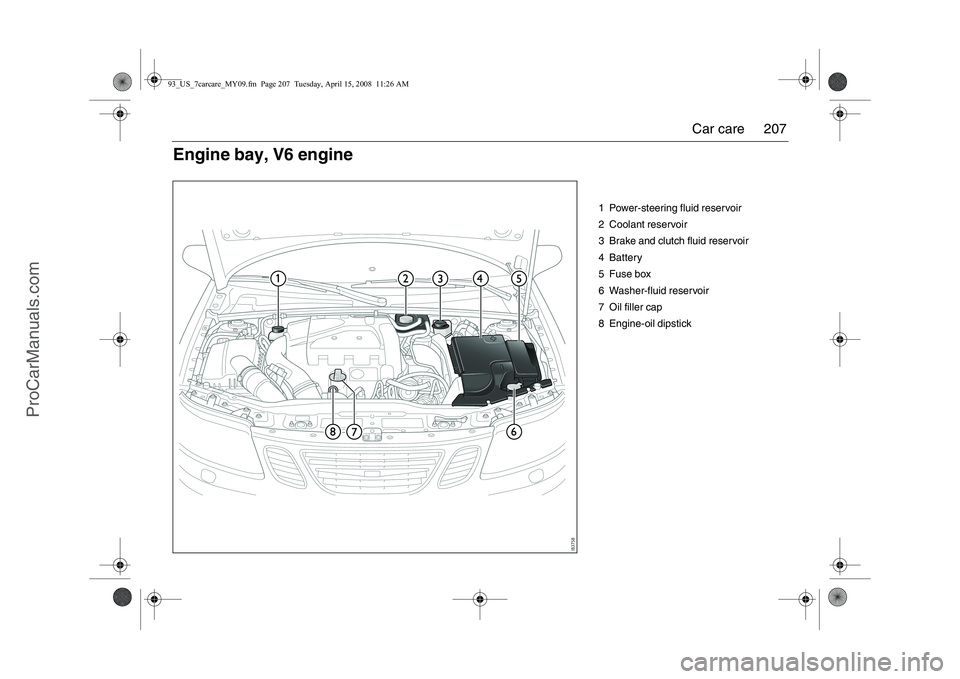

Engine bay, V6 engine93_US_7carcare_MY09.fm Page 207 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com
Page 216 of 304

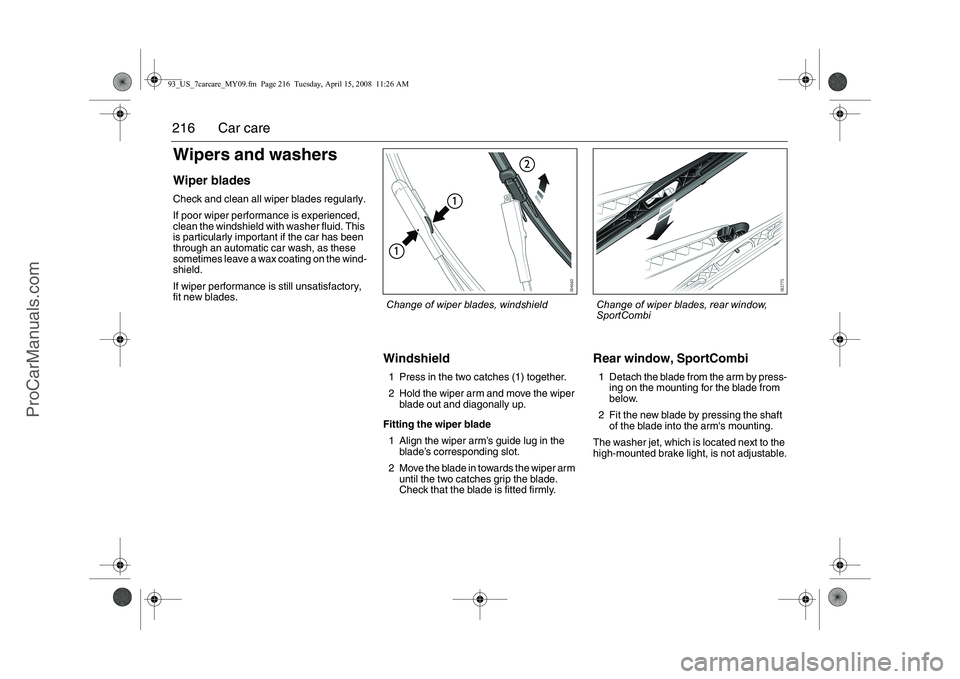

216 Car careWipers and washersWiper bladesCheck and clean all wiper blades regularly.
If poor wiper performance is experienced,
clean the windshield with washer fluid. This
is particularly important if the car has been
through an automatic car wash, as these
sometimes leave a wax coating on the wind-
shield.
If wiper performance is still unsatisfactory,
fit new blades.
Windshield1 Press in the two catches (1) together.
2 Hold the wiper arm and move the wiper blade out and diagonally up.
Fitting the wiper blade 1 Align the wiper arm’s guide lug in the blade’s corresponding slot.
2 Move the blade in towards the wiper arm until the two catches grip the blade.
Check that the blade is fitted firmly.
Rear window, SportCombi1 Detach the blade from the arm by press-ing on the mounting for the blade from
below.
2 Fit the new blade by pressing the shaft of the blade into the arm's mounting.
The washer jet, which is located next to the
high-mounted brake light, is not adjustable.
Change of wiper blades, windshield
Change of wiper blades, rear window,
SportCombi
93_US_7carcare_MY09.fm Page 216 Tuesday, April 15, 2008 11:26 AM
