SAAB 9-5 2004 Owners Manual

221 Car care and technical information
1 Squeeze together the silver plastic lug
and the electrical connection and with-
draw the lamp holder.
2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.

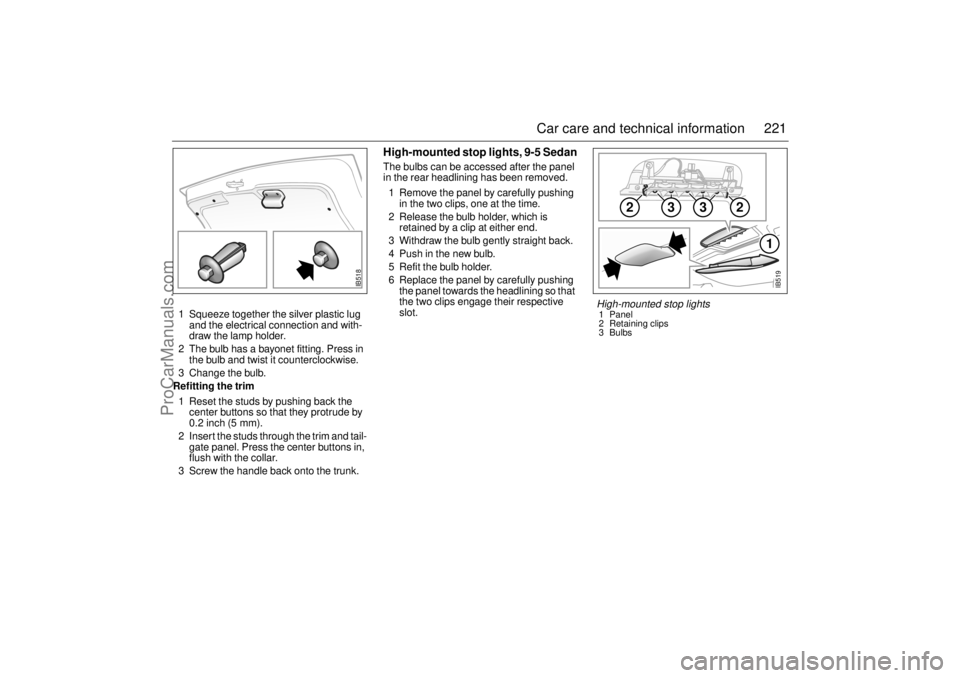

Refitting the trim
1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.
High-mounted stop lights, 9-5 SedanThe bulbs can be accessed after the panel
in the rear headlining has been removed.
1 Remove the panel by carefully pushing
in the two clips, one at the time.
2 Release the bulb holder, which is
retained by a clip at either end.
3 Withdraw the bulb gently straight back.
4 Push in the new bulb.
5 Refit the bulb holder.
6 Replace the panel by carefully pushing
the panel towards the headlining so that
the two clips engage their respective
slot.
IB518
3
2
2
3
1
IB519
High-mounted stop lights1 Panel
2 Retaining clips
3 Bulbs
ProCarManuals.com

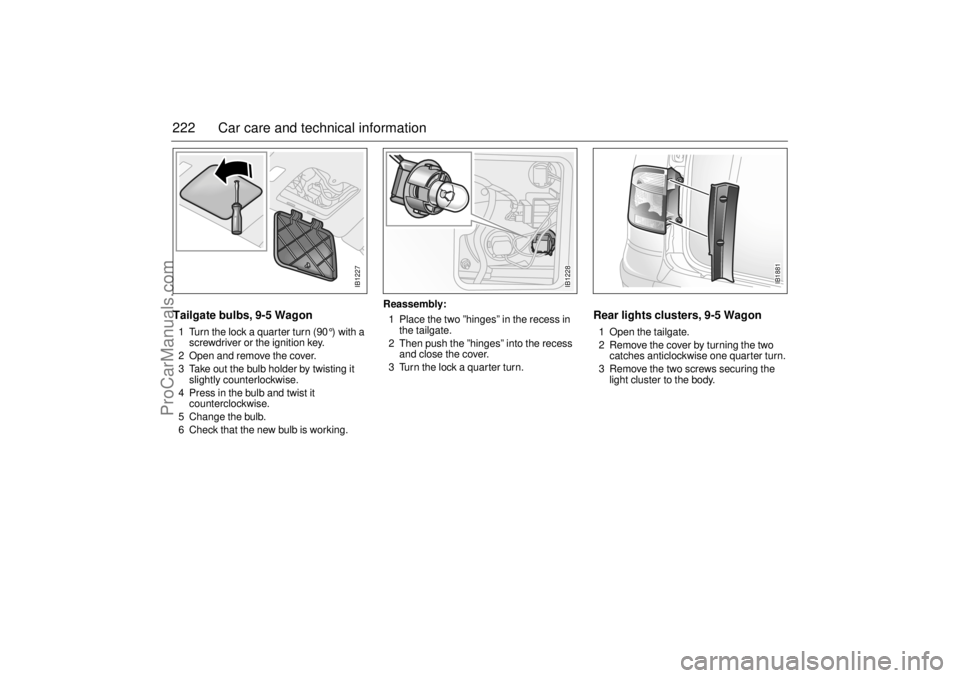

222 Car care and technical informationTailgate bulbs, 9-5 Wagon1 Turn the lock a quarter turn (90 °) with a
screwdriver or the ignition key.
2 Open and remove the cover.
3 Take out the bulb holder by twisting it
slightly counterlockwise.
4 Press in the bulb and twist it
counterclockwise.
5 Change the bulb.
6 Check that the new bulb is working.Reassembly:
1 Place the two ”hinges” in the recess in
the tailgate.
2 Then push the ”hinges” into the recess
and close the cover.
3 Turn the lock a quarter turn.
Rear lights clusters, 9-5 Wagon1 Open the tailgate.
2 Remove the cover by turning the two
catches anticlockwise one quarter turn.
3 Remove the two screws securing the
light cluster to the body.
IB1228
IB1881
IB1227
ProCarManuals.com

223 Car care and technical information

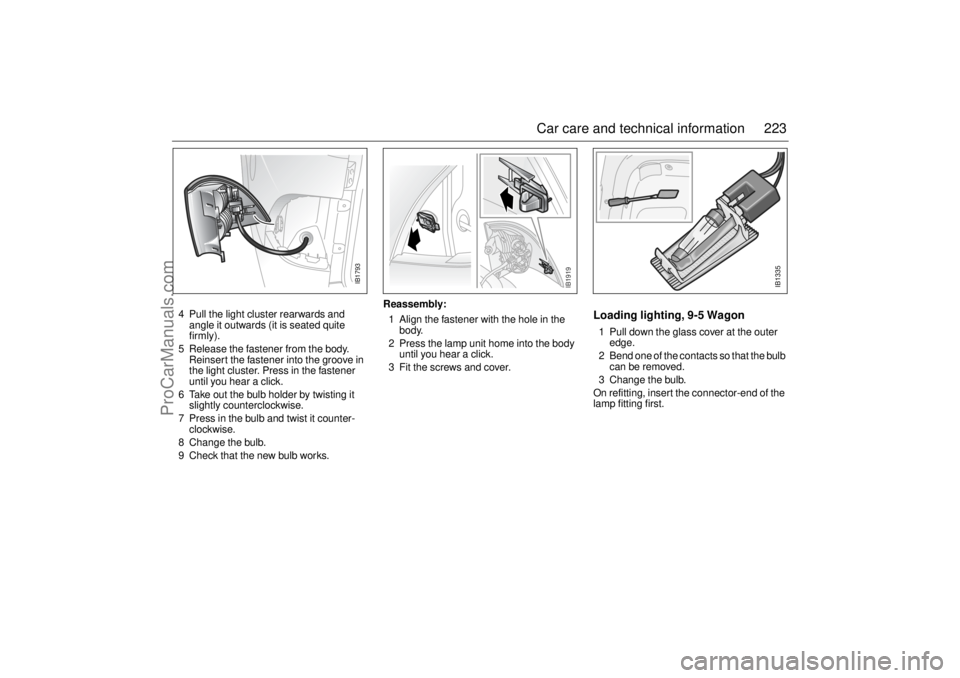

4 Pull the light cluster rearwards and
angle it outwards (it is seated quite
firmly).
5 Release the fastener from the body.
Reinsert the fastener into the groove in
the light cluster. Press in the fastener
until you hear a click.
6 Take out the bulb holder by twisting it
slightly counterclockwise.
7 Press in the bulb and twist it counter-
clockwise.
8 Change the bulb.
9 Check that the new bulb works.Reassembly:
1 Align the fastener with the hole in the
body.
2 Press the lamp unit home into the body
until you hear a click.
3 Fit the screws and cover.
Loading lighting, 9-5 Wagon1 Pull down the glass cover at the outer
edge.
2 Bend one of the contacts so that the bulb
can be removed.
3 Change the bulb.
On refitting, insert the connector-end of the
lamp fitting first.
IB1335
IB1919
IB1793
ProCarManuals.com

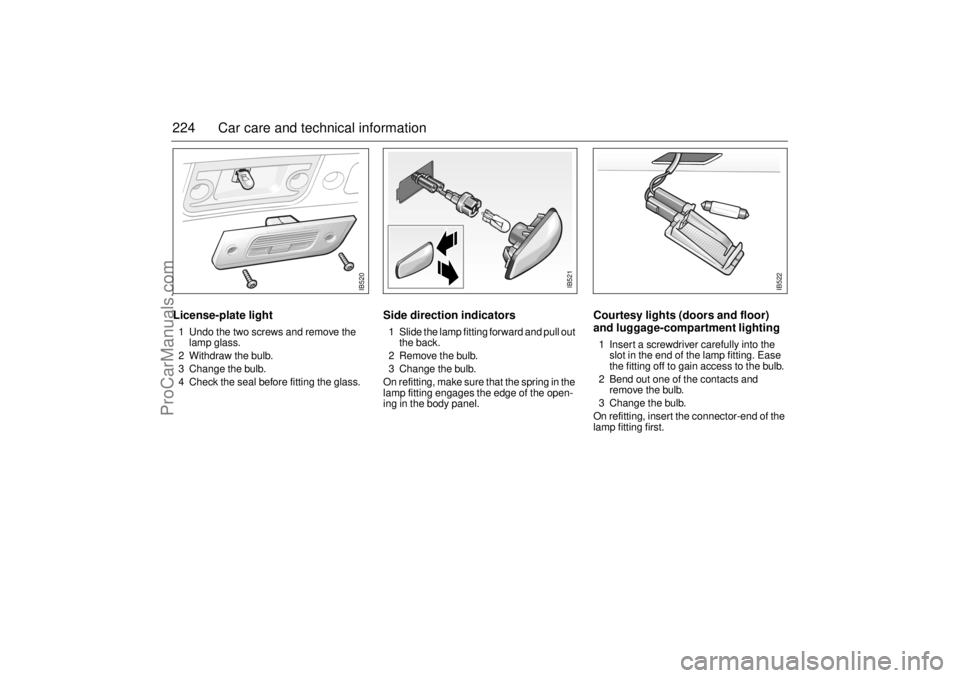

224 Car care and technical informationLicense-plate light 1 Undo the two screws and remove the
lamp glass.
2 Withdraw the bulb.
3 Change the bulb.
4 Check the seal before fitting the glass.
Side direction indicators 1 Slide the lamp fitting forward and pull out
the back.
2 Remove the bulb.
3 Change the bulb.
On refitting, make sure that the spring in the
lamp fitting engages the edge of the open-
ing in the body panel.
Courtesy lights (doors and floor)
and luggage-compartment lighting 1 Insert a screwdriver carefully into the
slot in the end of the lamp fitting. Ease
the fitting off to gain access to the bulb.
2 Bend out one of the contacts and
remove the bulb.
3 Change the bulb.
On refitting, insert the connector-end of the
lamp fitting first.
IB521
IB522
IB520
ProCarManuals.com

225 Car care and technical information

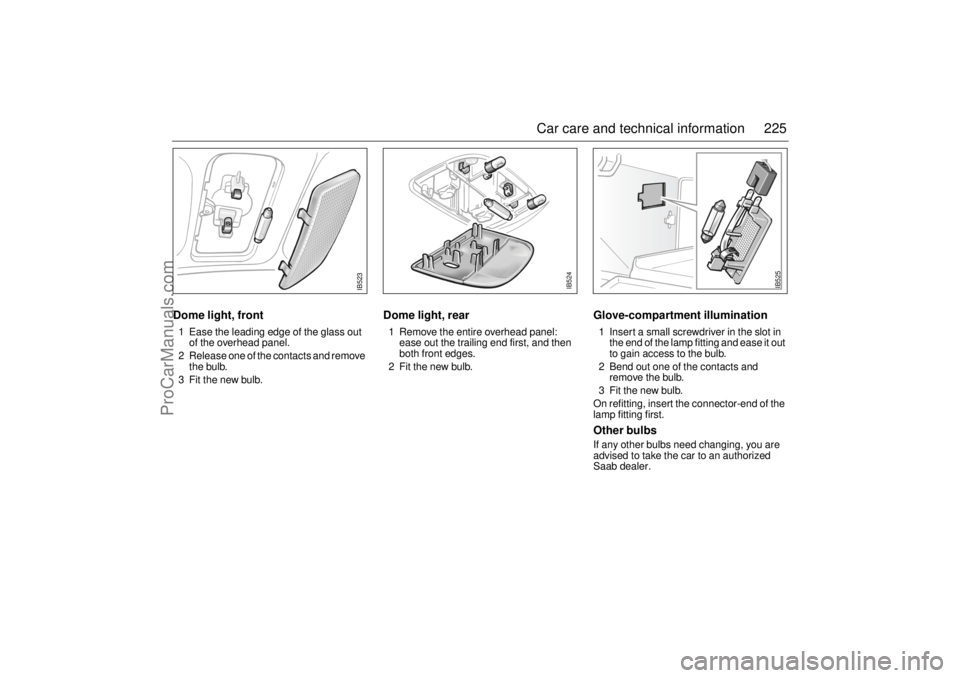

Dome light, front1 Ease the leading edge of the glass out
of the overhead panel.
2 Release one of the contacts and remove
the bulb.
3 Fit the new bulb.
Dome light, rear1 Remove the entire overhead panel:
ease out the trailing end first, and then
both front edges.
2 Fit the new bulb.
Glove-compartment illumination1 Insert a small screwdriver in the slot in
the end of the lamp fitting and ease it out
to gain access to the bulb.
2 Bend out one of the contacts and
remove the bulb.
3 Fit the new bulb.
On refitting, insert the connector-end of the
lamp fitting first.Other bulbs If any other bulbs need changing, you are
advised to take the car to an authorized
Saab dealer.
IB524
IB525
IB523
ProCarManuals.com

226 Car care and technical information

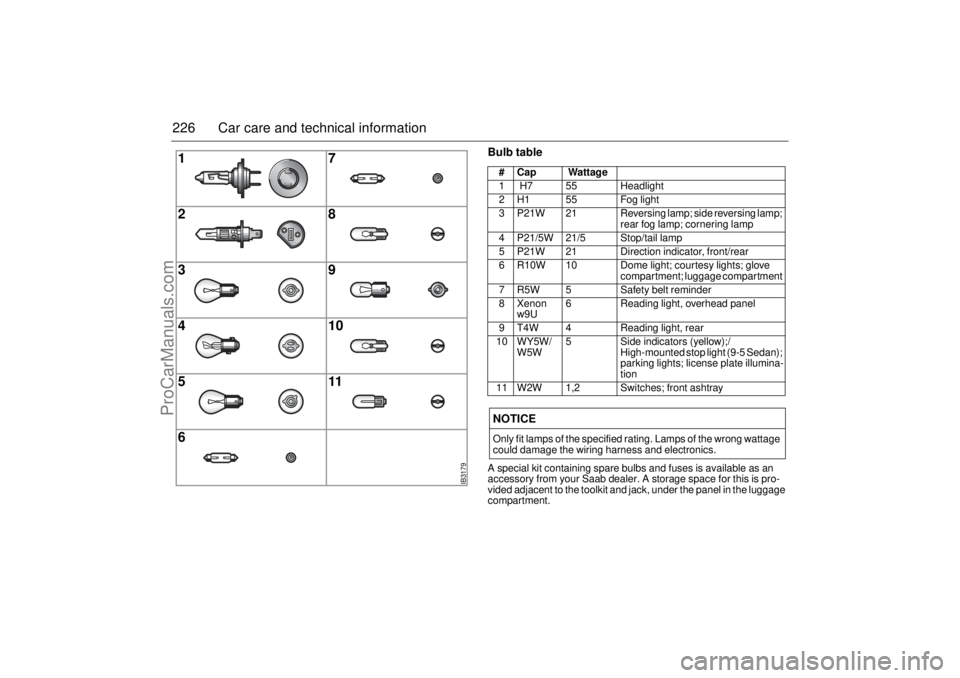

Bulb tableA special kit containing spare bulbs and fuses is available as an
accessory from your Saab dealer. A storage space for this is pro-
vided adjacent to the toolkit and jack, under the panel in the luggage
compartment.# Cap Wattage
1 H7 55 Headlight
2 H1 55 Fog light
3 P21W 21 Reversing lamp; side reversing lamp;
rear fog lamp; cornering lamp
4 P21/5W 21/5 Stop/tail lamp
5 P21W 21 Direction indicator, front/rear
6 R10W 10 Dome light; courtesy lights; glove
compartment; luggage compartment
7 R5W 5 Safety belt reminder
8 Xenon
w9U6 Reading light, overhead panel
9 T4W 4 Reading light, rear
10 WY5W/
W5W5 Side indicators (yellow);/
High-mounted stop light (9-5 Sedan);
parking lights; license plate illumina-
tion
11 W2W 1,2 Switches; front ashtray NOTICEOnly fit lamps of the specified rating. Lamps of the wrong wattage
could damage the wiring harness and electronics.
123456
7891011
IB3179
ProCarManuals.com

227 Car care and technical information
Fuses
The fuses are housed in two fuse panels:
one at the end of the instrument panel on the
driver’s side, and one under the hood.
To check if a fuse has blown, first remove it
from the panel (see below). If the filament is
broken, the fuse has blown.
A special tool for removing fuses is provided
at the bottom of the fuse panel. Simply push
the tool onto the fuse, squeeze and remove
the fuse.
WARNING
To avoid the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following advice should be heeded:
 Always consult an authorized Saab
dealer before modifying or adding any
electrical equipment. Failure to do so
can result in the electrical system
being damaged.
 Never replace a fuse with one having
a higher/lower rating than specified
(see page 229). The color of the fuse
indicates its amperage.
 If the same fuse blows repeatedly,
have the electrical system checked by
an authorized Saab dealer.
 If a MAXI fuse blows, it means that
there is a major fault in the electrical
system. Have the car checked by an
authorized Saab dealer.
IB527
Fuse panel in instrument panel
IB1794
Fuse box under the hood
IB144
Sound fuse / Blown fuse
ProCarManuals.com

228 Car care and technical informationMaxi fusesThe Maxi fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The Maxi fuses are designed to protect the
car’s electrical system from being dam-
aged. Each Maxi fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare Maxi fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules that monitor and control a variety
of functions, including:
DICE controls (among other things):
 Front lights and interior lighting
 Instrument illumination
 Intermittent wiper operation
 Electric heating of rear window and door
mirrors
 Cooling fans
TWICE controls (among other things):
 Central locking.
 Car alarm (Anti-theft system)
 Engine immobilizer
 Autochecking of lights.
 Electric heating of rear seat
 Safety belt reminder
 Electrically adjustable passenger seatThe DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which facilitates fault
diagnosis at the Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
drivers side.
NOTICEIf a Maxi fuse blows, it means that there is
a major fault in the electrical system.
Have the car checked without delay by an
authorized Saab dealer.
IB1795
Maxi fuses under the hood
ProCarManuals.com

229 Car care and technical information
Fuse panel in instrument panel
# Amp Function
A 30 Trailer lights
B 10 Automatic transmission
C 7.5 Electric door mirrors; DICE: manual beam length
adjustment
115Brake lights
2 15 Reversing lights
3 10 Parking lights, left
4 10 Parking lights, right
5 7.5 DICE / TWICE
6 30 Electric windows, right; trailer charging
6B 7.5 Brake lights, trailer
7 10 Engine injectors
8 15 Trunk lighting; trunk lock; door lighting, circulation
pump; parking assistant; SID
9 15 Audio System; CD changer
10 15 Heating, rear seat; sunroof, remote control receiver
11 30 Electrically adjusted passenger seat
12 7.5 Automatic transmission
13 20 Audio System, amplifier
14 30 Ignition system, engine
15 20 Fuel pump
16 20 DICE (direction indicators)
16B – –
17 20 Engine-management system; main instrument;
DICE/TWICE
18 40 Door-mirror heating; rear-window heating
19 10 OnStar; Telematics
20 15 ACC; interior lighting; rear fog light; high beam flasher
21 10 Audio System; rear-view mirror; load angle sensor
(cars with xenon); navigation (accessory); Cruise
Control
22 40 Interior fan
23 15 Central locking; navigation (accessory); door mirror
memory
24 40 Air pump (3.0t V6 only)
25 30 Electrically adjustable driver’s seat; fuel-filler flap
26 7,5 Driver seat memory; mirrors memory; sunroof; park-
ing assistant; seatbelt reminder
IB2439
BC123456 A
14
121110987
13
6B
1516
2324
222120191817
16B25262728293031
3635343332
393837
ProCarManuals.com

230 Car care and technical informationRelay panel under instrument panel Relay panel under instrument panel (cont.)27 10 Engine-management system; SID; main instrument
28 7.5 Airbag
29 7.5 ABS/TCS/ESP
30 7.5 Starter motor
31 7.5 Cruise control; water valve; fog lights, front; rain sen-
sor
32 15 Ventilated front seats
33 7.5 Direction-indicator switch
34 30 Cigarette lighter (front/rear)
35 15 Daytime running light
36 30 Electric windows, left
37 30 Windshield wipers
38 30 Electric heating, front seats
39 20 Limp-home solenoid (automatic transmission);
OnStar; telematics
# Function
A –
B Electric heating of rear seat
C1 –
C2 –
D –
E Main relay (engine management system)
F Fuel filler flap
G Fuel pump
H Ignition switch
I Rear-window / door mirrors heating
J–
KStarter relay
L1 Limp-home function
L2 Bootlid
IB1796
A
BC1
C2
L2 L1 D
GE
F
H
I
K J
