SAAB 9-5 2005 Owners Manual

259 Specifications
Suspension
Steering Brake system Spring type, front and rear ___________ Coil springs
Maximum deflection of springs:
Front __________________________ 7.09 in (180 mm)
Rear ___________________________ 7.87 in (200 mm)
Dampers, front and rear _____________ Gas-filled dampers
Steering _________________________ Power-assisted ste-
ering of
rack-and-pinion
type; telescopic ste-
ering-column shaft
with universal joints
Number of turns, lock to lock __________ 2.9
Power-steering fluid ________________ Power-steering fluid
CHF 11S Footbrake (ABS) ____________________ Hydraulic, dual-
circuit brake sys-
tem. Diagonally
split circuit with vac-
uum servo unit.
Disc brakes front
and rear. EBD, see
page 152.
Handbrake ________________________ Acts on rear wheels
Brake fluid _________________________ DOT 4
Brake-fluid capacity _________________ 0.951 qts (900 ml)
Disc diameter:
Front, ventilated ___________________ 11.34 in (288 mm)
Front, ventilated, certain variants * _____ 12.05 in (306 mm)
Rear, solid _______________________ 11.26 in (286 mm)
Rear, ventilated, certain variants * _____ 11.81 in (300 mm)
* 15” wheel must not be used on these
variants.
Total friction area of brake pads:
Front ___________________________ 36.3 in
2 (234 cm
2)
Rear ___________________________ 15.5 in
2 (100 cm
2)
ProCarManuals.com

260 SpecificationsWheels and tires(recommended dimensions)

2.3t 2.3T 2.3 Turbo
All season tires215/55 R16 93 H X X X
225/45 R17 94 V XL/RF X X XSummer tires225/45 R17 94 W XL/RF X X XWinter tires205/65 R15 94 Q X X –
215/55 R16 93 Q X X X
225/45 R17 94 Q XL/RF X X XWheel sizes6 x 15” X X –
6,5 x 16” X X X
7 x 17” X X X15" wheels must not be fitted to the 2.3 Turbo since the size of the brake
discs prohibits this.
Speed ratings and load indexes, see page 225.Always
contact an authorized Saab dealer if you wish to fit other wheels
or tires than those fitted as standard.
Compact spare:Wheel ___________________________ 4 x 16”
Tire _____________________________ T115/70 R16
Pressure_________________________ 60 psi (420 kPa)
Maximum life _____________________ 2,200 miles
(3500 km)
Maximum speed __________________ 50 mph (80 km/h)NOTICESnow chains:Snow chains must
not
be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires6 x 15” ________ 205/65 R15 or
205/65 R15 M+S
6.5 x 16”_______ 215/55 R16 or
215/55 R16 M+S
Snow chains must not be fitted to 17" wheels.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Contact an authorized Saab dealer for advice on snow chains.NOTICEWheels larger than 17” must not be fitted.
Wheel offset must be 49 mm.
Vehicles with 12.05” in (306 mm) front brake discs must not use
15” rims.
ProCarManuals.com

261 Specifications
Lowest recommended tire pressure, cold tiresTire size Load/speed
mph (km/h)
1)
Fr o nt
kPa/psiRear
kPa/psi
All season tires215/55 R16 93 H 1–3 pers./0–100 (0–160) 240/35 220/32
4–5 pers./0–100 (0–160) 240/35 220/32
1–5 pers./100– (160–) 290/42 270/39
225/45 R17 94 V
XL/RF1–3 pers./0–100 (0–160) 250/36 240/35
4–5 pers./0–100 (0–160) 250/36 240/35
1–5 pers./100– (160–) 300/43 290/42Summer tire225/45 R17 94 W
XL/RF1–3 pers./0–120 (0–190) 250/36 240/35
4–5 pers./0–120 (0–190) 250/36 240/35
1–5 pers./120– (190–) 300/43 290/42
Tire size Load/speed
mph (km/h)
1)
Front
kPa/psiRear
kPa/psi
Winter tires205/65 R15 94 Q
Winter tire
for 2.3t1–3 pers./0–100 (0–160) 240/35 240/35
4–5 pers./0–100 (0–160) 260/38 260/38
215/55 R16 93 Q
Winter tire.
All variants.1–3 pers./0–100 (0–160) 240/35 240/35
4–5 pers./0–100 (0–160) 260/38 260/38
225/45 R17 94 Q
XL/RF
Winter tire.
All variants.1–3 pers./0–100 (0–160) 250/36 250/36
4–5 pers./0–100 (0–160) 270/39 270/39Compact spareT115/70 R16
Spare wheelMax 50 (80) 420/60 420/601) Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the surrounding
air temperature.
The values for tire pressure in the table above are for tires at 68°F (20°C).
The tire pressure will increase as the tires become warm (e.g. during motor-
way driving), and decrease as they cool.
When the temperature of the tires increase or decrease by 10 degrees the
tire pressure will correspondingly increase or decrease by 10 kPa/2 psi
(0.1 bar).
ProCarManuals.com

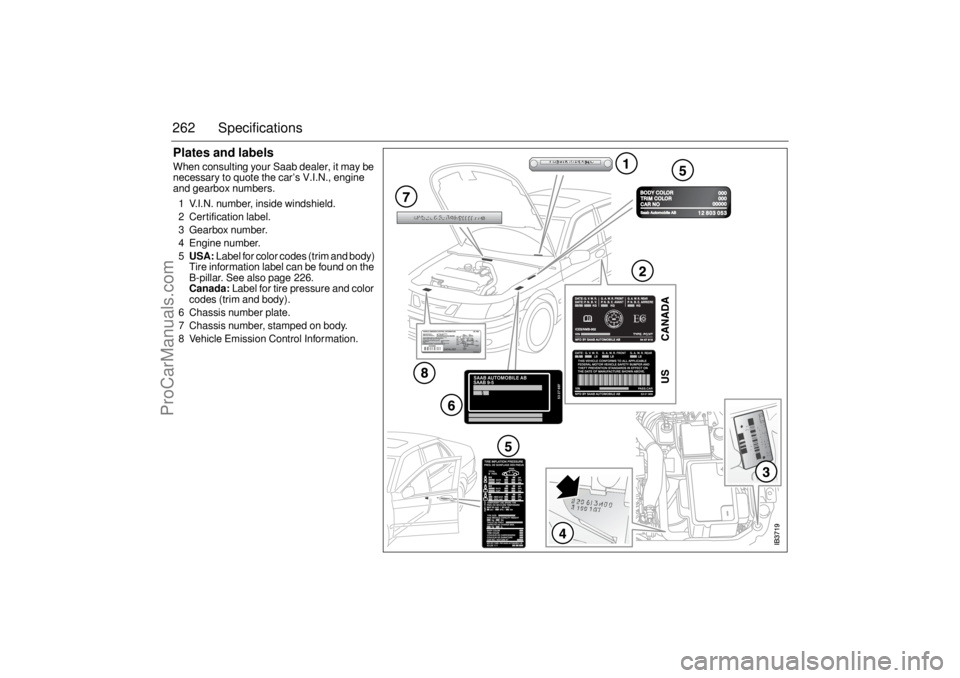

262 SpecificationsPlates and labels When consulting your Saab dealer, it may be
necessary to quote the car’s V.I.N., engine
and gearbox numbers.
1 V.I.N. number, inside windshield.
2 Certification label.
3 Gearbox number.
4 Engine number.
5
USA:
Label for color codes (trim and body)
Tire information label can be found on the
B-pillar. See also page 226.
Canada:
Label for tire pressure and color
codes (trim and body).
6 Chassis number plate.
7 Chassis number, stamped on body.
8 Vehicle Emission Control Information.
ProCarManuals.com

263 Specifications
1 Region ___________
Y = Northern Europe
2 Country __________
S = Sweden
3 Manufacturer _____
3 = Saab Automobile AB
4 Product line ______
E = 9-5
5 Model series ______
B = 9-5 Linear with driver’s and
passenger-side airbags
D = 9-5 Arc with driver’s and
passenger-side airbags
H = 9-5 Aero with driver’s and
passenger-side airbags
6 Body version _____
4 =
5 =4-door
5-door
7 Gearbox __________
5 = Manual 5-speed
9 = Automatic 5-speed
8 Engine variant _____
A =
E =
G =2.3T
2.3t
2.3 Turbo
9 Check digit ________
0–9/X
10 Model year ________
5 = 2005
11 Factory ___________
3 = Trollhättan
12 Serial number ______
000001–999999 position:1234567891011 12
||||||||||| |
V.I.N.:
Y S 3 E H 4 9 G 6 5 3 045842
| | ||||1 2 3456
= identification codes for certain chassis details
ProCarManuals.com

264 SpecificationsSeveral of the systems in your
Saab car can be adjusted to
better fit your individual needsSome functions are governed by legal
requirements and cannot therefore be
reprogrammed.
Consult an authorized Saab dealer for
further information.Car alarm/central locking system: The number of blinks when locking/
unlocking.
 Automatic locking of the trunk when the
car is driven, 1 to 8 mph (2–14 km/h), YES
or NO.
 Preclude the unlocking of the trunk while
the car is driven, YES or NO.
 Automatic locking of the trunk after
1 second–4 minutes if it has not been
opened, YES or NO.
 Automatic locking of the trunk when it is
closed, YES or NO.
 Automatic locking of all doors when the
car is driven above 7.5 mph (12 km/h),
YES or NO.
Saab Information Display: Outdoor temperature display can be
adjusted.Miscellaneous: Select the on-time for heated rear seat.
 Additional sweep of the wipers after
windshield washer function (ON or OFF).
 Courtesy Headlight Feature on-time can
vary from 20 to 50 seconds.
 Night panel illumination deactivation
speed for the speedometer can be adjus-
ted.
Following adjustments can be
done by the driver:Automatic Climate Control (ACC):To alter the preprogrammed ”AUTO” start
up mode with your own preferences you can
manually select the desired settings for:
 Temperature.
 Fan speed.
Air distribution.
See ”Programming I” on page 79 and ”Pro-
gramming II” on page 80.Saab 9-5 Audio System (see page 99): Maximum starting volume (when the
radio is switched on).
 Telephone volume (if the car is equipped
with a phone connected to the audio
system).
 Speed dependent volume (volume
increases or decreases with vehicle
speed).
 Loudness.Daytime Running Lights:To disable, turn off the ignition and pull out
fuse 35, see page 214.
ProCarManuals.com

265 Index
IndexAA/C system, fault diagnosis
_______ 235
A/C system, maintenance
_________ 234
ABS brakes
____________________ 152
ACC
__________________________ 73
ACC functions
___________________ 76
ACC, automatic climate control
_____ 73
ACC, calibration
_________________ 81
ACC, condensation _______________ 82
ACC, programming _______________ 79
ACC, useful tips
_________________ 81
Adjusting the steering wheel
_______ 106
Adjustment, seats
________________ 12
Air conditioning (A/C), fault diagnosis
and maintenance ______________ 234
Air distribution, ACC ______________ 78
Airbag
_________________________ 28
Alarm _________________________ 44
Alarm functions
__________________ 47
Alarm signals
________________ 44
, 47
Alternator
_____________________ 194
Alternator drive belt
__________ 194
, 257
Alternator rating
________________ 257
Anticorrosion treatment
___________ 240
Antidazzle rear-view mirror
________ 111
Ashtrays
______________________ 117
Audio System
___________________ 83Audio System, quick guide
_________ 85
Autochecking of lights on starting
____ 58
Auto-dimming rear-view mirror with
garage door opener
____________ 108
Automatic climate control (ACC)
_____ 73
Automatic transmission, technical
data
_________________________ 258
Aviod theft, tip
__________________ 179
BBattery
________________________ 192
Battery charging/replacing
________ 193
Battery, boost starting
____________ 174
Before a long journey ____________ 241
Before towing a camper or trailer
___ 164
Belt guide
______________________ 16
Boost starting using jump leads
____ 174
Brake and clutch fluid
____________ 189
Brake-fluid reservoir
_____________ 189
Brakes, technical data ____________ 259
Bulbs, changing
________________ 197
Bulbs, table of
__________________ 210
Buying new tires ________________ 219
CCD changer
_____________________ 95
CD player
______________________ 93CHECK messages
_______________ 64
CHECKING
_____________________ 64
Calibration, ACC
_________________ 81
Cancelling the programmed settings
__ 79
Car alarm
_______________________ 44
Car care _______________________ 181
Cargo net, 9-5 SportWagon
_______ 128
Carpeting, care of
_______________ 236
Cassette player
__________________ 90
Catalytic converter, important
considerations _________________ 137
Central locking ___________________ 38
Change language in SID
___________ 66
Change of address notification
_____ 248
Changing a wheel
_______________ 231
Changing bulbs
_________________ 197
Changing wiper blades
___________ 195
Charger/Jump starting ____________ 176
Charging the battery/Jump starting
__ 176
Chassis number
________________ 262
Chassis number, key to
___________ 263
Checks before towing a camper or
trailer
________________________ 164
Child safety
_____________________ 21
Child safety locks, rear doors
_______ 41
Cleaning, engine bay
_____________ 238
Clock
_______________________ 65
, 66
Color code, body
________________ 262
Color code, trim _________________ 262
Compact spare wheel
____________ 230
Compass
______________________ 112
Condensation, ACC
_______________ 82
ProCarManuals.com

266 IndexCoolant
_______________________ 188
Courtesy Headlight Feature
________ 68
Crash memory, see EDR
_________ 249
Cruise control
__________________ 151
Cup holder
____________________ 120
DDICE/TWICE
___________________ 212
Dampers
______________________ 259
Date code, tires
_________________ 229
Definitions and terminology, tire
____ 226
Determining correct load, tires
_____ 228
Dim-dipped beam
________________ 67
Direction indicators _______________ 69
Door handles
___________________ 38
Door mirrors
___________________ 107
Doors, locks & luggage compartment
_37
Drive belt
______________________ 257
Drive belt, alternator
_____________ 194
Drive belts, length
_______________ 257
Driver’s seat, programmable
________ 14
Driving at night
_________________ 168
Driving in hot weather
____________ 160
Driving with a load
______________ 168
EEDR (Event Data Recorders)
______ 249
ESP
__________________________ 155
Electric heating seat
______________ 15
Electric heating, front seats
_________ 15
Electric windows
________________ 113
Electrical system, technical data
____ 257
Electronic Stability Program, ESP ___ 155
Electronic starting interlock
_________ 43
Emergency operation of sunroof
____ 115
Emission control systems
_________ 184
Engine bay
____________________ 183
Engine bay, cleaning
_____________ 238
Engine number
_________________ 262
Engine oil, grade ________________ 255
Engine, description ______________ 186
Engine, technical data ____________ 254
Engine, temperature gauge
________ 59
Engine-oil level, checking
_________ 186
Event Data Recorders (EDR) ______ 249
Expansion tank, coolant
__________ 188
FFault codes, Audio System
________ 104
Flat spots, tires
_________________ 218
Fluid level, automatic transmission
__ 188
Folding the rear seat, 9-5 Sedan
___ 121
Folding the rear seat,
9-5 SportWagon
_______________ 124Frequently asked questions on airbag

35
Front fog lights
___________________ 70
Frost warning ____________________ 62
Fuel
__________________________ 138
Fuel consumption
________________ 61
Fuel gauge
_____________________ 59
Fuel grade _____________________ 254
Fuse box under hood
____________ 215
Fuse panel
_____________________ 211
Fuses
_________________________ 211
GGarage door opener
_____________ 108
Gearbox number
________________ 262
Gearbox oil, checking
____________ 188
Gearbox, technical data, __________ 258
Glove compartment
______________ 118
HHandbrake
_____________________ 179
Hazard warning lights
_____________ 70
Head restraint
___________________ 15
Headlight flasher _________________ 67
Headlights
______________________ 67
Hood
_________________________ 182
Horn __________________________ 106
ProCarManuals.com

267 Index
IIf a tire goes flat
________________ 223
Ignition switch
__________________ 132
Immobilizer
_____________________ 43
Indicator and warning lights
________ 52
Indicator lights
___________________ 52
Instrument illumination
____________ 69
Instruments and controls __________ 51
Interior equipment
_______________ 105
Interior lighting
_________________ 116
Interior rearview mirror
___________ 107
JJack
_________________________ 232
KKey
___________________________ 38
Key to chassis number
___________ 263
Key, remove
___________________ 132
LLATCH (child safety)
______________ 22
Labeling, tire sidewall ____________ 224
Labels
__________________________ 7Leather upholstery, care of
________ 236
Light horn
______________________ 67
Light switches ___________________ 67
Loading your vehicle
_____________ 226
Luggage-compartment lighting
_____ 116
MMain instrument panel
_____________ 52
Main/dipped beam
_______________ 67
Maintenance schedule ___________ 246
Maintenance, A/C-system _________ 234
Manual gearbox, technical data
____ 258
Maxi fuses
_____________________ 212
Milometer ______________________ 58
Motoring abroad
________________ 241
NNew tires, buying
_______________ 219
Night Panel
_____________________ 65
OOil capacity, engine
______________ 254
Oil change, engine ______________ 187
Oil specification
_________________ 254
Outdoor temperature
______________ 61
Owner assistance
_______________ 247
PPaintwork, touching-in
____________ 238
Parking Assistance
______________ 177
Parking lights
____________________ 67
Plates and labels
________________ 262
Poly-V-belt
_____________________ 194
Power steering
_________________ 191
Power-steering fluid
______________ 191
Pressure gauge
__________________ 60
Programming I, ACC
______________ 79
Programming II, ACC _____________ 80
Programming the ACC ____________ 79
QQuality grading, tires
_____________ 221
Questions on function of airbag
______ 35
Quick guide, Audio System
_________ 85
RRadiator fan
____________________ 194
Radio
__________________________ 88
Rain sensor
_____________________ 71
Rear fog light ____________________ 68
Rear seat, 9-5 Sedan, folding
______ 121
Rear seat, 9-5 SportWagon, folding
_ 124
Rear-seat head restraints
__________ 16
Rear-view mirror, auto-dimming
____ 111
ProCarManuals.com

268 IndexRearview mirrors
________________ 107
Reclamation
___________________ 242
Recommendations for cars with
automatic transmission, towing a
camper or trailer
_______________ 162
Refuelling
_____________________ 138
Relay panel ____________________ 214
Remote control __________________ 38
Remote-control battery, changing
____ 41
Remove the key
________________ 132
Replacement, wheel _____________ 222
Reporting safety defects
__________ 248
Reprogramming of systems _______ 264
Reservoir, power-steering fluid _____ 191
Rev counter
____________________ 58
Reversing lights _________________ 70
Roof load
_____________________ 166
Running-in ____________________ 157
SSDM
_________________________ 249
SID
___________________________ 61
Saab 9-5 Audio System
___________ 83
Saab Information Display (SID)
_____ 61
Saab Parking Assistance
_________ 177
Safety belts
_____________________ 16
Safety belts, care of
_____________ 235
Safety-belt pretensioners
__________ 16
Safety-belt reminder
______________ 16
Seats
__________________________ 12Securing a load
__________________ 42
Selector lever indication, automatic
transmission
___________________ 61
Sentronic, manual mode
__________ 148
Service costs
___________________ 247
Service information
______________ 248
Service intervals
________________ 246
Service record retention
__________ 247
Settings, seats
__________________ 12
Side airbags
____________________ 32
Signalling, horn _________________ 106
Sliding floor, 9-5 SportWagon
______ 129
Snow chains
___________________ 159
Spare wheel ___________________ 230
Spare wheel and tools
___________ 170
Spark plugs
____________________ 257
Speedometer ________________ 58
, 59
Starting in cold weather, ACC
_______ 79
Starting in hot weather, ACC _______ 79
Steering wheel adjustment
________ 106
Steering, technical data
__________ 259
Steps for determining correct load
limit
_________________________ 228
Stone-chip damage, repairing
______ 238
Storage compartments
___________ 118
Sun visors
_____________________ 117
Sunroof
_______________________ 114
Suspension ____________________ 259
Suspension, technical data
________ 259
Switches
_______________________ 67
Symboler ________________________ 9
Systems, adjustment
_____________ 264
TTCS OFF
_______________________ 57
Table of fuses
__________________ 213
Tachometer
_____________________ 58
Tailgate, opening
_________________ 42
Tank gauge
_____________________ 59
Technical data __________________ 251
Temperature control, ACC
_________ 75
Temperature gauge, engine ________ 59
Temperature zones, ACC
__________ 75
Textile carpeting
________________ 236
Through-load hatch ______________ 123
Tie Downs
_____________________ 123
Tightening torque, wheel studs
_____ 231
Tip, driving at night
______________ 168
Tip, to avoid theft
________________ 179
Tire chains
_____________________ 223
Tire date code __________________ 229
Tire inspection and rotation
________ 218
Tire markings
___________________ 225
Tire pressure ___________________ 169
Tire sidewall labeling
_____________ 224
Tire terminology and definitions
____ 226
Tire, compact spare
______________ 230
Tires
_____________________ 217
, 260
Tires, winter
____________________ 260
Tools
_________________________ 170
Touching-in the paintwork
_________ 238
Towbar attachment
______________ 161
Towbar load
____________________ 165
Towing the car __________________ 171
ProCarManuals.com
