SAAB 9-7X 2007 Owners Manual

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL will activate when the following
conditions are met:
The ignition is on.
The exterior lamps knob is in automatic
headlamp mode.
The light sensor detects daytime light.
The transmission is not in PARK (P).
When DRL are on, either your turn signal lamps or
headlamps will be on. If your vehicle is equipped
with the High Intensity Discharge (HID) lighting
system option, the DRL system will turn on your
turn signal lamps. If your vehicle is not equipped
with HID, the DRL system will turn on yourheadlamps at reduced brightness. The taillamps,
sidemarker and other lamps won’t be on. The
instrument panel won’t be lit up either.
When it begins to get dark, the headlamps will
automatically switch from DRL to the regular
headlamps.
Automatic Headlamp System
When it is dark enough outside, the Automatic
Headlamp System turns on the headlamps when
the vehicle is started and after the transaxle
has been shifted out of the PARK (P) position.
The headlamps, taillamps, sidemarker, and parking
lamps will come on. The instrument panel lights
and radio lights will also turn on at normal
brightness. Once on, the system remains on
during these conditions even if the vehicle
is shifted back into PARK (P).
The vehicle has a light sensor on the top of the
instrument panel. Make sure it is not covered
or the system may come on whenever the
ignition is on and the vehicle is shifted out of the
PARK (P) position.
The system could also turn on the lamps when
driving through a parking garage, heavy overcast
weather or a tunnel. This is normal.
161
ProCarManuals.com

There is a delay in the transition between the
daytime and nighttime operation of the Daytime
Running Lamps (DRL) and the automatic headlamp
systems, so that driving under bridges or bright
overhead street lights does not affect the system.
The DRL and automatic headlamp system are only
affected when the light sensor sees a change in
lighting lasting longer than the delay.
If you start your vehicle in a dark garage, the
automatic headlamp system comes on after the
transmission is shifted out of PARK (P). Once you
leave the garage, it will take about one minute
for the automatic headlamp system to change to
DRL if it is light outside. During that delay, the
instrument panel cluster might not be as bright as
usual. Make sure the instrument panel brightness
control is in the full bright position.
If the vehicle is running and the automatic
headlamp system is already on, it can be turned
off by turning and releasing the headlamp
control at the off position. The automatic headlamp
system stays off until you turn and release the
headlamp control at the off position again.
SeeHeadlamps on page 160.Fog Lamps
The fog lamp control is located on the turn
signal/multifunction lever.
Use the fog lamps for better vision in foggy or
misty conditions.
-:The band with this symbol is used to turn the
fog lamps on and off.
When the fog lamps are turned on, the parking
lamps also turn on. A message will also display on
the DIC when the fog lamps are turned on or off.
SeeDriver Information Center (DIC) on page 194.
To turn the fog lamps on or off, turn the fog
lamp band on the lever up to the dot and
release it. The band will return to its original
position.
If you turn on the high-beam headlamps, the
fog lamps will turn off. They will turn back on
again when you switch back to low-beam
headlamps.
When the Fog Lamps are turned on or off, a
message will appear on the Driver Information
Center. SeeDIC Warnings and Messages
on page 199.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
162
ProCarManuals.com

Instrument Panel Brightness
Turn the knob to adjust
the instrument panel
lights. Turn the
knob clockwise or
counterclockwise to
brighten or dim
the interior lamps.
Dome Lamps
The dome lamps will automatically come on when
you open a door, unless the dome lamp override
button is pressed in.
You can also turn on the dome lamps by turning the
instrument panel brightness control all the way
clockwise to the detent position. In this position, the
dome lamps will remain on until they are turned off.
Dome Lamp Override
The dome override
button is located to the
left of the steering
column on the
instrument panel.
To turn the dome lamps off, press the button.
The dome lamps will remain off when a door is
open. This will override the illuminated entry
feature unless you use your remote keyless entry
transmitter to unlock the vehicle.
To return the lamps to automatic operation, press
the button again. The dome lamps will come
on when you open any door.
163
ProCarManuals.com

Entry Lighting
The vehicle has entry lighting.
When any door is opened, the dome lamps come
on as long as the dome override lamp override
button is not pressed in. When all the doors
are closed, the lamps stay on for a short period of
time and then turn off automatically. If you use
the Remote Keyless Entry (RKE) transmitter
to unlock the vehicle, the interior lamps come on
for a short time whether or not the dome lamp
override is on.
Exit Lighting
With exit lighting, the interior lamps will come on
when you remove the key from the ignition. If
the dome override is off, these lights will stay on
for a short period of time and then will go out.
Reading Lamps
Press the indented part of the lenses on the
reading lamps located in the overhead console to
turn them on or off.
Electric Power Management
The vehicle has Electric Power Management (EPM)
that estimates the battery’s temperature and state
of charge. It then adjusts the voltage for best
performance and extended life of the battery.
When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage or voltage
display on the Driver Information Center (DIC), you
may see the voltage move up or down. This is
normal. If there is a problem, an alert will be
displayed.
The battery can be discharged at idle if the
electrical loads are very high. This is true for all
vehicles. This is because the generator (alternator)
may not be spinning fast enough at idle to
produce all the power that is needed for very high
electrical loads.
164
ProCarManuals.com

A high electrical load occurs when several of the
following loads are on: headlamps, high beams,
fog lamps, rear window defogger, climate
control fan at high speed, heated seats, engine
cooling fans, trailer loads, and loads plugged into
accessory power outlets.
EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s
output and the vehicle’s electrical needs. It
can increase engine idle speed to generate more
power, whenever needed. It can temporarily
reduce the power demands of some accessories.
Normally, these actions occur in steps or levels,
without being noticeable. In rare cases at the
highest levels of corrective action, this action may
be noticeable to the driver. If so, a Driver
Information Center (DIC) message might be
displayed, such as Battery Saver Active or Service
Battery Charging System. If this message is
displayed, it is recommended that the driver
reduce the electrical loads as much as possible.
SeeDIC Warnings and Messages on page 199.Battery Run-Down Protection
This feature shuts off the dome, courtesy, and
vanity lamps if they are left on for more than
20 minutes when the ignition is off. This will keep
the battery from running down.
If the battery run-down protection shuts off the
interior lamps, it may be necessary to do one of
the following to return to normal operation:
Shut off all lamps and close all doors.
Turn the ignition key to RUN.
This feature will also turn off the parking lamps
and headlamps under most circumstances, if they
are left on. If you would like to turn them back
on, turn the exterior lamps knob.
165
ProCarManuals.com

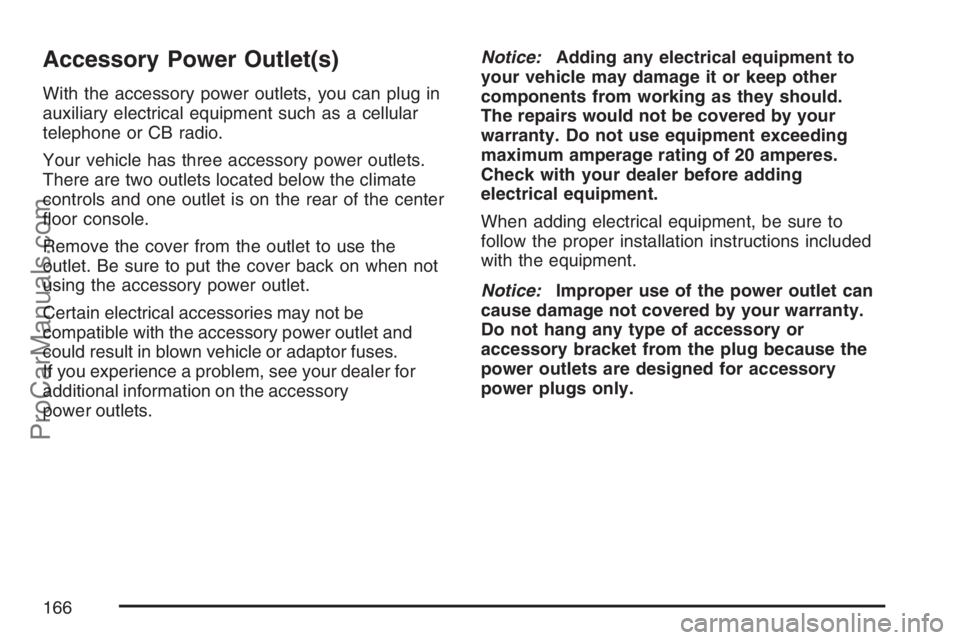

Accessory Power Outlet(s)
With the accessory power outlets, you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
Your vehicle has three accessory power outlets.
There are two outlets located below the climate
controls and one outlet is on the rear of the center
oor console.
Remove the cover from the outlet to use the
outlet. Be sure to put the cover back on when not
using the accessory power outlet.
Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adaptor fuses.
If you experience a problem, see your dealer for
additional information on the accessory
power outlets.Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
166
ProCarManuals.com

Climate Controls
Dual Automatic Climate Control
System
With this system you can control the heating,
cooling and ventilation for your vehicle. When your
vehicle is rst started and the climate control
system is on, or if the climate control system has
been turned on, the display will show the
driver’s temperature setting for ve seconds.
Then it will show the outside temperature.
9(Off):Press this button to turn off the entire
climate control system. Outside air will still
enter the vehicle, and will be directed to the oor.
Press the AUTO button, the mode button, the
fan arrows, or either temperature knob to turn the
system on.
C(Mode):Press this button to manually select
the air delivery mode to the oor, instrument panel,
or windshield outlets. The system will stay in the
selected mode until the mode button is pressed
again or the AUTO button is pressed.
Driver’s Side Temperature Knob:Turn this knob
clockwise or counterclockwise to raise or lower
the temperature on the driver’s side of the vehicle.
The display will show the temperature setting
decreasing or increasing and an arrow pointing
toward the driver. This knob can also adjust
the passenger’s side temperature setting if the
two are linked.
167
ProCarManuals.com

Passenger’s Side Temperature Knob:Turn this
knob clockwise or counterclockwise to manually
raise or lower the temperature on the passenger’s
side of the vehicle. The display will show the
temperature setting decreasing or increasing and
an arrow pointing toward the passenger. The
passenger’s temperature setting can be set
to match and link to the driver’s temperature
setting by pressing and holding the AUTO button
for three seconds. When adjusting the driver’s
side temperature setting, the passenger’s
side temperature setting will follow and both
arrows will appear on the display. The passenger’s
side temperature setting also resets and relinks
to the driver’s side temperature setting if the
vehicle has been off for more than three hours.Outside Air Temperature Display
A new outside temperature reading will be
displayed if the vehicle has been off for more than
three hours. If the vehicle has been off for less
than three hours, the old temperature reading may
be displayed because underhood heat is
affecting the true outside temperature. Underhood
heat can also affect the outside temperature
while the engine is running. It may also take
several minutes of driving before the display
updates to the actual outside temperature.
Automatic Operation
AUTO (Automatic):When automatic operation
is active, the system will control the inside
temperature, the air delivery mode, and the
fan speed.
168
ProCarManuals.com

Use the steps below to place the entire system in
automatic mode:
1. Press the AUTO button.
When AUTO is selected, the air conditioning
operation and air outlet mode will be
automatically controlled. The air conditioning
compressor will run continuously when
the outside temperature is over approximately
40°F (4°C). The air inlet will normally be
set to outside air. If it’s hot outside, the air inlet
will automatically switch to recirculate inside
air to help quickly cool down your vehicle.
2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 72°F
(22°C) temperature setting and allow about
20 minutes for the system to adjust. Turn the
driver’s or passenger’s side temperature
knob to adjust the temperature setting as
necessary. If you choose the temperature
setting of 60°F (15°C), the system will remain
at the maximum cooling setting. If you
choose the temperature setting of 90°F (32°C),
the system will remain at the maximum heat
setting. Choosing either maximum setting may
not cause the vehicle to heat or cool any
faster.Manual Operation
To change the current setting, select one of the
following:
w9x(Fan):This button allows you to manually
adjust the fan speed. Press the up arrow to
increase fan speed and the down arrow to
decrease fan speed. The display will change to
show you the selected fan speed and the driver’s
side temperature setting for ve seconds.
C(Mode):Press this button to manually change
the direction of the airow in your vehicle. Keep
pressing the button until the desired mode appears
on the display. The display will change to show
you the selected air delivery mode and the driver’s
temperature setting for ve seconds.
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs approximately
half of the air to the instrument panel outlets, then
directs the remaining air to the oor outlets. A little
air is directed toward the windshield and the side
window outlets. Cooler air is directed to the upper
outlets and warmer air to the oor outlets.
169
ProCarManuals.com

6(Floor):This mode directs most of the air to the
oor outlets. Some air also comes out of the
defroster and side window outlets. The recirculation
button cannot be selected in oor mode.
@(Recirculation):Press this button to turn
recirculation mode on or off. When this button is
pressed, an indicator light in the button will
also come on to let you know that it is activated.
Recirculation mode is used to recirculate the
air inside of your vehicle. Use this mode to help
prevent outside odors and/or dust from entering
your vehicle or to help cool the air inside of
your vehicle more quickly. Recirculation mode can
be used with vent and bi-level modes, but it
cannot be used with oor, defog or defrost modes.
Defog and defrost modes are described later in
this section.
If recirculation mode is selected with oor,
defog, or defrost modes, the indicator will ash
three times and then turn off indicating the
selection is not available.You may also notice that the air conditioning
compressor will run while in recirculation mode.
This is normal and will help to prevent fogging.
If the weather is cold and damp, the system may
cause the windows to fog while using recirculation
mode. If the windows do start to fog, select
defog or defrost mode and increase fan speed.
Recirculation mode, if selected, will be cleared
when the engine is turned off.
#A/C (Air Conditioning):Press this button to
manually turn the air conditioning system on or off.
When the system is on, the system will
automatically begin to cool and dehumidify the air
inside of your vehicle. The air conditioning
symbol will appear on the display when the air
conditioning is on and will turn off when the
air conditioning is off.
170
ProCarManuals.com
