If you turn the air conditioning off while in front
defrost or defog mode, the air conditioning symbol
will turn off, however, the A/C compressor will
remain on to help de-humidify the air inside
the vehicle. If one of the other modes is selected
the compressor will then turn the A/C off until
it is selected again or the AUTO button is pressed.
To avoid fogging the inside glass on rainy and
humid days at a temperature above freezing, press
the air conditioning button to run the A/C
compressor. Also it is best to avoid the use of the
recirculation mode except when maximum air
conditioning performance is needed or for short
times to avoid exterior odors.
You may notice a slight change in engine
performance when the air-conditioning compressor
shuts off and turns on again. This is normal.Defogging and Defrosting
Fog on the inside of the windows is a result of
moisture condensing on the cool window glass.
This can be reduced if the climate control system
is used properly. You can use either defog or
front defrost to clear fog or frost from your
windshield.
-(Defog):Use this setting to clear the windows
of fog or moisture. This setting will deliver air
to the oor and windshield outlets.
0(Front Defrost):Press the front defrost button
to clear the windshield and side windows of
frost or fog quickly. The system will automatically
control the fan speed if you select defrost from
AUTO mode. If the outside temperature is
40°F (4°C) or warmer, your air conditioning
compressor will automatically run to help
dehumidify the air and dry the windshield. Do not
drive the vehicle until all the windows are clear.
171
ProCarManuals.com

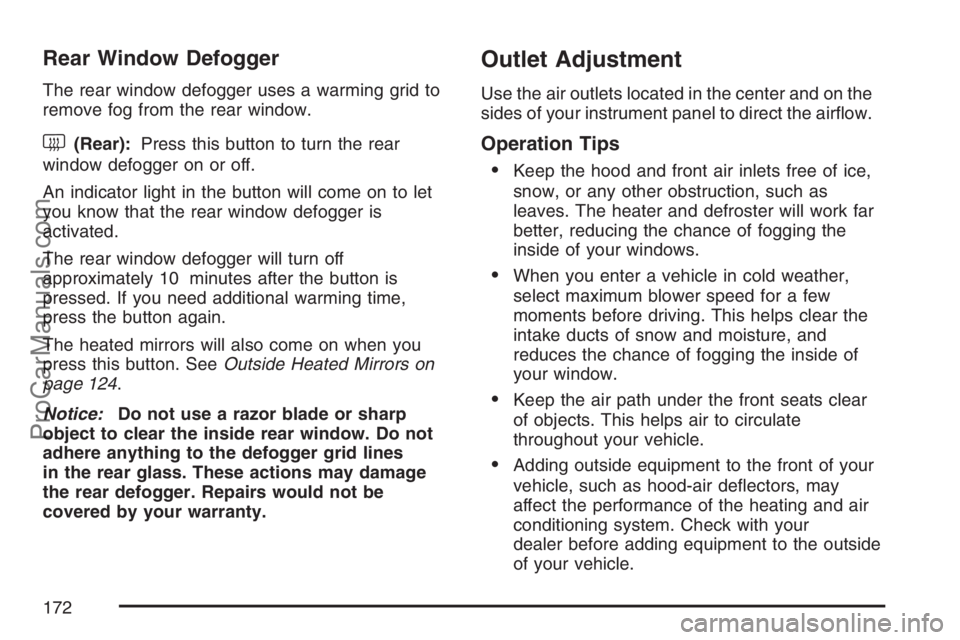

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear):Press this button to turn the rear
window defogger on or off.
An indicator light in the button will come on to let
you know that the rear window defogger is
activated.
The rear window defogger will turn off
approximately 10 minutes after the button is
pressed. If you need additional warming time,
press the button again.
The heated mirrors will also come on when you
press this button. SeeOutside Heated Mirrors on
page 124.
Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
Outlet Adjustment
Use the air outlets located in the center and on the
sides of your instrument panel to direct the airow.
Operation Tips

Keep the hood and front air inlets free of ice,
snow, or any other obstruction, such as
leaves. The heater and defroster will work far
better, reducing the chance of fogging the
inside of your windows.
When you enter a vehicle in cold weather,
select maximum blower speed for a few
moments before driving. This helps clear the
intake ducts of snow and moisture, and
reduces the chance of fogging the inside of
your window.
Keep the air path under the front seats clear
of objects. This helps air to circulate
throughout your vehicle.
Adding outside equipment to the front of your
vehicle, such as hood-air deectors, may
affect the performance of the heating and air
conditioning system. Check with your
dealer before adding equipment to the outside
of your vehicle.
172
ProCarManuals.com

Rear Climate Control System
The lower buttons on the rear seat audio are used
to adjust the rear seat climate controls. The
temperature of the air coming through the rear
outlets is determined by the front passenger’s
temperature setting.
z9y(Fan)Press this button to adjust the
fan speed.
z\y(Mode)Press this button to change the
direction of airow in the rear seat area to
either vent, bi-level or oor mode.
P(On/Off)Press this button to turn the rear
climate controls on or off.
The rear control will only turn on if the front is on
and not in defrost mode.
Climate Controls Personalization
Your vehicle is equipped with a Driver Information
Center (DIC). You can store and recall the
climate control settings for temperature, air delivery
mode and fan speed for two different drivers.
The personal choice settings recalled are
determined by the transmitter used to enter the
vehicle. After the button with the unlock symbol on
a remote keyless entry transmitter is pressed,
the climate control will adjust to the last settings of
the identied driver. The settings can also be
changed by pressing one of the memory
buttons (1 or 2) located on the driver’s door.
When adjustments are made, the new settings
are automatically saved for the driver.
173
ProCarManuals.com

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages
that may be on your vehicle. The pictures will
help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes serious
enough to cause an expensive repair or
replacement. Paying attention to your warning
lights and gages could also save you or others
from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As
you will see in the details on the next few
pages, some warning lights come on briey when
you start the engine just to let you know they
are working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions. Often
gages and warning lights work together to let
you know when there is a problem with your
vehicle.
When one of the warning lights comes on and
stays on when you are driving, or when one of the
gages shows there may be a problem, check
the section that tells you what to do about
it. Please follow this manual’s advice.
Waiting to do repairs can be costly—and even
dangerous. So please get to know your warning
lights and gages. They are a big help.
Your vehicle has a Driver Information Center (DIC)
that works along with the warning lights and
gages. SeeDriver Information Center (DIC) on
page 194.
174
ProCarManuals.com

Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You
will know how fast you are going, about how much fuel you have used, and many other things you
will need to know to drive safely and economically.
United States version shown, Canada similar
175
ProCarManuals.com

Speedometer and Odometer
The speedometer lets you see your speed in
both miles per hour (mph) and kilometers per
hour (km/h).
The odometer shows how far your vehicle
has been driven, in either miles (used in the
United States) or kilometers (used in Canada).
The odometer mileage can be checked without the
vehicle running. Press the trip stem located on
the instrument panel cluster.
If your vehicle needs a new odometer installed,
the new one will be set to the correct mileage total
of the old odometer.
Trip Odometer
The trip odometer can tell you how far your
vehicle has been driven since you last set the trip
odometer to zero.
The odometer works together with the Driver
Information Center (DIC). You can set a Trip A and
Trip B odometer. See “Trip Information” under
DIC Operation and Displays on page 195.
The odometer mileage can be checked without the
vehicle running. Press the trip stem on the
instrument panel cluster.
Tachometer
The tachometer
displays the engine
speed in revolutions
per minute (rpm).
176
ProCarManuals.com

Safety Belt Reminder Light
When the key is turned to RUN or START, a
chime will sound for several seconds to remind
you buckle your safety belt. The driver safety belt
light will also come on and stay on for several
seconds, then it will ash for several more.
You should buckle your seat belt.
This chime and light will
be repeated if the driver
remains unbuckled
and the vehicle
is in motion.
If the driver’s belt is buckled, neither the chime nor
the light will come on.
Passenger Safety Belt
Reminder Light
Several seconds after the key is turned to RUN or
START, a chime will sound for several seconds to
remind the front passenger to buckle their safety
belt. This would only occur if the passenger airbag
is enabled. SeePassenger Sensing System on
page 74for more information. The passenger
safety belt light will also come on and stay on for
several seconds, then it will ash for several more.
This chime and light will
be repeated if the
passenger remains
unbuckled and
the vehicle is in motion.
If the passenger’s safety belt is buckled, neither
the chime nor the light will come on.
177
ProCarManuals.com

Airbag Readiness Light
There is an airbag readiness light on the
instrument panel, which shows the airbag symbol.
The system checks the airbag’s electrical
system for malfunctions. The light tells you if there
is an electrical problem. The system check
includes the airbag sensors, the airbag modules,
the wiring and the crash sensing and diagnostic
module. For more information on the airbag
system, seeAirbag System on page 64.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds.
Then the light should go out. This means the
system is ready.{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not inate in
a crash, or they could even inate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays on
after you start your vehicle.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.
The airbag readiness light should ash for a few
seconds when you turn the ignition key to RUN.
If the light does not come on then, have it xed so
it will be ready to warn you if there is a problem.
178
ProCarManuals.com

Passenger Airbag Status Indicator
Your vehicle has the passenger sensing system.
Your rearview mirror has a passenger airbag
status indicator.When the ignition key is turned to RUN or START,
the passenger airbag status indicator will light
ON and OFF, or the symbol for on and off,
for several seconds as a system check. Then,
after several more seconds, the status indicator
will light either ON or OFF, or either the on
or off symbol to let you know the status of the
right front passenger’s frontal airbag.
United States
Canada
179
ProCarManuals.com

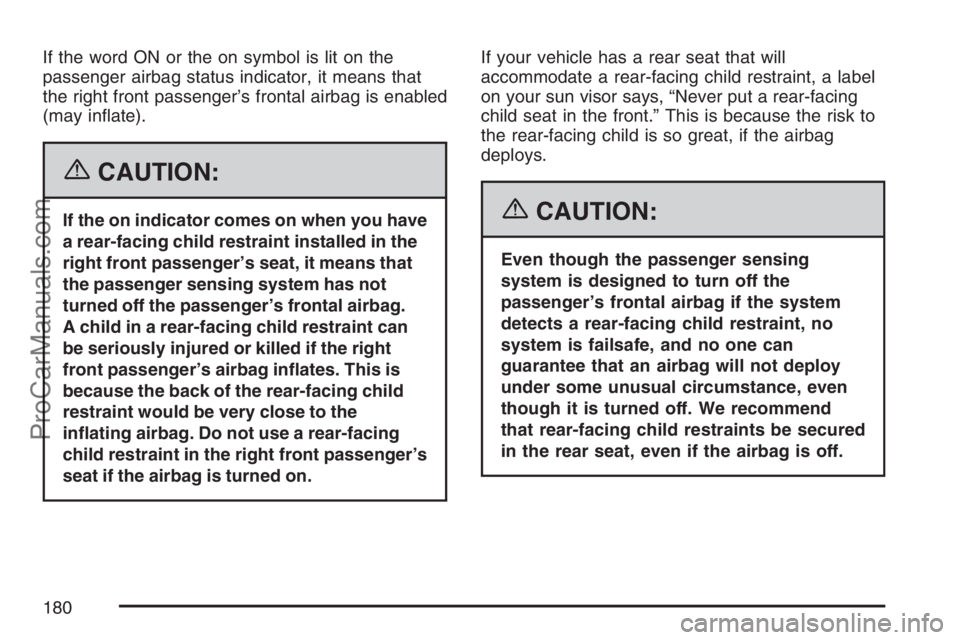

If the word ON or the on symbol is lit on the
passenger airbag status indicator, it means that
the right front passenger’s frontal airbag is enabled
(may inate).
{CAUTION:
If the on indicator comes on when you have
a rear-facing child restraint installed in the
right front passenger’s seat, it means that
the passenger sensing system has not
turned off the passenger’s frontal airbag.
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat if the airbag is turned on.If your vehicle has a rear seat that will
accommodate a rear-facing child restraint, a label
on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to
the rear-facing child is so great, if the airbag
deploys.{CAUTION:
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is failsafe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
180
ProCarManuals.com
