Page 367 of 426

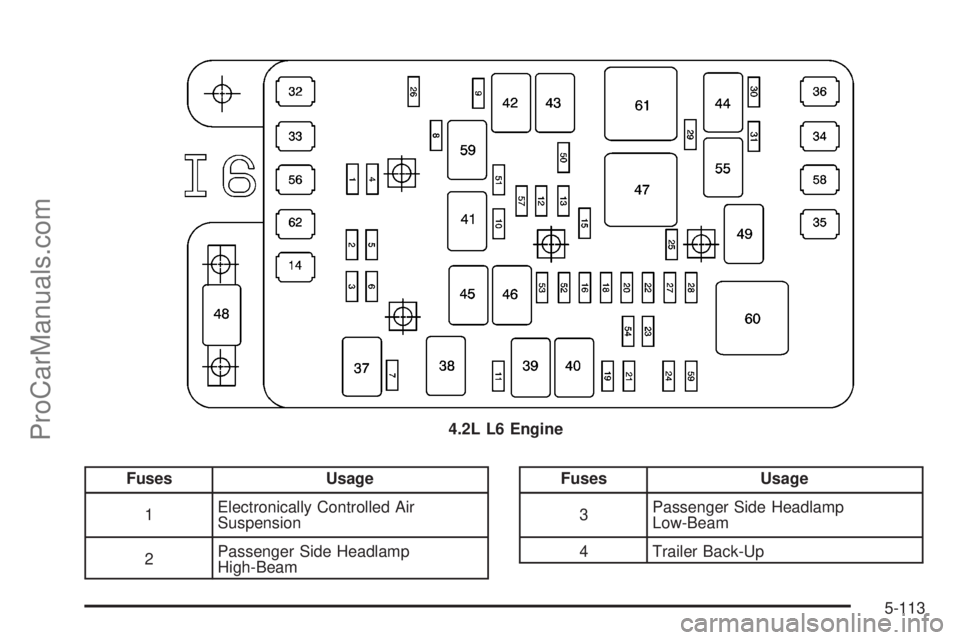

Fuses Usage
1Electronically Controlled Air
Suspension
2Passenger Side Headlamp
High-BeamFuses Usage
3Passenger Side Headlamp
Low-Beam
4 Trailer Back-Up 4.2L L6 Engine
5-113
ProCarManuals.com

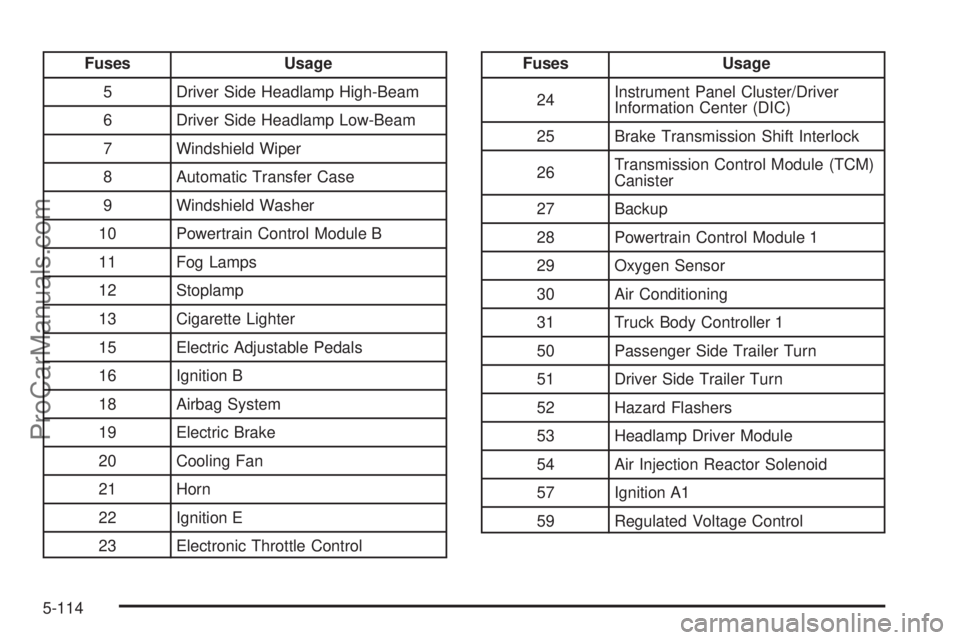

Page 368 of 426

Fuses Usage
5 Driver Side Headlamp High-Beam
6 Driver Side Headlamp Low-Beam
7 Windshield Wiper
8 Automatic Transfer Case
9 Windshield Washer
10 Powertrain Control Module B
11 Fog Lamps
12 Stoplamp
13 Cigarette Lighter
15 Electric Adjustable Pedals
16 Ignition B
18 Airbag System
19 Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle ControlFuses Usage
24Instrument Panel Cluster/Driver
Information Center (DIC)
25 Brake Transmission Shift Interlock
26Transmission Control Module (TCM)
Canister
27 Backup
28 Powertrain Control Module 1
29 Oxygen Sensor
30 Air Conditioning
31 Truck Body Controller 1
50 Passenger Side Trailer Turn
51 Driver Side Trailer Turn
52 Hazard Flashers
53 Headlamp Driver Module
54 Air Injection Reactor Solenoid
57 Ignition A1
59 Regulated Voltage Control
5-114
ProCarManuals.com
Page 369 of 426

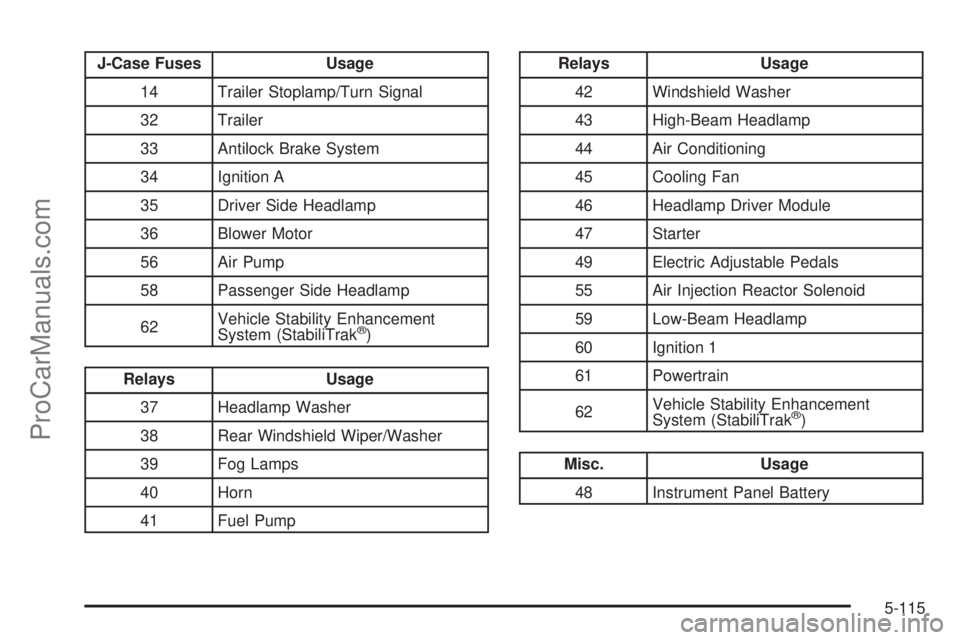

J-Case Fuses Usage
14 Trailer Stoplamp/Turn Signal
32 Trailer
33 Antilock Brake System
34 Ignition A
35 Driver Side Headlamp
36 Blower Motor
56 Air Pump
58 Passenger Side Headlamp
62Vehicle Stability Enhancement
System (StabiliTrak
®)
Relays Usage
37 Headlamp Washer
38 Rear Windshield Wiper/Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
Relays Usage
42 Windshield Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedals
55 Air Injection Reactor Solenoid
59 Low-Beam Headlamp
60 Ignition 1
61 Powertrain
62Vehicle Stability Enhancement
System (StabiliTrak
®)
Misc. Usage
48 Instrument Panel Battery
5-115
ProCarManuals.com

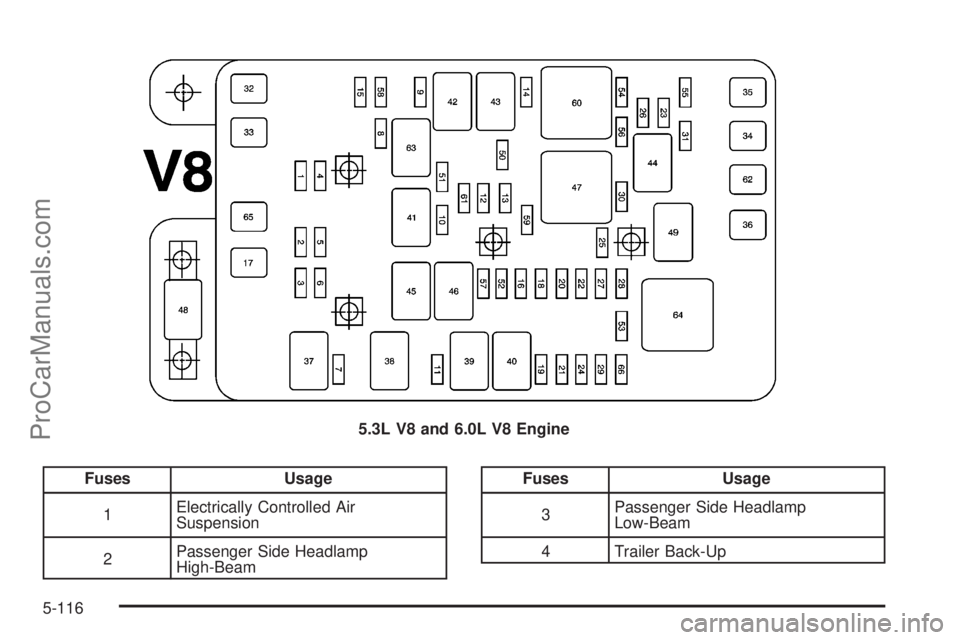

Page 370 of 426

Fuses Usage
1Electrically Controlled Air
Suspension
2Passenger Side Headlamp
High-BeamFuses Usage
3Passenger Side Headlamp
Low-Beam
4 Trailer Back-Up 5.3L V8 and 6.0L V8 Engine
5-116
ProCarManuals.com
Page 371 of 426

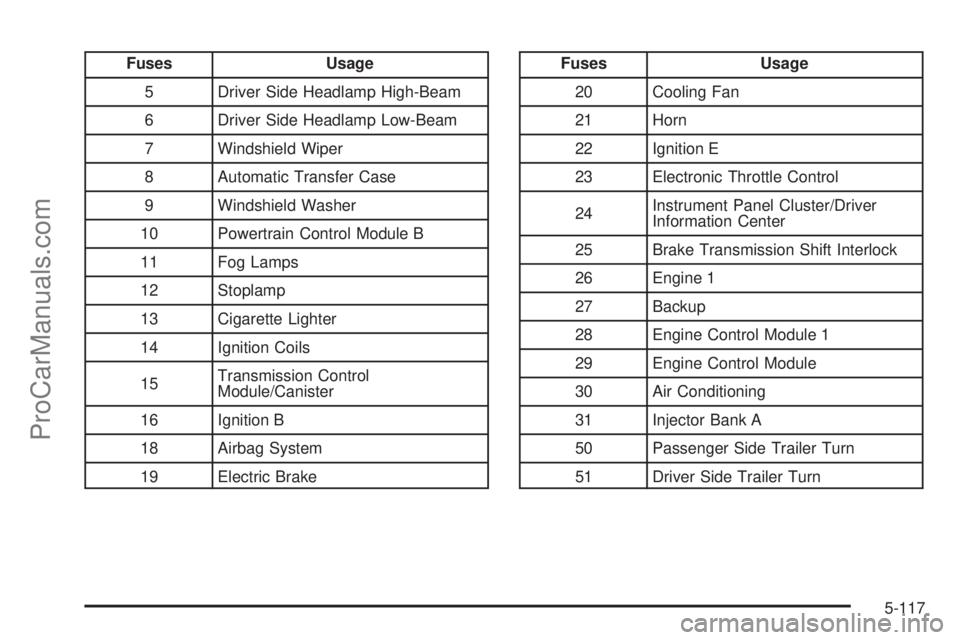

Fuses Usage
5 Driver Side Headlamp High-Beam
6 Driver Side Headlamp Low-Beam
7 Windshield Wiper
8 Automatic Transfer Case
9 Windshield Washer
10 Powertrain Control Module B
11 Fog Lamps
12 Stoplamp
13 Cigarette Lighter
14 Ignition Coils
15Transmission Control
Module/Canister
16 Ignition B
18 Airbag System
19 Electric BrakeFuses Usage
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24Instrument Panel Cluster/Driver
Information Center
25 Brake Transmission Shift Interlock
26 Engine 1
27 Backup
28 Engine Control Module 1
29 Engine Control Module
30 Air Conditioning
31 Injector Bank A
50 Passenger Side Trailer Turn
51 Driver Side Trailer Turn
5-117
ProCarManuals.com
Page 372 of 426

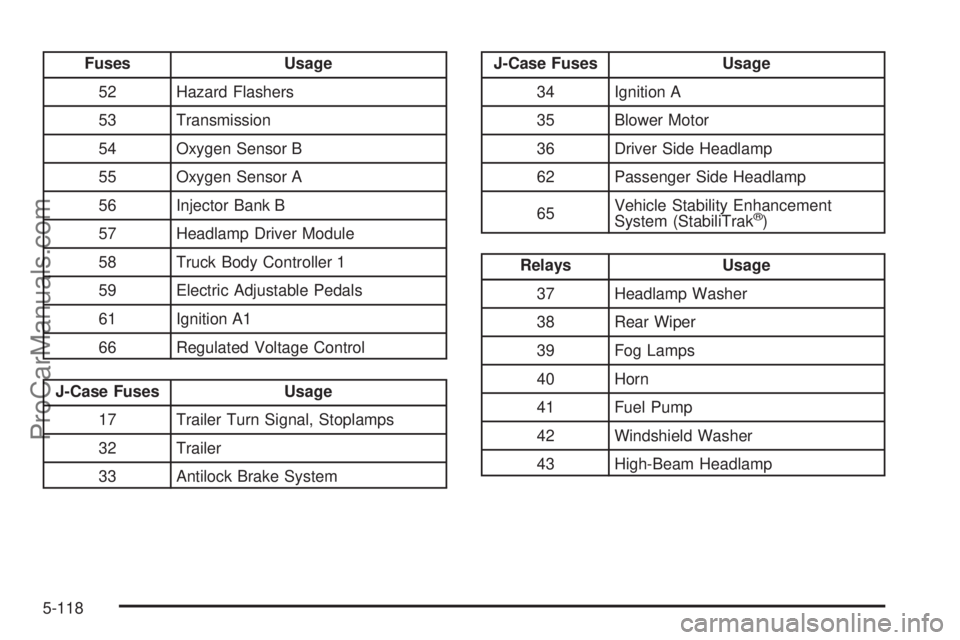

Fuses Usage
52 Hazard Flashers
53 Transmission
54 Oxygen Sensor B
55 Oxygen Sensor A
56 Injector Bank B
57 Headlamp Driver Module
58 Truck Body Controller 1
59 Electric Adjustable Pedals
61 Ignition A1
66 Regulated Voltage Control
J-Case Fuses Usage
17 Trailer Turn Signal, Stoplamps
32 Trailer
33 Antilock Brake System
J-Case Fuses Usage
34 Ignition A
35 Blower Motor
36 Driver Side Headlamp
62 Passenger Side Headlamp
65Vehicle Stability Enhancement
System (StabiliTrak
®)
Relays Usage
37 Headlamp Washer
38 Rear Wiper
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
43 High-Beam Headlamp
5-118
ProCarManuals.com
Page 373 of 426

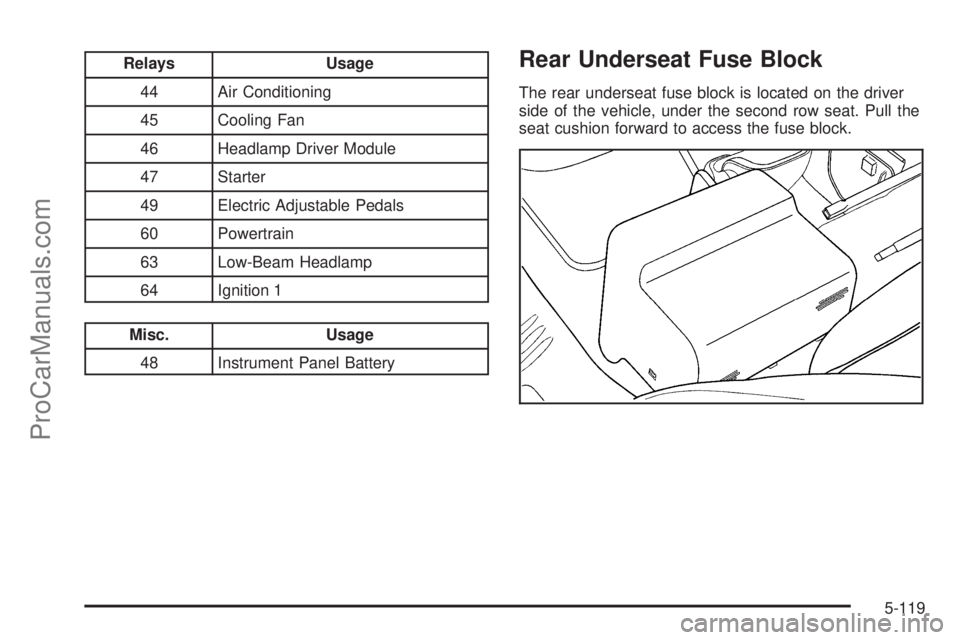

Relays Usage
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedals
60 Powertrain
63 Low-Beam Headlamp
64 Ignition 1
Misc. Usage
48 Instrument Panel Battery
Rear Underseat Fuse Block
The rear underseat fuse block is located on the driver
side of the vehicle, under the second row seat. Pull the
seat cushion forward to access the fuse block.
5-119
ProCarManuals.com
Page 414 of 426

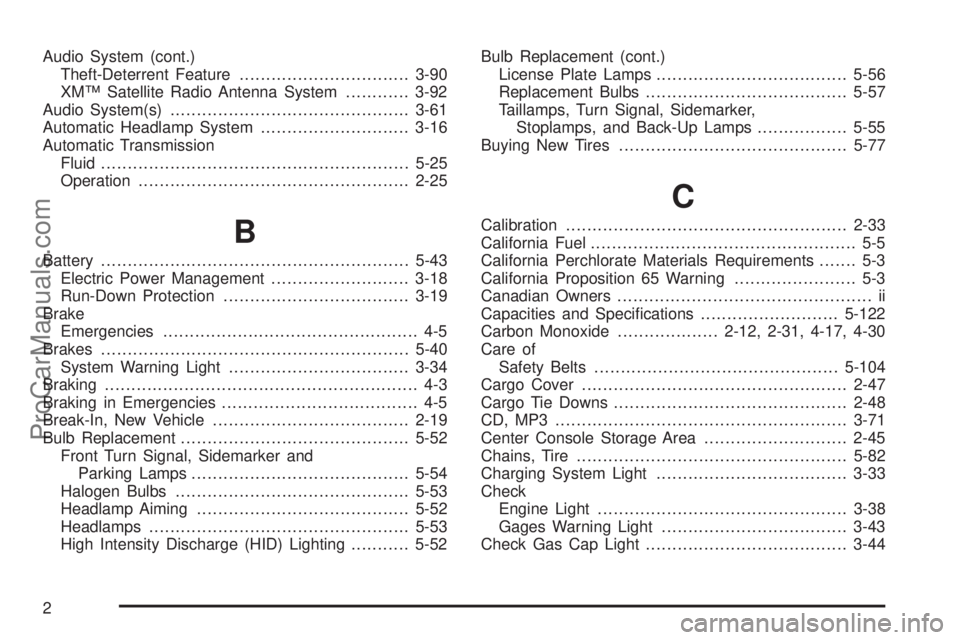

Audio System (cont.)
Theft-Deterrent Feature................................3-90
XM™ Satellite Radio Antenna System............3-92
Audio System(s).............................................3-61
Automatic Headlamp System............................3-16
Automatic Transmission
Fluid..........................................................5-25
Operation...................................................2-25
B
Battery..........................................................5-43
Electric Power Management..........................3-18
Run-Down Protection...................................3-19
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-40
System Warning Light..................................3-34
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-52
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-54
Halogen Bulbs............................................5-53
Headlamp Aiming........................................5-52
Headlamps.................................................5-53
High Intensity Discharge (HID) Lighting...........5-52Bulb Replacement (cont.)
License Plate Lamps....................................5-56
Replacement Bulbs......................................5-57
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps.................5-55
Buying New Tires...........................................5-77
C
Calibration.....................................................2-33
California Fuel.................................................. 5-5
California Perchlorate Materials Requirements....... 5-3
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Speci cations..........................5-122
Carbon Monoxide...................2-12, 2-31, 4-17, 4-30
Care of
Safety Belts..............................................5-104
Cargo Cover..................................................2-47
Cargo Tie Downs............................................2-48
CD, MP3 .......................................................3-71
Center Console Storage Area...........................2-45
Chains, Tire...................................................5-82
Charging System Light....................................3-33
Check
Engine Light...............................................3-38
Gages Warning Light...................................3-43
Check Gas Cap Light......................................3-44
2
ProCarManuals.com
Page 416 of 426

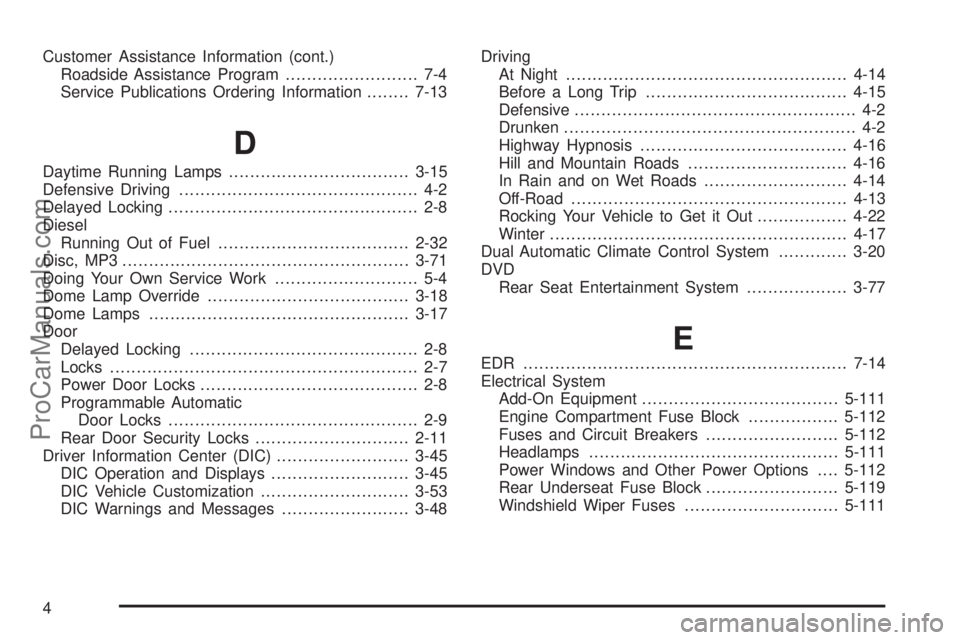

Customer Assistance Information (cont.)
Roadside Assistance Program......................... 7-4
Service Publications Ordering Information........7-13
D
Daytime Running Lamps..................................3-15
Defensive Driving............................................. 4-2
Delayed Locking............................................... 2-8
Diesel
Running Out of Fuel....................................2-32
Disc, MP3......................................................3-71
Doing Your Own Service Work........................... 5-4
Dome Lamp Override......................................3-18
Dome Lamps.................................................3-17
Door
Delayed Locking........................................... 2-8
Locks.......................................................... 2-7
Power Door Locks......................................... 2-8
Programmable Automatic
Door Locks............................................... 2-9
Rear Door Security Locks.............................2-11
Driver Information Center (DIC).........................3-45
DIC Operation and Displays..........................3-45
DIC Vehicle Customization............................3-53
DIC Warnings and Messages........................3-48Driving
At Night.....................................................4-14
Before a Long Trip......................................4-15
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Highway Hypnosis.......................................4-16
Hill and Mountain Roads..............................4-16
In Rain and on Wet Roads...........................4-14
Off-Road....................................................4-13
Rocking Your Vehicle to Get it Out.................4-22
Winter........................................................4-17
Dual Automatic Climate Control System.............3-20
DVD
Rear Seat Entertainment System...................3-77
E
EDR .............................................................7-14
Electrical System
Add-On Equipment.....................................5-111
Engine Compartment Fuse Block.................5-112
Fuses and Circuit Breakers.........................5-112
Headlamps...............................................5-111
Power Windows and Other Power Options....5-112
Rear Underseat Fuse Block.........................5-119
Windshield Wiper Fuses.............................5-111
4
ProCarManuals.com
Page 418 of 426

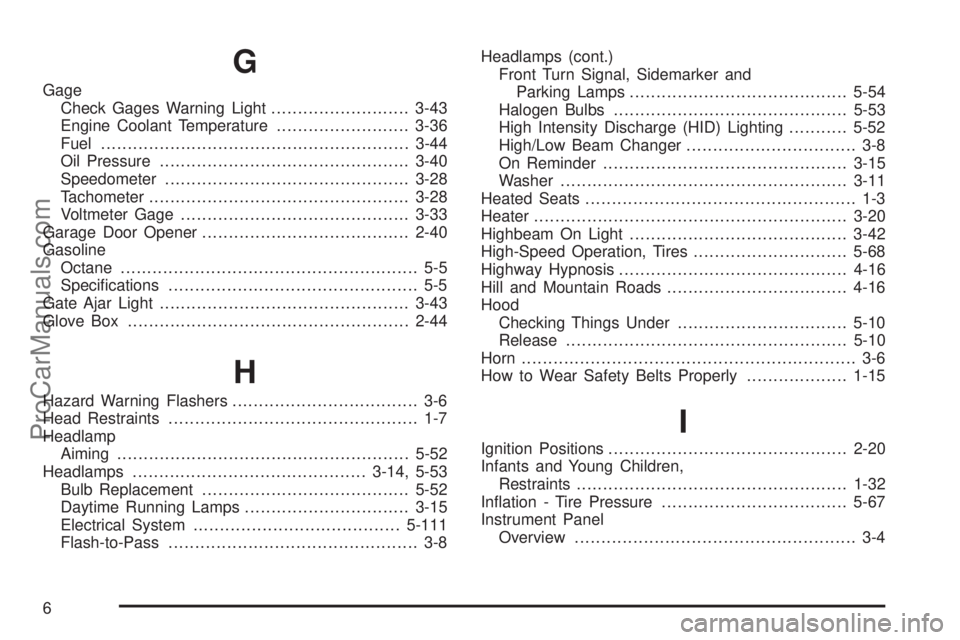

G
Gage
Check Gages Warning Light..........................3-43
Engine Coolant Temperature.........................3-36
Fuel..........................................................3-44
Oil Pressure...............................................3-40
Speedometer..............................................3-28
Tachometer.................................................3-28
Voltmeter Gage...........................................3-33
Garage Door Opener.......................................2-40
Gasoline
Octane........................................................ 5-5
Speci cations............................................... 5-5
Gate Ajar Light...............................................3-43
Glove Box.....................................................2-44
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamp
Aiming.......................................................5-52
Headlamps............................................3-14, 5-53
Bulb Replacement.......................................5-52
Daytime Running Lamps...............................3-15
Electrical System.......................................5-111
Flash-to-Pass............................................... 3-8Headlamps (cont.)
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-54
Halogen Bulbs............................................5-53
High Intensity Discharge (HID) Lighting...........5-52
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Washer......................................................3-11
Heated Seats................................................... 1-3
Heater...........................................................3-20
Highbeam On Light.........................................3-42
High-Speed Operation, Tires.............................5-68
Highway Hypnosis...........................................4-16
Hill and Mountain Roads..................................4-16
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-20
Infants and Young Children,
Restraints...................................................1-32
In ation - Tire Pressure...................................5-67
Instrument Panel
Overview..................................................... 3-4
6
ProCarManuals.com
