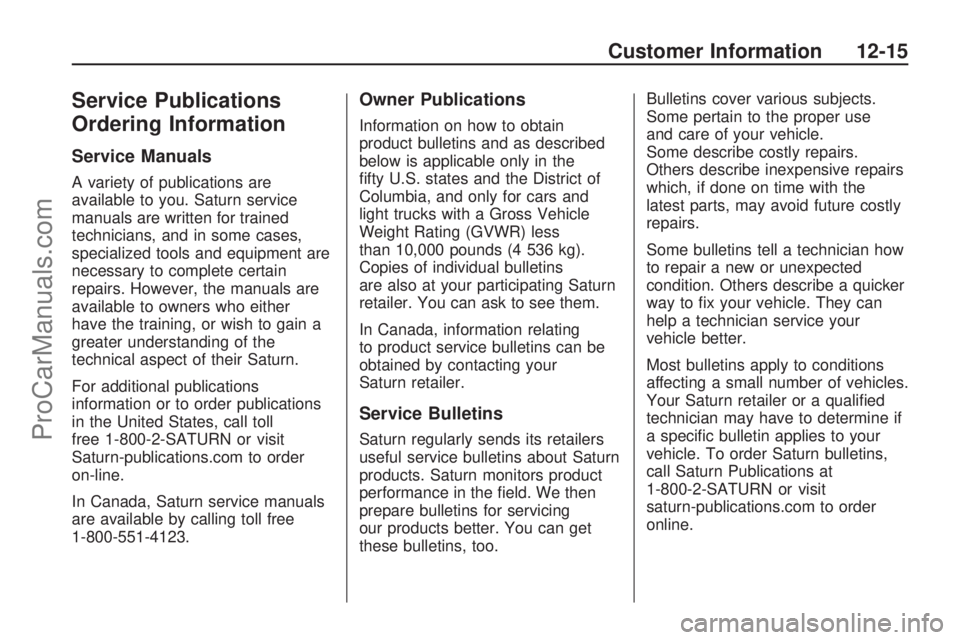

SATURN ASTRA 2009 Owners Manual

Service Publications
Ordering Information
Service Manuals
A variety of publications are
available to you. Saturn service
manuals are written for trained
technicians, and in some cases,
specialized tools and equipment are
necessary to complete certain
repairs. However, the manuals are
available to owners who either
have the training, or wish to gain a
greater understanding of the
technical aspect of their Saturn.
For additional publications
information or to order publications
in the United States, call toll
free 1-800-2-SATURN or visit
Saturn-publications.com to order
on-line.
In Canada, Saturn service manuals
are available by calling toll free
1-800-551-4123.
Owner Publications
Information on how to obtain
product bulletins and as described
below is applicable only in the
fty U.S. states and the District of
Columbia, and only for cars and
light trucks with a Gross Vehicle
Weight Rating (GVWR) less
than 10,000 pounds (4 536 kg).
Copies of individual bulletins
are also at your participating Saturn
retailer. You can ask to see them.
In Canada, information relating
to product service bulletins can be
obtained by contacting your
Saturn retailer.
Service Bulletins
Saturn regularly sends its retailers
useful service bulletins about Saturn
products. Saturn monitors product
performance in the eld. We then
prepare bulletins for servicing
our products better. You can get
these bulletins, too.Bulletins cover various subjects.
Some pertain to the proper use
and care of your vehicle.
Some describe costly repairs.
Others describe inexpensive repairs
which, if done on time with the
latest parts, may avoid future costly
repairs.
Some bulletins tell a technician how
to repair a new or unexpected
condition. Others describe a quicker
way to x your vehicle. They can
help a technician service your
vehicle better.
Most bulletins apply to conditions
affecting a small number of vehicles.
Your Saturn retailer or a qualied
technician may have to determine if
a specic bulletin applies to your
vehicle. To order Saturn bulletins,
call Saturn Publications at
1-800-2-SATURN or visit
saturn-publications.com to order
online.
Customer Information 12-15
ProCarManuals.com

Vehicle Data
Recording and
Privacy
Your Saturn vehicle has a number
of sophisticated computers that
record information about the
vehicle’s performance and how it is
driven. For example, your vehicle
uses computer modules to monitor
and control engine and transmission
performance, to monitor the
conditions for airbag deployment
and deploy airbags in a crash and,
if so equipped, to provide antilock
braking to help the driver control the
vehicle. These modules may store
data to help your dealer/retailer
technician service your vehicle.
Some modules may also store data
about how you operate the vehicle,
such as rate of fuel consumption or
average speed. These modules may
also retain the owner’s personal
preferences, such as radio pre-sets,
seat positions, and temperature
settings.
Event Data Recorders
This vehicle has an Event Data
Recorder (EDR). The main purpose
of an EDR is to record, in certain
crash or near crash-like situations,
such as an airbag deployment
or hitting a road obstacle, data that
will assist in understanding how
a vehicle’s systems performed.
The EDR is designed to record data
related to vehicle dynamics and
safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed
to record such data as:
How various systems in your
vehicle were operating
Whether or not the driver and
passenger safety belts were
buckled/fastened
How far, if at all, the driver was
pressing the accelerator and/or
brake pedal
How fast the vehicle was travelingThis data can help provide a better
understanding of the circumstances
in which crashes and injuries occur.
Important:EDR data is recorded
by your vehicle only if a non-trivial
crash situation occurs; no data
is recorded by the EDR under
normal driving conditions and no
personal data (e.g., name, gender,
age, and crash location) is
recorded. However, other parties,
such as law enforcement, could
combine the EDR data with the type
of personally identifying data
routinely acquired during a crash
investigation.
To read data recorded by an EDR,
special equipment is required,
and access to the vehicle or the
EDR is needed. In addition to
the vehicle manufacturer, other
parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.
12-16 Customer Information
ProCarManuals.com

Saturn will not access this data or
share it with others except: with
the consent of the vehicle owner or,
if the vehicle is leased, with the
consent of the lessee; in response
to an official request of police or
similar government office; as part of
Saturn’s defense of litigation
through the discovery process; or,
as required by law. Data that Saturn
collects or receives may also be
used for Saturn research needs or
may be made available to others
for research purposes, where
a need is shown and the data is not
tied to a specic vehicle or vehicle
owner.
OnStar®
If your vehicle has OnStar and you
subscribe to the OnStar services,
please refer to the OnStar Terms
and Conditions for information
on data collection and use. See also
OnStar
®System on page 4-38in
this manual for more information.
Navigation System
If your vehicle has a navigation
system, use of the system
may result in the storage of
destinations, addresses, telephone
numbers, and other trip information.
Refer to the navigation system
operating manual for information
on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some
vehicles for functions such as
tire pressure monitoring and ignition
system security, as well as in
connection with conveniences such
as key fobs for remote door
locking/unlocking and starting, and
in-vehicle transmitters for garage
door openers. RFID technology in
Saturn vehicles does not use
or record personal information or
link with any other Saturn system
containing personal information.
Customer Information 12-17
ProCarManuals.com

✍NOTES
12-18 Customer Information
ProCarManuals.com
