SATURN ASTRA 2009 Workshop Manual

Your child restraint may have
a single tether (A) or a dual
tether (C). Either will have a single
attachment (B) to secure the top
tether to the anchor.
Some child restraints with top
tethers are designed for use with or
without the top tether being
attached. Others require the top
tether always to be attached.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached. Be sure to read and
follow the instructions for your
child restraint.
If the child restraint does not have a
top tether, one can be obtained,
in kit form, for many child restraints.
Ask the child restraint manufacturer
whether or not a kit is available.Lower Anchor and Top Tether
Anchor Locations
i(Top Tether Anchor): Seating
positions with top tether anchors.
j(Lower Anchor): Seating positions
with two lower anchors.To assist you in locating the lower
anchors, each seating position
with lower anchors has two labels,
near the crease between the
seatback and the seat cushion.
If the top tether anchors are
covered, the top tether anchor
symbol will be located on the cover
to assist you in locating them. Rear Seat
Seats and Restraints 1-47
ProCarManuals.com

The top tether anchors are located
on the seatback for each rear seating
position. Be sure to use an anchor
located on the same side of the
vehicle as the seating position where
the child restraint will be placed.
Do not secure a child restraint in a
position without a top tether anchor if
a national or local law requires that
the top tether be attached, or if the
instructions that come with the child
restraint say that the top tether must
be attached. There is no place to
attach the top tether in this position.Accident statistics show that
children are safer if they are
restrained in the rear rather than the
front seat. SeeWhere to Put the
Restraint on page 1-44for additional
information.
Securing a Child Restraint
Designed for the LATCH
System
{CAUTION
If a LATCH-type child restraint is
not attached to anchors, the child
restraint will not be able to protect
the child correctly. In a crash, the
child could be seriously injured
or killed. Install a LATCH-type
child restraint properly using the
anchors, or use the vehicle’s
safety belts to secure the restraint,
following the instructions that came
with the child restraint and the
instructions in this manual.
{CAUTION
Do not attach more than one
child restraint to a single anchor.
Attaching more than one child
restraint to a single anchor could
cause the anchor or attachment to
come loose or even break during
a crash. A child or others could
be injured. To reduce the risk of
serious or fatal injuries during a
crash, attach only one child
restraint per anchor.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
(Continued)
1-48 Seats and Restraints
ProCarManuals.com

CAUTION (Continued)
tighten. Buckle any unused safety
belts behind the child restraint so
children cannot reach them. Pull
the shoulder belt all the way out
of the retractor to set the lock, if
your vehicle has one, after the
child restraint has been installed.
Notice:Do not let the LATCH
attachments rub against the
vehicle’s safety belts. This may
damage these parts. If necessary,
move buckled safety belts to
avoid rubbing the LATCH
attachments.
Do not fold the empty rear seat
with a safety belt buckled. This
could damage the safety belt or
the seat. Unbuckle and return the
safety belt to its stowed position,
before folding the seat.1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower attachments
or the desired seating position
does not have lower anchors,
secure the child restraint with the
top tether and the safety belts.
Refer to your child restraint
manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for
the desired seating position.
1.2. Put the child restraint on
the seat.
1.3. Attach and tighten the
lower attachments on the
child restraint to the lower
anchors.2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor, if equipped. Refer to the
child restraint instructions and the
following steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered,
open the cover to expose
the anchor.
Seats and Restraints 1-49
ProCarManuals.com

2.3. Route, attach, and tighten
the top tether according to
your child restraint
instructions and the
following instructions:
If the position you are using
has an adjustable headrest
or head restraint and you are
using a dual tether, route the
tether around the headrest or
head restraint.If the position you are using
has an adjustable headrest
or head restraint and
you are using a single
tether, raise the headrest or
head restraint and route
the tether under the
headrest or head restraint
and in between the headrest
or head restraint posts.
3. Push and pull the child restraint
in different directions to be sure
it is secure.Replacing LATCH System
Parts After a Crash
{CAUTION
A crash can damage the LATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint, resulting
in serious injury or even death in
a crash. To help make sure the
LATCH system is working
properly after a crash, see your
dealer/retailer to have the system
inspected and any necessary
replacements made as soon as
possible.
If the vehicle has the LATCH
system and it was being used
during a crash, new LATCH system
parts may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at the
time of the crash.
1-50 Seats and Restraints
ProCarManuals.com

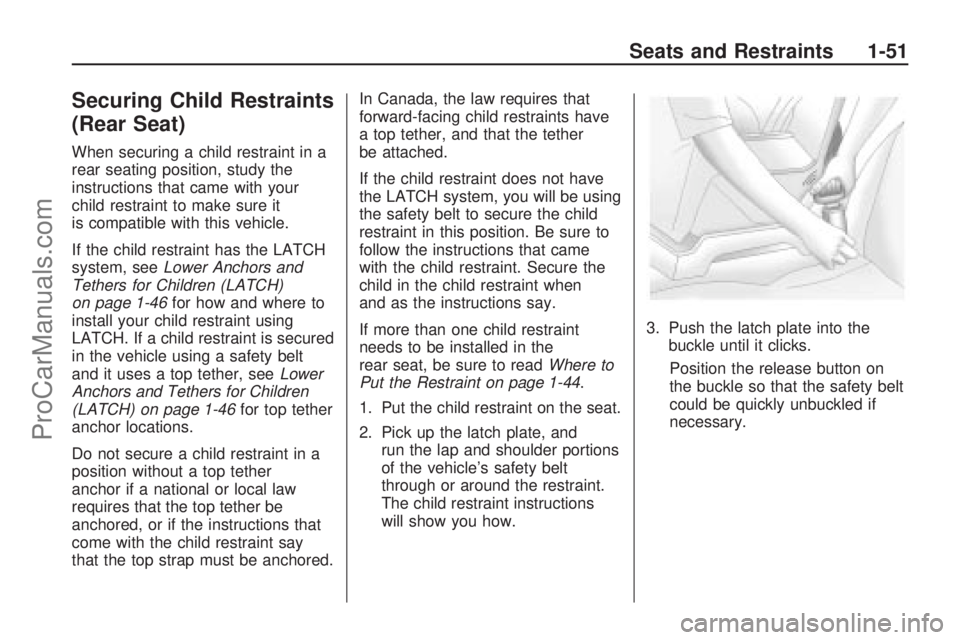

Securing Child Restraints
(Rear Seat)
When securing a child restraint in a
rear seating position, study the
instructions that came with your
child restraint to make sure it
is compatible with this vehicle.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-46for how and where to
install your child restraint using
LATCH. If a child restraint is secured
in the vehicle using a safety belt
and it uses a top tether, seeLower
Anchors and Tethers for Children
(LATCH) on page 1-46for top tether
anchor locations.
Do not secure a child restraint in a
position without a top tether
anchor if a national or local law
requires that the top tether be
anchored, or if the instructions that
come with the child restraint say
that the top strap must be anchored.In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
If the child restraint does not have
the LATCH system, you will be using
the safety belt to secure the child
restraint in this position. Be sure to
follow the instructions that came
with the child restraint. Secure the
child in the child restraint when
and as the instructions say.
If more than one child restraint
needs to be installed in the
rear seat, be sure to readWhere to
Put the Restraint on page 1-44.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and
run the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.3. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
Seats and Restraints 1-51
ProCarManuals.com

4. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.5. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt, and feed the shoulder
belt back into the retractor. When
installing a forward-facing child
restraint, it may be helpful to use
your knee to push down on
the child restraint as you tighten
the belt.6. If your child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether. SeeLower Anchors and
Tethers for Children (LATCH)
on page 1-46for more
information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
1-52 Seats and Restraints
ProCarManuals.com

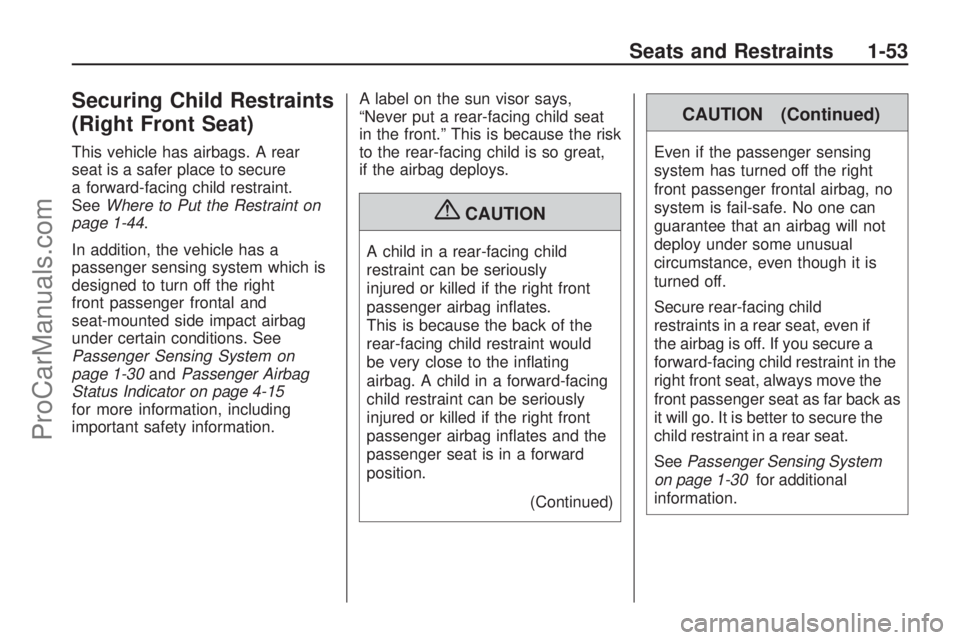

Securing Child Restraints
(Right Front Seat)
This vehicle has airbags. A rear
seat is a safer place to secure
a forward-facing child restraint.
SeeWhere to Put the Restraint on
page 1-44.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal and
seat-mounted side impact airbag
under certain conditions. See
Passenger Sensing System on
page 1-30andPassenger Airbag
Status Indicator on page 4-15
for more information, including
important safety information.A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously
injured or killed if the right front
passenger airbag inates.
This is because the back of the
rear-facing child restraint would
be very close to the inating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag inates and the
passenger seat is in a forward
position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child
restraints in a rear seat, even if
the airbag is off. If you secure a
forward-facing child restraint in the
right front seat, always move the
front passenger seat as far back as
it will go. It is better to secure the
child restraint in a rear seat.
SeePassenger Sensing System
on page 1-30for additional
information.
Seats and Restraints 1-53
ProCarManuals.com

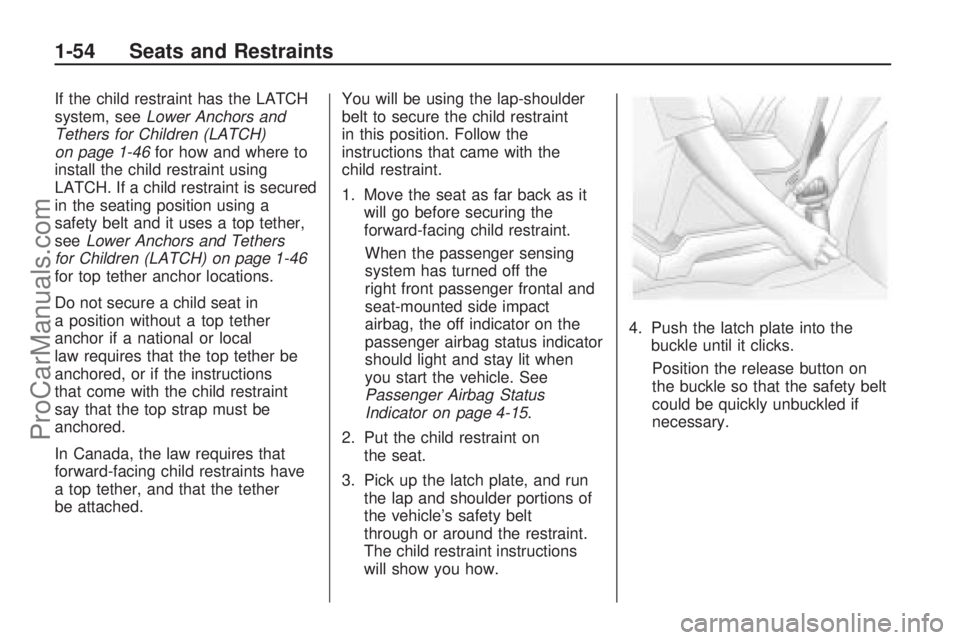

If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-46for how and where to
install the child restraint using
LATCH. If a child restraint is secured
in the seating position using a
safety belt and it uses a top tether,
seeLower Anchors and Tethers
for Children (LATCH) on page 1-46
for top tether anchor locations.
Do not secure a child seat in
a position without a top tether
anchor if a national or local
law requires that the top tether be
anchored, or if the instructions
that come with the child restraint
say that the top strap must be
anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.You will be using the lap-shoulder
belt to secure the child restraint
in this position. Follow the
instructions that came with the
child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the
right front passenger frontal and
seat-mounted side impact
airbag, the off indicator on the
passenger airbag status indicator
should light and stay lit when
you start the vehicle. See
Passenger Airbag Status
Indicator on page 4-15.
2. Put the child restraint on
the seat.
3. Pick up the latch plate, and run
the lap and shoulder portions of
the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.4. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
1-54 Seats and Restraints
ProCarManuals.com

5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.6. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt and feed the shoulder
belt back into the retractor.
When installing a forward-facing
child restraint, it may be
helpful to use your knee to push
down on the child restraint as
you tighten the belt.7. Push and pull the child restraint
in different directions to be sure
it is secure.
If the airbags are off, the off
indicator in the passenger airbag
status indicator will come on
and stay on when the vehicle is
started.
If a child restraint has been
installed and the on indicator is lit,
see “If the On Indicator is Lit for
a Child Restraint” underPassenger
Sensing System on page 1-30
for more information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
Seats and Restraints 1-55
ProCarManuals.com

✍NOTES
1-56 Seats and Restraints
ProCarManuals.com
