SATURN OUTLOOK 2007 Owners Manual

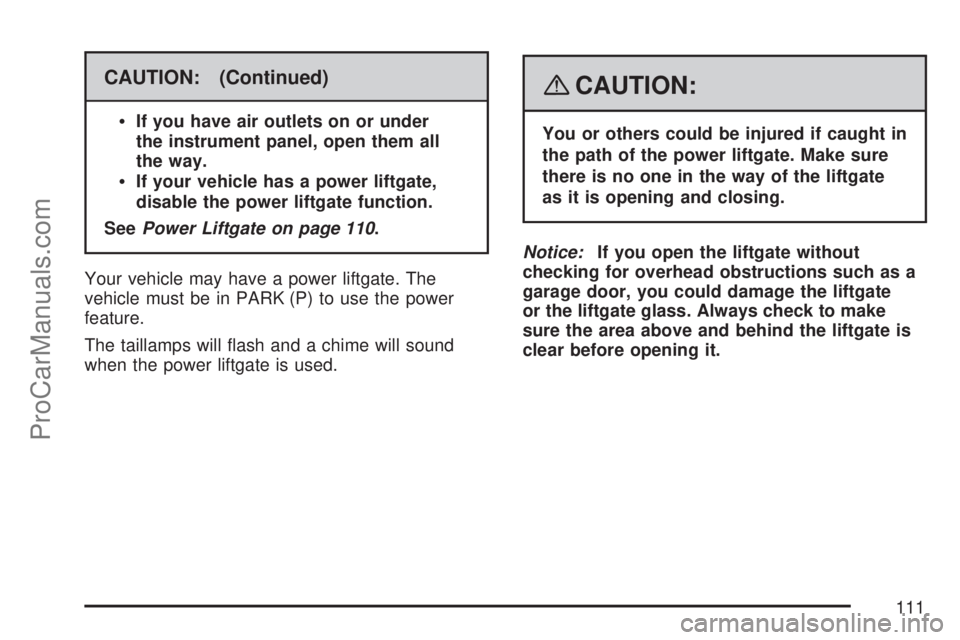

CAUTION: (Continued)

If you have air outlets on or under
the instrument panel, open them all
the way.
If your vehicle has a power liftgate,
disable the power liftgate function.
SeePower Liftgate on page 110.
Your vehicle may have a power liftgate. The
vehicle must be in PARK (P) to use the power
feature.
The taillamps will ash and a chime will sound
when the power liftgate is used.
{CAUTION:
You or others could be injured if caught in
the path of the power liftgate. Make sure
there is no one in the way of the liftgate
as it is opening and closing.
Notice:If you open the liftgate without
checking for overhead obstructions such as a
garage door, you could damage the liftgate
or the liftgate glass. Always check to make
sure the area above and behind the liftgate is
clear before opening it.
111
ProCarManuals.com

The power liftgate can be power opened and
closed in the following ways:
Press and hold the power liftgate button on
the Remote Keyless Entry (RKE) transmitter
until the liftgate starts moving.Remote Keyless
Entry (RKE) System Operation on page 100
for more information.
Pressing the liftgate button on the center
console.
Pressing the touchpad switch on the outside
liftgate handle.Pressing the buttons, or touchpad switch a
second time while the liftgate is moving reverses
the direction.
The liftgate can also be closed by pressing the
power liftgate button next to the liftgate latch.
Press the button a second time during liftgate
operation to reverse that operation.
The power liftgate may be temporarily disabled
under extreme temperatures, or under low battery
conditions. If this occurs, the liftgate can still be
operated manually.
Power Liftgate Button
on Center Console
Power Liftgate Button Near Liftgate Latch
112
ProCarManuals.com

If you shift the transmission out of PARK (P) while
the power function is in progress, the liftgate
power function will continue to completion. If you
shift the transmission out of PARK (P) and
accelerate before the power liftgate latches closed,
the liftgate may reverse to the open position.
Cargo could fall out of the vehicle. Always make
sure the power liftgate is closed and latched before
you drive away.
If you power open the liftgate and the liftgate
support struts have lost pressure, the lights will
ash and a chime will sound. The liftgate will stay
open temporarily, then slowly close. See your
dealer/retailer for service before using the liftgate.
Obstacle Detection Features
If the liftgate encounters an obstacle during a
power open or close cycle, a warning chime will
sound and the liftgate will automatically reverse
direction to the full closed or open position.
After removing the obstruction, the power liftgate
operation can be used again. If the liftgateencounters multiple obstacles on the same power
cycle, the power function will deactivate, and
you must manually open or close the liftgate. The
LIFTGATE OPEN warning message in the
Driver Information Center (DIC) will indicate that
the liftgate is open. After removing the
obstructions, manually open the liftgate to the full
open position or close the liftgate to the fully
closed and latched position. The liftgate will now
resume normal power operation.
Your vehicle has pinch sensors located on the
side edges of the liftgate. If an object is caught
between the liftgate and the body and presses
against this sensor, the liftgate will reverse
direction and open fully. The liftgate will remain
open until it is activated again or closed manually.
Do not force the liftgate open or closed during
a power cycle.
113
ProCarManuals.com

Manual Operation of Power Liftgate
To change the liftgate to
manual operation, press
the switch on the
center console to the
OFF position.
With the power liftgate disabled and all of the
doors unlocked, the liftgate can be manually
opened and closed.
To open the liftgate, press the touchpad on the
handle on the outside of the liftgate, and lift
the gate open. To close the liftgate, use the pull
cup to lower the liftgate and close. The liftgate
latch will power close. Always close the liftgate
before driving.If the RKE button or the power close button on the
liftgate is pressed while power operation is
disabled, the lights will ash three times, but the
liftgate will not move.
It is not recommended that you drive with the
liftgate open, however, if you must drive with the
liftgate open, the liftgate should be set to
manual operation by pressing the OFF switch on
the center console.
The liftgate has an electric latch. If the battery is
disconnected or has low voltage, the liftgate
will not open. The liftgate will resume operation
when the battery is reconnected and charged.
If the battery is properly connected with adequate
voltage, the switch is not disabled, and the
liftgate still will not function, your vehicle should be
taken to a dealer/retailer for service.
114
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
115
ProCarManuals.com

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
CAUTION: (Continued)
CAUTION: (Continued)
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave keys in a vehicle
with children.
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.
The power window
controls are located on
each of the side doors.
Driver’s Side shown
116
ProCarManuals.com

The driver’s door also has switches that control
the passenger and rear windows. The power
windows work when the ignition has been turned
to ACCESSORY or ON or when Retained
Accessory Power (RAP) is active. SeeRetained
Accessory Power (RAP) on page 125.
Press the switch to lower the window.
Pull up on the front edge of the switch to raise the
window.
Express-Down Windows
Windows that have the express-down feature
allow the windows to be lowered without holding
the switch. Press the window switch fully and
release it to activate the express-down feature.
The express mode can be cancelled at any time by
briey pressing, or pulling the switch.
Express-Up Window
Windows that have the express-up feature allow
the windows to be raised all the way without
holding the switch up. Pull the switch up fully and
release it to activate the express-up feature.
The express-up mode can be canceled at any time
by briey pressing, or pulling the switch.
Programming the Power Windows
If the battery one your vehicle has been recharged,
disconnected, or replaced, windows with the
express-up feature need to be reprogrammed for
this feature to work. To program the window:
1. With the ignition in the ACCESSORY or RUN
positions, or when Retained Accessory
Power (RAP) is active, close all doors. See
Retained Accessory Power (RAP) on
page 125.
2. Press and continue to hold the window switch
until the window is fully open.
3. Pull up and hold the window switch to close
the window. Continue to hold it briey after
the window is fully closed.
4. Repeat for each window that has the express
up feature.
117
ProCarManuals.com

Anti-Pinch Feature
The anti-pinch feature is on windows with the
express-up feature. If an object is in the way of the
window as it is express-closing, or in certain
weather conditions like severe icing, the window
will stop and open to a factory preset position. The
window functions normally once the obstruction
is removed.
Window Lockout
o
(Window Lockout):The window lockout
switch is located with the power window switches
on the driver’s door armrest. This feature
prevents the rear passenger windows from
operating, except from the driver’s position. Press
the switch to turn the lockout feature on or off.
An indicator light will come on to show the lockout
feature is on.
Sun Visors
Pull the sun visor down to block glare. Detach the
sun visor from the center mount and slide it
along the rod from side-to-side to cover the driver
or passenger side of the front window. Swing
the sun visor to the side to cover the side window.
It can be moved along the rod from side-to-side
in this position also.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on
both the driver’s and passenger’s sun visors. Pull
the sun visor down and lift the mirror cover to
turn the lamps on.
118
ProCarManuals.com

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have a content theft-deterrent
alarm system.
To activate the theft-deterrent system, do one of
the following:
Press the lock button on the Remote Keyless
Entry (RKE) transmitter when any door is open.
The security light should come on and ash.
When the door is closed, the security light will
stop ashing and stay on solid and then go offafter approximately 30 seconds. The content
theft deterrent alarm is not armed until the
security light goes off.
If the delayed locking feature is active, the
alarm will not be activated until all doors are
closed and the security light goes off.
Press the lock button on the RKE transmitter
when the driver door is closed.
The security light will come on solid for
approximately 30 seconds and then go off. The
content theft deterrent alarm is not armed until
the security light goes off.
If a locked door is opened without using the key
in the driver’s door key cylinder or the RKE
transmitter, a ten second pre-alarm will occur. The
horn will chirp and the lights will ash. If the key is
not placed in the ignition and turned to START or
the door is not unlocked by pressing the unlock
button on the RKE transmitter during the
ten second pre-alarm, the alarm will go off. Your
vehicle’s headlamps will ash and the horn will
sound for about two minutes, then will turn off to
save the battery power.
119
ProCarManuals.com

The theft-deterrent system will not activate if the
doors are locked with the vehicle’s key or the
manual door lock. It activates only if you use the
power door lock switch with the door open or
the RKE transmitter. You should also remember
that you can start your vehicle with the correct
ignition key if the alarm has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the
theft-deterrent system, the vehicle should be
locked with the door key after the doors
are closed.
Always unlock a door with the RKE transmitter.
Unlocking a door any other way will set off the
alarm if the system has been armed.
If you set off the alarm by accident, turn off the
alarm by pressing unlock on the RKE transmitter or
by placing the key in the ignition and turning it
to START.
Testing the Alarm
To test the alarm:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the RKE transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
If the alarm does not sound when it should, but
the vehicle’s headlamps ash, check to see if the
horn works. The horn fuse may be blown. To
replace the fuse, seeFuses and Circuit Breakers
on page 476.
If the alarm does not sound or the vehicle’s
headlamps do not ash, see your dealer/retailer
for service.
120
ProCarManuals.com
