SATURN OUTLOOK 2007 Owners Manual

SeeDIC Vehicle Customization (With DIC
Buttons) on page 250. Pressing the unlock button
on the RKE transmitter will disarm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 119.
&(Power Liftgate):Press and hold this button
on the RKE transmitter to open and close the
liftgate. The taillamps will ash and a chime will
sound to indicate when the liftgate is opening and
closing.
L(Vehicle Locator/Panic Alarm):Press and
release this button to locate your vehicle. The turn
signal lamps will ash and the horn will sound
three times. Press and hold this button for more
than two seconds to activate the panic alarm. The
turn signal lamps will ash and the horn will
sound repeatedly for 30 seconds. The alarm will
turn off when the ignition is moved to ON or
the alarm button is pressed again. The ignition
must be in OFF for the panic alarm to work.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer/retailer. Remember
to bring any additional transmitters so they can
also be re-coded to match the new transmitter.
Once your dealer/retailer has coded the new
transmitter, the lost transmitter will not unlock your
vehicle. The vehicle can have a maximum of
eight transmitters matched to it. See “Relearn
Remote Key” underDIC Operation and Displays
(With DIC Buttons) on page 229orDIC Operation
and Displays (Without DIC Buttons) on page 235
for instructions on how to match RKE transmitters
to your vehicle.
101
ProCarManuals.com

Battery Replacement
Under normal use, the battery in the RKE
transmitter should last about four years.
The battery is weak if the transmitter will not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
The REPLACE BATTERY IN REMOTE KEY
message in the vehicle’s DIC will display if the
RKE transmitter battery is low. See “REPLACE
BATTERY IN REMOTE KEY” underDIC Warnings
and Messages on page 239for additional
information.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a at object with a thin edge into the
notch on the side of the transmitter and
separate the bottom half from the top half.
2. Remove the old battery, but do not use a
metal object to do this.
3. Slide the new battery into the transmitter with
the positive side of the battery facing down.
Use a type CR2032 battery, or equivalent
type. Make sure the cover is on tightly,
so water will not get in.
102
ProCarManuals.com

4. Snap the front and the back of the transmitter
together.
5. Test the operation of the transmitter with the
vehicle.
Remote Vehicle Start
Your vehicle may have a remote starting feature.
This feature allows you to start the engine
from outside of the vehicle. It may also start up
the vehicle’s heating or air conditioning systems
and rear window defogger. Normal operation of the
system will return after the key is turned to the
ON position.
If your vehicle has an automatic climate control
system, during remote start, the climate control
system will default to a heating mode during colder
outside temperatures and a cooling mode during
warmer outside temperatures. If your vehicle
does not have an automatic climate control
system, during remote start, the climate control
system will turn on at the setting the vehicle was
set to when the vehicle was last turned off.During a remote start, if your vehicle has an
automatic climate control system and heated
seats, the heated seats will turn on during colder
outside temperatures and will shut off when
the key is turned to RUN. If your vehicle does not
have an automatic climate control system,
during remote start, you will need to manually turn
the heated seats on and off. See Heated Seats
for additional information
Laws in some communities may restrict the use of
remote starters. For example, some laws may
require a person using the remote start to have the
vehicle in view when doing so. Check local
regulations for any requirements on remote starting
of vehicles.
The RKE transmitter with the remote start button,
provides an increased range of operation. However,
the range may be less while the vehicle is running.
As a result, you may need to be closer to your
vehicle to turn it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote
Keyless Entry (RKE) System on page 98for
additional information.
103
ProCarManuals.com

/(Remote Start):This button will be on the
RKE transmitter if you have remote start.
To start the vehicle using the remote start feature,
do the following:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock
button, then immediately press and hold
the transmitter’s remote start button until the
turn signal lights ash. If you cannot see
the vehicle’s lights, press and hold the remote
start button for at least four seconds. The
vehicle’s doors will lock. Pressing the remote
start button again, after the vehicle has
started, will turn off the ignition.
When the vehicle starts, the parking lamps will
turn on and remain on while the vehicle is
running.
3. If it is the rst remote start since the vehicle
has been driven, repeat these steps while the
engine is still running, to extend the time
by 10 minutes for the engine to continue to
run. Remote start can be extended one time.
After entering the vehicle during a remote start,
insert and turn the key to the ON position to drive
the vehicle.If the vehicle is left running it will automatically
shut off after 10 minutes unless a time extension
has been done.
To manually shut off a remote start, do any of the
following:
Aim the RKE transmitter at the vehicle and
press the remote start button until the
parking lamps turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The vehicle can be remote started two separate
times between driving sequences. The engine will
run for 10 minutes after each remote start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote
start time frame, and before the engine stops.
For example, if the lock button and then the
remote start buttons are pressed again after the
vehicle has been running for ve minutes,
10 minutes are added, allowing the engine to run
for 15 minutes.
The additional 10 minutes are considered a
second remote vehicle start.
104
ProCarManuals.com

Once two remote starts, or a single remote start
with one time extension has been done, the
vehicle must be started with the key.
After the key is removed from the ignition, the
vehicle can be remote started again.
The vehicle cannot be remote started if the key is
in the ignition, the hood is not closed, or if
there is an emission control system malfunction.
Also, the engine will turn off during a remote
vehicle start if the coolant temperature gets too
high or if the oil pressure gets low.
Vehicles that have the remote vehicle start feature
are shipped from the factory with the remote
vehicle start system enabled. The system may be
enabled or disabled through the DIC if your
vehicle has DIC buttons. See “REMOTE START”underDIC Vehicle Customization (With DIC
Buttons) on page 250for additional information. If
your vehicle does not have DIC buttons, see
your dealer/retailer to enable or disable the remote
vehicle start system.
Remote Start Ready
If your vehicle does not have the remote vehicle
start feature, it will have the remote start ready
feature. This feature allows your dealer/retailer to
add the manufacturer’s remote vehicle start
feature.
See your dealer/retailer if you would like to add
the manufacturer’s remote vehicle start feature to
your vehicle.
105
ProCarManuals.com

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
CAUTION: (Continued)
CAUTION: (Continued)
heat and can suffer permanent injuries or
even death from heat stroke. Always lock
your vehicle whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
The vehicle’s doors can be manually locked or
unlocked in the following ways:
From the outside, use the key in the
driver’s door.
From the inside, use the lock control on
the door.
106
ProCarManuals.com

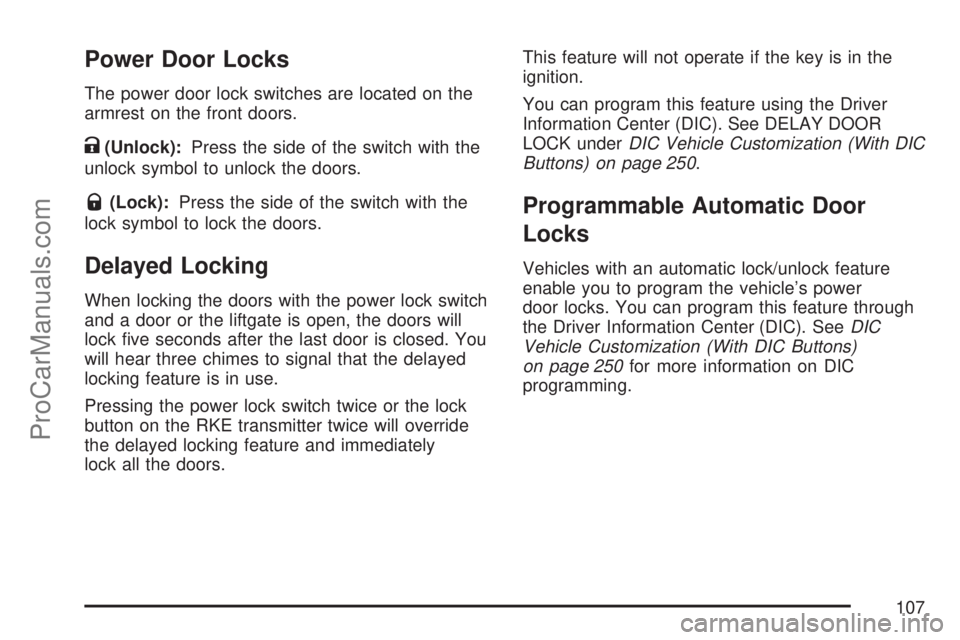

Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the
lock symbol to lock the doors.
Delayed Locking
When locking the doors with the power lock switch
and a door or the liftgate is open, the doors will
lock ve seconds after the last door is closed. You
will hear three chimes to signal that the delayed
locking feature is in use.
Pressing the power lock switch twice or the lock
button on the RKE transmitter twice will override
the delayed locking feature and immediately
lock all the doors.This feature will not operate if the key is in the
ignition.
You can program this feature using the Driver
Information Center (DIC). See DELAY DOOR
LOCK underDIC Vehicle Customization (With DIC
Buttons) on page 250.
Programmable Automatic Door
Locks
Vehicles with an automatic lock/unlock feature
enable you to program the vehicle’s power
door locks. You can program this feature through
the Driver Information Center (DIC). SeeDIC
Vehicle Customization (With DIC Buttons)
on page 250for more information on DIC
programming.
107
ProCarManuals.com

Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear
doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You
must open the rear
doors to access them.
The label showing
lock and unlock
positions is located near
the lock.To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.
When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one, the
power door lock switch, or by lifting the
rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Lock Label shown
108
ProCarManuals.com

Lockout Protection
This feature protects you from locking the key in the
vehicle when the key is in the ignition and a front
door is open.
If the driver’s side power door lock switch is
pressed when the driver’s door is open and the key
is in the ignition, all of the doors will lock and then
the driver’s door will unlock.
If the passenger’s side power door lock switch is
pressed when the front passenger’s door is open
and the key is in the ignition, all of the doors will
lock and then the front passenger’s door will unlock.
Liftgate
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death.
CAUTION: (Continued)
CAUTION: (Continued)
If you must drive with the liftgate open, or
if electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
with the recirculation mode off. That
will force outside air into your vehicle.
SeeClimate Control System on
page 194.
If you have air outlets on or under
the instrument panel, open them all
the way.
If your vehicle has a power liftgate,
disable the power liftgate function.
SeePower Liftgate on page 110.
If your vehicle has a power liftgate, seePower
Liftgate on page 110.
109
ProCarManuals.com

To unlock the liftgate, use the power door lock
switch or press the door unlock button on
the Remote Keyless Entry (RKE) transmitter twice.
SeeRemote Keyless Entry (RKE) System
Operation on page 100.
To open the liftgate, press the touchpad on the
underside of the liftgate handle. The vehicle must
be in PARK (P) to open the liftgate. To close
the liftgate, use the pull cup or pull strap as an aid.
The liftgate has an electric latch. If the battery is
disconnected or has low voltage, the liftgate
will not open. The liftgate will resume operation
when the battery is reconnected and charged.
If the battery is properly connected and has
adequate voltage, and the liftgate still will not
function, your vehicle should be taken to a
dealership for service.Power Liftgate
Power Liftgate Operation
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the liftgate open, or if
electrical wiring or other cable connections
must pass through the seal between the
body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the
recirculation mode off. That will force
outside air into your vehicle. See
Climate Control System on page 194.
CAUTION: (Continued)
110
ProCarManuals.com
