The roof-rail airbags for the driver, right front
passenger, passengers behind the driver and right
front passenger, and the third row outboard
passengers are in the ceiling above the side
windows.
{CAUTION:
If something is between an occupant and
an airbag, the airbag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering.
Do not use seat accessories that block
the in ation path of a seat-mounted side
impact airbag.
If your vehicle has roof-rail airbags, never
secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening. If
you do, the path of an in ating roof-rail
airbag will be blocked.
Driver Side shown, Passenger Side similar
81
ProCarManuals.com
Page 82 of 538

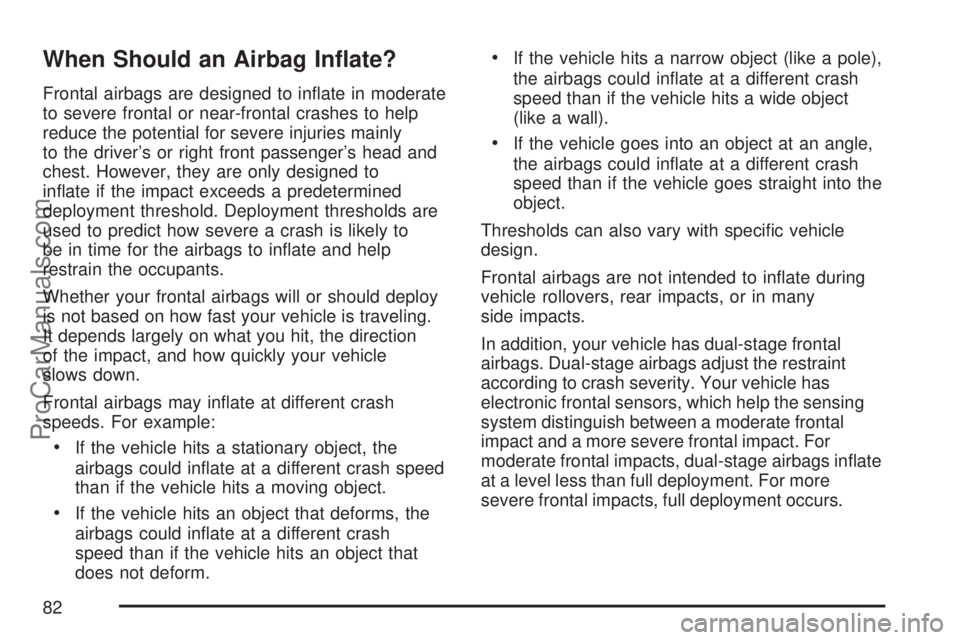

When Should an Airbag In ate?
Frontal airbags are designed to in ate in moderate
to severe frontal or near-frontal crashes to help
reduce the potential for severe injuries mainly
to the driver’s or right front passenger’s head and
chest. However, they are only designed to
in ate if the impact exceeds a predetermined
deployment threshold. Deployment thresholds are
used to predict how severe a crash is likely to
be in time for the airbags to in ate and help
restrain the occupants.
Whether your frontal airbags will or should deploy
is not based on how fast your vehicle is traveling.
It depends largely on what you hit, the direction
of the impact, and how quickly your vehicle
slows down.
Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could in ate at a different crash
speed than if the vehicle goes straight into the
object.
Thresholds can also vary with speci c vehicle
design.
Frontal airbags are not intended to in ate during
vehicle rollovers, rear impacts, or in many
side impacts.
In addition, your vehicle has dual-stage frontal
airbags. Dual-stage airbags adjust the restraint
according to crash severity. Your vehicle has
electronic frontal sensors, which help the sensing
system distinguish between a moderate frontal
impact and a more severe frontal impact. For
moderate frontal impacts, dual-stage airbags in ate
at a level less than full deployment. For more
severe frontal impacts, full deployment occurs.
82
ProCarManuals.com
Page 83 of 538
Seat-mounted side impact and roof-rail airbags
are intended to in ate in moderate to severe side
crashes. In addition, these roof-rail airbags are
intended to in ate during a rollover or in a severe
frontal impact. Seat-mounted side impact and
roof-rail airbags will in ate if the crash severity is
above the system’s designed threshold level.
The threshold level can vary with speci c vehicle
design.
Seat-mounted side impact airbags are not
intended to in ate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts. Roof-rail
airbags are not intended to in ate in rear impacts.
A seat-mounted side impact airbag is intended
to deploy on the side of the vehicle that is struck.
Both roof-rail airbags will deploy when either
side of the vehicle is struck, or if the sensing
system predicts that the vehicle is about to
roll over, or in a severe frontal impact.
In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down. For seat-mounted side impact androof-rail airbags, deployment is determined by the
location and severity of the side impact. In a
rollover event, roof-rail airbag deployment
is determined by the direction of the roll.
What Makes an Airbag In ate?
In a deployment event, the sensing system sends
an electrical signal triggering a release of gas
from the in ator. Gas from the in ator lls
the airbag causing the bag to break out of the
cover and deploy. The in ator, the airbag,
and related hardware are all part of the airbag
module.
Frontal airbag modules are located inside the
steering wheel and instrument panel. For vehicles
with seat-mounted side impact airbags, there
are airbag modules in the side of the front
seatbacks closest to the door. For vehicles with
roof-rail airbags, there are airbag modules in
the ceiling of the vehicle, near the side windows
that have occupant seating positions.
83
ProCarManuals.com
Page 84 of 538
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts.
Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body,
stopping the occupant more gradually.
Seat-mounted side impact and roof-rail airbags
distribute the force of the impact more evenly over
the occupant’s upper body.
Rollover capable roof-rail airbags are designed to
help contain the head and chest of occupants
in the outboard seating positions in the rst,
second, and third rows. The rollover capable
roof-rail airbags are designed to help reduce the
risk of full or partial ejection in rollover events,
although no system can prevent all such ejections.But airbags would not help in many types of
collisions, primarily because the occupant’s motion
is not toward those airbags. SeeWhen Should
an Airbag Inflate? on page 82for more information.
Airbags should never be regarded as anything
more than a supplement to safety belts.
What Will You See After an Airbag
In ates?
After the frontal airbags and seat-mounted side
impact airbags in ate, they quickly de ate,
so quickly that some people may not even realize
an airbag in ated. Roof-rail airbags may still be
at least partially in ated for some time after
they deploy. Some components of the airbag
module may be hot for several minutes. For
location of the airbag modules, seeWhat Makes
an Airbag Inflate? on page 83.
The parts of the airbag that come into contact with
you may be warm, but not too hot to touch.
There may be some smoke and dust coming from
the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle,
nor does it prevent people from leaving the vehicle.
84
ProCarManuals.com
Page 85 of 538
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and
turn the hazard warning ashers on when the
airbags in ate. You can lock the doors, turn the
interior lamps off, and turn the hazard warning
ashers off by using the controls for those features.In many crashes severe enough to in ate the
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger airbag.Airbags are designed to in ate only once. After
an airbag in ates, you will need some new
parts for the airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system will
include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Recording and
Privacy on page 519andEvent Data Recorders
on page 520.
Let only quali ed technicians work on the
airbag systems. Improper service can mean
that an airbag system will not work properly.
See your dealer/retailer for service.
85
ProCarManuals.com
Page 86 of 538
Passenger Sensing System
Your vehicle has a passenger sensing system for
the right front passenger’s position. The passenger
airbag status indicator will be visible on the
instrument panel when you start your vehicle.
The words ON and OFF, or the symbol for on and
off, will be visible during the system check. If
you are using remote start to start your vehicle
from a distance, if equipped, you may not see the
system check. When the system check is
complete, either the word ON or the word OFF, or
the symbol for on or the symbol for off, will be
visible. SeePassenger Airbag Status Indicator on
page 214.The passenger sensing system will turn off the
right front passenger’s frontal airbag and
seat-mounted side impact airbag under certain
conditions. The driver’s airbags are not part of the
passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat. The sensors are designed to detect the
presence of a properly-seated occupant and
determine if the right front passenger’s frontal
airbag and seat-mounted side impact airbag
should be enabled (may in ate) or not.
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat.
We recommend that children be secured in a rear
seat, including: an infant or a child riding in a
rear-facing child restraint; a child riding in a
forward-facing child seat; an older child riding in a
booster seat; and children, who are large
enough, using safety belts.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
United StatesCanada
86
ProCarManuals.com
Page 87 of 538
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal and seat-mounted
side impact airbag if the system detects a
rear-facing child restraint, no system is

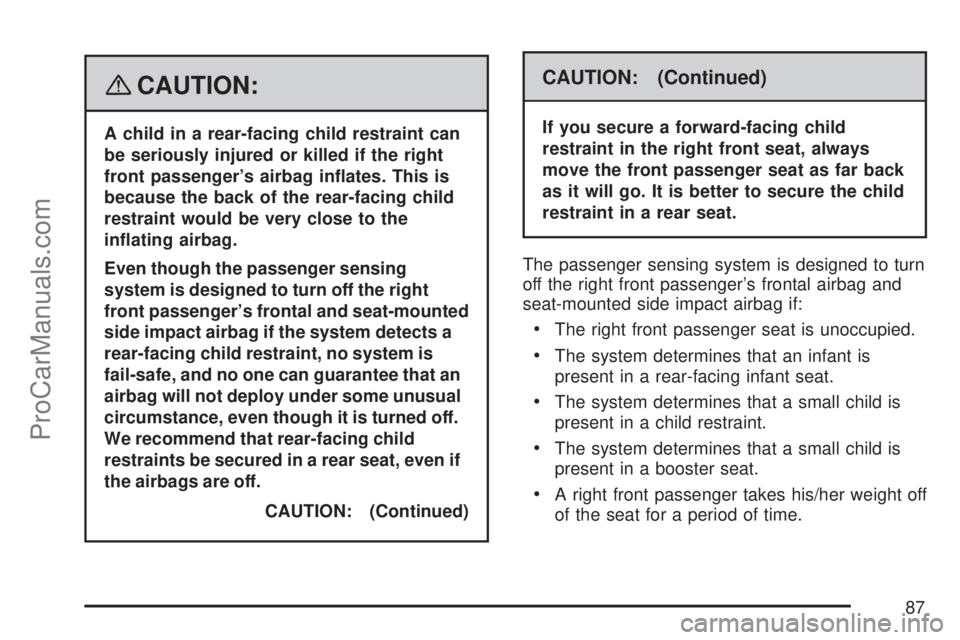

fail-safe, and no one can guarantee that an
airbag will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be secured in a rear seat, even if
the airbags are off.
CAUTION: (Continued)
CAUTION: (Continued)
If you secure a forward-facing child
restraint in the right front seat, always
move the front passenger seat as far back
as it will go. It is better to secure the child
restraint in a rear seat.

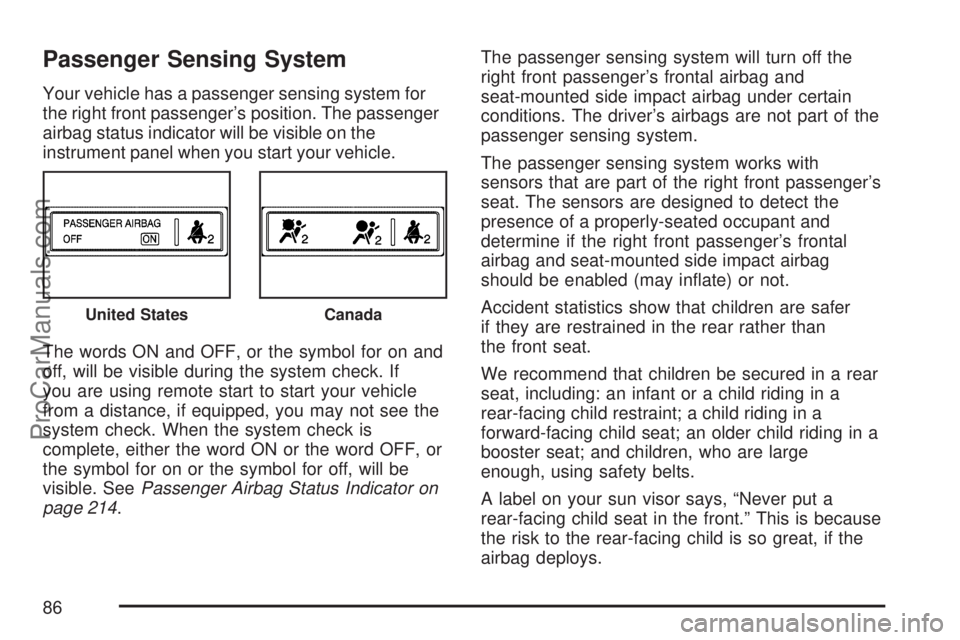

The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag and
seat-mounted side impact airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
87
ProCarManuals.com
Page 88 of 538
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag
and seat-mounted side impact airbag, the off
indicator will light and stay lit to remind you that
the airbags are off. SeePassenger Airbag
Status Indicator on page 214.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
on page 72.If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint. SeeHead Restraints
on page 17.
Remove any additional material from the seat
cushion before reinstalling or securing the
child restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle, and check with your dealer/retailer.
88
ProCarManuals.com
Page 89 of 538
The passenger sensing system is designed to
enable (may in ate) the right front passenger’s
frontal airbag and seat-mounted side impact airbag
anytime the system senses that a person of
adult size is sitting properly in the right front
passenger’s seat. When the passenger sensing
system has allowed the airbags to be enabled, the
on indicator will light and stay lit to remind you
that the airbags are active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the right
front passenger’s frontal airbag and seat-mounted
side impact airbag, depending upon the person’s
seating posture and body build. Everyone in your
vehicle who has outgrown child restraints should
wear a safety belt properly — whether or not there
is an airbag for that person.If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for two to three minutes. This will allow the
system to detect that person and then enable the
right front passenger’s frontal airbag and
seat-mounted side impact airbag.
89
ProCarManuals.com
Page 90 of 538
Safety belts help keep the passenger in position
on the seat during vehicle maneuvers and braking,
which helps the passenger sensing system
maintain the passenger airbag status. See “Safety
Belts” and “Child Restraints” in the Index for
additional information about the importance of
proper restraint use.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the
airbag(s). SeeAirbag Readiness Light on
page 212for more on this, including
important safety information.
A thick layer of additional material, such as a
blanket or cushion, or aftermarket equipment such
as seat covers, seat heaters, and seat massagers
can affect how well the passenger sensing system
operates. Remove any additional material from the
seat cushion before reinstalling or securing the
child restraint and before a small occupant,
including a small adult, sits in the right front
passenger’s seat. You may want to consider not
using seat covers or other aftermarket equipment.
90
ProCarManuals.com
