SATURN OUTLOOK 2010 Owners Manual

Service and Maintenance 11-11
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
ProCarManuals.com

11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
ProCarManuals.com

Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-3
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.
ProCarManuals.com

12-2 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricantson page 11‑7for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more information.
Cooling System 10.8 L11.4 qt
Engine Oil with Filter 5.2 L5.5 qt
Fuel Tank 83.3 L22.0 gal
Transmission Fluid* (Drain and Refill) 5.0 L5.3 qt
Wheel Nut Torque 190Y 140 lb ft
*See Automatic Transmission Fluid
on page 10‑12for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
ProCarManuals.com

Technical Data 12-3
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
3.6L V6 Engine DAutomatic 1.10 mm (0.043 in)
Engine Drive Belt Routing
3.6L V6 Engine
ProCarManuals.com

12-4 Technical Data
2NOTES
ProCarManuals.com

Customer Information 13-1
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . 13-1
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . 13-4
Customer Assistance for Text Telephone (TTY) Users . . . . . 13-4
Online Owner Center . . . . . . . . 13-5
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 13-5
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 13-5
Scheduling Service Appointments . . . . . . . . . . . . . . 13-7
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 13-8
Collision Damage Repair . . . . 13-9
Service Publications Ordering Information . . . . . . 13-11
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . 13-13
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . 13-13
Reporting Safety Defects to General Motors . . . . . . . . . . . 13-14
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . 13-14
Event Data Recorders . . . . . . 13-14
Navigation System . . . . . . . . . 13-15
Radio Frequency Identification (RFID) . . . . . . . 13-16
Radio Frequency Statement . . . . . . . . . . . . . . . . . 13-16
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your retailer and to
Saturn. Together we are committed
to providing our customers with
unparalleled service, before, during,
and after the purchase of a Saturn
vehicle, for total customer
satisfaction. We call this the Saturn
Difference. Normally, any concerns
with the sales transaction or the
operation of the vehicle are resolved
by the retailer's sales or service
departments. If, for any reason, your
ownership experience falls below
your expectations, we suggest you
take the following action:
STEP ONE: Contact the Retail
Customer Assistance Liaison. Any
member of the retail management
team has the authority and the
desire to resolve your concerns.
Normally, concerns can be quickly
resolved at this level.
ProCarManuals.com

13-2 Customer Information
STEP TWO :Should you need
additional assistance, in the U.S.,
contact the Saturn Customer
Assistance Center by calling
1-800-553-6000. In Canada, call the
Saturn Customer Communication
Centre at 1-800-263-1999. A Saturn
Customer Assistance Center team
member will handle your call and
assist in providing product and
warranty information, the nearest
retailer location, roadside
assistance, brochures, literature
and discuss any concerns you
may have.
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Please
have the following information
available to give the Customer
Assistance Representative:
.Vehicle Identification Number
(VIN). This 17-digit number
can be found on the vehicle
registration or title, on the upper
driver side corner of the
instrument panel, or on your
roadside assistance key card.
.The name of your selling and
servicing retail facility.
.Vehicle delivery date and
present mileage.
.Your daytime and evening phone
numbers.
When contacting Saturn, please
remember that your concern will
likely be resolved at a retailer's
facility. That is why we suggest you
follow Step One first.
STEP THREE (U.S. Owners):
Both Saturn and its retailers are
committed to making sure you are
completely satisfied with your
Saturn vehicle. However, if you
continue to remain unsatisfied after
following the procedure outlined in
Steps One and Two, Saturn and
its retailers offer the additional
assistance of a neutral party
through our voluntary participation
in a mediation/arbitration program
called Better Business Bureau
(BBB) Auto Line. The BBB Auto Line Program is an
out-of-court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs or
the interpretation of the New Vehicle
Limited Warranty. This program is
available at no cost to you, our
customer.
Although you may be required to
resort to this informal dispute
resolution program prior to filing a
court action, use of the program is
free of charge and your case is
generally heard within 40 days.
If you do not agree with the decision
given in your case, you can reject it
and proceed with any other venue
for relief available to you.
ProCarManuals.com

Customer Information 13-3
Contact the BBB Auto Line Program
by using the toll-free telephone
number or by writing them at the
following address:
BBB Auto Line Program
Council of Better Business
Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
dr.bbb.org/goauto
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage and other
factors. Saturn Corporation reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.STEP THREE (Canadian Owners):
General Motors Participation in
the Mediation/Arbitration Program
In the event that you do not feel
your concerns have been addressed
after following the procedure
outlined in Steps 1 and 2, General
Motors of Canada Limited has
committed to binding arbitration
of owner disputes involving
factory-related vehicle service
claims. The program provides for
the review of the facts involved by
an impartial third party arbiter, and
may include an informal hearing
before the arbiter. The program is
designed so that the entire dispute
settlement process, from the time
you file your complaint to the final
decision, should be completed in
approximately 70 days. We believe
our impartial program offers
advantages over courts in most
jurisdictions because it is informal,
quick, and free of charge.For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685.
Alternatively, you may call the
Saturn Customer Communication
Centre, 1-800-263-1999, or you may
write to:
Mediation/Arbitration Program
c/o Customer Communication
Centre
General Motors of Canada Limited
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Telephone: 1-800-955-5100
Your inquiry should be accompanied
by the Vehicle Identification
Number (VIN).
ProCarManuals.com

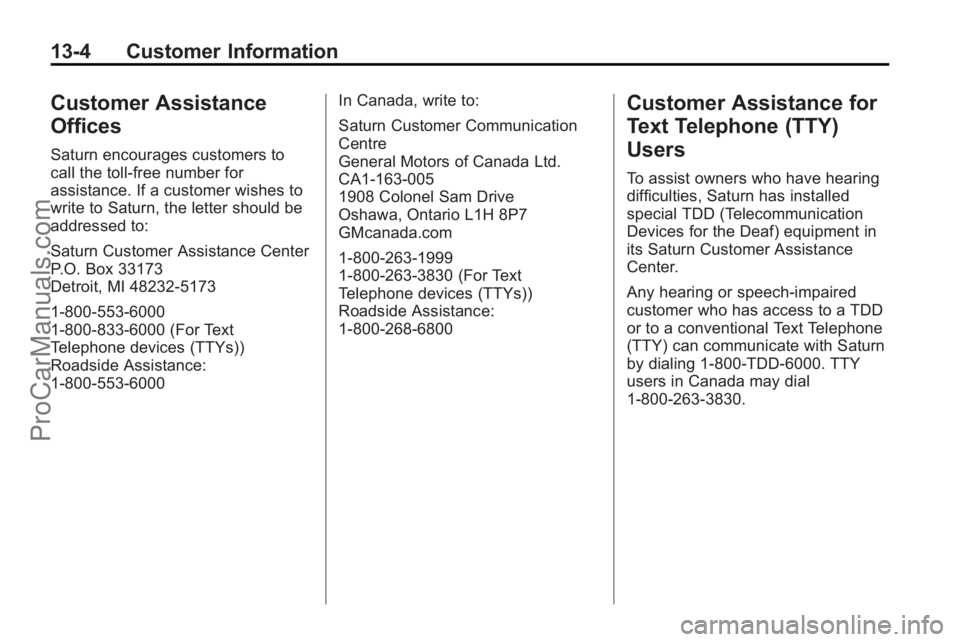

13-4 Customer Information
Customer Assistance
Offices
Saturn encourages customers to
call the toll-free number for
assistance. If a customer wishes to
write to Saturn, the letter should be
addressed to:
Saturn Customer Assistance Center
P.O. Box 33173
Detroit, MI 48232-5173
1-800-553-6000
1-800-833-6000 (For Text
Telephone devices (TTYs))
Roadside Assistance:
1-800-553-6000In Canada, write to:
Saturn Customer Communication
Centre
General Motors of Canada Ltd.
CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
GMcanada.com
1-800-263-1999
1-800-263-3830 (For Text
Telephone devices (TTYs))
Roadside Assistance:
1-800-268-6800
Customer Assistance for
Text Telephone (TTY)
Users
To assist owners who have hearing
difficulties, Saturn has installed
special TDD (Telecommunication
Devices for the Deaf) equipment in
its Saturn Customer Assistance
Center.
Any hearing or speech-impaired
customer who has access to a TDD
or to a conventional Text Telephone
(TTY) can communicate with Saturn
by dialing 1-800-TDD-6000. TTY
users in Canada may dial
1-800-263-3830.
