ignition SATURN RELAY 2007 User Guide

Programmable Automatic
Door Unlock
Your vehicle was programmed so that all doors
will unlock automatically when the shift lever
is moved into PARK (P).
To change the way the automatic door unlocking
operates, seeDIC Vehicle Personalization
(Uplevel Only) on page 261.
Lockout Protection
The lockout protection feature makes it more
difficult to lock the key in the vehicle. If the driver’s
door is open while the key is in the ignition, the
door cannot be locked with the power door
lock switch.
This feature cannot guarantee that you will never
be locked out of the vehicle. If the key is not
left in the ignition, or, if the manual door lock is
used, the key could still be locked inside the
vehicle. Always remember to take the key
with you.
Dual Sliding Doors
To open either sliding door from outside the
vehicle, pull the handle out and then pull the door
toward the rear. If you slide the door all the
way back, the door will rest in a detent position.
To move the door forward, you must rst pull
the door past the open detent position.
The driver’s side sliding door is designed to open
only a little if the fuel door is open. If this ever
happens, do not try to force the sliding door. Just
close the driver’s side sliding door. Then when
the fuel ller door is closed, the driver’s side sliding
door can be opened normally.
118
ProCarManuals.com

To close the door(s) manually when the override
switch(es) is in the override (deactivation) position,
pull the inside or outside door handle and slide
the door all the way forward to the latched position.
To stop the door(s) immediately while the
door(s) is opening or closing, press the PSD
override (deactivation) part of the switch.
Pressing the PSD button(s) on the remote keyless
entry will open and close the door unless the
door has been manually locked using the
mechanical slider.
Resetting the Power Sliding Door
The power sliding door may operate incorrectly or
not at all because of the following conditions:
A low voltage or dead battery
A disconnected battery
If the instrument panel PSD/fuse 21,
LHPSD/fuse 24 or RHPSD/fuse 25 are
removed or blown.
SeeFuses and Circuit Breakers on page 512for
more information.If any of these conditions occur, the power sliding
door may need to be reset. If your vehicle has
the dual power sliding doors, both doors will have
to be reset. To reset a door, do the following:
1. Check to be sure the power sliding door is
unlocked and securely closed.
2. Turn the ignition to LOCK.
3. If the power sliding door overhead console
switch is in the override (deactivation)
position, return to the activation position.
4. Open the sliding door using the remote
keyless entry transmitter, overhead console
switch, or passenger switch. Allow the door to
travel fully open.
If the door does not travel to the fully open
position, press the overhead console switch to the
override (deactivation) position and slide the
door fully open and closed. Check for foreign
objects in the tracks. Repeat the procedure starting
with Step 1. If the door resists travel to the fully
open position, see your retailer for service.
127
ProCarManuals.com

Power Windows
The switches on the
driver’s door armrest
control the front
windows when the
ignition is in RUN,
ACCESSORY or when
Retained Accessory
Power (RAP) is active.
SeeRetained
Accessory Power (RAP)
on page 139.
The driver’s power window switch has two down
positions. The rst position lowers the window
normally.
To raise the window, pull up the front of the
switch.
Express-Down Window
To activate the express-down feature, push the
AUTO switch all the way down to the second
position, then release it. The window will lower
completely. To stop the window from lowering all
the way, pull up on the front of the switch.
Manual Rear Quarter Windows
Your vehicle may have manual rear quarter
windows.
To open, pull the latch
forward to release it,
then swing the window
outward. Press the
center of the latch to
secure the window
in the open position.
To close, pull the center of the latch forward and
then close the latch. Press the center of the
latch to secure the window in the closed position.
131
ProCarManuals.com

Power Rear Quarter Windows
Your vehicle may have power rear quarter
windows.
This switch, located in
the overhead console
switchbank, is used
for opening and closing
the power rear
quarter windows.
Press the top of the switch to open the windows;
both windows will open. The windows will
continue to open as long as the switch is pressed,
until they are fully opened.
Press the bottom of the switch to close both
windows. The windows can be closed fully or
partially, depending on how long the switch
is pressed.The ignition must be in RUN, ACCESSORY, or
Retained Accessory Power (RAP) must be active,
to use the power rear quarter windows. See
Retained Accessory Power (RAP) on page 139.
Sun Visors
To block out glare, swing down the sun visors.
You can also remove them from the center mount
and swing them to the side. The sun visors can
also slide along the rod to cover different areas of
the front window.
Visor Vanity Mirror
Your vehicle may have a visor vanity mirror. Pull
down the sun visor to access the vanity mirror.
Lighted Vanity Mirror
Your vehicle may have a lighted vanity mirror.
Pull down the sun visor and ip up the cover to
expose the vanity mirror. The lamps will come on
when you ip up the cover.
132
ProCarManuals.com

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have a theft-deterrent alarm
system.
A light located on top of your instrument panel,
near the center of the vehicle next to the
windshield, will ash slowly to let you know that
the system has been armed.
While armed, the doors will not unlock with the
power door lock switch.
Once armed, the alarm will go off if someone tries
to enter the vehicle without using the remote
keyless entry transmitter or a key, or turns
the ignition to RUN. The horn will sound and the
turn signal lamps will ash for up to two minutes.
133
ProCarManuals.com

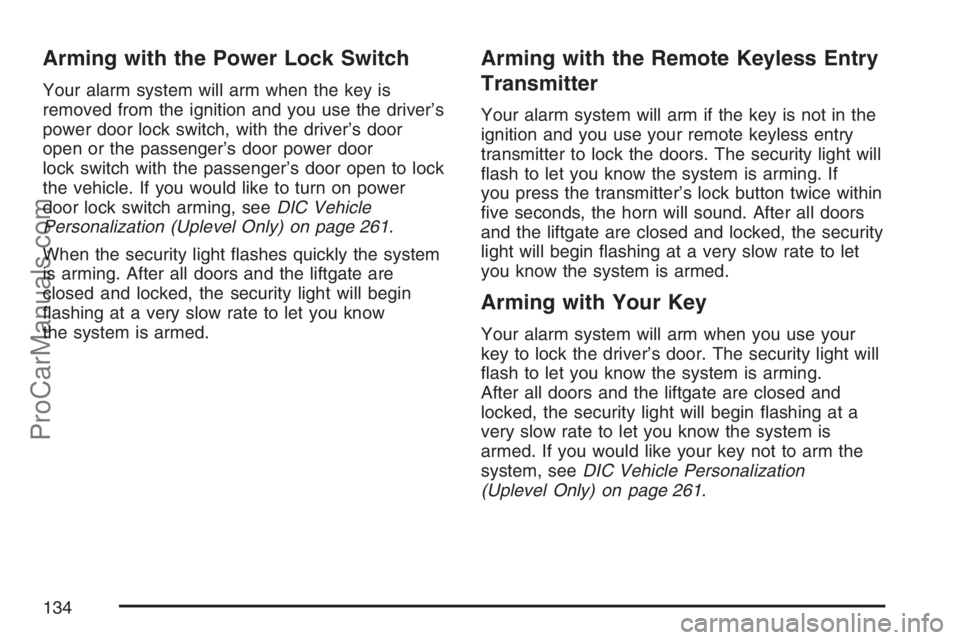

Arming with the Power Lock Switch
Your alarm system will arm when the key is
removed from the ignition and you use the driver’s
power door lock switch, with the driver’s door
open or the passenger’s door power door
lock switch with the passenger’s door open to lock
the vehicle. If you would like to turn on power
door lock switch arming, seeDIC Vehicle
Personalization (Uplevel Only) on page 261.
When the security light ashes quickly the system
is arming. After all doors and the liftgate are
closed and locked, the security light will begin
ashing at a very slow rate to let you know
the system is armed.
Arming with the Remote Keyless Entry
Transmitter
Your alarm system will arm if the key is not in the
ignition and you use your remote keyless entry
transmitter to lock the doors. The security light will
ash to let you know the system is arming. If
you press the transmitter’s lock button twice within
ve seconds, the horn will sound. After all doors
and the liftgate are closed and locked, the security
light will begin ashing at a very slow rate to let
you know the system is armed.
Arming with Your Key
Your alarm system will arm when you use your
key to lock the driver’s door. The security light will
ash to let you know the system is arming.
After all doors and the liftgate are closed and
locked, the security light will begin ashing at a
very slow rate to let you know the system is
armed. If you would like your key not to arm the
system, seeDIC Vehicle Personalization
(Uplevel Only) on page 261.
134
ProCarManuals.com

PASS-Key®III Operation
Your vehicle is equipped
with the PASS-Key®III
(Personalized
Automotive Security
System) theft-deterrent
system. PASS-Key
®III
is a passive theft
deterrent system.
This means you do not have to do anything
different to arm or disarm the system. It works
when you insert or remove the key from the
ignition.When the PASS-Key
®III system senses that
someone is using the wrong key, it shuts down
the vehicle’s starter and fuel systems. The starter
will not work and fuel will stop being delivered
to the engine. Anyone using a trial-and-error
method to start the vehicle will be discouraged
because of the high number of electrical
key codes.
If the engine does not start and the security
message comes on, the key may have a damaged
transponder. Turn the ignition off and try again.
If the engine still does not start, and the key
appears to be undamaged, try another ignition
key. At this time, you may also want to check the
instrument panel PASS KEY fuse. If the engine
still does not start with the other key, your vehicle
needs service. If your vehicle does start, the
rst key may be faulty. See your retailer or
a locksmith who can service the PASS-Key
®III to
have a new key made. SeeFuses and Circuit
Breakers on page 512.
136
ProCarManuals.com

It is possible for the PASS-Key®III decoder
to learn the transponder value of a new or
replacement key. Up to 10 keys may be
programmed for the vehicle. This procedure is for
learning additional keys only. If all the currently
programmed keys are lost or do not operate, you
must see your retailer or a locksmith who can
service PASS-Key
®III to have keys made
and programmed to the system.
See your retailer or a locksmith who can service
PASS-Key
®III to get a new key blank that is
cut exactly as the ignition key that operates the
system.
To program the new key, do the following:
1. Verify the new key has PK3 stamped on it.
2. Insert the original, already programmed
key into the ignition lock cylinder and start the
engine. If the engine will not start, see your
retailer for service.
3. After the engine has started, turn the key to
LOCK and remove the key.4. Insert the key to be programmed and turn it
to RUN within 10 seconds of removing the
previous key.
5. The security message will turn off once the
key has been programmed. It may not be
apparent that the security message went on
due to how quickly the key is programmed.
6. Repeat Steps 1 through 4 if additional keys
are to be programmed.
If you are ever driving and the security message
comes on and stays on, you will be able to restart
your engine if you turn it off. Your PASS-Key
®III
system, however, is not working properly and must
be serviced by your retailer. Your vehicle is not
protected by the PASS-Key
®III system at this time.
If you lose or damage a PASS-Key
®III key, see
your retailer or a locksmith who can service
PASS-Key
®III to have a new key made.
137
ProCarManuals.com

Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better
in the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles (805 km).
Do not make full-throttle starts. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during break-in. See
Towing a Trailer on page 398for the trailer
towing capabilities of your vehicle and more
information.
Following break-in, engine speed and load can
be gradually increased.
Ignition Positions
The key can be turned to one of four positions
while in the ignition switch.
A (LOCK):This is the only position from which
you can remove the key. This position locks
your ignition and transaxle.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is all the
way in. If none of this works, then your vehicle
needs service.
138
ProCarManuals.com

B (ACCESSORY):This is the position in which
you can operate the electrical accessories, such
as the radio.
C (RUN):This is the position to which the switch
returns after the engine is started and the
ignition key is released. This is the position for
driving. Even while the engine is not running,
RUN can be used to operate your electrical
accessories and to display some instrument
panel warning lights.
The battery could be drained if you leave the
key in the ACCESSORY or RUN position with the
engine off. You may not be able to start your
vehicle if the battery is allowed to drain for
an extended period of time.
D (START):This position starts the engine.
When the engine starts, release the ignition key.
The switch will return to RUN for driving.Key In the Ignition
Never leave your vehicle with the keys inside,
as it is an easy target for joy riders or thieves.
If you leave the key in the ignition and park your
vehicle,a chime will sound, when you open
the driver’s door. Always remember to remove
your key from the ignition and take it with you.
This will lock your ignition and transaxle.
Also, always remember to lock the doors.
The battery could be drained if you leave the
key in the ignition while your vehicle is parked.
You may not be able to start your vehicle after
it has been parked for an extended period of time.
Retained Accessory Power (RAP)
With RAP, your power windows and the audio
system will continue to work for up to 10 minutes
after the engine is turned off or until either
door is opened. If a door is opened, the power
windows and audio system will shut off.
139
ProCarManuals.com
