wheel SATURN RELAY 2007 User Guide

Reprogramming a Single Universal
Home Remote Button
To program a device to Universal Home Remote
using a Universal Home Remote button
previously trained, follow these steps:
1. Press and hold the desired Universal Home
Remote button. Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the Universal
Home Remote button, proceed with Step
2 under “Programming Universal Home
Remote” shown earlier in this section.
For additional information on Universal Home
Remote, seeCustomer Satisfaction Procedure
on page 538.
Storage Areas
Your vehicle’s large carrying capacity can store
many items. If the vehicle has an extended
wheelbase, it can carry even larger items. The
oor pins that are used to attach the seats,
can be used to secure larger loads.
Glove Box
If the glove box has a lock, put your key into
the lock and turn the key counterclockwise.
To open the glove box, pull the latch release.
The glove box door has a detent to prevent
the door from lowering too far. Open the glove
box until the door is partway open, then pull
the door down if you need it fully opened.
To close the glove box, the door must be pushed
up past the detent. To lock the glove box, put
your key into the lock and turn the key clockwise.
Cupholder(s)
There are cupholders located below the center
instrument panel switchbank. The cupholders
have a rubber liner that can be removed, so
that larger cups can t into the cupholders.
You can also remove the liner to clean it.
To use the cupholders, pull the tray out. Push
the tray back when not in use.
Your vehicle may be equipped with cupholders
in the second row.
167
ProCarManuals.com

Instrument Panel Overview........................ 180
Hazard Warning Flashers.......................... 182
Other Warning Devices............................. 182
Horn.......................................................... 182
Tilt Wheel.................................................. 182
Turn Signal/Multifunction Lever.................. 183
Turn and Lane-Change Signals................. 184
Headlamp High/Low-Beam Changer.......... 185
Flash-to-Pass............................................ 185
Windshield Wipers..................................... 185
Windshield Washer.................................... 186
Rear Window Wiper/Washer...................... 187
Cruise Control........................................... 188
Exterior Lamps.......................................... 192
Wiper Activated Headlamps....................... 193
Headlamps on Reminder........................... 193
Daytime Running Lamps (DRL)/
Automatic Headlamp System.................. 193
Instrument Panel Brightness...................... 195
Interior Lamps Control............................... 195
Dome Lamp.............................................. 196
Entry Lighting............................................ 196
Delayed Lighting........................................ 196
Exit Lighting.............................................. 197
Front Reading Lamps................................ 197Rear Reading Lamps................................ 197
Cargo Lamp.............................................. 198
Electric Power Management...................... 198
Battery Run-Down Protection..................... 199
Overhead Console Switchbank.................. 200
Ultrasonic Rear Parking Assist (URPA)...... 200
Accessory Power Outlet(s)........................ 203
Power Outlet 115 Volt Alternating Current.... 204
Cigarette Lighter........................................ 205
Climate Controls......................................... 205
Climate Control System............................. 205
Dual Climate Control System..................... 209
Outlet Adjustment...................................... 212
Rear Climate Control System
(Option A, Uplevel)................................ 212
Rear Climate Control System
(Option B, Uplevel)................................ 215
Passenger Compartment Air Filter............. 217
Warning Lights, Gages, and Indicators..... 219
Instrument Panel Cluster........................... 220
Speedometer and Odometer...................... 221
Trip Odometer........................................... 221
Tachometer............................................... 221
Safety Belt Reminder Light........................ 222
Section 3 Instrument Panel
177
ProCarManuals.com

Passenger Safety Belt Reminder Light....... 222
Airbag Readiness Light............................. 223
Passenger Airbag Status Indicator............. 224
Charging System Light.............................. 226
Brake System Warning Light..................... 226
Anti-Lock Brake System Warning Light...... 227
Traction Control System (TCS)
Warning Light........................................ 228
Engine Coolant Temperature Gage............ 228
Malfunction Indicator Lamp........................ 229
Oil Pressure Light..................................... 232
Security Light............................................ 232
Cruise Control Light.................................. 233
Highbeam On Light................................... 233
Fuel Gage................................................. 233
Low Fuel Warning Light............................ 234
Driver Information Center (DIC).................. 234
DIC Operation and Displays...................... 235
DIC Compass (Uplevel Only)..................... 240
DIC Warnings and Messages.................... 241
DIC Vehicle Personalization
(Uplevel Only)........................................ 261Audio System(s)......................................... 270
Setting the Time........................................ 272
Radio with CD........................................... 272
Using an MP3........................................... 287
XM Radio Messages................................. 293
Navigation/Radio System........................... 294
Rear Seat Entertainment System
(Option A, Uplevel)................................ 294
Rear Seat Entertainment System
(Option B, Uplevel)................................ 309
Rear Seat Audio (RSA)
(Option A, Uplevel)................................ 325
Rear Seat Audio (RSA)
(Option B, Uplevel)................................ 328
Mobile Digital Media System..................... 330
Theft-Deterrent Feature............................. 352
Audio Steering Wheel Controls.................. 353
Radio Reception........................................ 354
Care of Your CDs and DVDs.................... 355
Care of the CD and DVD Player............... 355
Fixed Mast Antenna.................................. 355
XM™ Satellite Radio Antenna System....... 356
Chime Level Adjustment............................ 356
Section 3 Instrument Panel
178
ProCarManuals.com

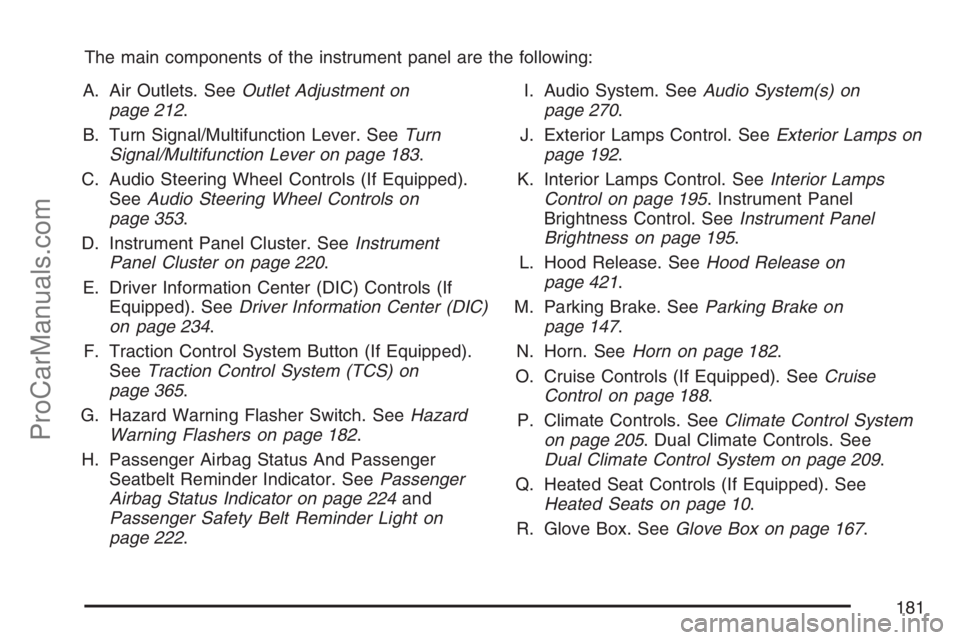

The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 212.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 183.
C. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 353.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 220.
E. Driver Information Center (DIC) Controls (If
Equipped). SeeDriver Information Center (DIC)
on page 234.
F. Traction Control System Button (If Equipped).
SeeTraction Control System (TCS) on
page 365.
G. Hazard Warning Flasher Switch. SeeHazard
Warning Flashers on page 182.
H. Passenger Airbag Status And Passenger
Seatbelt Reminder Indicator. SeePassenger
Airbag Status Indicator on page 224and
Passenger Safety Belt Reminder Light on
page 222.I. Audio System. SeeAudio System(s) on
page 270.
J. Exterior Lamps Control. SeeExterior Lamps on
page 192.
K. Interior Lamps Control. SeeInterior Lamps
Control on page 195. Instrument Panel
Brightness Control. SeeInstrument Panel
Brightness on page 195.
L. Hood Release. SeeHood Release on
page 421.
M. Parking Brake. SeeParking Brake on
page 147.
N. Horn. SeeHorn on page 182.
O. Cruise Controls (If Equipped). SeeCruise
Control on page 188.
P. Climate Controls. SeeClimate Control System
on page 205. Dual Climate Controls. See
Dual Climate Control System on page 209.
Q. Heated Seat Controls (If Equipped). See
Heated Seats on page 10.
R. Glove Box. SeeGlove Box on page 167.
181
ProCarManuals.com

Hazard Warning Flashers
Your hazard warning ashers let you warn others.
They also let police know you have a problem.
Your front and rear turn signal lamps will ash on
and off.
The hazard warning
asher button is located
in the center of the
instrument panel.
Your hazard warning ashers work no matter what
position your key is in, and even if the key is
not in the ignition switch.
Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
When the hazard warning ashers are on, your
turn signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up
at the side of the road about 300 feet (100 m)
behind your vehicle.
Horn
Press near or on the horn symbols on your
steering wheel pad to sound the horn.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise the steering
wheel to the highest level to give your legs more
room when you enter and exit the vehicle.
The lever that allows you to tilt the steering wheel
is located on the left side of the steering column.
182
ProCarManuals.com

To tilt the wheel, hold
the wheel and pull the
lever. Then move
the wheel to a
comfortable position and
release the lever to
lock the wheel in place.Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane Change Signals. See
Turn and Lane-Change Signals on page 184.
53Headlamp High/Low-Beam Changer.
SeeHeadlamp High/Low-Beam Changer on
page 185.
Flash-to-Pass. SeeFlash-to-Pass on
page 185.
NWindshield Wipers. SeeWindshield
Wipers on page 185.
183
ProCarManuals.com

Cruise Control
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.If your vehicle has
cruise control, the lever
is located below the
windshield wiper control
on the right side of
the steering wheel.
QRES + (Resume/Accelerate):Push the lever
up to resume the cruise control speed, or to
accelerate when passing another vehicle.
J(CRUISE CONTROL) ON/OFFq:Press the
button on the end of the lever to turn the cruise
control on. Press it again to turn cruise control off.
RSET — (Set/Coast/Decelerate):Push the
lever down to set the cruise speed. If the cruise
speed is already set this position can be used
to coast or decelerate from a higher speed.
CANCEL
R:Pull the lever to cancel the cruise
control speed.
188
ProCarManuals.com

Cruise control allows a speed of approximately
25 mph (40 km/h) or more to be maintained
without keeping your foot on the accelerator. This
is helpful on long trips. Cruise control does not
work at speeds below about 25 mph (40 km/h).
When the brakes are applied, the cruise control
shuts off.
If the vehicle is in cruise control and the Traction
Control System (TCS) begins to limit wheel
spin, the cruise control will automatically
disengage. SeeTraction Control System (TCS) on
page 365. When road conditions allow, the
cruise control can be used again.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.1. Push the button at the end of the cruise
control lever to turn the cruise control on.
2. Accelerate to the desired speed.
3. Push down on the cruise control lever and
release it. This will set the speed in cruise
control.
4. Remove your foot from the accelerator pedal.
This symbol will appear
on the instrument panel
cluster when the
cruise control is set.
This symbol will disappear when the brakes are
applied or the cruise control is cancelled. It will
reappear when the set cruise speed is resumed.
189
ProCarManuals.com

Outlet Adjustment
k(Open):Turn the thumbwheel to this position
to open the air outlets.
l(Closed):Turn the thumbwheel to this position
to close the air outlets.
Use the louvers located on the air outlets to
change the direction of the airow.
Operation Tips

Clear away any ice, snow, or leaves from the
air inlets at the base of the vehicle that may
block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the
system.
Keep the path under the front seats clear of
objects to help circulate the air inside of
your vehicle more effectively.
Rear Climate Control System
(Option A, Uplevel)
Your vehicle may have a rear climate control
system that allows the driver to adjust the
fan speed for the rear seating area. This system
works with the main climate control system in your
vehicle.
This lever is located below the main climate
control system on the instrument panel. Use this
lever to adjust the fan speed for the rear seat
passengers.
212
ProCarManuals.com

Audio System(s)
Determine which radio your vehicle has and then
read the pages following to familiarize yourself
with its features.
Driving without distraction is a necessity for a
safer driving experience. SeeDefensive Driving on
page 358. By taking a few moments to read this
manual and get familiar with your vehicle’s
audio system, you can use it with less effort, as
well as take advantage of its features. While your
vehicle is parked, set up your audio system by
presetting your favorite radio stations, setting the
tone and adjusting the speakers. Then, when
driving conditions permit, you can tune to
your favorite stations using the presets and
steering wheel controls if the vehicle has them.{CAUTION:
This system provides you with a far
greater access to audio stations and song
listings. Giving extended attention to
entertainment tasks while driving can
cause a crash and you or others can be
injured or killed. Always keep your eyes
on the road and your mind on the
drive — avoid engaging in extended
searching while driving.
Keeping your mind on the drive is important for
safe driving. For more information, seeDefensive
Driving on page 358.
270
ProCarManuals.com
