wheel SATURN RELAY 2007 Service Manual

Your vehicle can tow a trailer. To identify the
trailering capacity of vehicle, you should read
the information in “Weight of the Trailer” that
appears later in this section. Trailering is different
than just driving your vehicle by itself. Trailering
means changes in handling, acceleration, braking,
durability, and fuel economy. Successful, safe
trailering takes correct equipment, and it has to
be used properly.
That is the reason for this section. In it are many
time-tested, important trailering tips and safety
rules. Many of these are important for your safety
and that of your passengers. So please read
this section carefully before you pull a trailer.
Load-pulling components such as the engine,
transaxle, wheel assemblies, and tires are forced
to work harder against the drag of the added
weight. The engine is required to operate
at relatively higher speeds and under greater
loads, generating extra heat. The trailer also adds
considerably to wind resistance, increasing the
pulling requirements.If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only
where you live but also where you’ll be driving.
A good source for this information can be
state or provincial police.
Consider using a sway control. See “Hitches”
later in this section.
Do not tow a trailer at all during the rst
500 miles (800 km) your new vehicle is driven.
Your engine, axle, or other parts could be
damaged.
During the rst 500 miles (800 km) that you
tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps your engine and other parts
of your vehicle wear in at the heavier loads.
You can use THIRD (3) or, as you need to, a
lower gear when towing a trailer. Operating
your vehicle in THIRD (3) when towing a trailer
will minimize heat buildup and extend the
life of your transaxle.
399
ProCarManuals.com

Three important considerations have to do
with weight:
Weight of the trailer
Weight of the trailer tongue
Weight on your vehicle’s tires

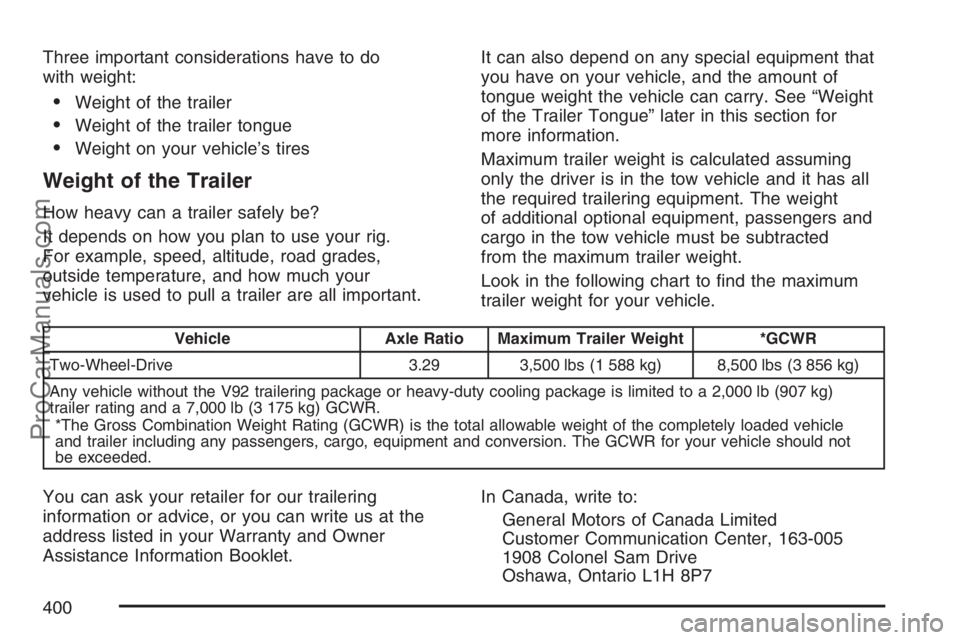

Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig.
For example, speed, altitude, road grades,
outside temperature, and how much your
vehicle is used to pull a trailer are all important.It can also depend on any special equipment that
you have on your vehicle, and the amount of
tongue weight the vehicle can carry. See “Weight
of the Trailer Tongue” later in this section for
more information.
Maximum trailer weight is calculated assuming
only the driver is in the tow vehicle and it has all
the required trailering equipment. The weight
of additional optional equipment, passengers and
cargo in the tow vehicle must be subtracted
from the maximum trailer weight.
Look in the following chart to nd the maximum
trailer weight for your vehicle.
Vehicle Axle Ratio Maximum Trailer Weight *GCWR
Two-Wheel-Drive 3.29 3,500 lbs (1 588 kg) 8,500 lbs (3 856 kg)
Any vehicle without the V92 trailering package or heavy-duty cooling package is limited to a 2,000 lb (907 kg)
trailer rating and a 7,000 lb (3 175 kg) GCWR.
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle
and trailer including any passengers, cargo, equipment and conversion. The GCWR for your vehicle should not
be exceeded.
You can ask your retailer for our trailering
information or advice, or you can write us at the
address listed in your Warranty and Owner
Assistance Information Booklet.In Canada, write to:
General Motors of Canada Limited
Customer Communication Center, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
400
ProCarManuals.com

Backing Up
Hold the bottom of the steering wheel with
one hand. Then, to move the trailer to the left,
just move that hand to the left. To move the trailer
to the right, move your hand to the right. Always
back up slowly and, if possible, have someone
guide you.
Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could
be damaged. Avoid making very sharp
turns while trailering.
When you are turning with a trailer, make wider
turns than normal. Do this so your trailer will
not strike soft shoulders, curbs, road signs,
trees, or other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have
extra wiring.
The arrows on your instrument panel will ash
whenever you signal a turn or lane change.
Properly hooked up, the trailer lamps will also
ash, telling other drivers you are about to turn,
change lanes, or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It is important to check occasionally to
be sure the trailer bulbs are still working.
406
ProCarManuals.com

Driving on Grades
Reduce speed and shift to a lower gear before
you start down a long or steep downgrade. If you
do not shift down, you might have to use your
brakes so much that they would get hot and
no longer work well.
If you are towing a trailer that weighs more than
1,000 lbs (450 kg), you may prefer to drive in
THIRD (3) instead of DRIVE (D) or, as you need
to, a lower gear. This will minimize heat build-up
and extend the life of your transaxle.
Parking on Hills
{CAUTION:
You really should not park your
vehicle, with a trailer attached, on a hill.
If something goes wrong, your rig could
start to move. People can be injured,
and both your vehicle and the trailer can
be damaged.
But if you ever have to park your rig on a hill,
do the following:
1. Apply your regular brakes, but do not shift
into PARK (P).
2. Have someone place chocks under the
trailer wheels.
3. When the wheel chocks are in place, release
the regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply
your parking brake, and shift into PARK (P).
5. Release the regular brakes.
407
ProCarManuals.com

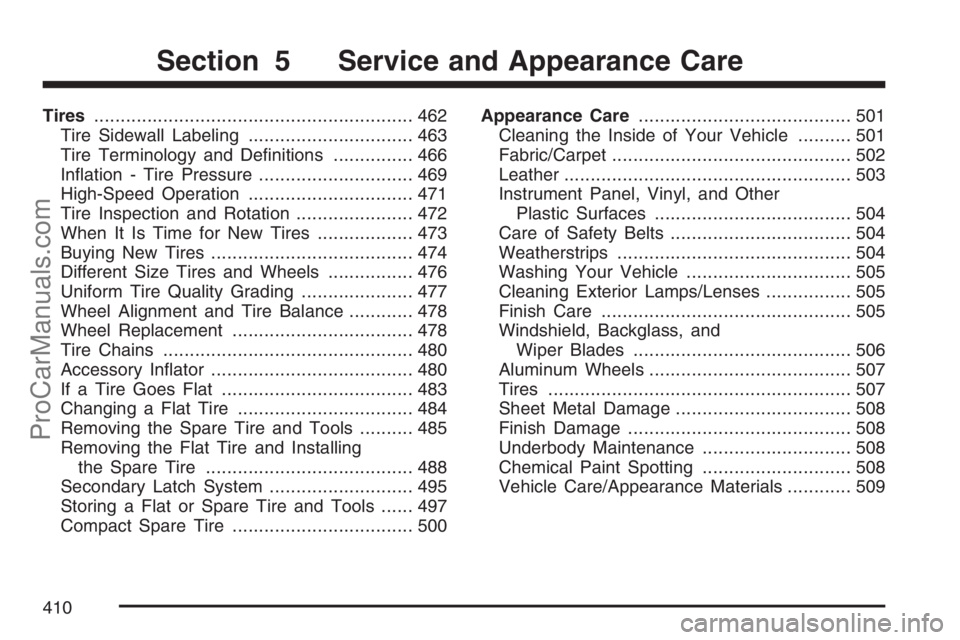

Tires............................................................ 462
Tire Sidewall Labeling............................... 463
Tire Terminology and Denitions............... 466
Ination - Tire Pressure............................. 469
High-Speed Operation............................... 471
Tire Inspection and Rotation...................... 472
When It Is Time for New Tires.................. 473
Buying New Tires...................................... 474
Different Size Tires and Wheels................ 476
Uniform Tire Quality Grading..................... 477
Wheel Alignment and Tire Balance............ 478
Wheel Replacement.................................. 478
Tire Chains............................................... 480
Accessory Inator...................................... 480
If a Tire Goes Flat.................................... 483
Changing a Flat Tire................................. 484
Removing the Spare Tire and Tools.......... 485
Removing the Flat Tire and Installing
the Spare Tire....................................... 488
Secondary Latch System........................... 495
Storing a Flat or Spare Tire and Tools...... 497
Compact Spare Tire.................................. 500Appearance Care........................................ 501
Cleaning the Inside of Your Vehicle.......... 501
Fabric/Carpet............................................. 502
Leather...................................................... 503
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 504
Care of Safety Belts.................................. 504
Weatherstrips............................................ 504
Washing Your Vehicle............................... 505
Cleaning Exterior Lamps/Lenses................ 505
Finish Care............................................... 505
Windshield, Backglass, and
Wiper Blades......................................... 506
Aluminum Wheels...................................... 507
Tires......................................................... 507
Sheet Metal Damage................................. 508
Finish Damage.......................................... 508
Underbody Maintenance............................ 508
Chemical Paint Spotting............................ 508
Vehicle Care/Appearance Materials............ 509
Section 5 Service and Appearance Care
410
ProCarManuals.com

Notice:
Using the wrong uid can badly damage
brake system parts. For example, just a
few drops of mineral-based oil, such
as engine oil, in your brake system can
damage brake system parts so badly that
they will have to be replaced. Do not
let someone put in the wrong kind of uid.
If you spill brake uid on your vehicle’s
painted surfaces, the paint nish can
be damaged. Be careful not to spill brake
uid on your vehicle. If you do, wash it
off immediately. SeeWashing Your Vehicle
on page 505.
Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound when the
brake pads are worn and new pads are needed.
The sound may come and go or be heard all
the time your vehicle is moving, except when
you are pushing on the brake pedal rmly.
{CAUTION:
The brake wear warning sound means that
soon your brakes will not work well. That
could lead to an accident. When you hear
the brake wear warning sound, have your
vehicle serviced.
Notice:Continuing to drive with worn-out
brake pads could result in costly brake repair.
Some driving conditions or climates may cause
a brake squeal when the brakes are rst applied or
lightly applied. This does not mean something is
wrong with your brakes.
447
ProCarManuals.com

Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated,
inspect brake pads for wear and evenly tighten
wheel nuts in the proper sequence to Saturn
torque specications.
Brake linings should always be replaced as
complete axle sets.
Brake Pedal Travel
See your retailer if the brake pedal does not return
to normal height, or if there is a rapid increase
in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you apply the brakes, with or without
the vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex.
Its many parts have to be of top quality and
work well together if the vehicle is to have
really good braking. Your vehicle was designed
and tested with top-quality Saturn brake parts.
When you replace parts of your braking
system — for example, when your brake
linings wear down and you need new ones
put in — be sure you get new approved Saturn
replacement parts. If you do not, your brakes
may no longer work properly. For example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your
front and rear brakes can change — for the worse.
The braking performance you have come to
expect can change in many other ways if someone
puts in the wrong replacement brake parts.
448
ProCarManuals.com

(B) Tire Width:The three-digit number indicates
the tire section width in millimeters from sidewall
to sidewall.
(C) Aspect Ratio:A two-digit number that
indicates the tire height-to-width measurements.
For example, if the tire size aspect ratio is
60, as shown in item C of the illustration, it would
mean that the tire’s sidewall is 60 percent as
high as it is wide.
(D) Construction Code:A letter code is used
to indicate the type of ply construction in the tire.
The letter R means radial ply construction; the
letter D means diagonal or bias ply construction;
and the letter B means belted-bias ply
construction.
(E) Rim Diameter:Diameter of the wheel in
inches.
(F) Service Description:These characters
represent the load range and speed rating of the
tire. The load index represents the load carry
capacity a tire is certied to carry. The load index
can range from 1 to 279. The speed rating is
the maximum speed a tire is certied to carry
a load. Speed ratings range from A to Z.Tire Terminology and Denitions
Air Pressure:The amount of air inside the tire
pressing outward on each square inch of the
tire. Air pressure is expressed in pounds
per square inch (psi) or kilopascal (kPa).
Accessory Weight:This means the combined
weight of optional accessories. Some examples of
optional accessories are, automatic transmission/
transaxle, power steering, power brakes, power
windows, power seats, and air conditioning.
Aspect Ratio:The relationship of a tire’s height
to its width.
Belt:A rubber coated layer of cords that is
located between the plies and the tread. Cords
may be made from steel or other reinforcing
materials.
Bead:The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the rim.
Bias Ply Tire:A pneumatic tire in which the plies
are laid at alternate angles less than 90 degrees
to the centerline of the tread.
466
ProCarManuals.com

Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your
tires as soon as possible and check wheel
alignment. Also check for damaged tires or wheels.
SeeWhen It Is Time for New Tires on page 473
andWheel Replacement on page 478for
more information.
The purpose of regular rotation is to achieve
more uniform wear for all tires on the vehicle.
The rst rotation is the most important. See
Scheduled Maintenance on page 522.When rotating your tires, always use the correct
rotation pattern shown here.
Do not include the compact spare tire in your tire
rotation.
After the tires have been rotated, adjust the front
and rear ination pressures as shown on the
Tire and Loading Information label.
Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and Specications on page 518.
472
ProCarManuals.com

{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause an accident.
When you change a wheel, remove any
rust or dirt from places where the wheel
attaches to the vehicle. In an emergency,
you can use a cloth or a paper towel to
do this; but be sure to use a scraper or
wire brush later, if needed, to get all the
rust or dirt off. SeeChanging a Flat Tire
on page 484.
When It Is Time for New Tires
One way to tell when it
is time for new tires is
to check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire if any of the following
statements are true:
You can see the indicators at three or more
places around the tire.
You can see cord or fabric showing through
the tire’s rubber.
The tread or sidewall is cracked, cut, or
snagged deep enough to show cord or fabric.
The tire has a bump, bulge, or split.
The tire has a puncture, cut, or other damage
that cannot be repaired well because of the
size or location of the damage.
473
ProCarManuals.com
