change time SATURN VUE 2009 Owners Manual

SATURN, the SATURN Emblem,
and the name VUE are registered
trademarks of Saturn Corporation.
GENERAL MOTORS and GM
are registered trademarks of
General Motors Corporation.
This manual includes the latest
information at the time it was
printed. Saturn reserves the right
to make changes after that time
without further notice.
This manual describes features
that may or may not be on
your specic vehicle.Read this manual from beginning to
end to learn about the vehicle’s
features and controls. Pictures,
symbols, and words work together
to explain vehicle operation.
Keep this manual in the vehicle for
quick reference.
Canadian Owners
A French language copy of this
manual can be obtained from your
dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès de
concessionnaire ou à l’adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
About Driving Your
Vehicle
As with other vehicles of this type,
failure to operate this vehicle
correctly may result in loss of control
or an accident. Be sure to read the
“on-pavement” and “off-road” driving
guidelines which follow in this
manual in the section called “Your
Driving, the Road, and Your Vehicle”,
and specicallyOff-Road Driving on
page 4-13.
ii Preface
Litho in U.S.A.
Part No. 25812262 B Second Printing©2008 General Motors Corporation. All Rights Reserved.
ProCarManuals.com

Infants and Young
Children
Everyone in a vehicle needs
protection! This includes infants and
all other children. Neither the
distance traveled nor the age and
size of the traveler changes the
need, for everyone, to use safety
restraints. In fact, the law in
every state in the United States and
in every Canadian province says
children up to some age must
be restrained while in a vehicle.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Never leave children
unattended in a vehicle and never
allow children to play with the
safety belts.
Airbags plus lap-shoulder belts offer
protection for adults and older
children, but not for young children
and infants. Neither the vehicle’s
safety belt system nor its airbag
system is designed for them. Every
time infants and young children
ride in vehicles, they should have
the protection provided by
appropriate child restraints.Children who are not restrained
properly can strike other people, or
can be thrown out of the vehicle.
{CAUTION
Never do this.
Never hold an infant or a child
while riding in a vehicle. Due to
crash forces, an infant or a child
will become so heavy it is not
possible to hold it during a crash.
For example, in a crash at only
25 mph (40 km/h), a 12 lb (5.5 kg)
infant will suddenly become a
240 lb (110 kg) force on a
person’s arms. An infant should
be secured in an appropriate
restraint.
1-26 Seats and Restraint System
ProCarManuals.com

The back of the vehicle is in
an accident, the position and
mounting angle of the camera
can change or the camera can
be affected. Be sure to have the
camera and its position and
mounting angle checked at your
dealer/retailer.
There are extreme temperature
changes.
The rear vision camera system
display in the rearview mirror may
turn off or not appear as expected
due to one of the following
conditions. If this occurs the left
indicator light on the mirror will ash.
A slow ash may indicate a loss of
video signal, or no video signal
present during the reverse cycle.
A fast ash may indicate that
the display has been on for the
maximum allowable time during a
reverse cycle, or the display has
reached an Over Temperature
limit.
The fast ash conditions are used
to protect the video device from
high temperature conditions.
Once conditions return to normal
the device will reset and the green
indicator will stop ashing.
During any of these fault conditions,
the display will be blank and the
indicator will continue to ash as long
as the vehicle is in R (Reverse) or
until the conditions return to normal.
Pressing and holding
zwhen the
left indicator light is ashing will turn
off the video display along with
the left indicator light.
OnStar®System
OnStar uses several innovative
technologies and live advisors to
provide a wide range of safety,
security, information, and
convenience services. If the airbags
deploy, the system is designed to
make an automatic call to OnStar
Emergency advisors who can
request emergency services be sent
to your location. If the keys are
locked in the vehicle, call OnStar at
1-888-4-ONSTAR to have a signal
sent to unlock the doors. OnStar
Hands-Free Calling, including
30 trial minutes good for 60 days, is
available on most vehicles. OnStar
Turn-by-Turn Navigation service,
with one trial route, is available on
most vehicles. Press the OnStar
button to have an OnStar advisor
contact Roadside Service.
Features and Controls 2-33
ProCarManuals.com

Instrument Panel
Instrument Panel OverviewInstrument Panel Overview.....3-4
Hazard Warning Flashers.......3-5
Horn....................................3-5
Tilt Wheel............................3-6
Turn Signal/Multifunction
Lever.................................3-6
Turn and Lane-Change
Signals...............................3-6
Headlamp High/Low-Beam
Changer.............................3-7
Flash-to-Pass........................3-7
Windshield Wipers.................3-7
Rainsense™ II Wipers...........3-8
Windshield Washer................3-8
Rear Window Wiper/Washer. . . .3-9
Cruise Control......................3-9
Exterior Lamps....................3-12
Wiper Activated
Headlamps........................3-12Daytime Running
Lamps (DRL)....................3-13
Automatic Headlamp
System.............................3-13
Fog Lamps.........................3-14
Instrument Panel
Brightness.........................3-14
Dome Lamp........................3-14
Entry Lighting......................3-14
Reading Lamps...................3-15
Electric Power
Management.....................3-15
Battery Run-Down
Protection.........................3-16
Accessory Power Outlet(s). . . .3-16
Climate ControlsClimate Control System........3-17
Automatic Climate
Control System..................3-20
Outlet Adjustment................3-24
Passenger Compartment
Air Filter...........................3-24
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators...................3-26
Instrument Panel Cluster.......3-27
Speedometer and
Odometer.........................3-28
Trip Odometer.....................3-28
Tachometer........................3-28
Safety Belt Reminders..........3-28
Airbag Readiness Light.........3-29
Passenger Airbag
Status Indicator.................3-30
Charging System Light.........3-31
Brake System
Warning Light....................3-31
Antilock Brake System
(ABS) Warning Light...........3-32
Power Steering
Warning Lights..................3-33
Traction Control System
(TCS) Warning Light...........3-33
StabiliTrak
®Indicator Light. . . .3-33
Instrument Panel 3-1
ProCarManuals.com

Engine Coolant Temperature
Warning Light....................3-34
Tire Pressure Light..............3-34
Malfunction
Indicator Lamp..................3-35
Oil Pressure Light................3-37
Change Engine Oil Light.......3-38
Security Light......................3-38
Fog Lamp Light...................3-38
Cruise Control Light.............3-38
Reduced Engine
Power Light......................3-39
Highbeam On Light..............3-39
Daytime Running Lamps
(DRL) Indicator Light..........3-39
Low Washer Fluid
Warning Light....................3-40
All-Wheel Drive
Disabled Light...................3-40
Gate Ajar Light....................3-40
Door Ajar Light....................3-40
Service Vehicle Soon Light.....3-40
Fuel Gage..........................3-41
Low Fuel Warning Light........3-41Driver Information
Center (DIC)
Driver Information
Center (DIC).....................3-42
DIC Operation and Displays. . .3-42
DIC Compass.....................3-47
DIC Warnings and
Messages.........................3-49
DIC Vehicle Customization.....3-57
Audio System(s)Audio System(s)..................3-64
Setting the Clock.................3-65
Radio(s).............................3-67
Using an MP3.....................3-75
XM Radio Messages............3-79
Navigation/Radio System......3-81
Bluetooth
®..........................3-81
Theft-Deterrent Feature........3-91
Audio Steering Wheel
Controls............................3-92
Radio Reception..................3-92
Fixed Mast Antenna.............3-93
XM™ Satellite Radio
Antenna System................3-93
Chime Level Adjustment.......3-93
3-2 Instrument Panel
ProCarManuals.com

Tilt Wheel
The tilt lever lets the steering wheel
be adjusted.
The tilt lever is located on the left
side of the steering column.
To adjust the steering wheel,
hold the wheel and push the lever
down. Then move the wheel to
a comfortable position and pull the
lever up rmly to lock the steering
column in place.
Turn Signal/Multifunction
Lever
The lever on the left side of the
steering column includes:
G:Turn and Lane-Change
Signals
3:Headlamp High/Low-Beam
Changer
Flash-to-Pass Feature.
Information for these features is on
the pages following.
Turn and Lane-Change
Signals
An arrow on the instrument panel
cluster ashes in the direction of
the turn or lane change.
Move the lever all the way up or
down to signal a turn.
Raise or lower the lever until
the arrow starts to ash and then
release, to signal a lane change.
The turn signal ashes automatically
three times.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or lane
change the arrow ashes rapidly or
does not come on, a signal bulb
may be burned out.
3-6 Instrument Panel
ProCarManuals.com

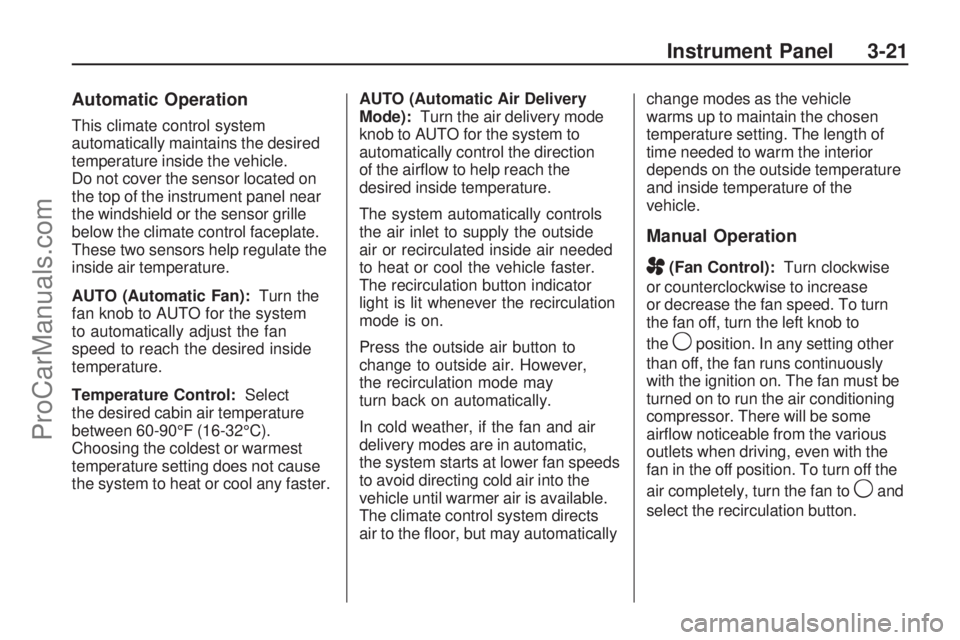

Automatic Operation
This climate control system
automatically maintains the desired
temperature inside the vehicle.
Do not cover the sensor located on
the top of the instrument panel near
the windshield or the sensor grille
below the climate control faceplate.
These two sensors help regulate the
inside air temperature.
AUTO (Automatic Fan):Turn the
fan knob to AUTO for the system
to automatically adjust the fan
speed to reach the desired inside
temperature.
Temperature Control:Select
the desired cabin air temperature
between 60-90°F (16-32°C).
Choosing the coldest or warmest
temperature setting does not cause
the system to heat or cool any faster.AUTO (Automatic Air Delivery
Mode):Turn the air delivery mode
knob to AUTO for the system to
automatically control the direction
of the airow to help reach the
desired inside temperature.
The system automatically controls
the air inlet to supply the outside
air or recirculated inside air needed
to heat or cool the vehicle faster.
The recirculation button indicator
light is lit whenever the recirculation
mode is on.
Press the outside air button to
change to outside air. However,
the recirculation mode may
turn back on automatically.
In cold weather, if the fan and air
delivery modes are in automatic,
the system starts at lower fan speeds
to avoid directing cold air into the
vehicle until warmer air is available.
The climate control system directs
air to the oor, but may automaticallychange modes as the vehicle
warms up to maintain the chosen
temperature setting. The length of
time needed to warm the interior
depends on the outside temperature
and inside temperature of the
vehicle.
Manual Operation
A(Fan Control):Turn clockwise
or counterclockwise to increase
or decrease the fan speed. To turn
the fan off, turn the left knob to
the
9position. In any setting other
than off, the fan runs continuously
with the ignition on. The fan must be
turned on to run the air conditioning
compressor. There will be some
airow noticeable from the various
outlets when driving, even with the
fan in the off position. To turn off the
air completely, turn the fan to
9and
select the recirculation button.
Instrument Panel 3-21
ProCarManuals.com

On hot days, use the automatic fan
and automatic air delivery mode
settings and the vehicle will reach the
desired temperature more quickly.
The desired fan and air delivery
mode settings can still be adjusted
manually. Open the windows to let
the hot inside air escape, then close
them. This helps reduce the time it
takes for the vehicle to cool down
and helps the system to operate
more efficiently.
The air conditioning system removes
moisture from the air, so a small
amount of water might drip under the
vehicle while idling or after turning off
the engine.
;(Outside Air):Press to turn
the outside air mode on. An indicator
light comes on to show that outside
air is on. Air from outside the vehicle
will circulate throughout the vehicle.
The outside air mode can be used
with all modes, but it cannot be
used with the recirculation mode.
Pressing this button will cancel the
recirculation mode.
@(Recirculation):Press to
turn on the recirculation mode.
An indicator light comes on to show
that recirculation is on. This mode
recirculates and helps to quickly cool
or heat the air inside the vehicle.
It can be used to prevent outside air
and odors from entering the vehicle.
Avoid using the recirculation mode
during high periods of humidity
and cool outside temperatures
since this may result in increased
window fogging. If window fogging
is experienced, select the
defrost mode.
Recirculation mode is not available in
oor, defog or defrost modes and will
shut off automatically and change to
outside air. If the button is selected
in any of these modes, the indicator
will ash. This helps prevent window
fogging and moisture building up
inside the vehicle.Rear Window Defogger
The rear window defogger uses a
warming grid to remove fog from the
rear window.
The rear window defogger only
works when the ignition is in
ON/RUN.
<(Rear Window Defogger):
Press to turn the rear window
defogger on or off. An indicator light
on the button comes on to show
that it is activated.
The rear window defogger stays
on for approximately 10 minutes
after the button is pressed, unless
the ignition is turned to ACC/
ACCESSORY or LOCK/OFF.
If turned on again, the defogger only
runs for approximately ve minutes
before turning off. At higher vehicle
speeds, the defogger may stay on
continuously. The defogger can
also be turned off by turning off
the engine.
Instrument Panel 3-23
ProCarManuals.com

Reduced Engine Power
Light
The reduced engine power light
should come on briey as the engine
is started. If it does not come on have
the vehicle serviced by your dealer/
retailer.
This light, along with the service
engine soon light displays when a
noticeable reduction in the vehicle’s
performance occurs. Stop the vehicle
and turn off the ignition. Wait for
10 seconds and restart the vehicle.
This might correct the condition.The vehicle can be driven at a
reduced speed when the reduced
engine power light is on but
acceleration and speed might be
reduced. The performance could
be reduced until the next time the
vehicle is driven. If this light stays on,
see your dealer/retailer as soon as
possible for diagnosis and repair.Highbeam On Light
The highbeam on light comes on
when the high-beam headlamps are
in use.
SeeHeadlamp High/Low-Beam
Changer on page 3-7for more
information.
Daytime Running Lamps
(DRL) Indicator Light
This light turns on whenever the
Daytime Running Lamps are on.
SeeDaytime Running Lamps (DRL)
on page 3-13for more information.
Instrument Panel 3-39
ProCarManuals.com

Trip Odometer
Press the trip/fuel button until
TRIP A or TRIP B displays.
This display shows the current
distance traveled in either miles (mi)
or kilometers (km) since the last
reset for the trip odometer. Pressing
the trip odometer reset stem will
also display the trip odometer.
Each trip odometer can be reset
to zero separately by pressing
the set/reset button while the trip
odometer is displayed. You can
also reset the trip odometer while
it is displayed by pressing and
holding the trip odometer reset stem.
Fuel Range
Press the trip/fuel button until
FUEL RANGE displays. This
display shows the approximate
number of remaining miles (mi)
or kilometers (km) the vehicle
can be driven without refueling.
The display will show LOW if
the fuel level is low.The fuel range estimate is based
on an average of the vehicle’s fuel
economy over recent driving history
and the amount of fuel remaining
in the fuel tank. This estimate will
change if driving conditions change.
For example, if driving in traffic and
making frequent stops, this display
may read one number, but if the
vehicle is driven on a freeway, the
number may change even though
the same amount of fuel is in the fuel
tank. This is because different driving
conditions produce different fuel
economies. Generally, freeway
driving produces better fuel economy
than city driving. Fuel range cannot
be reset.
If the vehicle is low on fuel, the
FUEL LEVEL LOW message will be
displayed. See “FUEL LEVEL LOW”
underDIC Warnings and Messages
on page 3-49.Average Fuel Economy
Press the trip/fuel button until
AVERAGE FUEL ECONOMY
displays. This display shows
the approximate average miles
per gallon (mpg) or liters per
100 kilometers (L/100 km). This
number is calculated based on the
number of mpg (L/100 km) recorded
since the last time this menu item
was reset. To reset the AVERAGE
FUEL ECONOMY, press and hold
the set/reset button. The display will
show zero.
Fuel Used
Press the trip/fuel button until
FUEL USED displays. This display
shows the number of gallons (gal) or
liters (L) of fuel used since the last
reset of this menu item. To reset
the fuel used information, press
and hold the set/reset button while
FUEL USED is displayed.
3-44 Instrument Panel
ProCarManuals.com
