SATURN VUE HYBRID 2008 User Guide

Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.To adjust the seatback, lift the lever on the outboard
side of the seat and move the seatback to the desired
position. Then release the lever to lock the seatback
in place. If the passenger’s seat is a at folding
seat, fully raise the lever to disengage the seatback.Driver’s Seat shown, Passenger Seat similar
1-7
ProCarManuals.com

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will
be in front of you. In a crash, you could go
into it, receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Do not have a seatback reclined if your vehicle is moving.
1-8
ProCarManuals.com

Passenger Folding Seatback
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which
an airbag would inate. For more information,
seeWhere Are the Airbags? on page 1-56and
Loading Your Vehicle on page 4-22.
{CAUTION:
Things you put on this seatback can strike
and injure people in a sudden stop or turn,
or in a crash. Remove or secure all items
before driving.On vehicles with this feature, to fold the seatback:
1. Lower the head restraint all the way.
2. Lift the bar under the front of the seat to unlock it.
Slide the seat as far back as it will go and release
the bar. Try to move the seat back and forth to
make sure it is locked into place.
3. Lift up fully on the recliner lever, located on the
outboard side of the seat, and fold the seatback
forward until it disengages.
1-9
ProCarManuals.com

4. Continue to fold the seat forward until it locks in
the folded position.
5. Pull up on the seatback to be sure it is locked.
To raise the seatback, do the following:
1. Lift up fully on the recliner lever, located on the
outboard side of the seat, and push up on the
seatback.
2. Continue raising the seatback until the seatback
re-engages.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
3. Push and pull on the seatback to make sure it is
locked in place.
The recliner lever is also used to recline the seatback
while a passenger is seated. SeeManual Reclining
Seatbacks on page 1-7.
Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks can be folded forward,
upright, or partially reclined, independent of the
other seatback position.
1-10
ProCarManuals.com

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To fold the seatback down:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Unbuckle all three safety belts and put the front
seatback in an upright position.
2. Lift the lever located on the top of the seatback to
release the seatback and fold the seatback forward.
To recline the seatback:
1. Lift and hold the lever located on top of the seatback.
2. Tilt the seatback rearward, then release the lever.
1-11
ProCarManuals.com

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle harder or be ejected
from it and be seriously injured or killed.
In the same crash, you might not be, if you
are buckled up. Always fasten your safety
belt, and check that your passenger(s) are
restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-28.
In most states and in all Canadian provinces, the
law requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not survive.
But most crashes are in between. In many of them, people
who buckle up can survive and sometimes walk away.
Without belts they could have been badly hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!
1-12
ProCarManuals.com

Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.Put someone on it.
1-13
ProCarManuals.com

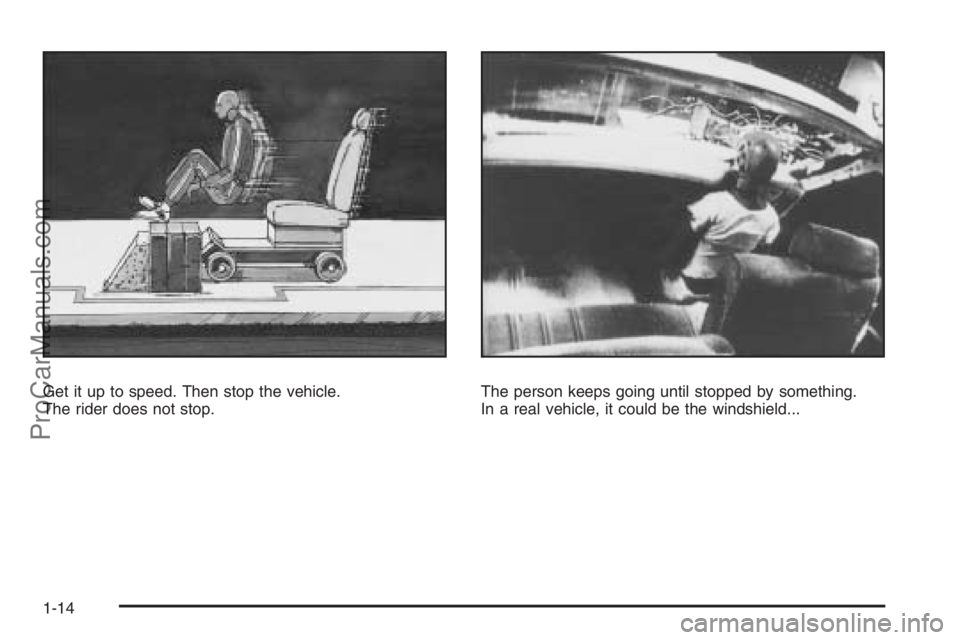

Get it up to speed. Then stop the vehicle.
The rider does not stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-14
ProCarManuals.com

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-15
ProCarManuals.com

Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after a crash
if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a safety
belt or not. But your chance of being conscious
during and after an accident, so youcanunbuckle
and get out, ismuchgreater if you are belted.
And you can unbuckle a safety belt, even if you
are upside down.
Q:If my vehicle has airbags, why should I have
to wear safety belts?
A:Airbags are supplemental systems only; so they
workwithsafety belts — not instead of them.
Whether or not an airbag is provided, all occupants
still have to buckle up to get the most protection.
That is true not only in frontal collisions, but
especially in side and other collisions.
Q:If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you are in
a crash — even one that is not your fault — you
and your passenger(s) can be hurt. Being a
good driver does not protect you from things
beyond your control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less
than 40 mph (65 km/h).
Safety belts are for everyone.
1-16
