SATURN VUE HYBRID 2009 Repair Manual

Replacing Restraint
System Parts After a
Crash
{CAUTION
A crash can damage the restraint
systems in your vehicle. A
damaged restraint system may
not properly protect the person
using it, resulting in serious injury
or even death in a crash. To help
make sure your restraint systems
are working properly after a crash,
have them inspected and any
necessary replacements made as
soon as possible.
After a minor crash, replacement of
safety belts may not be necessary.
But the safety belt assemblies
that were used during any crash
may have been stressed or
damaged. See your dealer/retailer
to have the safety belt assemblies
inspected or replaced.If the vehicle has the LATCH
system and it was being used during
a crash, you may need new
LATCH system parts.
New parts and repairs may be
necessary even if the safety belt or
LATCH system (if equipped),
was not being used at the time of
the crash.
If an airbag inates, you will need to
replace airbag system parts. See
the part on the airbag system earlier
in this section.
Have the safety belt pretensioners
checked if the vehicle has been in a
crash, if the airbag readiness light
stays on after you start the vehicle,
or while you are driving. See
Airbag Readiness Light on
page 3-25.If an airbag inates or the vehicle
has been in a crash, the vehicle’s
sensing system may command
the automatic hybrid battery
disconnect to open. The battery will
disconnect. The hybrid battery
will be off and the vehicle will not
start. The airbag readiness light may
come on. SeeAirbag Readiness
Light on page 3-25for more
information. To operate the vehicle,
the automatic hybrid battery
disconnect must be reconnected by
a qualied service technician and
sensing system parts will need to be
replaced. Have the vehicle
serviced right away.
Seats and Restraint System 1-57
ProCarManuals.com

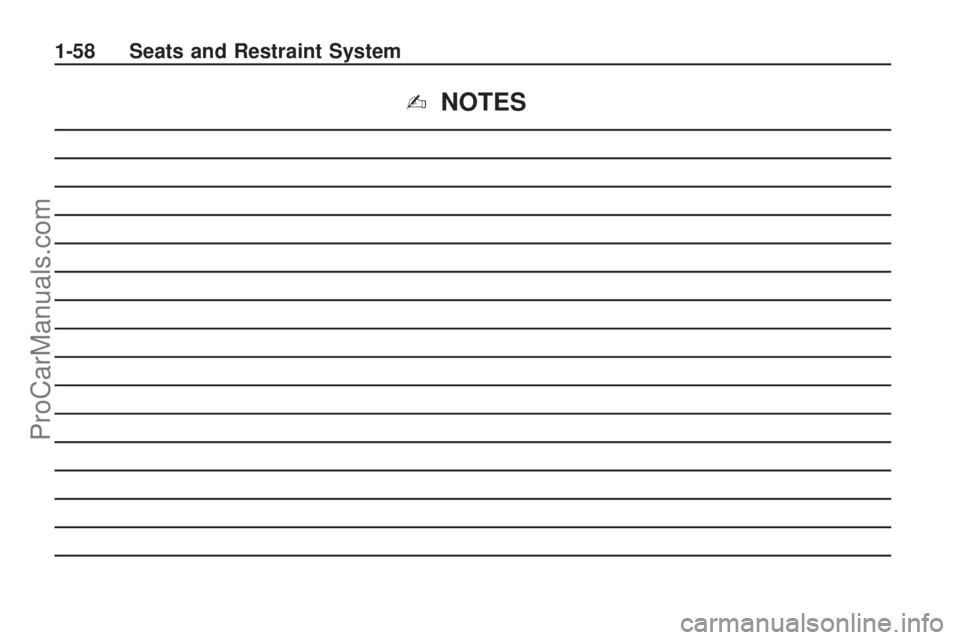

✍NOTES
1-58 Seats and Restraint System
ProCarManuals.com

Features and
Controls
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Doors and Locks
Door Locks.........................2-6
Power Door Locks..............2-6
Delayed Locking.................2-6
Automatic Door Lock..........2-7
Automatic Door Unlock.......2-7
Rear Door Security
Locks................................2-7
Lockout Protection..............2-7
Liftgate...............................2-8
Windows
Windows.............................2-9
Power Windows..................2-9
Sun Visors........................2-10
Theft-Deterrent Systems
Theft-Deterrent Systems. . . .2-10
Content Theft-Deterrent.....2-10
PASS-Key®III+ Electronic
Immobilizer......................2-12
PASS-Key®III+ Electronic
Immobilizer Operation......2-12
Starting and Operating
Your Vehicle
New Vehicle Break-In.......2-14
Ignition Positions...............2-14
Retained Accessory
Power (RAP)...................2-15
Starting the Engine
(Automatic Engine
Start/Stop)
.......................2-15
Engine Coolant Heater......2-19
Automatic Transmission
Operation........................2-20
Parking Brake...................2-22
Regenerative Braking........2-23
Shifting Into Park..............2-23
Shifting Out of Park..........2-25
Parking Over Things
That Burn........................2-25
Engine Exhaust.................2-26
Running the Vehicle
While Parked..................2-26
Mirrors
Manual Rearview Mirror. . . .2-27
Automatic Dimming
Rearview Mirror...............2-27
Outside Power Mirrors......2-28
Outside Convex Mirror......2-28
Outside Heated Mirrors.....2-28
OnStar®System
OnStar®System................2-29
Universal Home Remote
System
Universal Home Remote
System............................2-32
Universal Home Remote
System Operation............2-33
Features and Controls 2-1
ProCarManuals.com

Storage Areas
Glove Box.........................2-37
Cupholders.......................2-37
Sunglasses Storage
Compartment...................2-37
Center Console Storage. . . .2-37
Driver Storage
Compartment...................2-38
Rear Seat Armrest............2-38
Convenience Net..............2-38
Cargo Cover.....................2-38
Cargo Tie Downs..............2-39
Cargo Management
System............................2-39
Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.The two keys can be used for the
ignition and all locks.
The key code is stamped on the key
number plate and can be used to
make new keys at any dealer/
retailer. Store this information in a
safe place outside the vehicle.
2-2 Features and Controls
ProCarManuals.com

Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of the vehicle,
contact Roadside Assistance. See
Roadside Assistance Program on
page 7-5for more information.
Remote Keyless Entry
(RKE) System
If this vehicle has the Remote
Keyless Entry (RKE) system, it
operates on a radio frequency
subject to Federal Communications
Commission (FCC) Rules and
with Industry Canada.This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
If there is a decrease in the RKE
operating range, try this:
Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other vehicles
or objects may be blocking the
signal. Take a few steps to the left
or right, hold the transmitter
higher, and try again.
Check the transmitter’s battery.
See “Battery Replacement” later
in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Features and Controls 2-3
ProCarManuals.com

Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions work up to
65 feet (20 m) away from the vehicle.
There are other conditions which can
affect the performance of the
transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-3.
Q(Lock):Press to lock all the
doors, including the liftgate.
K(Unlock):Press once to unlock
the driver door. If
Kis pressed
again within ve seconds, all other
doors unlock. The interior lamps
come on for 20 seconds or until the
ignition is turned on.
L(Vehicle Locator/Panic
Alarm):Press and release to
activate the alarm. The turn signal
lamps ash and the horn sounds
three times.
Press and hold
Lfor more than
two seconds and the turn signal
lamps ash and the horn sounds
for 30 seconds.
To turn the alarm off, press
Lagain
or turn the ignition to ON/RUN.
2-4 Features and Controls
ProCarManuals.com

Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to the vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer/
retailer. When the replacement
transmitter is programmed to the
vehicle, all remaining transmitters
must also be programmed. Any lost
or stolen transmitters no longer work
once the new transmitter is
programmed. Each vehicle can have
up to eight transmitters programmed
to it. See “HOLD STEM TO
RELEARN REMOTE KEY” under
DIC Operation and Displays on
page 3-36.
Battery Replacement
Replace the battery if the REPLACE
REMOTE KEY FOB BATTERY
message displays on the Driver
Information Center (DIC). See
“REPLACE REMOTE KEY FOB
BATTERY” underDIC Warnings
and Messages on page 3-42.
Notice:When replacing the
battery, do not touch any of the
circuitry on the transmitter. Static
from your body could damage
the transmitter.To replace the battery:
1. Separate the transmitter with a
at thin object inserted into the
notch on the side.
2. Remove the old battery. Do not
use a metal object.
3. Insert the new battery, positive
side facing down. Replace with
a CR2032 or equivalent battery.
4. Reassemble the transmitter.
Features and Controls 2-5
ProCarManuals.com

Doors and Locks
Door Locks
{CAUTION
Unlocked doors can be
dangerous.
Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. When a door is
locked, the handle will not
open it. You increase the
chance of being thrown out of
the vehicle in a crash if the
doors are not locked. So, wear
safety belts properly and lock
the doors whenever you drive.
(Continued)
CAUTION (Continued)
Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock your
vehicle whenever you leave it.
Outsiders can easily enter
through an unlocked door
when you slow down or stop
your vehicle. Locking your
doors can help prevent this
from happening.
To lock or unlock a door, use the
key from the outside or the door lock
from the inside.
Power Door Locks
T
:The power door lock switches
are located on the driver door.
Press the right side of the switch
to unlock the doors.
Remove the ignition key and
press the left side of the switch to
lock all of the doors.
Delayed Locking
A chime will sound to indicate a
door or liftgate is open when you try
to lock the doors with the power
door lock switch. The doors will not
lock, and the theft-deterrent
system will not arm until all the
doors are closed and ve seconds
have passed.
2-6 Features and Controls
ProCarManuals.com

Automatic Door Lock
The doors are programmed to
automatically lock when the shift
lever is moved into a forward gear.
The automatic door lock feature
cannot be disabled.
Automatic Door Unlock
The doors will automatically
unlock when the shift lever is moved
into (P) Park.
Rear Door Security
Locks
The vehicle has rear door security
locks to prevent passengers
from opening the rear doors from
the inside.
Open the rear doors to access the
security locks on the inside edge
of each door.To set the locks, insert a key into the
slot and turn it to the horizontal
position. The door can only be
opened from the outside with the
door unlocked. To return the door to
normal operation, turn the slot to the
vertical position.
Lockout Protection
When the power door lock switch is
pressed with the key in the ignition,
and any door is open, all the doors
lock and the driver door unlocks.
When doors are closed with the key
in the ignition, the horn will sound as
a reminder.
If the doors are locked with the
Remote Keyless Entry (RKE)
transmitter, and the key is in the
ignition, a chime sounds and
all except the driver door lock.
The lockout protection feature can be
overridden by holding the power door
lock switch for three seconds.
Features and Controls 2-7
ProCarManuals.com

Liftgate
{CAUTION
Exhaust gases may enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
Close all of the windows.
Fully open the air outlets on or
under the instrument panel.
Adjust the Climate Control
system to a setting that brings
in only outside air and set the
fan speed to the highest
setting. See Climate Control
System in the Index.
(Continued)
CAUTION (Continued)
If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-26.
To lock or unlock the liftgate, press
the button on the Remote Keyless
Entry (RKE) transmitter twice
or the power door lock switch.
To open the liftgate, press
the touchpad on the underside of
the liftgate handle and pull up.
To close the liftgate, pull down using
the handle and close until it latches.Liftgate Operation with Loss of
Power
To open the liftgate if the vehicle’s
battery is disconnected or the
voltage is low, access the release
lever. Remove the interior trim cover
on the inside of the liftgate. Use a
tool to push the lever on the
latch until the liftgate releases.
2-8 Features and Controls
ProCarManuals.com
