check engine Seat Alhambra 2006 Owner's Manual

Contents 4
Accessories, parts replacement and
modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories and parts . . . . . . . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mobile telephones and two-way radios . . . . . . .
Retrofitting a towing bracket . . . . . . . . . . . . . . .
Checking and refilling levels . . . . . . . . . . . . . .
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working in the engine compartment . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washer fluid and windscreen wiper blades . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If and when . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle onboard tools*, spare wheel*, puncture
repair kit* and towing bracket . . . . . . . . . . . . . .
Breakdown set* . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . .
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing and tow-starting . . . . . . . . . . . . . . . . . . .
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data. . . . . . . . . . . . . . . . . . . . . . .
General notes on the technical data . . . . . . .
What you should be aware of . . . . . . . . . . . . . . .
How are the figures measured? . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Techn ical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . .
Petrol engine 2.0 litre 85 kW (115 hp) 6 gears .
Petrol engine 2.0l 85 kW (115 bhp). Automatic
Petrol engine 1.8 litre 110 kW (150 hp) 6 gears
Petrol engine 1.8l 110 kW (150 bhp). Automatic
Petrol engine 2.8l VR6 150 kW (204 bhp) 6 gear
Petrol engine 2.8l VR6 150 kW (204 bhp)
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol engine 2.8l VR6 150 kW (204 bhp) 6 gear
four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9 litre TDI 66 kW (90 bhp) 6
gears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9 litre TDI 85 kW (115 bhp) 6
gears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9l TDI 85 kW (115 bhp).
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gears
four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9l TDI 96 kW (130 bhp) . . . . . .
Diesel engine 1.9 litre TDI 110 kW (150 bhp) 6
gears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 2.0 litre TDI 103 kW (140 bhp) 6
gears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions and capacities . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
202
202
203
203
204
206
206
207
207
209
212
216
218
221
223
225
231
231
234
236
241
245
249
251
255
257
257
257
259
260
260262
262
263
264
266
267
269
270
272
273
275
276
278
279
281
282
285
287

Airbag system 34
Monitoring of airbag and belt tension device system
The functionality of the airbag and belt tension device system is constantly
monitored electronically. The warning lamp
T will light up for four seconds
every time the ignition is switched on. (self diagnosis).
If at least one airbag has been deactivated in a specialised workshop, the
warning light
T flashes for 12 seconds before starting the engine. This does
not apply when the front and side airbags have been deactivated using the
key switchŸpage 43.
The system must be checked when the warning lamp
T :
•does not come on when the ignition is switched on,
•does not go off after four seconds, after switching on the ignition,
•goes out and then comes on again after the ignition is switched on,
•or if it comes on or flickers while the car is moving.
In the event of a malfunction, the warning lamp remains on continuously. In
addition, depending on the malfunction, an appropriate fault message
appears in the display
1) of the instrument panel. In this event, you should
have a qualified workshop check the system immediately.
WARNING
If there is a malfunction, the airbag and belt tension device system cannot
properly perform its protective function.
•If a malfunction should occur, have the system checked immediately by
a qualified workshop. Otherwise there is a risk that, in the event of an acci-
dent, the airbag system and belt tension devices may not be triggered, or
may not be triggered correctly.
Repair, care and disposal of the airbags
The parts of the airbag system are installed in various places in your vehicle.
If you work on the airbag system or remove and install parts of the system
when performing other repair work, parts of the airbag system may be
damaged. The consequence may be that, in the event of an accident, the
airbag inflates incorrectly or does not inflate at all.
The relevant safety requirements must be observed when the vehicle or
components of the airbag are scrapped. The specialist workshops and the
Vehicle disposal centres are familiar with these requirements.
WARNING
•If repairs are not carried out by a professional, or if the airbags are used
incorrectly, the risk of severe or fatal injuries is increased. The airbags may
fail to inflate, or could inflate in the wrong circumstances.
•Do not cover or stick anything on the steering wheel hub or the soft
plastic surface of the airbag unit on the passenger side of the dashboard,
and do not obstruct or modify them in any way.
•It is important not to attach any objects such as cup holders or tele-
phone mountings to the surfaces covering the airbag units.
•To clean the steering wheel or dash panel, you may use only a dry cloth
or one moistened with water. Never clean the dash panel and surface of the
airbag module with cleansers containing solvents. Solvents cause the
surface to become porous. If the airbag inflates, disintegrating plastic
parts can cause substantial injuries.
•Never attempt to repair, adjust, remove or install parts of the airbag
system.
•Any work on the airbag system or removal and installation of the airbag
components for other repairs (such as repairs to the steering wheel) should
be performed only by a qualified workshop. Qualified workshops have the
necessary tools, repair information and qualified personnel.
1)Depending on the model version

Cockpit63
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Rev counter
The rev. counter displays the engine speed in revolutions per
minute.
If, for example, the needle is directly over the 2, this corresponds to an engine
speed of 2000 rpm (revolutions per minute) Ÿpage 62, fig. 44 .
The start of the red zone on the dial indicates the maximum engine speed
which may be used briefly when the engine is warm and after it has been run
in properly. However, it is advisable to change up a gear or move the selector
lever to D (or lift your foot off the accelerator) before the needle reaches the
red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
Changing up a gear early will help you to save fuel and minimise engine
noise.
Engine coolant temperature display v
This gauge shows the engine coolant temperature.
The display only works when the ignition is switched on. The symbol
v will also light up in the display for some seconds as a function
check.
Needle in cold zone
Avoid high engine speeds and heavy engine loads Ÿfig. 45 .
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures. This is no cause for concern, as long
as the warning lamp does not light up Ÿpage 70.
Needle in warning zone
The warning lamp v will light up if the needle is in the warning zone. The
warning text
5) STOP CHECK COOLANT SERVICE MANUAL may also appear in
A1
Fig. 45 Details of the
instrument panel: Engine
coolant temperature
gauge
AA
A2
AB
AC
AC
A9

Cockpit 64
the combi-instrument display. Stop the car and switch off the engine.Allow
the engine to cool and check the coolant level Ÿ .
Even if the coolant level is correct do not continue driving. You should obtain
technical assistance.
WARNING
Read and observe the warnings “Working in the engine compartment”
before opening the bonnet to carry out work in the engine compartment.
Caution
Accessories in front of the air inlet reduce the cooling effect of the coolant. At
high outside temperatures and high engine loads, there is a risk of the
engine overheating.
Fuel gauge z
The fuel tank has a capacity of approx. 70 litres.
When the needle reaches the reserve zone Ÿfig. 46 -arrow-, the warning
lamp z lights up in the display. The text
6) PLEASE REFUEL may appear in the
combi-instrument display. At the same time, an audible warning is given as a
reminder to fill up. At this point there are still about 8 litres of fuel in the
tank.
5)Depending on model version6)Depending on model version
Fig. 46 Details of the
instrument panel: Fuel
gauge

Cockpit65
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

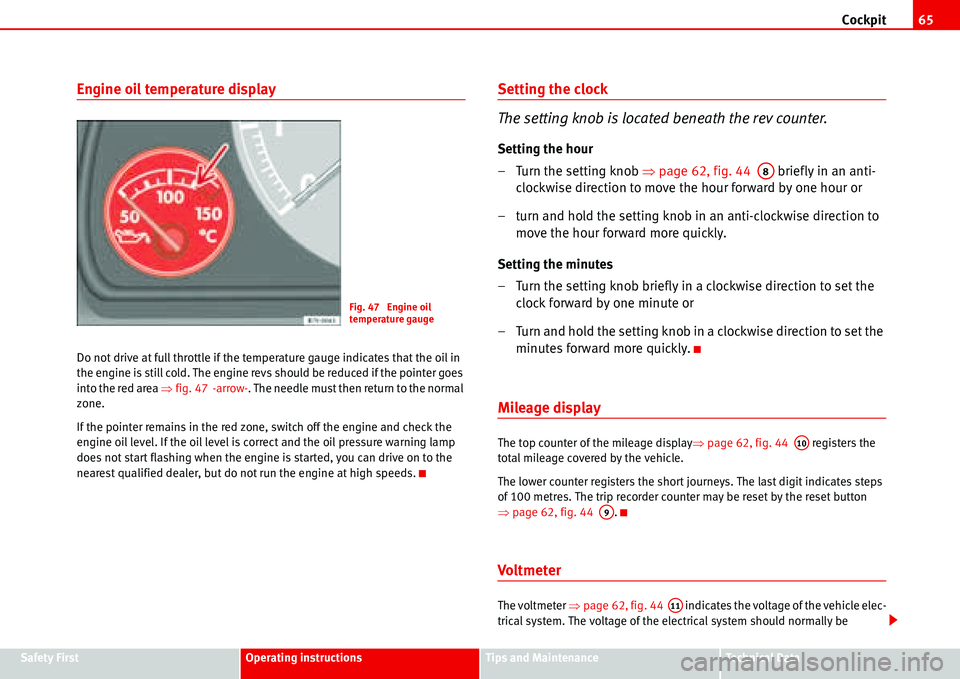

Engine oil temperature display
Do not drive at full throttle if the temperature gauge indicates that the oil in
the engine is still cold. The engine revs should be reduced if the pointer goes
into the red area Ÿfig. 47 -arrow-. The needle must then return to the normal
zone.
If the pointer remains in the red zone, switch off the engine and check the
engine oil level. If the oil level is correct and the oil pressure warning lamp
does not start flashing when the engine is started, you can drive on to the
nearest qualified dealer, but do not run the engine at high speeds.
Setting the clock
The setting knob is located beneath the rev counter.
Setting the hour
– Turn the setting knob Ÿpage 62, fig. 44 briefly in an anti-
clockwise direction to move the hour forward by one hour or
– turn and hold the setting knob in an anti-clockwise direction to
move the hour forward more quickly.
Setting the minutes
– Turn the setting knob briefly in a clockwise direction to set the
clock forward by one minute or
– Turn and hold the setting knob in a clockwise direction to set the
minutes forward more quickly.
Mileage display
The top counter of the mileage displayŸpage 62, fig. 44 registers the
total mileage covered by the vehicle.
The lower counter registers the short journeys. The last digit indicates steps
of 100 metres. The trip recorder counter may be reset by the reset button
Ÿpage 62, fig. 44 .
Voltmeter
The voltmeter Ÿpage 62, fig. 44 indicates the voltage of the vehicle elec-
trical system. The voltage of the electrical system should normally be
Fig. 47 Engine oil
temperature gauge
A8
A10
A9
A11

Cockpit 66
between 12 and 15 volts. If the voltage drops below 12 volts when the engine
is running, you should have the power supply (battery and alternator)
checked by a qualified dealership.
Note
The voltage may drop below 8 volts while the engine is being started.
Service Interval Display
The service display is shown either on the mileage display Ÿpage 62, fig. 44
or in the display7) in the combi-instrument Ÿpage 62, fig. 44 .
Service warning
A service pre-warning will appear in the odometer if a service is due soon. A
spanner symbol
 appears in the display along with the miles and the
number of kilometres until the next service. The service message will disap-
pear approximately 20 seconds after the ignition is switched on or if the
engine is running.
The distance quoted to the next scheduled service is reduced in increments
of 100 miles.
The following display appears in the instrument panel screen: SERVICE IN....
KM OR SERVICE IN ... DAYS. The service message will disappear approxi-
mately 20 seconds after the ignition is switched on or the engine is running.
The normal display can be resumed by pressing the reset button on the trip
counter or by pressing the rocker switch of the windscreen wiper lever .
If a service is due, a gong signal will sound and the flashing “spanner”
symbol will appear for approximately 20 seconds. The following display
appears in the instrument panel screen: SERVICE NOWWith the ignition switched on, you can call up the current service message by
pressing the trip counter reset knob for 2 seconds.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Resetting the service display
The display is reset by the SEAT dealer after the service has been carried out.
You will receive a print-out from the SEAT dealership as confirmation that this
work has been carried out.
If the service is not carried out by a SEAT Service centre, the service interval
display will have to be reset manually as follows:
•Switch off ignition.
•Press and hold the reset knob for the trip meter.
•Turn the ignition on and turn the reset button to the right. The display will
return to the normal mode.
Note
•The next service will be displayed after 15,000 miles if you reset the
service display yourself. The service interval will not be determined individu-
ally.
•Do not reset the display between service intervals as the display will
otherwise be incorrect.
7)Optional equipment
A10A3
AB

Cockpit67
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Display in the instrument panel
Fault messages
Faults are shown by warning lamps and / or as symbols with
warning and information reports on the display.
The system runs a check on certain components and functions when the igni-
tion is switched on and while the vehicle is moving. Functional problems are
shown by warning lamps and / or red or yellow symbols with fault texts on the combi-instrument. Depending on the exact nature of the functional problem,
audible warnings may also be given.
Note
•The size of the display depends on the type of combi-instrument you have
fitted. In some models, the combi-instrument does not have an integrated
display.
•In addition to warning messages given on a fault, you will receive informa-
tion in the display on procedures or will be asked to carry out certain tasks.
Overview of selected fault messages
Fault messages are displayed on the combi-instrument display.
The following overview does not show all fault messages. Not all fault
messages are displayed with a symbol.Warning symbols (priority 1)
If the symbol lights up again after a fault has been corrected, you should stop
the vehicle immediately, switch off the engine and seek professional advice .
Fault message Symbol Action
STOP BRAKE FAULT SERVICE MANUAL
HStop the car, turn the engine off and check the brake fluid level
Ÿpage 221.
HANDBRAKE ON
HRelease the handbrake.
STOP BRAKE FAULT SERVICE MANUAL
H
and
J
Stop the car, turn the engine off and seek professional help Ÿpage 179
STOP CHECK COOLANT SERVICE MANUAL
v Checking coolant level Ÿ page 216

Cockpit 68
Information symbols (priority 2)STOP OIL PRESSURE ENGINE OFF SERVICE MANUAL
EStop the car, turn the engine off and check the brake fluid level
Ÿpage 214.
ALTERNATOR WORKSHOP!
FTake the vehicle to a qualified workshop as soon as possible and have the
alternator checked.
FASTEN SEATBELT
hFasten your seat belt correctly; and make sure your passengers are also
properly belted in Ÿpage 17.
Fault message Symbol Action
CHECK OIL LEVEL
E Check the oil level and top up with the right engine oil Ÿ page 214
OIL SENSOR WORKSHOP
ETake the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
STOP BRAKE FAULT SERVICE MANUAL
JTake the vehicle to a qualified workshop as soon as possible and have the
ABS checked.
PLEASE REFUEL!
zRefuel as soon as possible.
TOP UP WASHER FLUID
SFill up with water and washer fluid.
CHECK BRAKE PADS
ITake the vehicle to a qualified workshop immediately and have the brake
pads checked.
EXHAUST WORKSHOP
BTake the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
ENGINE FAULT CONSULT WORKSHOP
D or
%0#
Take the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
AIRBAG FAULT
TTake the vehicle to a qualified workshop immediately and have the airbag
system checked. Fault message Symbol Action

Cockpit69
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Fault message priorities
Priority 1 fault messages (red)
If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings Ÿ. This is a danger warning.
Stop the car and switch off the engine. Check the fault and correct it. Obtain
professional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time. The symbols will
keep flashing until the faults have been rectified.
No menus will be shown in the display for the duration of a priority 1 warning
report.
Priority 2 fault messages (yellow):
If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning. The function should be checked as soon as possible.
If several priority 2 warning reports are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time.
Priority 2 warning reports will not be shown until all Priority 1 warning
reports have been dealt with!
WARNING
Failure to observe fault texts and warning lamps can result in serious
personal injury or damage to your vehicle.

Cockpit73
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Cruise control system* %
The warning lamp comes on when the cruise control system
is switched on.
The warning lamp % lights up when the cruise control system is switched on.
For further notes on the cruise control system see
Operating the foot brake K
The footbrake must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.
Rear fog light

This warning lamp lights up when the rear fog light is switched on
. Further
information Ÿpage 108.
Diesel engine faults D
This warning lamp monitors the engine management system
for diesel engines.
If a malfunction occurs in the engine management system while you are
driving, the control lamp will flash D. Take the vehicle to an Authorised
Service Centre as soon as possible and have the engine checked.
At the same time, a text message or the necessary operations may appear on
the instrument panel .
Turn signals
The warning lamp flashes when the turn signals are in oper-
ation.
Depending on which turn signal is operated, either the left or right
indi-
cator lamp flashes. Both warning lamps will flash at the same time when the
hazard warning lights are switched on.
If one turn signal fails, the warning lamp will start flashing twice as fast.
Further information on the turn signals Ÿpage 111.
Engine management %0#
This warning lamp monitors the engine management system
for petrol engines.
The warning lamp %0# (Electronic Power Control) lights up when the ignition
is switched on to show that the lamp is working properly. It should go out
when the engine has started running.
If a fault develops in the electronic engine management system while you are
driving, this warning lamp will light up. Take the vehicle to an Authorised
Service Centre as soon as possible and have the engine checked.
Main beam headlights
This warning lamp lights up when the main beams are on.
The warning lamp  lights up when the main beams are on or when the
headlight flasher is operated.
Further information Ÿpage 111
