check engine Seat Alhambra 2006 User Guide

Seat Alhambra 2006 User Guide Alhambra 2006 Seat Seat https://www.carmanualsonline.info/img/39/28888/w960_28888-0.png Seat Alhambra 2006 User Guide

Page 76 of 299

Seat Alhambra 2006 User Guide Cockpit 74
Exhaust system fault* �B
Exhaust gas indicator�B
If the indicator �B flashes it signals possible damage to the catalytic
converter caused by defective combustion. Reduce speed immediately

Page 77 of 299

Seat Alhambra 2006 User Guide Cockpit75
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l  D a t a
•It will light up continuously if there is a malfunction in the ESP.
•It will light up continuously if the

Page 79 of 299

Seat Alhambra 2006 User Guide Cockpit77
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l  D a t a
Tailgate open display* �4
When the ignition is switched on, the warning light indicates that the tailgate
is

Page 80 of 299

Seat Alhambra 2006 User Guide Cockpit 78
Coolant Level* / temperature �v
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.
There is a fault if:
•The warning symbol does not go

Page 82 of 299

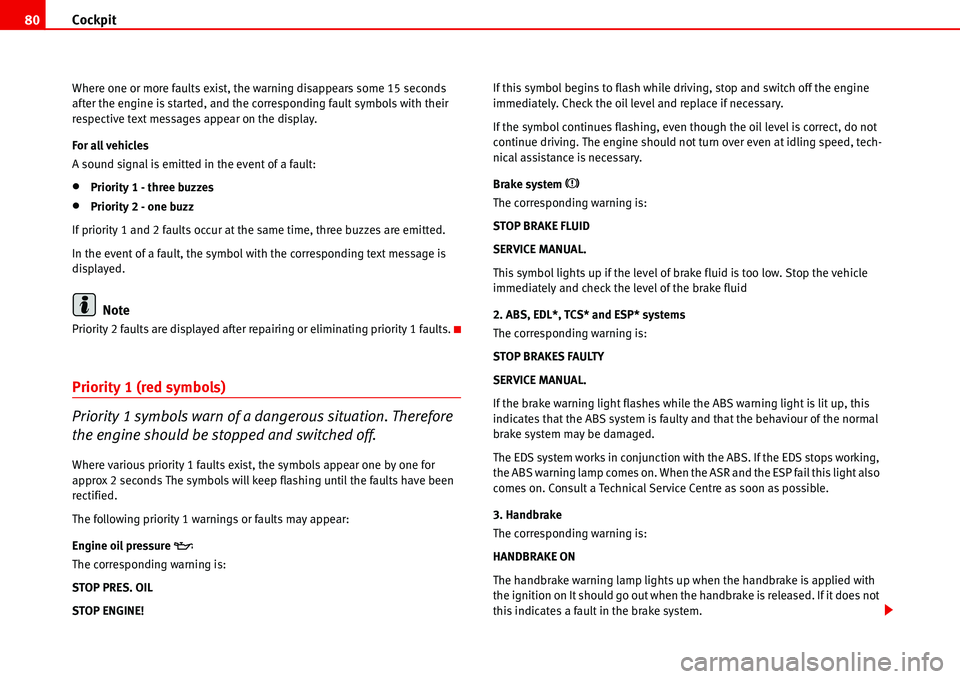

Seat Alhambra 2006 User Guide Cockpit 80
Where one or more faults exist, the warning disappears some 15 seconds
after the engine is started, and the corresponding fault symbols with their
respective text messages appear on the d

Page 83 of 299

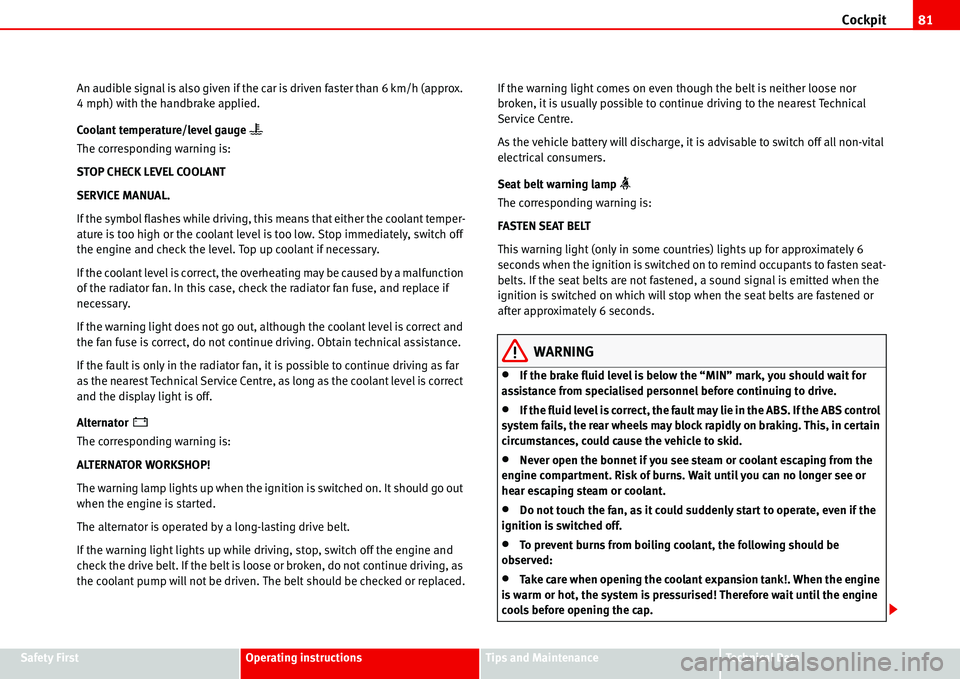

Seat Alhambra 2006 User Guide Cockpit81
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l  D a t a An audible signal is also given if the car is driven faster than 6 km/h (approx.
4 mph) with the handbrake ap

Page 84 of 299

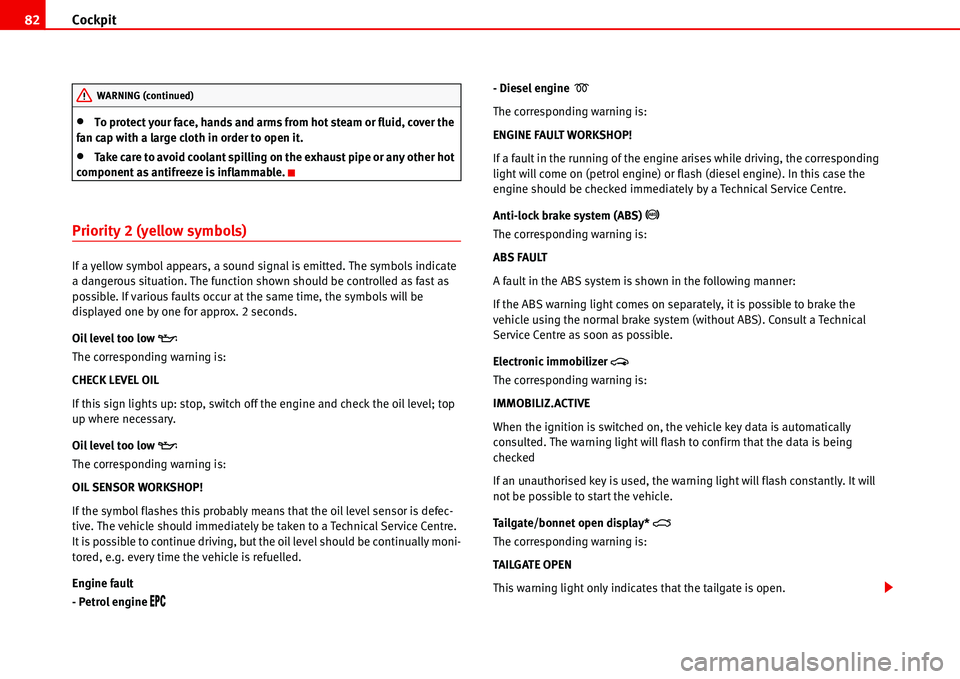

Seat Alhambra 2006 User Guide Cockpit 82
•To protect your face, hands and arms from hot steam or fluid, cover the
fan cap with a large cloth in order to open it.
•Take care to avoid coolant spilling on the exhaust pipe or any

Page 152 of 299

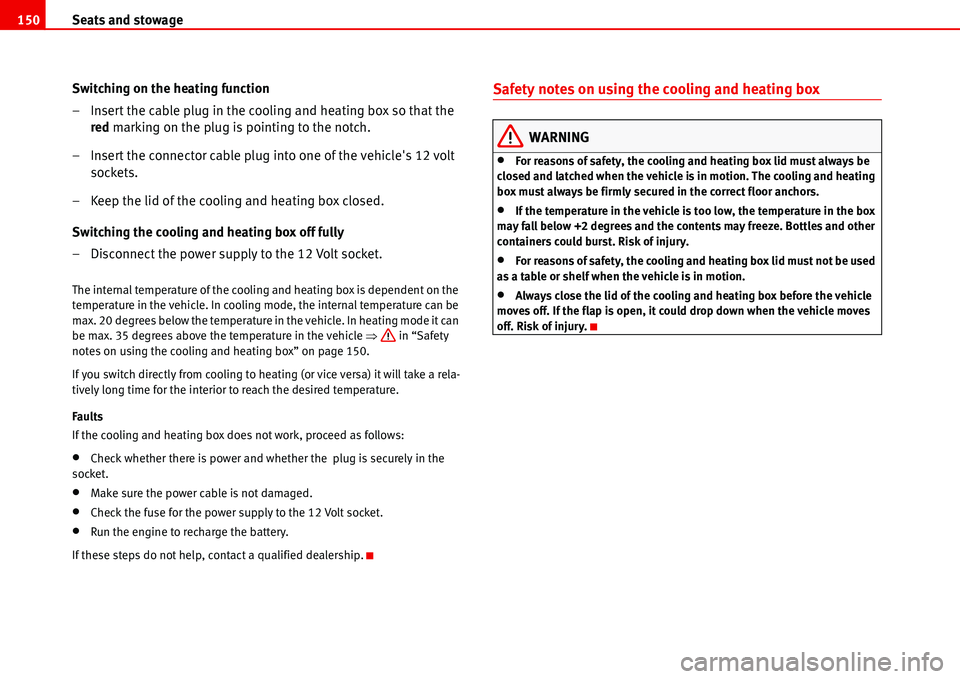

Seat Alhambra 2006 User Guide Seats and stowage 150
Switching on the heating function
– Insert the cable plug in the cooling and heating box so that the
red marking on the plug is pointing to the notch.
– Insert the connector

Page 165 of 299

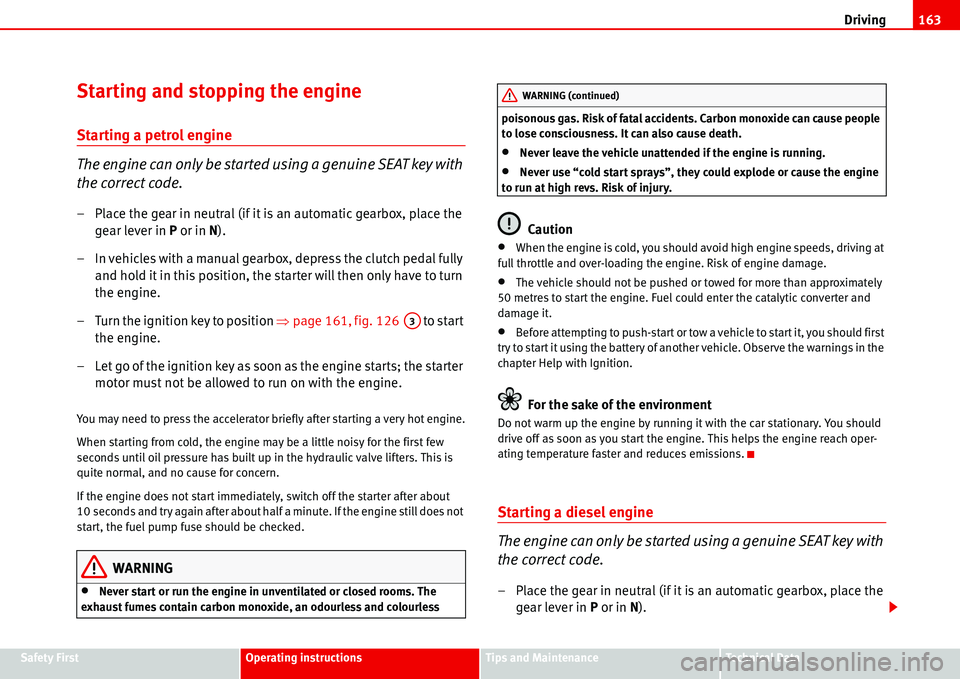

Seat Alhambra 2006 User Guide Driving163
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l  D a t a
Starting and stopping the engine
Starting a petrol engine
The engine can only be started using a genuine SEAT

Page 181 of 299

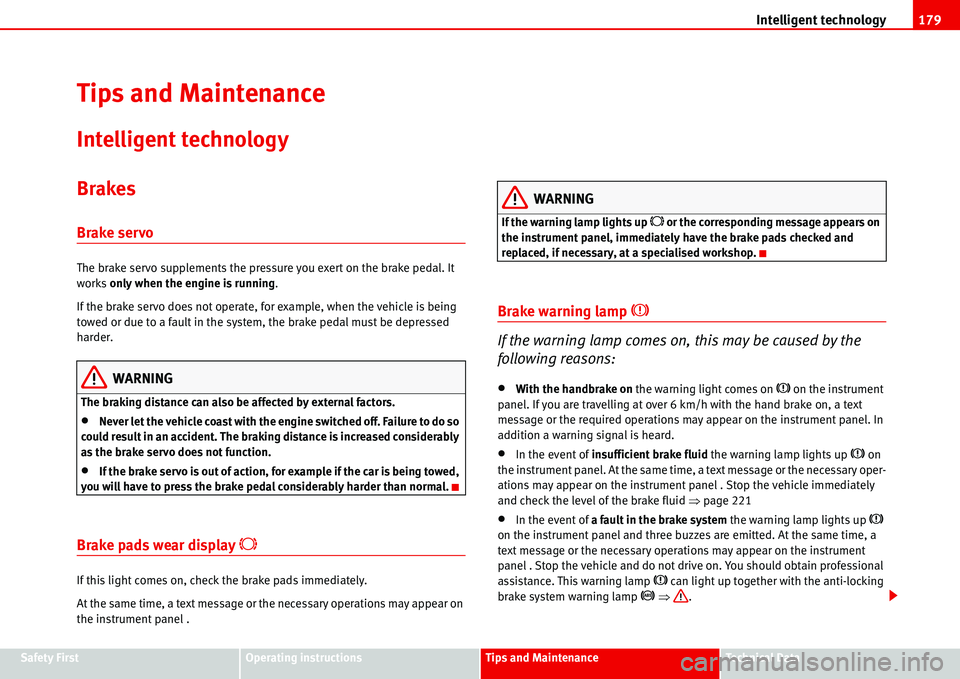

Seat Alhambra 2006 User Guide Intelligent technology179
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l  D a t a
Tips and Maintenance
Intelligent technology
Brakes
Brake servo
The brake servo supplements the
