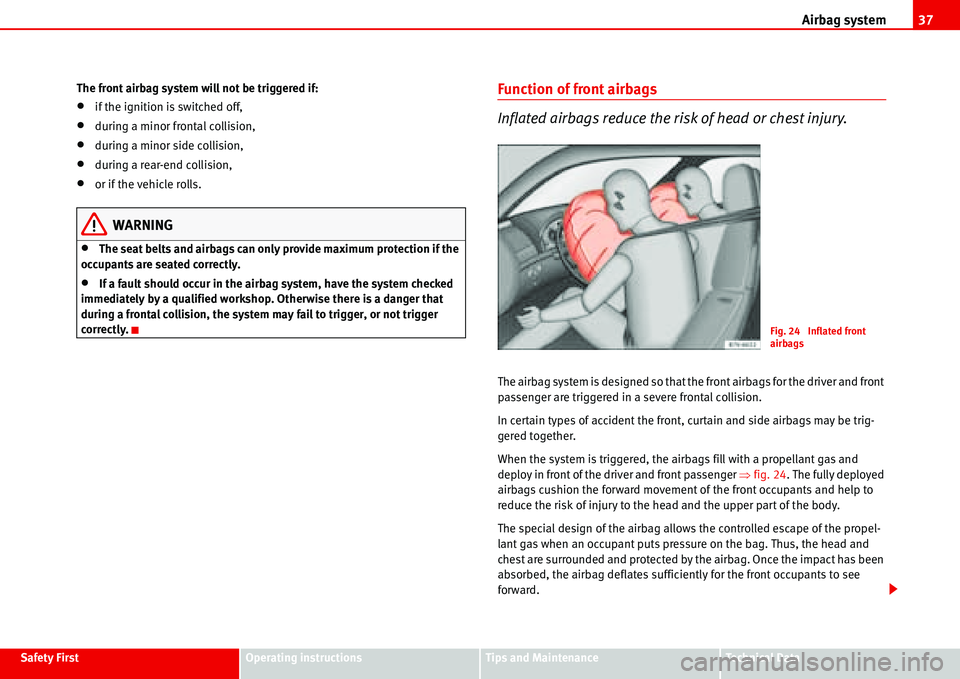

Page 39 of 299
Airbag system37
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a The front airbag system will not be triggered if:
•if the ignition is switched off,
•during a minor frontal collision,
•during a minor side collision,
•during a rear-end collision,
•or if the vehicle rolls.
WARNING
•The seat belts and airbags can only provide maximum protection if the
occupants are seated correctly.
•If a fault should occur in the airbag system, have the system checked
immediately by a qualified workshop. Otherwise there is a danger that
during a frontal collision, the system may fail to trigger, or not trigger
correctly.
Function of front airbags
Inflated airbags reduce the risk of head or chest injury.
The airbag system is designed so that the front airbags for the driver and front
passenger are triggered in a severe frontal collision.
In certain types of accident the front, curtain and side airbags may be trig-
gered together.
When the system is triggered, the airbags fill with a propellant gas and
deploy in front of the driver and front passenger Ÿfig. 24. The fully deployed
airbags cushion the forward movement of the front occupants and help to
reduce the risk of injury to the head and the upper part of the body.
The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag. Once the impact has been
absorbed, the airbag deflates sufficiently for the front occupants to see
forward.
Fig. 24 Inflated front
airbags
Page 42 of 299
Airbag system 40
Function of side airbags
Inflated airbags reduce the risk of head or chest injury.
In some side collisions the side airbag is triggered on the impact side of the
vehicle.
In certain types of accident the front, curtain and side airbags may be trig-
gered together.
When the system is triggered, the airbag is filled with propellant gas.
In order to provide the desired extra protection in an accident, the airbags
have to deploy extremely rapidly (within fractions of a second). A fine dust
may develop when the airbag deploys. This is normal and is no indication
that there was a fire in the vehicle.
The fully deployed airbags cushion the movement of the occupants of the
front seats and help to reduce the risk of injury to the upper body.
The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag.
Safety notes on the operation of the side airbag system
Correct behaviour considerably reduces the risk of injury.
WARNING
•If you do not wear a seat belt, if you lean forward, or are not seated
correctly while the vehicle is in motion, you are at greater risk of injury
should the side airbag system be triggered in an accident.
•In order for the side airbags to provide their maximum protection, the
prescribed sitting position must always be maintained with seat belts
fastened while travelling.
•The built-in coat hooks should be used only for lightweight clothing. Do
not leave any heavy or sharp-edged objects in the pockets.
•Great forces, such as hard blows or kicks, must not be exerted upon the
backrest bolster because the system may be damaged. In this case the side
airbags would not be triggered.
•Under no circumstances should protective covers be fitted over the
driver seat or front passenger seat unless the covers have been expressly
approved for use in your vehicle. Because the airbag deploys from the side
of the backrest, the use of conventional seat covers would obstruct the side
airbag, seriously reducing the airbag's effectiveness .
•Any damage to the original seat upholstery or around the seams of the
side airbag units must be repaired immediately by a qualified workshop.
•The airbags provide protection for one accident only, if they have been
deployed they must be replaced.
•When children assume an incorrect sitting position, they expose them-
selves to an increased risk of injury in the event of an accident. This is
particularly the case if the child is travelling on the front passenger seat
and the airbag system is triggered in an accident; this could have critical
consequences including serious injury or death Ÿpage 45.
•Any work on the side airbag system or removal and installation of the
airbag components for other repairs (such as removal of the front seat)
should only be performed by a qualified workshop. Otherwise, a fault may
be introduced into the operation of the airbag system.
•Do not attempt to modify components of the airbag system in any
way.
WARNING (continued)

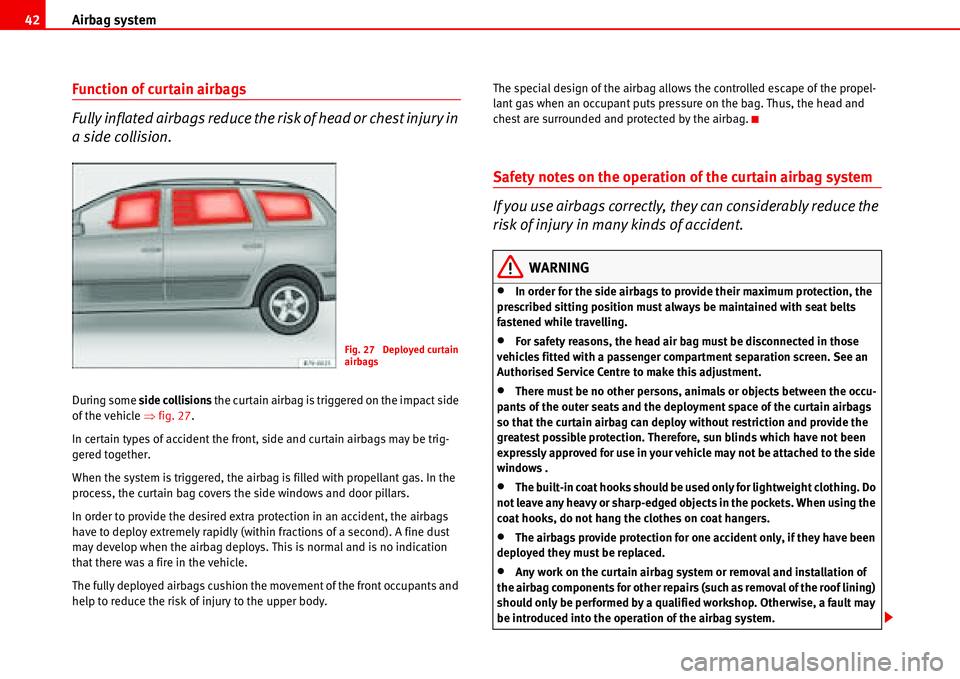

Page 44 of 299
Airbag system 42
Function of curtain airbags
Fully inflated airbags reduce the risk of head or chest injury in
a side collision.
During some side collisions the curtain airbag is triggered on the impact side
of the vehicle Ÿfig. 27.
In certain types of accident the front, side and curtain airbags may be trig-
gered together.
When the system is triggered, the airbag is filled with propellant gas. In the
process, the curtain bag covers the side windows and door pillars.
In order to provide the desired extra protection in an accident, the airbags
have to deploy extremely rapidly (within fractions of a second). A fine dust
may develop when the airbag deploys. This is normal and is no indication
that there was a fire in the vehicle.
The fully deployed airbags cushion the movement of the front occupants and
help to reduce the risk of injury to the upper body.The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag.
Safety notes on the operation of the curtain airbag system
If you use airbags correctly, they can considerably reduce the
risk of injury in many kinds of accident.
WARNING
•In order for the side airbags to provide their maximum protection, the
prescribed sitting position must always be maintained with seat belts
fastened while travelling.
•For safety reasons, the head air bag must be disconnected in those
vehicles fitted with a passenger compartment separation screen. See an
Authorised Service Centre to make this adjustment.
•There must be no other persons, animals or objects between the occu-
pants of the outer seats and the deployment space of the curtain airbags
so that the curtain airbag can deploy without restriction and provide the
greatest possible protection. Therefore, sun blinds which have not been
expressly approved for use in your vehicle may not be attached to the side
windows .
•The built-in coat hooks should be used only for lightweight clothing. Do
not leave any heavy or sharp-edged objects in the pockets. When using the
coat hooks, do not hang the clothes on coat hangers.
•The airbags provide protection for one accident only, if they have been
deployed they must be replaced.
•Any work on the curtain airbag system or removal and installation of
the airbag components for other repairs (such as removal of the roof lining)
should only be performed by a qualified workshop. Otherwise, a fault may
be introduced into the operation of the airbag system.
Fig. 27 Deployed curtain
airbags

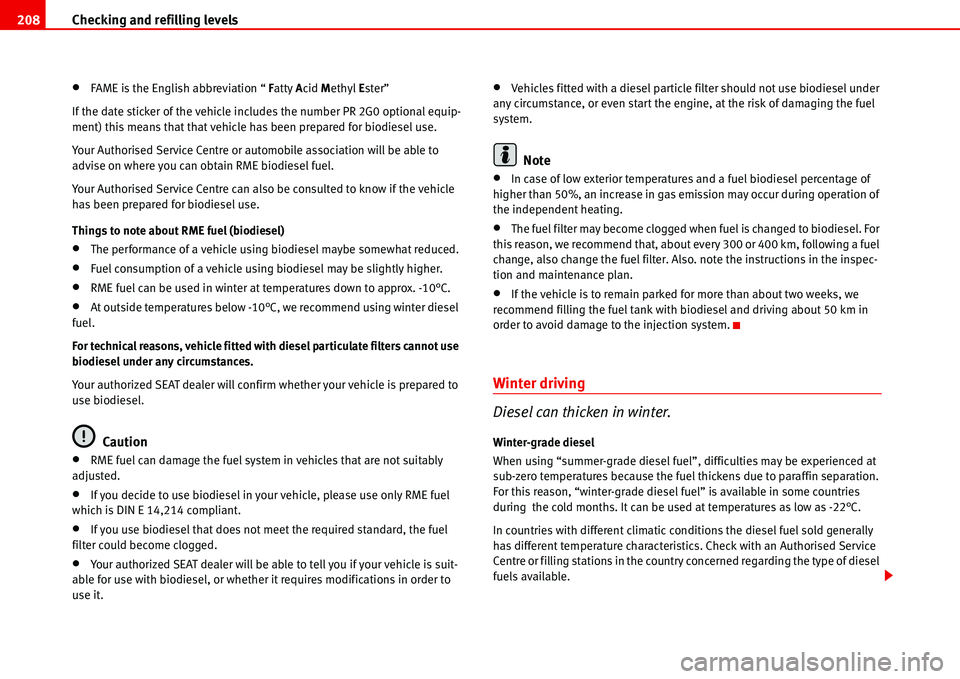

Page 210 of 299
Checking and refilling levels 208
•FAME is the English abbreviation “ Fatty Acid Methyl Ester”
If the date sticker of the vehicle includes the number PR 2G0 optional equip-
ment) this means that that vehicle has been prepared for biodiesel use.
Your Authorised Service Centre or automobile association will be able to
advise on where you can obtain RME biodiesel fuel.
Your Authorised Service Centre can also be consulted to know if the vehicle
has been prepared for biodiesel use.
Things to note about RME fuel (biodiesel)
•The performance of a vehicle using biodiesel maybe somewhat reduced.
•Fuel consumption of a vehicle using biodiesel may be slightly higher.
•RME fuel can be used in winter at temperatures down to approx. -10°C.
•At outside temperatures below -10°C, we recommend using winter diesel
fuel.
For technical reasons, vehicle fitted with diesel particulate filters cannot use
biodiesel under any circumstances.
Your authorized SEAT dealer will confirm whether your vehicle is prepared to
use biodiesel.
Caution
•RME fuel can damage the fuel system in vehicles that are not suitably
adjusted.
•If you decide to use biodiesel in your vehicle, please use only RME fuel
which is DIN E 14,214 compliant.
•If you use biodiesel that does not meet the required standard, the fuel
filter could become clogged.
•Your authorized SEAT dealer will be able to tell you if your vehicle is suit-
able for use with biodiesel, or whether it requires modifications in order to
use it.
•Vehicles fitted with a diesel particle filter should not use biodiesel under
any circumstance, or even start the engine, at the risk of damaging the fuel
system.
Note
•In case of low exterior temperatures and a fuel biodiesel percentage of
higher than 50%, an increase in gas emission may occur during operation of
the independent heating.
•The fuel filter may become clogged when fuel is changed to biodiesel. For
this reason, we recommend that, about every 300 or 400 km, following a fuel
change, also change the fuel filter. Also. note the instructions in the inspec-
tion and maintenance plan.
•If the vehicle is to remain parked for more than about two weeks, we
recommend filling the fuel tank with biodiesel and driving about 50 km in
order to avoid damage to the injection system.
Winter driving
Diesel can thicken in winter.
Winter-grade diesel
When using “summer-grade diesel fuel”, difficulties may be experienced at
sub-zero temperatures because the fuel thickens due to paraffin separation.
For this reason, “winter-grade diesel fuel” is available in some countries
during the cold months. It can be used at temperatures as low as -22°C.
In countries with different climatic conditions the diesel fuel sold generally
has different temperature characteristics. Check with an Authorised Service
Centre or filling stations in the country concerned regarding the type of diesel
fuels available.

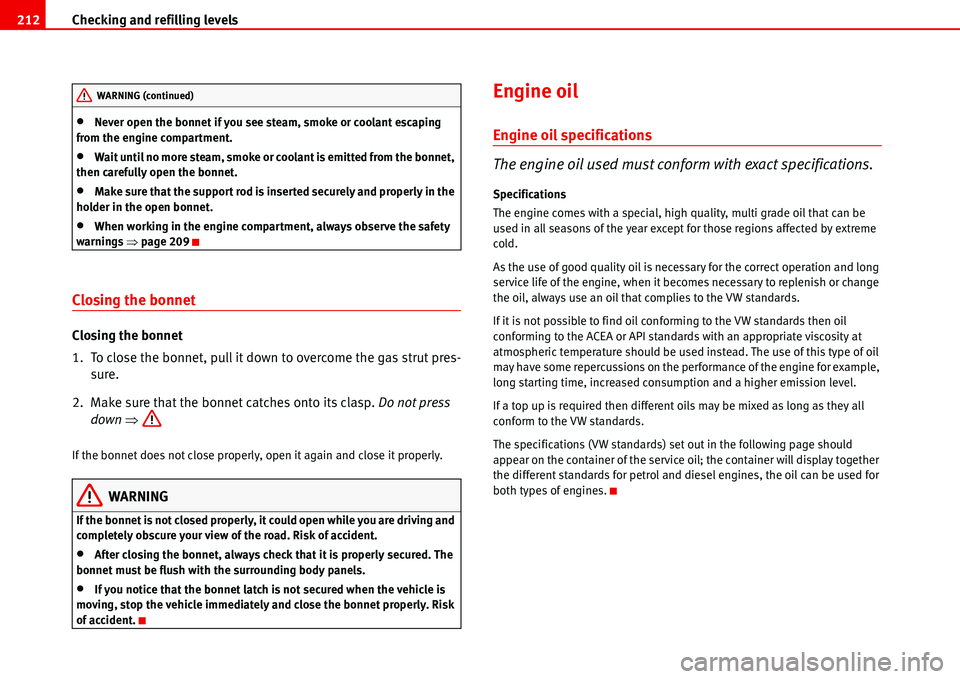

Page 214 of 299
Checking and refilling levels 212
•Never open the bonnet if you see steam, smoke or coolant escaping
from the engine compartment.
•Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•Make sure that the support rod is inserted securely and properly in the
holder in the open bonnet.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Closing the bonnet
Closing the bonnet
1. To close the bonnet, pull it down to overcome the gas strut pres-
sure.
2. Make sure that the bonnet catches onto its clasp. Do not press
down Ÿ
If the bonnet does not close properly, open it again and close it properly.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.
•After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oil
Engine oil specifications
The engine oil used must conform with exact specifications.
Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of good quality oil is necessary for the correct operation and long
service life of the engine, when it becomes necessary to replenish or change
the oil, always use an oil that complies to the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used instead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
Page 247 of 299
If and when245
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

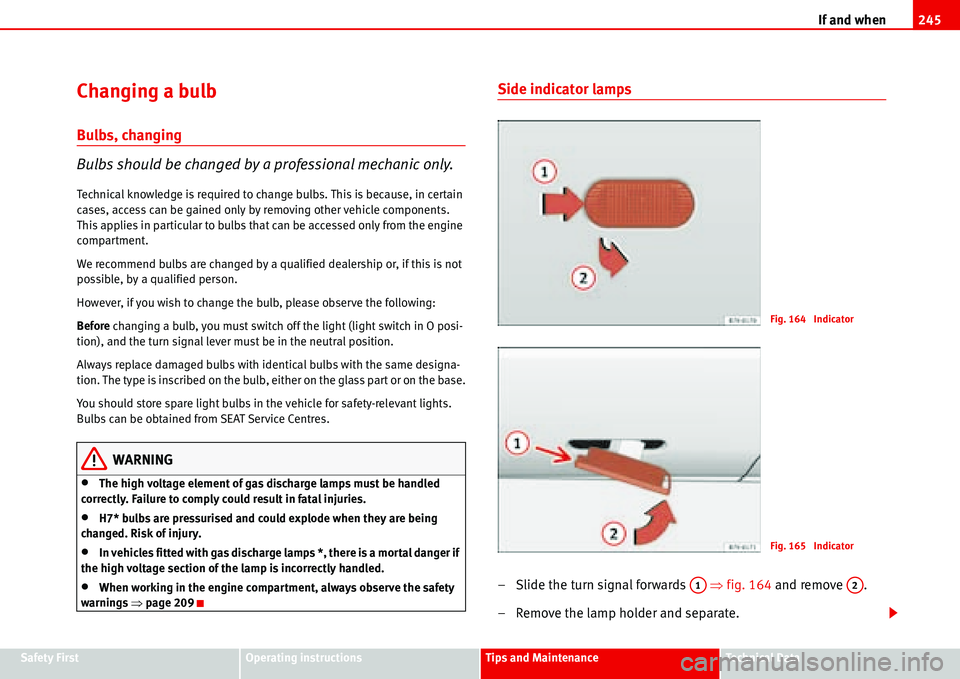

Changing a bulb
Bulbs, changing
Bulbs should be changed by a professional mechanic only.
Technical knowledge is required to change bulbs. This is because, in certain
cases, access can be gained only by removing other vehicle components.
This applies in particular to bulbs that can be accessed only from the engine
compartment.
We recommend bulbs are changed by a qualified dealership or, if this is not
possible, by a qualified person.
However, if you wish to change the bulb, please observe the following:
Before changing a bulb, you must switch off the light (light switch in O posi-
tion), and the turn signal lever must be in the neutral position.
Always replace damaged bulbs with identical bulbs with the same designa-
tion. The type is inscribed on the bulb, either on the glass part or on the base.
You should store spare light bulbs in the vehicle for safety-relevant lights.
Bulbs can be obtained from SEAT Service Centres.
WARNING
•The high voltage element of gas discharge lamps must be handled
correctly. Failure to comply could result in fatal injuries.
•H7* bulbs are pressurised and could explode when they are being
changed. Risk of injury.
•In vehicles fitted with gas discharge lamps *, there is a mortal danger if
the high voltage section of the lamp is incorrectly handled.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Side indicator lamps
– Slide the turn signal forwards Ÿfig. 164 and remove .
– Remove the lamp holder and separate.
Fig. 164 Indicator
Fig. 165 Indicator
A1A2
