Safe driving7
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Safety First
Safe driving
Brief introduction
Dear SEAT Driver
Safety first!
This chapter contains important information, advice, suggestions
and warnings that should be read and followed in the interest of
your own safety and the safety of your passengers.
WARNING
•This manual contains important information concerning the driver's
and passengers' handling of the vehicle. The other booklets in the vehicle
wallet also contain further information that you should be aware of for your
own safety and for the safety of your passengers.
•Ensure that the onboard documentation is kept in the vehicle at all
times. This is especially important when lending or selling the vehicle to
another person
Safety equipment
The safety equipment is a part of the occupant protection
system and can reduce the risk of injury during an accident.
Never “gamble” with your safety and the safety of your passengers. In the
event of an accident, the safety equipment could reduce the risk of injury. The
following list includes most of the safety equipment in your SEAT:
•optimised three-point seat belts for all seats,
•seat belt tension devices for driver and passenger,
•Belt height adjustment for the front seats and outer seats in the second
row,
•frontal airbags for driver and passenger,
•side airbags for driver and passenger,
•curtain airbags,
•ISOFIX anchorage for ISOFIX child seats in the outside seats in the second
and third rows,
•Height-adjustable head restraints and
•adjustable steering column.
The safety equipment mentioned above works together to provide you and
your passengers with the best possible protection in accident situations. But
this safety equipment cannot help you or your passengers if you or your
passengers assume an incorrect sitting position or do not properly adjust or
use this equipment.
Page 27 of 299
Seat belts25
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a The following features are available to adjust the seat belt in the shoulder
region:
•Belt height adjustment for the front seats and the outer seats in the
second row,
•front seat height adjustment*.
WARNING
An incorrectly worn seat belt web can cause severe injuries in the event of
an accident.
•The shoulder part of the seat belt must lie on the centre of the shoulder,
never across the neck. The seat belt must lie flat and fit comfortably on the
torso
•The lap part of the seat belt must lie across the pelvis, never across the
stomach. The seat belt must lie flat and fit comfortably on the pelvis Pull
the belt tight if necessary to take up any slack.
•Read and observe the warnings Ÿpage 22.
Pregnant women must also fasten their seat belts properly
The best protection for the unborn child is for the mother to
wear the seat belt properly at all times during the pregnancy.
The seat belt provides maximum protection only when the belt web
is properly positioned Ÿpage 24.
– Adjust the front seat and head restraint correctly Ÿpage 9.
– Holding the latch plate, pull the belt evenly across your chest and
as low as possible over the pelvis Ÿfig. 14.
– Insert the latch plate into the buckle for the corresponding seat
and push it down until it is securely locked with an audible click
Ÿ.
– Pull the belt to ensure that the latch plate is securely engaged in
the buckle.
Fig. 14 Positioning seat
belts during pregnancy
Page 28 of 299
Seat belts 26
WARNING
•An incorrectly worn seat belt web can cause severe injuries in the event
of an accident.
•For pregnant women, the lap part of the seat belt must lie as low as
possible over the pelvis, never across the stomach, and always lie flat so
that no pressure is exerted on the abdomen.
•Read and observe the warnings Ÿpage 21.
Belt height adjustment
Using the height adjusters for the front seats and the outer
seats in the second row the position of the seat belts can be
adjusted in the shoulder area according to the height of the
occupant.
The seat belt adjustment for the front seats and the outer seats in
the second row can be used to adjust the proper belt web position
at the shoulder.
– Press the upper part Ÿfig. 15 of the shoulder belt guide in the
direction of the arrow and hold it in this position.
– Move the shoulder belt guide up or down until you have the seat
belt in a position suitable for your size .
– Release the shoulder belt guide.
– After adjusting, pull the shoulder belt sharply to check that the
catch on the shoulder belt guide is engaged securely.
Unfastening seatbelt (with one buckle)
The seat belt must not be unfastened until the vehicle has
come to a standstill.
Fig. 15 Location of the
belt height adjuster
Fig. 16 Removing latch
plate from buckle
Page 31 of 299
Seat belts29
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Belt retainer*
WARNING
•When the belt for the outer seats in the centre row is removed insert the
webbing behind the guide of the side trim Ÿfig. 20, in order to lower the
backrest without damaging the webbing.
•The seat belts must be removed from the holder before removing the
individual seats. This means that the belts will not be damaged.
Belt height adjustment
Seat belt height adjusters can be used to adjust the position
of the seat belt at the shoulder.
The seat belt adjustment for the front seats and the outer seats in
the second row can be used to adjust the proper belt web position
at the shoulder.
– Press the upper part Ÿfig. 21 of the shoulder belt guide in the
direction of the arrow and hold it in this position.
– Move the shoulder belt guide up or down until you have adjusted
the seat belt to the correct position
– After adjusting, pull the shoulder belt sharply to check that the
catch on the shoulder belt guide is engaged securely.

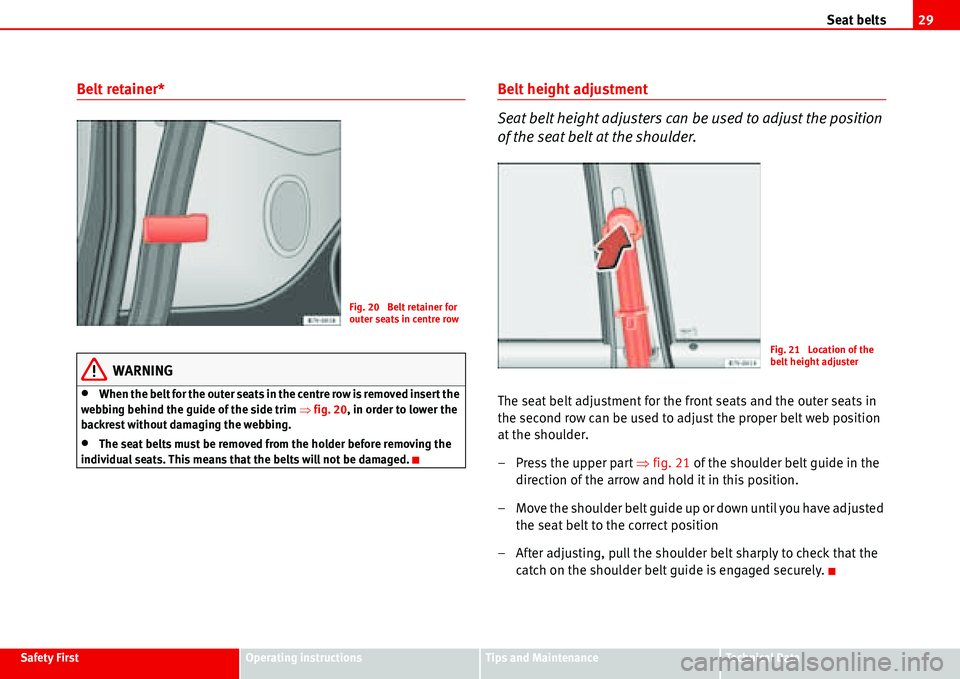

Fig. 20 Belt retainer for
outer seats in centre row
Fig. 21 Location of the
belt height adjuster
Page 58 of 299
Child safety 56
– To fasten the three-point belt, take hold of the tongue and pull it
slowly across the chest and lap.
– Push the tongue of the belt into the lock for that seat so that it
engages audibly (pull to check!)
– Adjust the three-point belt to suit body size Ÿ.
Restoring the normal seat
– Pull the loop in the direction of the arrow and push the seat
cushion down until it engages.
Removing the slumber roll
– Remove the head restraint.
– Pull the slumber roll off the head restraint.
– Reinsert the head restraint and push down until it can be heard
to engage.
Use the following measures to guarantee the proper routing of the shoulder
belt:
•Seatbelt height setting
•Adjustment of the seat forwards and backwards
•Backrest angle adjustment
WARNING
•For safety reasons, the seat for children in Group 2 may only be fitted in
the direction of travel and in one of the outer positions (not on the centre
seat).
•The risk of injury is increased if the belt is not correctly routed .
•The shoulder part of the belt should be positioned roughly over the
centre of the shoulder, never across the neck, and fit closely against the
upper part of the body.
•The lap belt part must lie across the pelvis, not across the stomach, and
always fit closely. Tighten the lap belt as necessary.
Group 3 integrated child seat
A suitable child seat and a correctly adjusted seat belt can
help to protect your child.
Setting up the child seat
– Pull the loop to the front in the direction of the arrow Ÿfig. 41
.
A1
WARNING (continued)
Fig. 41 Using the inte-
grated child seat
A1
Page 59 of 299
Child safety57
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
– Push the seat cushion in direction of the arrow until it
engages in position.
Fastening the three-point belt
– To fasten the three-point belt, take hold of the tongue and pull it
slowly across the chest and lap.
– Push the tongue of the belt into the lock for that seat so that it
engages audibly (pull to check!)
– Adjust the three-point belt to suit body size Ÿ.
Restoring the normal seat
– Pull the loop in the direction of the arrow and push the seat
cushion down until it engages.
Use the following measures to guarantee the proper routing of the shoulder
belt:
•Seatbelt height setting
•Adjustment of the seat forwards and backwards
•Backrest angle adjustment
WARNING
•For safety reasons, the seat for children in Group 3 may only be fitted in
the direction of travel and in one of the outer positions (not on the centre
seat).
•The risk of injury is increased if the belt is not correctly routed .
•The shoulder part of the belt should be positioned roughly over the
centre of the shoulder, never across the neck, and fit closely against the
upper part of the body.
•The lap belt part must lie across the pelvis, not across the stomach, and
always fit closely. Tighten the lap belt as necessary.
Cleaning the child seat
– Open the zip Ÿfig. 42 fully and undo it at the end.
– Pull the cover from the Velcro fastening in area .
– Guide the belt lock and the harness belts through the cover and
remove the child seat cover.
The child seat cover can be washed in a washing machine at a maximum
temperature of 30°C.
A2
A1
WARNING (continued)

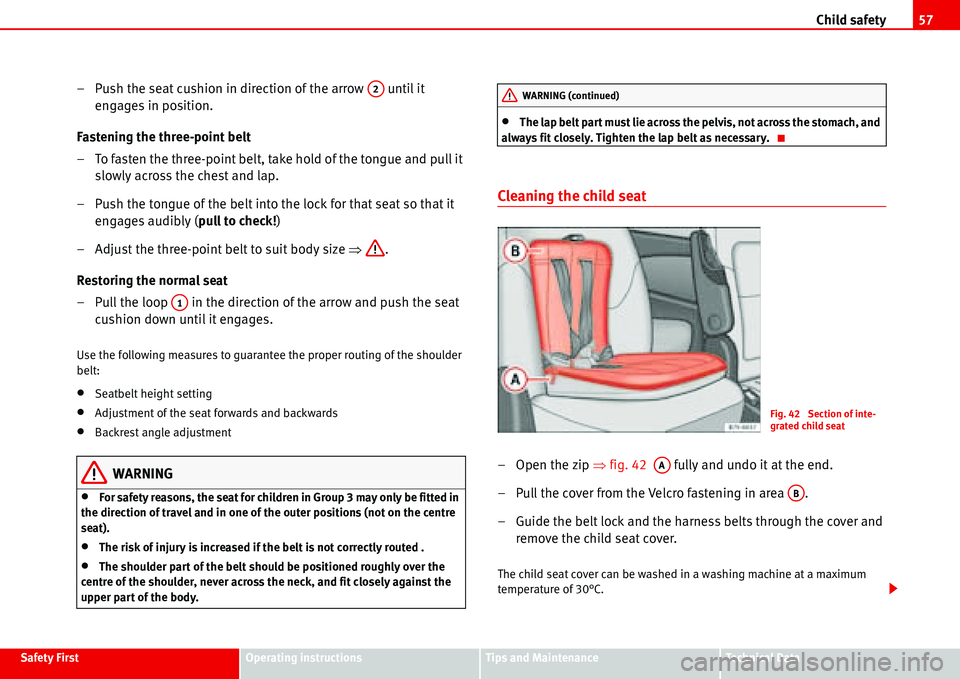

Fig. 42 Section of inte-
grated child seat
AA
AB
Page 125 of 299
Seats and stowage123
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Removing or adjusting head restraints
The head restraints can be adjusted by moving them up and
down.
Adjusting height
– Hold the side of the head restraint.
– Push the head restraint up (in the direction of the arrow) or push
it down with the button pressed Ÿfig. 86 (arrow). Correct setting
Ÿpage 122.
– Make sure that the head restraint engages securely in position.
Removing the head restraint
– Push the head restraint up as far as it will go.
– Press the button Ÿfig. 86 -arrow-.– Pull head restraint out of fitting without releasing the button.
Fitting the head restraint
– Insert the head restraint into the guides on the rear backrest.
– Press and hold button Ÿfig. 86 (arrow) and push the head
restraint down as far as it will go.
– Adjust the head restraint to suit body size.
WARNING
Never drive if the head restraints have been removed. Risk of injury.
•After refitting the head restraint, you must always adjust it properly for
height to achieve optimal protection.
•Please observe the safety warnings Ÿpage 122, “Correct adjustment

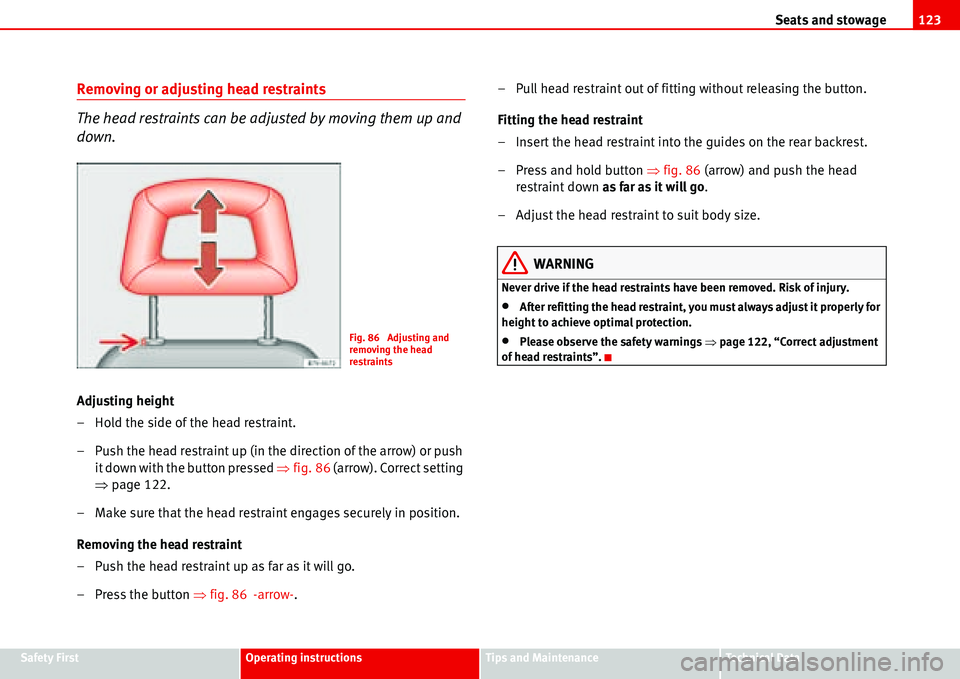

of head restraints”.Fig. 86 Adjusting and
removing the head
restraints
Page 161 of 299
Driving159
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Driving
Steering
Adjusting the steering wheel position
The height and reach of the steering wheel can be freely
adjusted to suit the driver.
– Adjust the driver seat to the correct position.
– Push the lever under the steering column Ÿfig. 123 down
Ÿ.
– Adjust the steering wheel in this way until the correct position is
set Ÿfig. 124.
– Then push the lever up again firmly Ÿ.
WARNING
•Incorrect use of the steering column adjustment function and an incor-
rect seating position can result in serious injury.
•To avoid accidents, the steering column should be adjusted only when
the vehicle is stationary. Risk of accident.

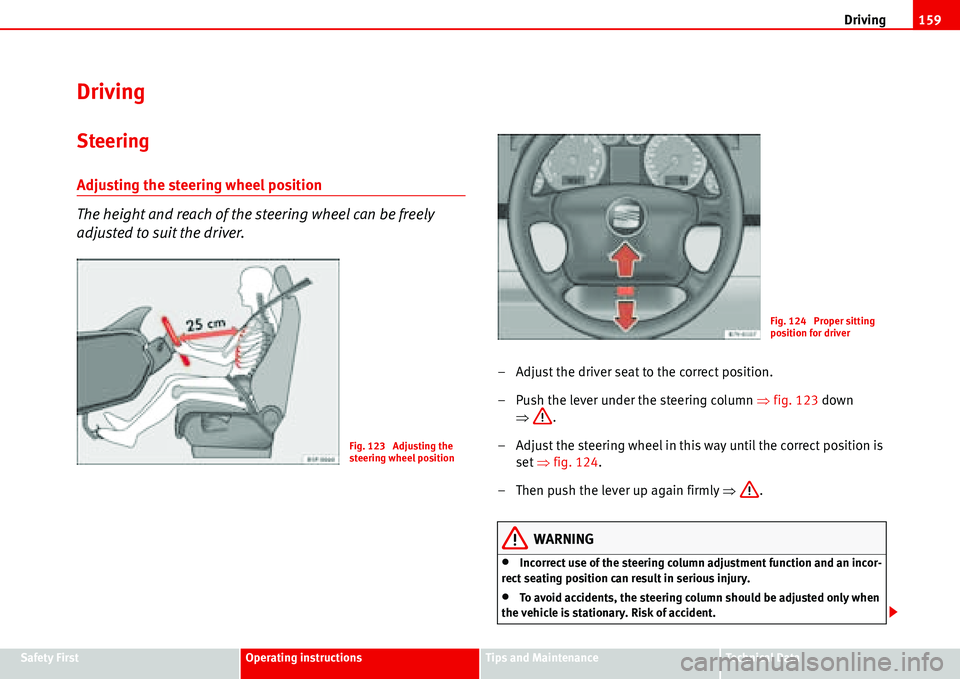

Fig. 123 Adjusting the
steering wheel position
Fig. 124 Proper sitting
position for driver
Page 289 of 299

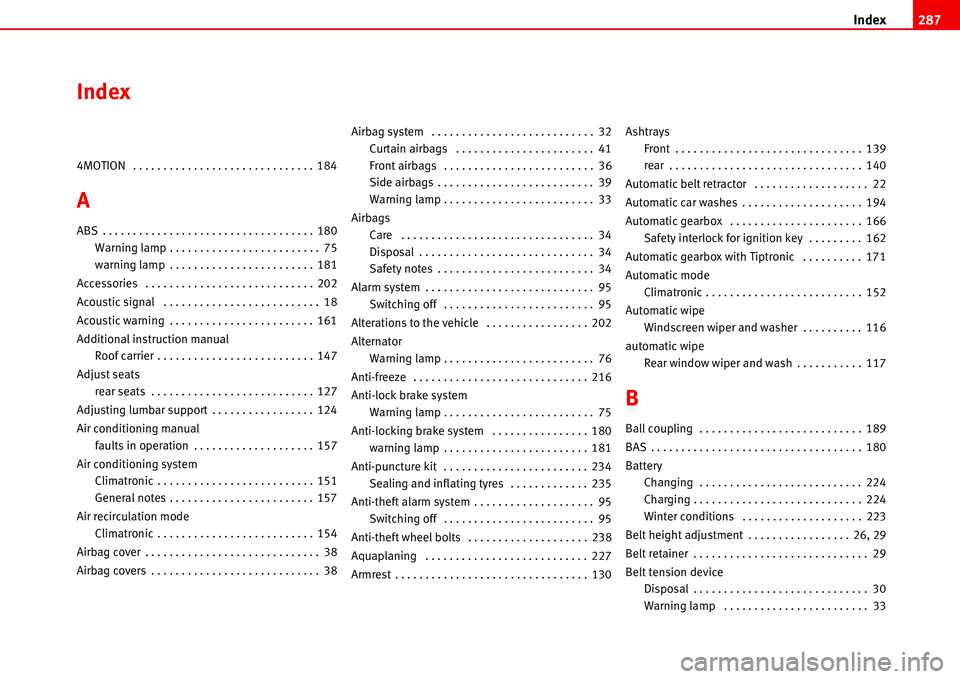

Index287
Index
4MOTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
A
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 161
Additional instruction manual
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Adjust seats
rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Adjusting lumbar support . . . . . . . . . . . . . . . . . 124
Air conditioning manual
faults in operation . . . . . . . . . . . . . . . . . . . . 157
Air conditioning system
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 151
General notes . . . . . . . . . . . . . . . . . . . . . . . . 157
Air recirculation mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Airbag cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 36
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 33
Airbags
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 95
Alterations to the vehicle . . . . . . . . . . . . . . . . . 202
Alternator
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Anti-lock brake system
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Anti-locking brake system . . . . . . . . . . . . . . . . 180
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 234
Sealing and inflating tyres . . . . . . . . . . . . . 235
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 95
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 95
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 238
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130Ashtrays
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Automatic belt retractor . . . . . . . . . . . . . . . . . . . 22
Automatic car washes . . . . . . . . . . . . . . . . . . . . 194
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 166
Safety interlock for ignition key . . . . . . . . . 162
Automatic gearbox with Tiptronic . . . . . . . . . . 171
Automatic mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Automatic wipe
Windscreen wiper and washer . . . . . . . . . . 116
automatic wipe
Rear window wiper and wash . . . . . . . . . . . 117
B
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Winter conditions . . . . . . . . . . . . . . . . . . . . 223
Belt height adjustment . . . . . . . . . . . . . . . . . 26, 29
Belt retainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Belt tension device
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 33
Page 296 of 299
Index 294
Steering wheel audio controls
audio + telephone version . . . . . . . . . . . . . . 84
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 84
Steering wheel height adjustment . . . . . . . . . . 159
Stowage
Other stowage areas . . . . . . . . . . . . . . . . . . 135
Stowage compartment
Front passenger side . . . . . . . . . . . . . . . . . 133
Sun visor
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Sunroof blind
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 105
Switches
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 119
Hazard warning lights . . . . . . . . . . . . . . . . . 110
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 104
Switching off the engine
With the ignition key . . . . . . . . . . . . . . . . . . 164
T
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Convenience opening . . . . . . . . . . . . . . . . . . 97
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
safety instructions . . . . . . . . . . . . . . . . . . . . . 99
Tailgate open display*
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 77Tank
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 64
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
TCS (Traction control system)
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 74
The danger of not using the seat belt . . . . . . . . 20
Thermos box
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Tightening torque of wheel bolts . . . . . . . . . . . 261
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Towing a trailer . . . . . . . . . . . . . . . . . . . . . 188, 260
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 189
storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Towline anchorage
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . 251, 253
Traction control system . . . . . . . . . . . . . . . . . . 183
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 74
Trailer turn signals
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 72
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 112
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Warning lamp . . . . . . . . . . . . . . . . . . . . 73, 112Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Tyres and wheels
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 227
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 226
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 227
Tyres with directional tread pattern . . . . . . . . . 225
U
Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 198
Unfastening seat belt
(with one buckle) . . . . . . . . . . . . . . . . . . . . . 26
Unfastening seat belts
(with two buckles) . . . . . . . . . . . . . . . . . . . . . 27
Upper right stowage on instrument panel . . . 134
V
Vehicle
Lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 223
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Vehicle identification data . . . . . . . . . . . . . . . . 258
Vehicle identification number . . . . . . . . . . . . . 258
Vehicle onboard tools . . . . . . . . . . . . . . . . . . . . 231
Vehicle paint
Car care products . . . . . . . . . . . . . . . . . . . . 193
Vehicle tool kit jack . . . . . . . . . . . . . . . . . . . . . . 239
