Raising the vehicle
Raise the vehicle using only the designated jacking points.
Do not raise the vehicle until you have slackened the wheel bolts on
the wheel you wish to remove ⇒page 238.
Jacking up the vehicle
1. Look for the jacking point ⇒fig. 161 (arrow) ⇒ closest to the
tyre which has to be changed.
2. Raise the jack under the jacking point until it just fits under the car.
3. Check that the foot of the jack has full contact with the ground.
4. Adjust the jack and continue to crank the claw up until it is in position around the vertical rib ⇒fig. 162 (arrow) underneath
the vehicle ⇒
5. Crank the jack further until the wheel is just clear of the ground.The jack may be applied only at the jacking points shown ⇒fig. 161 . The
front jacking point is about 11 cm from the wheel arch. The rear jacking point
is about 14 cm from its wheel arch. Notches on both sides in the sills show
where the jacking points are under the vehicle.
WARNING
•
You could injure yourself or damage the vehicle if you do not observe
the correct jacking points.
•
Soft ground under the jack may cause the vehicle to slip off the jack.
Always provide a firm base for the jack on the ground. If necessary use a
large, strong board or similar support. On a hard, slippery surface (such as
tiles) use a rubber mat or similar to prevent the jack from slipping.
•
The jack claw must grasp the vertical rib under the sill properly so that
the jack does not slip off when you are raising the vehicle ⇒fig. 162.
Fig. 161 The jacking
pointsFig. 162 Jack at rear on
right
alhambra ingles.book Seite 239 Donnerstag, 19. April 2007 4:04 16

If and when
240
NoteThe hexagonal socket in the screwdri ver handle should be used for turning
wheel bolts only. Do not use it to loosen or tighten the wheel bolts.Changing a wheel Removing the wheel
– Using the hexagonal socket in the screwdriver handle, unscrew the slackened wheel bolts and place them on a clean surface.
– Take off the wheel.
– Store the defective wheel as described on ⇒page 233.
Fitting the spare wheel
– Put the spare wheel in place.
– Screw in the wheel bolts and tighten them lightly using the
hexagonal socket.
– Lower the vehicle on the jack.
– Tighten the wheel bolts firmly using the box spanner. Do not tighten the bolts in clockwise or anti-clockwise sequence.
Tighten them in diagonal sequence.Tyres with directional tread pattern
Tyres with directional tread pattern must be mounted so that they rotate in the
correct direction.
A directional tread pattern can be identified by arrows on the sidewall that
point in the direction of rotation. Alwa ys observe the direction of rotation indicated when mounting the wheel. This is important so that these tyres can
give maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to moun
t a wheel so it rotates in the wrong
direction, you must drive extremely care fully. The tyre will not give optimum
performance. This is particularly impo rtant when driving on wet roads. To
benefit from the advantages of tyres with directional tread pattern, the tyre
should be replaced as soon as possible so that it rotates in the correct direc-
tion.
Caution
•
The wheel bolts should be clean and turn easily. Do not grease or oil them.
•
The hexagonal socket in the screwdriver handle should be used for
turning wheel bolts only. Do not use it to loosen or tighten the wheel bolts.
After changing a wheel– Place the wheel with the defective tyre in the spare wheel bracket
⇒page 233.
– Have the flat tyre replaced as quickly as possible.
– Have the tightening torque of the wheel bolts checked as soon as possible with a torque wrench ⇒page 240.
– Check tyre pressure at the next opportunity.
– Avoid fast driving manoeuvres.
alhambra ingles.book Seite 240 Donnerstag, 19. April 2007 4:04 16

If and when241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
If the prescribed torque of the wheel bolts is too low, they could loosen
whilst the vehicle is in motion. Risk of accident! If the tightening torque is
too high, the wheel bolts and threads could be damaged.Caution
The stipulated torque for the wheel bolts on steel wheels and alloy wheels is
170 Nm with a tolerance of ± 10 Nm. You should visit a specialised workshop
as soon as possible to check the torque with a torque wrench.
Note
•
The wheel bolts should be clean and turn easily. Do not grease or oil them.
•
The hexagonal socket in the screwdriver handle should be used only for
turning wheel bolts which have been slackened off. Do not use it to loosen or
tighten the wheel bolts.
•
If you notice that the wheel bolts are corroded and difficult to turn when
changing a wheel, they must be replaced before you have the tightening
torque checked.
•
If the spare tyre is not the same as the tyres that are mounted on the car -
for example with winter tyres - you should only use the spare tyre for a short
period of time and drive with extra care. Refit the normal road wheel as soon
as possible.
•
Have the flat tyre replaced as quickly as possible.
FusesChanging a fuse– Use the fuse tables, to find out where, and in which fuse box, the damaged fuse is located ⇒page 242.
– Switch off the ignition and the component concerned.
– Remove the fuse box cover ⇒fig. 163 .
– Use the plastic pliers in the fuse box to remove the fuse.
– If the fuse has blown (the metal strip will have melted), replace it with a new fuse of the same amp rating (same colour and same
imprint) and size.The individual electrical circuits are protected by fuses. It is advisable to carry
several spare fuses at all times.
Fig. 163 Left side of dash
panel: fuse box
alhambra ingles.book Seite 241 Donnerstag, 19. April 2007 4:04 16

If and when
242Colour coding of fuses
WARNING
Never “repair” damaged fuses and neve r replace them with higher rating
fuses. This could cause fires.
Note
•
If a newly inserted fuse blows after a short time, you must have the elec-
trical system checked by a qualifie d dealership as soon as possible.
•
If you replace a fuse with a stronger fuse, you could cause damage to
another location in th e electrical system.
Fuse tableThe table shows the fuse locations fo r the most important consumers. The
right-hand columns contain the insert loc ation, the figures in brackets indi-
cate the Ampère rating for the fuse. One single consumer could have more
than one fuse. Several consumers could run over one single fuse.
The fuse box has space for replacement fuses.
There are other fuses in the vehicle. These should be changed by a qualified
dealership.
Color
Amp rating
violet
3
light brown
5
brown
7,5
red
10
blue
15
yellow
20
transparent
25
green
30
Electrical consumer
Symbol
Dipped headlights

Electrical socket for trailer -
Turn signals

Brake lights

alhambra ingles.book Seite 242 Donnerstag, 19. April 2007 4:04 16

If and when243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Main beam headlights

Rear window heater

Rear windscreen wiper

Horn

Interior lights

Electric windows

Usable electric windows

Fog lights

Rear fog light

Hazard warning light switch

Instrument pa
nel lighting

Climate control

Heating system

Radio, navigation system

/ 
Rear light -
Registration plate light

Electrical consumer Symbol
alhambra ingles.book Seite 243 Donnerstag, 19. April 2007 4:04 16

If and when
244Windscreen washers

Windscreen washer system

Sun roof

Seat heating

Mirror adjustment

Heating the exterior mirrors

Side lights

Socket (luggage compartment)

Central locking -

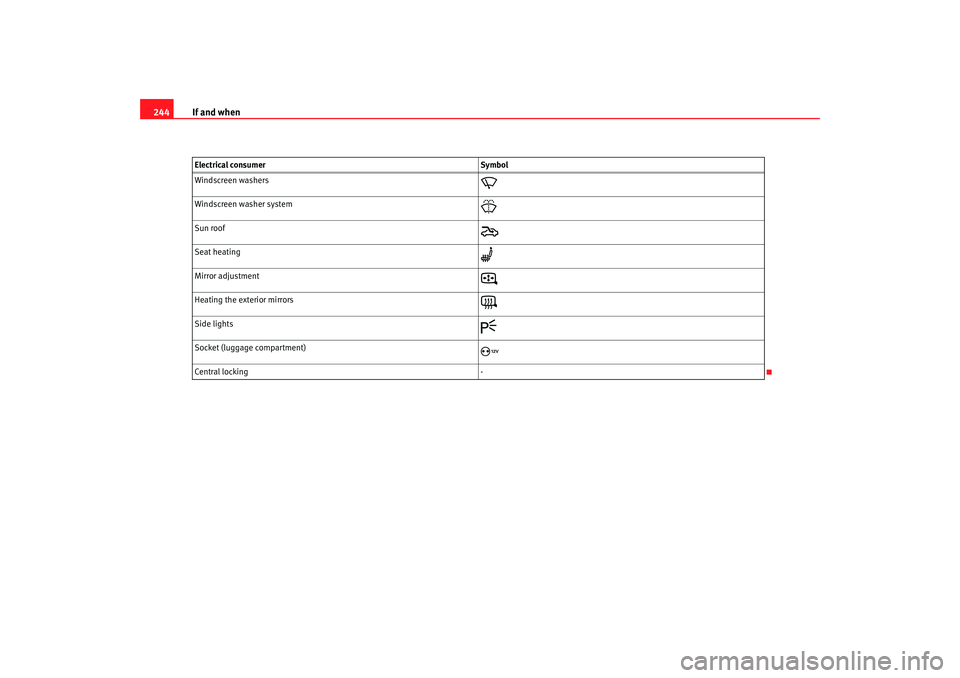

Electrical consumer
Symbol
alhambra ingles.book Seite 244 Donnerstag, 19. April 2007 4:04 16

If and when245
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Changing a lightBulbs, changing
Bulbs should be changed by a professional mechanic only.Technical knowledge is required to change bulbs. This is because, in certain
cases, access can be gained only by removing other vehicle components.
This applies in particular to bulbs which can be accessed only from the
engine compartment.
We recommend bulbs are changed by a qualified dealership or, if this is not
possible, by a qualified person.
However, if you wish to change the bulb, please observe the following:
Before changing a bulb, you must switch off the light (light switch in O posi-
tion), and the turn signal lever mu st be in the neutral position.
Always replace damaged bulbs with identical bulbs with the same designa-
tion. The type is inscribed on the bulb, either on the glass or on the base.
You should store spare light bulbs in the vehicle for safety-relevant lights.
Bulbs can be obtained from SEAT Service Centres.
WARNING
•
The high voltage element of gas discharge lamps must be handled
correctly. Failure to comply could result in fatal injuries.
•
H7* bulbs are pressurised and could explode when they are being
changed. Risk of injury.
•
In vehicles fitted with gas discharge lamps *, there is a mortal danger if
the high voltage section of th e lamp is incorrectly handled.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 209.
Side indicator lamps– Slide the turn signal forwards ⇒fig. 164 and remove .
– Remove the lamp holder and separate.
Fig. 164 Side indicatorFig. 165 Side indicator
A1
A2
alhambra ingles.book Seite 245 Donnerstag, 19. April 2007 4:04 16

If and when
246
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the turn signal guide rail.
– First fit the turn signal in the opening of the chassis, securing with the tabs ⇒ page 245, fig. 165 and then, fit the bulb as
shown by the arrow .Rear lightsBefore changing a bulb, the tailgate should always be opened.
The lights have the following layout:
On the body
Turn signals, pilot light and brake/rear light
On the tailgate / rear door
Reversing light and rear antifog light.

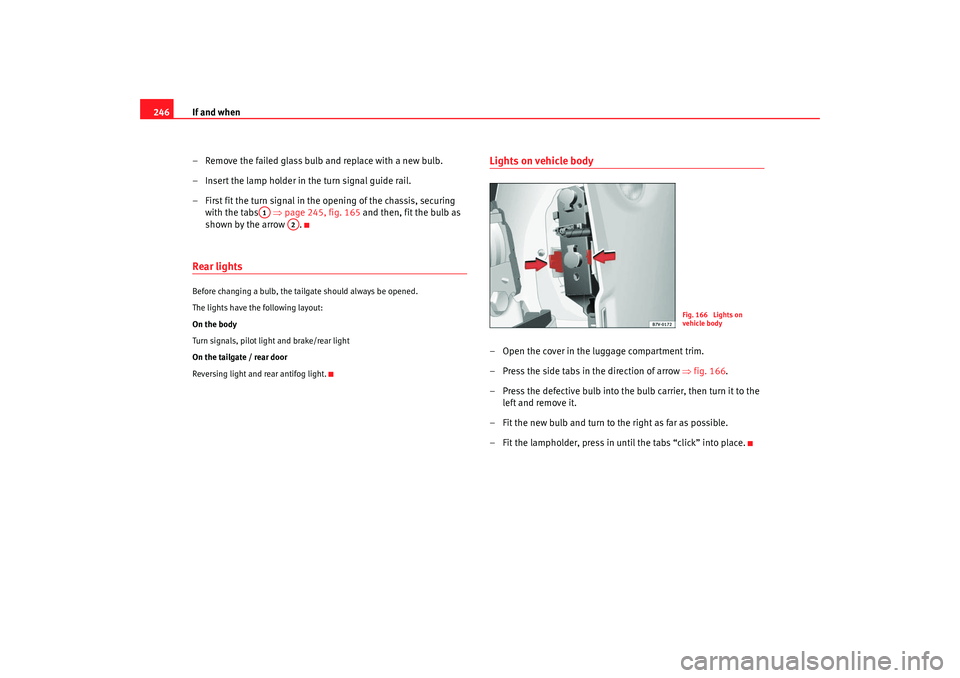

Lights on vehicle body – Open the cover in the luggage compartment trim.
– Press the side tabs in the direction of arrow ⇒fig. 166.
– Press the defective bulb into the bulb carrier, then turn it to the left and remove it.
– Fit the new bulb and turn to the right as far as possible.
– Fit the lampholder, press in until the tabs “click” into place.
A1
A2
Fig. 166 Lights on
vehicle body
alhambra ingles.book Seite 246 Donnerstag, 19. April 2007 4:04 16

If and when247
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

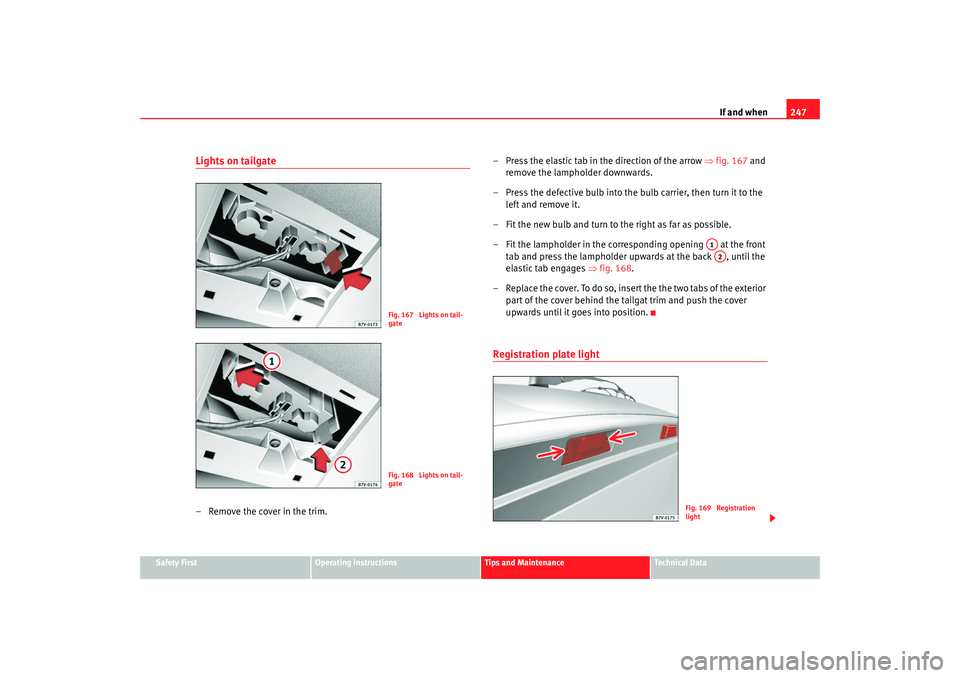

Lights on tailgate– Remove the cover in the trim. – Press the elastic tab in the direction of the arrow
⇒fig. 167 and
remove the lampholder downwards.
– Press the defective bulb into the bulb carrier, then turn it to the left and remove it.
– Fit the new bulb and turn to the right as far as possible.
– Fit the lampholder in the corresponding opening at the front tab and press the lampholder upwards at the back , until the
elastic tab engages ⇒fig. 168.
– Replace the cover. To do so, insert the the two tabs of the exterior part of the cover behind the tailgat trim and push the cover
upwards until it goes into position.
Registration plate light
Fig. 167 Lights on tail-
gateFig. 168 Lights on tail-
gate
A1A2
Fig. 169 Registration
light
alhambra ingles.book Seite 247 Donnerstag, 19. April 2007 4:04 16

If and when
248
– Remove the glass
– Remove the failed glass bulb and replace with a new bulb.
– Bolt down the glass without overtightening, ensuring that the seal is perfectly fitted.
– Fit the reflector in the corresponding space in the tailgate ensuring that the rubber seal and the light are assembled
correctly.
– Do not bolt down the glass too tightly.Interior light– Insert a fine screwdriver or similar between the casing and the glass (arrow) ⇒fig. 170 and carefully remove the glass. – Replace the bulb.
