Checking and refilling levels209
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

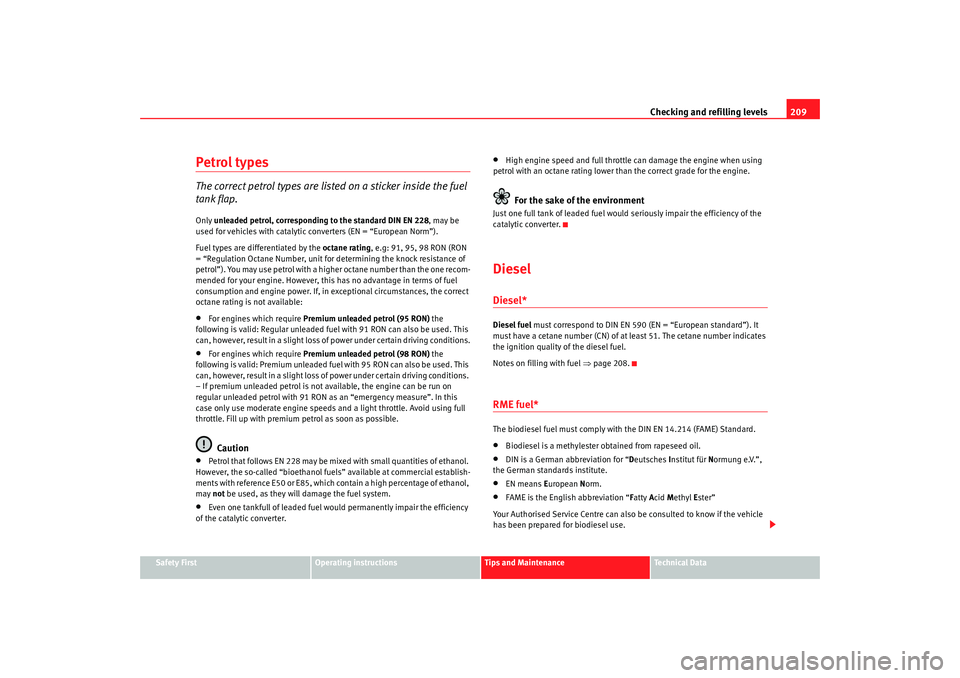

Petrol typesThe correct petrol types are listed on a sticker inside the fuel
tank flap.Only unleaded petrol, corresponding to the standard DIN EN 228 , may be
used for vehicles with catalytic converters (EN = “European Norm”).
Fuel types are differentiated by the octane rating, e.g: 91, 95, 98 RON (RON
= “Regulation Octane Number, unit for determining the knock resistance of
petrol”). You may use petrol with a higher octane number than the one recom-
mended for your engine. However, this has no advantage in terms of fuel
consumption and engine power. If, in exceptional circumstances, the correct
octane rating is not available:•
For engines which require Premium unleaded petrol (95 RON) the
following is valid: Regular unleaded fuel with 91 RON can also be used. This
can, however, result in a slight loss of power under certain driving conditions.
•
For engines which require Premium unleaded petrol (98 RON) the
following is valid: Premium unleaded fuel with 95 RON can also be used. This
can, however, result in a slight loss of power under certain driving conditions.
– If premium unleaded petrol is not available, the engine can be run on
regular unleaded petrol with 91 RON as an “emergency measure”. In this
case only use moderate engine speeds and a light throttle. Avoid using full
throttle. Fill up with premium petrol as soon as possible.Caution
•
Petrol that follows EN 228 may be mixed with small quantities of ethanol.
However, the so-called “bioethanol fuels” available at commercial establish-
ments with reference E50 or E85, which contain a high percentage of ethanol,
may not be used, as they will damage the fuel system.
•
Even one tankfull of leaded fuel would permanently impair the efficiency
of the catalytic converter.
•
High engine speed and full throttle can damage the engine when using
petrol with an octane rating lower than the correct grade for the engine.For the sake of the environment
Just one full tank of leaded fuel would seriously impair the efficiency of the
catalytic converter.DieselDiesel*Diesel fuel must correspond to DIN EN 590 (EN = “European standard”). It
must have a cetane number (CN) of at least 51. The cetane number indicates
the ignition quality of the diesel fuel.
Notes on filling with fuel ⇒page 208.RME fuel*The biodiesel fuel must comply with the DIN EN 14.214 (FAME) Standard.•
Biodiesel is a methylester obtained from rapeseed oil.
•
DIN is a German abbreviation for “ Deutsches Institut für N ormung e.V.”,
the German standards institute.
•
EN means European Norm.
•
FAME is the English abbreviation “ Fatty Acid Methyl Ester”
Your Authorised Service Centre can also be consulted to know if the vehicle
has been prepared for biodiesel use.
alhambra_aleman.book Seite 209 Montag, 23. M‰ rz 2009 1:12 13

Checking and refilling levels

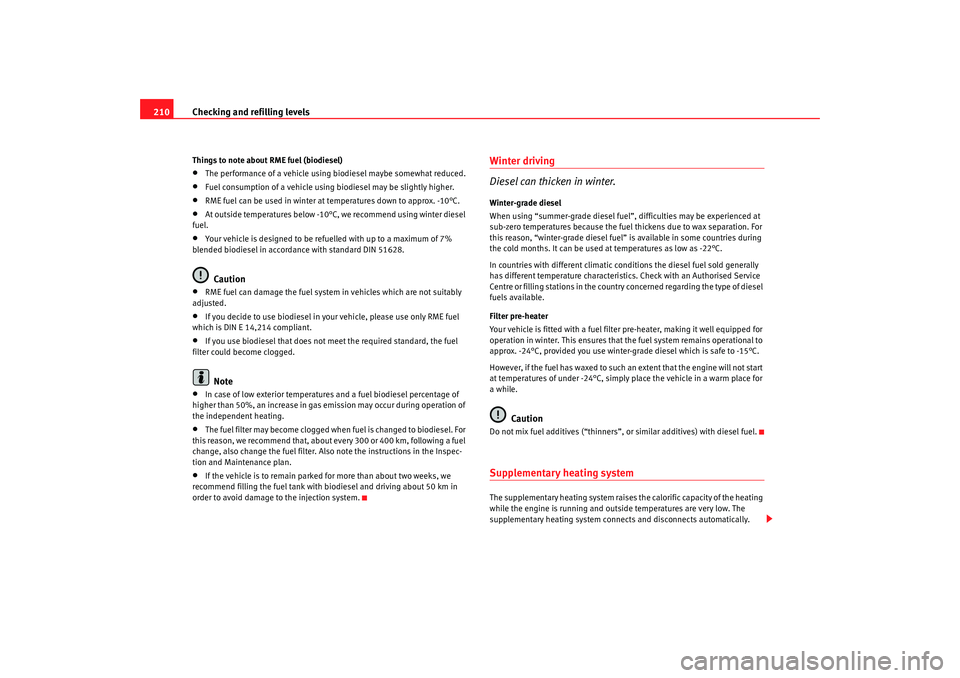

210Things to note about RME fuel (biodiesel)•
The performance of a vehicle using biodiesel maybe somewhat reduced.
•
Fuel consumption of a vehicle using biodiesel may be slightly higher.
•
RME fuel can be used in winter at temperatures down to approx. -10°C.
•
At outside temperatures below -10°C, we recommend using winter diesel
fuel.
•
Your vehicle is designed to be refuelled with up to a maximum of 7%
blended biodiesel in accordance with standard DIN 51628.Caution
•
RME fuel can damage the fuel system in vehicles which are not suitably
adjusted.
•
If you decide to use biodiesel in your vehicle, please use only RME fuel
which is DIN E 14,214 compliant.
•
If you use biodiesel that does not meet the required standard, the fuel
filter could become clogged.Note
•
In case of low exterior temperatures and a fuel biodiesel percentage of
higher than 50%, an increase in gas emission may occur during operation of
the independent heating.
•
The fuel filter may become clogged when fuel is changed to biodiesel. For
this reason, we recommend that, about every 300 or 400 km, following a fuel
change, also change the fuel filter. Also note the instructions in the Inspec-
tion and Maintenance plan.
•
If the vehicle is to remain parked for more than about two weeks, we
recommend filling the fuel tank with biodiesel and driving about 50 km in
order to avoid damage to the injection system.
Winter driving
Diesel can thicken in winter.Winter-grade diesel
When using “summer-grade diesel fuel”, difficulties may be experienced at
sub-zero temperatures because the fuel thickens due to wax separation. For
this reason, “winter-grade diesel fuel” is available in some countries during
the cold months. It can be used at temperatures as low as -22°C.
In countries with different climatic conditions the diesel fuel sold generally
has different temperature characteristics. Check with an Authorised Service
Centre or filling stations in the country concerned regarding the type of diesel
fuels available.
Filter pre-heater
Your vehicle is fitted with a fuel filter pre-heater, making it well equipped for
operation in winter. This ensures that the fuel system remains operational to
approx. -24°C, provided you use winter-grade diesel which is safe to -15°C.
However, if the fuel has waxed to such an extent that the engine will not start
at temperatures of under -24°C, simply place the vehicle in a warm place for
a while.
Caution
Do not mix fuel additives (“thinners”, or similar additives) with diesel fuel.Supplementary heating systemThe supplementary heating system raises the calorific capacity of the heating
while the engine is running and outside temperatures are very low. The
supplementary heating system connects and disconnects automatically.
alhambra_aleman.book Seite 210 Montag, 23. M‰ rz 2009 1:12 13

Checking and refilling levels
220The coolant additive G 12+ (dyed purple) may be mixed with G 12 (dyed red)
and also with G 11.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•
When working in the engine compartment, always observe the safety
warnings ⇒page 211
•
When the engine is warm or hot, the cooling system is pressurised! Do
not unscrew the cap on the expansion tank when the engine is hot. This is
a burn injury risk.Caution
•
When mixed with other additives the colour of G 12 will change to brown.
If this occurs you should have the coolant changed immediately. Failure to do
so will result in engine damage!
•
If a lot of coolant has been lost, wait for the engine to cool down before
putting in cold coolant. This avoids damaging the engine. Large coolant
losses are an indication of leaks in the cooling system. See a specialised
workshop immediately and have the cooling system checked. Otherwise,
there is a risk of engine damage.
Washer fluid and windscreen wiper bladesTo p p i n g u p w a s h e r f l u i d

The water for cleaning the windscreen should always be
mixed with washer fluid.The windscreen washer and the headlight washing system are supplied with
fluid from the windscreen washer fluid container in the engine compartment.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean the windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, these may be added all-year-round. Please
follow the dilution instructions on the packaging.
Fig. 144 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
alhambra_aleman.book Seite 220 Montag, 23. M‰ rz 2009 1:12 13

Checking and refilling levels223
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

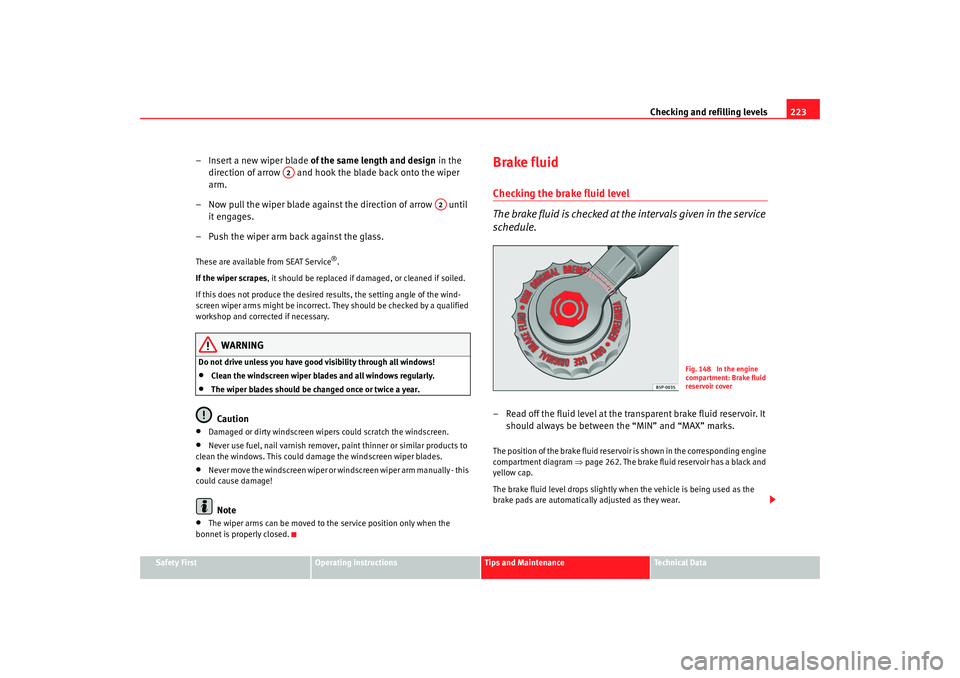

– Insert a new wiper blade of the same length and design in the
direction of arrow and hook the blade back onto the wiper
arm.
– Now pull the wiper blade against the direction of arrow until it engages.
– Push the wiper arm back against the glass.These are available from SEAT Service
®.
If the wiper scrapes , it should be replaced if damaged, or cleaned if soiled.
If this does not produce the desired results, the setting angle of the wind-
screen wiper arms might be incorrect. They should be checked by a qualified
workshop and corrected if necessary.
WARNING
Do not drive unless you have good visibility through all windows!•
Clean the windscreen wiper blades and all windows regularly.
•
The wiper blades should be changed once or twice a year.Caution
•
Damaged or dirty windscreen wipers could scratch the windscreen.
•
Never use fuel, nail varnish remover, paint thinner or similar products to
clean the windows. This could damage the windscreen wiper blades.
•
Never move the windscreen wiper or windscreen wiper arm manually - this
could cause damage!Note
•
The wiper arms can be moved to the service position only when the
bonnet is properly closed.
Brake fluidChecking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.– Read off the fluid level at the transparent brake fluid reservoir. It should always be between the “MIN” and “MAX” marks.The position of the brake fluid reservoir is shown in the corresponding engine
compartment diagram ⇒page 262. The brake fluid reservoir has a black and
yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
A2
A2
Fig. 148 In the engine
compartment: Brake fluid
reservoir cover
alhambra_aleman.book Seite 223 Montag, 23. M‰ rz 2009 1:12 13

Checking and refilling levels225
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

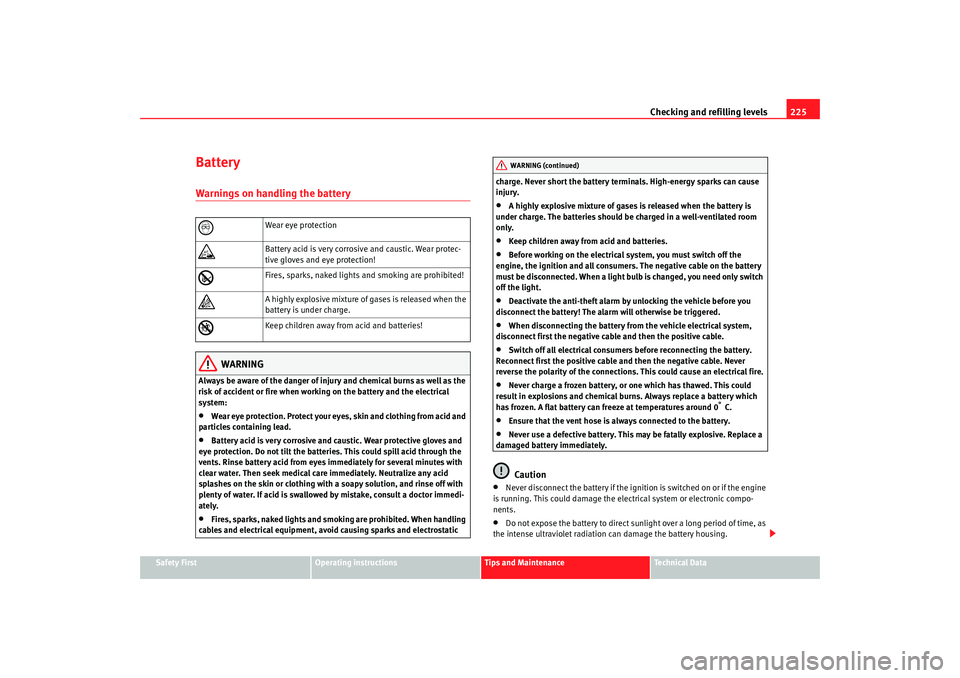

BatteryWarnings on handling the battery
WARNING
Always be aware of the danger of injury and chemical burns as well as the
risk of accident or fire when working on the battery and the electrical
system:•
Wear eye protection. Protect your eyes, skin and clothing from acid and
particles containing lead.
•
Battery acid is very corrosive and caustic. Wear protective gloves and
eye protection. Do not tilt the batteries. This could spill acid through the
vents. Rinse battery acid from eyes immediately for several minutes with
clear water. Then seek medical care immediately. Neutralize any acid
splashes on the skin or clothing with a soapy solution, and rinse off with
plenty of water. If acid is swallowed by mistake, consult a doctor immedi-
ately.
•
Fires, sparks, naked lights and smoking are prohibited. When handling
cables and electrical equipment, avoid causing sparks and electrostatic charge. Never short the battery terminals. High-energy sparks can cause
injury.
•
A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
•
Keep children away from acid and batteries.
•
Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only switch
off the light.
•
Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alarm will otherwise be triggered.
•
When disconnecting the battery from the vehicle electrical system,
disconnect first the negative cable and then the positive cable.
•
Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.
•
Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0
° C.
•
Ensure that the vent hose is always connected to the battery.
•
Never use a defective battery. This may be fatally explosive. Replace a
damaged battery immediately.Caution
•
Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
•
Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.

Wear eye protection

Battery acid is very corrosive and caustic. Wear protec-
tive gloves and eye protection!

Fires, sparks, naked lights and smoking are prohibited!

A highly explosive mixture of gases is released when the
battery is under charge.

Keep children away from acid and batteries!
WARNING (continued)
alhambra_aleman.book Seite 225 Montag, 23. M‰ rz 2009 1:12 13

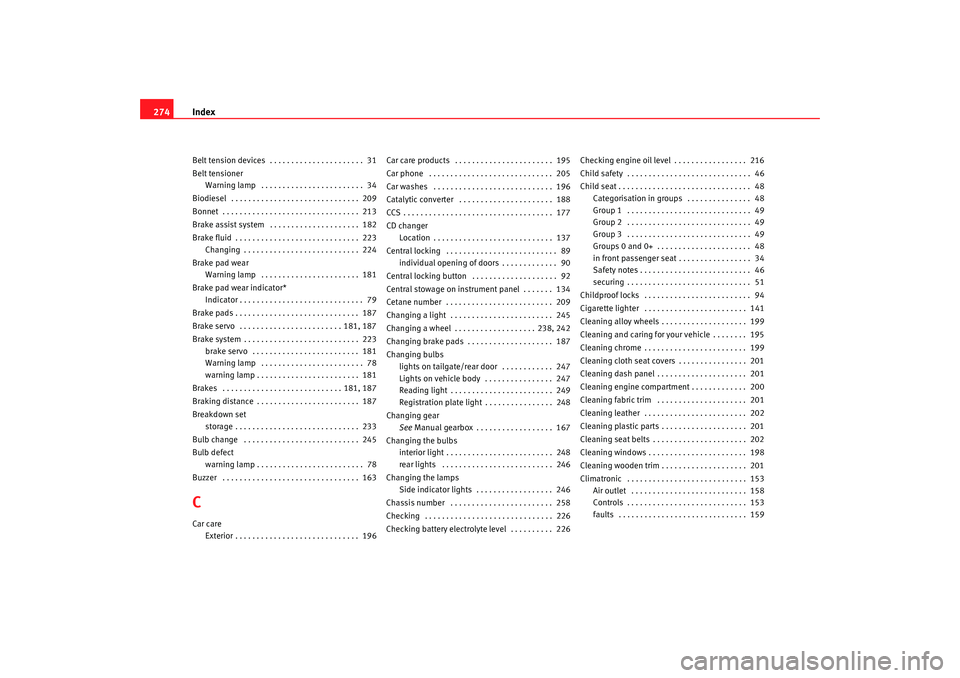

Index
274Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 31
Belt tensioner
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 34
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Brake assist system . . . . . . . . . . . . . . . . . . . . . 182
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Brake pad wear Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 181
Brake pad wear indicator* Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 181, 187
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 181
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181, 187
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 187
Breakdown set storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Bulb change . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Bulb defect warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Car care products . . . . . . . . . . . . . . . . . . . . . . . 195
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 188
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
CD changer
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 89 individual opening of doors . . . . . . . . . . . . . 90
Central locking button . . . . . . . . . . . . . . . . . . . . 92
Central stowage on instrument panel . . . . . . . 134
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 209
Changing a light . . . . . . . . . . . . . . . . . . . . . . . . 245
Changing a wheel . . . . . . . . . . . . . . . . . . . 238, 242
Changing brake pads . . . . . . . . . . . . . . . . . . . . 187
Changing bulbs lights on tailgate/rear door . . . . . . . . . . . . 247
Lights on vehicle body . . . . . . . . . . . . . . . . 247
Reading light . . . . . . . . . . . . . . . . . . . . . . . . 249
Registration plate light . . . . . . . . . . . . . . . . 248
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 167
Changing the bulbs interior light . . . . . . . . . . . . . . . . . . . . . . . . . 248
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Changing the lamps Side indicator lights . . . . . . . . . . . . . . . . . . 246
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 258
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Checking battery electrolyte level . . . . . . . . . . 226 Checking engine oil level . . . . . . . . . . . . . . . . . 216
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
in front passenger seat . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . 94
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 141
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 199
Cleaning and caring for your vehicle . . . . . . . . 195
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 199
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 201
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 201
Cleaning engine compartment . . . . . . . . . . . . . 200
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . 201
Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 202
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 201
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 202
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 198
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 201
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Air outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
alhambra_aleman.book Seite 274 Montag, 23. M‰ rz 2009 1:12 13

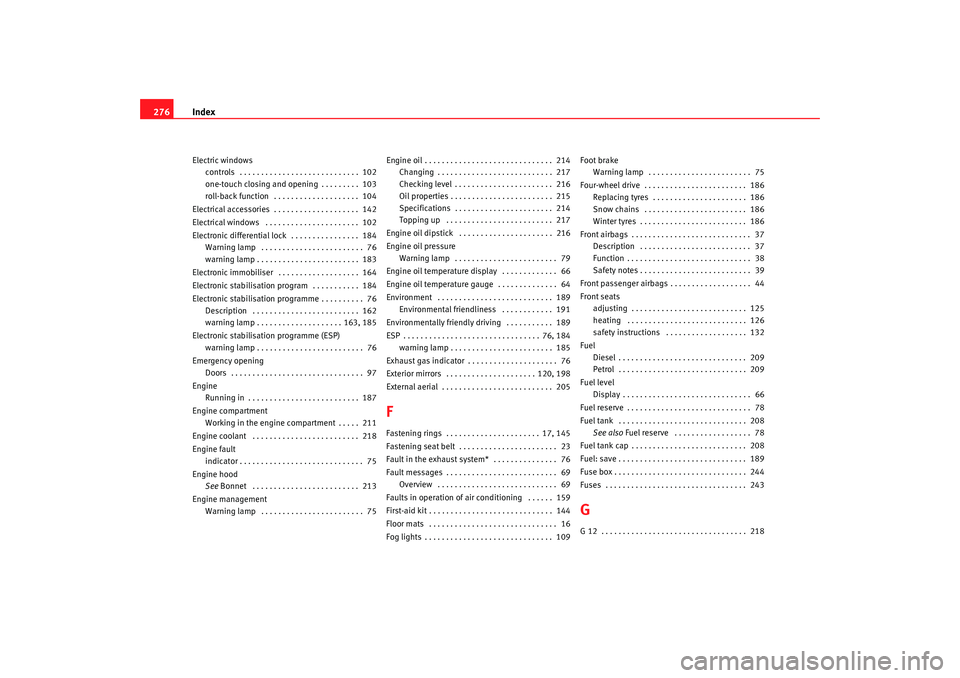

Index
276Electric windows
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
one-touch closing and opening . . . . . . . . . 103
roll-back function . . . . . . . . . . . . . . . . . . . . 104
Electrical accessories . . . . . . . . . . . . . . . . . . . . 142
Electrical windows . . . . . . . . . . . . . . . . . . . . . . 102
Electronic differential lock . . . . . . . . . . . . . . . . 184 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 183
Electronic immobiliser . . . . . . . . . . . . . . . . . . . 164
Electronic stabilisation program . . . . . . . . . . . 184
Electronic stabilisation programme . . . . . . . . . . 76 Description . . . . . . . . . . . . . . . . . . . . . . . . . 162
warning lamp . . . . . . . . . . . . . . . . . . . . 163, 185
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Engine compartment Working in the engine compartment . . . . . 211
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 218
Engine fault indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Engine hood See Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . 213
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 75 Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Checking level . . . . . . . . . . . . . . . . . . . . . . . 216
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 215
Specifications . . . . . . . . . . . . . . . . . . . . . . . 214
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 217
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 216
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 79
Engine oil temperature display . . . . . . . . . . . . . 66
Engine oil temperature gauge . . . . . . . . . . . . . . 64
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Environmental friendliness . . . . . . . . . . . . 191
Environmentally friendly driving . . . . . . . . . . . 189
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76, 184 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 185
Exhaust gas indicator . . . . . . . . . . . . . . . . . . . . . 76
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . 120, 198
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 205
FFastening rings . . . . . . . . . . . . . . . . . . . . . . 17, 145
Fastening seat belt . . . . . . . . . . . . . . . . . . . . . . . 23
Fault in the exhaust system* . . . . . . . . . . . . . . . 76
Fault messages . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Faults in operation of air conditioning . . . . . . 159
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Foot brake
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 75
Four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 186 Replacing tyres . . . . . . . . . . . . . . . . . . . . . . 186
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 186
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . 186
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Front passenger airbags . . . . . . . . . . . . . . . . . . . 44
Front seats adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
safety instructions . . . . . . . . . . . . . . . . . . . 132
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Fuel level Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 See also Fuel reserve . . . . . . . . . . . . . . . . . . 78
Fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
alhambra_aleman.book Seite 276 Montag, 23. M‰ rz 2009 1:12 13

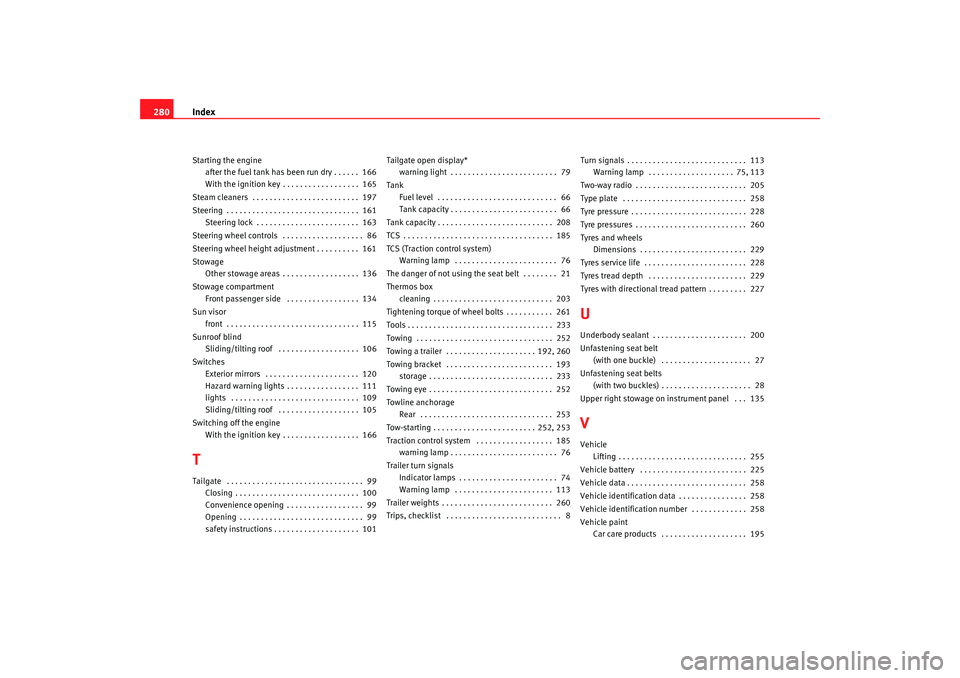

Index
280Starting the engine
after the fuel tank has been run dry . . . . . . 166
With the ignition key . . . . . . . . . . . . . . . . . . 165
Steam cleaners . . . . . . . . . . . . . . . . . . . . . . . . . 197
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 163
Steering wheel controls . . . . . . . . . . . . . . . . . . . 86
Steering wheel height adjustment . . . . . . . . . . 161
Stowage Other stowage areas . . . . . . . . . . . . . . . . . . 136
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . 134
Sun visor front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 106
Switches Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 120
Hazard warning lights . . . . . . . . . . . . . . . . . 111
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 105
Switching off the engine With the ignition key . . . . . . . . . . . . . . . . . . 166TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Convenience opening . . . . . . . . . . . . . . . . . . 99
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
safety instructions . . . . . . . . . . . . . . . . . . . . 101 Tailgate open display*
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 79
Tank Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 66
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
The danger of not using the seat belt . . . . . . . . 21
Thermos box cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Tightening torque of wheel bolts . . . . . . . . . . . 261
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Towing a trailer . . . . . . . . . . . . . . . . . . . . . 192, 260
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 193 storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Towline anchorage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . 252, 253
Traction control system . . . . . . . . . . . . . . . . . . 185 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 74
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 113
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warning lamp . . . . . . . . . . . . . . . . . . . . 75, 113
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 229
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 229
Tyres with directional tread pattern . . . . . . . . . 227
UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 200
Unfastening seat belt (with one buckle) . . . . . . . . . . . . . . . . . . . . . 27
Unfastening seat belts (with two buckles) . . . . . . . . . . . . . . . . . . . . . 28
Upper right stowage on instrument panel . . . 135VVehicle Lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 225
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Vehicle identification data . . . . . . . . . . . . . . . . 258
Vehicle identification number . . . . . . . . . . . . . 258
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . 195
alhambra_aleman.book Seite 280 Montag, 23. M‰ rz 2009 1:12 13
