Unlocking and locking 110
Programming the garage door remote control
Functions from up to 3 different remote controls for different products can be
transferred to the buttons on the sunshade ( for example, the electric system
for a gateway or a garage door, a house alarm or a lighting system).Before programming
xBefore programming the garage remote control, always read the instruc-
tion manual from the product manufacturer.
xAlways stop your vehicle safe distance from the system.
xWhen programming, turn on the ignition but do not start the engine.
Before programming the unit for the first time:
xPress the buttons and until the indicator above the button begins
to blink.
xRelease both buttons. This erases the factory settings. There is no need to
do this again to program the remaining buttons.
xHowever, if you hold in the buttons for more time, the factory settings will
be re-established.
Programming
xBefore programming, carry out the initial steps Ÿpage 110.
xPut your system's remote control, for example the remote to operate the
garage door, within 30 cm of the sunshade button Ÿfig. 64. If this is too far
away, you may have to repeat the procedure.
xNow, simultaneously hold in the button on your system's remote control
and the button , or until the indicator above the button blinks, first
slowly then more quickly Ÿfig. 65.
xRelease both buttons. The function from your system's remote control is
transferred to the corresponding button.
To transfer other functions to other buttons of the garage door remote control,
repeat the procedure described above with the button to be programmed.
Synchronising a remote control with a variable code
xBefore programming, carry out the initial steps Ÿpage 110.
xProgram the remote control Ÿpage 110.
Fig. 64 Radio frequency
remote control and control
buttons on the sunshade.
Fig. 65 To program: Press
the buttons on the garage
door control and the
remote control simultane-
ously.
132
1232

Unlocking and locking111
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xSearch the manufacturer's instructions manual for the garage door or
gate to find the “setting button” for the power motor to synchronise a new
remote control.
xAfter pressing the “settings button” on the power motor, you have a
maximum of 30 seconds to press the button , or . Press the same
button once more to complete the process. For some systems, the button
must be pressed the third time.
Erasing the programming for all buttons
SEAT recommends erasing the programming for all buttons when selling or
loaning your vehicle.
xBefore programming, carry out the initial steps Ÿpage 110.
xPress the buttons and until the indicator above the button begins
to blink.
xRelease both buttons. All of the programmed functions are erased.
After programming
Check the garage door remote control Ÿpage 111, “Using the garage door
remote control”.
Using the garage door remote control
The vehicle must be within range of the garage door or gate power motor.
xWith the engine running or the ignition on, push the corresponding
button on the sunshade Ÿ.
WARNING
Careless use of the garage remote control can cause serious injury.
xOnly use the remote control when you can see the garage door and that
there is nobody in its way.
Caution
Use of inappropriate batteries may damage the remote control. For this
reason, always replace the dead battery with another of the same voltage,
size and specifications.
For the sake of the environment
Please dispose of your used batteries correctly and with the utmost respect
for the environment.
123
132
FaultPossible causePossible solution
Garage door or
electric system is
not working.
The batteries of
remote control are
flat.Change the batteries.
The remote control is
too far away or the
transmission angle
was to large.Vary the distance and the angle
to the receiver.
The garage door or
electric system are
not compatible.The system does not corre-
spond to legal requirements
and must be replaced.
Programming was
not completed cor-
rectly.Program the remote control
once more.

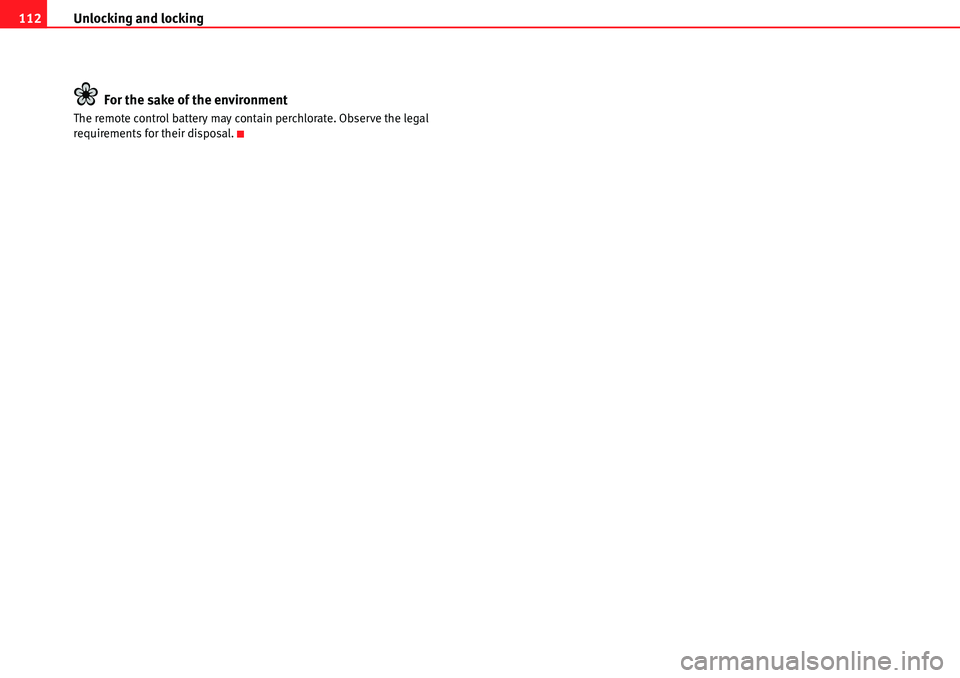

Unlocking and locking 112
For the sake of the environment
The remote control battery may contain perchlorate. Observe the legal
requirements for their disposal.

Lights and visibility113
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Lights and visibility
Lights
Introduction
The legal requirements regarding the use of vehicle lights in each country
must be observed.
The driver is personally responsible for the correct use and adjustment of the
lights in all situations.
Additional information and warnings:
xSEAT information system Ÿpage 70
xChanging bulbs Ÿpage 360
WARNING
If the headlights are set too high and the main beam is not used correctly,
there is a risk of dazzling or distracting other road users. This could result
in serious accident.
xAlways make sure that the headlamps are correctly adjusted.
xNever use the main beam or flashed headlamps as this could dazzle
other drivers.

Lights and visibility 114
Warning lamps
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
xPark the vehicle at a suitable distance away from the traffic ensuring
that the exhaust system is not in contact with inflammable material, for
example, dry grass, fuel, oil, etc.
xA faulty vehicle represents a risk of accident for the driver and for other
road users. If necessary, switch on the hazard warning lamps and put out
the warning triangle to advise other drivers.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
lights upPossible causeSolution

Driving light totally or partially
faulty.
Replace the corresponding
bulb Ÿpage 360.
If all the bulbs are OK, the vehi-
cle should be taken to a spe-
cialised workshop if necessary.
Fault in adaptive light.Ÿpage 118.

Rear fog light switched on.
Ÿpage 116.
Fog lights switched on

Left or right turn signal.
The warning lamp flashes twice
as fast when a vehicle or trailer
turn signal is faulty.If necessary, check the vehicle
and trailer lighting.
Headlight on or flasher on.Ÿpage 115.
+Headlight adjustment (Light
Assist) on.Ÿpage 117.
flashesPossible causeSolution
Fault in the adaptive light sys-
tem.Contact a specialist workshop
Ÿpage 117.

Lights and visibility115
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Turn signal and main beam lever
Move the lever to the required position:
Right turn signal. Right-hand parking light (ignition switched off)
Ÿpage 117.
Left turn signal. Left-hand parking light (ignition switched off)
Ÿpage 117.
Main beam switched on Ÿ. The indicator lamp
 will light up on the
instrument panel.
Flashing the headlamps. The flashed beam comes on if the lever is
pressed. The indicator lamp
 will light up.
Push the lever all the way down to turn off the corresponding function.
Convenience indicators
For the convenience turn signals, move the lever as far as possible upwards
or downwards and release the lever. The turn signal will flash three times.
The control turn signals are switched on and off from the menu Lights&
Visibility on the instrument panel display Ÿpage 70. This function can be disconnected at a specialised workshop for those vehicles which do not have
the menu Lights & Visibility.
WARNING
Incorrect use of the headlamps may cause accidents and serious injury, as
the main beam may distract or dazzle other drivers.
Note
The turn signal only works when the ignition is switched on. The hazard
warning lights also work when the ignition is switched off Ÿpage 345.
Note
If a turn signal on the vehicle or trailer is faulty, the warning lamp flashes
twice as fast as usual.
Note
The main beam headlights can only be switched on if the dipped beam head-
lights are already on.
Fig. 66 Turn signal and
main beam lever.
A1
A2
A3
A4

Lights and visibility 116

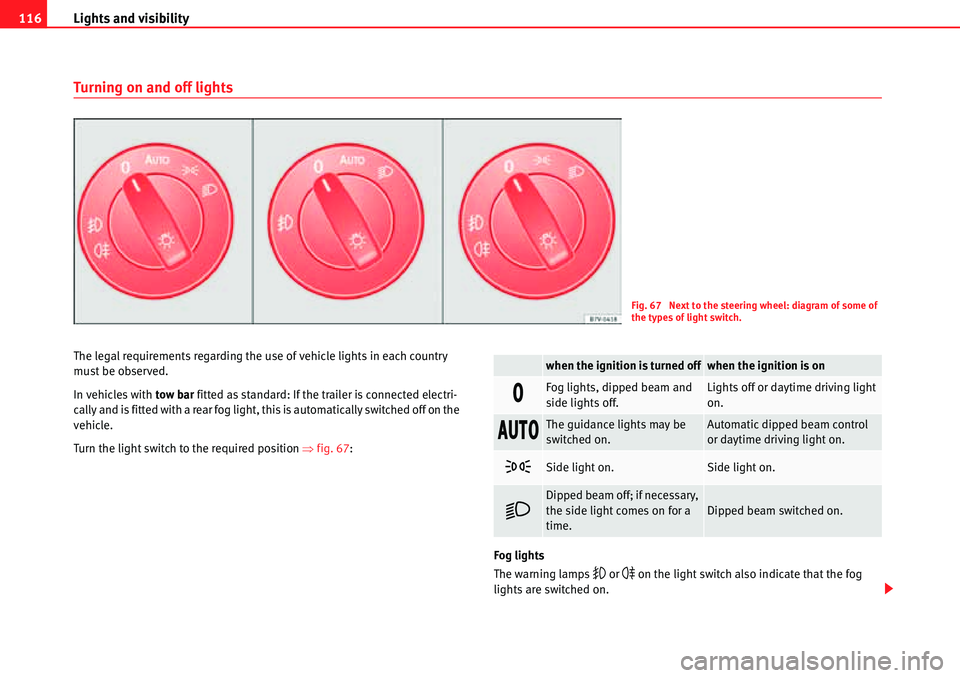

Turning on and off lights
The legal requirements regarding the use of vehicle lights in each country
must be observed.
In vehicles with tow bar fitted as standard: If the trailer is connected electri-
cally and is fitted with a rear fog light, this is automatically switched off on the
vehicle.
Turn the light switch to the required position Ÿfig. 67:
Fog lights
The warning lamps
or
on the light switch also indicate that the fog
lights are switched on.
Fig. 67 Next to the steering wheel: diagram of some of
the types of light switch.
when the ignition is turned offwhen the ignition is on
/Fog lights, dipped beam and
side lights off.Lights off or daytime driving light
on.
!54/The guidance lights may be
switched on.Automatic dipped beam control
or daytime driving light on.
Side light on.Side light on.

Dipped beam off; if necessary,
the side light comes on for a
time.Dipped beam switched on.

Lights and visibility117
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xSwitching on the fog lights : Turn the switch to position  or pull out  to the first stop.
xSwitching on the rear fog light
: turn the light switch to position  o
pull out  to the maximum.
xTo switch off the fog lights, press the light switch or turn it to position /.
Audible warnings to advise the driver that the lights have not been switched
off
If the key is not in the ignition and the driver's door is open, an audible
warning signal is heard in the following cases: This is a reminder to turn off
the lights.
xWhen the parking light is on Ÿpage 115.
xWhen the light switch is in position .
WARNING
The side lights or daytime driving lights are not bright enough to illuminate
the road ahead and to ensure that other road users are able to see you.
xAlways use your dipped beam head lights if it is raining or if visibility is
poor.
Lights and visibility: functions
Parking light
When the parking light is switched on,(right or left turn signal), the front side
light and the rear light on the corresponding side of the vehicle stay lit. The
parking lights will only work with the ignition off.
Daytime driving light
The daytime driving light consists of individual lights in the front headlamps.When the daytime driving light is switched on, only the individual lights come
on Ÿ.
The daytime lights are switched on each time the ignition is turned on if the
light switch is in position
!, 5,4 or /.
When the light switch is in position
!, 5, 4 or /, a photo sensor goes out and
the instrument and switch lighting comes on automatically.
Automatic dipped beam control
!54/
The automatic dipped beam control is merely intended as an aid and is not
able to recognise all driving situations.
When the light switch is in position
!, 5, 4 or /, the vehicle lights and the
instrument panel and switch lighting switch on and off automatically in the
following situations Ÿ:
Activating the daytime lightsDeactivating the daytime lights
Press and hold the turn signal and
main beam lever upwards and back-
wards (right turn signal and light
flasher).Press and hold the turn signal and
main beam lever downwards and
backwards (left turn signal and light
flasher).
Switch the ignition on and off for approximately 3 seconds.
Automatic switching on:Automatic switching off or switch to
daytime lighting:
The photo sensor detects darkness,
for example, when driving through a
tunnel.When adequate lighting is detected.
When driving at more than 140 km/h
for a few seconds.When driving at less than 65 km/h
for a few minutes.
The rain sensor detects rain and acti-
vates the windscreen wipers.When the windscreen wiper has
been inactive for a few minutes.

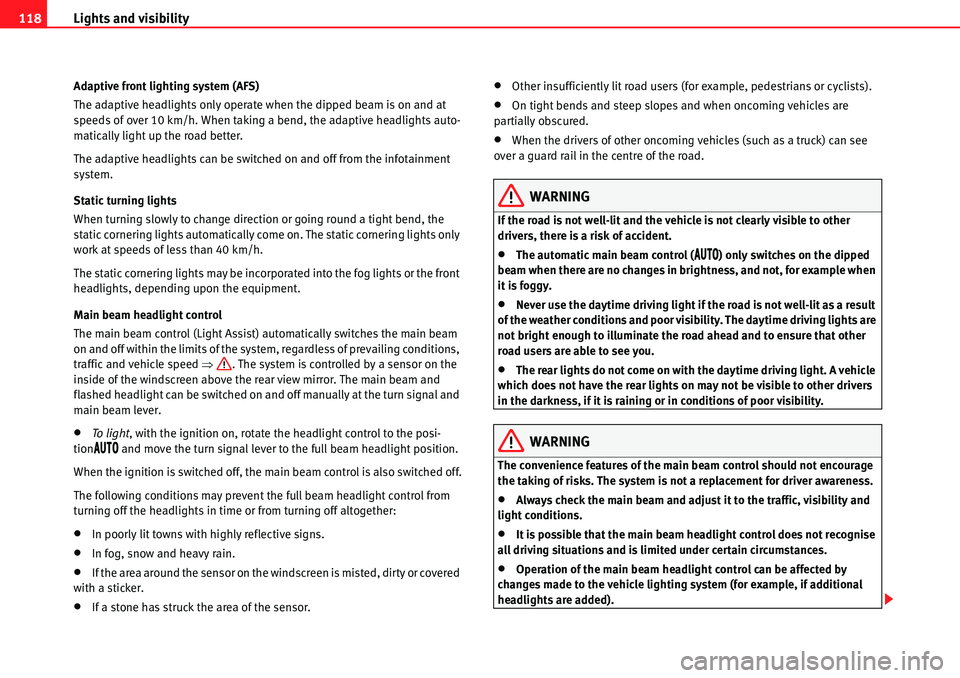

Lights and visibility 118
Adaptive front lighting system (AFS)
The adaptive headlights only operate when the dipped beam is on and at
speeds of over 10 km/h. When taking a bend, the adaptive headlights auto-
matically light up the road better.
The adaptive headlights can be switched on and off from the infotainment
system.
Static turning lights
When turning slowly to change direction or going round a tight bend, the
static cornering lights automatically come on. The static cornering lights only
work at speeds of less than 40 km/h.
The static cornering lights may be incorporated into the fog lights or the front
headlights, depending upon the equipment.
Main beam headlight control
The main beam control (Light Assist) automatically switches the main beam
on and off within the limits of the system, regardless of prevailing conditions,
traffic and vehicle speed Ÿ. The system is controlled by a sensor on the
inside of the windscreen above the rear view mirror. The main beam and
flashed headlight can be switched on and off manually at the turn signal and
main beam lever.
xTo light, with the ignition on, rotate the headlight control to the posi-
tion!54/ and move the turn signal lever to the full beam headlight position.
When the ignition is switched off, the main beam control is also switched off.
The following conditions may prevent the full beam headlight control from
turning off the headlights in time or from turning off altogether:
xIn poorly lit towns with highly reflective signs.
xIn fog, snow and heavy rain.
xIf the area around the sensor on the windscreen is misted, dirty or covered
with a sticker.
xIf a stone has struck the area of the sensor.
xOther insufficiently lit road users (for example, pedestrians or cyclists).
xOn tight bends and steep slopes and when oncoming vehicles are
partially obscured.
xWhen the drivers of other oncoming vehicles (such as a truck) can see
over a guard rail in the centre of the road.
WARNING
If the road is not well-lit and the vehicle is not clearly visible to other
drivers, there is a risk of accident.
xThe automatic main beam control (!54/) only switches on the dipped
beam when there are no changes in brightness, and not, for example when
it is foggy.
xNever use the daytime driving light if the road is not well-lit as a result
of the weather conditions and poor visibility. The daytime driving lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you.
xThe rear lights do not come on with the daytime driving light. A vehicle
which does not have the rear lights on may not be visible to other drivers
in the darkness, if it is raining or in conditions of poor visibility.
WARNING
The convenience features of the main beam control should not encourage
the taking of risks. The system is not a replacement for driver awareness.
xAlways check the main beam and adjust it to the traffic, visibility and
light conditions.
xIt is possible that the main beam headlight control does not recognise
all driving situations and is limited under certain circumstances.
xOperation of the main beam headlight control can be affected by
changes made to the vehicle lighting system (for example, if additional
headlights are added).

Lights and visibility119
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Note
The headlights, rear lights and turn signals may mist up temporarily on the
inside in cool or damp weather. This is normal and in no way effects the useful
life of the vehicle lighting system.
Adhesive strips for headlights or adjusting headlights
In those countries where vehicles drive on the other side of the road to the
home country, the asymmetric dipped beam may dazzle drivers of oncoming
vehicles. Therefore, when driving abroad, adhesive strips should be attached
to the headlights or the headlights should be adjusted accordingly.
The direction of the headlights can be adjusted from the instrument panel, in
the menu Settings submenu Travel mode Ÿpage 70.
For those vehicles in which it is not possible to adjust the headlights from the
menu, adhesive strips are used to cover certain parts of the headlamp cover
or the headlights may be adjusted at a specialised workshop. For further
information, please refer to a specialised workshop. SEAT recommends
visiting a qualified workshop.
Note
The use of Travel mode and adhesive strips on the headlights is only author-
ised for a short period of time. To modify the direction of the headlamps more
permanently, please take the vehicle to a specialised workshop. SEAT recom-
mends visiting a qualified workshop.
Function “Coming home” and “Leaving home” (guidance
lights)
The “Coming home” function should be switched on manually. However the
“Leaving home” function is automatically controlled by a photo sensor.
Lighting around the exterior mirrors
The lighting around the exterior mirrors illuminates the door area on entering
and leaving the vehicles. It comes on when the vehicle is unlocked, when the
vehicle door is opened and when the “Coming home” or “Leaving home”
“Coming Home”Necessary operations
To switch sys-
tem on:
– Switch off the ignition.
– Briefly flash the headlights for approximately one sec-
ond Ÿpage 115.
The “Coming home” lighting comes on when the driver's
door is opened. The delay in switching off the headlights
is counted from when the last door or tailgate is closed.
The system
switches off:
– Automatically at the end of the delay period.
– Automatically, if 30 seconds after coming on, a vehicle
door or tailgate remains open.
– If the light switch is turned to position
/.
– If the ignition is switched on.
“Leaving home”Necessary operations
To switch sys-
tem on:– Unlock the vehicle when the light switch is in position
!54/ and the photo sensor detects darkness.
The system
switches off:
– Automatically, at the end of the delay period.
– When the vehicle is locked.
– When the light switch is turned to position
/.
– When the ignition is switched on.
