Seat Alhambra 2010 Owner's Manual

Driving and the environment251
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

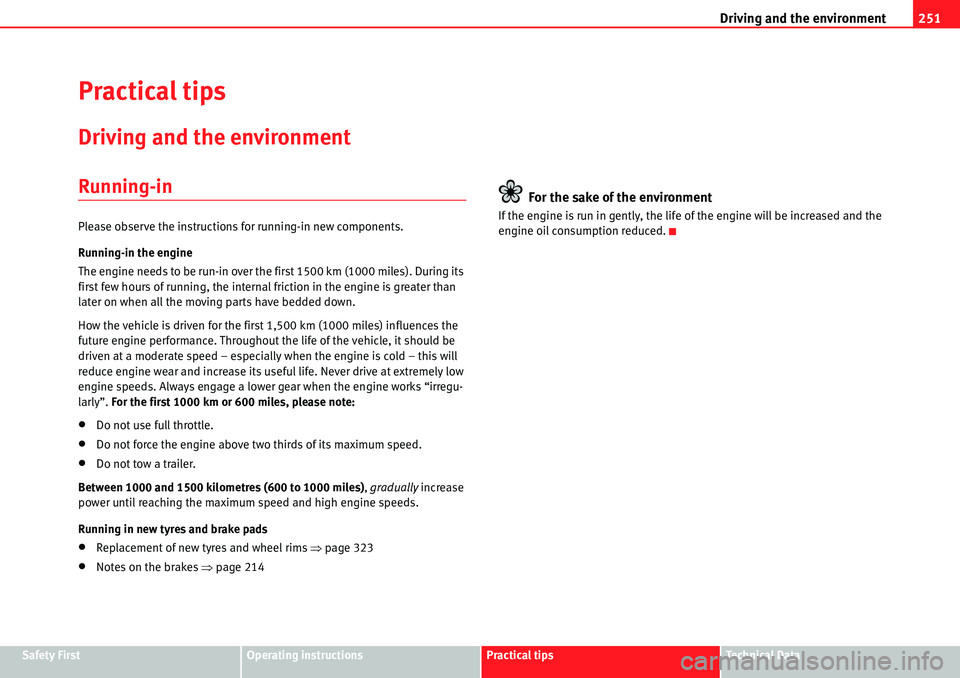

Practical tips
Driving and the environment
Running-in
Please observe the instructions for running-in new components.
Running-in the engine
The engine needs to be run-in over the first 1500 km (1000 miles). During its
first few hours of running, the internal friction in the engine is greater than
later on when all the moving parts have bedded down.
How the vehicle is driven for the first 1,500 km (1000 miles) influences the
future engine performance. Throughout the life of the vehicle, it should be
driven at a moderate speed – especially when the engine is cold – this will
reduce engine wear and increase its useful life. Never drive at extremely low
engine speeds. Always engage a lower gear when the engine works “irregu-
larly”. For the first 1000 km or 600 miles, please note:
xDo not use full throttle.
xDo not force the engine above two thirds of its maximum speed.
xDo not tow a trailer.
Between 1000 and 1500 kilometres (600 to 1000 miles), gradually increase
power until reaching the maximum speed and high engine speeds.
Running in new tyres and brake pads
xReplacement of new tyres and wheel rims Ÿpage 323
xNotes on the brakes Ÿpage 214
For the sake of the environment
If the engine is run in gently, the life of the engine will be increased and the
engine oil consumption reduced.

Driving and the environment 252
Ecological driving
Introduction
Fuel consumption, environmental impact and engine, brake and tyre wear
depend largely on three factors:
xPersonal driving style.
xConditions of use (weather, road surface).
xTechnical requirements.
Savings of up to 25% in fuel consumption are possible with an appropriate
driving style and the adoption of certain simple tips.
WARNING
Always adapt your speed and the distance to the vehicles ahead in line
with visibility, weather conditions, the condition of the road and the traffic
situation.
Economic driving style
Changing gear early
General instructions: The highest gear is always the most economical gear.
As a guideline, for the majority of vehicles: At a speed of 30 km/h, drive in
third gear, at 40 km/h in fourth gear and at 50 km/h in fifth gear.
In addition, skipping gears when shifting up helps to save fuel, weather and
traffic conditions permitting.
Do not wait until the last moment before changing gear. Only use first gear
when you move off and change to second gear quickly. Avoid the kick-down
function in vehicles with automatic gearbox.Vehicles with a gear display help to achieve an economical driving style as
the display indicates the best moment to change gear.
Let the vehicle roll
If you take your foot off the accelerator, the fuel supply is stopped and
consumption is reduced.
Allow the vehicle to roll without accelerating, for example when approaching
a red traffic light. However, if the vehicle is rolling too slowly or the distance
is too long, the clutch pedal should be pressed to declutch. The engine will
then operate at idle speed.
If the vehicle is going to be at a standstill for a period of time, switch off the
engine; for example, while waiting at a level crossing. In vehicles which have
the Start-Stop function on, the engine switches off automatically when the
vehicle is not moving.
Think ahead and “flow” with the traffic
Frequent acceleration and braking considerably increase fuel consumption. If
you think ahead as you drive and keep a safe distance from the vehicle in
front, it is possible to slow down by simply lifting your foot off the accelerator.
This eliminates the need for constant braking and acceleration.
Calm and steady driving
Constancy is more important than speed: The more you drive at a constant
speed, the lower the fuel consumption.
When driving on the motorway, it is more efficient to drive at a constant and
more moderate speed than to be continuously accelerating and braking. As a
general rule, you will reach your destination just as quickly when you drive at
a constant speed.
The cruise control function helps you to achieve a constant style of driving.
Moderate use of additional electrical appliances
It is important to travel in comfort, but convenience systems should be used
in an ecological manner.

Driving and the environment253
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a Some equipment, when connected, increase fuel consumption considerably,
for example:
xAir conditioning cooling system: If the air conditioning system is required
to cool to significantly lower temperatures than the true outside temperature,
it will require a large quantity of energy from the engine. Therefore, we recom-
mend that the selected temperature for the vehicle is not too different to the
outside temperature. It is a good idea to open all the windows of the car
before starting your journey, and to drive a short distance with all the
windows open to allow the vehicle to cool down slightly. Only then should
you close all the windows and switch on the air conditioning. Keep windows
closed when travelling at high speeds. Driving with the windows open
increases fuel consumption.
xSwitch off the seat heating when the seats have warmed up.
xSwitch off the heated rear window and the windscreen heating when the
windows have demisted and are free of ice.
xDo not leave the independent heating switched on when the vehicle is
moving Ÿpage 187.
Other factors which increase fuel consumption (examples):
xFault in engine management.
xDriving on hills.
xTrailer towing.
Saving fuel while driving
By adopting an economical driving style and anticipating the traffic situation
ahead, you can easily reduce fuel consumption by 10-15%.
A vehicle uses most fuel when accelerating. By anticipating the traffic situa-
tion ahead, you will brake and therefore accelerate less. Wherever possible,
let the car roll slowly to a stop, for instance when you can see that the next
traffic lights are red.
Avoid short journeys
Fuel consumption is much higher when the engine is cold, immediately after
it has been started. It takes a few kilometres of driving for the engine to warm
up and to normalise consumption.
The engine and catalytic converter need to reach their proper working
temperature in order to minimise fuel consumption and emissions. The
ambient temperature has a decisive influence.
fig. 162 shows the difference in consumption for the same journey at +20 °C
(+68 °F) and at -10 °C (+14 °F).
Fig. 162 Fuel consump-
tion in litres per 100 km at
different outside tempera-
tures.

Driving and the environment 254
Unnecessary short journeys should be avoided. Try to combine trips.
The vehicle uses more fuel in winter than in summer, even when other condi-
tions are the same.
“Warming” the engine is not only forbidden in some countries, but in practice
it is technically superfluous as it is a waste of fuel.
Adjusting type pressures.
Having the correct pressure in your tyres helps to reduce rolling resistance
and, as a result reduces fuel consumption. Increasing the tyre pressure
slightly (+ 0.2 bar / + 3 psi) can help to save fuel.
If you are prepared to accept a slight reduction in comfort, the tyres may be
filled to the pressures recommended for a fully-loaded vehicle. This is also
valid when driving alone without luggage.
When you buy new tyres, make sure they are optimised for minimum rolling
resistance.
Use low friction engine oil
The use of low viscosity totally synthetic oils, known as low friction engine oil,
help to reduce fuel consumption. Low friction engine oils reduce the resist-
ance caused by friction in the engine, they flow around the engine more
quickly and efficiently, particularly in cold starts. The effect is particularly
noticeable in vehicles frequently used for short journeys.
Always check the engine oil level and observe service intervals (engine oil
change intervals).
When purchasing engine oil, always observe legal requirements and ensure
that the oil is approved by SEAT.
Avoid carrying unnecessary loads
The lighter the vehicle, the more economical and ecological the driving style.
For example, an additional weight of 100 kg will increase fuel consumption
up to 0.3 l/100 km.
Remove any unnecessary objects or loads from the vehicle.Remove optional equipment and unnecessary accessories
The more aerodynamic the vehicle, the lower the fuel consumption. Optional
equipment and accessories (such as roof racks or bike carriers) reduce the
aerodynamic benefits of the vehicle.
Therefore, we recommend you remove all optional and unnecessary equip-
ment and racks, especially if you intend to drive at high speeds.

Driving and the environment255
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Engine management and exhaust gas
purification system
Introduction
Additional information and warnings:
xChanging gear Ÿpage 201
xRefuelling Ÿpage 293
xFuel Ÿpage 297
xEngine oil Ÿpage 309
xVehicle battery Ÿpage 318
xInformation stored in the control units Ÿpage 285
xTow-starting and towing away Ÿpage 375
WARNING
The components of the exhaust system reach very high temperatures. This
could cause a fire.
xAlways park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as dried grass).
xDo not apply additional underseal or anti-corrosion coatings to the
exhaust pipes, catalytic converter, heat shields or the diesel particulate
filter.
Warning lamps
lights upPossible causeSolution
%0#Fault in engine management
(Electronic Power Control).Take the vehicle to a qualified
workshop as soon as possible
and have the engine checked.
DPre-heating a diesel engine
before starting the engine.Ÿpage 195
BFault in catalytic converter.
You should reduce speed accord-
ingly. Drive carefully until you
reach the next qualified work-
shop. Have the engine checked
there.
¬Diesel particulate filter
blocked
Drive for 15 minutes in 4th gear
(manual gearbox), or in D (auto-
matic gearbox) at a minimum
speed of 70 km/h (45 mph).
Observe speed limits Ÿ.
If the warning lamp remains lit
up, take the vehicle to a quali-
fied workshop Ÿpage 256.
flashesPossible causeSolution
DFault in the engine manage-
ment (diesel engines).Take the vehicle to a qualified
workshop as soon as possible
and have the engine checked.
B
Combustion fault which could
damage the catalytic con-
verter.You should reduce speed accord-
ingly. Drive carefully until you
reach the next qualified work-
shop. Have the engine checked
there.

Driving and the environment 256

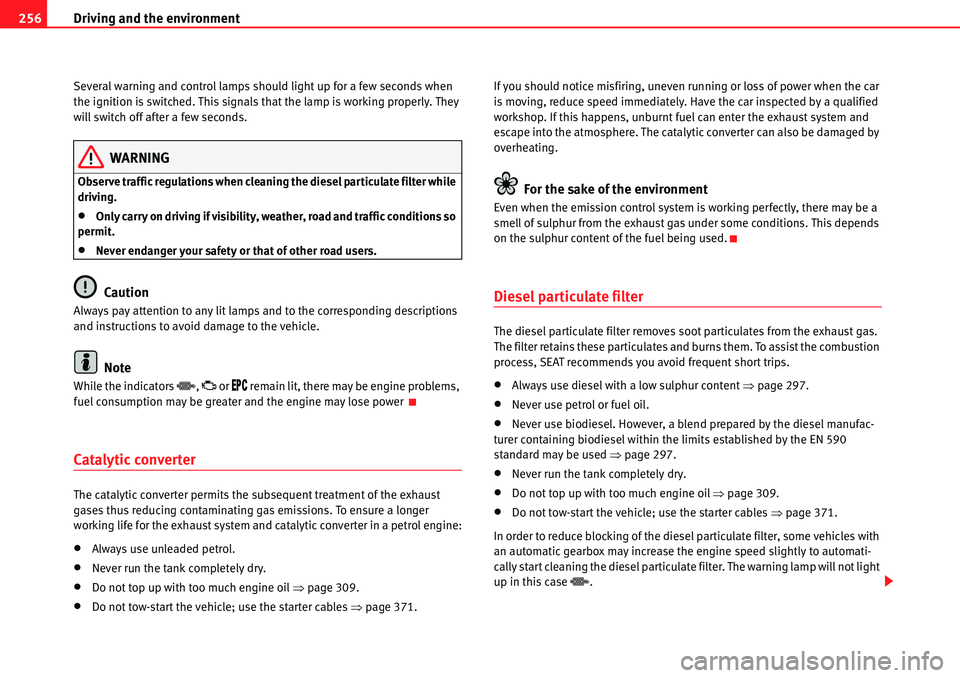

Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
Observe traffic regulations when cleaning the diesel particulate filter while
driving.
xOnly carry on driving if visibility, weather, road and traffic conditions so
permit.
xNever endanger your safety or that of other road users.
Caution
Always pay attention to any lit lamps and to the corresponding descriptions
and instructions to avoid damage to the vehicle.
Note
While the indicators ¬, B or %0# remain lit, there may be engine problems,
fuel consumption may be greater and the engine may lose power
Catalytic converter
The catalytic converter permits the subsequent treatment of the exhaust
gases thus reducing contaminating gas emissions. To ensure a longer
working life for the exhaust system and catalytic converter in a petrol engine:
xAlways use unleaded petrol.
xNever run the tank completely dry.
xDo not top up with too much engine oil Ÿpage 309.
xDo not tow-start the vehicle; use the starter cables Ÿpage 371.If you should notice misfiring, uneven running or loss of power when the car
is moving, reduce speed immediately. Have the car inspected by a qualified
workshop. If this happens, unburnt fuel can enter the exhaust system and
escape into the atmosphere. The catalytic converter can also be damaged by
overheating.
For the sake of the environment
Even when the emission control system is working perfectly, there may be a
smell of sulphur from the exhaust gas under some conditions. This depends
on the sulphur content of the fuel being used.
Diesel particulate filter
The diesel particulate filter removes soot particulates from the exhaust gas.
The filter retains these particulates and burns them. To assist the combustion
process, SEAT recommends you avoid frequent short trips.
xAlways use diesel with a low sulphur content Ÿpage 297.
xNever use petrol or fuel oil.
xNever use biodiesel. However, a blend prepared by the diesel manufac-
turer containing biodiesel within the limits established by the EN 590
standard may be used Ÿpage 297.
xNever run the tank completely dry.
xDo not top up with too much engine oil Ÿpage 309.
xDo not tow-start the vehicle; use the starter cables Ÿpage 371.
In order to reduce blocking of the diesel particulate filter, some vehicles with
an automatic gearbox may increase the engine speed slightly to automati-
cally start cleaning the diesel particulate filter. The warning lamp will not light
up in this case
¬.

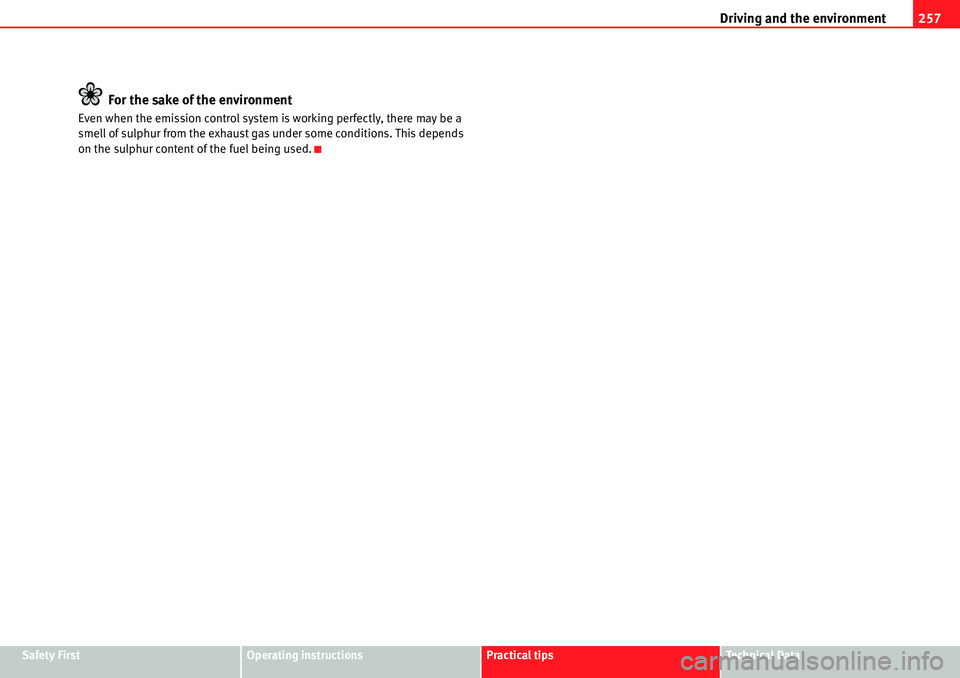

Driving and the environment257
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
For the sake of the environment
Even when the emission control system is working perfectly, there may be a
smell of sulphur from the exhaust gas under some conditions. This depends
on the sulphur content of the fuel being used.

Trailer towing 258
Trailer towing
Introduction
Always be aware of the legal requirements for each country to drive with a
trailer and to use a trailer bracket.
Your car is intended mainly for transporting passengers however, it can also
be used to tow a trailer provided that it is fitted with the necessary equip-
ment. The additional load has an effect on the useful life, fuel consumption
and the vehicle performance and, in some cases, reduce the service intervals.
Driving with a trailer requires more force from the vehicle and, thus, more
concentration from the driver.
For wintertime temperatures, fit winter tyres to the vehicle and the trailer.
Drawbar load
The maximum permitted Drawbar load exerted by the trailer drawbar on the
ball joint of the tow hitch must not exceed 100 kg (approximately 220 lbs).
Vehicles with the Start-Stop function
With a SEAT factory fitted or retrofitted trailer bracket, the Start-Stop function
is automatically deactivated when a trailer is connected. For trailer brackets
not installed by SEAT, the Start-Stop function must be deactivated manually
using a button located on the dashboard before driving with a trailer and it
must remain off for the entire journey Ÿ.
Additional information and warnings:
xAnti-theft alarm system Ÿpage 83
xLight Ÿpage 113
xEcological driving Ÿpage 252
xStarter assist systems (Start-Stop function) Ÿpage 221
xWheels and tyres Ÿpage 323
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Never transport people in a trailer: this will endanger in their life and is
against the law.
WARNING
The incorrect use of the tow hitch can cause accidents and injury.
xOnly use a tow hitch in good condition and correctly installed.
xNever change or repair a tow hitch.
xTo reduce the risk of injury in case of a reversing collision, injury to
pedestrians and cyclists when parking, always keep the ball joint in when
a trailer is not being used.
xNever fit a trailer tow hitch “that distributes the load” or “balances the
load”. Your vehicle has not been designed for this type of tow hitch. The
tow hitch may fail and the trailer will separate from the vehicle.
WARNING
Driving with a trailer and transporting heavy or large objects can affect
vehicle handling and even cause an accident.
xAlways secure loads correctly with suitable and undamaged attach-
ment rope or straps.
xAdjust your speed and driving style to visibility, road, traffic and
weather conditions.
xTrailers with a high centre of gravity can overturn more easily than
trailers with a low centre of gravity.

Trailer towing259
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xAvoid brusque manoeuvres and sudden braking.
xAlways take the following precautions seriously.
xReduce your speed immediately if you observe the trailer rocking from
side to side.
xNever drive at more than 80 km an hour when towing a trailer (or 100
km an hour in exceptional circumstances). This also applies in countries
where higher speeds are permitted. Always take the speed limits for vehi-
cles with and without trailers in each country into account.
xNever try to stop the “snaking” by increasing speed.
WARNING
When driving with a trailer and using a trailer hitch that was not installed
by SEAT, the Start-Stop function must be manually deactivated. Otherwise,
this could cause a braking anomaly that could result in an accident with
serious consequences.
xAlways manually deactivate the Start-Stop function when a trailer is
being used on a trailer hitch that has not been installed by SEAT.
Note
Always turn off the anti-theft alarm system before connecting or discon-
necting a trailer Ÿpage 88. Otherwise, the tilt sensor may erroneously acti-
vate the alarm.
Note
Never use a trailer with a new engine (for the first 1000 km or 600 miles)
Ÿpage 285.
Note
At SEAT, we recommend folding in the trailer hitch ball when a trailer is not
being used. In case of a rear collision, the damage caused to the vehicle with
the extended trailer hitch ball could be more extensive.
Note
In some models, a trailer hitch is necessary for towing vehicles. For this
reason, you should store the tow hitch in the vehicle at all times.
WARNING (continued)
