Driving 210
Braking, stopping and parking
Introduction
The assisted braking systems include the anti-lock braking system (ABS), the
brake assist system (BAS), the electronic differential system (EDS), the trac-
tion control system (TCS) and the electronic stabilisation program (ESP).
Additional information and warnings:
xTo wi ng m o d e Ÿpage 260
xStart assist systems Ÿpage 221
xWheels and tyres Ÿpage 323
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Driving with worn brake pads or a faulty brake system may lead to serious
accident.
xIf I lights, alone or accompanied by a warning message on the instru-
ment panel, please go immediately to a specialist workshop to check the
brake pads and to replace them if they are worn.
WARNING
Careless parking can cause serious injury.
xNever remove the key from the ignition if the vehicle is in motion. The
steering lock may engage and locked the steering wheel making the
vehicle impossible to control.
xAlways park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as wood, leaves, spilled
fuel, dried grass, etc).
xAlways apply the electronic parking brake when you leave your vehicle
and when you park.
xNever leave children or disabled people alone in the vehicle. They could
release the electronic parking brake, activate the selector lever or gear
stick and start the vehicle moving. This could result in serious accident.
xAlways take all the keys with you whenever you leave the vehicle. The
engine could accidentally be started and electrical equipment such as the
windows could accidentally be operated resulting in serious injury.
xNever leave children or disabled people alone in the car. They could be
trapped in the car in an emergency and will not be able to get themselves
to safety. For example, depending on the time of the year, temperatures
inside a locked and closed vehicle can be extremely high or extremely low
resulting in serious injuries and illness or even death, particularly for
young children.
Caution
xSpecial care should be taken when parking in areas with high kerbs or
fixed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres. To avoid damage, stop
before the wheels touched the barrier or kerb.
xSpecial attention is required when driving through entrances, over ramps,
kerbs or other objects. The vehicle underbody, bumpers, mudguards and
running gear, and the engine and exhaust system could be damaged as you
drive over these objects.
WARNING (continued)

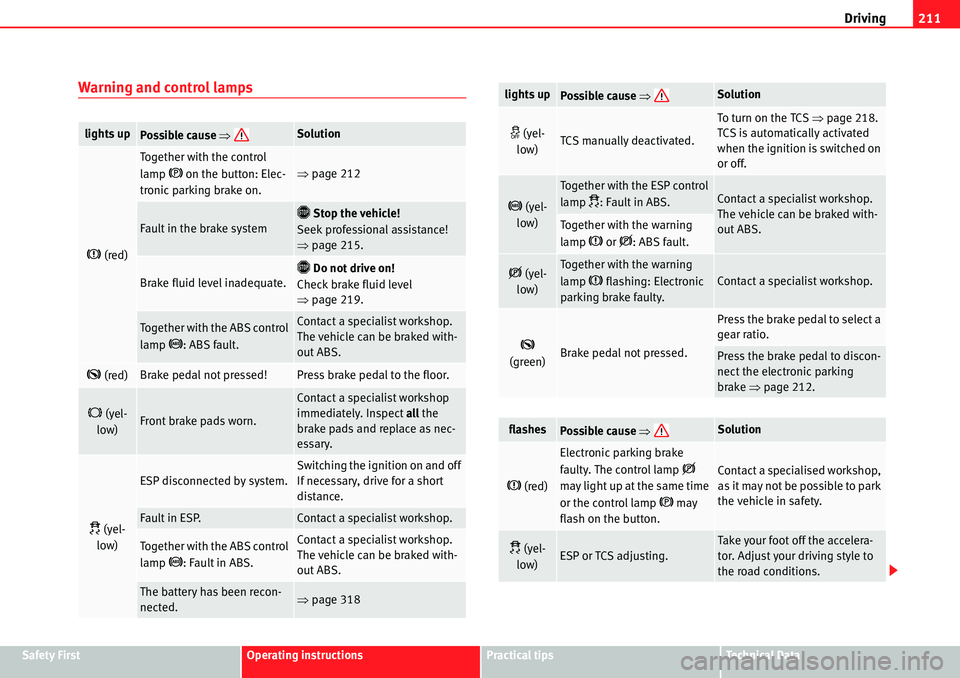

Driving211
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Warning and control lamps
lights upPossible cause ŸSolution
H (red)
Together with the control
lamp
G on the button: Elec-
tronic parking brake on.Ÿpage 212
Fault in the brake system› Stop the vehicle!
Seek professional assistance!
Ÿpage 215.
Brake fluid level inadequate.› Do not drive on!
Check brake fluid level
Ÿpage 219.
Together with the ABS control
lamp
J: ABS fault.
Contact a specialist workshop.
The vehicle can be braked with-
out ABS.
K (red)Brake pedal not pressed!Press brake pedal to the floor.
I (yel-
low)Front brake pads worn.
Contact a specialist workshop
immediately. Inspect all the
brake pads and replace as nec-
essary.
« (yel-
low)
ESP disconnected by system.Switching the ignition on and off
If necessary, drive for a short
distance.
Fault in ESP.Contact a specialist workshop.
Together with the ABS control
lamp
J: Fault in ABS.
Contact a specialist workshop.
The vehicle can be braked with-
out ABS.
The battery has been recon-
nected.Ÿpage 318
l (yel-
low)TCS manually deactivated.
To turn on the TCS Ÿpage 218.
TCS is automatically activated
when the ignition is switched on
or off.
J (yel-
low)
Together with the ESP control
lamp
«: Fault in ABS.Contact a specialist workshop.
The vehicle can be braked with-
out ABS.
Together with the warning
lamp
H or : ABS fault.
 (yel-
low)Together with the warning
lamp
H flashing: Electronic
parking brake faulty.Contact a specialist workshop.
K
(green)Brake pedal not pressed.
Press the brake pedal to select a
gear ratio.
Press the brake pedal to discon-
nect the electronic parking
brake Ÿpage 212.
flashesPossible cause ŸSolution
H (red)
Electronic parking brake
faulty. The control lamp

may light up at the same time
or the control lamp
G may
flash on the button.
Contact a specialised workshop,
as it may not be possible to park
the vehicle in safety.
« (yel-
low)ESP or TCS adjusting.Take your foot off the accelera-
tor. Adjust your driving style to
the road conditions.
lights upPossible cause ŸSolution

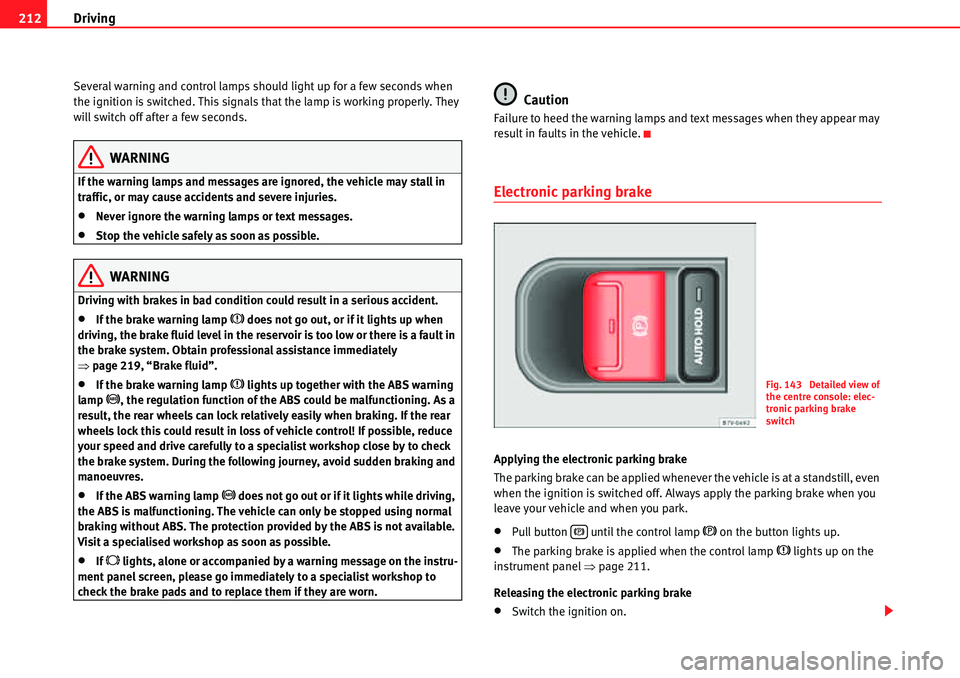

Driving 212
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
WARNING
Driving with brakes in bad condition could result in a serious accident.
xIf the brake warning lamp H does not go out, or if it lights up when
driving, the brake fluid level in the reservoir is too low or there is a fault in
the brake system. Obtain professional assistance immediately
Ÿpage 219, “Brake fluid”.
xIf the brake warning lamp H lights up together with the ABS warning
lamp J, the regulation function of the ABS could be malfunctioning. As a
result, the rear wheels can lock relatively easily when braking. If the rear
wheels lock this could result in loss of vehicle control! If possible, reduce
your speed and drive carefully to a specialist workshop close by to check
the brake system. During the following journey, avoid sudden braking and
manoeuvres.
xIf the ABS warning lamp J does not go out or if it lights while driving,
the ABS is malfunctioning. The vehicle can only be stopped using normal
braking without ABS. The protection provided by the ABS is not available.
Visit a specialised workshop as soon as possible.
xIf I lights, alone or accompanied by a warning message on the instru-
ment panel screen, please go immediately to a specialist workshop to
check the brake pads and to replace them if they are worn.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
Electronic parking brake
Applying the electronic parking brake
The parking brake can be applied whenever the vehicle is at a standstill, even
when the ignition is switched off. Always apply the parking brake when you
leave your vehicle and when you park.
xPull button until the control lamp G on the button lights up.
xThe parking brake is applied when the control lamp H lights up on the
instrument panel Ÿpage 211.
Releasing the electronic parking brake
xSwitch the ignition on.
Fig. 143 Detailed view of
the centre console: elec-
tronic parking brake
switch
G

Driving213
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xPress button . At the same time, press the brake pedal hard or gently
press the accelerator pedal with the engine switched on.
xThe control lamps G on the button and H on the instrument panel go
out.
Automatic release of the electronic parking brake on starting the engine
The electronic parking brake is automatically released when the vehicle starts
moving, if the driver's door is closed and the driver is wearing his/her seat
belt. In vehicles with a manual gearbox the clutch pedal should also be
pressed to the floor before starting the engine so that the system recognises
that the parking brake should be released.
Emergency braking function
Only use the emergency braking function if the vehicle cannot be stopped
with the brake pedal Ÿ!
xPull button hard to stop the vehicle. The warning display will be
accompanied by the corresponding warning chime.
xTo stop the braking process, release the button or press the accelerator.
WARNING
The incorrect use of the electronic parking brake may result in serious acci-
dent.
xNever use the electronic parking brake to brake the vehicle except in an
emergency. The braking distance is considerably longer, because braking
is only applied to the rear wheels. Always use the foot brake.
xNever accelerate from the engine compartment with the engine running
and a gear or a gear range engaged. The vehicle could move, even if the
parking brake is applied.
Note
In vehicles with a manual gearbox: When the clutch pedal is released and the
accelerator pressed at the same time, the electronic parking brake is auto-
matically released.
Note
If the vehicle battery is flat, it will not be possible to disconnect the electronic
parking brake. Use the jump-start Ÿpage 371.
Note
When the electronic parking brake is applied or released, noises may be
heard.
Note
If the electronic parking brake has not been used for a long while, the system
sometimes performs automatic and audible checks while the vehicle is at a
standstill.
Parking
When parking your vehicle, all legal requirements should be observed.
To park the vehicle
Complete operations only in the sequence given.
xPark the vehicle on a suitable surface Ÿ.
xPress and hold the brake pedal until the vehicle comes to a standstill.
xConnect the electronic parking brake Ÿpage 212.
xFor an automatic gearbox, move the selector lever to position P.
G
G

Driving 214
xSwitch off the engine and release the brake pedal.
xRemove the key from the ignition.
xIf necessary, turn the steering wheel slightly to lock the steering.
xWith a manual gearbox, engage the 1st gear on flat ground and slopes, or
even the reverse gear on hills, and release the clutch pedal.
xEnsure that all passengers leave the vehicle, especially children.
xWhen leaving the vehicle, take all keys with you.
xLock the vehicle.
Additional information for steep slopes and hills
Before switching off the engine, rotate the steering wheel so that if the
vehicle should move then it will be held by the kerb.
xOn slopes, turn the front wheels so that they are against the edge of the
kerb.
xUphill, turn the wheels towards the centre of the road.
WARNING
The components of the exhaust system reach very high temperatures. This
could cause a fire and considerable damage.
xAlways park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as wood, leaves, spilled
fuel, dried grass, etc).
Caution
xSpecial care should be taken when parking in areas with high kerbs or
fixed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres. To avoid damage, stop
before the wheels touched the barrier or kerb.
xSpecial attention is required when driving through entrances, over ramps,
kerbs or other objects. The vehicle underbody, bumpers, mudguards and running gear, and the engine and exhaust system could be damaged as you
drive over these objects.
Information about the brakes
For the first 200 to 300 km (100 to 200 miles), new brake pads have not yet
reached their maximum braking capacity, and need to be run in first Ÿ.
The slightly reduced braking effect can be compensated for by increasing
pressure on the brake pedal. While running in, the full braking distance or
emergency braking distance is larger then when the brake pads have been
run in. While running in, avoid full power braking or situations requiring
braking performance. For example, in heavy traffic.
The rate of wear of the brake pads depends to a great extent on the condi-
tions in which the vehicle is used and the way the vehicle is driven. If the
vehicle is used frequently in city traffic or for short trips or driven sport style,
visit a specialist workshop regularly more frequently than advised in the
Maintenance Programme to have the bake pads checked.
If you drive with wet brakes, for example, after crossing areas of water, in
heavy rainfall or even after washing the car, the effect of the brakes is less-
ened as the brake discs are wet or even frozen (in winter). At higher speed,
dry the brakes as quickly as possible by braking gently several times. Only do
this without endangering vehicles behind you or any other road users Ÿ.
A layer of salt on the discs and brake pads will reduce brake efficiency and
increase braking distance. If you drive for a prolonged period on salted roads
without braking then brake carefully several times to eliminate the layer of
salt on the brakes Ÿ.
If the vehicle remains parked for considerable lengths of time, is used little,
or if the brakes are not used, there may be corrosion on the brake discs and
a buildup of dirt on the brake pads. If the brakes are not used frequently, or
if rust has formed on the discs, SEAT recommends cleaning the pads and

Driving215
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a discs by braking firmly a few times at a moderately high speed. Only do this
without endangering vehicles behind you or any other road users Ÿ.

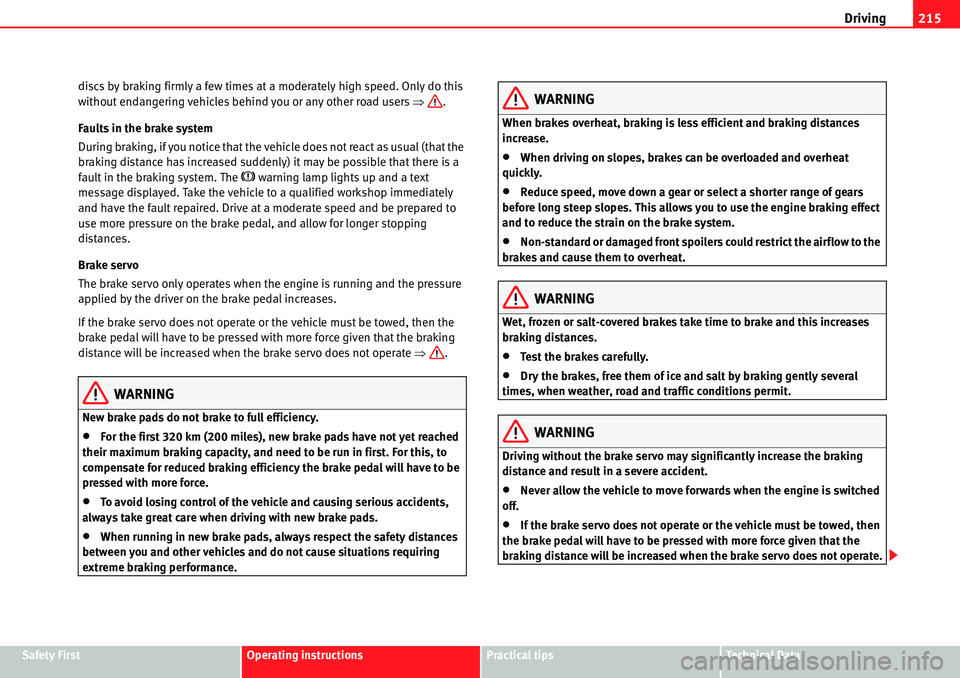

Faults in the brake system
During braking, if you notice that the vehicle does not react as usual (that the
braking distance has increased suddenly) it may be possible that there is a
fault in the braking system. The
H warning lamp lights up and a text
message displayed. Take the vehicle to a qualified workshop immediately
and have the fault repaired. Drive at a moderate speed and be prepared to
use more pressure on the brake pedal, and allow for longer stopping
distances.
Brake servo
The brake servo only operates when the engine is running and the pressure
applied by the driver on the brake pedal increases.
If the brake servo does not operate or the vehicle must be towed, then the
brake pedal will have to be pressed with more force given that the braking
distance will be increased when the brake servo does not operate Ÿ.
WARNING
New brake pads do not brake to full efficiency.
xFor the first 320 km (200 miles), new brake pads have not yet reached
their maximum braking capacity, and need to be run in first. For this, to
compensate for reduced braking efficiency the brake pedal will have to be
pressed with more force.
xTo avoid losing control of the vehicle and causing serious accidents,
always take great care when driving with new brake pads.
xWhen running in new brake pads, always respect the safety distances
between you and other vehicles and do not cause situations requiring
extreme braking performance.
WARNING
When brakes overheat, braking is less efficient and braking distances
increase.
xWhen driving on slopes, brakes can be overloaded and overheat
quickly.
xReduce speed, move down a gear or select a shorter range of gears
before long steep slopes. This allows you to use the engine braking effect
and to reduce the strain on the brake system.
xNon-standard or damaged front spoilers could restrict the airflow to the
brakes and cause them to overheat.
WARNING
Wet, frozen or salt-covered brakes take time to brake and this increases
braking distances.
xTest the brakes carefully.
xDry the brakes, free them of ice and salt by braking gently several
times, when weather, road and traffic conditions permit.
WARNING
Driving without the brake servo may significantly increase the braking
distance and result in a severe accident.
xNever allow the vehicle to move forwards when the engine is switched
off.
xIf the brake servo does not operate or the vehicle must be towed, then
the brake pedal will have to be pressed with more force given that the
braking distance will be increased when the brake servo does not operate.

Driving 216

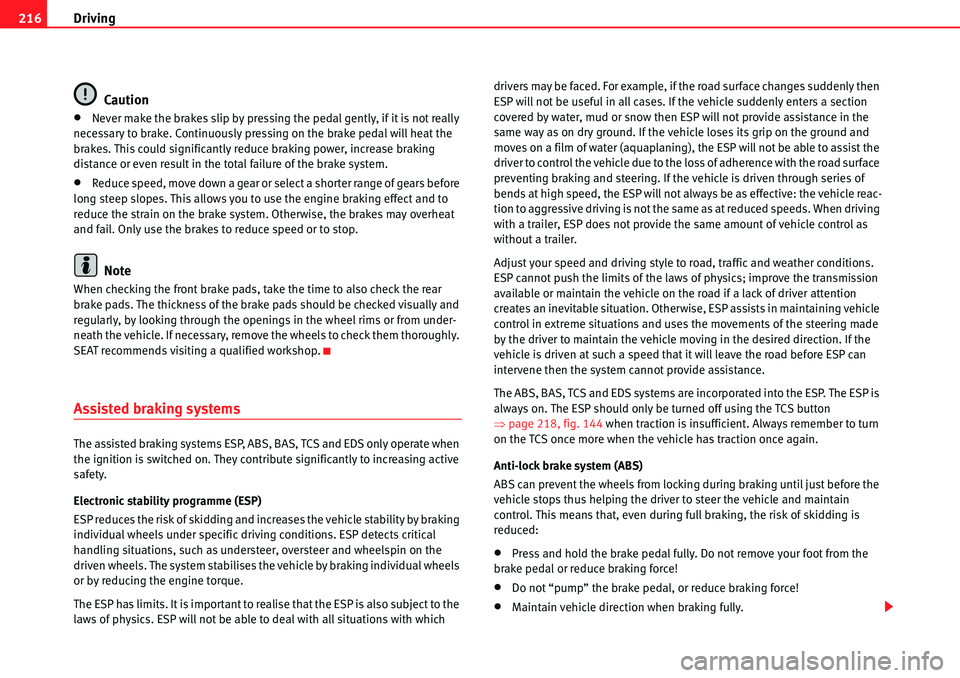

Caution
xNever make the brakes slip by pressing the pedal gently, if it is not really
necessary to brake. Continuously pressing on the brake pedal will heat the
brakes. This could significantly reduce braking power, increase braking
distance or even result in the total failure of the brake system.
xReduce speed, move down a gear or select a shorter range of gears before
long steep slopes. This allows you to use the engine braking effect and to
reduce the strain on the brake system. Otherwise, the brakes may overheat
and fail. Only use the brakes to reduce speed or to stop.
Note
When checking the front brake pads, take the time to also check the rear
brake pads. The thickness of the brake pads should be checked visually and
regularly, by looking through the openings in the wheel rims or from under-
neath the vehicle. If necessary, remove the wheels to check them thoroughly.
SEAT recommends visiting a qualified workshop.
Assisted braking systems
The assisted braking systems ESP, ABS, BAS, TCS and EDS only operate when
the ignition is switched on. They contribute significantly to increasing active
safety.
Electronic stability programme (ESP)
ESP reduces the risk of skidding and increases the vehicle stability by braking
individual wheels under specific driving conditions. ESP detects critical
handling situations, such as understeer, oversteer and wheelspin on the
driven wheels. The system stabilises the vehicle by braking individual wheels
or by reducing the engine torque.
The ESP has limits. It is important to realise that the ESP is also subject to the
laws of physics. ESP will not be able to deal with all situations with which drivers may be faced. For example, if the road surface changes suddenly then
ESP will not be useful in all cases. If the vehicle suddenly enters a section
covered by water, mud or snow then ESP will not provide assistance in the
same way as on dry ground. If the vehicle loses its grip on the ground and
moves on a film of water (aquaplaning), the ESP will not be able to assist the
driver to control the vehicle due to the loss of adherence with the road surface
preventing braking and steering. If the vehicle is driven through series of
bends at high speed, the ESP will not always be as effective: the vehicle reac-
tion to aggressive driving is not the same as at reduced speeds. When driving
with a trailer, ESP does not provide the same amount of vehicle control as
without a trailer.
Adjust your speed and driving style to road, traffic and weather conditions.
ESP cannot push the limits of the laws of physics; improve the transmission
available or maintain the vehicle on the road if a lack of driver attention
creates an inevitable situation. Otherwise, ESP assists in maintaining vehicle
control in extreme situations and uses the movements of the steering made
by the driver to maintain the vehicle moving in the desired direction. If the
vehicle is driven at such a speed that it will leave the road before ESP can
intervene then the system cannot provide assistance.
The ABS, BAS, TCS and EDS systems are incorporated into the ESP. The ESP is
always on. The ESP should only be turned off using the TCS button
Ÿpage 218, fig. 144 when traction is insufficient. Always remember to turn
on the TCS once more when the vehicle has traction once again.
Anti-lock brake system (ABS)
ABS can prevent the wheels from locking during braking until just before the
vehicle stops thus helping the driver to steer the vehicle and maintain
control. This means that, even during full braking, the risk of skidding is
reduced:
xPress and hold the brake pedal fully. Do not remove your foot from the
brake pedal or reduce braking force!
xDo not “pump” the brake pedal, or reduce braking force!
xMaintain vehicle direction when braking fully.

Driving217
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xWhen the brake pedal is released or when the brake force is reduced, ABS
is turned off.
ABS control can be observed by vibration of the brake pedal and noise. You
should never expect the ABS to reduce the braking distance under any
circumstances. Braking distances will increase when driving on gravel, recent
snow or on icy and slippery ground.
When driving on loose ground, the all-terrain configuration of the ABS is auto-
matically turned on. When ABS is activated, the front wheels may lock briefly.
This shortens the braking distance in off-road situations as the wheels are
prevented from digging into loose surfaces. All-terrain ABS only intervenes
when driving in a straight line. When the front wheels are turned, the normal
ABS is activated.
Braking assist system (BAS)
The brake assist system may reduce the required braking distance. The brake
assist system boosts the braking force if you press the brake pedal quickly in
an emergency. As a result, the braking pressure increases rapidly, the braking
force is multiplied and the braking distance is reduced. This enables the ABS
to be activated more quickly and efficiently.
¡Do not lift your foot off the brake pedal! When the brake pedal is released or
when the brake force is reduced, braking assist automatically turns off the
brake servo.
Traction control when accelerating (TCS)
In the event of wheelspin, the traction control system reduces the engine
torque to match the amount of grip available. The TCS makes some situations
easier, for example, when starting, accelerating or going uphill, even in unfa-
vourable road conditions.
The TCS can be switched on or off manually Ÿpage 218.
Electronic differential lock system (EDS)
EDS is available when driving in straight lines under normal conditions. When
the EDL detects wheelspin, it brakes the spinning wheel and directs the power to the other driven wheels. To prevent the disc brake of the braked
wheel from overheating, the EDL cuts out automatically if subjected to exces-
sive loads. The EDL will switch on again automatically when the brake has
cooled down.
WARNING
Driving at high speed on icy, slippery wet ground can result in loss of
vehicle control and serious injury to the driver and passengers.
xAdjust your speed and driving style to visibility, road, traffic and
weather conditions. Even though the braking assist systems, ABS, BAS,
EDS, TCS and ESP, provide more security, do not take unnecessary risks
while driving.
xBraking assist systems can not overcome the laws of physics. Even with
ESP and other systems, slippery and wet roads will always be dangerous.
xDriving to quickly on wet ground can result in the wheels losing contact
with the ground in an effect known as aquaplaning. Without adherence, it
is impossible to brake, steer or control the vehicle.
xBraking assist systems cannot avoid accidents if, for example, the
driver does not respect safety distances or drives to quickly in difficult
conditions.
xEven though braking assist systems are extremely effective and help
control the vehicle in difficult situations, remember that the vehicle
stability depends on tyre grip.
xWhen accelerating on a slippery surface, for example on ice and snow,
press the accelerator carefully. The wheels can still slip even with braking
assist systems resulting in loss of vehicle control.
WARNING
The effectiveness of the ESP can be considerably reduced if other compo-
nents and systems affecting driving dynamics are not maintained or are not

Driving 218
functioning correctly. This includes, among others, brakes, tyres and other
systems already mentioned.
xRemember that changing and fitting other components to the vehicle
can affect operation of the ABS, BAS, ASL EDL and ESP.
xChanges to the vehicle suspension or using unapproved wheel/tyre
combinations can affect operation of the ABS, BAS, ASL EDL and ESP and
their effectiveness.
xLikewise, the effectiveness of ESP depends on the use of suitable tyres
Ÿpage 323.
Note
To ensure that the ESP and TCS work properly, all four wheels must be fitted
with identical tyres. Any differences in the rolling radius of the tyres can cause
the system to reduce engine power when this is not desired.
Note
If a malfunction should occur in the ABS, the ESP, TCS and EDS will also be
affected.
Note
Noises may be heard while any of the above systems are operating.

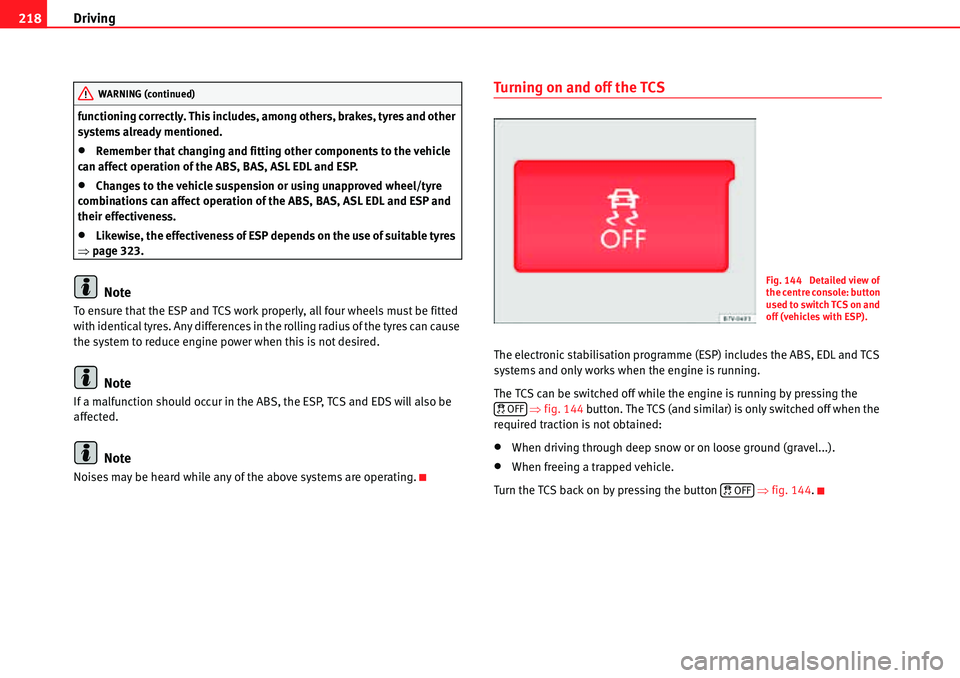

Turning on and off the TCS
The electronic stabilisation programme (ESP) includes the ABS, EDL and TCS
systems and only works when the engine is running.
The TCS can be switched off while the engine is running by pressing the
Ÿfig. 144 button. The TCS (and similar) is only switched off when the
required traction is not obtained:
xWhen driving through deep snow or on loose ground (gravel...).
xWhen freeing a trapped vehicle.
Turn the TCS back on by pressing the button Ÿfig. 144.
WARNING (continued)
Fig. 144 Detailed view of
the centre console: button
used to switch TCS on and
off (vehicles with ESP).
« OFF
« OFF

Driving219
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
Brake fluid
In the course of time, the brake fluid absorbs water from the ambient air. If
there is too much water contained in the brake fluid, the brake system could
be damaged. In addition, the boiling point of the brake fluid is significantly
lowered. When the brake fluid contains too much water and the brakes are
subject to considerable forces, bubbles of water vapour can form in the
system. These bubbles of water vapour can significantly reduce braking
power, notably increasing braking distance, and could even result in the total
failure of the brake system. Ensuring that the brake system is always func-
tioning correctly is essential for your own safety and the safety of other road
users Ÿ.
Brake fluid specifications
SEAT have developed a special brake fluid optimised for the brake systems of
their vehicles. To ensure the optimum working of the brake system, SEAT
recommends the use of brake fluid in accordance with the VW 501 14
standard. If this brake fluid is not available or another brake fluid is used for
different reasons, use a brake fluid that complies with the United States standard FMVSS 116 DOT 4 or the German standard DIN ISO 4925 CLASS 4
Ÿ.
Brake fluids conforming to the standard VW 501 14, fulfil the American
requirements of the FMVSS 116 DOT 4 standard and the German DIN ISO
4925 CLASS 4 standard. However, fluids that comply with the American
FMVSS 116 DOT 4 standard or the German DIN ISO 4925 CLASS 4 standard do
not necessarily comply with the VW 501 14 standard. Always check the infor-
mation on the brake fluid container and ensure that you are using suitable
brake fluid.
A suitable brake fluid can be obtained from Authorised Service Centres.
Brake fluid level
The level of the brake fluid should always be between the MIN and MAX
marks, or above the MIN mark Ÿ.
It is not always possible to check the level of the brake fluid, as in some
models the engine components make it difficult to see the brake fluid reser-
voir. If you cannot read the exact brake fluid level, consult a specialist.
The brake fluid level drops slightly when the vehicle is being used due to wear
of the brake pads and the automatic readjustment of the brake.
Changing the brake fluid
The brake fluid should be changed in accordance with the instructions given
in the Maintenance Programme. Have the brake fluid changed by a qualified
workshop. SEAT recommends visiting a qualified workshop. This means that
only brake fluid complying with the required specifications will be used.
WARNING
If the brake fluid level is low or unsuitable/old brake fluid is used, the brake
system may fail or braking power will be reduced.
xCheck the brake system and the brake fluid level regularly!
xThe brake fluid should be changed regularly in accordance with the
instructions given in the Maintenance Programme.
Fig. 145 In the engine
compartment: brake fluid
reservoir, lid
