Seat Alhambra 2010 Owner's Manual

Driving 240

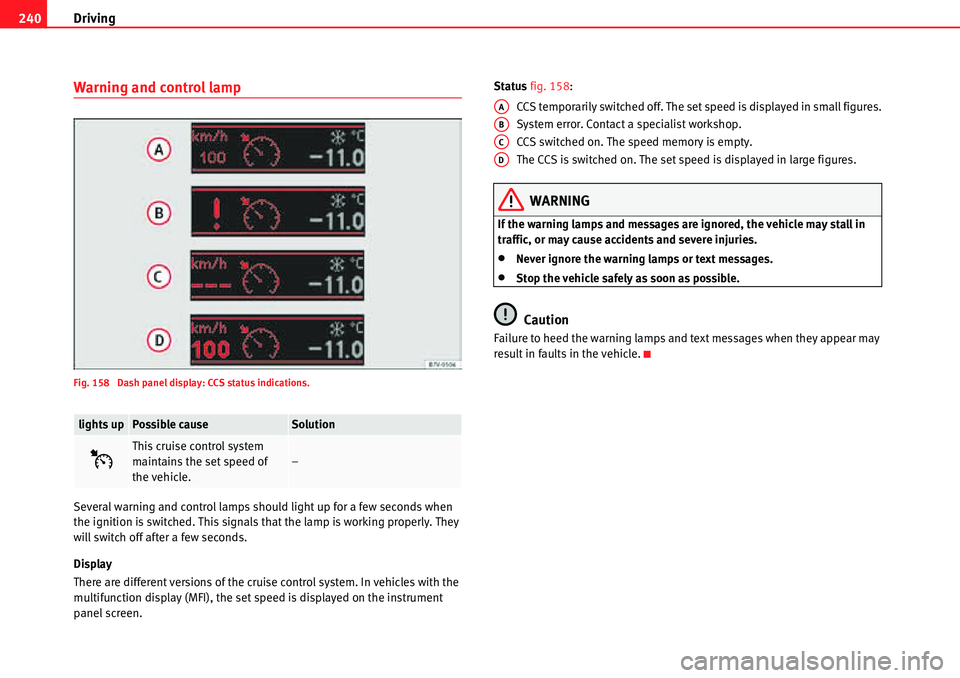

Warning and control lamp
Fig. 158 Dash panel display: CCS status indications.
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
Display
There are different versions of the cruise control system. In vehicles with the
multifunction display (MFI), the set speed is displayed on the instrument
panel screen.Status fig. 158:
CCS temporarily switched off. The set speed is displayed in small figures.
System error. Contact a specialist workshop.
CCS switched on. The speed memory is empty.
The CCS is switched on. The set speed is displayed in large figures.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
lights upPossible causeSolution
%
This cruise control system
maintains the set speed of
the vehicle.–
AA
AB
AC
AD

Driving241
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

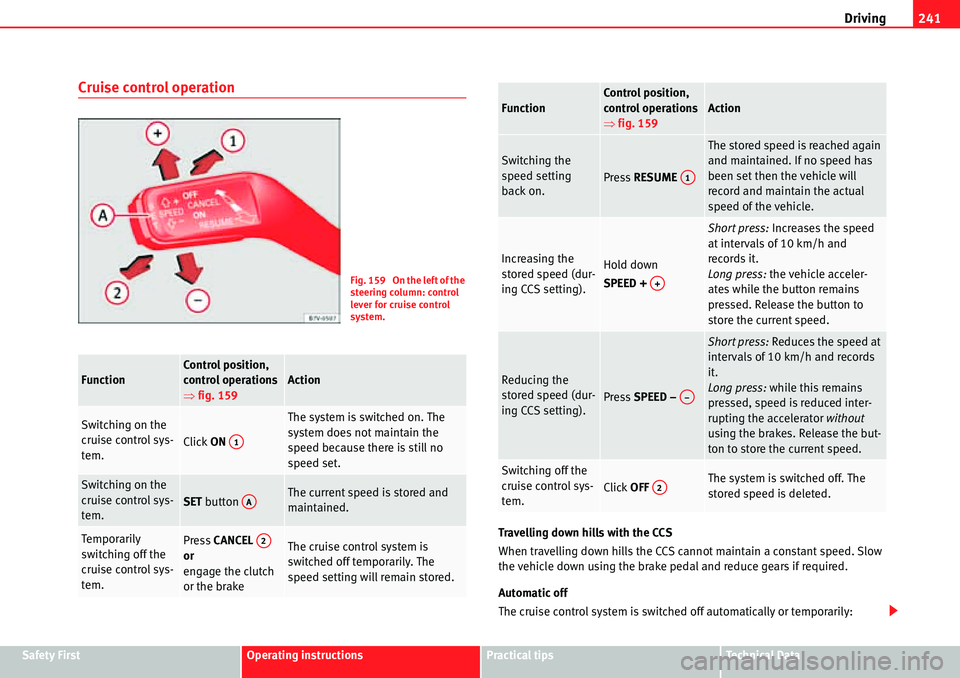

Cruise control operation
Travelling down hills with the CCS
When travelling down hills the CCS cannot maintain a constant speed. Slow
the vehicle down using the brake pedal and reduce gears if required.
Automatic off
The cruise control system is switched off automatically or temporarily:
FunctionControl position,
control operations
Ÿfig. 159Action
Switching on the
cruise control sys-
tem.
Click ON
The system is switched on. The
system does not maintain the
speed because there is still no
speed set.
Switching on the
cruise control sys-
tem.
SET button The current speed is stored and
maintained.
Tempo rarily
switching off the
cruise control sys-
tem.Press CANCEL
or
engage the clutch
or the brakeThe cruise control system is
switched off temporarily. The
speed setting will remain stored.
Fig. 159 On the left of the
steering column: control
lever for cruise control
system.
A1
AA
A2
Switching the
speed setting
back on.
Press RESUME
The stored speed is reached again
and maintained. If no speed has
been set then the vehicle will
record and maintain the actual
speed of the vehicle.
Increasing the
stored speed (dur-
ing CCS setting).Hold down
SPEED +
Short press: Increases the speed
at intervals of 10 km/h and
records it.
Long press: the vehicle acceler-
ates while the button remains
pressed. Release the button to
store the current speed.
Reducing the
stored speed (dur-
ing CCS setting).
Press SPEED –
Short press: Reduces the speed at
intervals of 10 km/h and records
it.
Long press: while this remains
pressed, speed is reduced inter-
rupting the accelerator without
using the brakes. Release the but-
ton to store the current speed.
Switching off the
cruise control sys-
tem.
Click OFF The system is switched off. The
stored speed is deleted.
FunctionControl position,
control operations
Ÿfig. 159Action
A1
A+
A

Driving 242

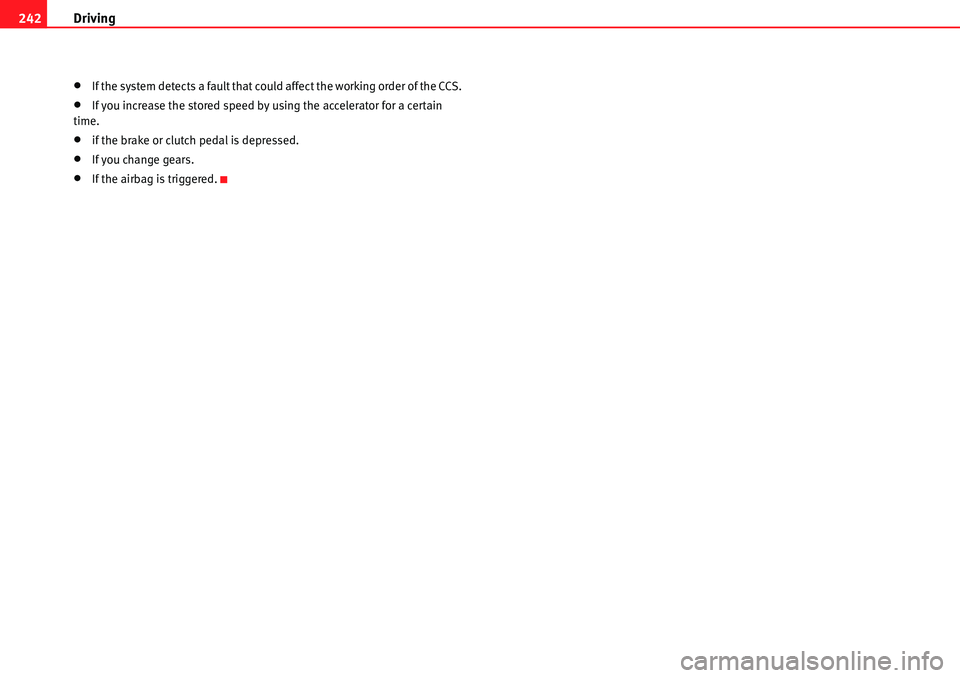

xIf the system detects a fault that could affect the working order of the CCS.
xIf you increase the stored speed by using the accelerator for a certain
time.
xif the brake or clutch pedal is depressed.
xIf you change gears.
xIf the airbag is triggered.

Driving243
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

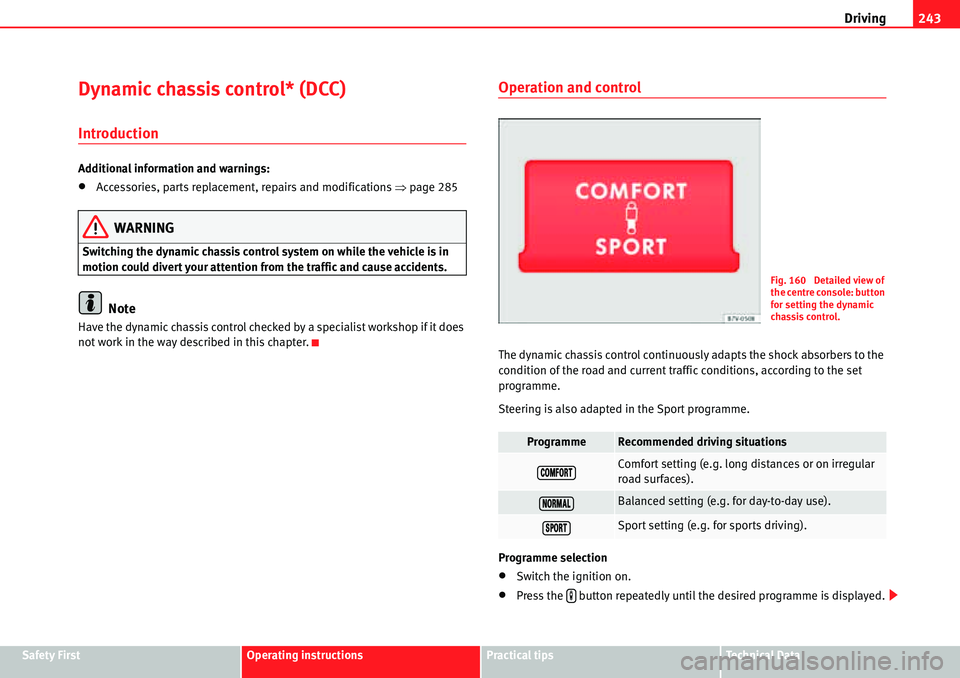

Dynamic chassis control* (DCC)
Introduction
Additional information and warnings:
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Switching the dynamic chassis control system on while the vehicle is in
motion could divert your attention from the traffic and cause accidents.
Note
Have the dynamic chassis control checked by a specialist workshop if it does
not work in the way described in this chapter.
Operation and control
The dynamic chassis control continuously adapts the shock absorbers to the
condition of the road and current traffic conditions, according to the set
programme.
Steering is also adapted in the Sport programme.
Programme selection
xSwitch the ignition on.
xPress the button repeatedly until the desired programme is displayed.
ProgrammeRecommended driving situations
Comfort setting (e.g. long distances or on irregular
road surfaces).
Balanced setting (e.g. for day-to-day use).
Sport setting (e.g. for sports driving).
Fig. 160 Detailed view of
the centre console: button
for setting the dynamic
chassis control.
#/-&/24
./2-!,
30/24
Q

Driving 244

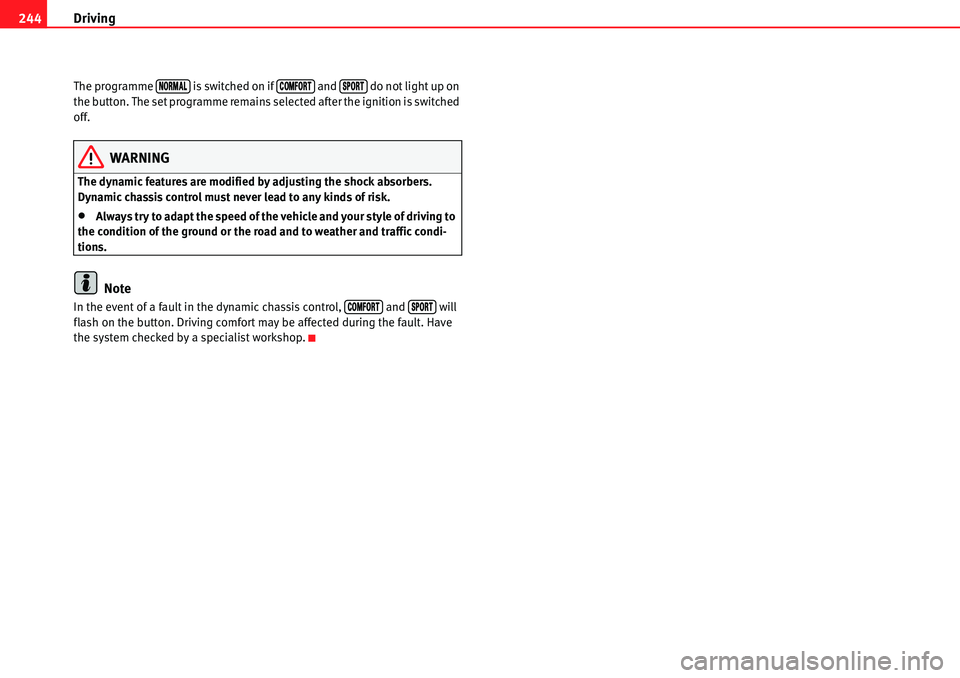

The programme is switched on if and do not light up on
the button. The set programme remains selected after the ignition is switched
off.
WARNING
The dynamic features are modified by adjusting the shock absorbers.
Dynamic chassis control must never lead to any kinds of risk.
xAlways try to adapt the speed of the vehicle and your style of driving to
the condition of the ground or the road and to weather and traffic condi-
tions.
Note
In the event of a fault in the dynamic chassis control, and will
flash on the button. Driving comfort may be affected during the fault. Have
the system checked by a specialist workshop.
./2-!,#/-&/2430/24
#/-&/2430/24

Driving245
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

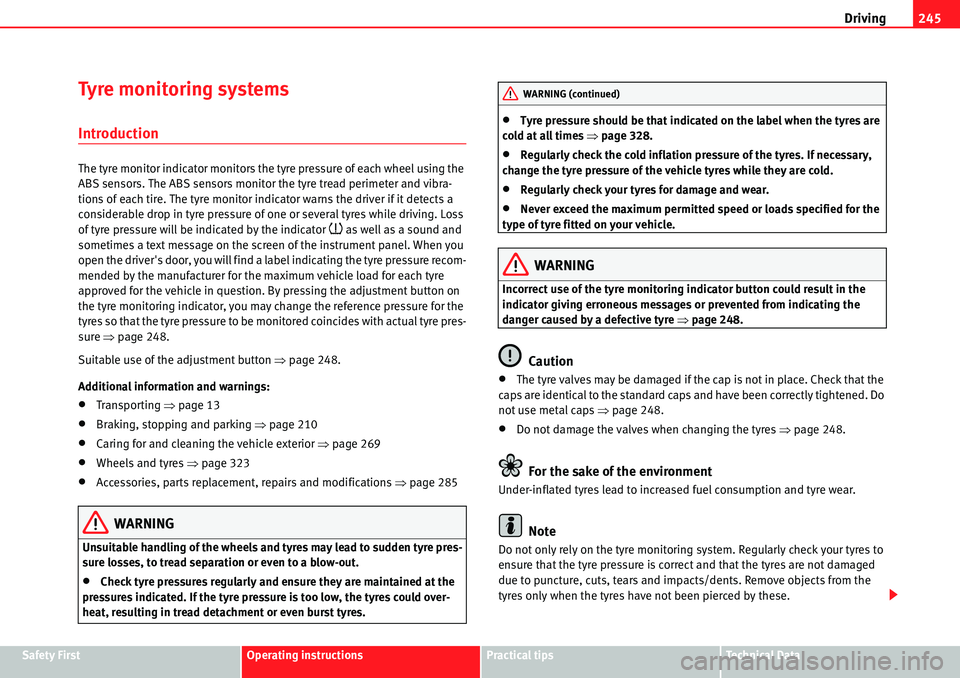

Tyre monitoring systems
Introduction
The tyre monitor indicator monitors the tyre pressure of each wheel using the
ABS sensors. The ABS sensors monitor the tyre tread perimeter and vibra-
tions of each tire. The tyre monitor indicator warns the driver if it detects a
considerable drop in tyre pressure of one or several tyres while driving. Loss
of tyre pressure will be indicated by the indicator
~ as well as a sound and
sometimes a text message on the screen of the instrument panel. When you
open the driver's door, you will find a label indicating the tyre pressure recom-
mended by the manufacturer for the maximum vehicle load for each tyre
approved for the vehicle in question. By pressing the adjustment button on
the tyre monitoring indicator, you may change the reference pressure for the
tyres so that the tyre pressure to be monitored coincides with actual tyre pres-
sure Ÿpage 248.
Suitable use of the adjustment button Ÿpage 248.
Additional information and warnings:
xTransporting Ÿpage 13
xBraking, stopping and parking Ÿpage 210
xCaring for and cleaning the vehicle exterior Ÿpage 269
xWheels and tyres Ÿpage 323
xAccessories, parts replacement, repairs and modifications Ÿpage 285
WARNING
Unsuitable handling of the wheels and tyres may lead to sudden tyre pres-
sure losses, to tread separation or even to a blow-out.
xCheck tyre pressures regularly and ensure they are maintained at the
pressures indicated. If the tyre pressure is too low, the tyres could over-
heat, resulting in tread detachment or even burst tyres.
xTyre pressure should be that indicated on the label when the tyres are
cold at all times Ÿpage 328.
xRegularly check the cold inflation pressure of the tyres. If necessary,
change the tyre pressure of the vehicle tyres while they are cold.
xRegularly check your tyres for damage and wear.
xNever exceed the maximum permitted speed or loads specified for the
type of tyre fitted on your vehicle.
WARNING
Incorrect use of the tyre monitoring indicator button could result in the
indicator giving erroneous messages or prevented from indicating the
danger caused by a defective tyre Ÿpage 248.
Caution
xThe tyre valves may be damaged if the cap is not in place. Check that the
caps are identical to the standard caps and have been correctly tightened. Do
not use metal caps Ÿpage 248.
xDo not damage the valves when changing the tyres Ÿpage 248.
For the sake of the environment
Under-inflated tyres lead to increased fuel consumption and tyre wear.
Note
Do not only rely on the tyre monitoring system. Regularly check your tyres to
ensure that the tyre pressure is correct and that the tyres are not damaged
due to puncture, cuts, tears and impacts/dents. Remove objects from the
tyres only when the tyres have not been pierced by these.
WARNING (continued)

Driving 246
Note
The tyre monitoring system is set to the tyre pressure recommended by the
manufacturer and indicated on the label Ÿpage 328, fig. 183.

Driving247
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

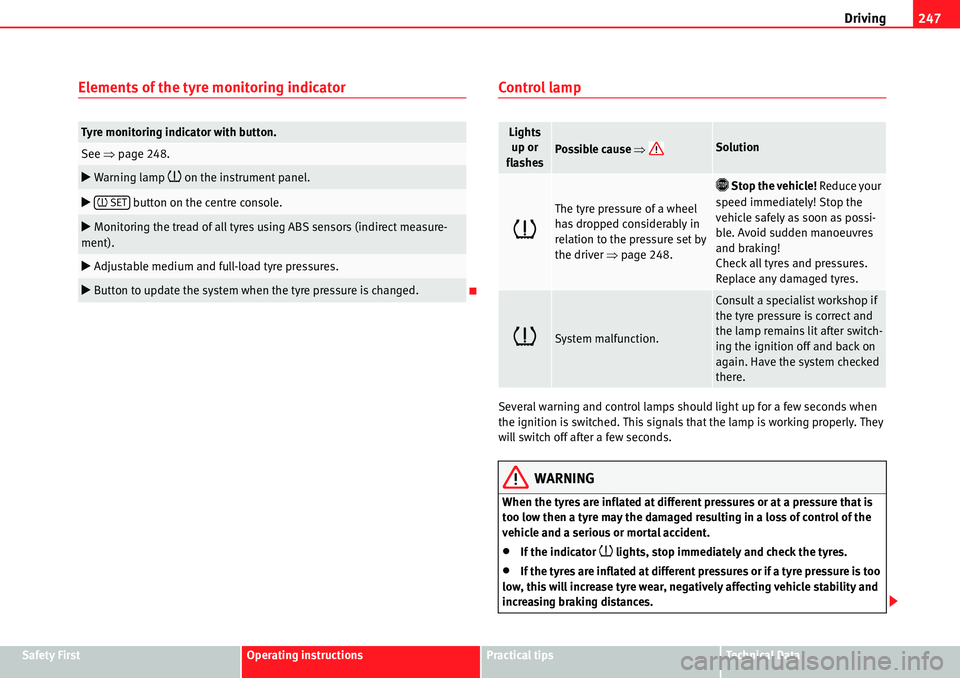

Elements of the tyre monitoring indicatorControl lamp
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
WARNING
When the tyres are inflated at different pressures or at a pressure that is
too low then a tyre may the damaged resulting in a loss of control of the
vehicle and a serious or mortal accident.
xIf the indicator ~ lights, stop immediately and check the tyres.
xIf the tyres are inflated at different pressures or if a tyre pressure is too
low, this will increase tyre wear, negatively affecting vehicle stability and
increasing braking distances.
Tyre monitoring indicator with button.
See Ÿpage 248.
b Warning lamp ~ on the instrument panel.
b button on the centre console.
b Monitoring the tread of all tyres using ABS sensors (indirect measure-
ment).
b Adjustable medium and full-load tyre pressures.
b Button to update the system when the tyre pressure is changed.
~ SET
Lights
up or
flashes
Possible cause ŸSolution
~
The tyre pressure of a wheel
has dropped considerably in
relation to the pressure set by
the driver Ÿpage 248.
› Stop the vehicle! Reduce your
speed immediately! Stop the
vehicle safely as soon as possi-
ble. Avoid sudden manoeuvres
and braking!
Check all tyres and pressures.
Replace any damaged tyres.
~System malfunction.
Consult a specialist workshop if
the tyre pressure is correct and
the lamp remains lit after switch-
ing the ignition off and back on
again. Have the system checked
there.

Driving 248
xIf tyres are inflated at different pressures or a tyre pressure is too low,
a tyre may be damaged and burst resulting in a loss of control of the
vehicle.
xThe driver is responsible for ensuring that all of the vehicle tyres are
correctly inflated to the right pressure. The recommended tyre pressure is
indicated on the label Ÿpage 328, fig. 183.
xThe tyre monitoring system can only operate correctly if all of the tyres
are inflated to the correct pressure when cold.
xDriving with tyres at the wrong pressure can cause damage to them and
result in an accident. Ensure that the tyre pressures of all the tyres corre-
spond to the vehicle load.
xBefore starting a journey, always inflated tyres to the correct pressure.
xIf tyre pressure is too low then the tyre is subject to greater forces and
it may be heated to such an extent that the tread can rupture and the tyre
will burst.
xWith an overloaded vehicle at high speed, the tyres can overheat and
burst resulting in a loss of vehicle control.
xTyre pressures which are too high or too low reduce the useful life of the
tyre, affecting the vehicle's performance.
xIf a tyre has not been punctured then it does not have to be changed
immediately; drive to the nearest specialist workshop at a moderate speed
and have the tyre checked and inflated to the correct pressure.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
xNever ignore the warning lamps or text messages.
xStop the vehicle safely as soon as possible.
Caution
Failure to heed the warning lamps and text messages when they appear may
result in faults in the vehicle.
Tyre monitoring indicator
The tyre monitor indicator compares wheel revolutions and, with this informa-
tion, the tread of each wheel using the ABS sensors. If the tread of a wheel is
changed, the tyre monitoring indicator will indicate as such on the instrument
panel. The wheel tread changes when:
xTyre pressure is insufficient.
xTyre structure is damaged.
xThe vehicle is unbalanced because of a load.
xThe wheels on an axle are subject to a heavier load (e.g. when towing a
trailer).
WARNING (continued)
Fig. 161 Detailed view of
the centre console: button
for the tyre pressure
monitoring indicator.

Driving249
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a

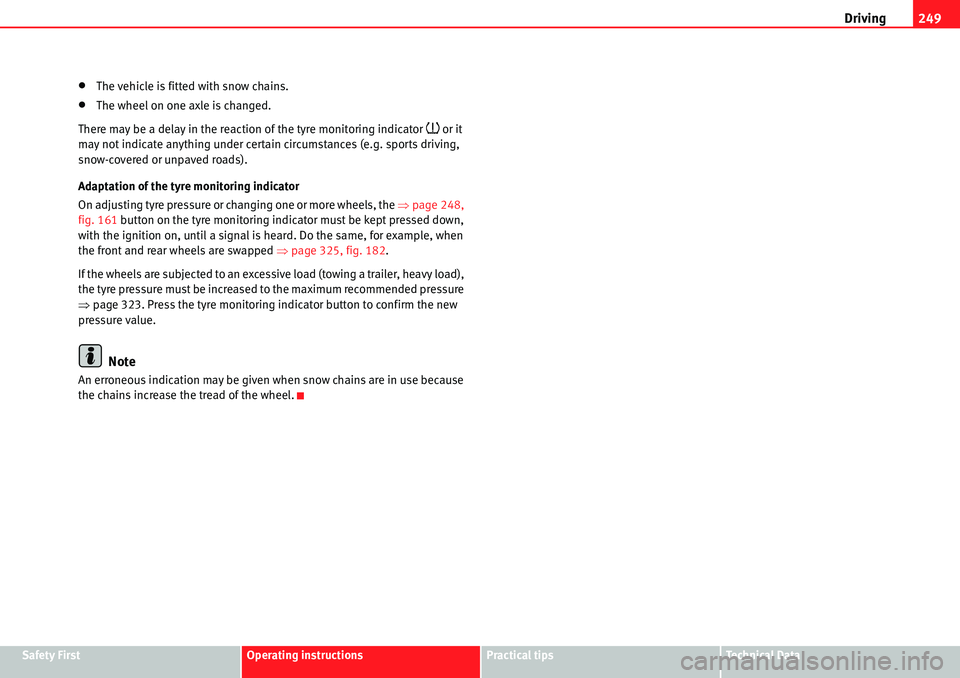

xThe vehicle is fitted with snow chains.
xThe wheel on one axle is changed.
There may be a delay in the reaction of the tyre monitoring indicator
~ or it
may not indicate anything under certain circumstances (e.g. sports driving,
snow-covered or unpaved roads).
Adaptation of the tyre monitoring indicator
On adjusting tyre pressure or changing one or more wheels, the Ÿpage 248,
fig. 161 button on the tyre monitoring indicator must be kept pressed down,
with the ignition on, until a signal is heard. Do the same, for example, when
the front and rear wheels are swapped Ÿpage 325, fig. 182.
If the wheels are subjected to an excessive load (towing a trailer, heavy load),
the tyre pressure must be increased to the maximum recommended pressure
Ÿpage 323. Press the tyre monitoring indicator button to confirm the new
pressure value.
Note
An erroneous indication may be given when snow chains are in use because
the chains increase the tread of the wheel.
